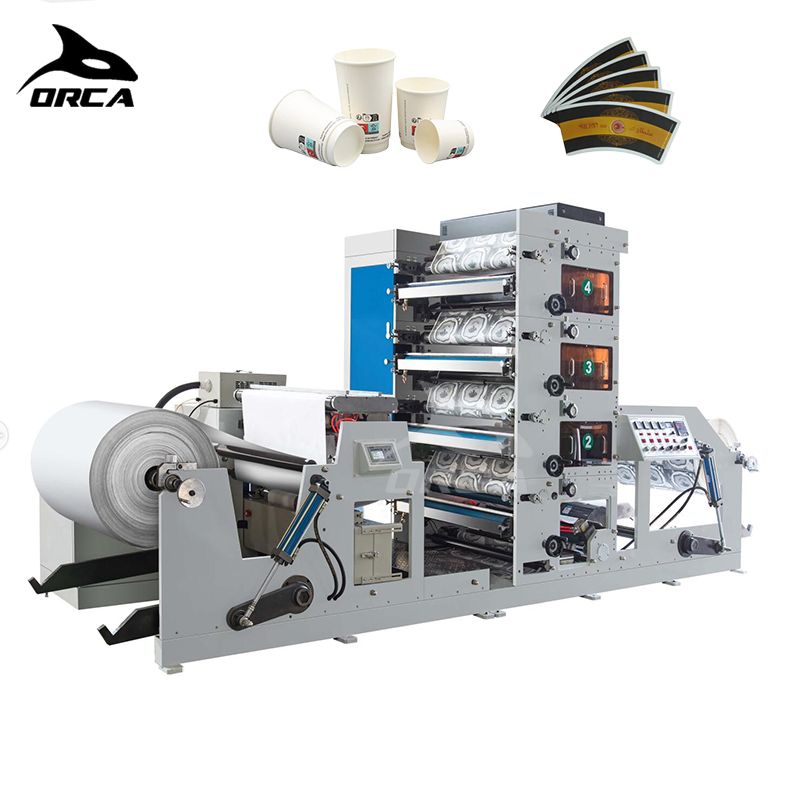

Fully Automatic 4 Color Offset Non-Woven PP Woven Bags Paper Cup Printer Pizza Corrugated Box Printing Machine

Basic Specifications

Model NO.

RY850B-4C

Printing Page

Single Faced

Printing Color

4 Colors

Anilox Roller

Ceramic Anilox Roller

Dryer

IR

Structure

Stacked

Application

Flexible Packaging Printing

Automatic Grade

Automatic

Printing Speed

55-60m/Min

HS Code

8443160090

Production Capacity

30 Sets/Month

Product Features

1

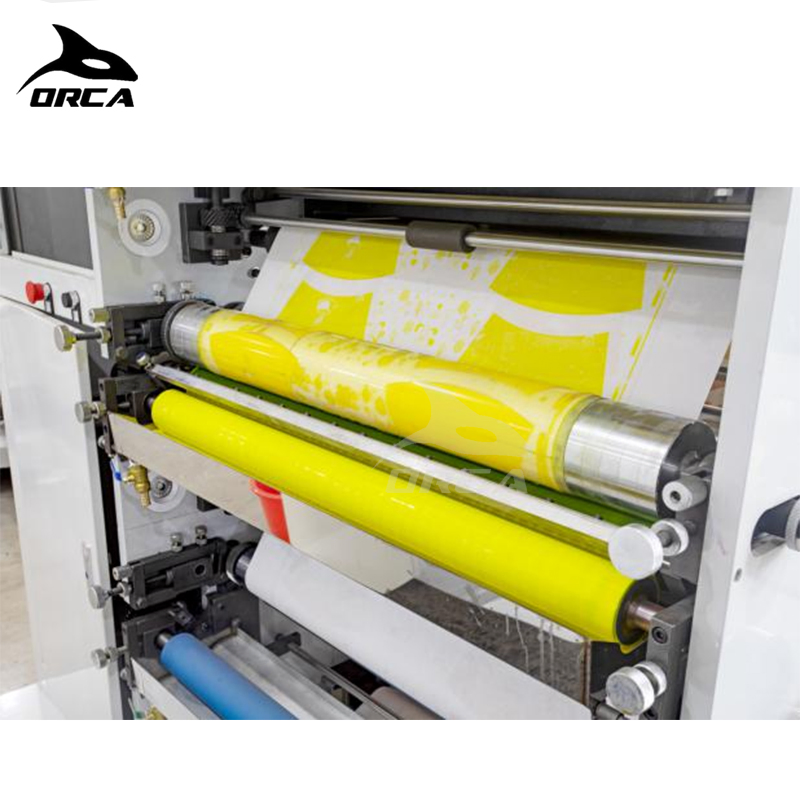

Ceramic Anilox Roller Inking

The machine adopts a high-precision ceramic anilox roller for ink transfer, ensuring even inking and long service life.

2

Magnetic Powder Brake

The unwinding unit is equipped with a magnetic powder brake. Optional Mitsubishi automatic tension controller is available for precise control.

3

7.5KW Inverter Motor

The rewinding unit is powered by a 7.5KW variable frequency motor, controlled by a dedicated inverter for smooth operation.

4

360° Registration Adjustment

Each printing unit features 360-degree circumferential register adjustment for precise color alignment.

5

Infrared Drying System

Every printing station is equipped with an infrared drying device for efficient and fast ink curing.

6

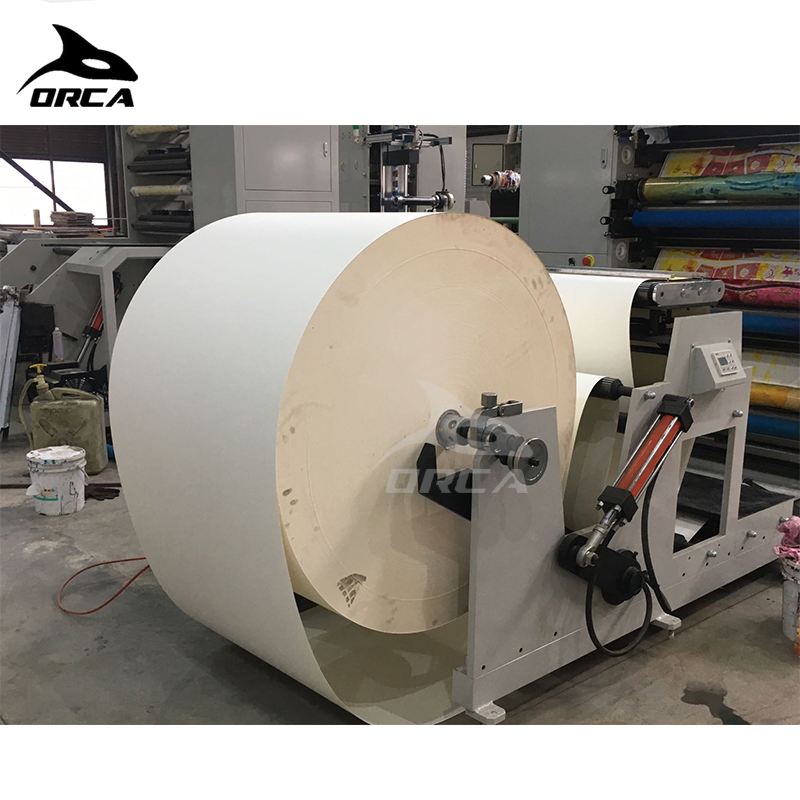

Independent Unwinding & Rewinding

Features hydraulic auto loading/unloading and a front-unwind, rear-rewind layout for optimized workflow.

Technical Parameters

Model	RY850B-4C	RY950-4C	RY1000-4C
Printing Colors	4 Colors
Printing Speed	55-60 m/min
Max. Printing Width	850 mm	940 mm	1000 mm
Max. Unwinding Dia.	1300 mm
Printing Circumference	175-380 mm
Total Power	45 kW	45 kW	50 kW
Overprint Accuracy	±0.10 mm

Product Details Display

Frequently Asked Questions

Q: What is your delivery time?

A: Typically, we complete production within 30-45 days after receiving your 30% advance payment, depending on stock and schedule.

Q: What are your payment terms?

A: We accept T/T (30% deposit in advance, 70% balance before shipment) and cash payments.

Q: What is the warranty period for your machines?

A: All our machines come with a one-year warranty, starting from the completion of installation.

Q: What happens after the warranty period ends?

A: We continue to provide support. If on-site service is required, a technician fee of $150/day applies.

Q: What if parts break down during the warranty period?

A: We will provide free replacement parts by express delivery during the warranty period.

Q: How many operators are needed to run the machines?

A: For flexo printing, slitting, and die-cutting machines, only one operator per machine is needed.
