Product Description

ℹ Basic Information
Model NO.
BST-600A / JBZ-S30
Voltage
380V 50Hz
Control System
Computer Control Panel
Certification
CE
After-sales
3 Years
Automatic Grade
Automatic
Process
Paper Folding/Forming
HS Code
8441309000
⚙ Product Description

The JBZ-S30 Ultrasonic Two-PE Paper Bowl Forming Machine is an advanced automatic equipment featuring multi-working stations. Designed with humanism in mind, it provides safer operation and easier maintenance through integrated photocell detection, failure alarms, and automatic counters.

This equipment handles both one-side and two-side PE-film-coated paper bowls. The fully automated procedure includes:

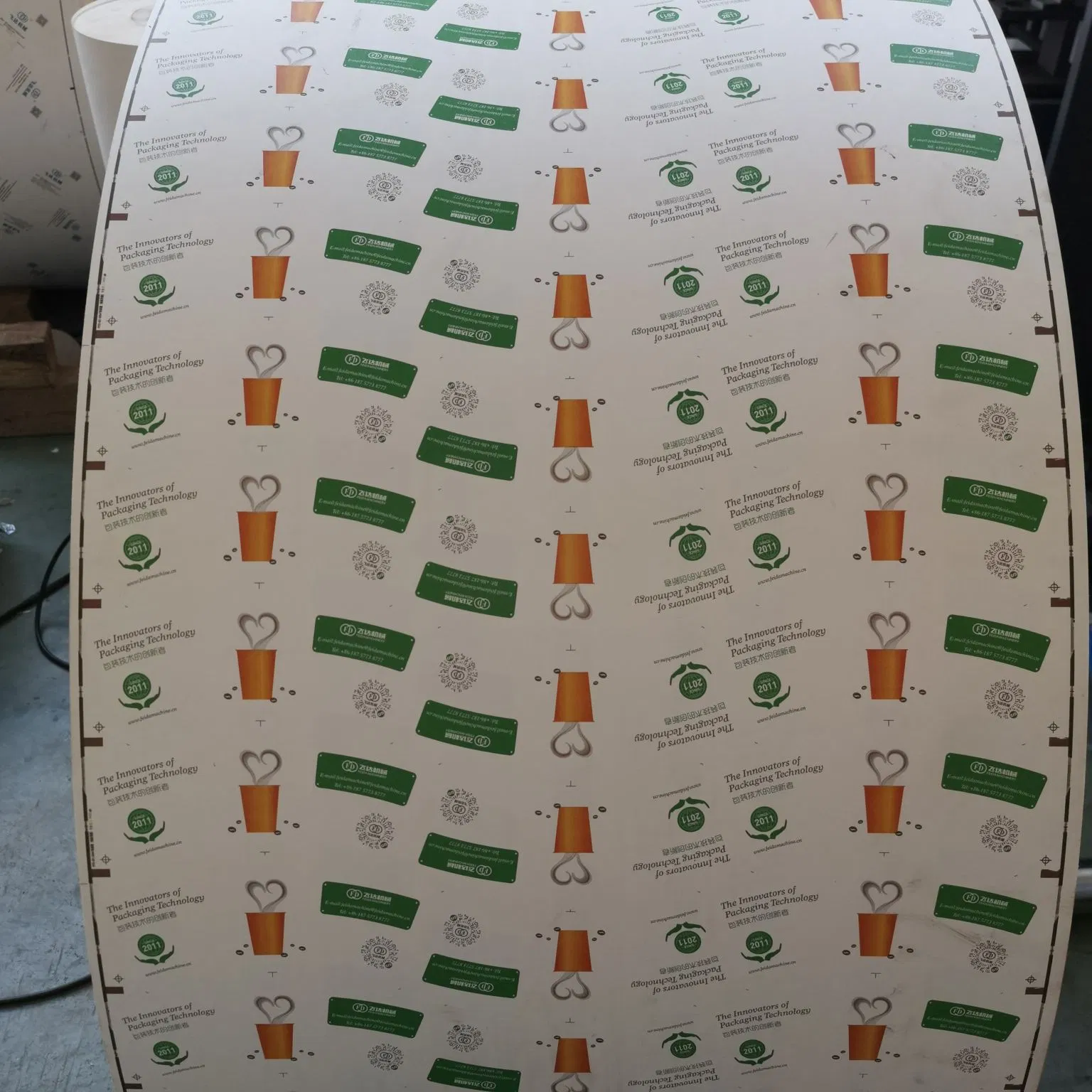

  • Pre-printed fan-shape paper feeding
  • Two-step pre-heating
  • Ultrasonic wave bowl-side-body sealing
  • Silicone-oil lubricating (for top curling)
  • Bottom punching and two-step bottom heating
  • Bottom knurling and top curling

It is an ideal solution for manufacturing soup paper bowls, noodle bowls, large paper cups, and other cone-shaped food containers.

📊 Technical Specifications
Paper Bowl Size
20--50oz (Height up to 125mm)
Raw Material
1-side or 2-side PE coated paper
Paper Weight
140GSM--450 GSM
Productivity
50--60 PCS / minute
Total Power
9 KW
Total Weight
1800 Kg
Machine Size
2830 X 1450 X 1900 mm
Air Source
0.6MPa, 0.6m³/minute
🖼 Equipment Display

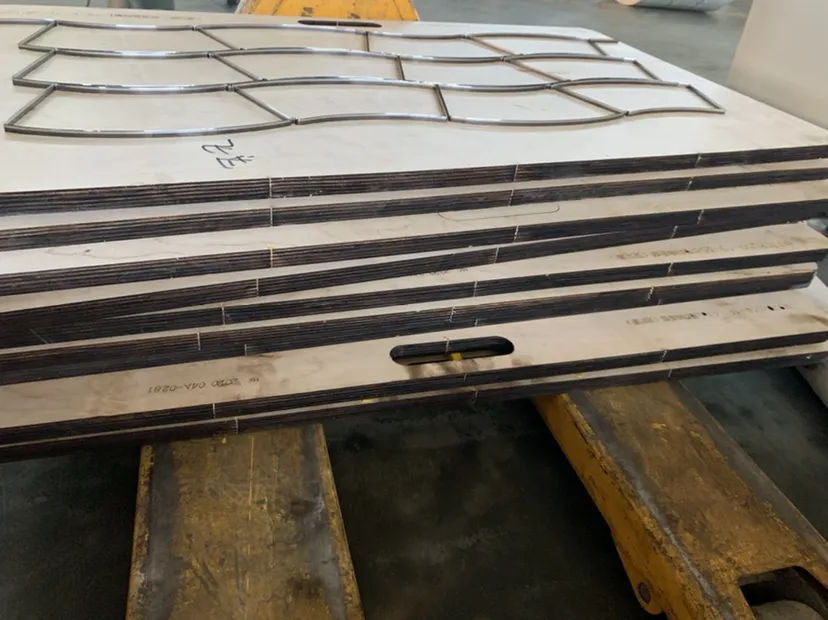

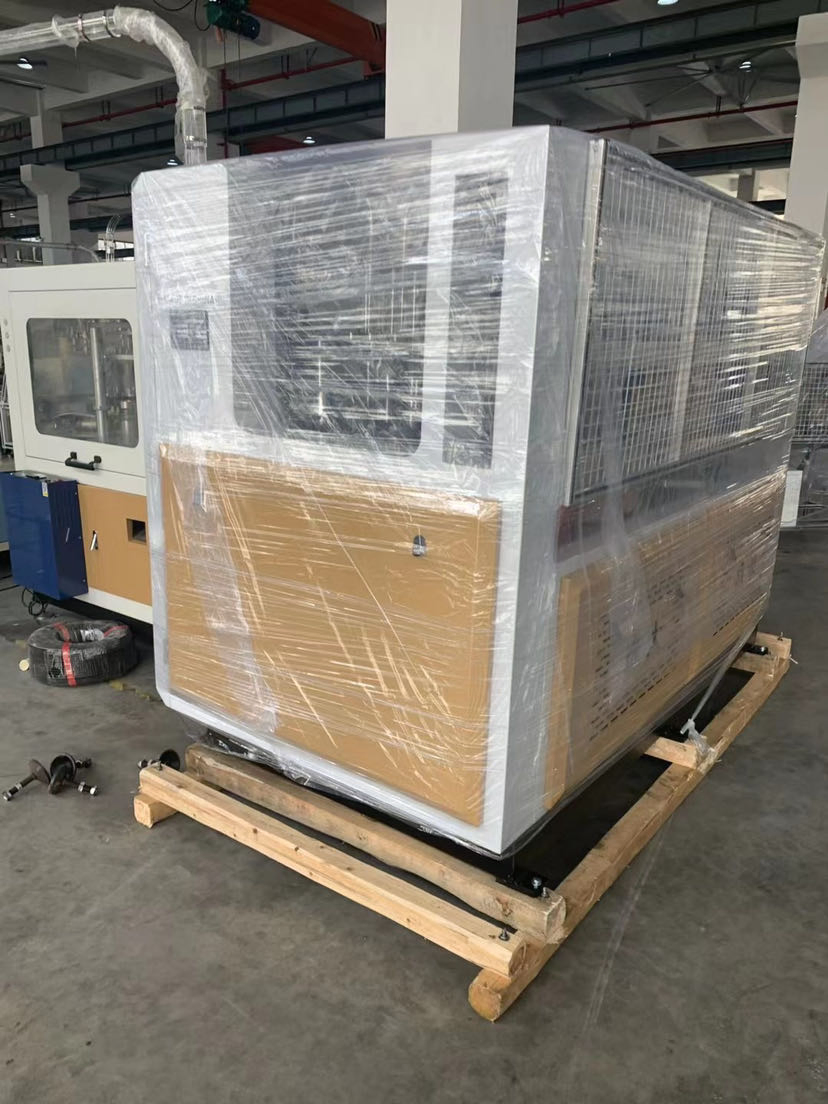

Paper Bowl Forming Machine

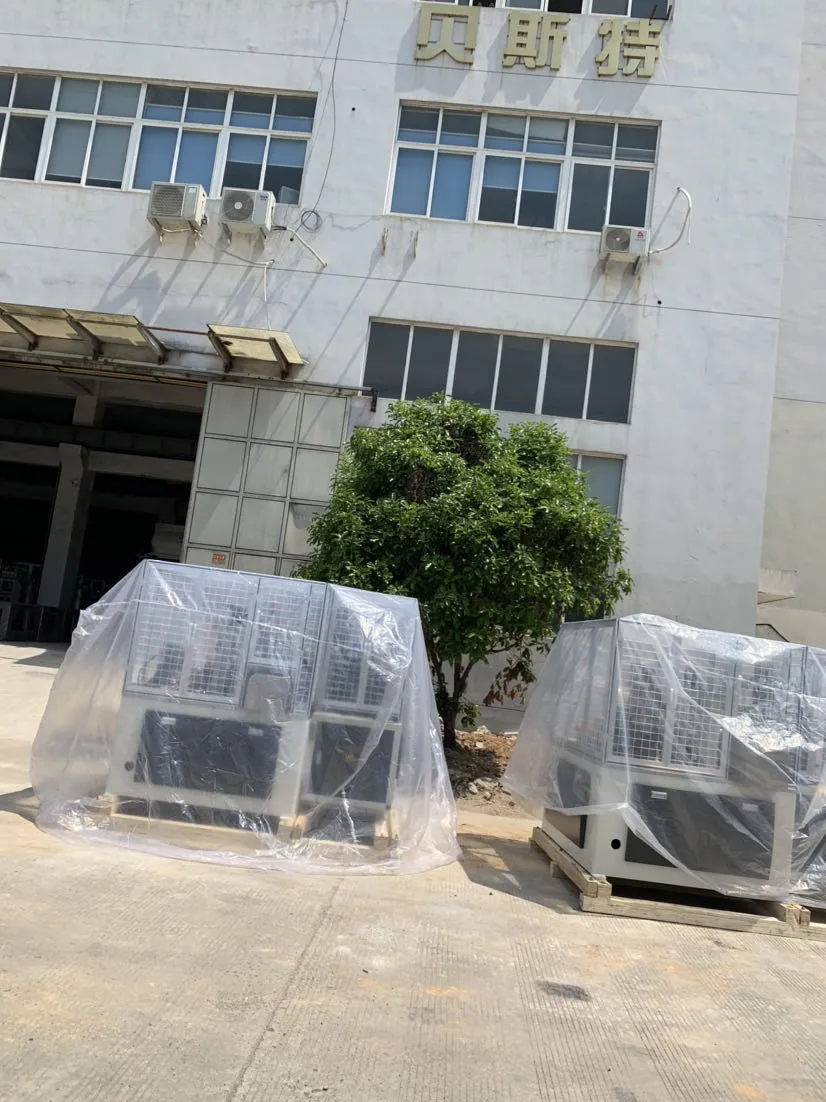

Machine Detail 1

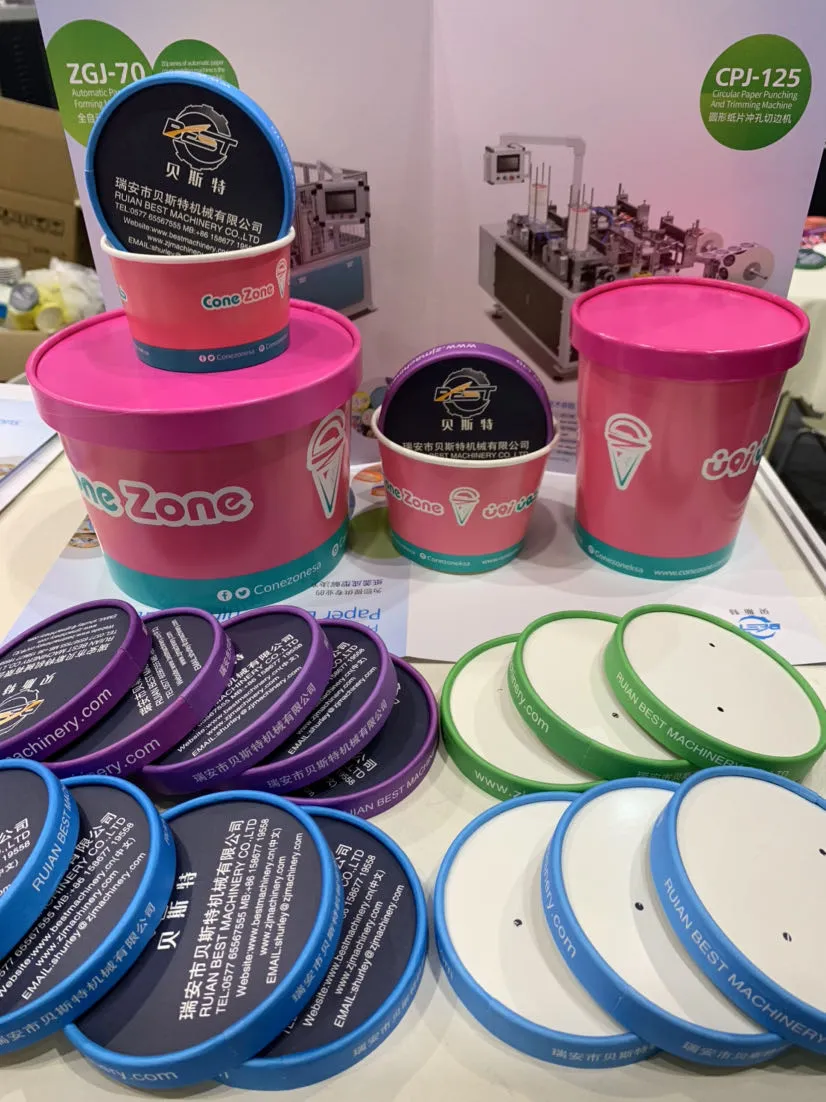

Machine Detail 2

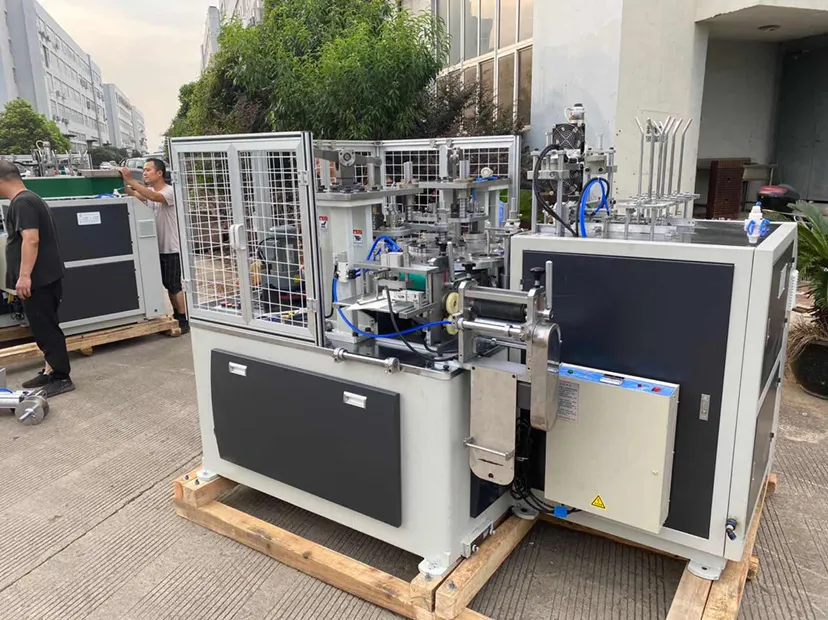

Paper Bowl Samples

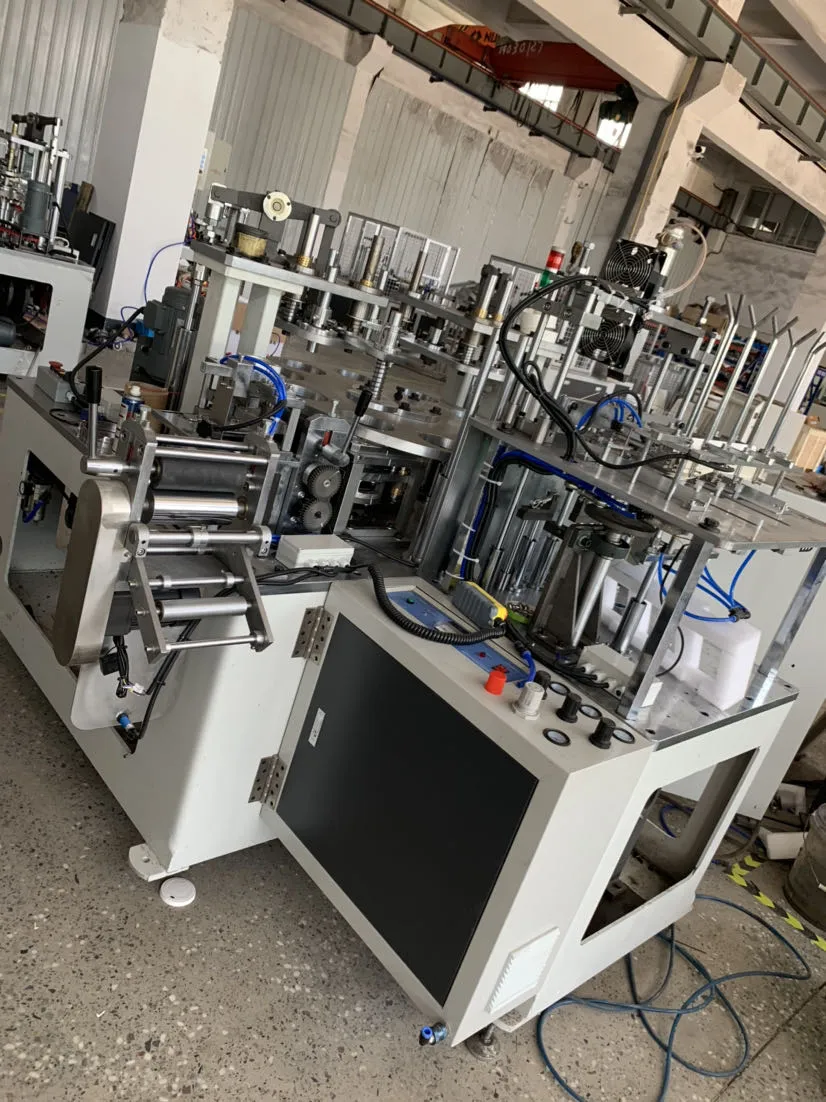

Technical View
❓ Frequently Asked Questions
1. What types of bowls can this machine produce?
It is designed for making soup paper bowls, noodle bowls, and larger food containers with a volume ranging from 20oz to 50oz.
2. What kind of paper materials are suitable?
The machine is compatible with both one-side and two-side PE (polyethylene) film coated or laminated paper, with a weight between 140GSM and 450GSM.
3. How fast is the production capacity?
The rated productivity is 50 to 60 pieces per minute, ensuring efficient high-volume production.
4. Does the machine include safety and monitoring features?
Yes, it is equipped with photocell detection, an automatic failure alarm system, and a counter for streamlined and safe operation.
5. What are the requirements for the air source?
The machine requires an external air compressor providing a pressure of 0.6MPa and an output of 0.6m³/minute.
6. Is the mold exchangeable for different sizes?
Yes, the molds are exchangeable to accommodate various bowl sizes up to a height of 125mm.
