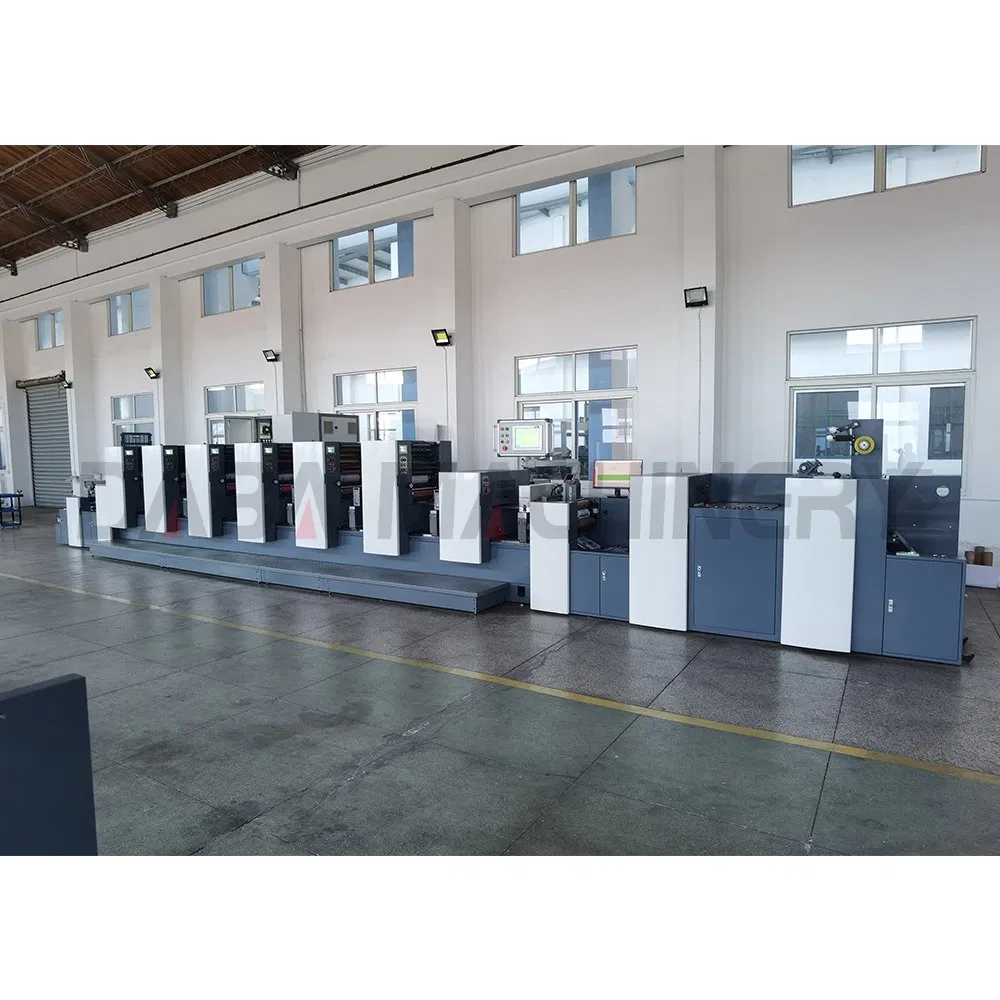

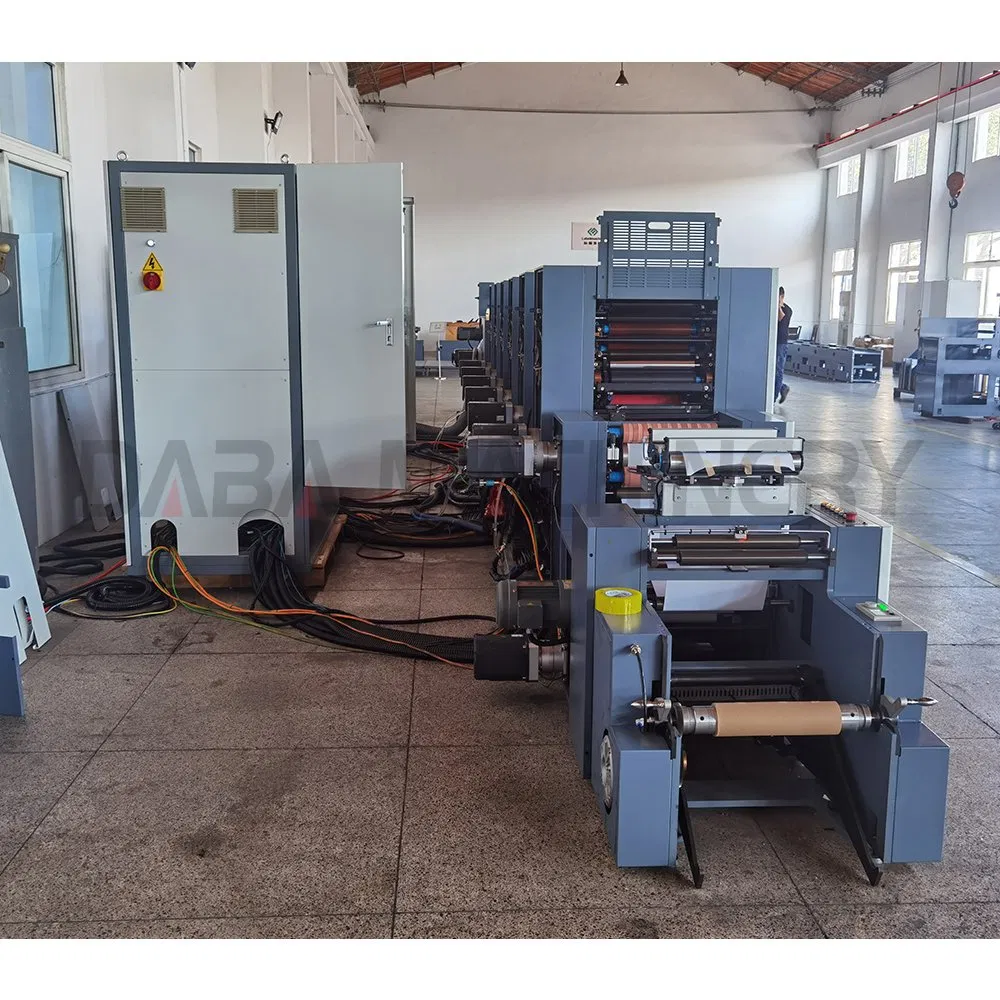

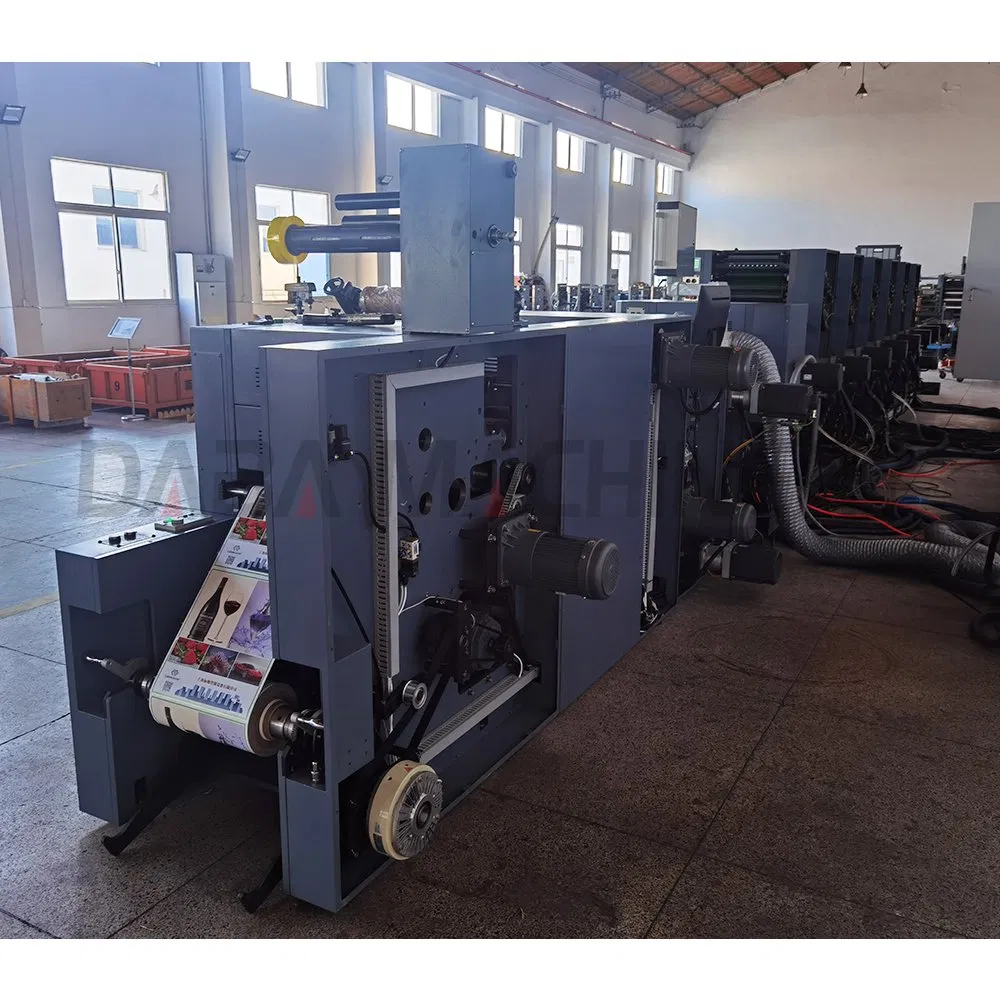

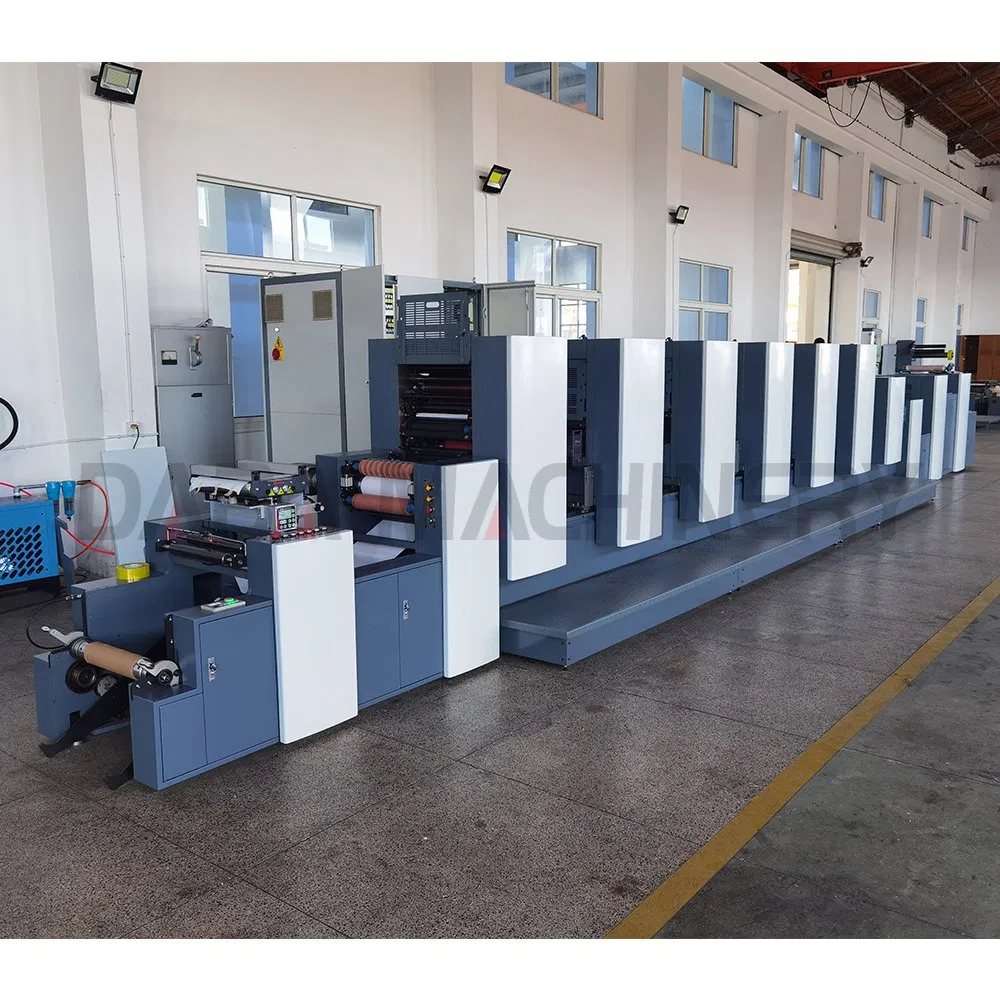

Two Color Rotary Paper Cup Offset Printing Machine Offset Printer

Customization: Available
After-sales Service: Online
Warranty: 1 Year

Product Description

1

Basic Information

Model NO. DBJY-320/450
Type Web High Speed offset Press
Printing Paper Size Max. Paper Size: 560mm
Usage Paper Printer, Label Printer, Card Printer
Automatic Grade Automatic
Printing Speed 8000
Motor Power 40kw
Transport Package by Seaworthy Wooden Case
Production Capacity 5 Sets Per Month
2

Product Description

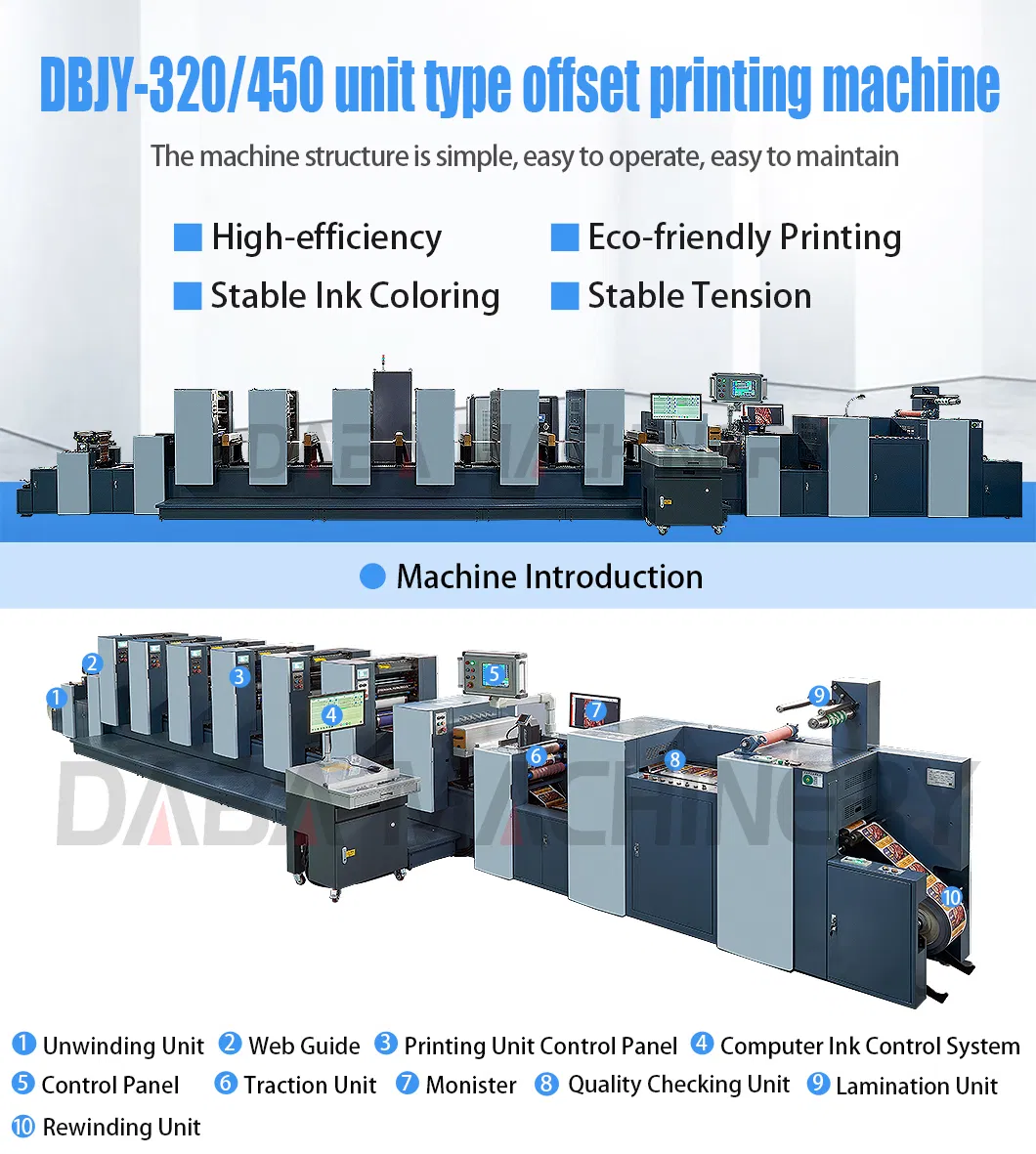

Offset Printing Machine

Main Features

Intermittent Label Offset Printing Machine adopts latest servo control system which can ensure the material nip steady and accuracy. It can free from the printing roller change.

The operation of this machine is faster, convenient and simple. PS plate intermittent printing hits the high level label demands from short run to long run. It's the best choice for printing highest quality labels with lowest production cost.

3

Technical Parameters

Machine Parameter
Model DBJY-320 DBJY-450
Printing speed 50-180 rpm/min 50-150 rpm/min
Printing color 4-10 colors 4-10 colors
Max. printing width 300mm 450mm
Max. printing length 350mm 380mm
Power supply 3 phase 380V 3 phase 380V
Total power 33.6kw 40kw
Machine weight 9.5t 11.5t
4

System Configurations

Standard Configuration

Unwinding Unit Standard high-precision unit.
Heavy Offset Printing Unit Adopting high quality and heavy offset printing unit. Assembled with 19 pieces of ink rollers and 4pcs of Form Rollers.
Shaftless Driving System Every printing unit run by an independent servo motor (15 sets in total for 6 colors).
Video Inspecting System Regulate vertical & horizontal registering without stopping.
Touch Screen Control 12inch operating display, independent touch screen in each printing unit.

Optional Configuration

Second Pass Register Sensor Ensures multi-register print on both sides.
Cold Foiling Unit Inline cold foiling for fast speed decorative effects.
Rotary Die Cutting Station Big magnetic cylinder to save tooling cost.
Flexo UV Varnishing Unit Makes the printing more shining and attractive.
5

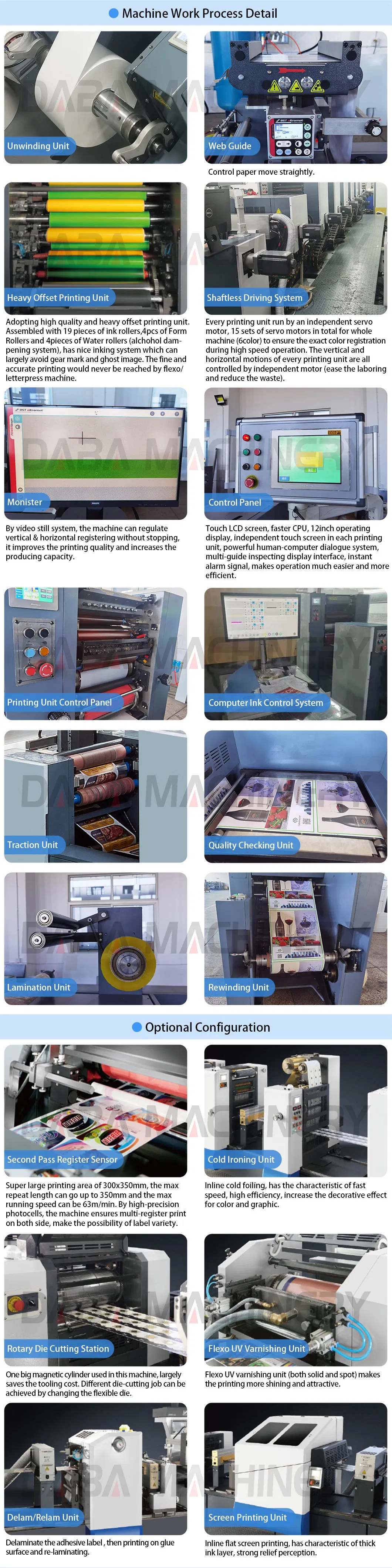

Production Details

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Machine Layout
Machine View
?

Frequently Asked Questions

Q: What is the standard delivery date?
A: Usually production is finished within 30 days after the 30% advance payment, subject to stock and production schedules.
Q: What are the accepted terms of payment?
A: We accept T/T (30% in advance, 70% balanced against B/L copy), L/C at sight, and Cash.
Q: How long does machine installation and training take?
A: We typically finish the installation and operator training within 15 days.
Q: What is the warranty period for the machine?
A: All our machines come with a one-year guarantee, starting from the date installation is completed.
Q: How do you handle parts replacement during the warranty?
A: We provide express delivery for free replacement parts during the warranty period if any components fail.
Q: How many workers are required to operate the machines?
A: For flexo printing, slitting, and die-cutting operations, only one person is needed per machine.
