Automatic Egg Tray Production Line for Fruit Tray/Egg Carton

Customization:	Available
After-sales Service:	After Sales Service Provided
Warranty:	2 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.Wy-1

ApplicationAgriculture, Chicken Farms

Drying FunctionWith Drying Function

Automatic GradeAutomatic

Control PanelComputer Control Panel

CertificationCE

Raw MaterialWaste Paper, Books, Cardboard

Electricity Power20-45kw

Voltage380V/50Hz

Guarantee2 Years

Operating Speed10seconds/Cycle

Production Capacity350-1000PCS/H

Automatic Egg Tray Production Line

This production line is designed for high-efficiency manufacturing of paper pulp products including egg trays, fruit trays, coffee cup carriers, and industrial packaging. Utilizing advanced pulp molding technology, it transforms waste paper into eco-friendly packaging solutions.

Versatile Production: Suitable for egg cartons, wine trays, and disposable medical products.
Wide Capacity Range: From 350pcs/h up to 6000pcs/h to meet different business scales.
Eco-Friendly Raw Materials: Uses waste cardboard, newspapers, and any plastic-free waste paper.
Flexible Heating Options: Compatible with diesel, coal, natural gas, or LPG.

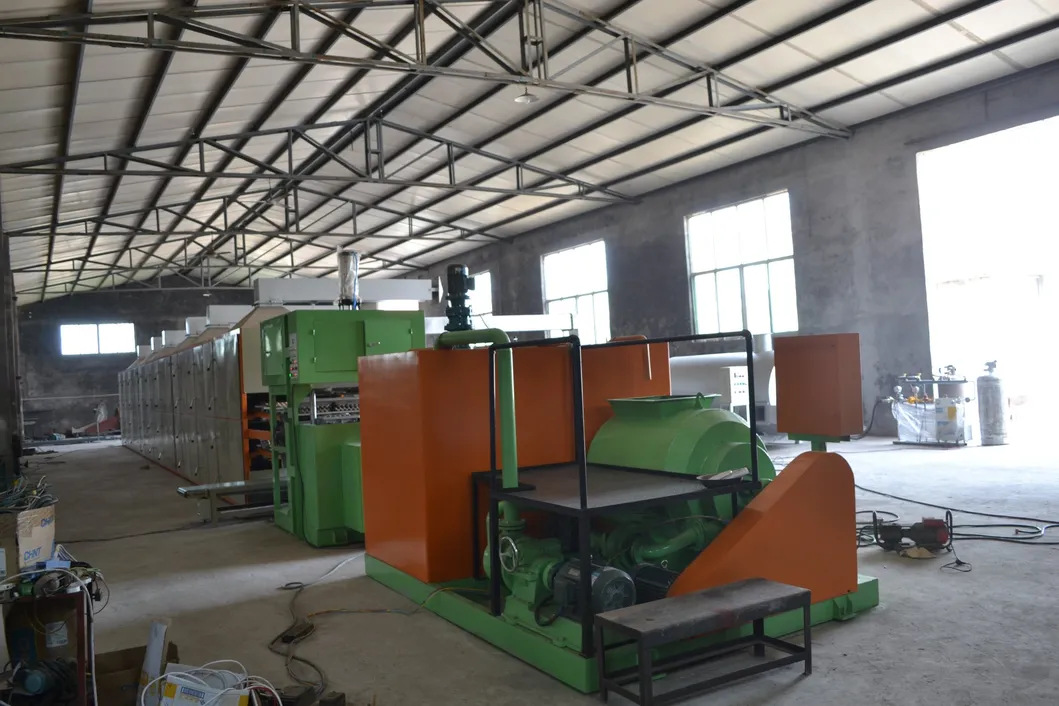

1. Pulping System

Includes the hydrapulper, pump, water tank, pulp tank, and mixer to process wastepaper into consistent paper pulp.

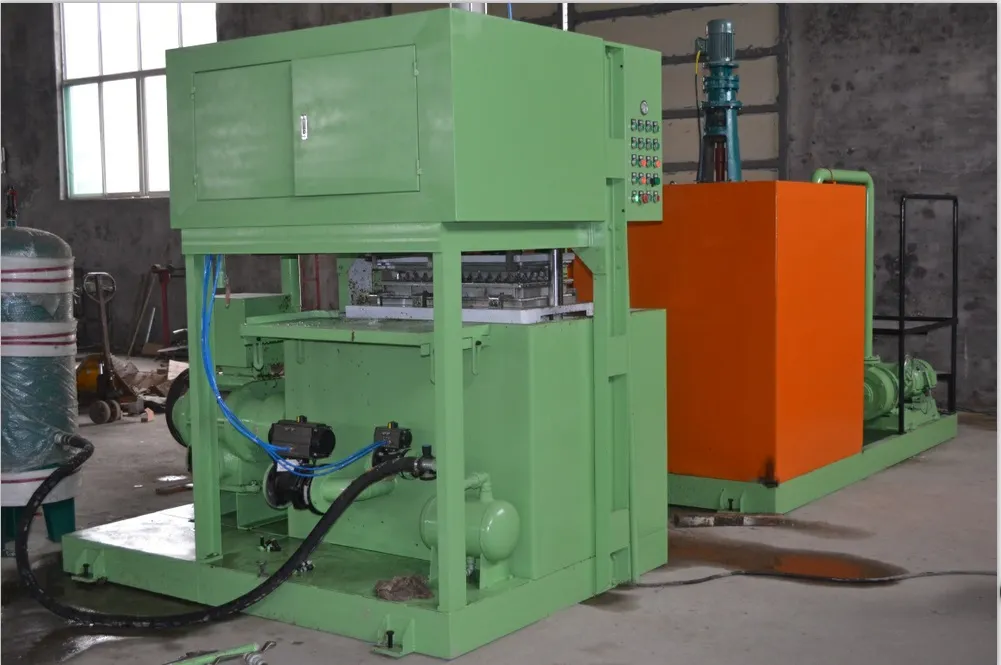

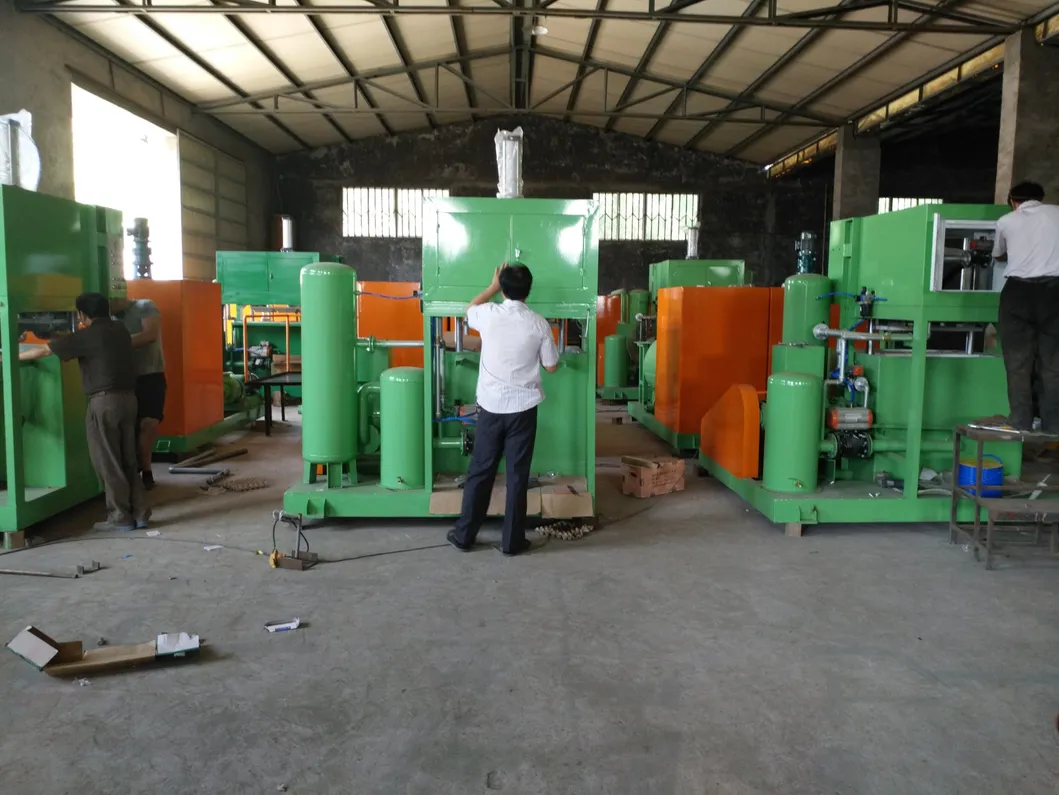

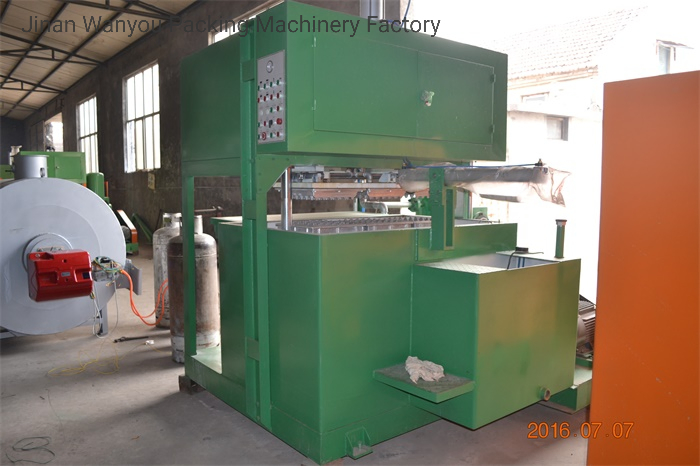

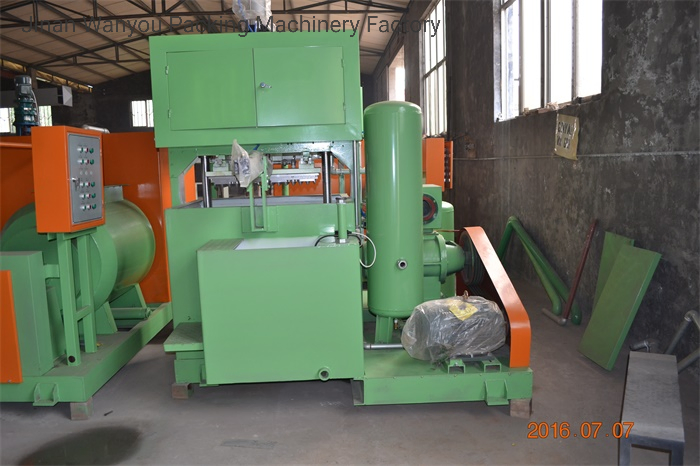

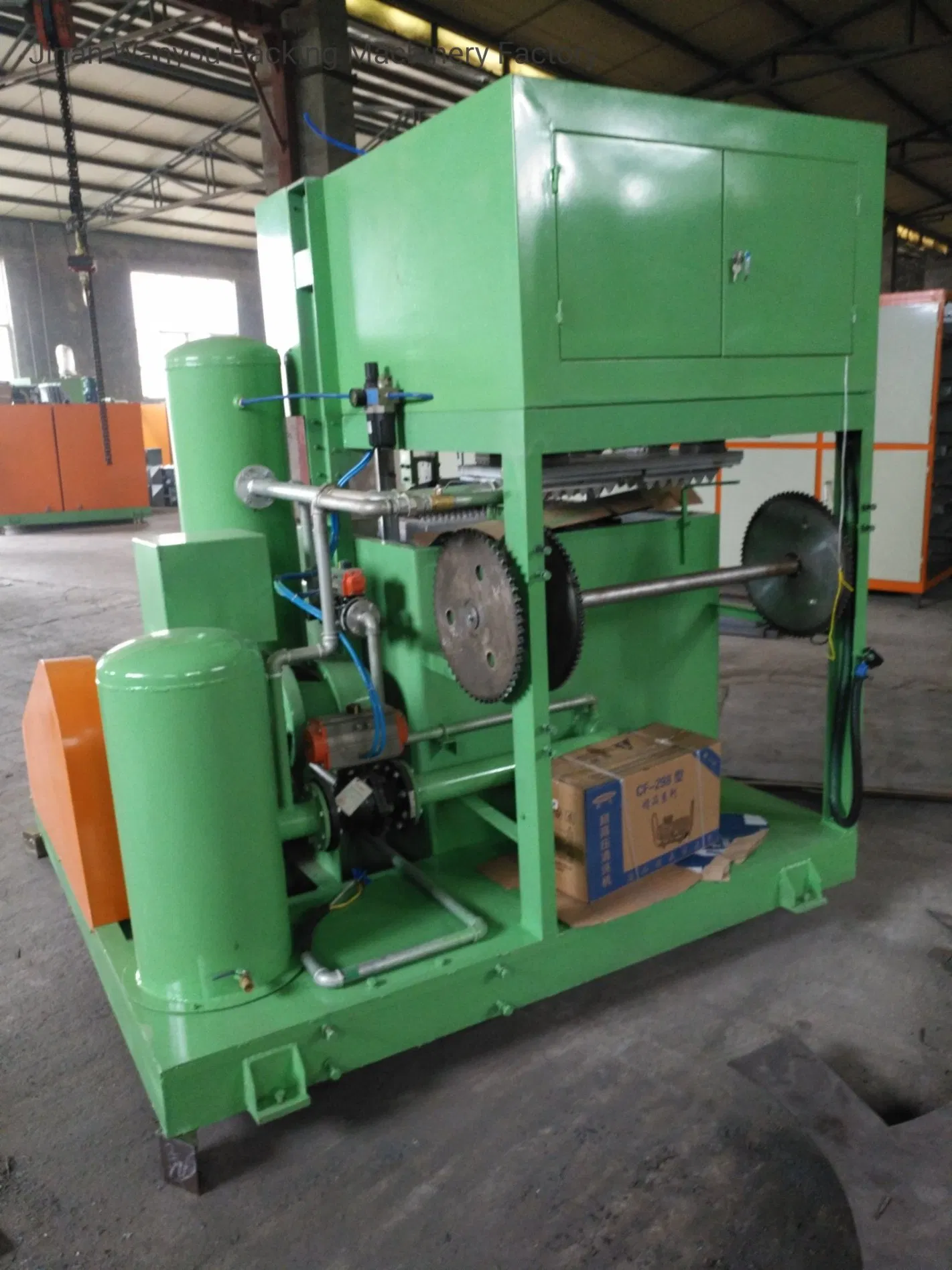

2. Molding & Forming System

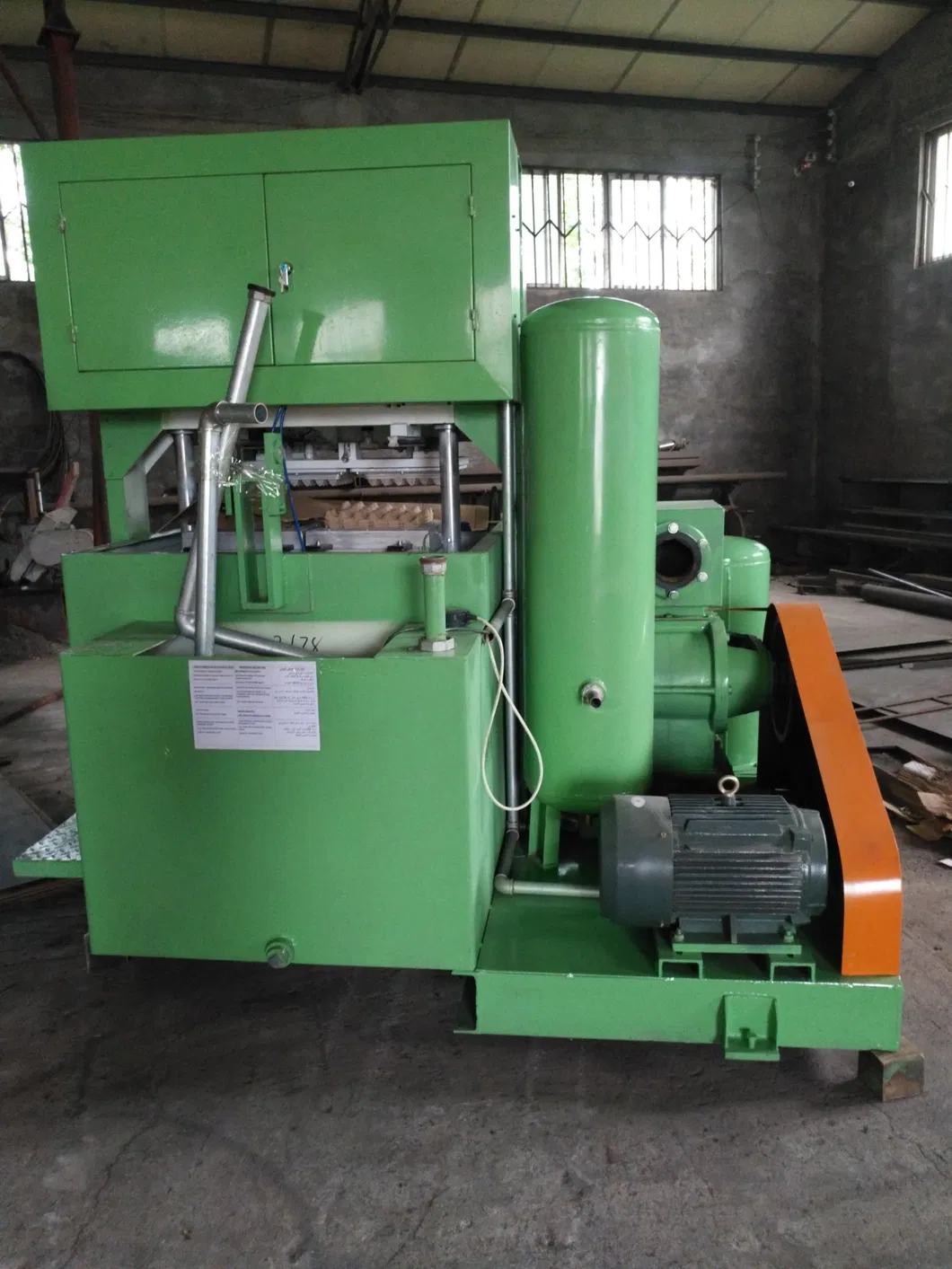

Consists of the molding machine, aluminum molds, vacuum pumps, and air compressor to transform pulp into wet trays.

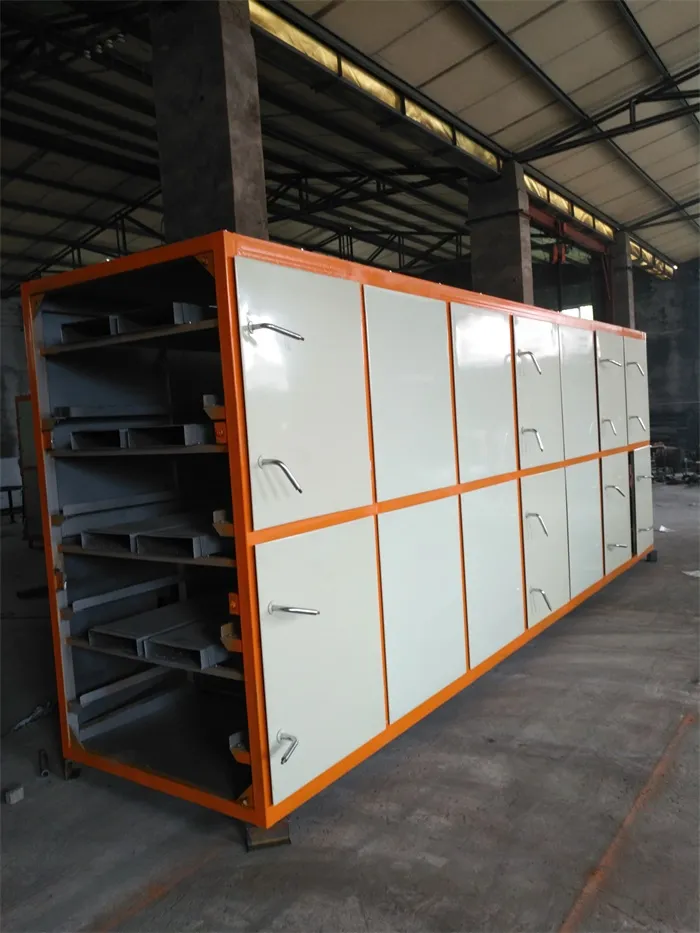

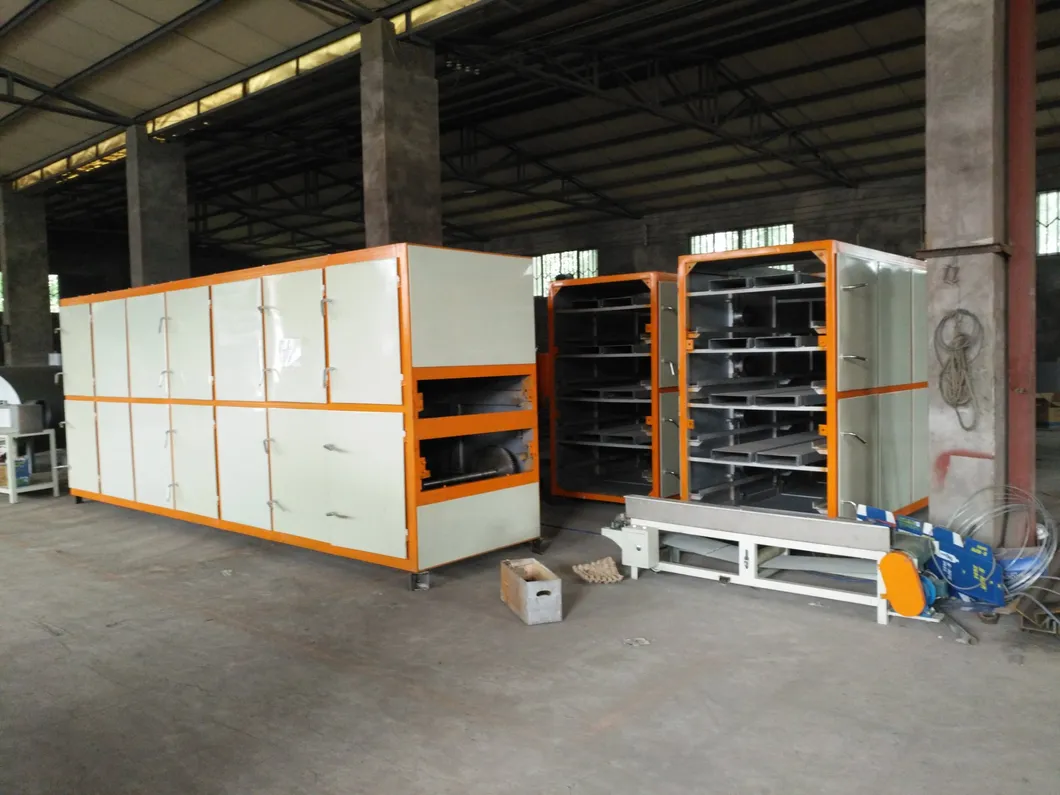

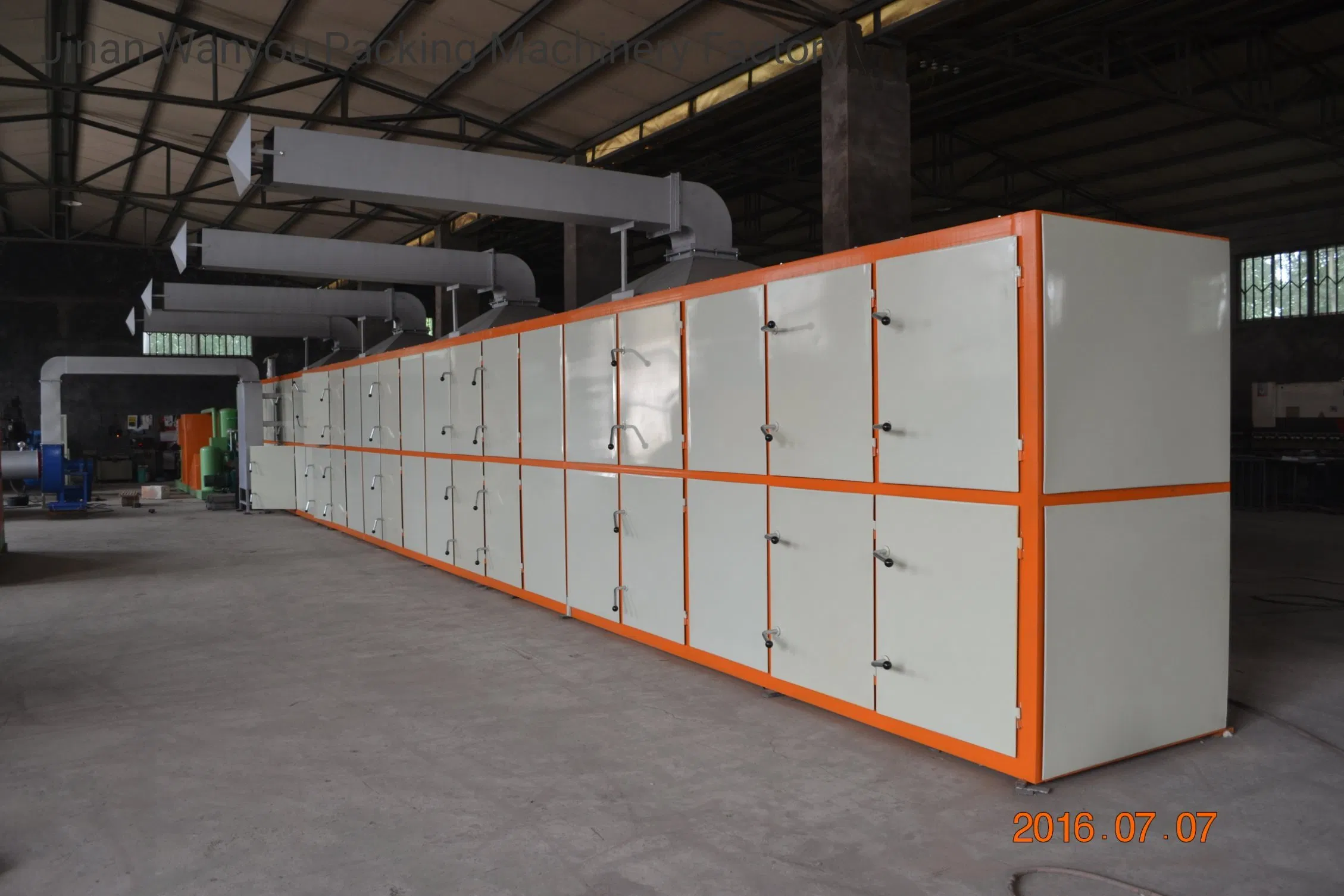

3. Drying System

Equipped with burners and blowers. The insulation board protected drying line can reach temperatures of 200 degrees for rapid moisture removal.

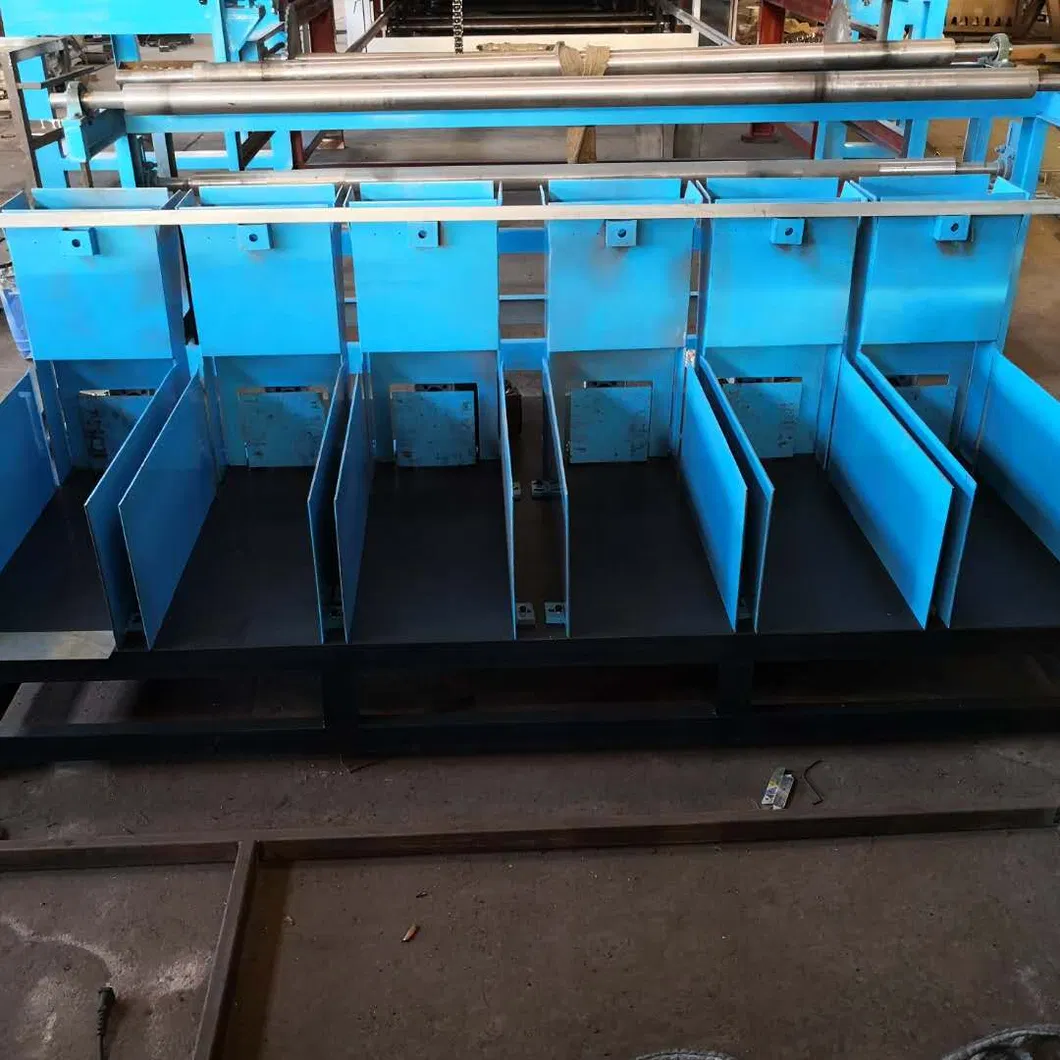

4. Automatic Stacking System

Features automatic counting and stacking. Users can preset quantities (e.g., 100pcs or 200pcs) for direct packaging.

Technical Specifications

Mold Quantity	1 pcs	2 pcs	3 pcs
Capacity (pcs/hour)	350	700	1000
Waste Paper Consumption	0.025 ton/h	0.06 ton/h	0.1 ton/h
Water Consumption	0.075 ton/h	0.15 ton/h	0.22 ton/h
Worker Requirement	2-3 workers	3-4 workers	4-6 workers
Power (With Dryer)	30KW	45KW	60KW

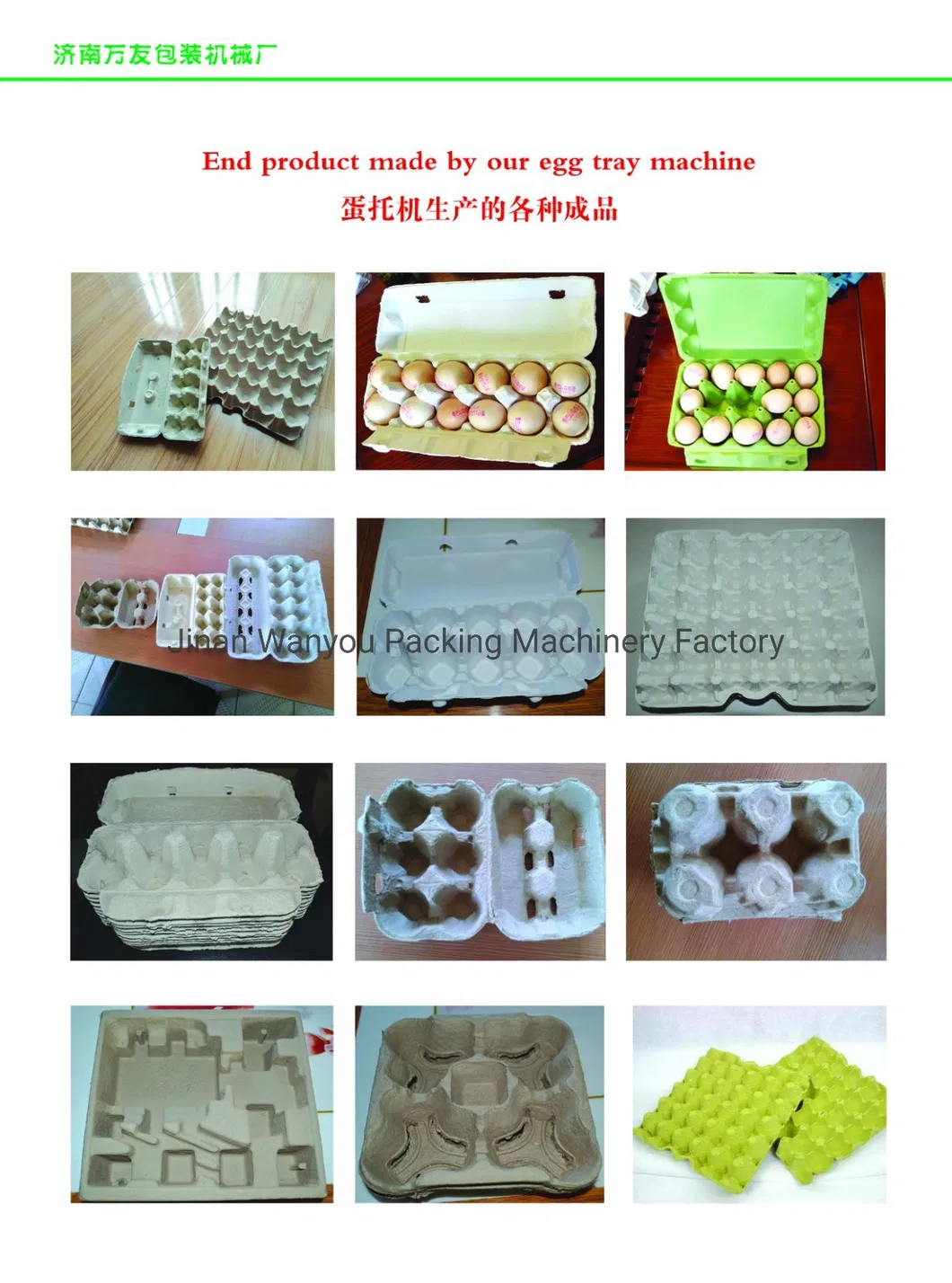

End Products & Quality

Packaging & Delivery

Frequently Asked Questions

1. What is the difference between Semi-Automatic and Fully Automatic types? Semi-automatic systems require manual drying of the egg trays. Fully automatic lines include an integrated drying system, allowing the entire procedure to be completed automatically.

2. What is the expected lifespan of the machinery? Our machines are manufactured using tooling rather than simple welding, ensuring a minimum lifespan of 10 years. We also use high-quality aluminum molds which maintain their shape better than rubber alternatives.

3. What raw materials can be used for production? You can use any kind of waste paper, including old newspapers, magazines, books, A4 paper, and cardboard boxes.

4. What fuel types are compatible with the drying system? The production line can be powered by coal, natural gas, diesel oil, LPG, or wood, depending on your local availability and cost.

5. What other products can this machine manufacture? By changing the molds, the machine can produce fruit trays, bottle trays, cup carriers, egg cartons, and disposable medical containers.

6. What after-sales services are provided? We provide technical consultation, detailed workshop design, pre-shipment testing, engineer training, and long-term spare parts supply with 24/7 online support.
