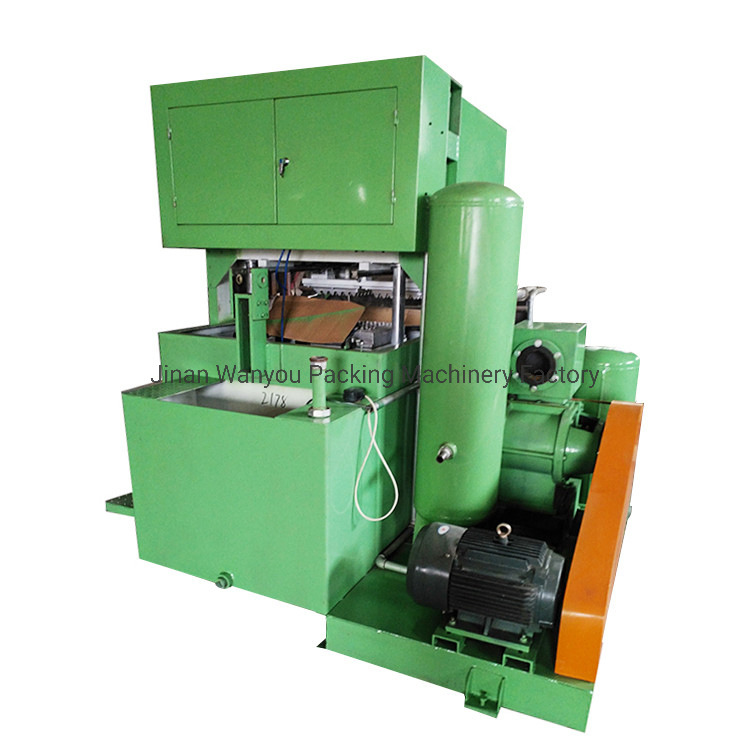

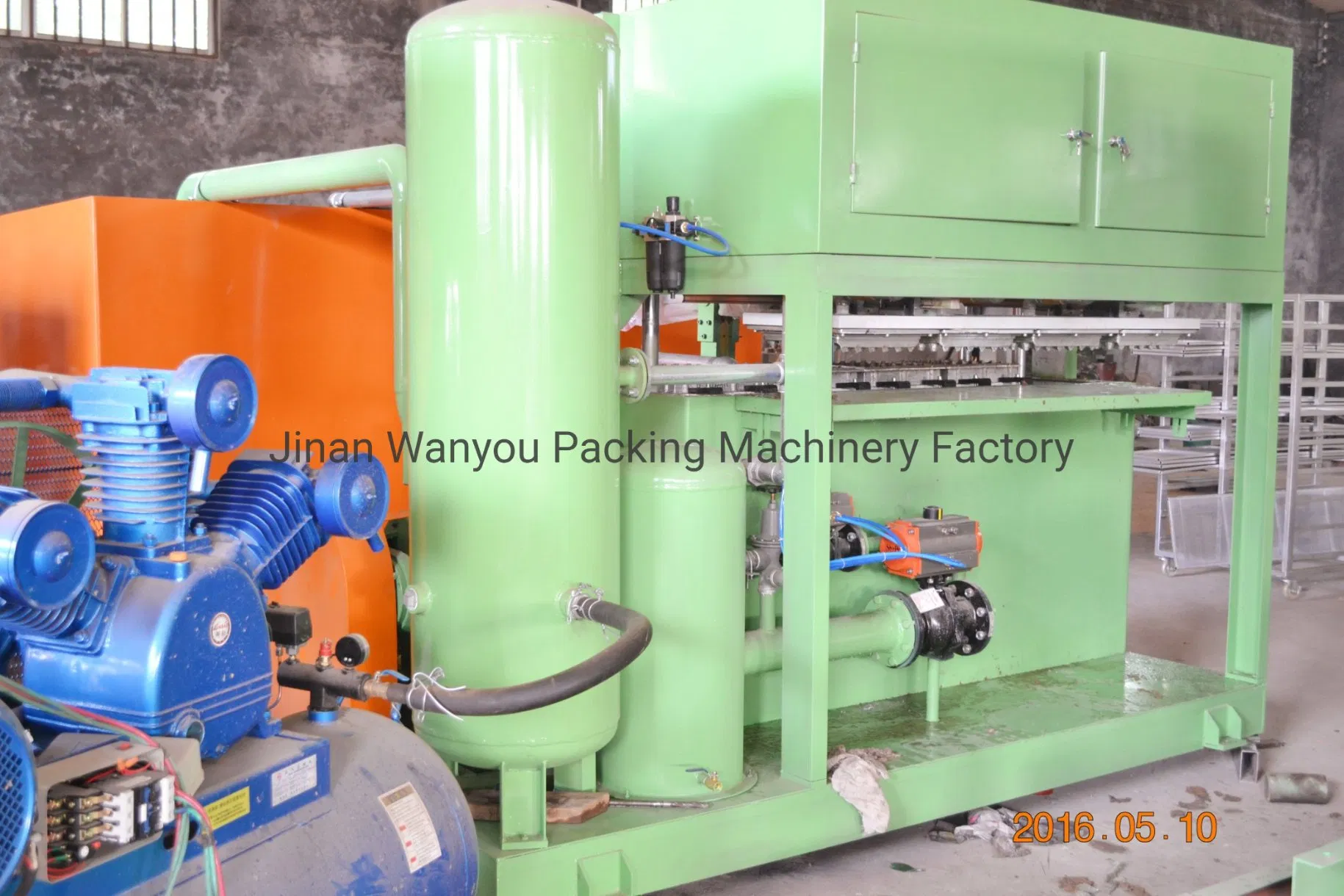

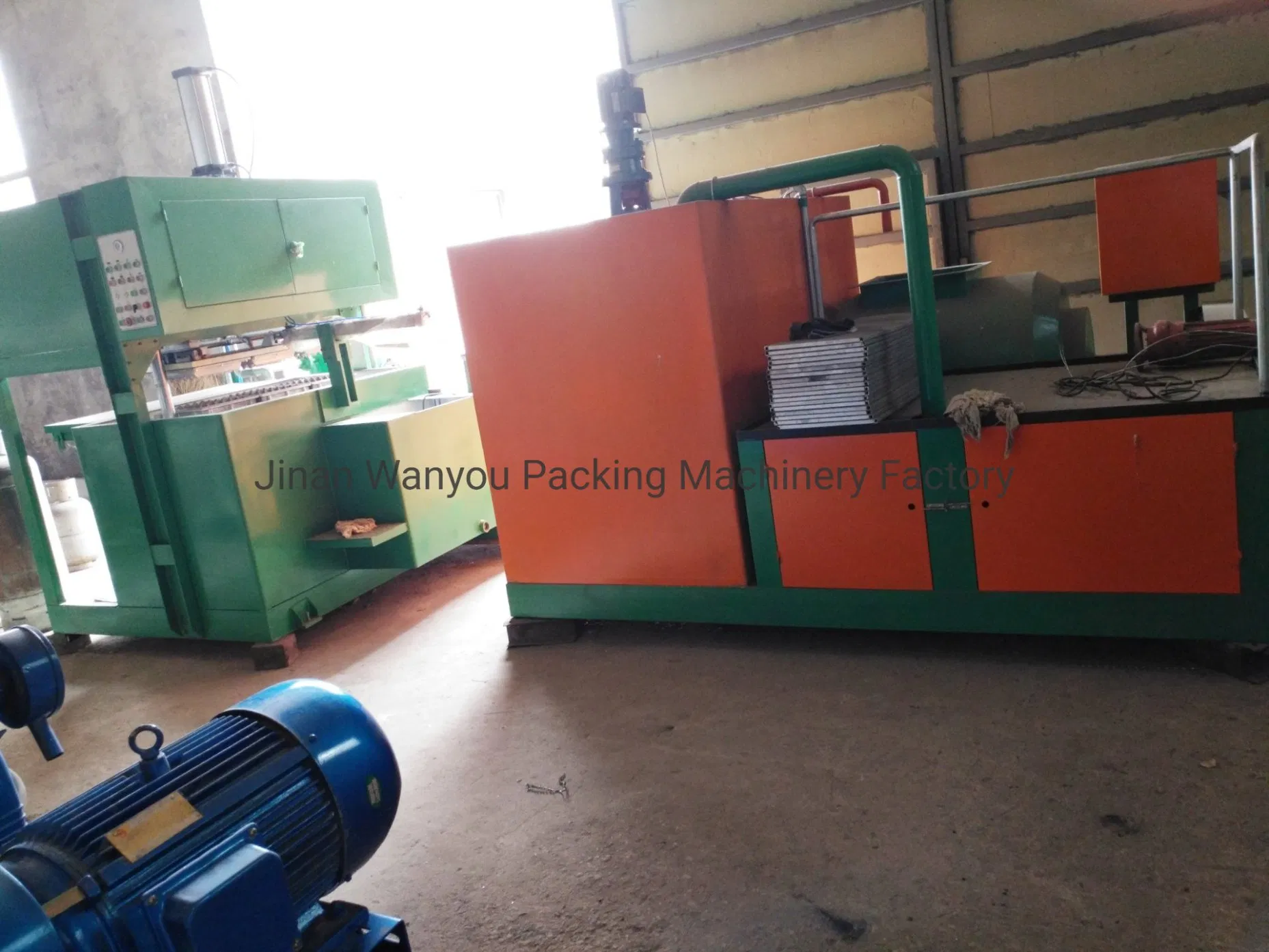

The egg tray forming machine is an advanced solution that transforms paper pulp into various tray shapes using vacuum suction technology. By regulating time and pressure, it produces high-quality wet and dry trays. Our machines feature programmable PLC controllers, high-quality electronic components, and durable stainless steel pulp barrels for long-term performance.
Pulping System: Raw materials are mixed with water to create consistent paper pulp.

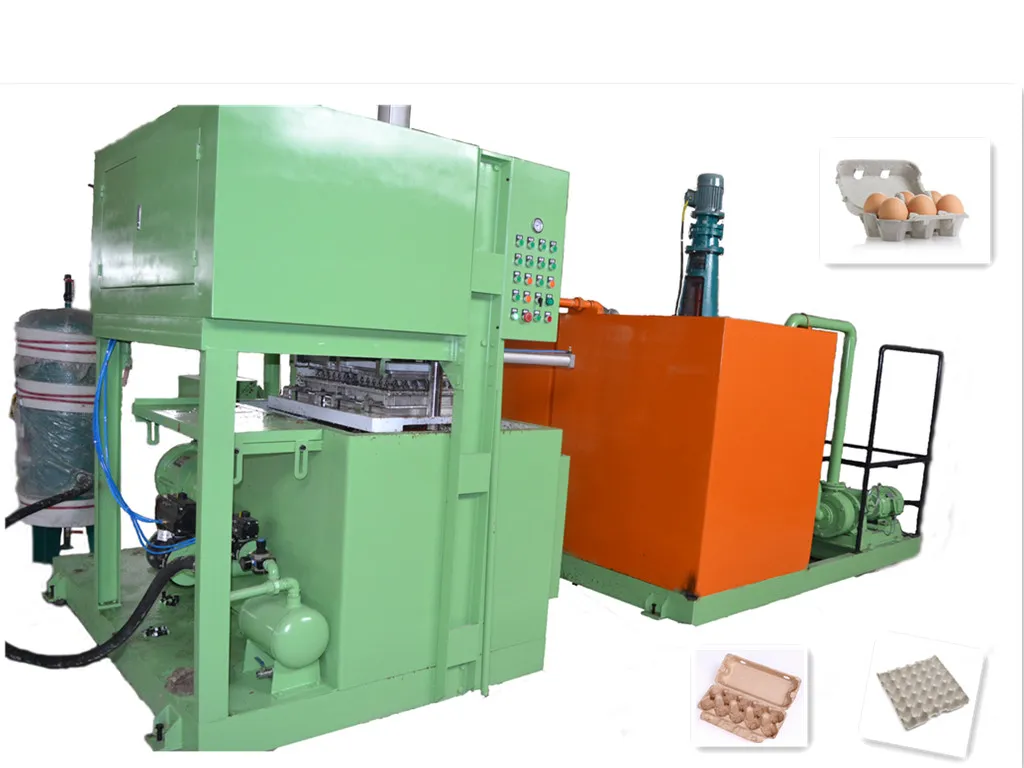

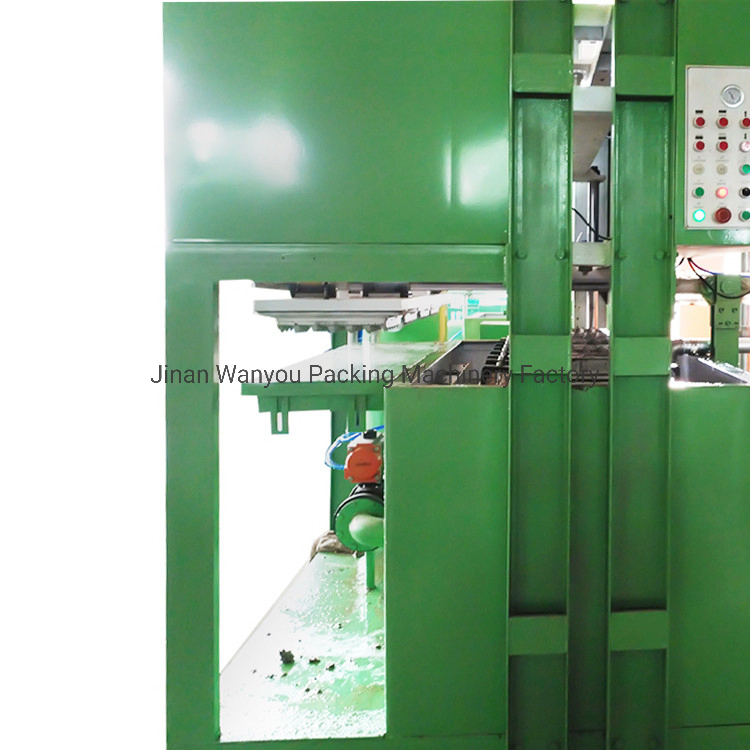

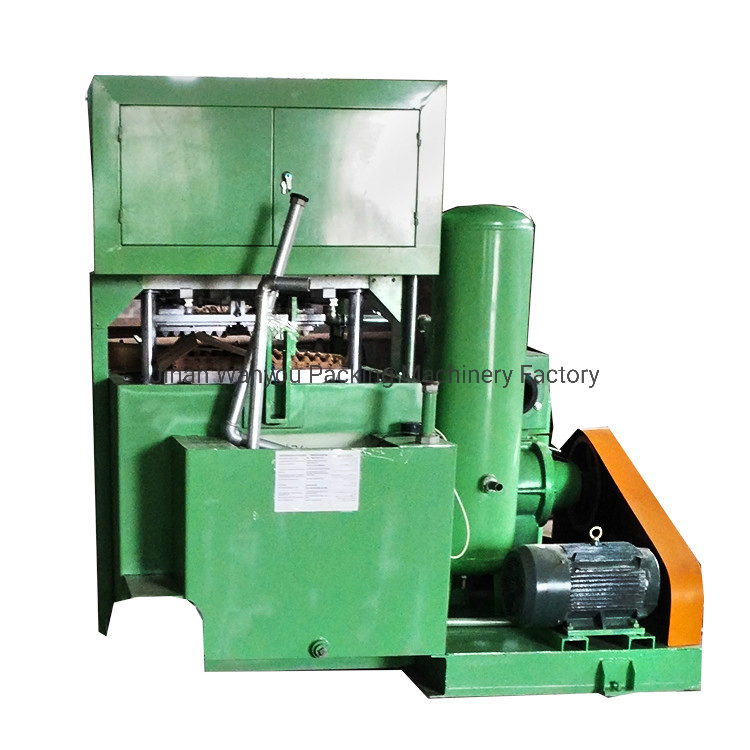

Forming System: A high-efficiency pump sends pulp to the forming machine, where trays are created using vacuum principles.

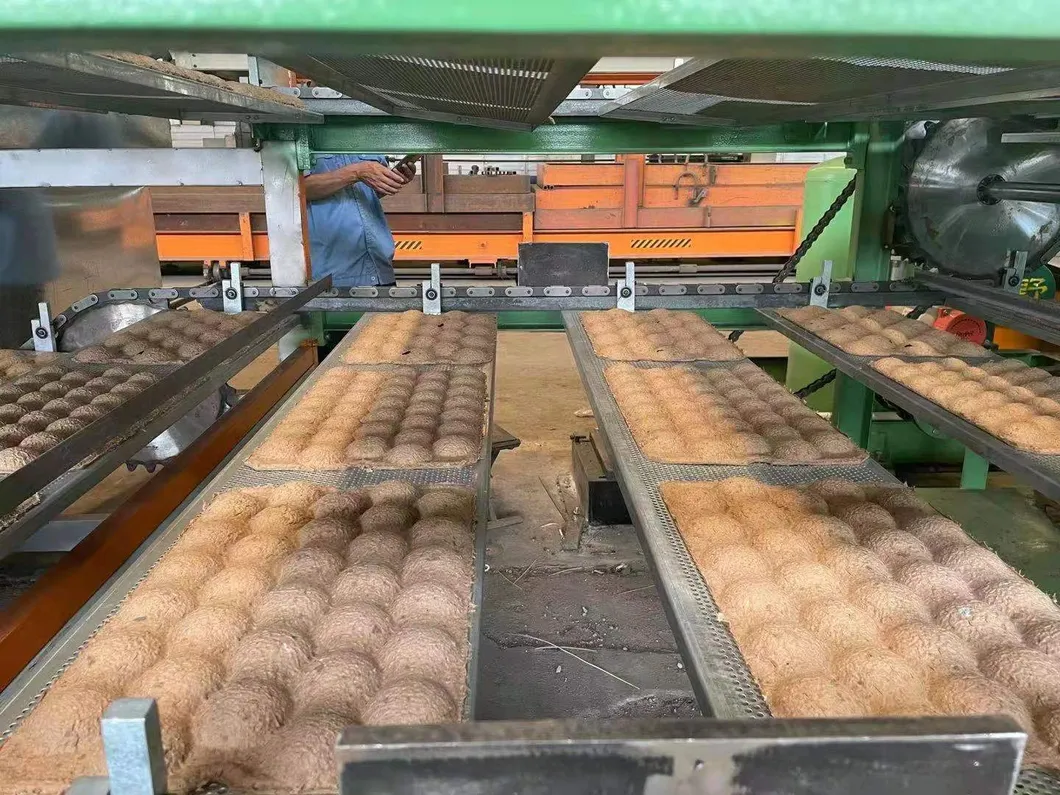

Drying System: Wet trays are processed through a metallic dryer oven (Natural Gas fueled) to ensure perfect rigidity.
| Feature | 2pcs Mold | 3pcs Mold | 4pcs Mold |
|---|---|---|---|
| Capacity (pcs/hour) | 700 | 1000 | 1300 |
| Waste Paper Consumption | 0.06 ton/h | 0.1 ton/h | 0.13 ton/h |
| Water Consumption | 0.1 ton/h | 0.15 ton/h | 0.2 ton/h |
| Gas Consumption (Dryer) | 25 cbm/h | 35 cbm/h | 50 cbm/h |
| Power (With Dryer) | 45 KW | 60 KW | 65 KW |
| Workshop Area | > 240 M² | > 300 M² | > 320 M² |

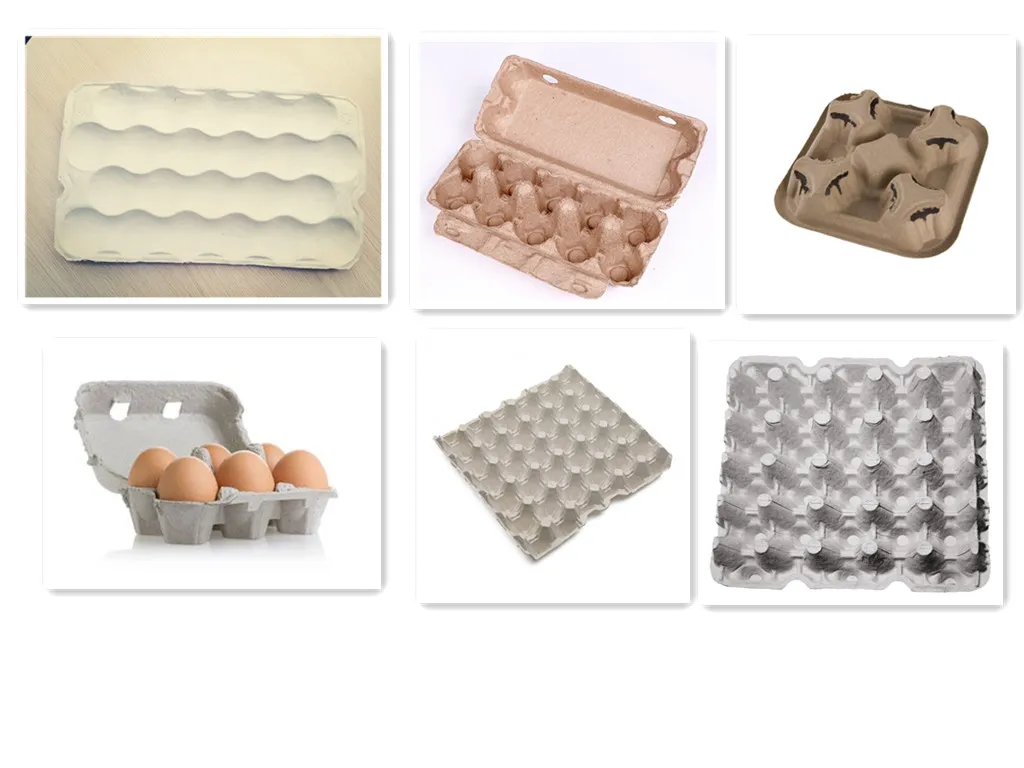

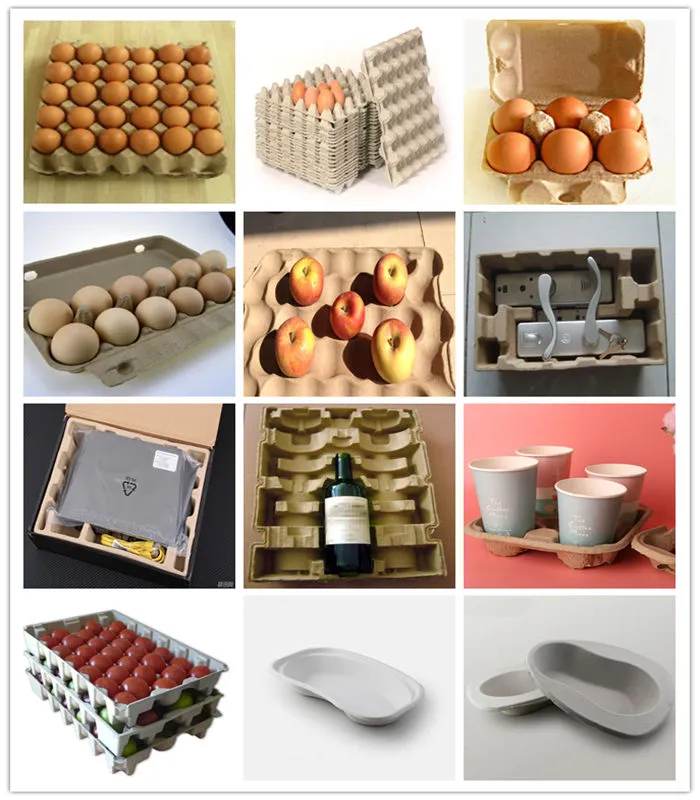

By simply changing the molds, this machine can produce a wide variety of protective packaging, including 10, 12, 24, and 30-hole egg trays, egg cartons, apple trays, and industrial buffers.
