Small Rolling Kraft Paper Machine Production Line-Mini Corrugated Cardboard Line From Machinery Industrial Manufacturer in China

After-sales Service:	Installation Abroad&Online Support& Spareparts
Warranty:	1 Year
Condition:	New

Send Inquiry

Product Description

Basic Specifications

Model NO.

1575

Certification

RoHS, ISO 9001, CE

Automation

Automatic

Suitable for

Recycled Material, Wood, Paper

Paper Width

1600mm

Capacity

10t/D

Design Speed

50m/Min

Output Weight

100-200G/M2

Raw Material

Waste Paper, OCC, Wood Pulp

HS Code

8439200000

Product Description

Small Kraft Paper Production Machine And Carton Roll Making Production Line

The paper machine adopts an air-cushion headbox, with a forming part consisting of a three-layer wire. The press section utilizes three vacuum suction devices, one vacuum press roll, and two jumbo rolls, supported by a hydraulic pressurization system. The drying section features single-tooth box transmission and a square box type frame, utilizing a semi-closed hood and an all-digital inverter control system.

Technical Specifications

1. Raw Material	Waste Paper, Wood Pulp, Carton Paper
2. Product Variety	Craft paper, kraft paper, corrugated paper, flute paper, liner paper
3. Paper Width	1600mm
4. Quantitative	100-200g / m2
5. Production Capacity	50T/D (24 hours)
6. Design Speed	50m/ min
7. Working Speed	21-45m / min
8. Rail Gauge	2400mm
9. Transmission way	AC variable frequency, section drive

Key Components

📍 Headbox: Controls and stabilizes the pulping pressure head by managing internal gas pressure.

📍 Wire Section: Includes breast roll, forming plate, dehydration board, vacuum box, and vacuum couch roll.

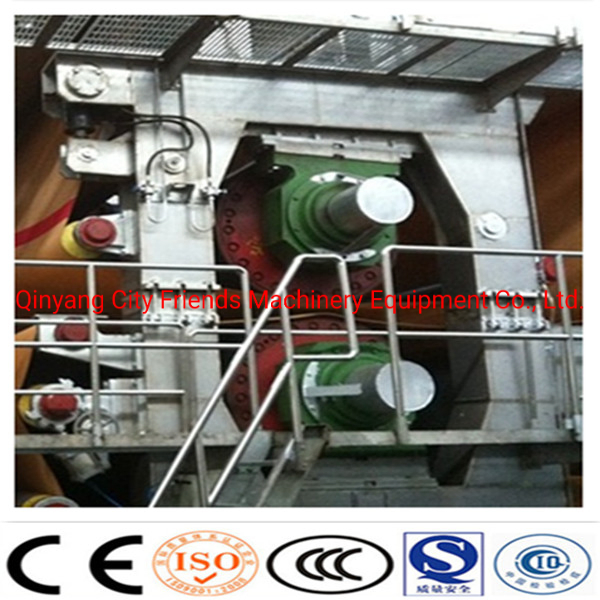

📍 Press Section: Divided into 1st and 2nd press with large diameter rolls and vacuum suction technology.

📍 Dryer Section: Φ1800 dryer cylinders with group drive and semi-enclosed gas hoods for efficiency.

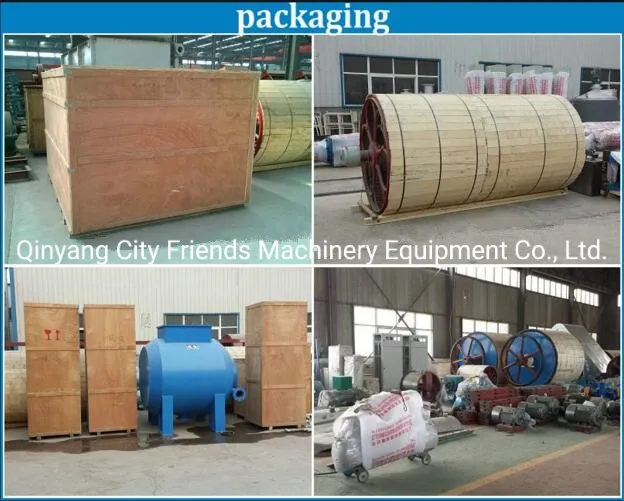

Packing & Delivery

Paper machine frame packed by plastic foam.
Accessories and small parts packed in wooden cases or cartons.
Pulping machines protected by water-proof PVC film.
All movable parts fixed with plastic films and polystyrene foam plates.
Machines secured on fumigated plywood pallets with iron wire.

Our Professional Services

Pre-sale: 24-hour online consultation, detailed project reports, factory layout design, and free paper samples.

On-purchase: Equipment inspection assistance, assembly drawings, foundation diagrams, and full technical data sets.

After-sales: Fast delivery within 50 days, engineer installation and training, one-year guarantee, and lifetime maintenance guidance.

Frequently Asked Questions

What kind of paper machines do you produce?

We produce Kraft paper machines (carton box, corrugated), Culture paper machines (A4, copy, newspaper), Toilet paper machines, and various paper processing machines.

Can you provide paper mill design services?

Yes, we have a technical team of 116 engineers and 12 experts with over 20 years of experience to design complete mill layouts.

How do you ensure machine quality?

We have over 30 years of manufacturing experience. We strictly follow ISO9001:2008 systems and meet all CE standards to ensure long-term durability.

What information is needed for a quotation?

Please provide your raw material type, required daily production capacity, paper weight (gsm), and required paper width.

Do you provide installation and training?

Yes, our technical installation team can stay at your factory to train your workers and ensure the machine operates correctly.

Is the machine price negotiable?

We focus on high-quality standards for international markets. We can negotiate pricing during factory meetings to ensure a satisfactory agreement for both parties.
