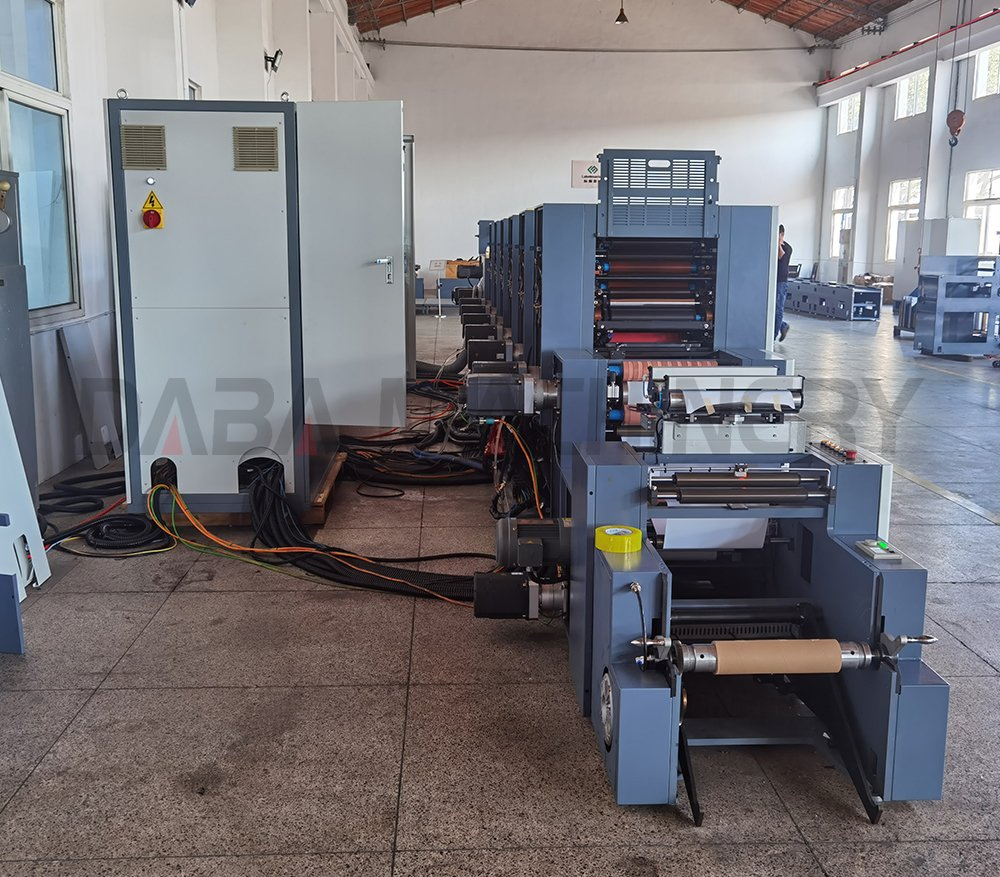

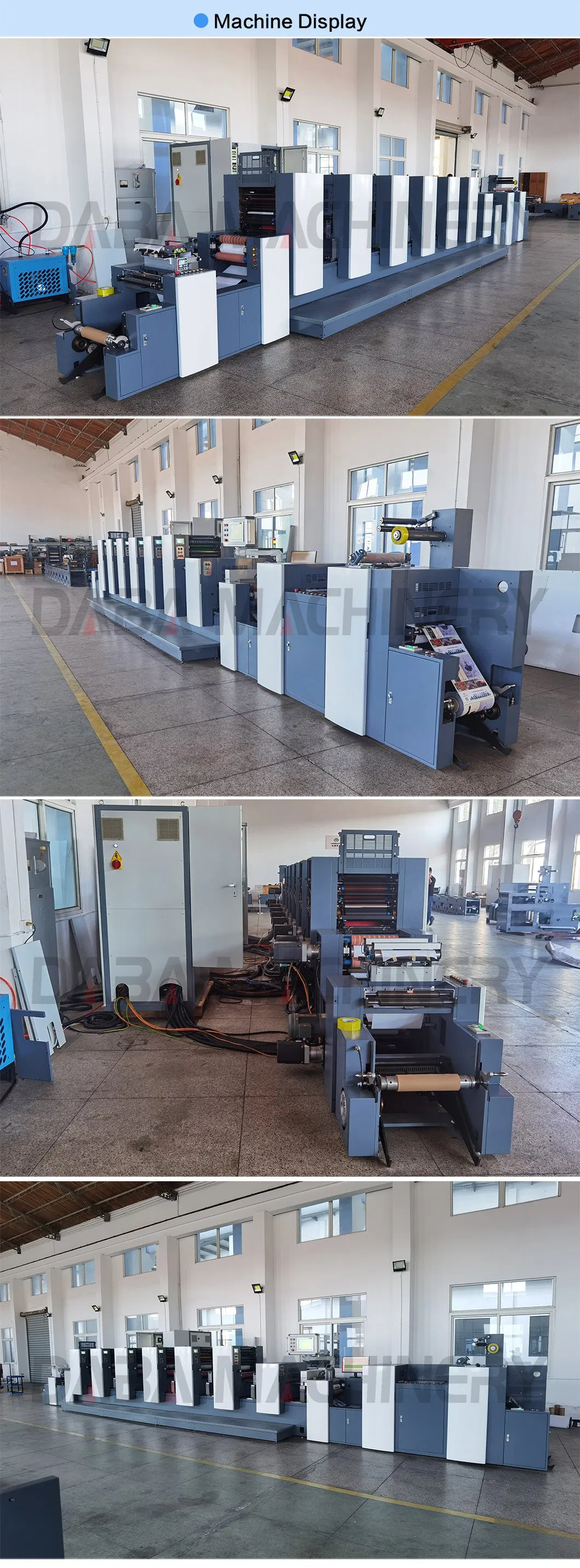

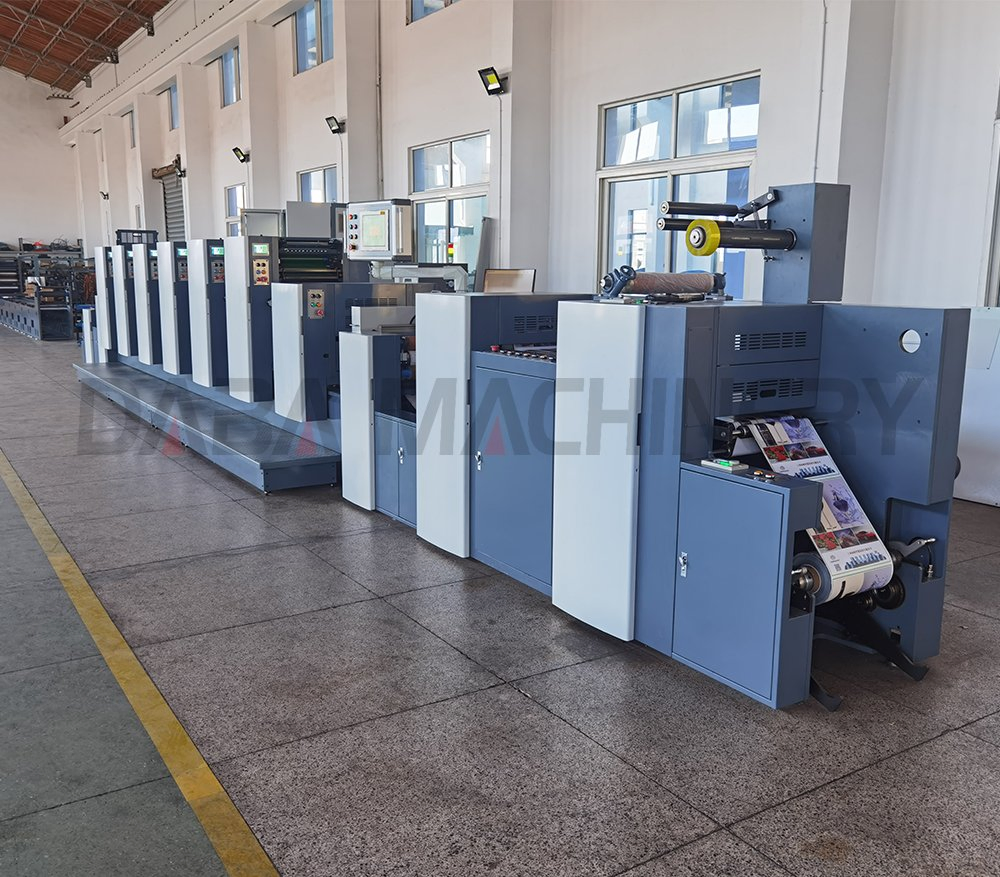

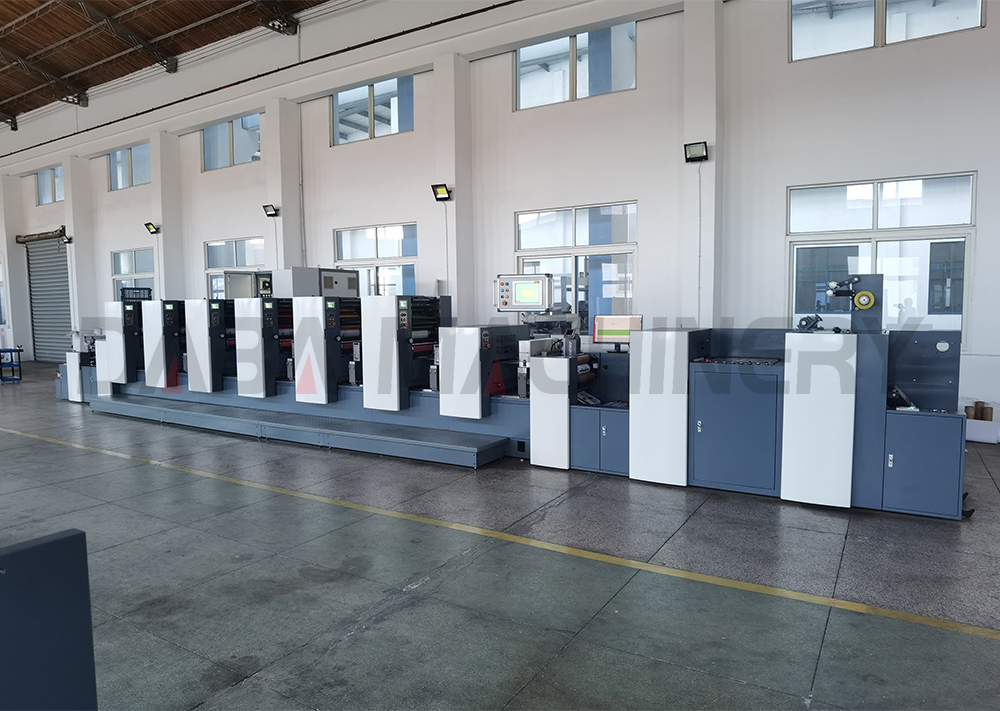

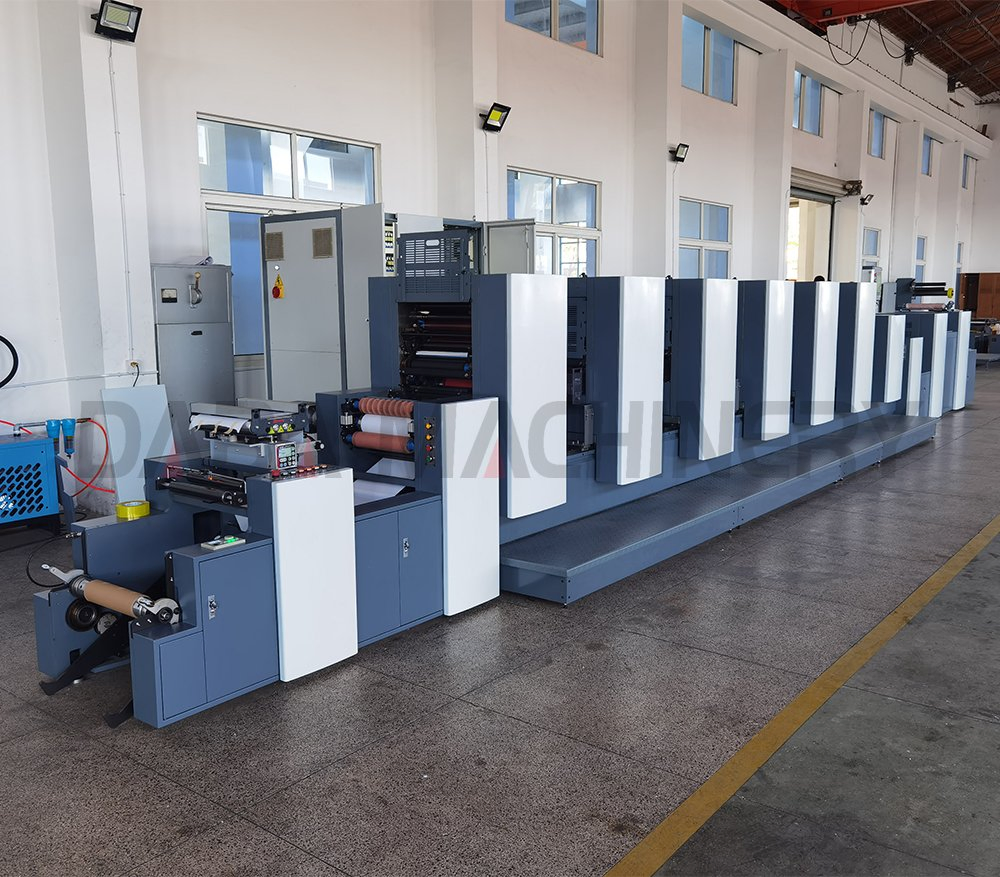

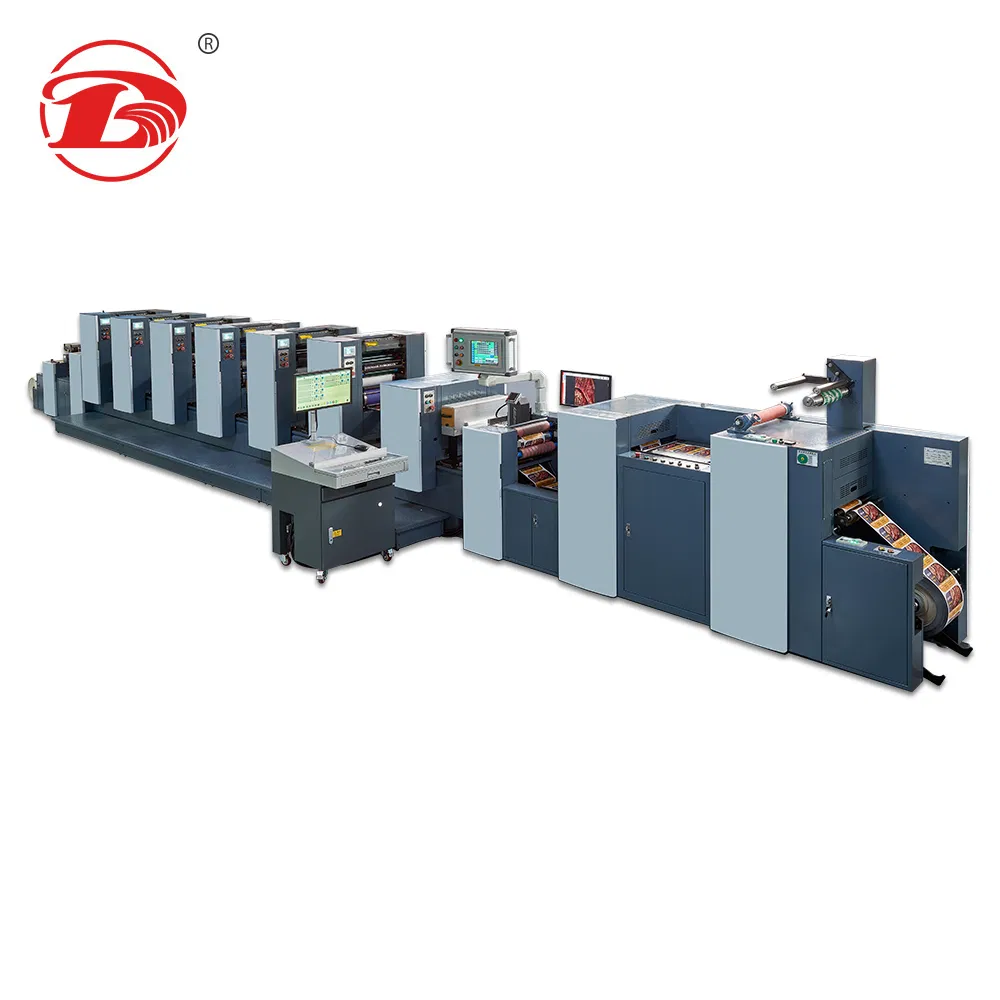

PS plate intermittent printing meets high-level label demands from short run to long run. It is the ideal choice for printing highest quality labels with the lowest production cost.
| Model | DBJY-320 | DBJY-450 |
|---|---|---|
| Printing speed | 50-180 rpm/min | 50-150 rpm/min |
| Printing color | 4-10 colors | 4-10 colors |
| Max. printing length | 350mm | 380mm |
| Max. web width | 320mm | 470mm |
| Max. printing width | 300mm | 450mm |
| Max. unwinding diameter | 700mm | 700mm |
| Max. rewinding diameter | 600mm | 600mm |
| Total power | 33.6kw | 40kw |
| Dimensions (L×W×H) | 10550×1600×1800mm | 11150×1700×1800mm |
| Main machine weight | about 9.5t | about 11.5t |

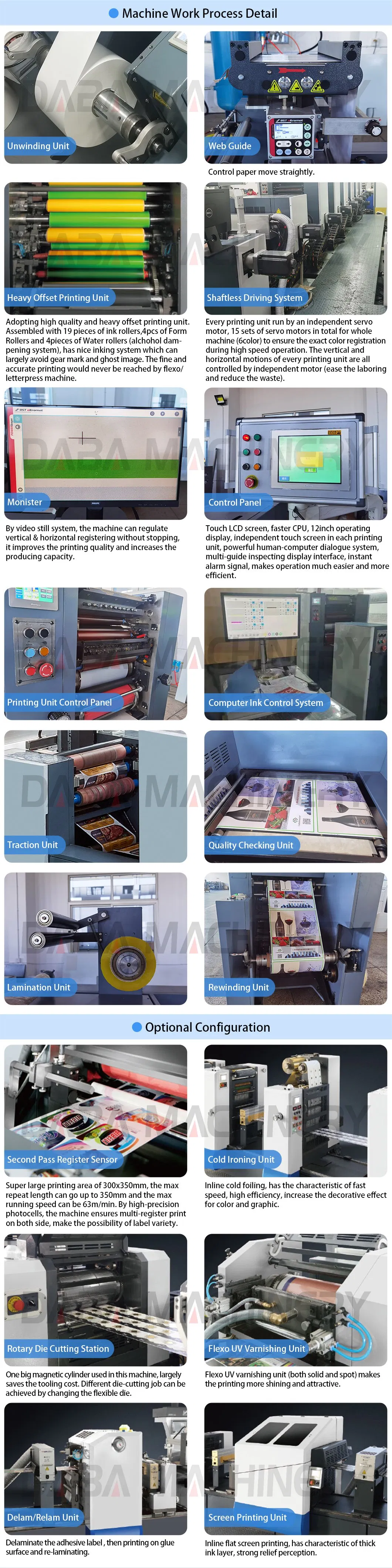

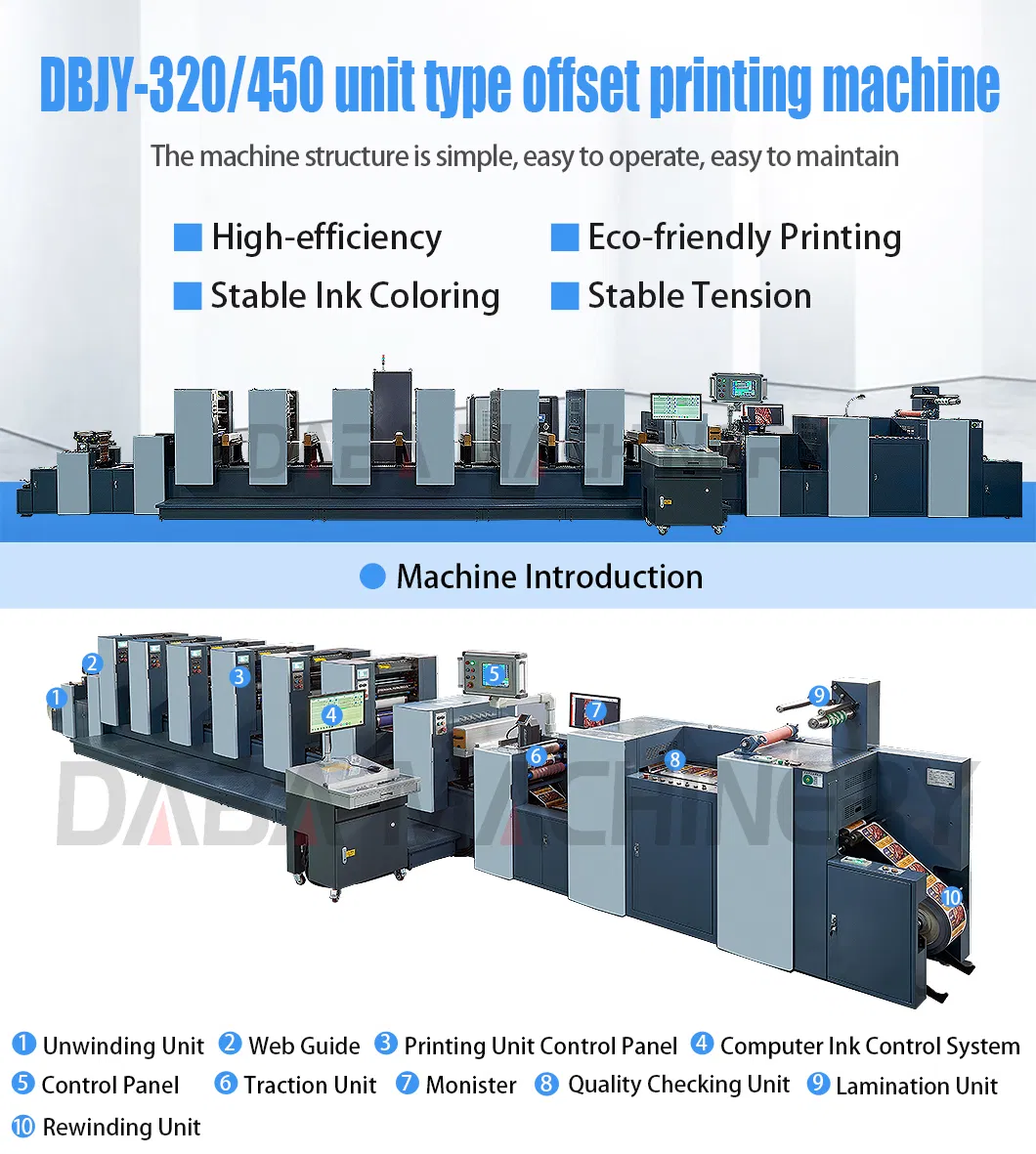

| 1. Unwinding Unit | Standard supply |
| 2. Web Guide | Controls paper move straightly |
| 3. Heavy Offset Printing Unit | 19 pieces of ink rollers, 4pcs of Form Rollers, 4pcs of Water rollers (alcohol dampening). |
| 4. Shaftless Driving System | Independent servo motor for every unit (15 sets total for 6-color). |
| 5. Video Inspecting System | Regulate registering without stopping. |
| 6. Touch Screen Control | 12-inch operating display, independent screens for each unit. |

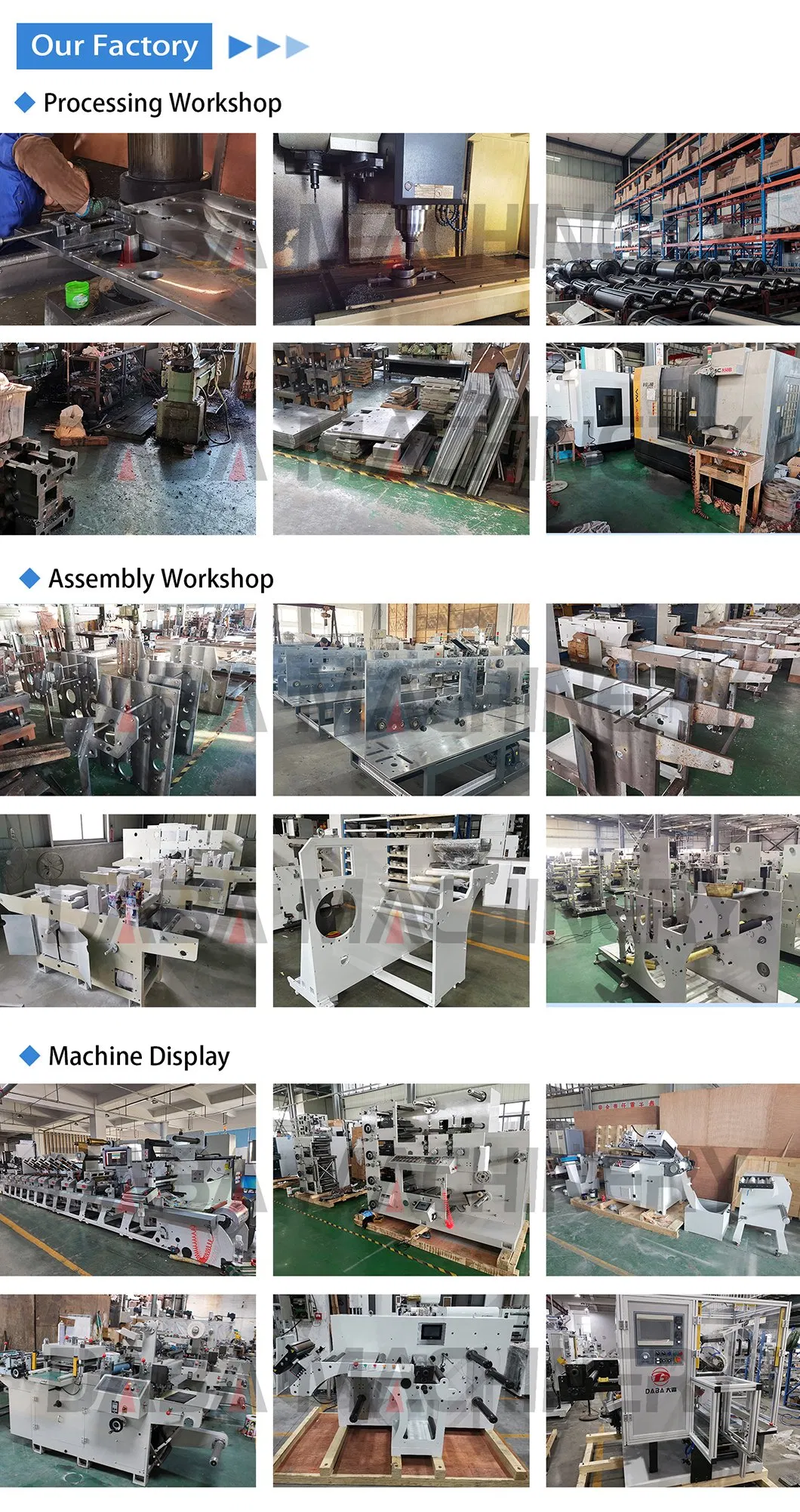

Our equipment is quality proven, superior in design, and produced as per the highest standards. Before leaving the factory, every machine is tested and retested for performance, productivity, and durability. We have obtained ISO9001 Quality Management System Certification and CE Certification for our key products.
