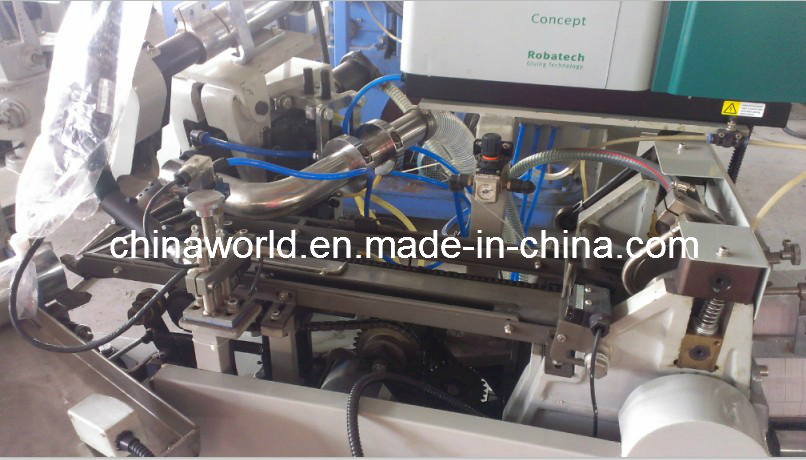

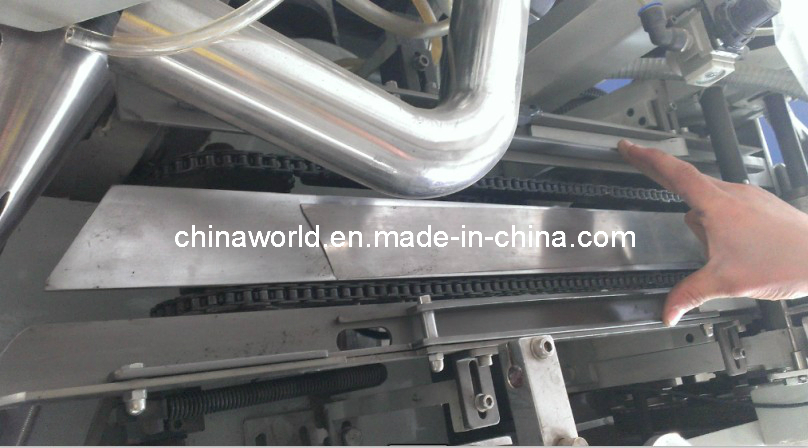

Automatic Paper Cone Machine for Ice Cream Cup
Automatic Paper Cone Machine for Ice Cream Cup
Automatic Paper Cone Machine for Ice Cream Cup
Automatic Paper Cone Machine for Ice Cream Cup
Automatic Paper Cone Machine for Ice Cream Cup
1 / 5
Automatic Paper Cone Machine for Ice Cream Cup
Automatic Paper Cone Machine for Ice Cream Cup
Automatic Paper Cone Machine for Ice Cream Cup
Automatic Paper Cone Machine for Ice Cream Cup
Automatic Paper Cone Machine for Ice Cream Cup

Automatic Paper Cone Machine for Ice Cream Cup

Customization: Available
Warranty: One Year
Applicable Objects: Food
Send Inquiry

Product Description

ⓘ Basic Information
Model NO.
CW-220
Cup Size
4-10oz
Speed
190-230 PCS/Min
Required Paper
Art/Aluminized/Offset/Wax Paper
Automation
Automatic
Condition
New
Type
Paper Folding Machine
Computerized
Yes
📋 Product Description

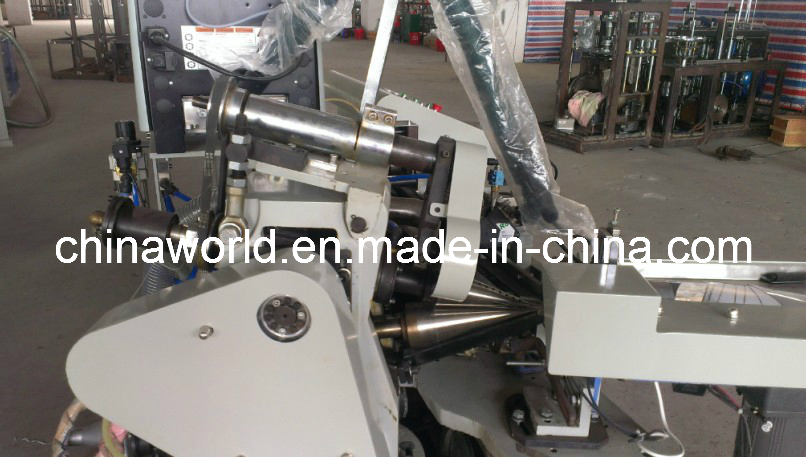

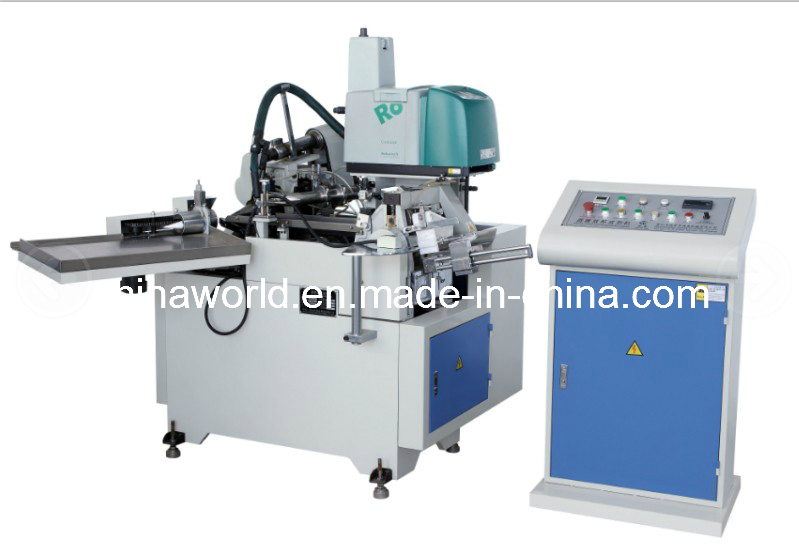

CW-220 Automatic cone machine is specifically designed for manufacturing ice cream and other similar paper cone sleeves. This high-efficiency machine can shape angles ranging from 15 to 28 degrees through adjustable mould systems.

The driving system of this machine adopts a robust boxing structure, utilizing oil cycling for superior lubrication. Crucial components are sourced from world-renowned international brands to ensure stability and longevity.

⚙ Technical Parameters
Speed190-230 pcs/min
Paper Cup Size4-10oz
Raw Material80-170 g/m², art paper/aluminized paper/ offset paper/ wax paper etc.
Electricity220V 50Hz 1phase, 380V 50Hz 3phase or customize
Power9kw
Net Weight1000Kgs
Dimension1850*1750*1800mm

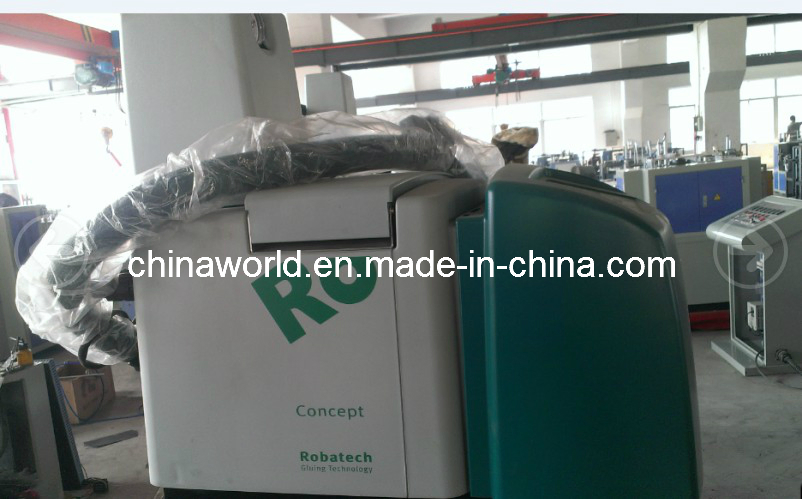

Main Parts BrandPLC: Mitsubishi | Glue box: Robatech | Vacuum Pump: Huitong | Transducer: Schneider | Sensor: Omron | Electrical: Schneider + Panasonic
🏭 Manufacturing Excellence
Automatic Paper Cone Machine

We are a professional machinery manufacturer and export company. Our facility is specialized in producing a wide range of non-woven and paper product machinery, including Face Mask Making Machinery, Non-woven Bag Making Machines, Paper Cup Machines, Paper Straw Making Machines, and Paper Plate Making Machines.

Machine Detail 1
Machine Detail 2
Machine Detail 3
🏭 Workshop Display

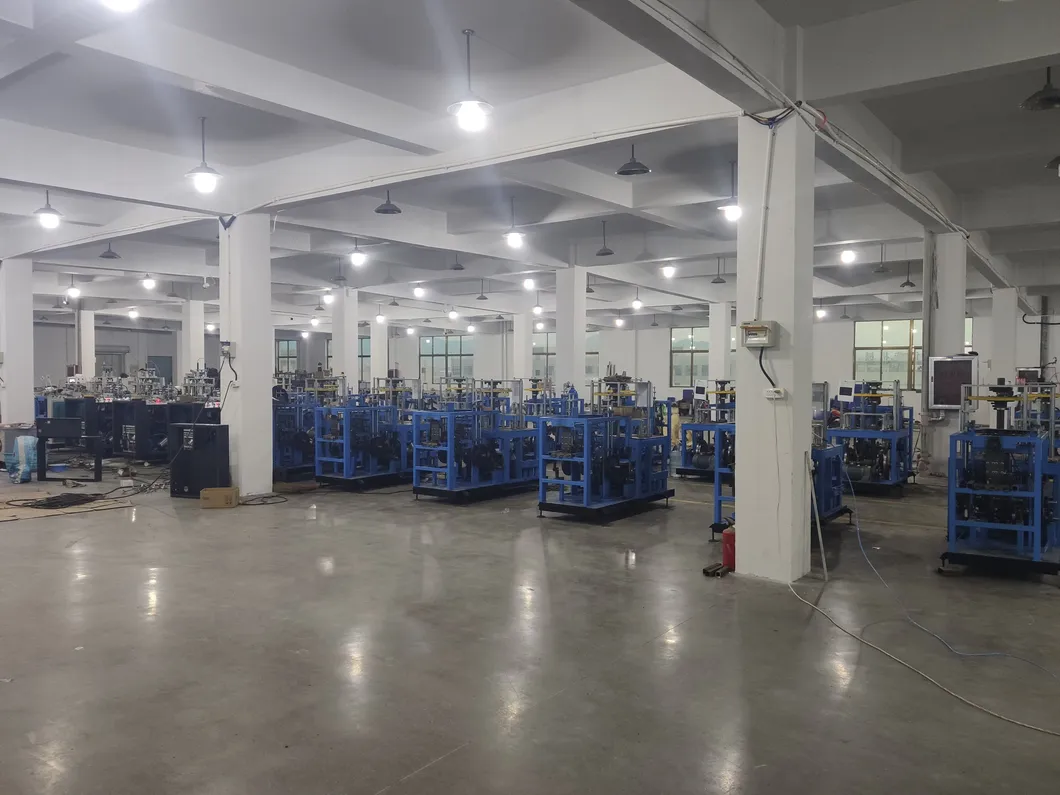

Workshop 1

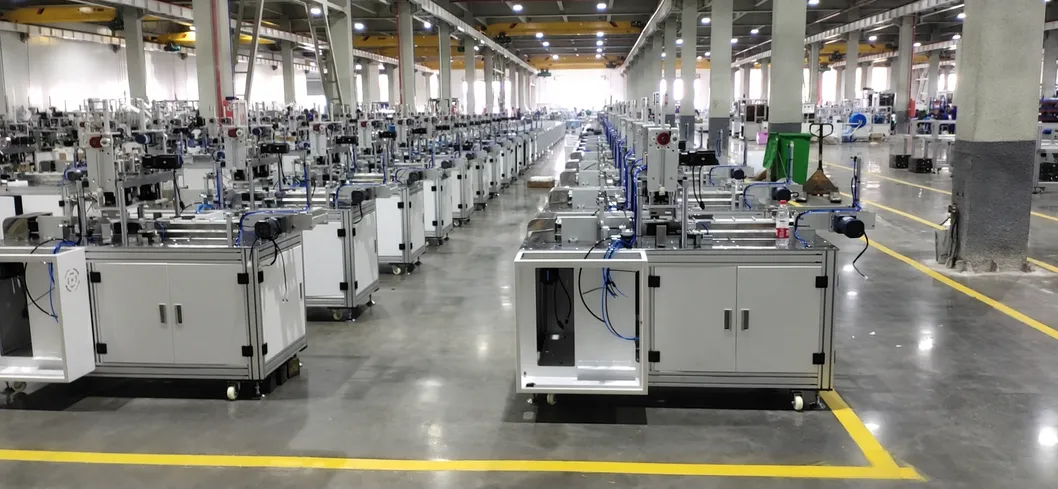

Workshop 2

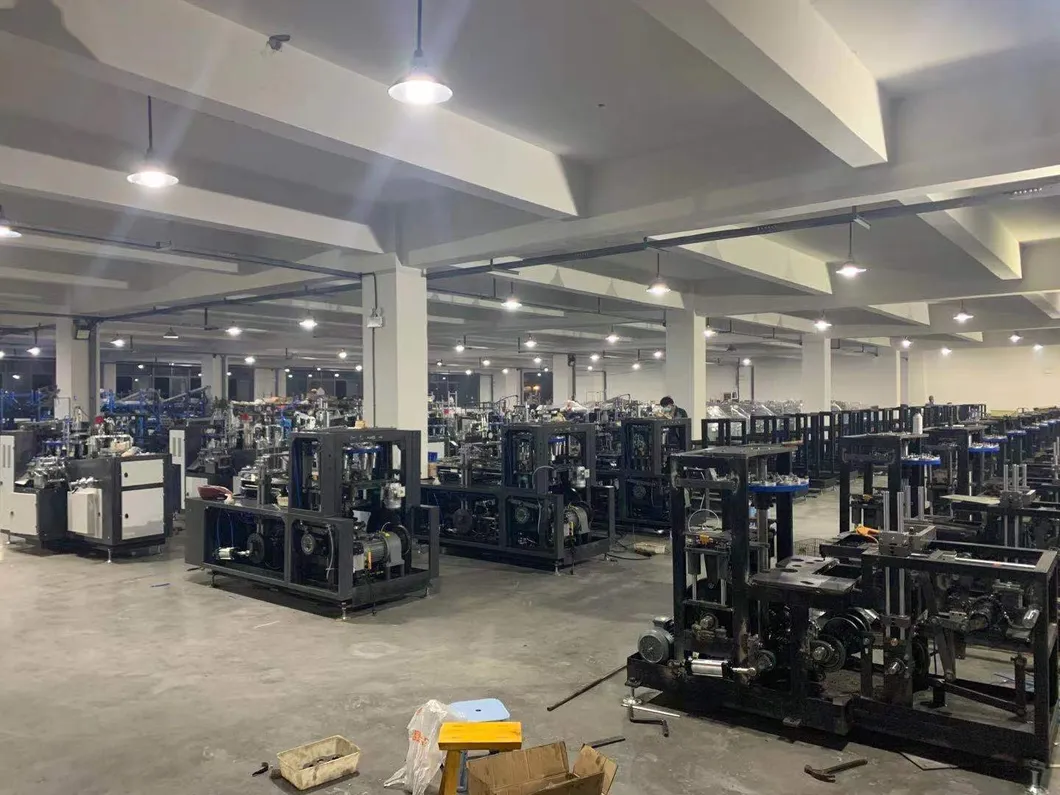

Workshop 3
🌐 Exhibition
Exhibition 1
Exhibition 2
🔥 Hot Sale Products

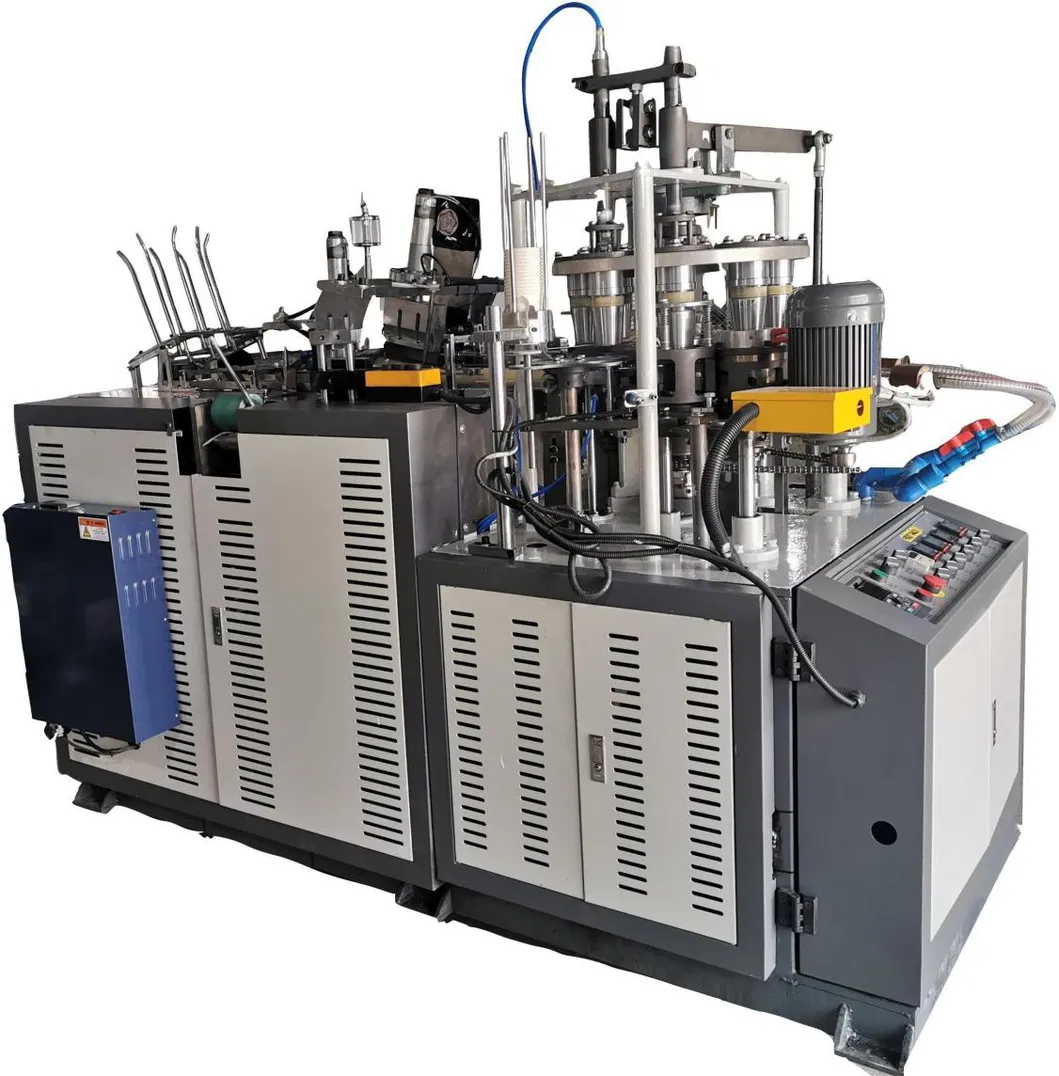

Hot Sale 1

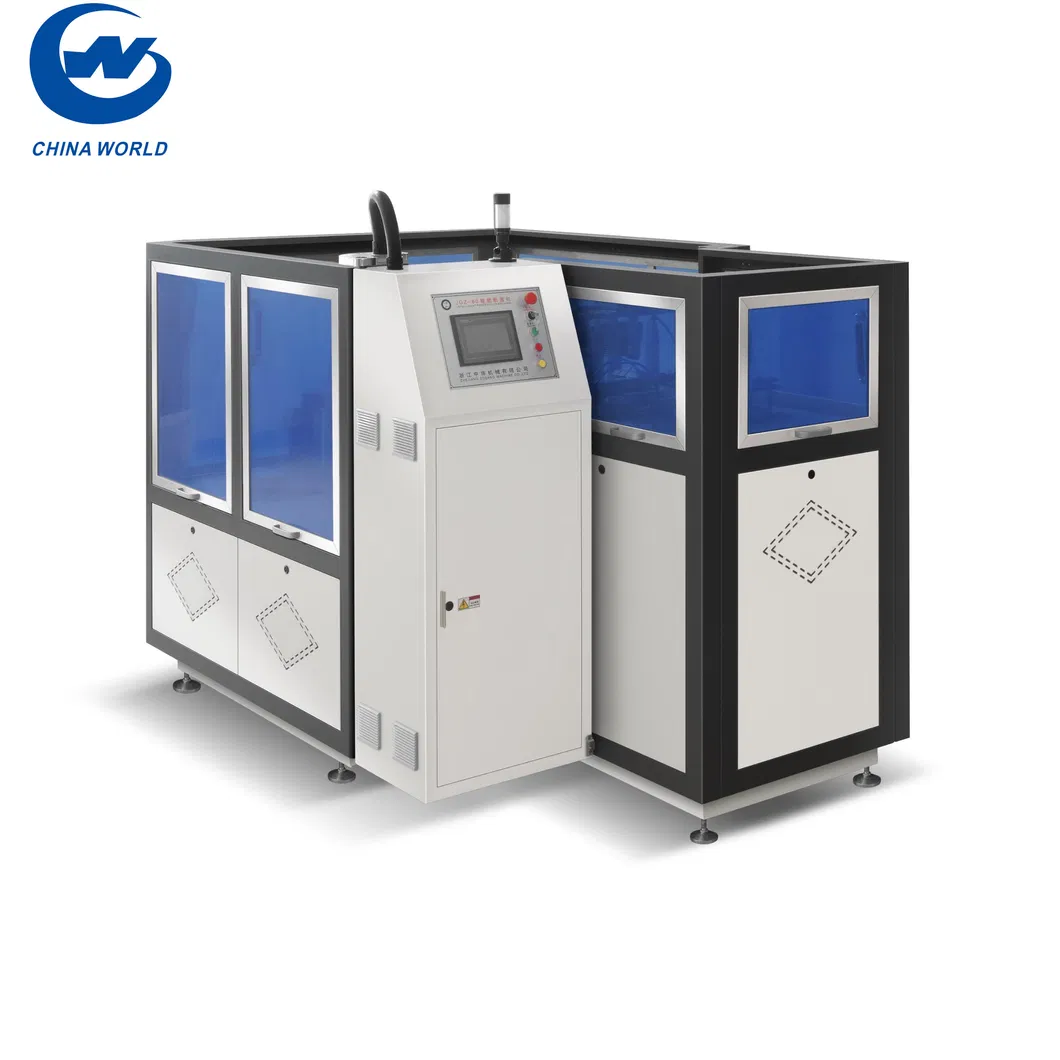

Hot Sale 2

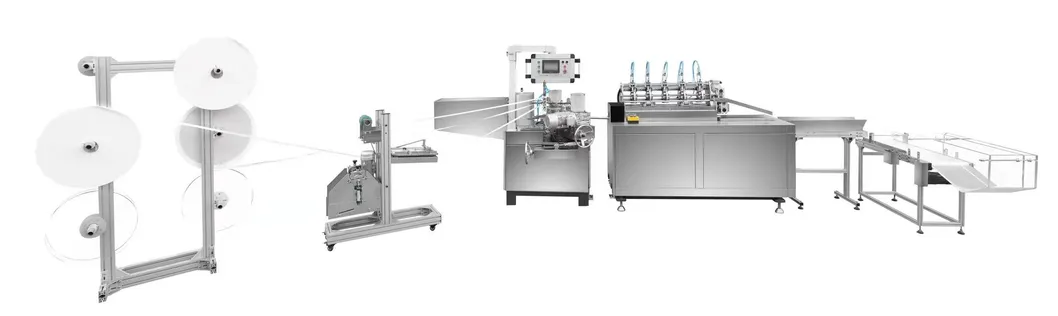

Hot Sale 3
❓ Frequently Asked Questions
What is the production speed of the CW-220 machine?
The CW-220 Automatic cone machine operates at a high speed of 190 to 230 pieces per minute.
What range of cone angles can this machine produce?
The machine can shape cone angles from 15 to 28 degrees by changing the moulds.
Which types of paper are compatible with this equipment?
It supports various materials including art paper, aluminized paper, offset paper, and wax paper with weights between 80-170 g/m².
What brands of components are used in the machine?
We use premium international brands such as Mitsubishi for PLC, Robatech for the glue box, and Schneider or Panasonic for electrical parts.
Can the electrical specifications be customized?
Yes, while standard options are 220V 50Hz or 380V 50Hz, we can customize the electricity requirements to meet your local standards.
Is the lubrication system manual or automatic?
The machine features an advanced boxing structure that uses an automatic oil cycling system for continuous lubrication.
