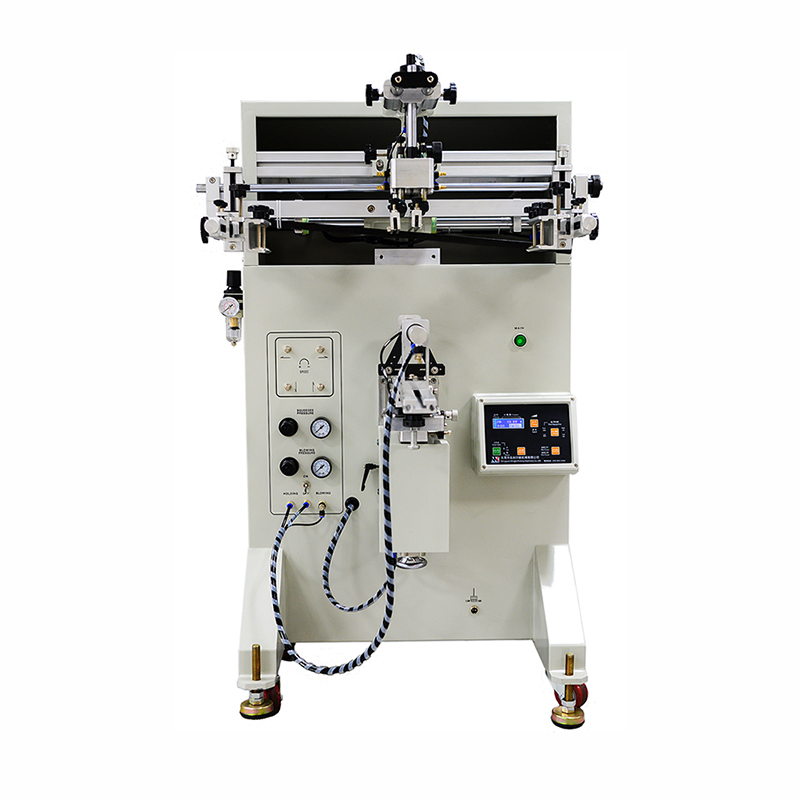

Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup
Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup
Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup
Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup
Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup
1 / 5
Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup
Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup
Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup
Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup
Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup

Paper Cup Printing Machine Automatic Offset Screen Printing Machine for Plastic Cup

Customization: Available
After-sales Service: 2 Year Warranty, Lifetime Maintenance
Warranty: 2 Year Warranty
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
YK-400C
Type
Rotary Screen Printing Machine
Style
Screen-process Printing Press
Structure
Rotary Printing Press
Color & Page
Multi-Colour Printing Press
Application
Bottle, Cup, Glass, Mug, Silicone Wristband
Print Interface
Pneumatic
System Supported
Pneumatic Cylinder
Printing Speed
2000 PCS/H
Air Pressure
6 Bar
Power Supply
220V/50Hz, 110V/60Hz
Machine Weight
100kg
🔍

Product Description

Semi Automatic Cylinder Silk Screen Printing Machine

Application Area:

Suitable for precise printing substrates in Cylindrical, Conical and Oval forms with smooth curve surfaces. Compatible with various materials such as metal, plastic, ceramic, glass, and wood. Ideal for objects like lipstick tubes, cosmetic bottles, drink bottles, pots, and oil-filter shells.

This cylinder screen printer is a multifunctional machine suitable for printing on flat, round, and oval shaped products. It prints one color at a time, but can achieve multi-color results by replacing the frame and ink.

Main Performance Features:

  • Equipped with Japanese SMC rodless cylinders, meeting CE standards for highly stable operation.
  • Designed for high-precision color registration, allowing for multi-color printing through successive passes.
  • High-efficiency output with printing speeds exceeding 2000 Pcs/H.
Product AppearanceRound / Oblate / Plane
Max Printing DiameterΦ120 MM
Max Printing Area320 x 220 MM
Printing Speed2000 PCS/H
Air Pressure6 Bar
Power Supply220V/50Hz, 110V/60Hz
Max Product Gradient<14°
Machine Size840 x 820 x 1340 mm
WarrantyTwo-year warranty with lifelong maintenance. Includes life-long online technical support and free parts for non-shipping related issues within the first year.
🖼️

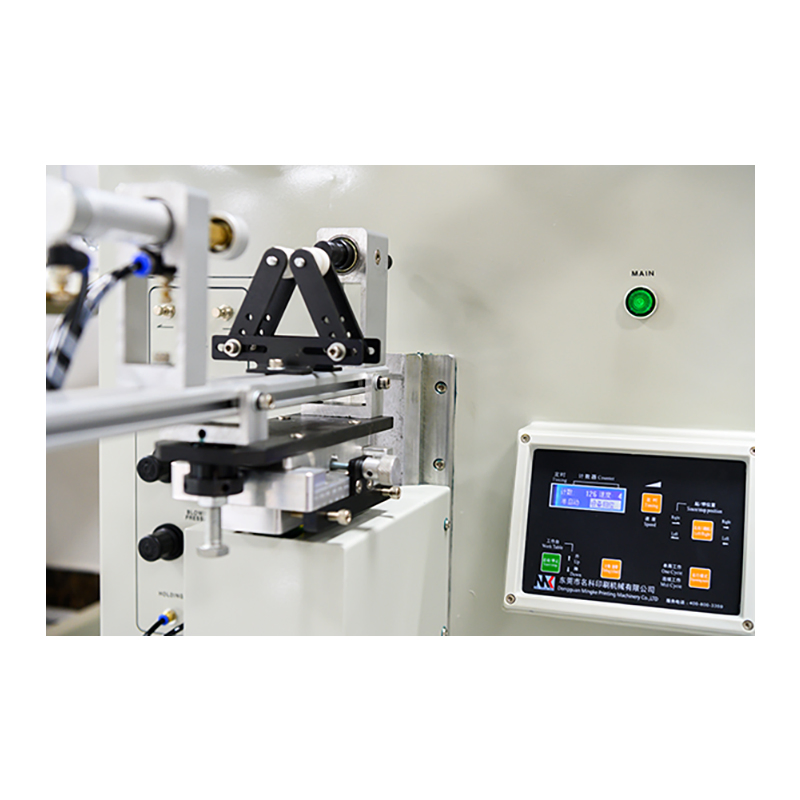

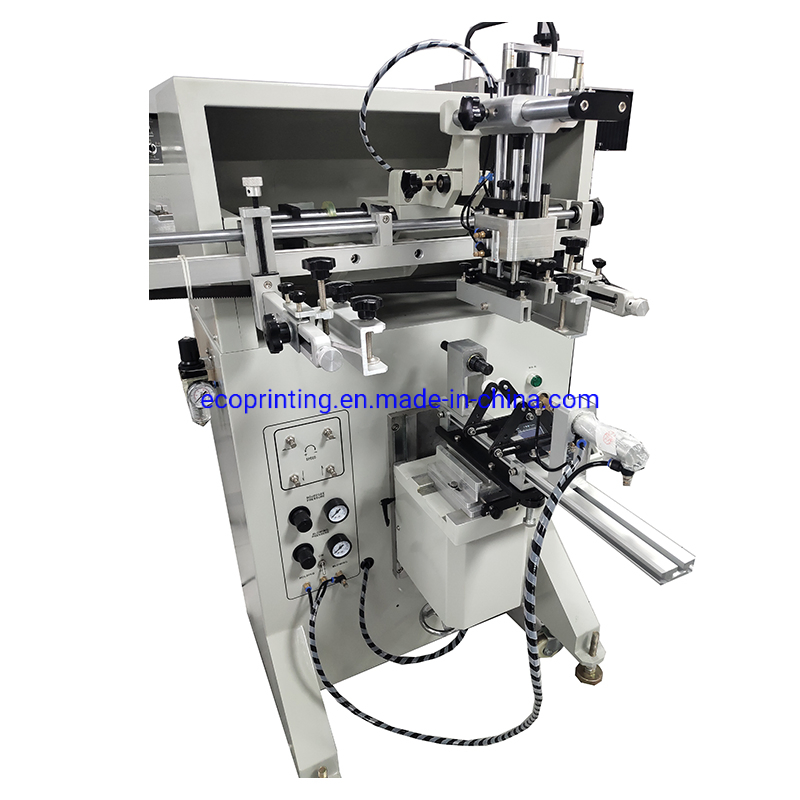

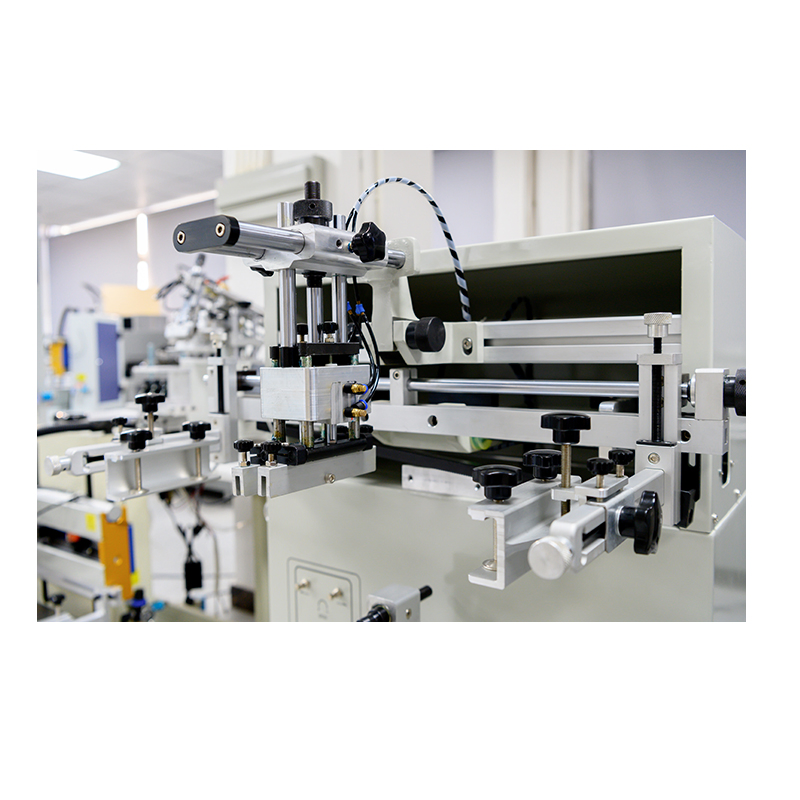

Machine Details & Gallery

Screen Printing Machine Detail 1

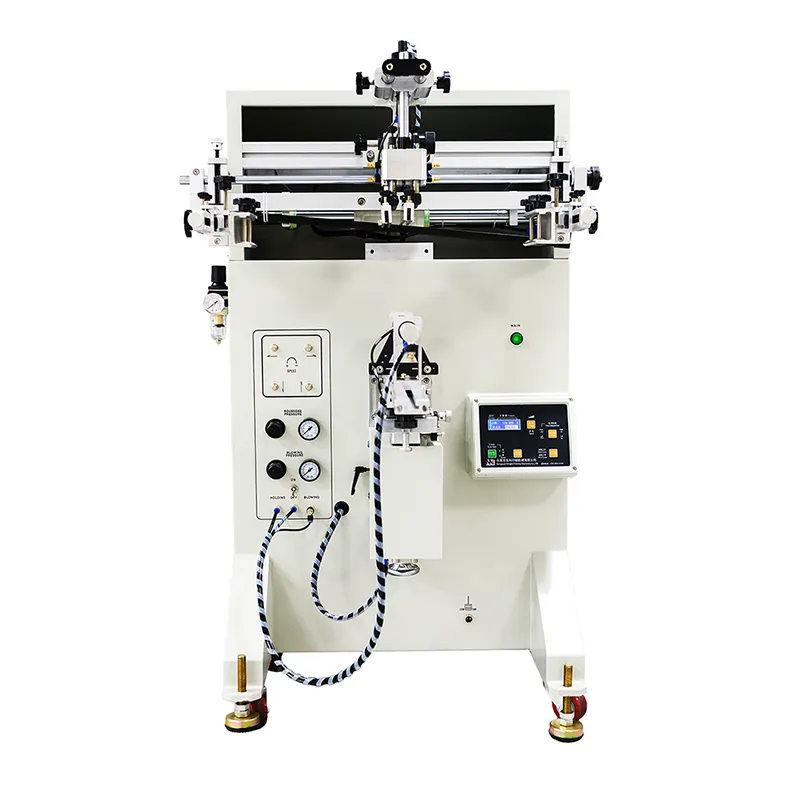

Screen Printing Machine Detail 2
Screen Printing Machine Detail 3

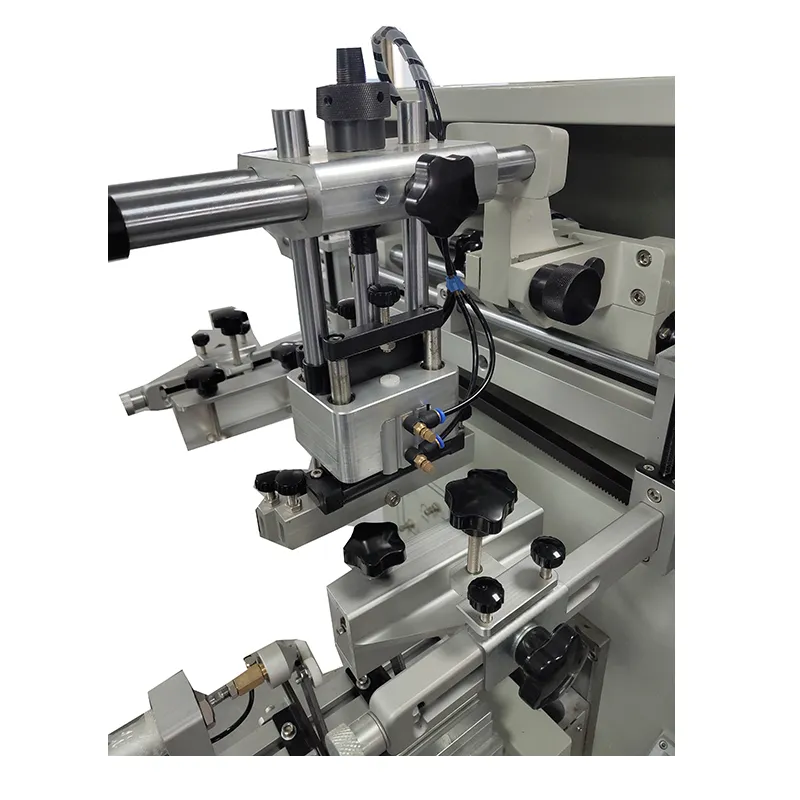

Screen Printing Machine Detail 4

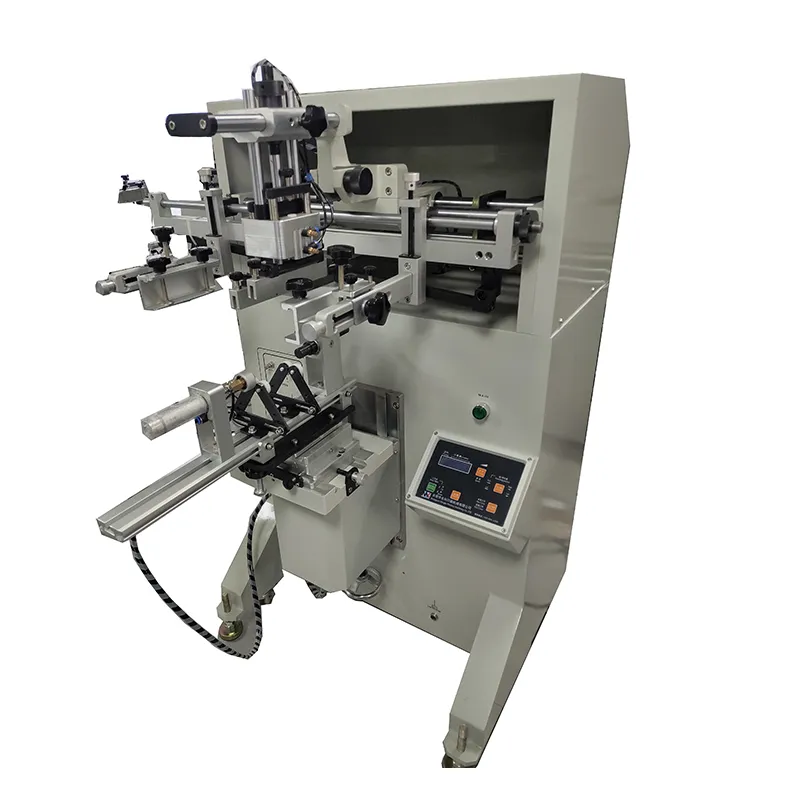

Screen Printing Machine Detail 5

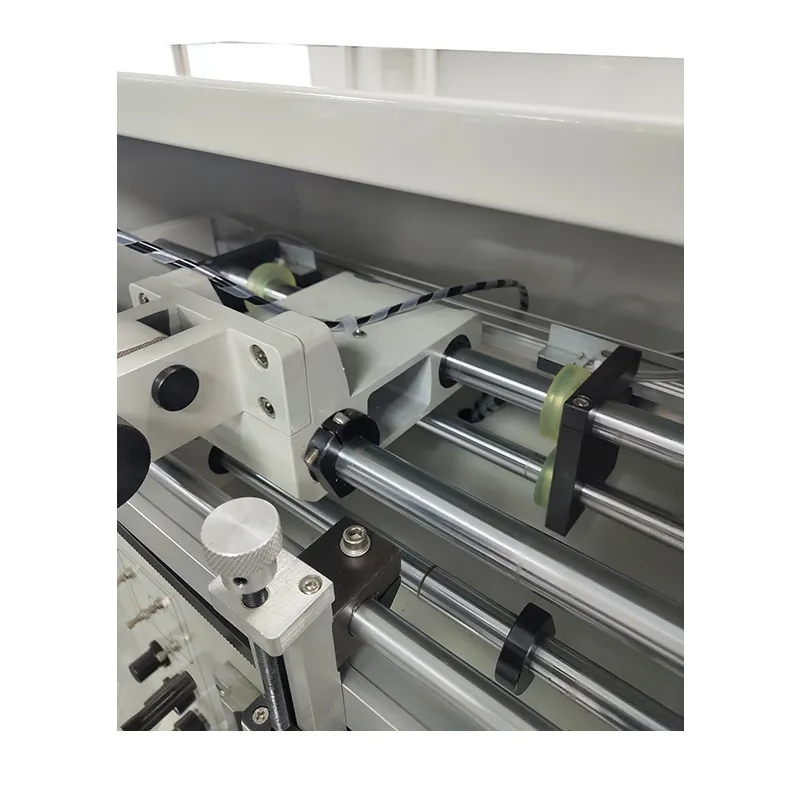

Screen Printing Machine Detail 6
❓

Frequently Asked Questions

1. What types of products can the YK-400C print on?
The machine is designed for cylindrical, conical, and oval objects such as bottles, cups, mugs, lipsticks, and silicone wristbands made of metal, plastic, ceramic, glass, or wood.
2. Can this machine perform multi-color printing?
Yes. While it prints one color per pass, it features high-precision color registration which allows you to print multiple colors by changing the frame and ink for subsequent runs.
3. What is the maximum printing speed of this machine?
The YK-400C can reach a printing speed of up to 2000 pieces per hour, depending on the product size and operator efficiency.
4. What kind of pneumatic components are used?
The machine utilizes high-quality Japanese SMC rodless cylinders to ensure stable performance and compliance with CE standards.
5. What is the warranty and after-sales support policy?
We provide a two-year warranty and lifelong maintenance. This includes life-long online technical support and free replacement parts for issues occurring within the first year (excluding shipping costs).
6. What are the power and air requirements?
The machine requires a power supply of 220V/50Hz or 110V/60Hz and an air pressure of 6 Bar for optimal operation.
