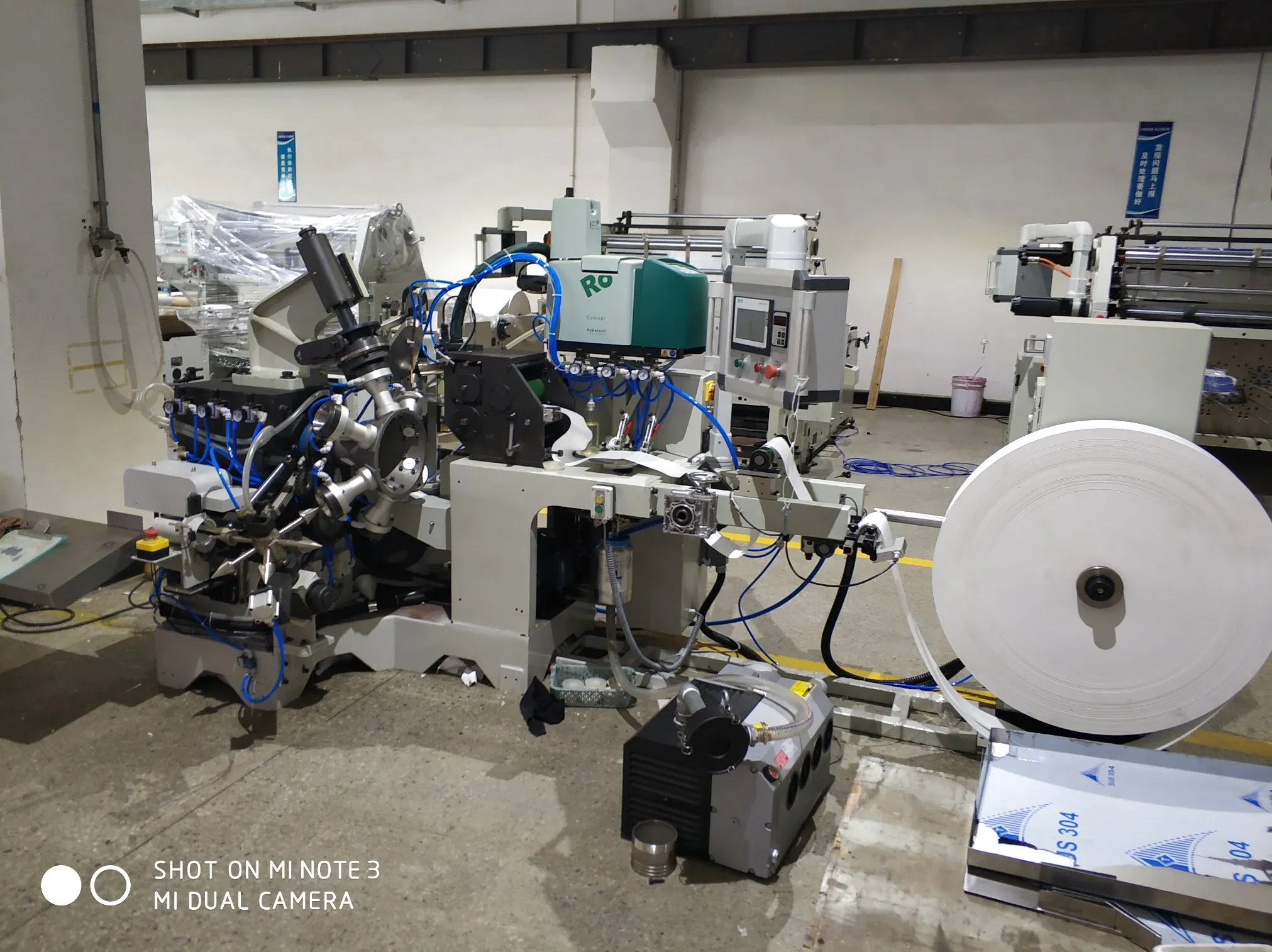

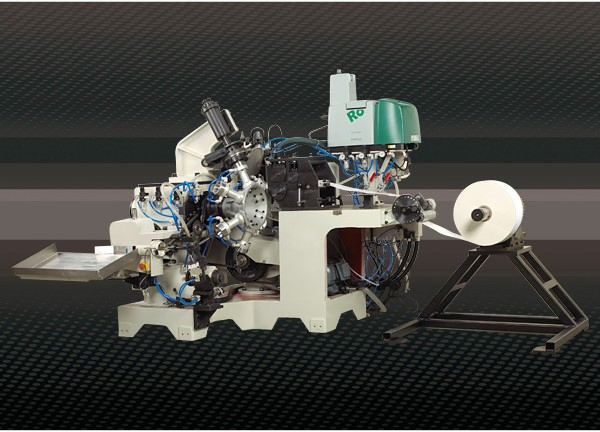

Roll Rim Automatic Paper Cone Cup Water Cup Machine ZB1R-A
| Paper Cone Cup Machine Specification | |
|---|---|
| Machine type | ZB1R-A |
| Specification | 1.5-14oz |
| Height | 70-145mm |
| Max Speed | 180 pcs/min |
| Wall angle | 40° |
| Max Web Width | 180mm |
| Materials | Coated Paper 90-120gsm, White Kraft Paper and Wax Paper 90-150gsm. |

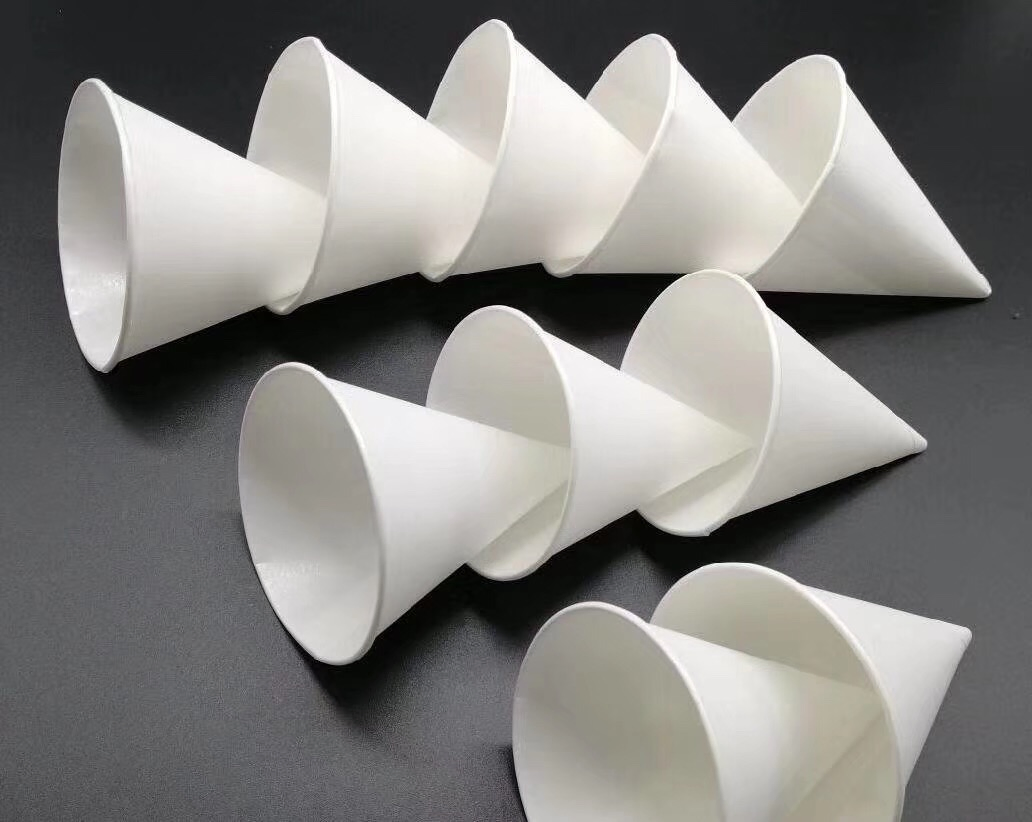

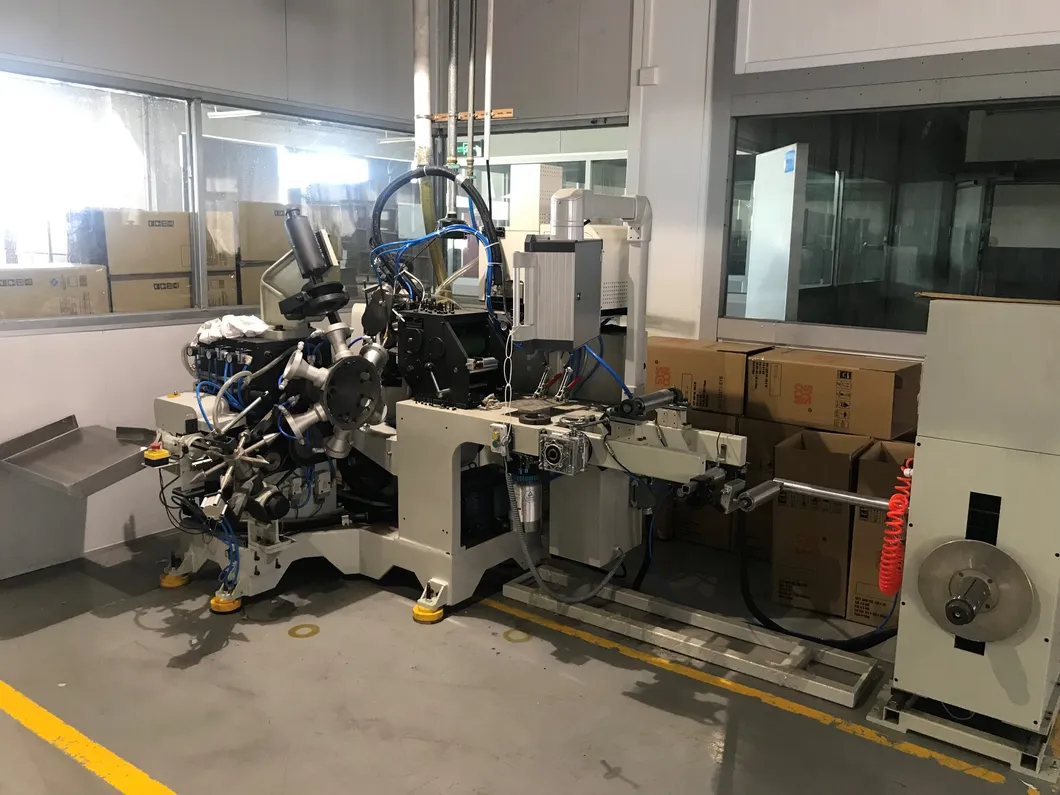

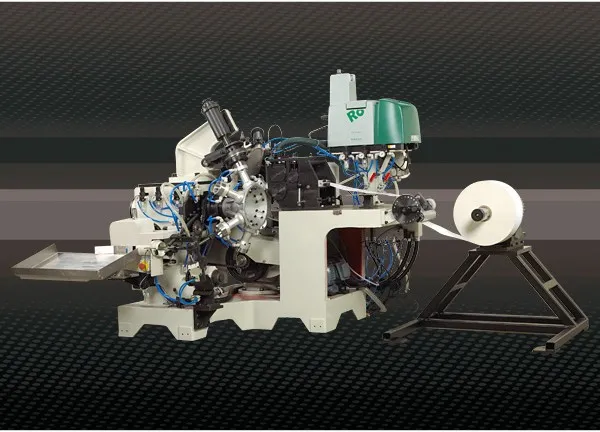

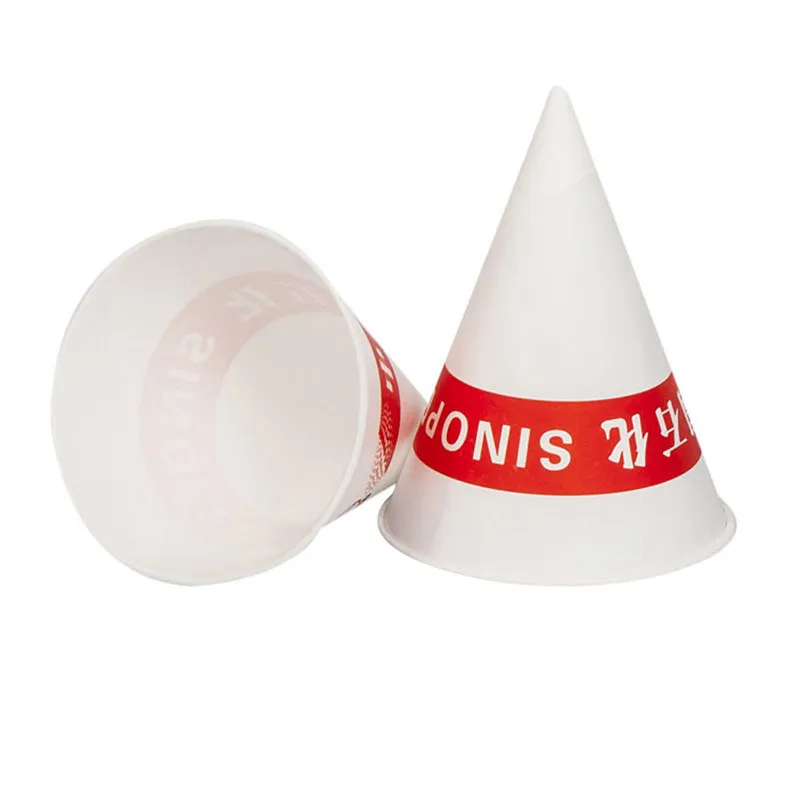

The paper cone cup machine (Rolled Brim) is designed for the production of snack and drinking cones using coated, non-coated, or dry-waxed paper.
Features an advanced magnetic powder system and air shaft clamping device. Easy to adjust unwinding tension and load paper rolls.
Uses continuous feeding and hobbing mode for high precision and fast cutting speeds. The durable hobbing cutter is designed for a long life span.

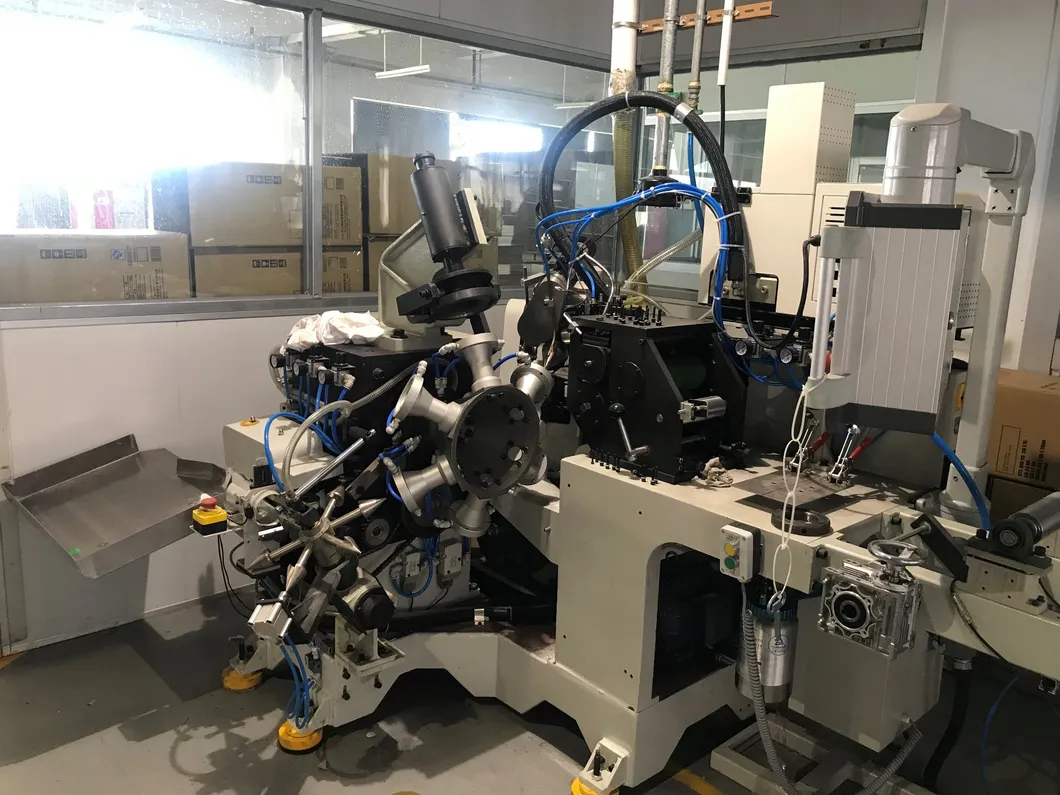

Utilizes vacuum blotting formation and product demolding technology. Includes a world-famous automatic glue spraying system for leak-proof results.
Self-developed fractal guide technology ensures beautiful curling that maintains its shape, leading the industry in quality.
Cups are automatically counted and piled into neat strips for convenient collection after formation.

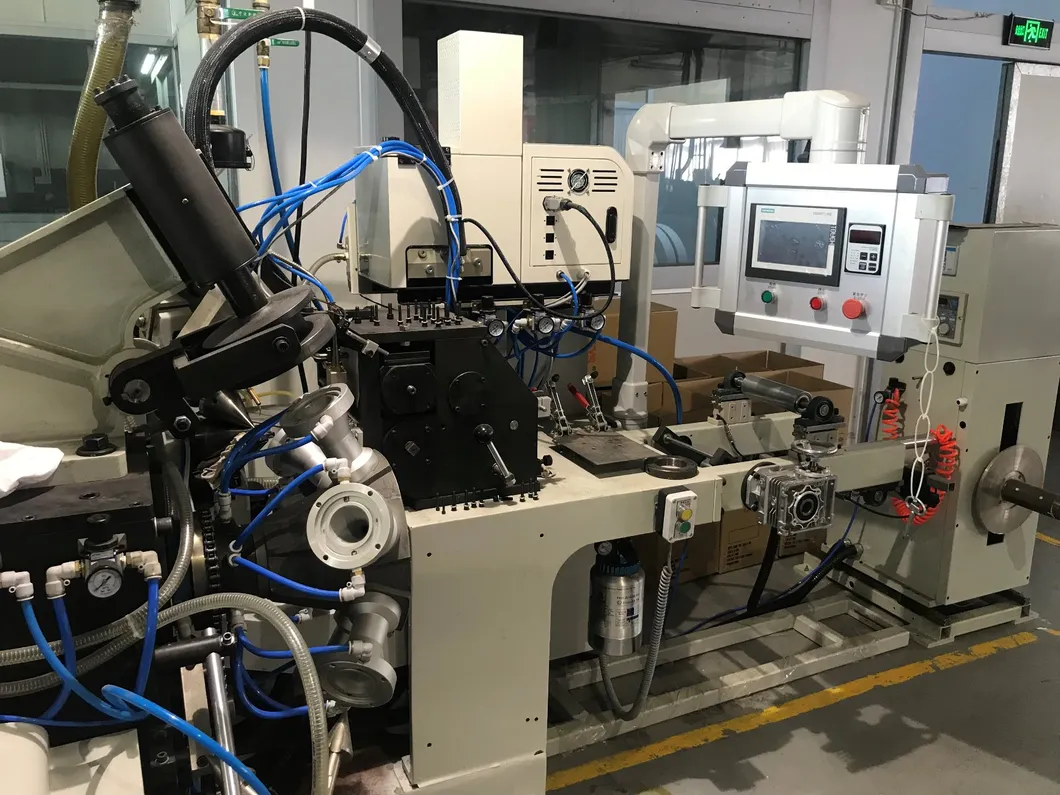

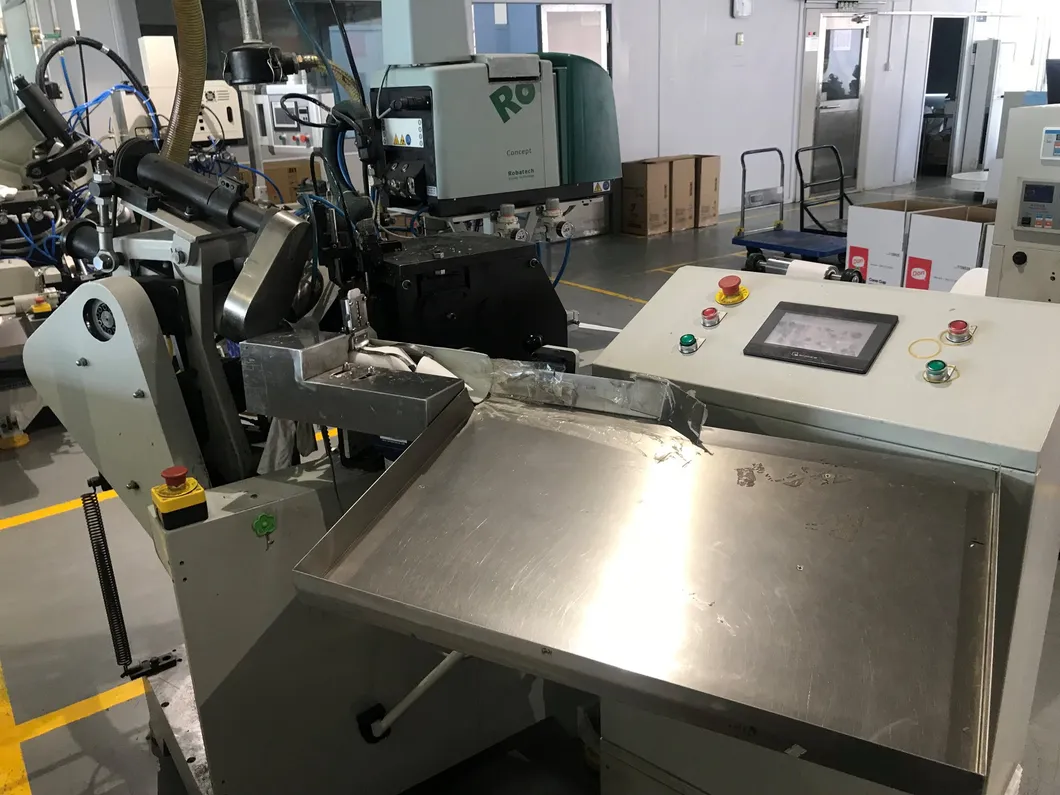

PLC whole machine setting control via touch screen allows for easy parameter adjustment and operation.
| Packaging | Standard fumigated wooden cases designed for international export requirements. |
| Case 1 Dimensions | 2250mm * 1760mm * 1960mm (Gross Weight: 1850 KG) |
| Case 2 Dimensions | 1250mm * 1200mm * 1060mm (Gross Weight: 300 KG) |
| Shipping | By Sea or as arranged per customer request. |

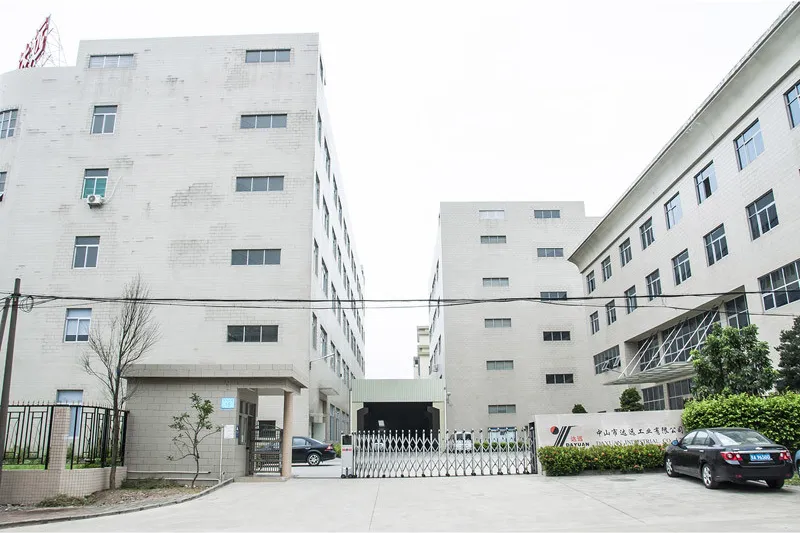

As a major manufacturer and supplier of paper cone cup machines, we utilize advanced production technologies and professional engineering teams. Our equipment, including carton erecting and paper punching machines, has earned CE certification and is exported to over 70 countries worldwide.
