| Model NO. | XSL-16T |
|---|---|
| Cup Size(Ounce) | 4-16oz |
| Speed | 120-150PCS/Min |
| Required Paper | Single/Double PE Paper/PLA Paper/Water Based Paper |
| Automation | Automatic |
| Logo Printing | With Logo Printing |
| Certification | CE |
| Condition | New |
| After-sales Service | Online Service/Engineer Service |
| Suitable Size | Top Diameter:60-95mm Bottom Diameter:40-75mm |
| Paper Request | 170-380GSM Single/Double PE Paper |
| Weight | 3600kgs |
| Size(L*W*H) | 3000*1400*2060mm |
| Power | 3 Phase, 380V, 50Hz 21kw |
| Air Consumption | 0.6-0.8MPa |

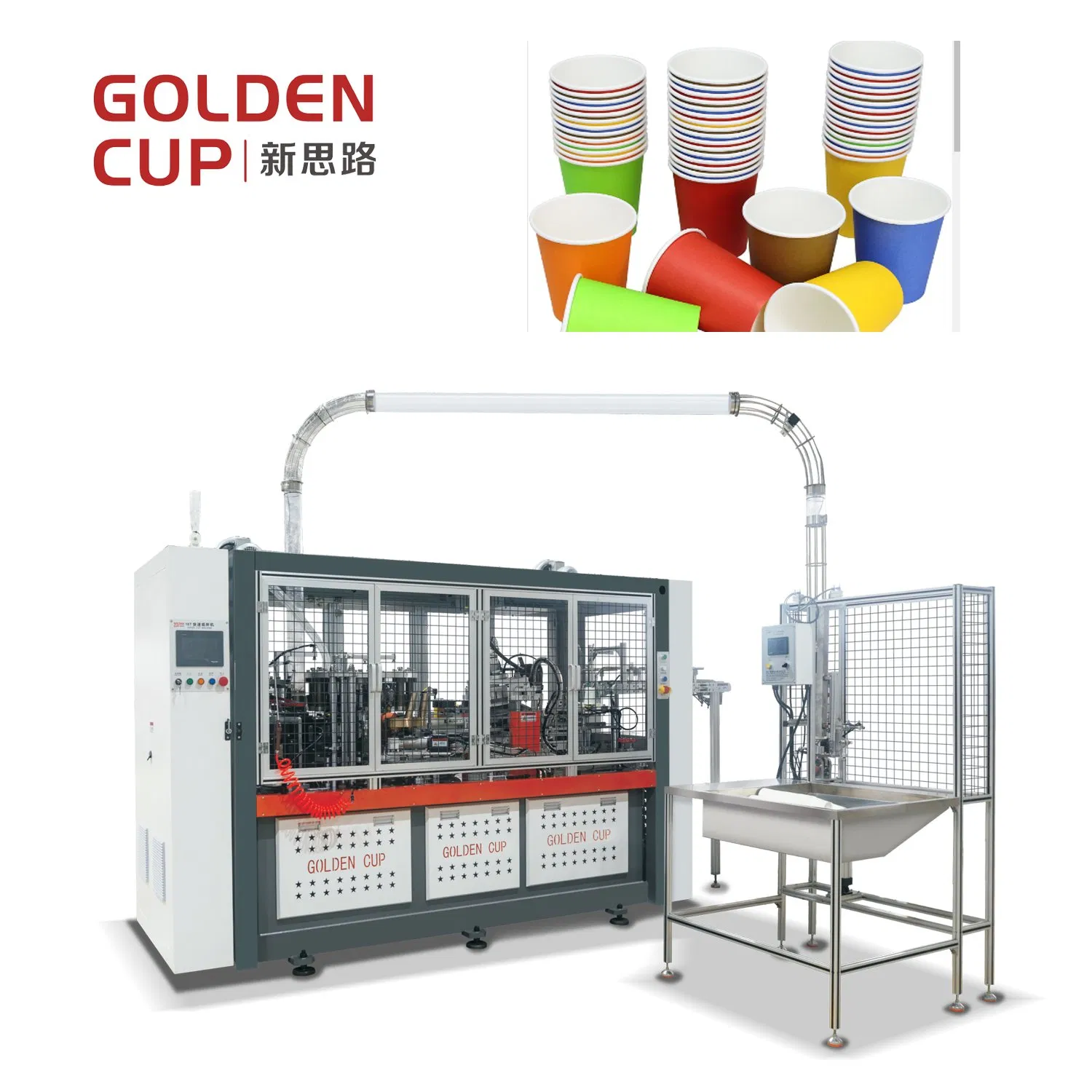

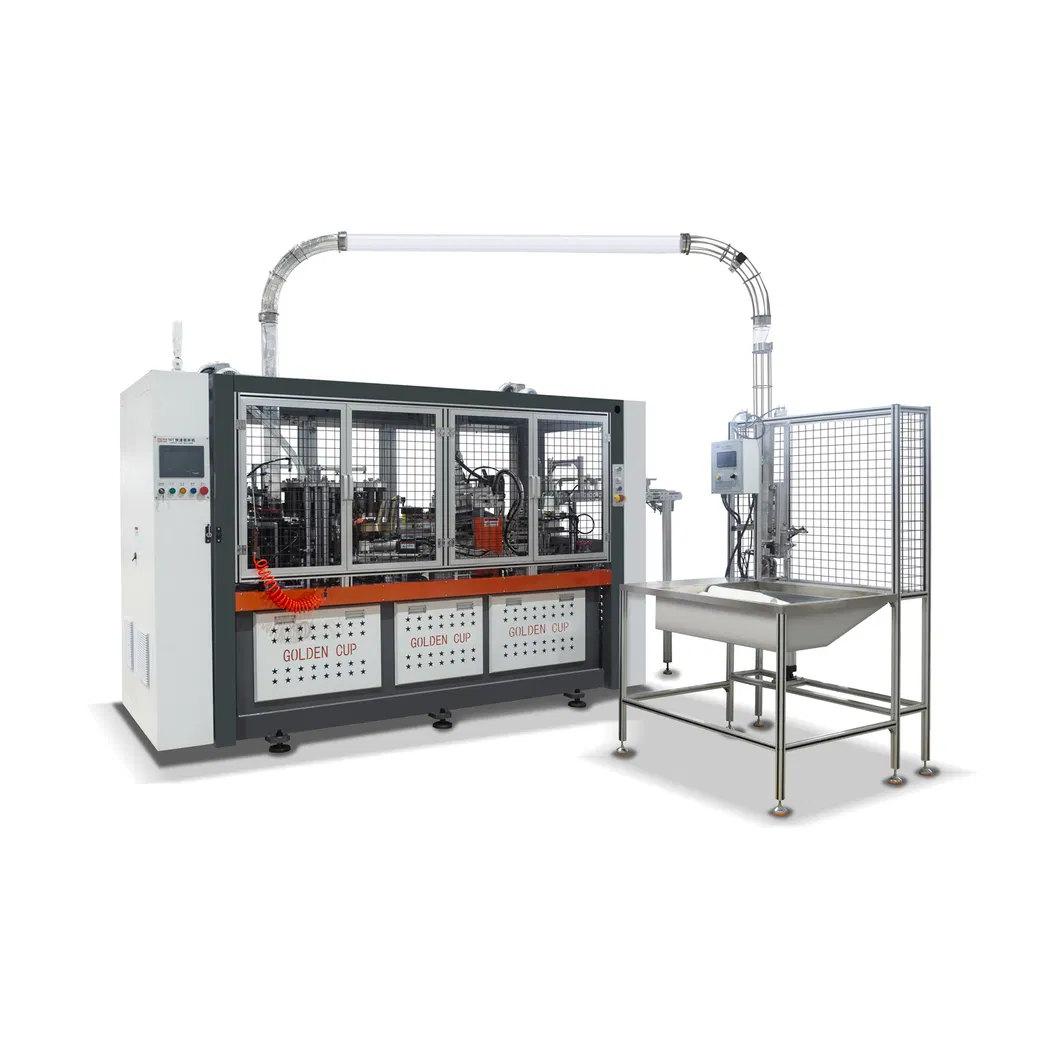

XSL-16T paper cup machine uses a tabletop layout, which isolates the forming parts and transmission parts. All transmission parts use longitudinal shafts, barrel indexing cams, and gear transmission. The transmission components are lubricated by spray.

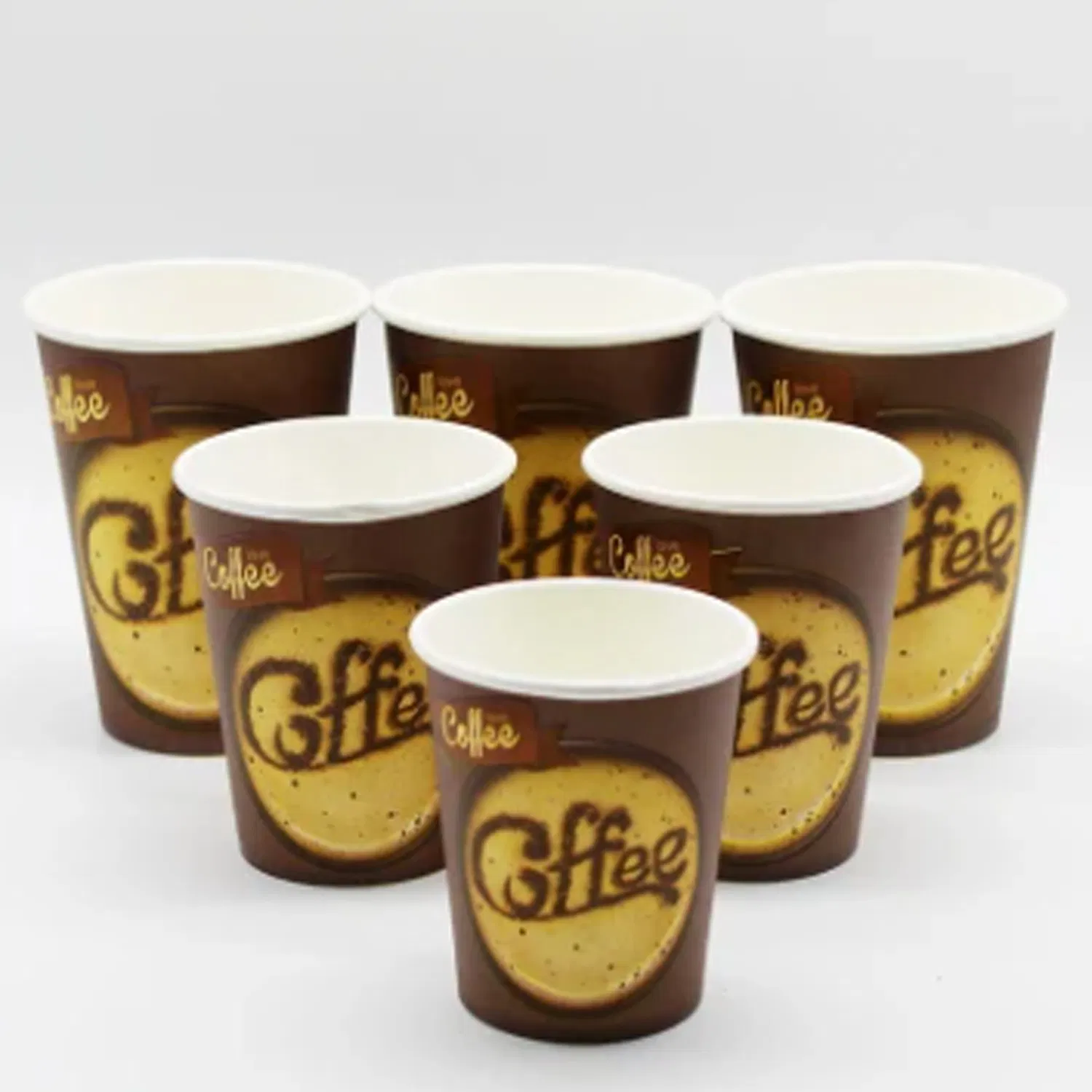

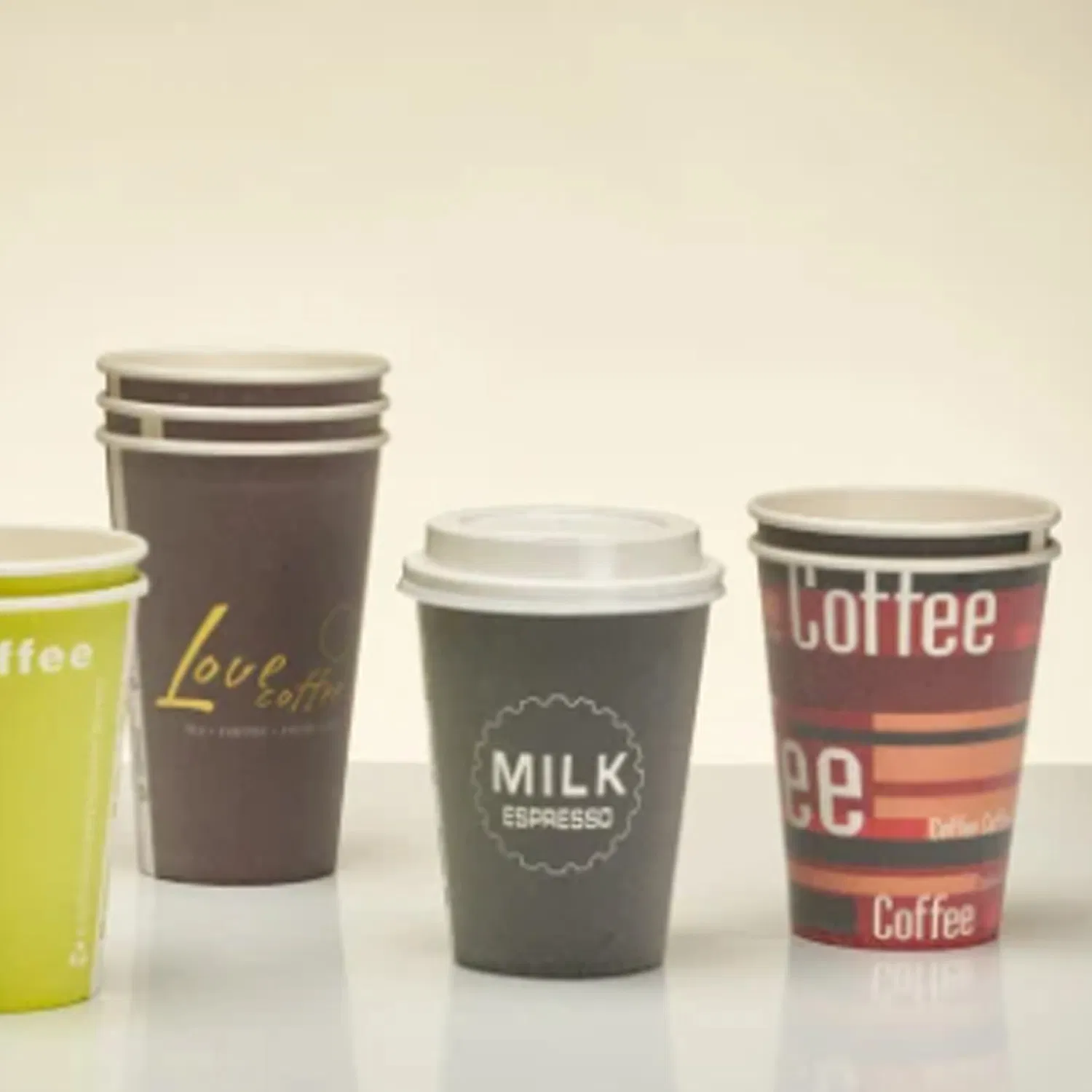

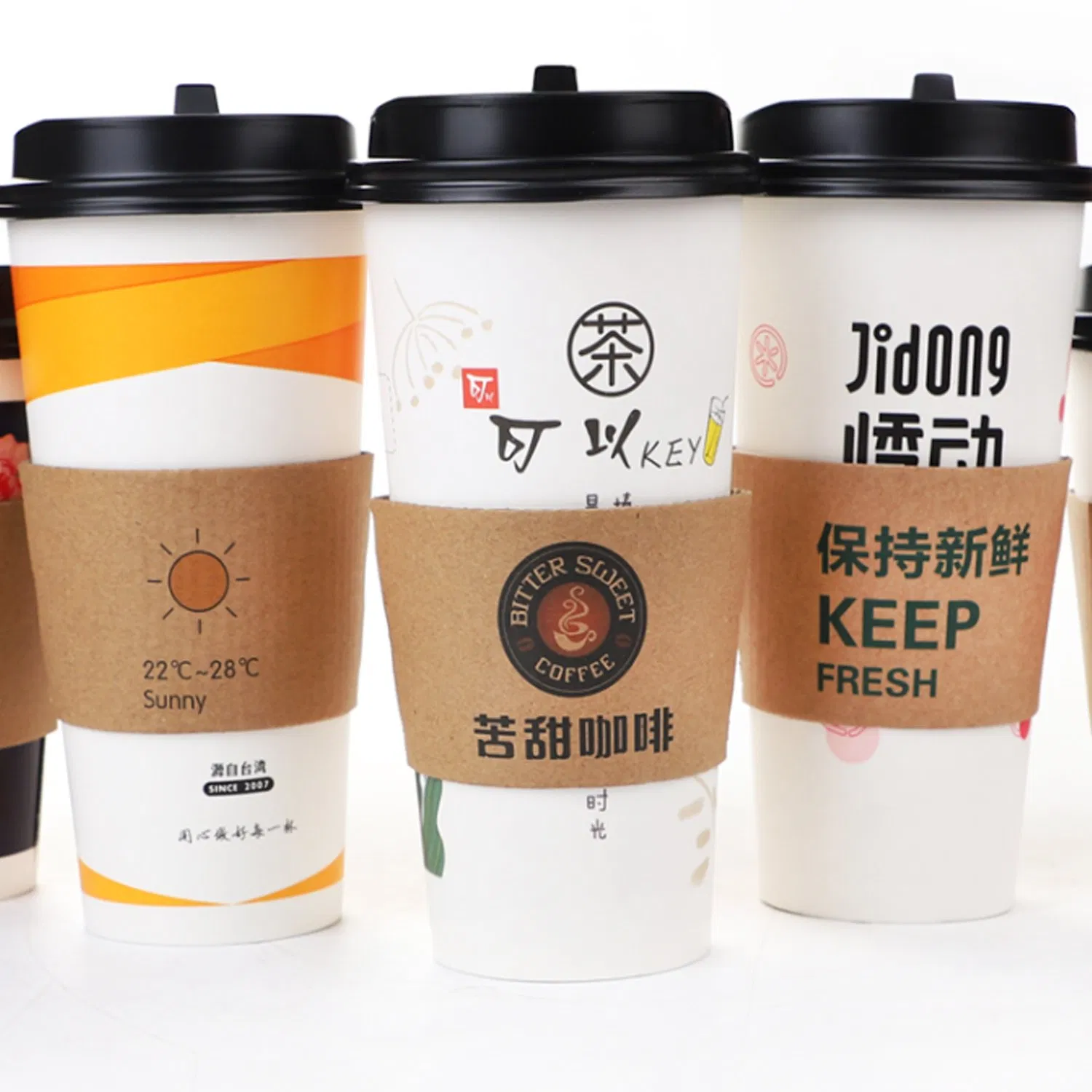

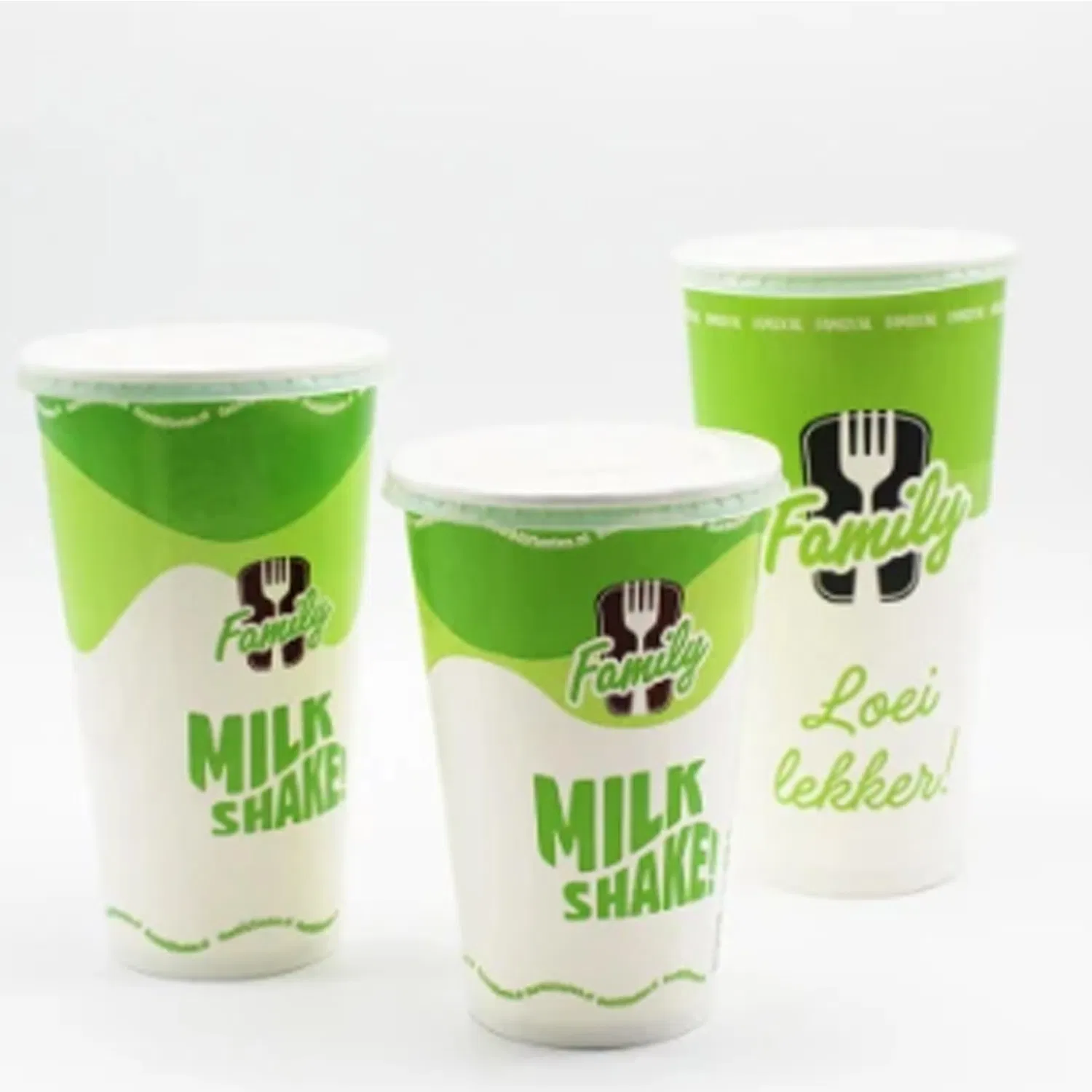

The machine is controlled by PLC, and the whole process is monitored by photoelectric sensors, with feeding handled by servo. A visual inspection system is optional to eliminate disqualified cups. It is suitable for producing 4-16 OZ cold and hot drink cups.
| Model | XSL-16T high speed paper cup machine |
|---|---|
| Suitable Size | Top: 60-95mm, Bottom: 40-75mm, Height: 50-135mm, Depth: 5-12mm |
| Speed | 120-150pcs/min |
| Paper Request | 170-380gsm single/double PE paper |
| Weight | 3600kgs |
| Dimensions (L*W*H) | 3700*1300*2060mm |
| Power | 3 phase, 380V, 50HZ, 21KW |
| Air Consumption | 0.6-0.8m³/min |

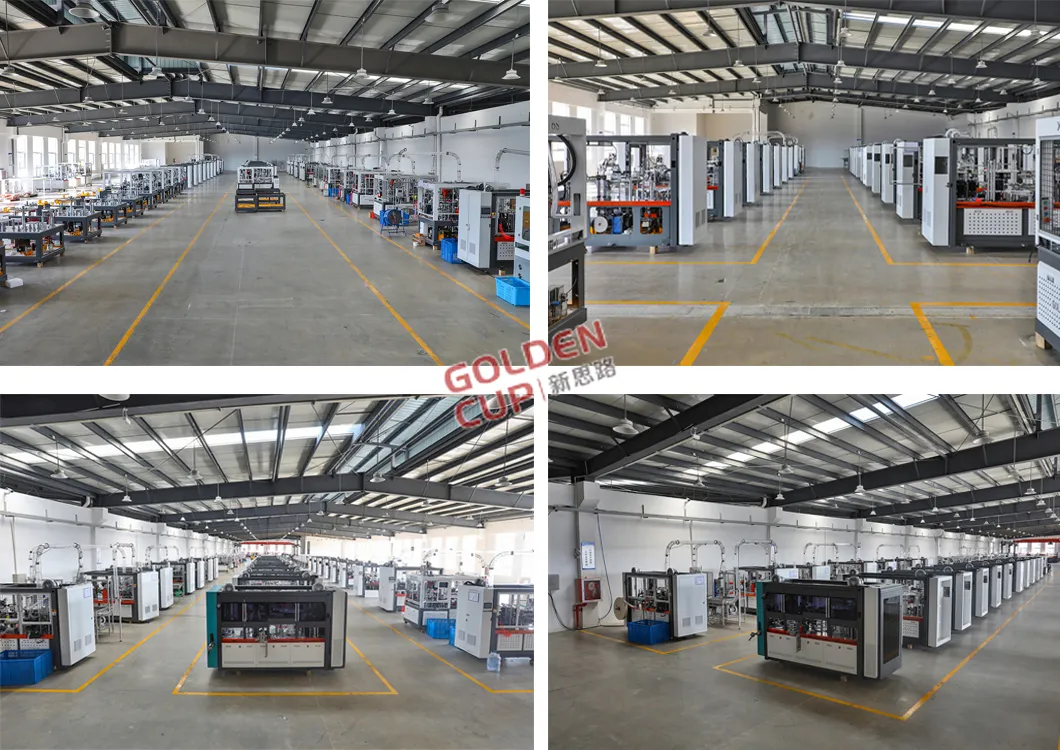

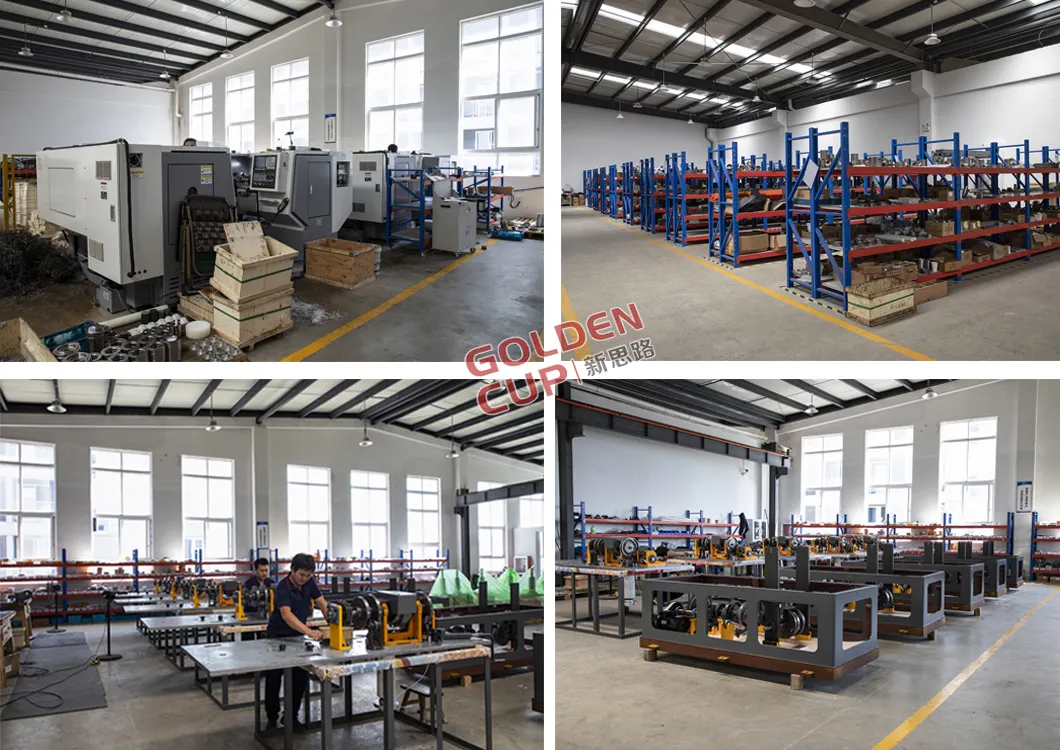

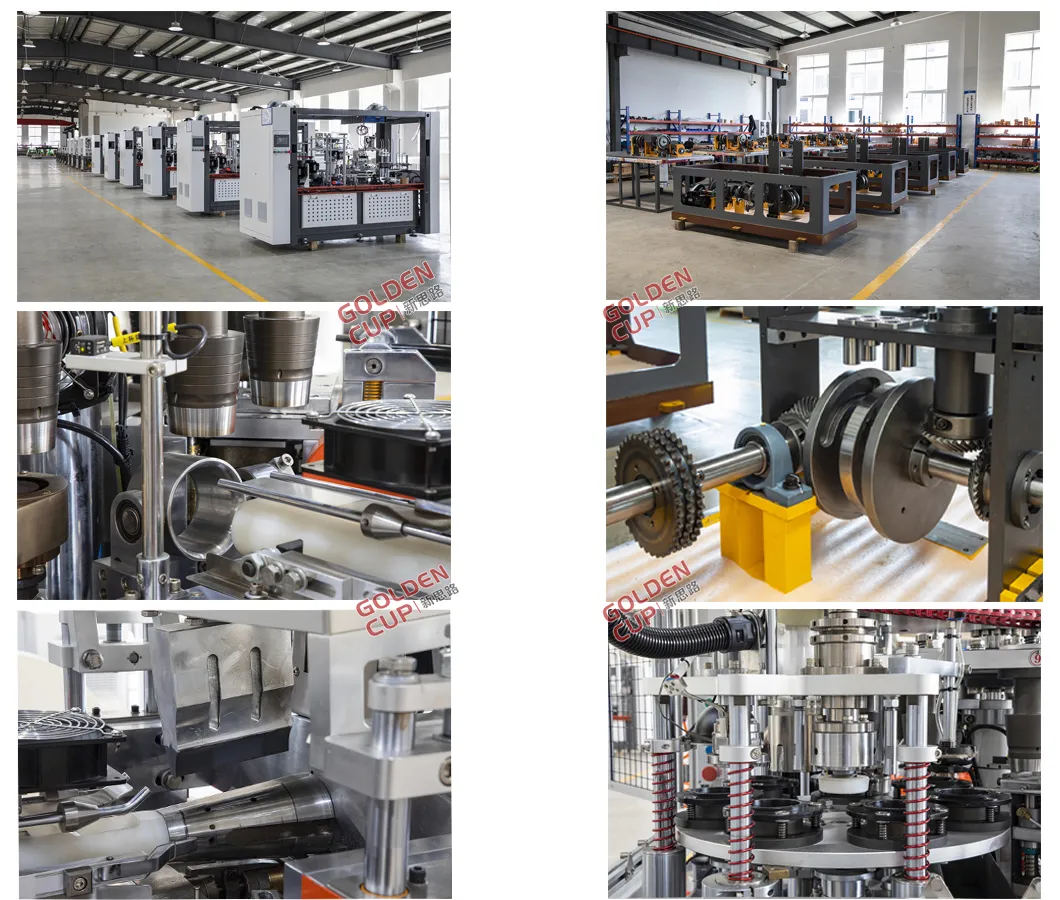

We are a leading manufacturer of high-quality machinery in the paper cup industry. Our state-of-the-art facility spans around 10,000 square meters, equipped with advanced production capabilities. We specialize in high-speed paper cup machines, paper bowl machines, and double wall sleeve machines.
To ensure top-notch performance, we use components from renowned international brands. Our machinery's important bearings are sourced from Japan, and the molds are made with high-quality materials used in aviation. The transmission part utilizes cam and gear mechanisms, incorporating a spray circulating lubrication system.
| Package Size | 3000.00cm * 1610.00cm * 2060.00cm |
|---|---|
| Package Gross Weight | 3500.000kg |
| Transport Package | Wooden Case |
