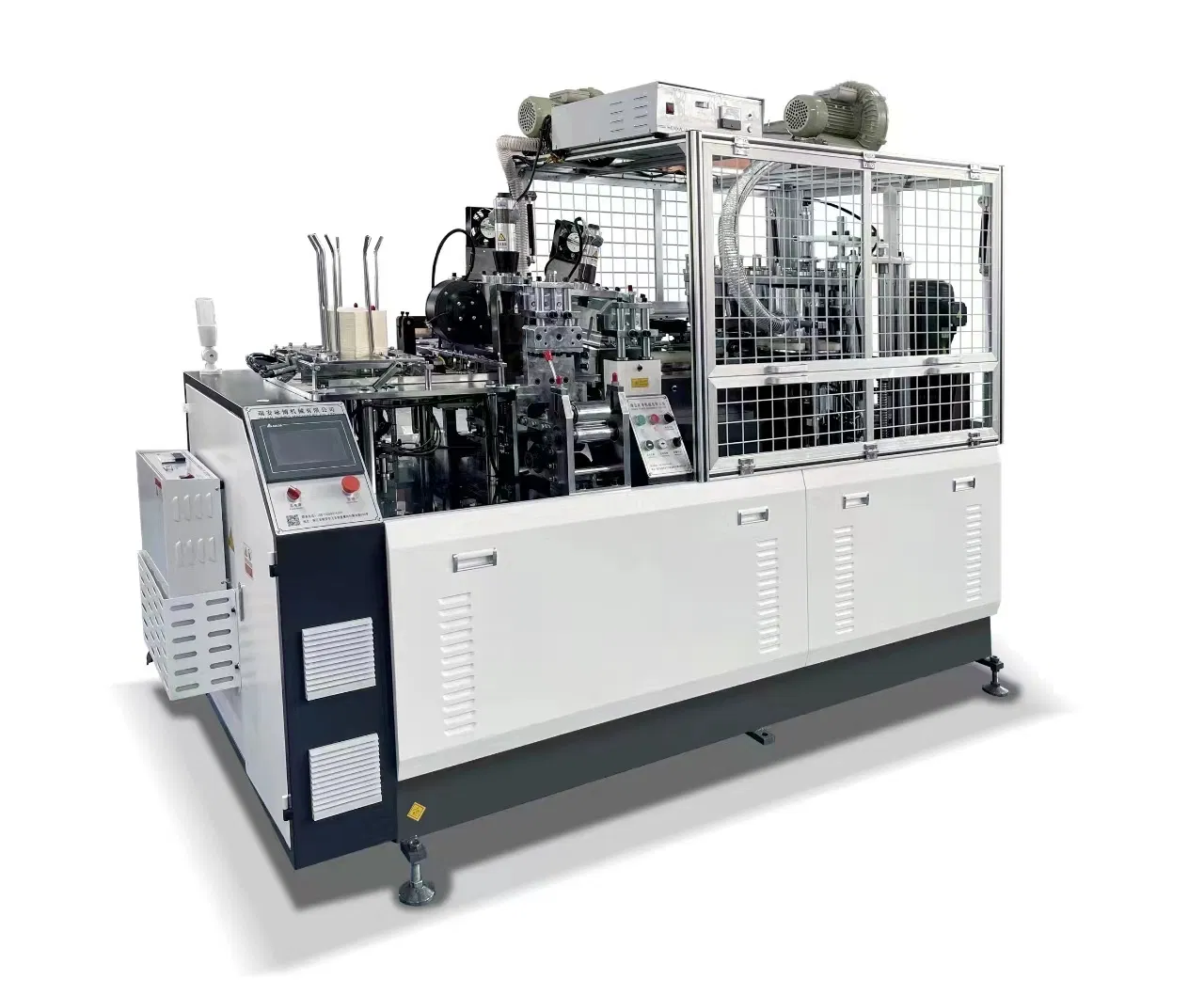

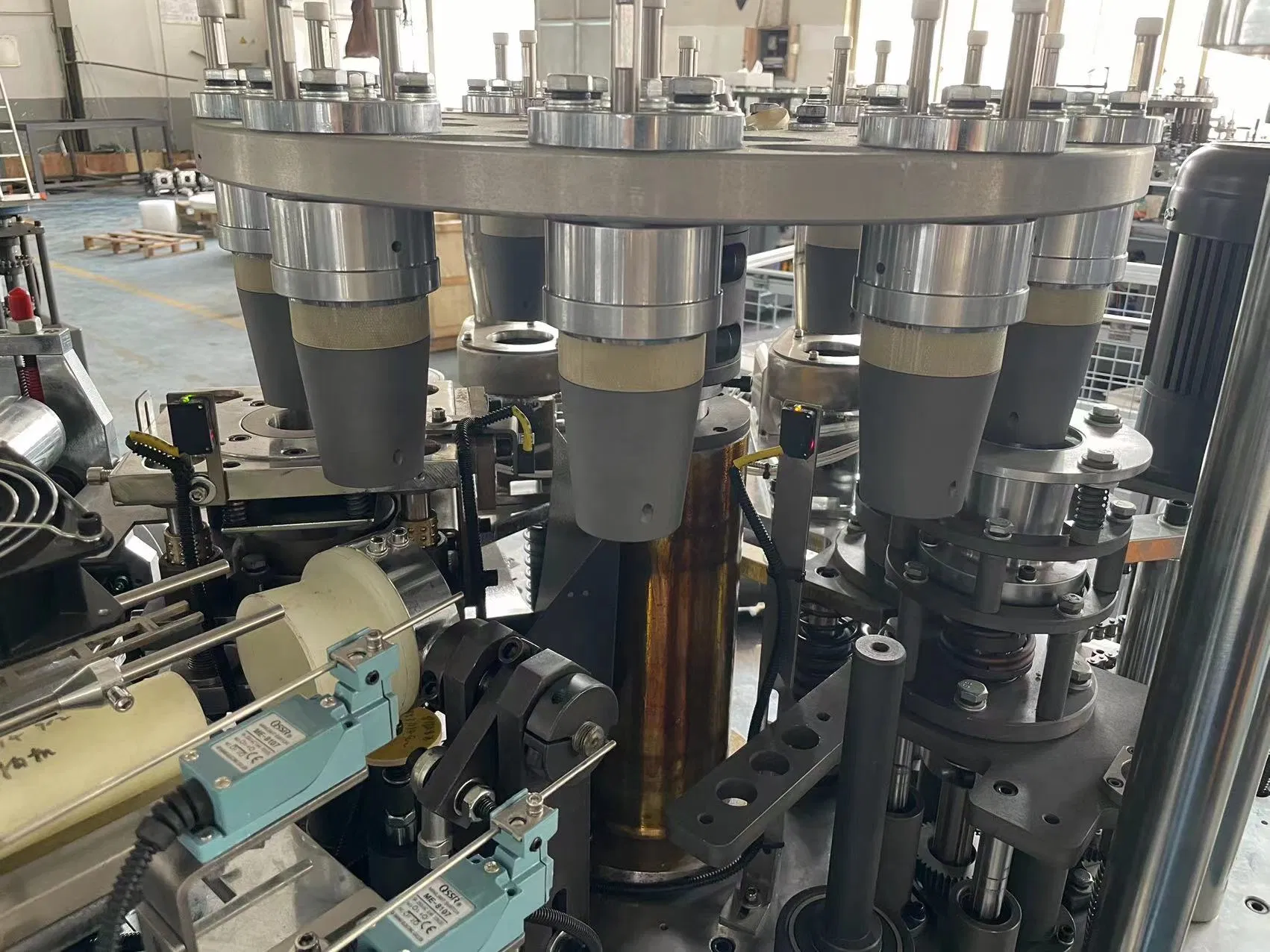

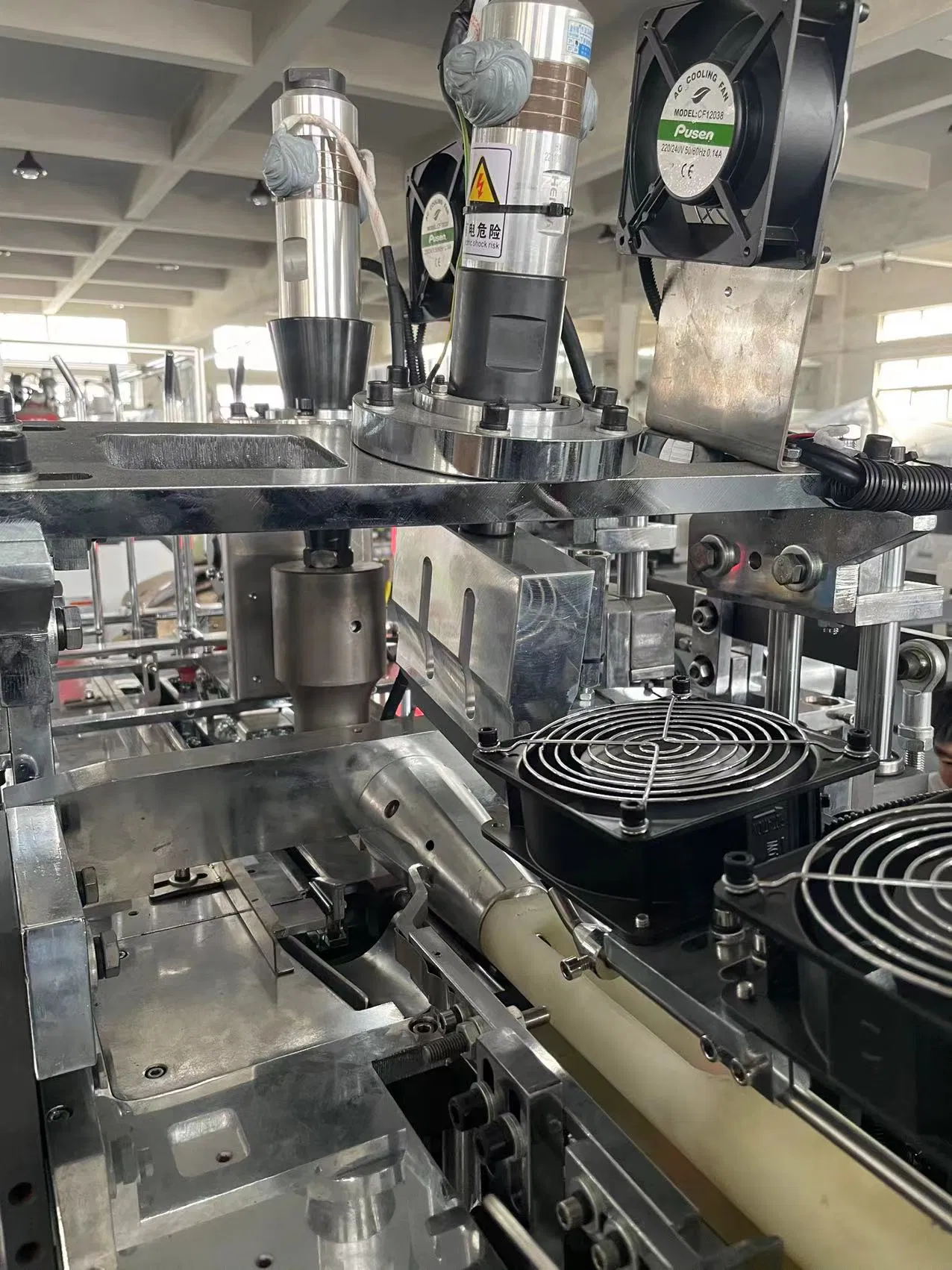

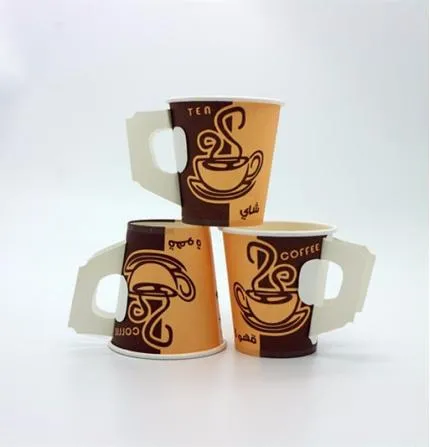

The YB-NB100 is a medium speed paper cup with handle machine. This upgraded single turntable system achieves a faster cup making speed of 90-110pcs/min, benefiting from a low mold stroke and highly integrated working station design.

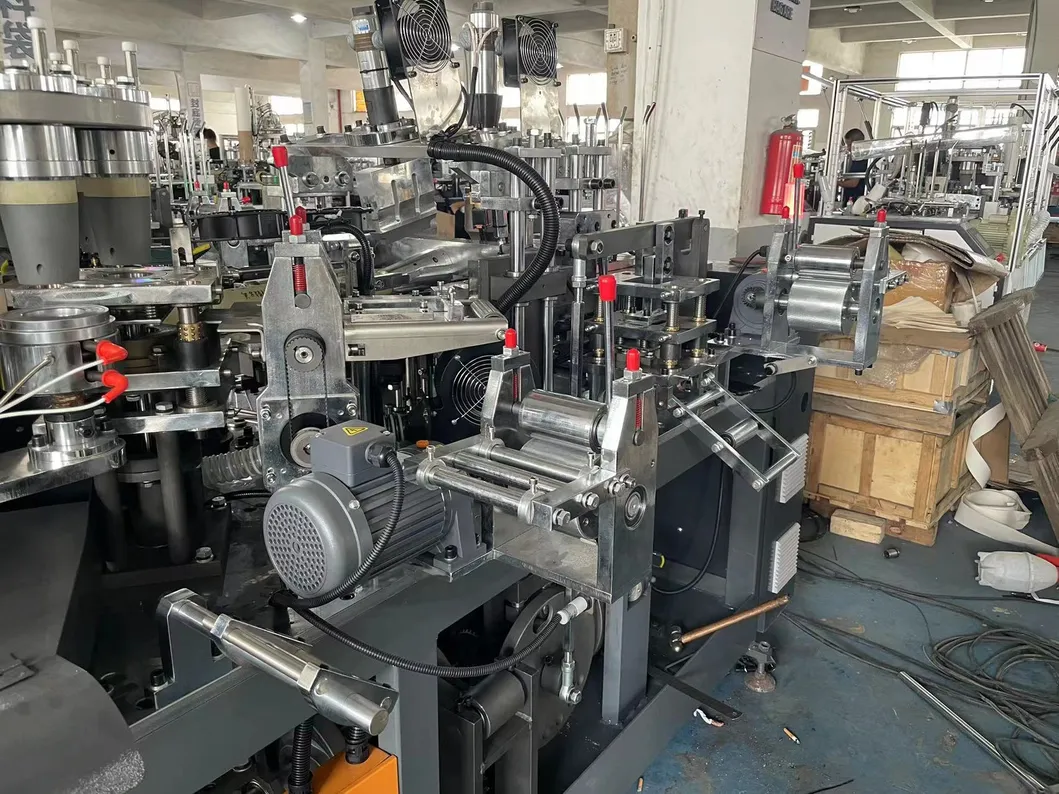

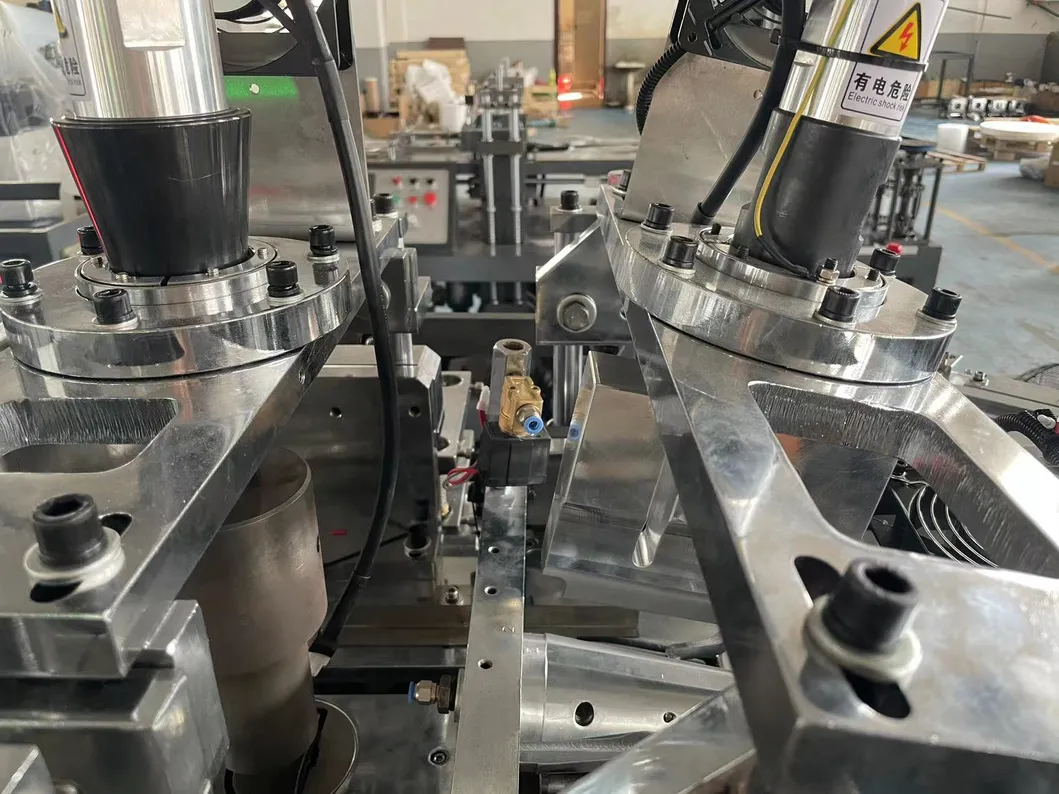

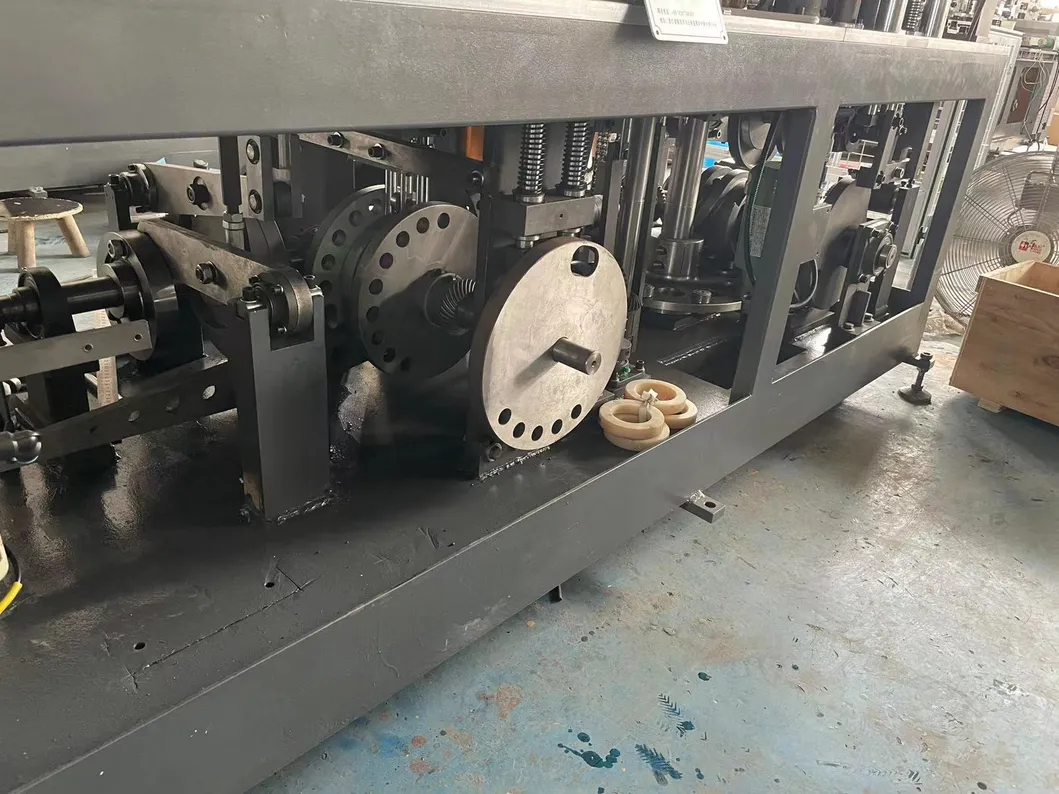

Main transmission parts are equipped with an automatic spray oil lubrication system to reduce wear and tear. It adopts an open-type intermittent cam system and helical gear transmission, greatly prolonging the service life and reducing failure rates compared to traditional chain transmissions. The operation is stable, low-noise, and ensures high production capacity.

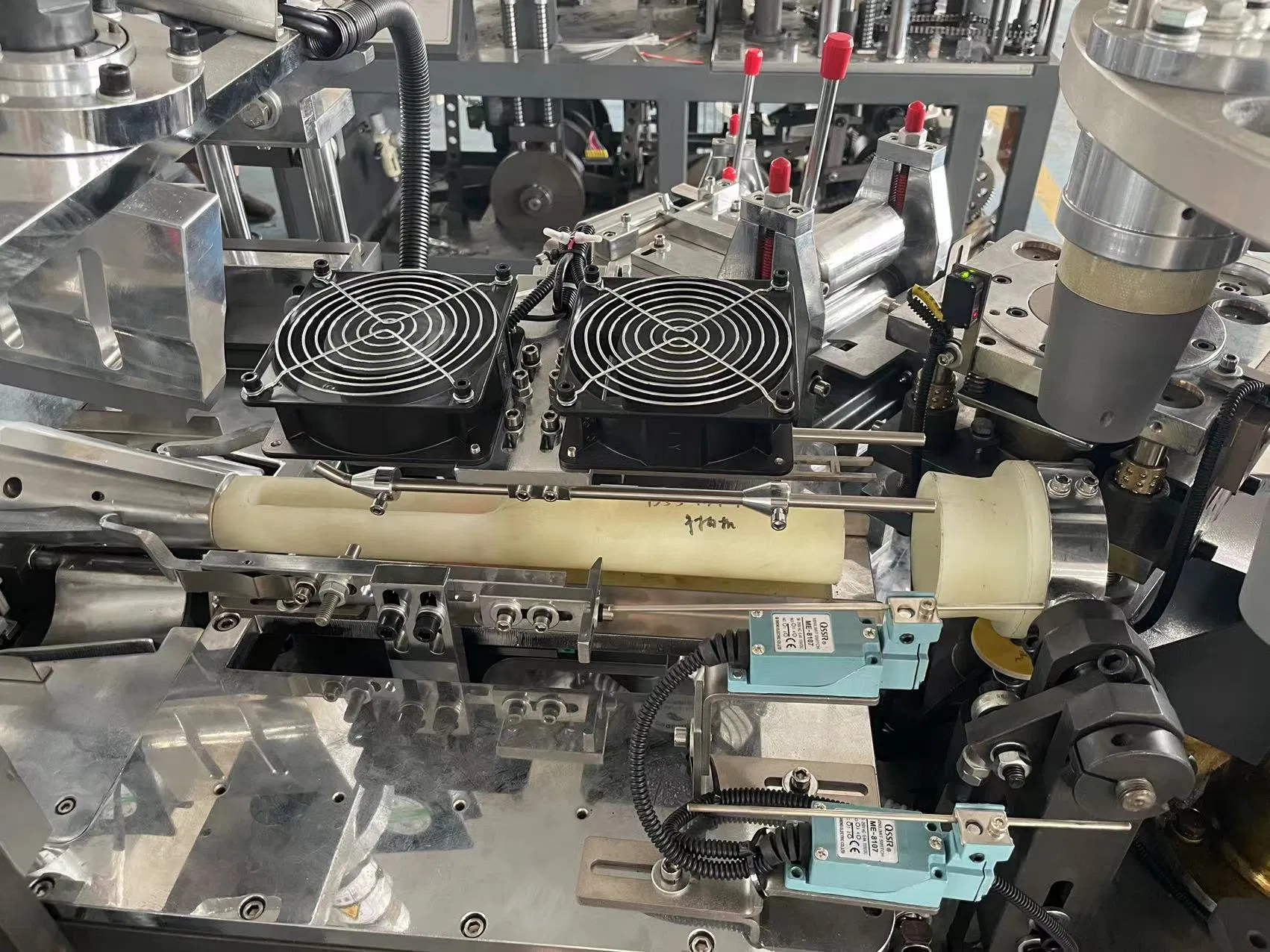

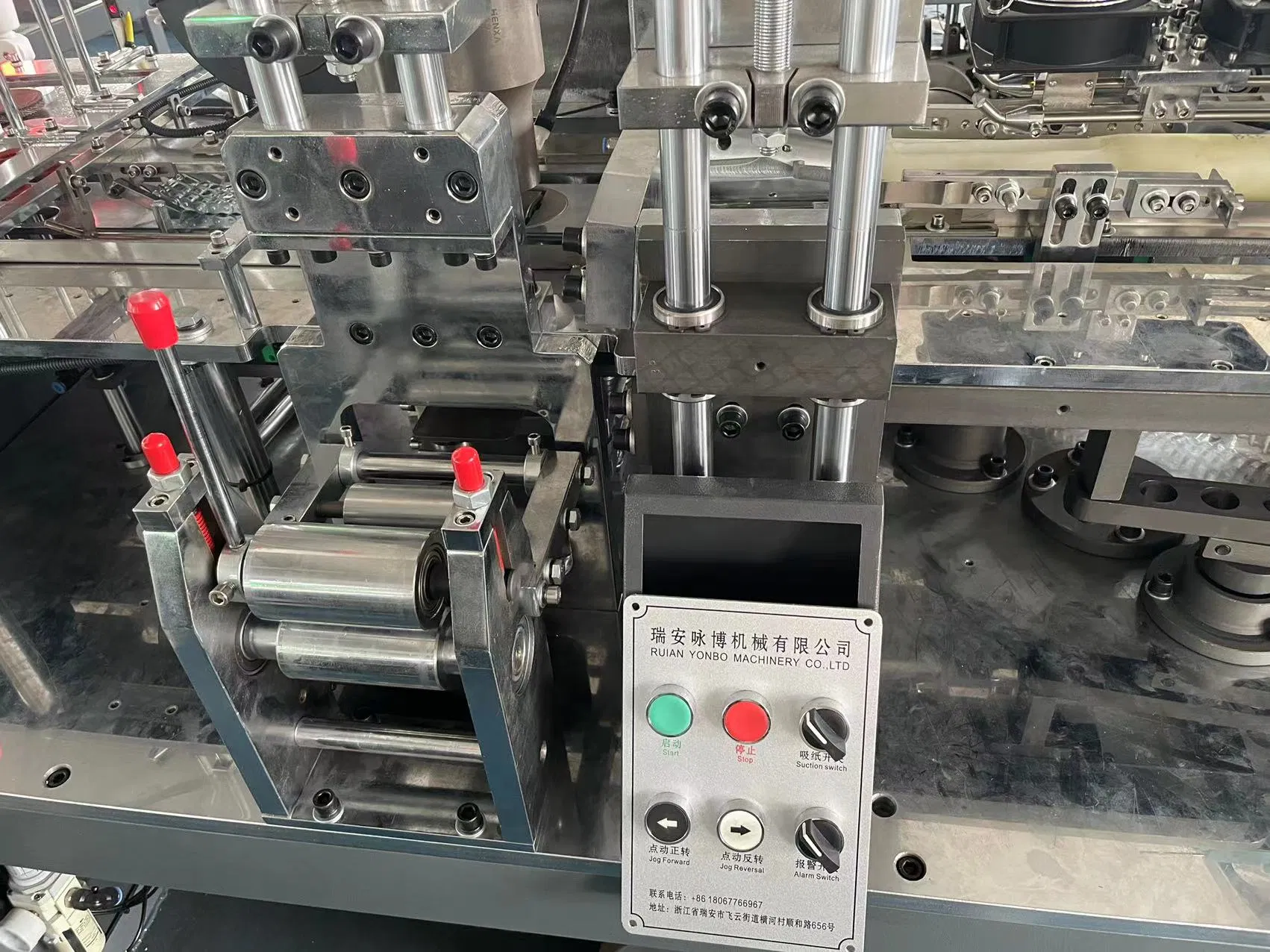

The process is monitored by Delta inverter, Delta servo feeding, Delta PLC, and a human-computer interaction touch screen. It features Omron/Fotek proximity switches and Panasonic sensors to improve performance and achieve fast, stable running with automatic shutdown in case of failure.

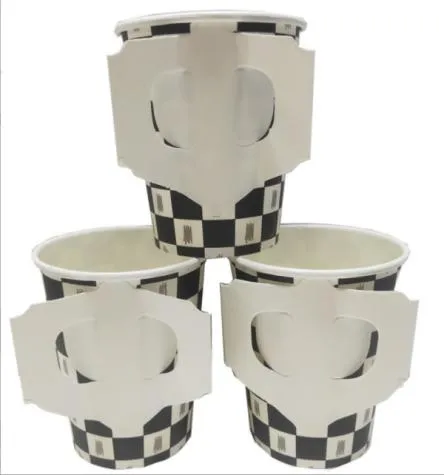

| Parameter | Details |
|---|---|
| Paper Cup Specification | 4-16oz (100-450ml) | Top: 55-90mm, Height: 60-135mm, Bottom: 55-60mm |
| Paper Specification | 150-350 GSM single/double PE coated paper |
| Production Capacity | 90-110 pcs/min |
| Power Source | 380V 50HZ 3Phases |
| Average Power | 6KW (Total Power: 9KW) |
| Air Supply Requirement | Compressed air: 0.5-0.8Mpa | Air outlet: 0.6cbm/min |
| Total Weight | 2000KG |
| Package Size (L*W*H) | 2800*1500*1900mm |
| Component | Quantity | Brand |
|---|---|---|
| Touch screen | 1 | Delta |
| Inverter | 1 | Delta |
| Step drive | 1 | Xinghuo |
| PLC | 1 | Delta |
| Ultrasonic | 1 | Kejian |
| Solid state | 6 | Fotek |
| AC contact | 4 | Schneider |
| Photo electric switch | 8 | Panasonic |
| Midget replay / Coder | 6 / 1 | Omron |
Note: Machines are being improved constantly; configuration is subject to the latest design and technology.
