Packing Type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external.
Delivery Time: 45 days after receiving the deposit payment.
Payment Terms: 30% T/T deposit in advance, 70% balance after qualified acceptance.
Service & Guarantee: 12 months guarantee period. Technicians available for installation and debugging upon requirement.
Factory Testing: Equipment is tested by both parties before leaving the factory.

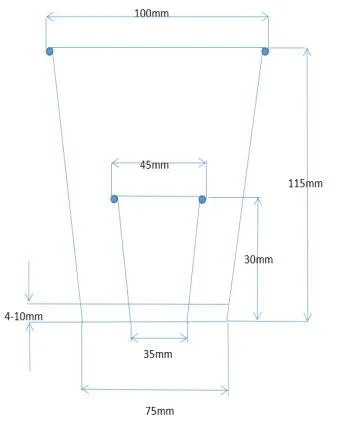

Cup Bottom Diameter: 35mm - 75mm
Cup Top Diameter: 45mm - 100mm
Cup Height: 30mm - 115mm
Bottom Knurling Depth: 4mm - 10mm
Top Curling Rim Diameter: Φ2.5 - Φ3

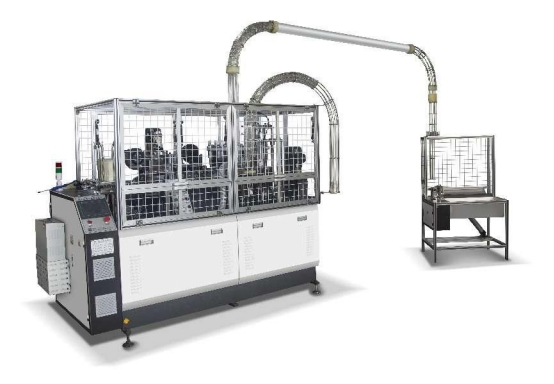

| Model | High Speed Ultrasonic Paper Cup Machine S-100 |
|---|---|
| Paper Cup Size | 2 - 12 OZ (Mould exchangeable) |
| Rated Speed | 100-110 pcs/min (Affected by size & paper thickness) |
| Raw Material | One or Two side PE coated Paper (Hot & Cold drink Cups) |
| Suitable paper weight | 150-350gsm |
| Total Power / Weight | 5KW / 2500KG |

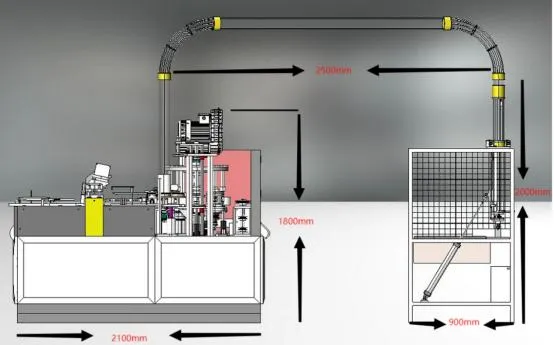

| Machine Size | 2200*1350*1900mm |

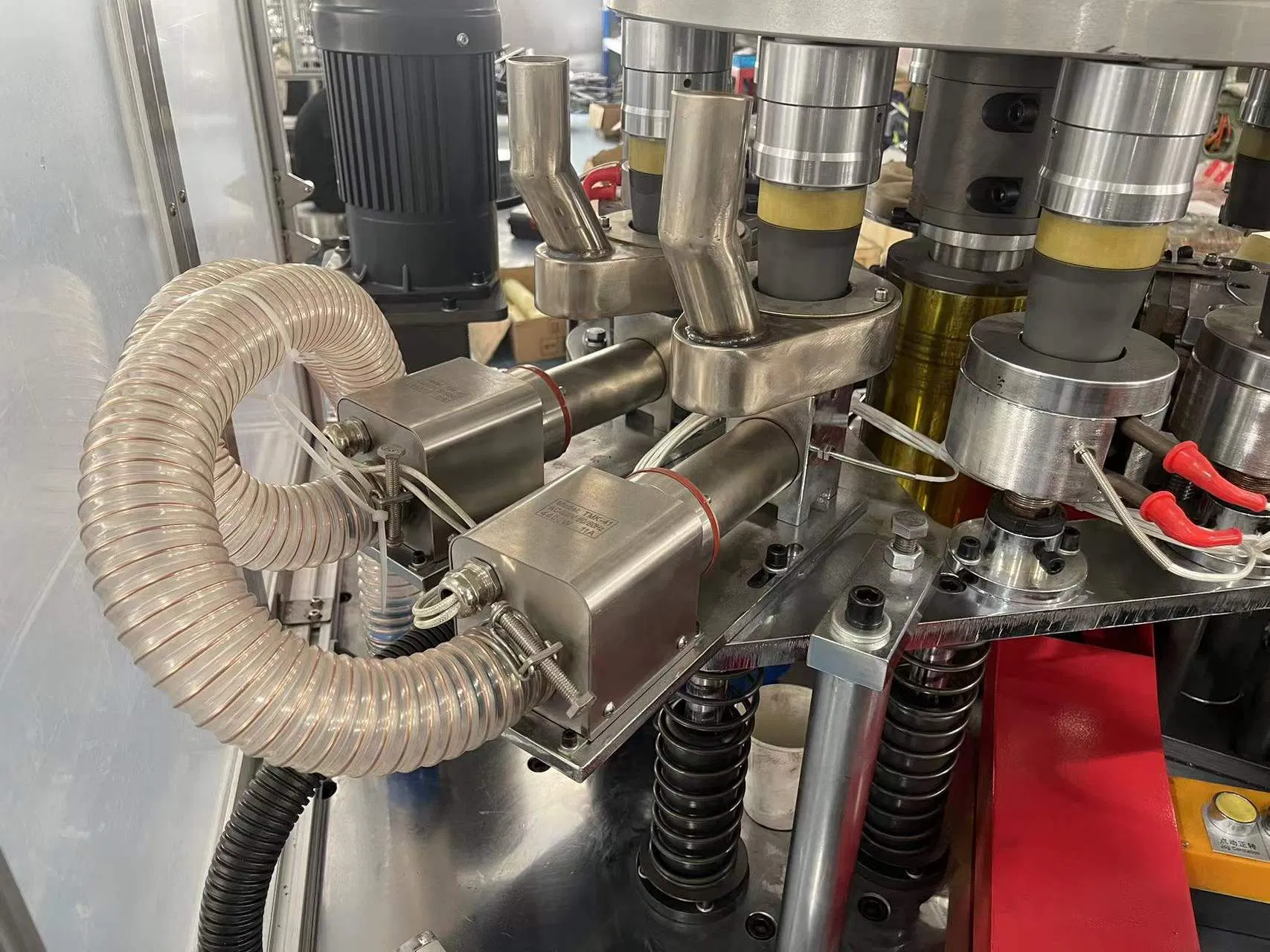

| Cup side Welding | Ultrasonic heater |

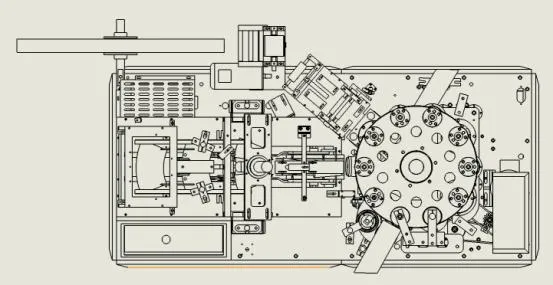

Compact Design: Optimized machine dimensions for factory efficiency.

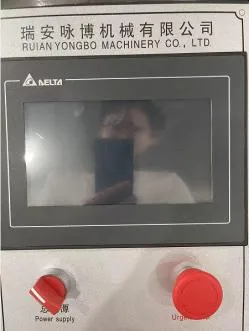

Control Panel: High-quality switches, temperature controller, and speed converter for easy operation.

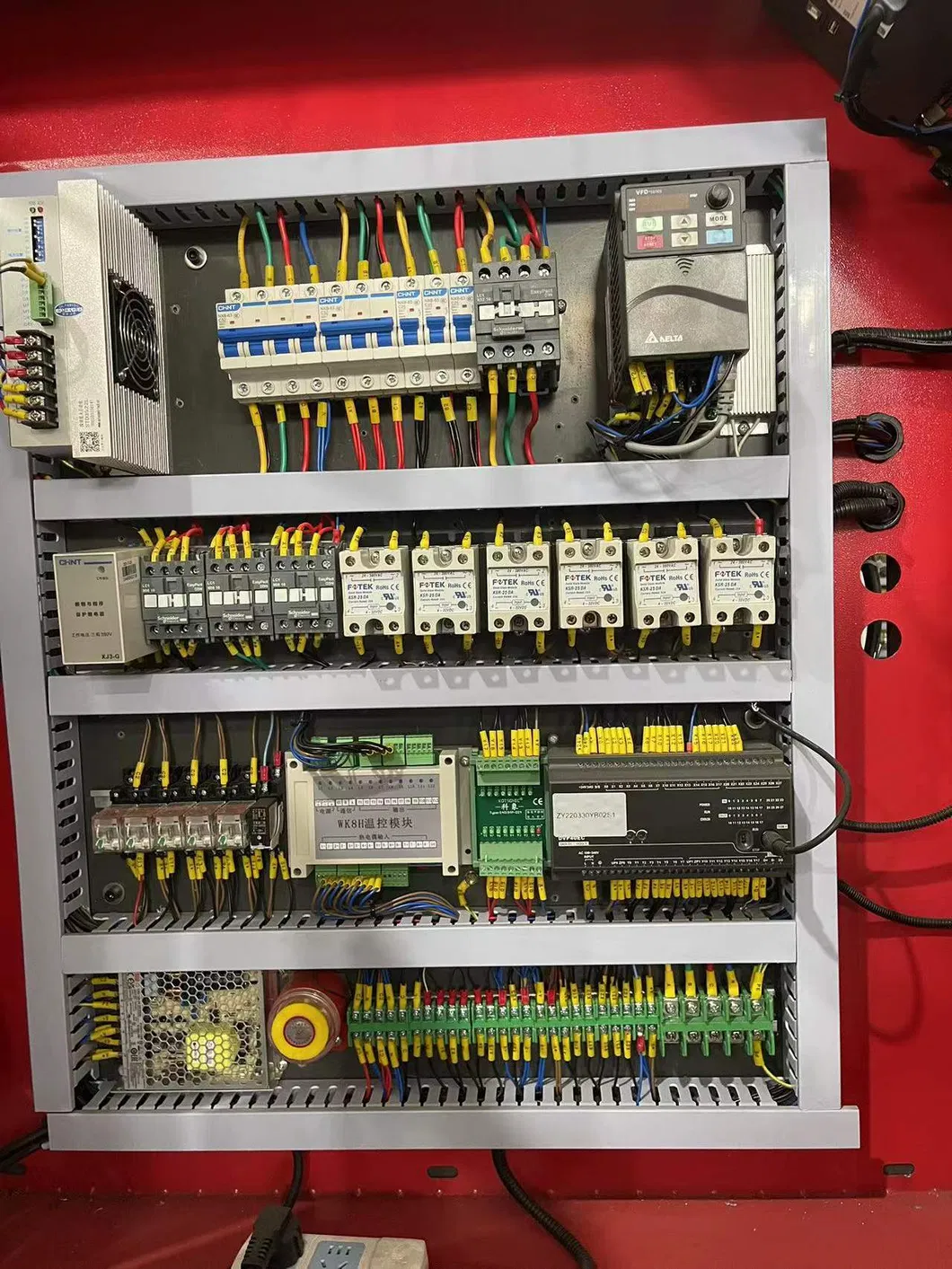

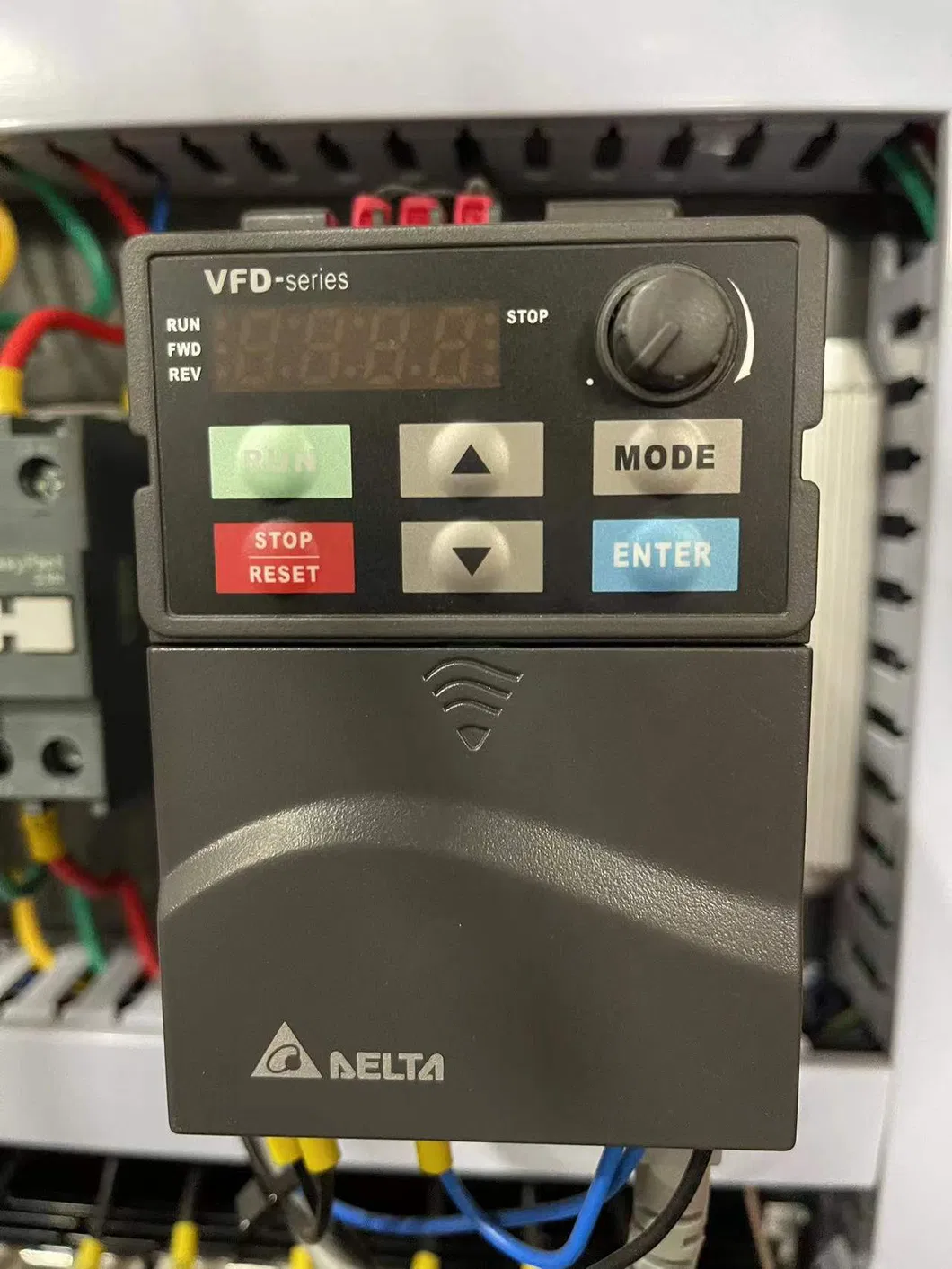

Electric System: Equipped with quality brands like Delta, and components sourced from Japan or Germany for reliability.

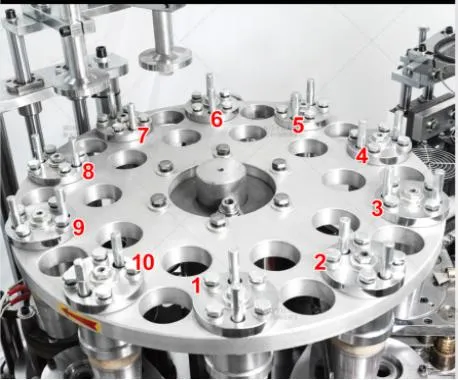

10-Cup Molds: Equipped with 10 molds for faster operation than traditional 8-mold models.

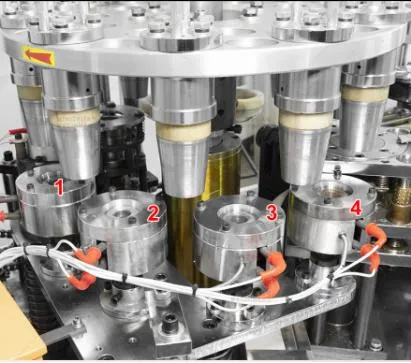

Bottom Heating System: Improved sealing effect for high-quality paper cup production.

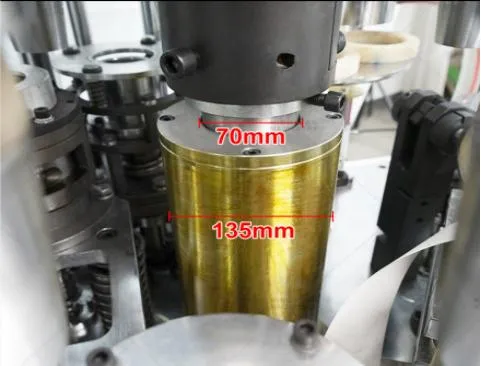

Stable Axis: Thick central shaft ensures stable high-speed running without shaking.

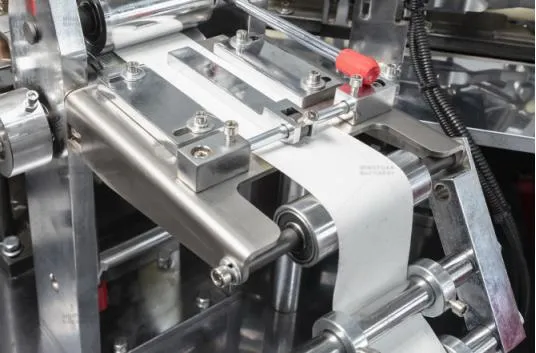

Steel Plate Press: New design for more stable and smooth paper feeding.
Cooling System: Dual cooling fans ensure faster fan cooling and better sealing quality.

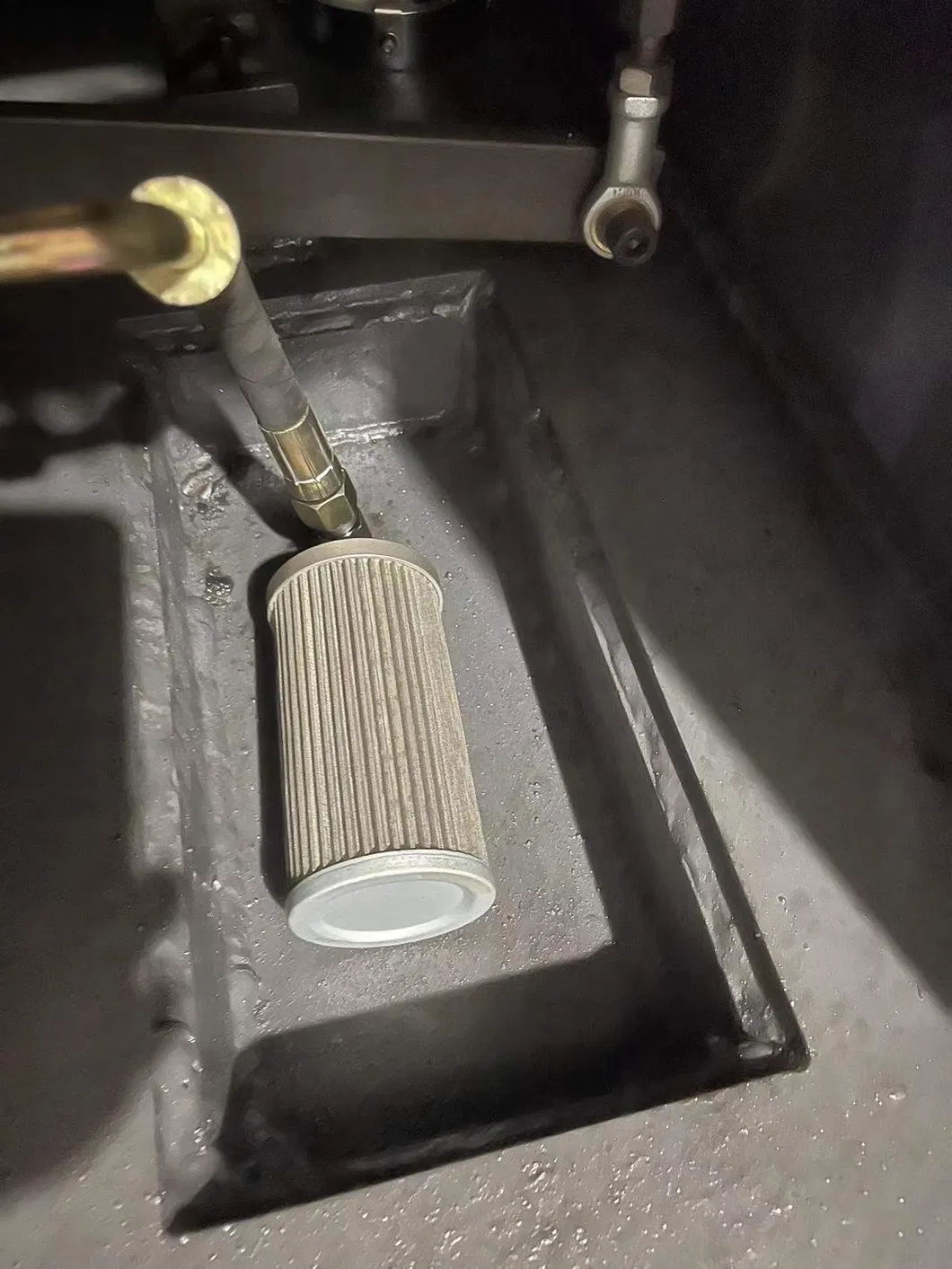

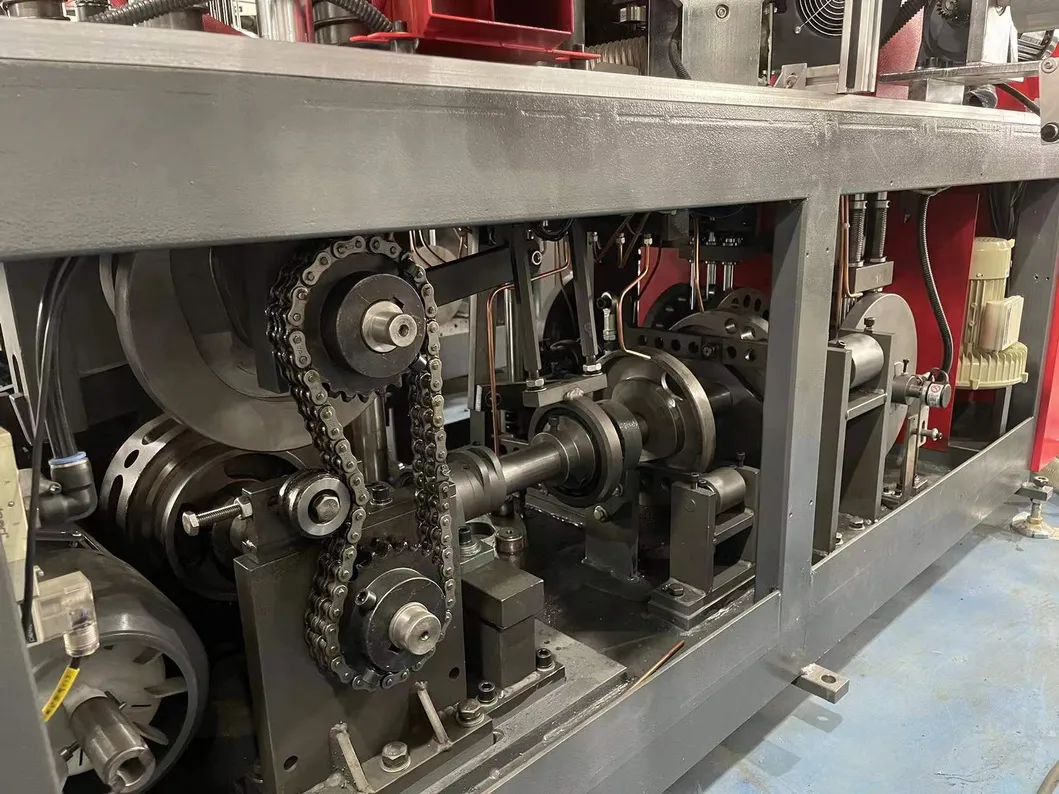

Automatic Lubrication: Full oil circulation system (motor, filter, copper pipes) improves the service life of high-speed moving parts.
