| Model NO. | YG-850 |
| Cup Size (Ounce) | 2-16oz |
| Speed | 60-120PCS/Min |
| Required Paper | Single and Double Side PE Coated Paper |
| Automation | Automatic |
| Logo Printing | Customed |
| Certification | CE |
| Condition | New |
| Paper Thickness | 160-300GSM |
| Bottom Diameter | 40-70mm |
| Height | 60-180mm |
| Top Mouth Diameter | 60-90mm |
| Bottom Depth | 5-10mm |
| Transport Package | Wooden Packaging |
| Specification | 2000*1230*1700mm |
| Production Capacity | 1000set/Year |

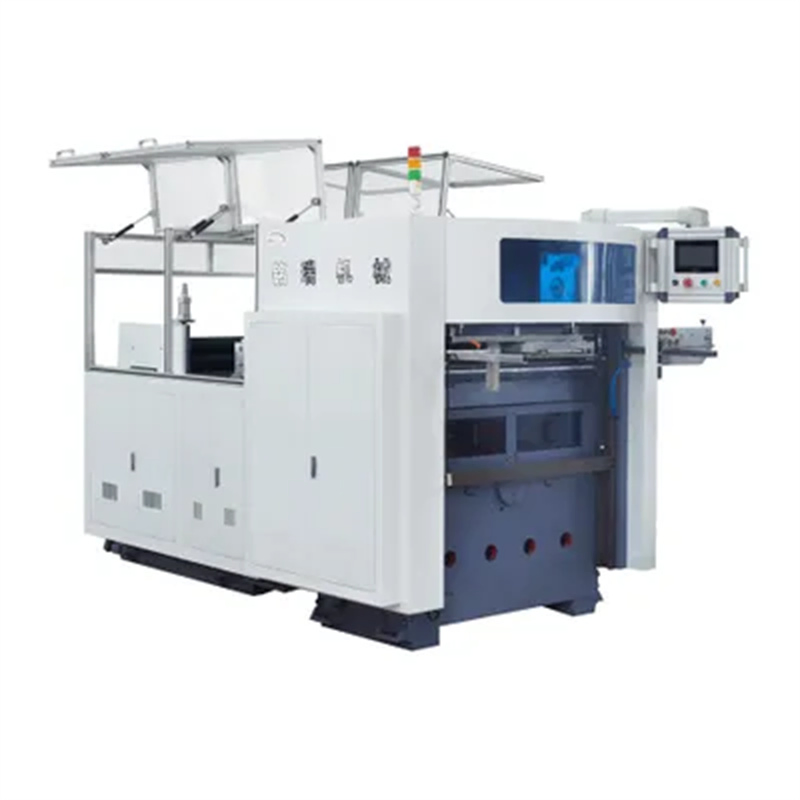

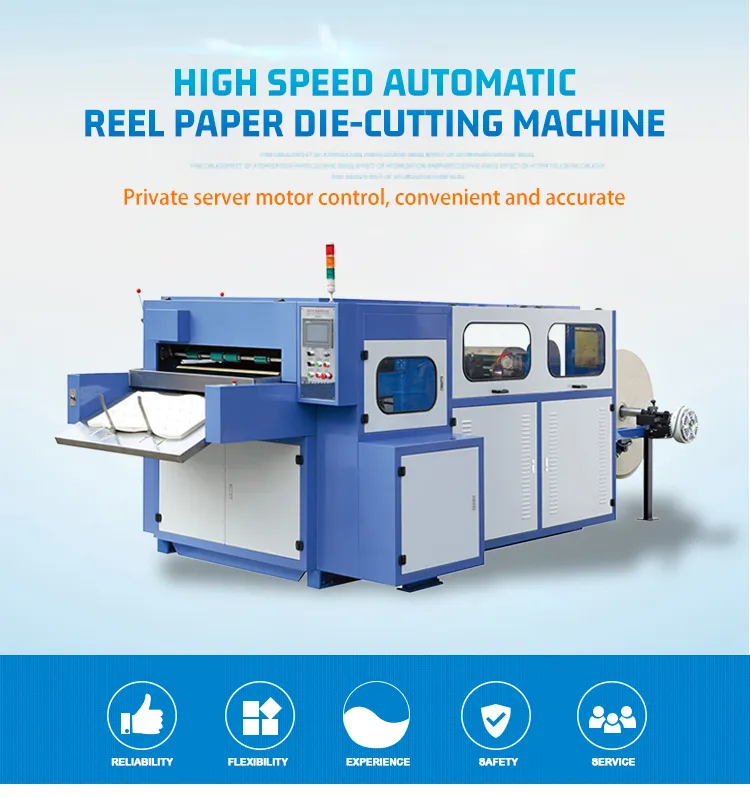

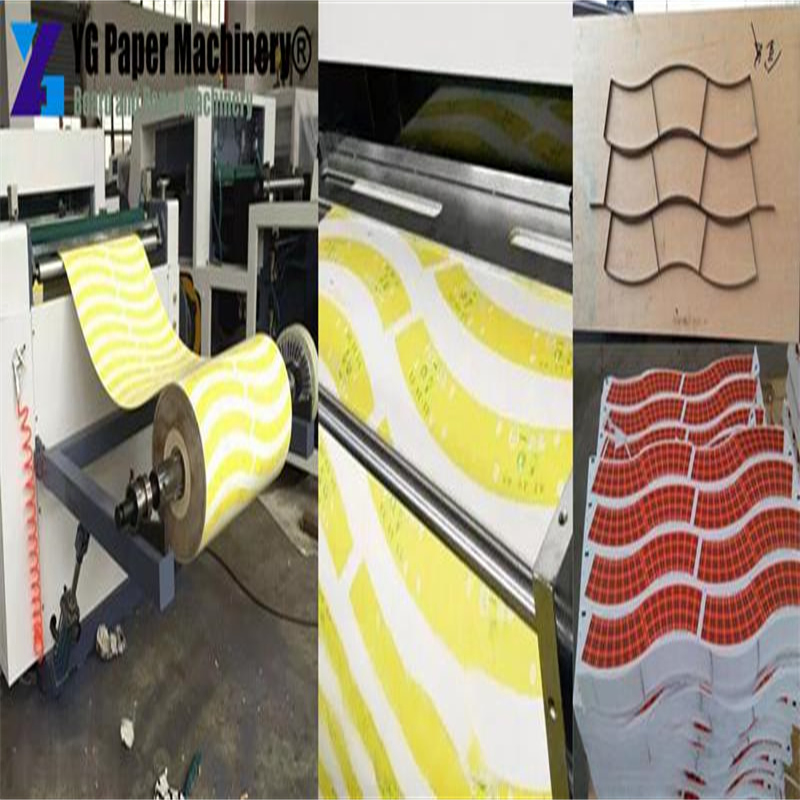

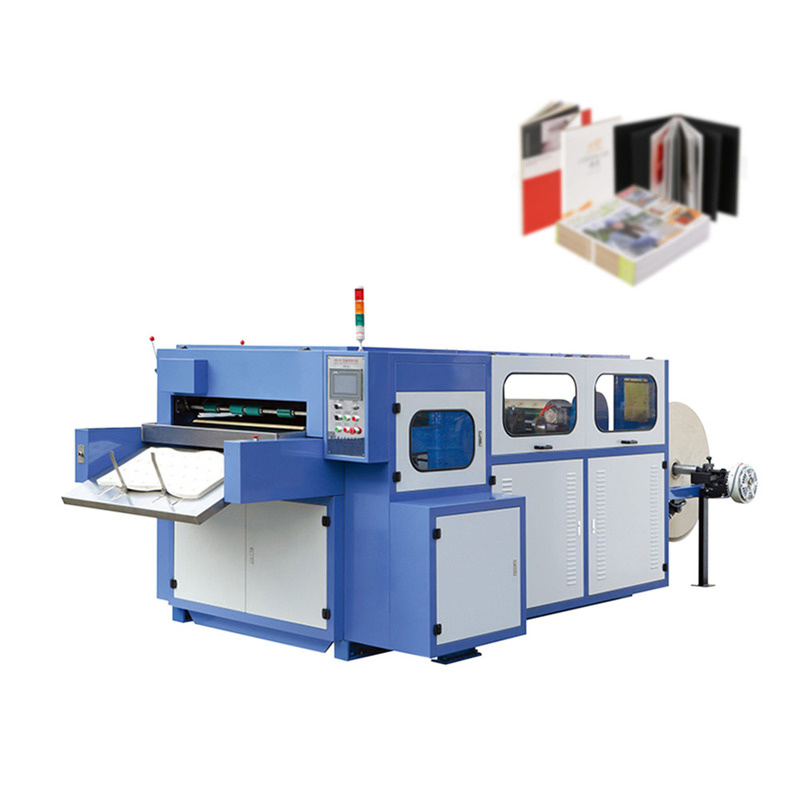

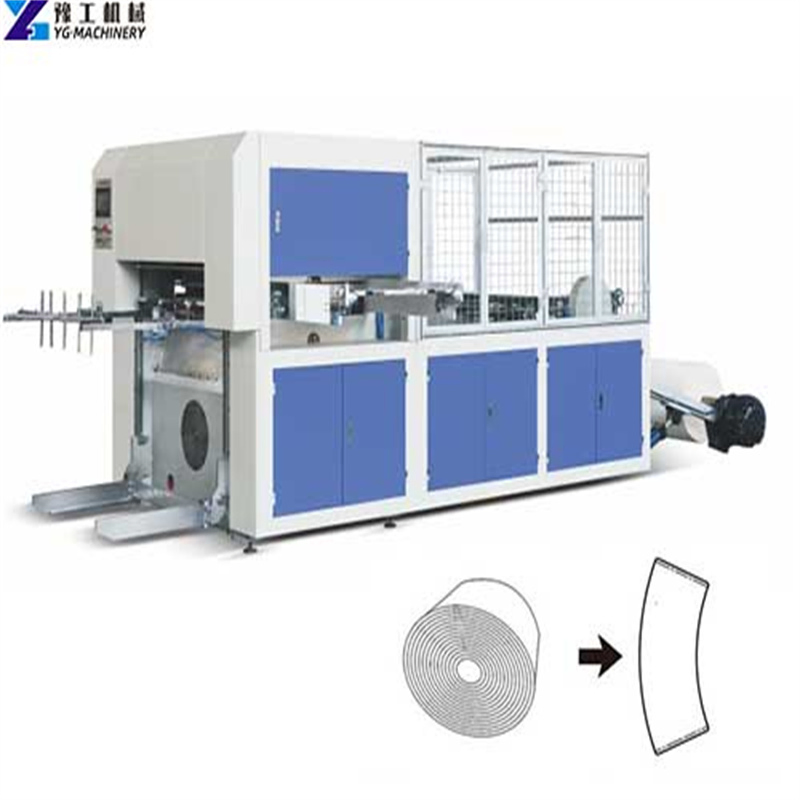

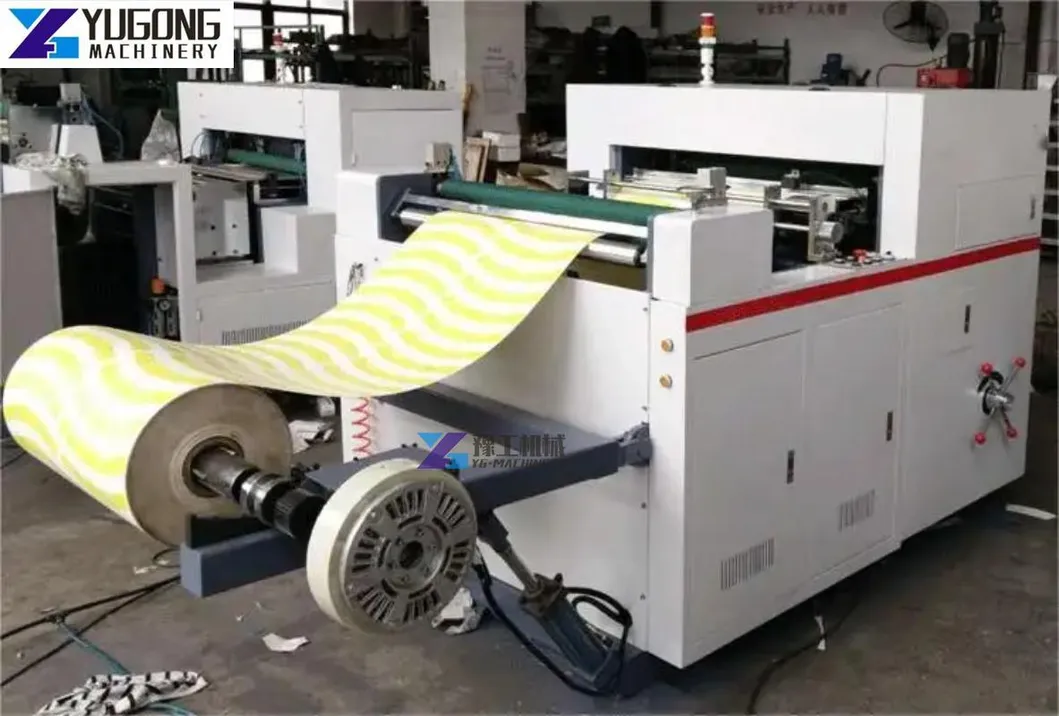

Automatic roll punching machine based on international advanced technology, it's widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, manual pneumatic lock plate, photoelectric correcting deviation system, centralized oil lubrication. All the key parts and controls of the machine are imported from international top brand.
| Model | YG-850 |
| Max cutting width | 850mm |
| Cutting precision | ±0.20mm |
| Paper gram weight | 150-350gsm |
| Production capacity | 260-380 times/min |
| Air pressure requirement | 0.5Mpa |
| Air pressure consumption | 0.25m³/min |
| Total power | 10kw |
| Weight | 4T |
| Max roller diameter | 1500mm |
| Dimension | 3500x1900x1900mm |
