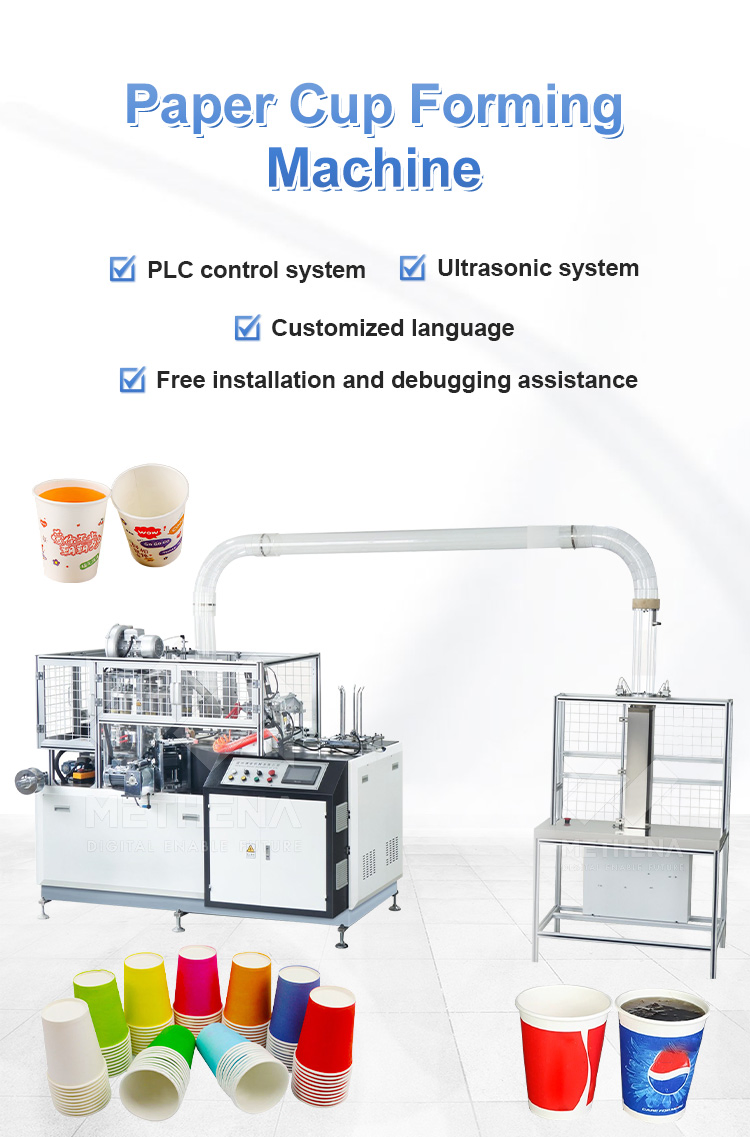

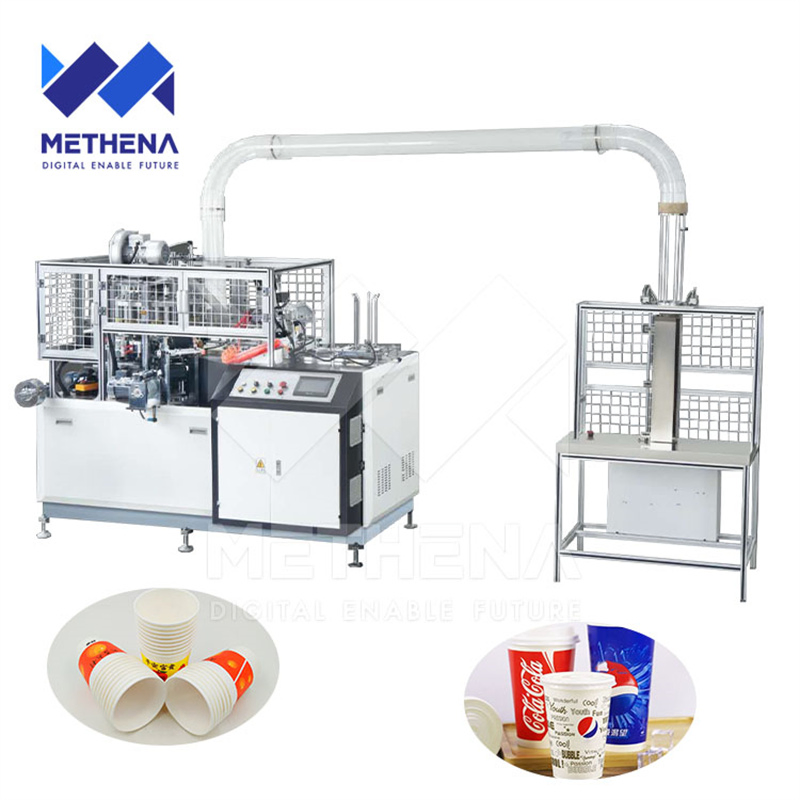

Fully Automatic Tea Cup Production Paper Cup Make Machine

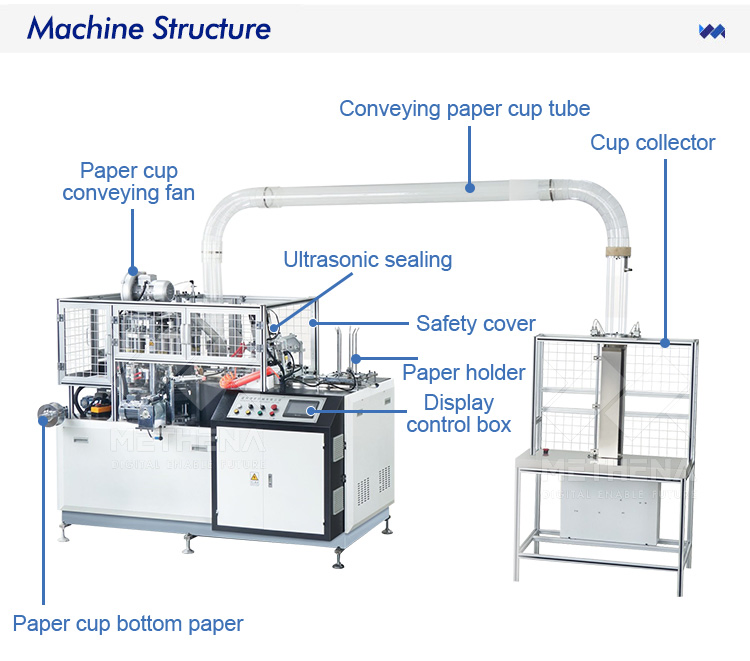

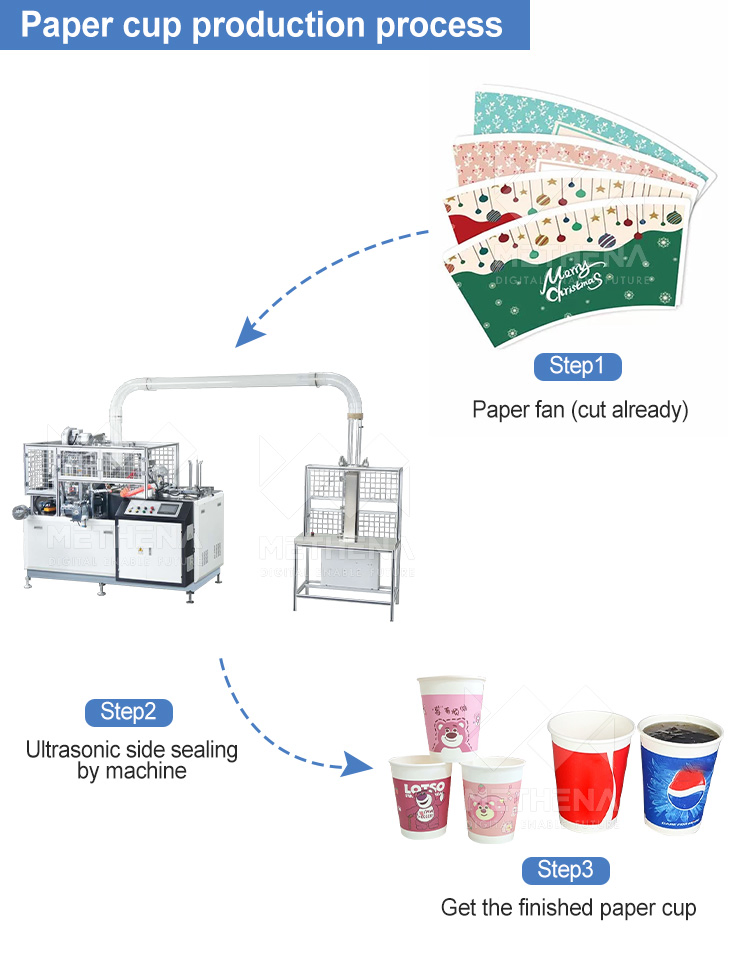

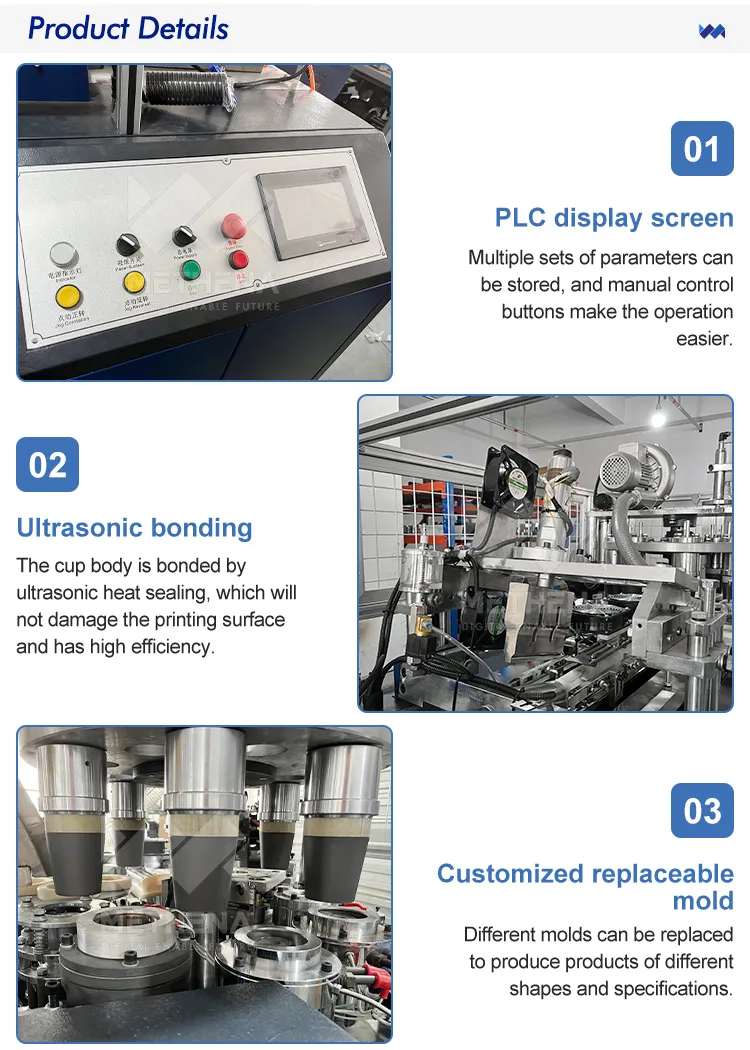

The paper cup machine integrates the functions of feeding, forming, edge sealing, cutting, etc. and is specially used to manufacture disposable paper cups of various specifications. It adopts advanced automation technology and can automatically form finished paper cups from paper rolls. It has the characteristics of high efficiency, stability and easy operation. The paper cups produced are accurate in size, beautiful in appearance and good in sealing. They are widely used in catering, beverage, fast food and other industries.
It can produce all kinds of paper cups, such as coffee cup, ice cream cup, juice cup, cola cup, etc. Suitable for manufacturers of disposable paper tableware.
| Max Paper cup volume | 16oz |
| Raw Material | One-side or two-side PE coated paper |
| Speed | 40-60 pcs/min |
| Suitable paper weight | 160-300g/㎡; ±20g/㎡ |
| Voltage supply | 380V(220V), 50HZ, customized |
| Cup size | Bottom 35-70mm, Top 45-90mm, Height 32-135mm |
| Working Air Source | 0.4-0.6Mpa, 0.4m³/min |
| Power | 6 kw |
| Net weight | 2000kg |
| Dimension | Forming machine 2100*1200*1800mm |
| We can customize machine and mold according to customer's requirement. | |
