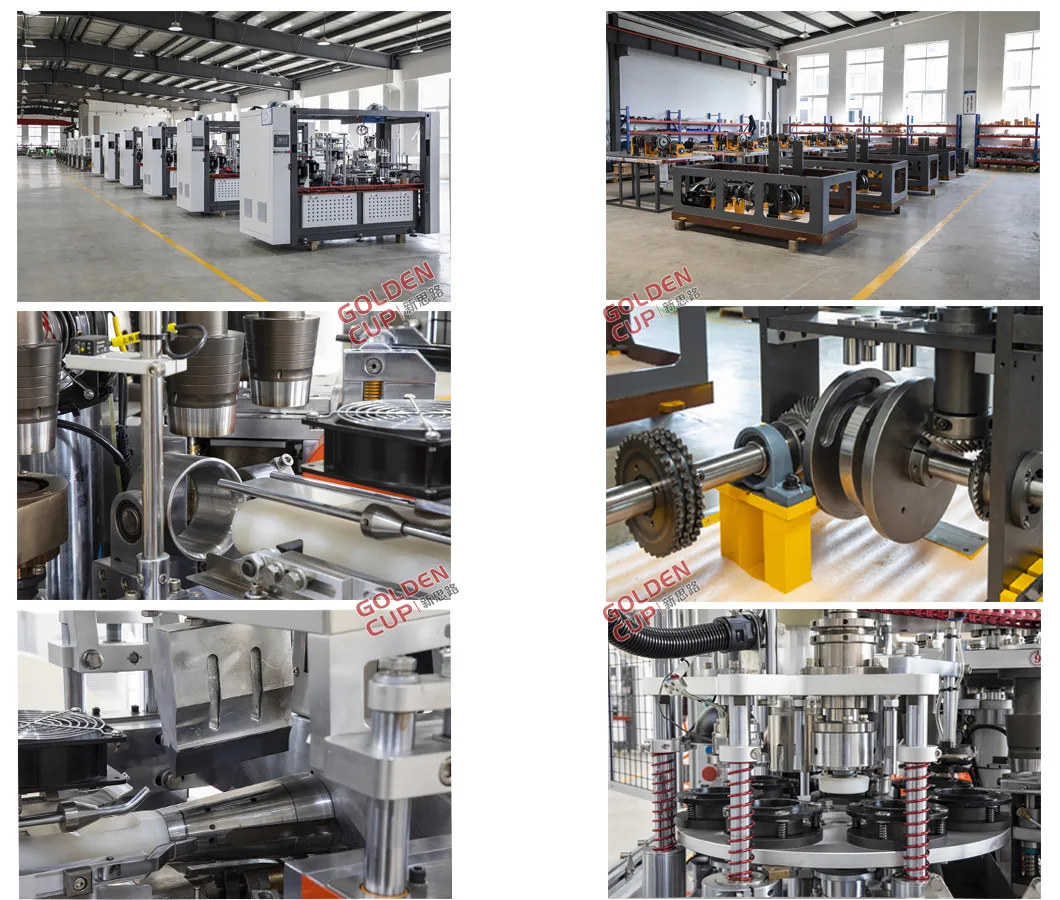

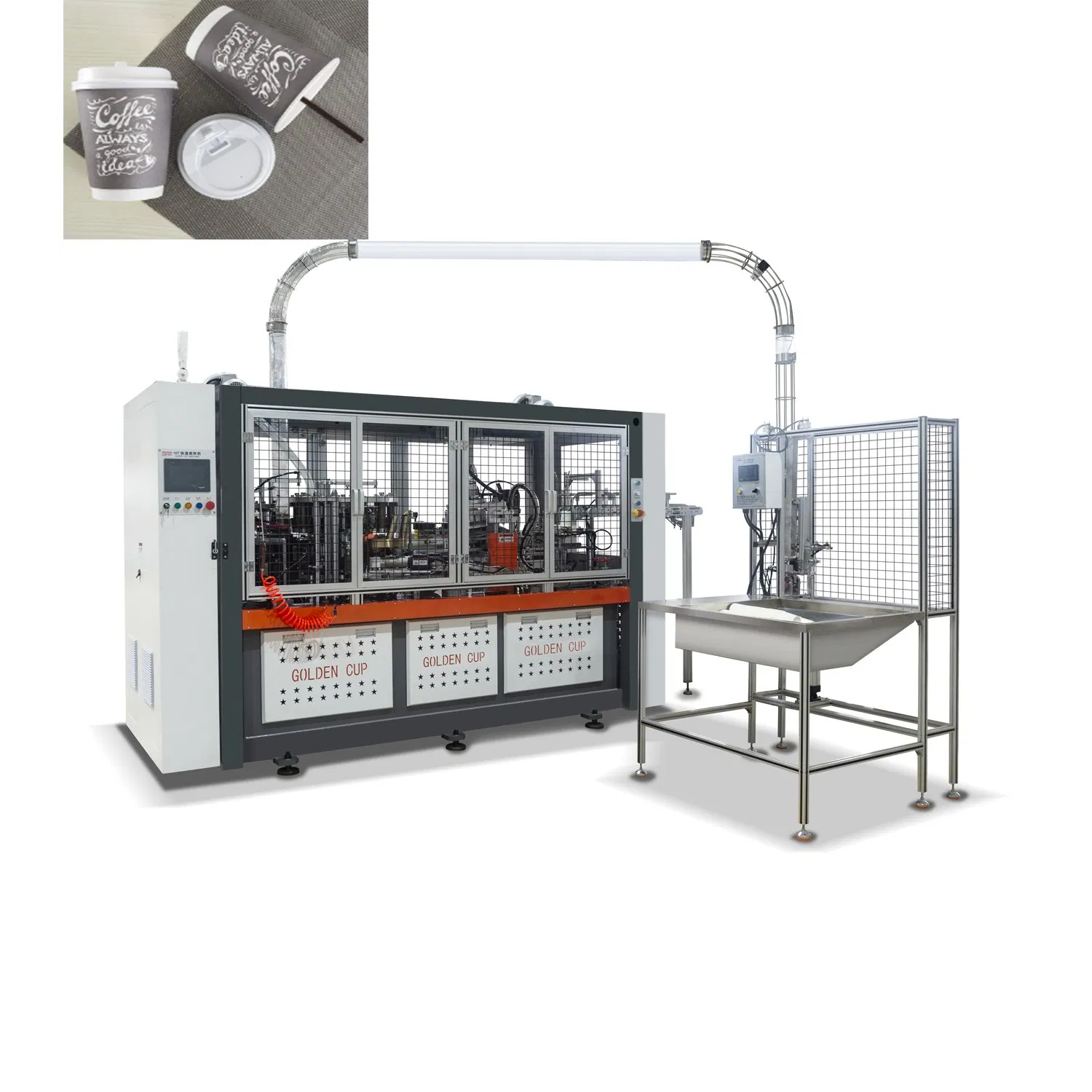

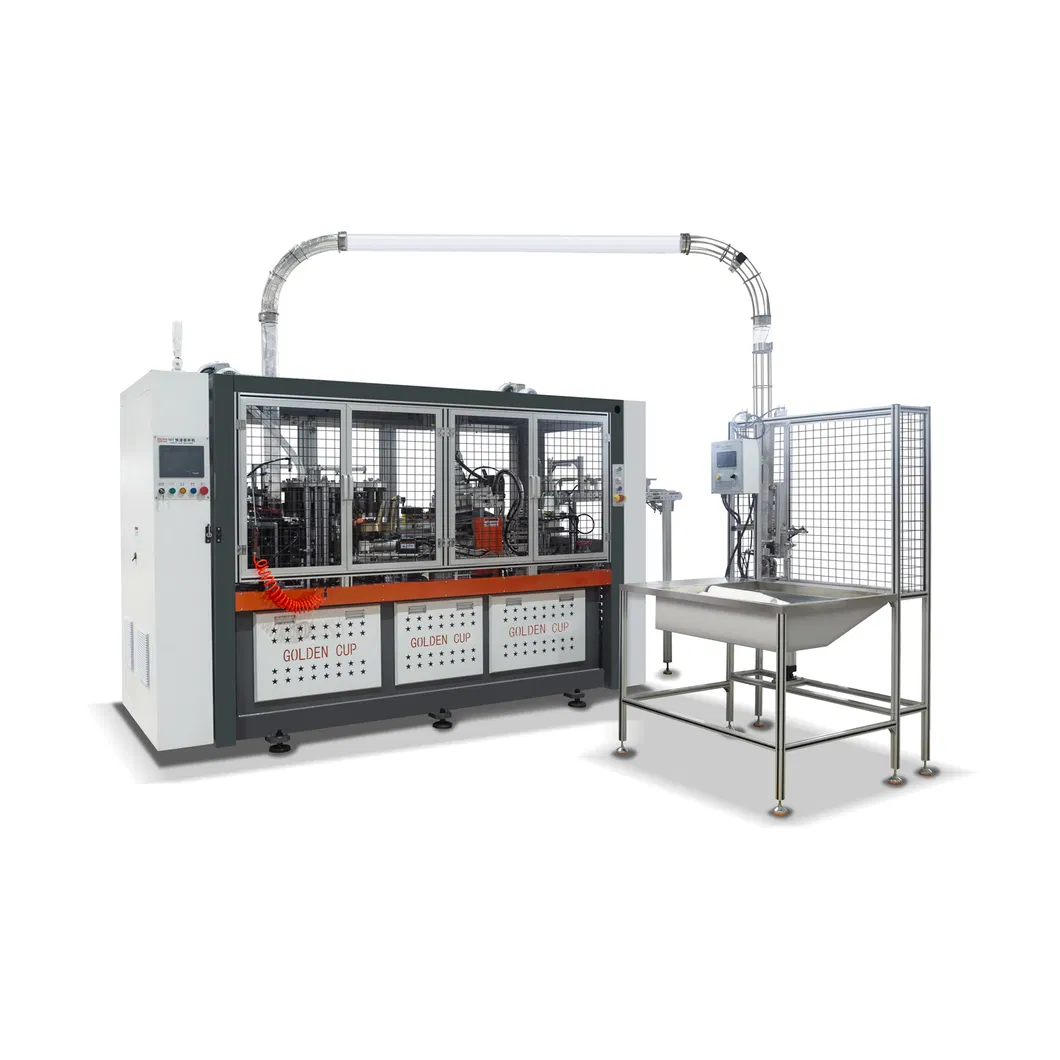

XSL-16T paper cup machine adopts a tabletop layout, which effectively isolates the forming parts from the transmission parts. All transmission components utilize longitudinal shafts, barrel indexing cams, and gear transmissions for superior stability. The system features a spray lubrication method to ensure long-term durability.

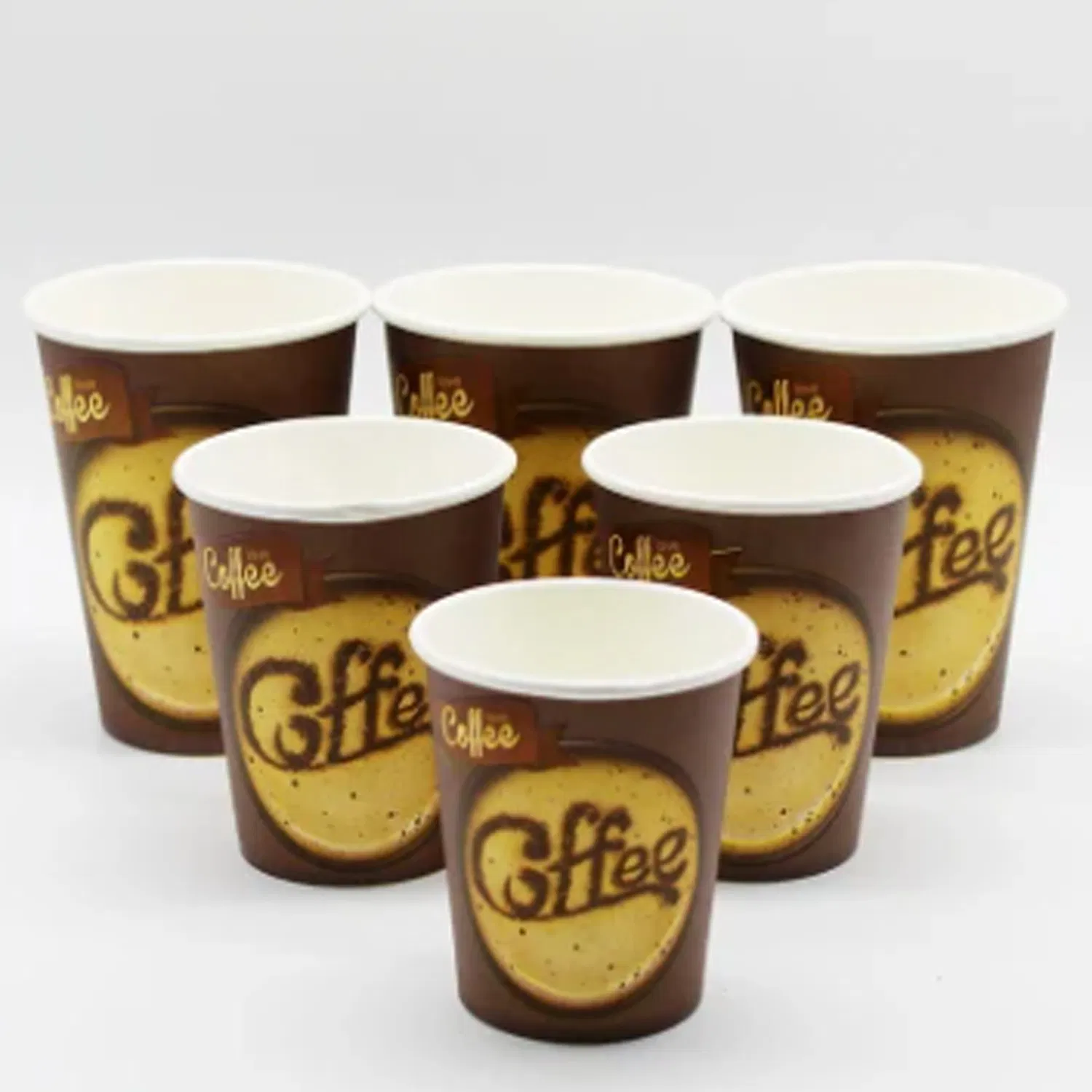

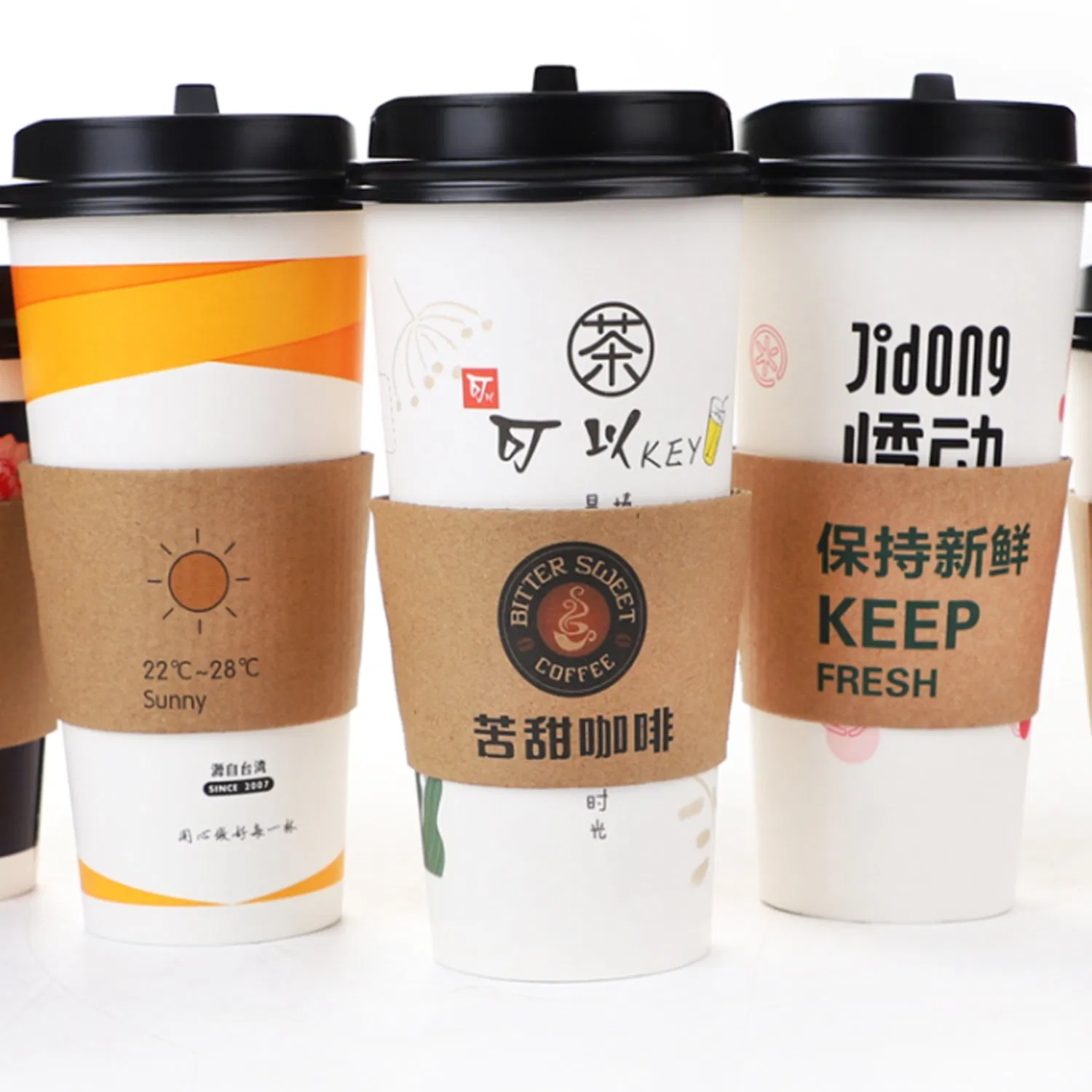

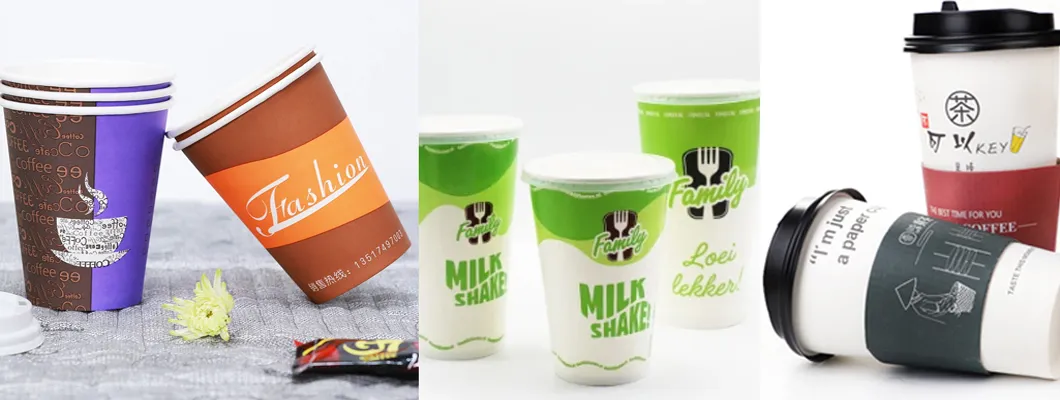

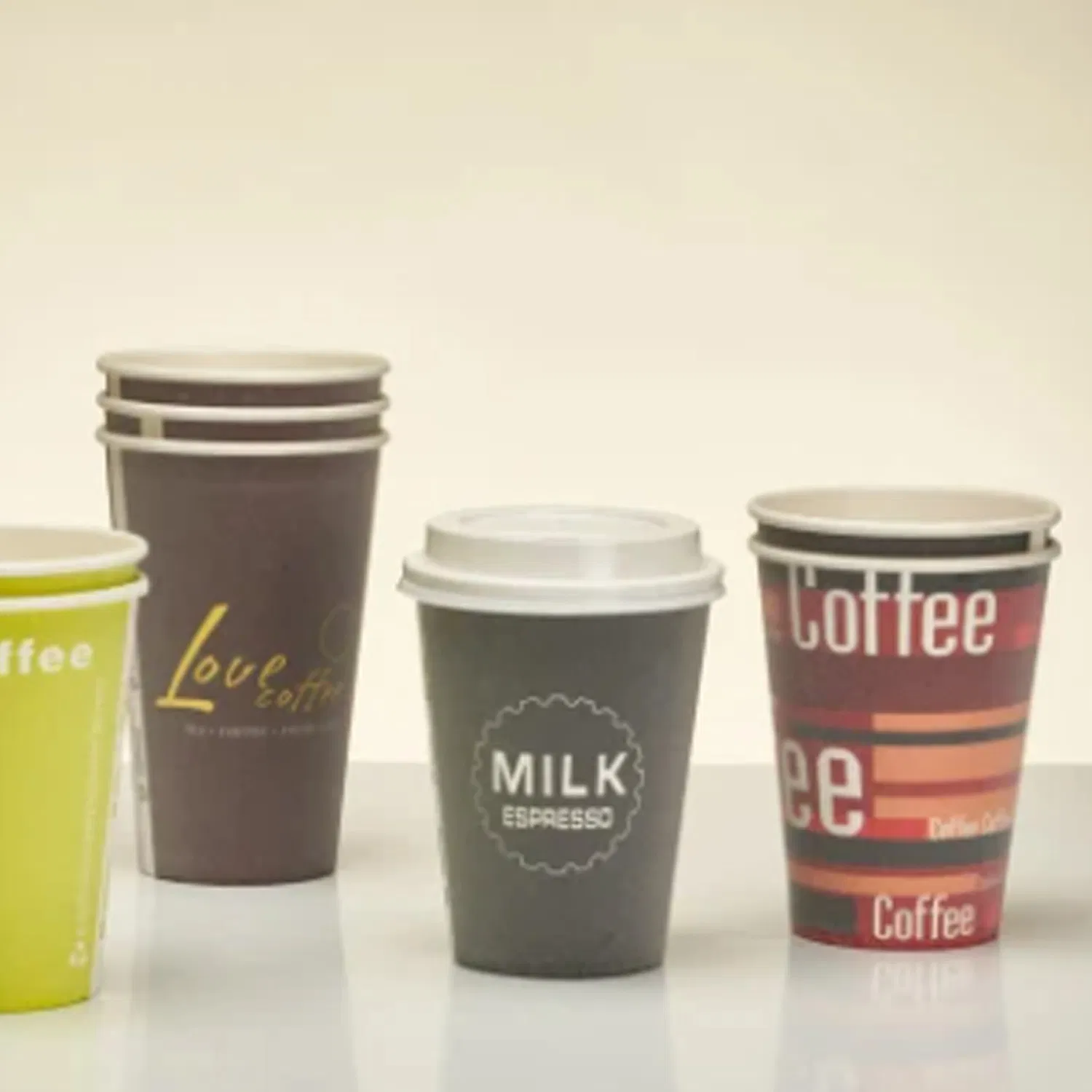

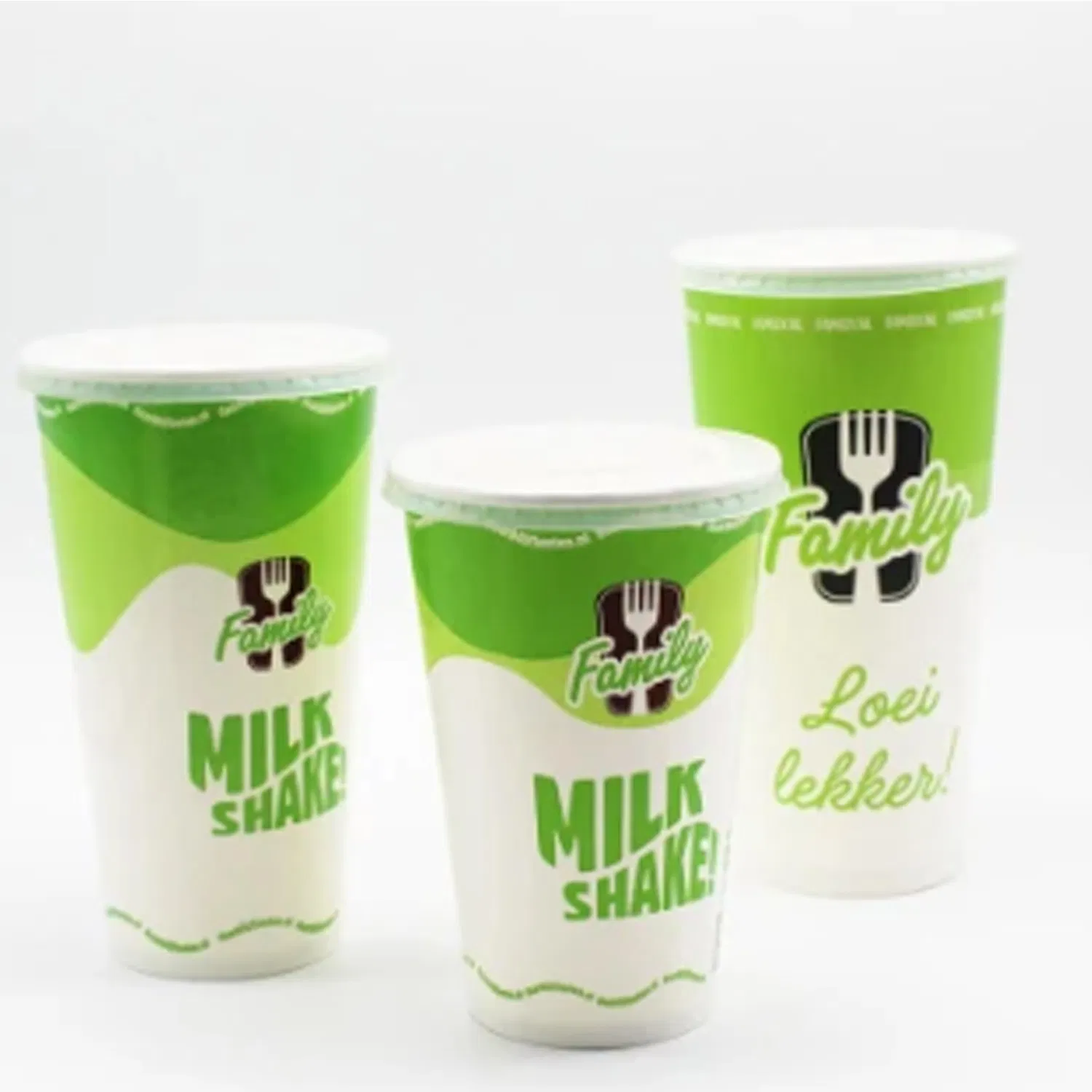

The machine is fully controlled by a PLC system, with the entire production process monitored by precision photoelectric sensors. Feeding is driven by high-accuracy servo motors. An optional visual inspection system is available to automatically reject any non-compliant cups. It is specifically designed for producing 4-16 OZ cold and hot beverage cups.
| Machine Specifications | |
|---|---|
| Model | XSL-16T high speed paper cup machine |
| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Production Speed | 120-150 pcs/min |
| Paper Requirement | 170-380gsm single/double PE paper |
| Machine Dimensions | 3700 * 1300 * 2060mm |
| Air Consumption | 0.6-0.8m³/min |

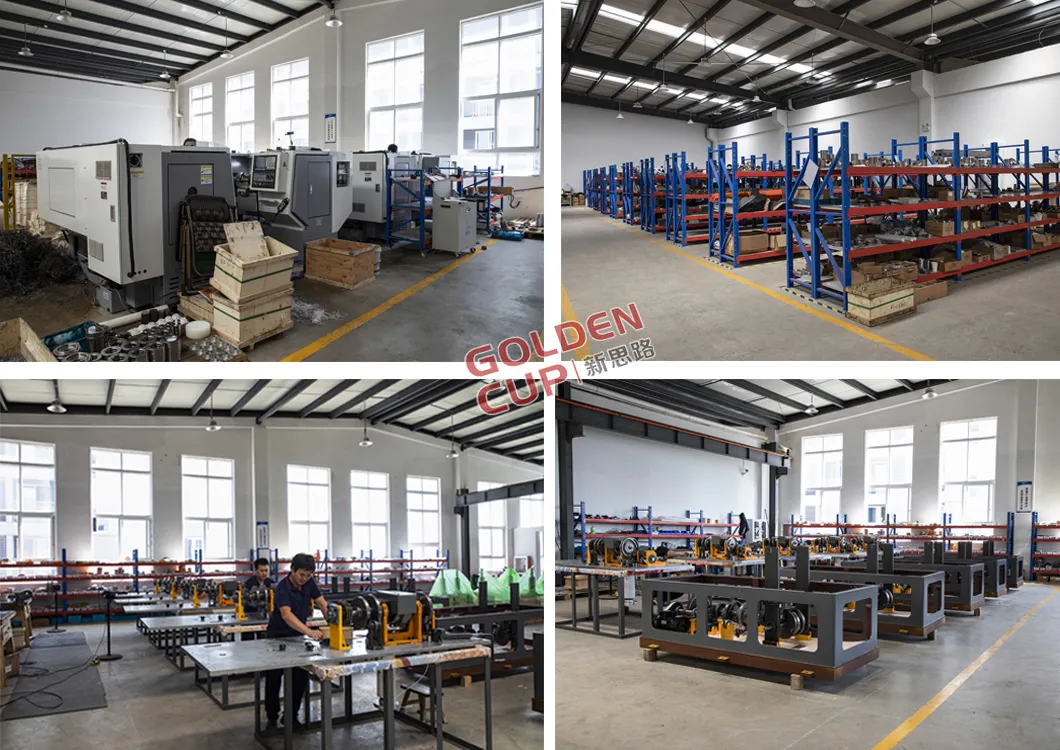

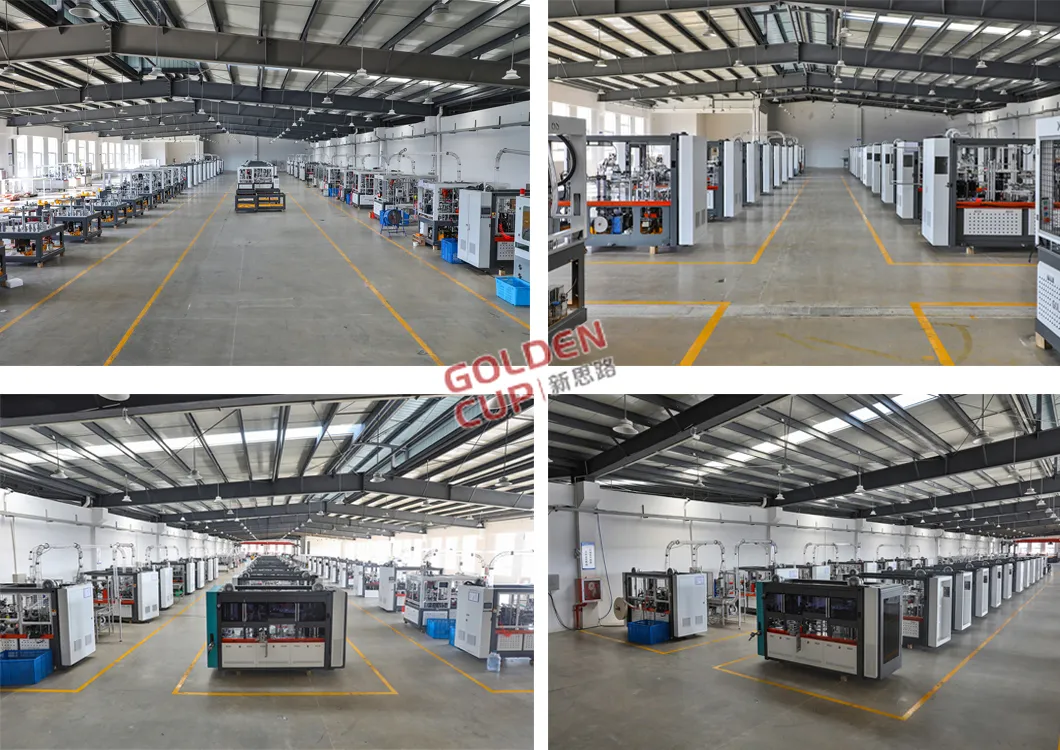

Our company is a leading manufacturer specializing in high-quality machinery for the paper cup industry. Our state-of-the-art facility spans approximately 10,000 square meters, equipped with advanced production capabilities for high-speed paper cup machines, paper bowl machines, and double-wall sleeve machines.
To ensure top-notch performance, we utilize components from renowned international brands. Critical bearings are sourced from Japan, and molds are constructed from high-quality aviation-grade materials. Our transmission system utilizes cam and gear mechanisms, eliminating chains and incorporating a circulating spray lubrication system for rates of 120-150 cups per minute.
