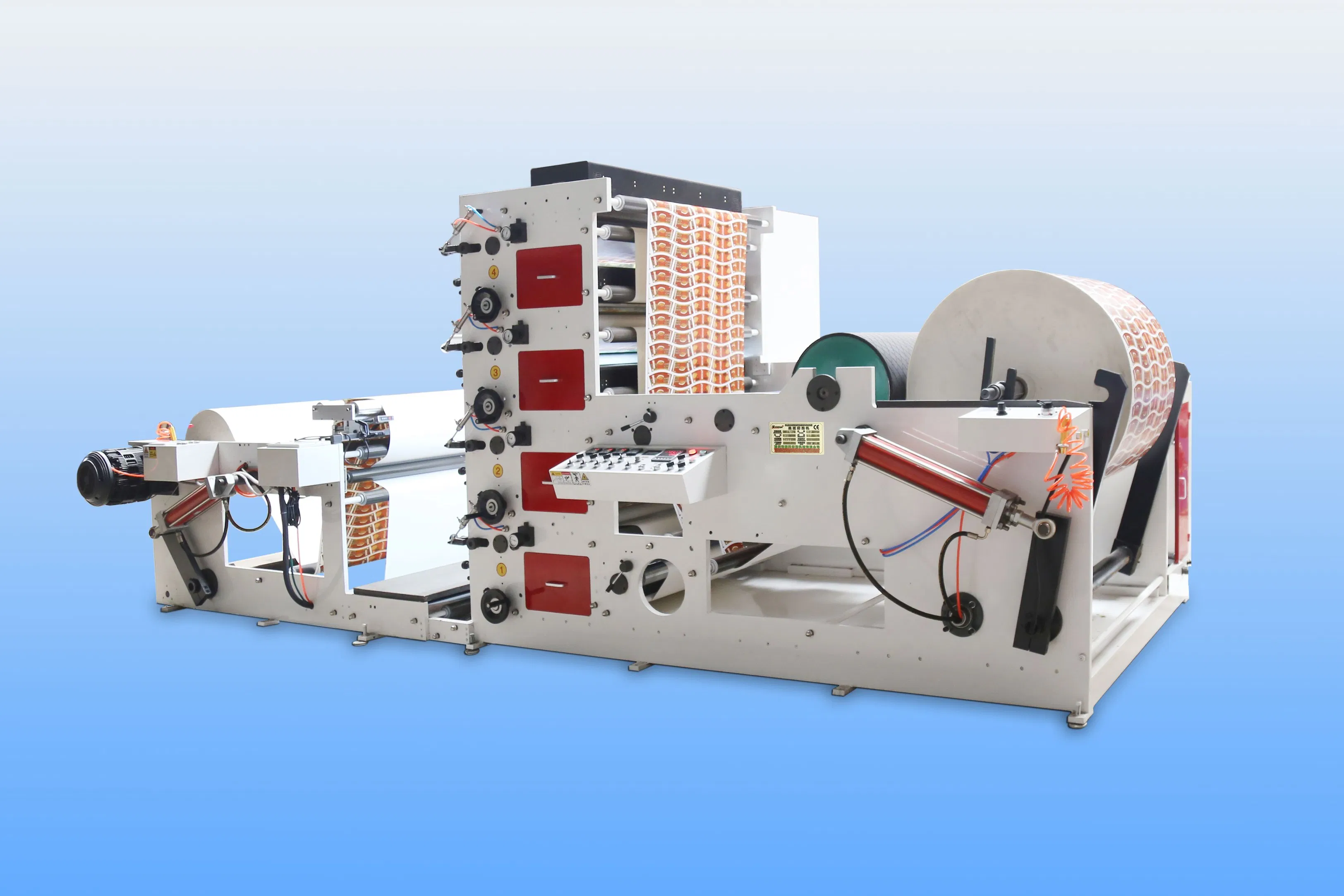

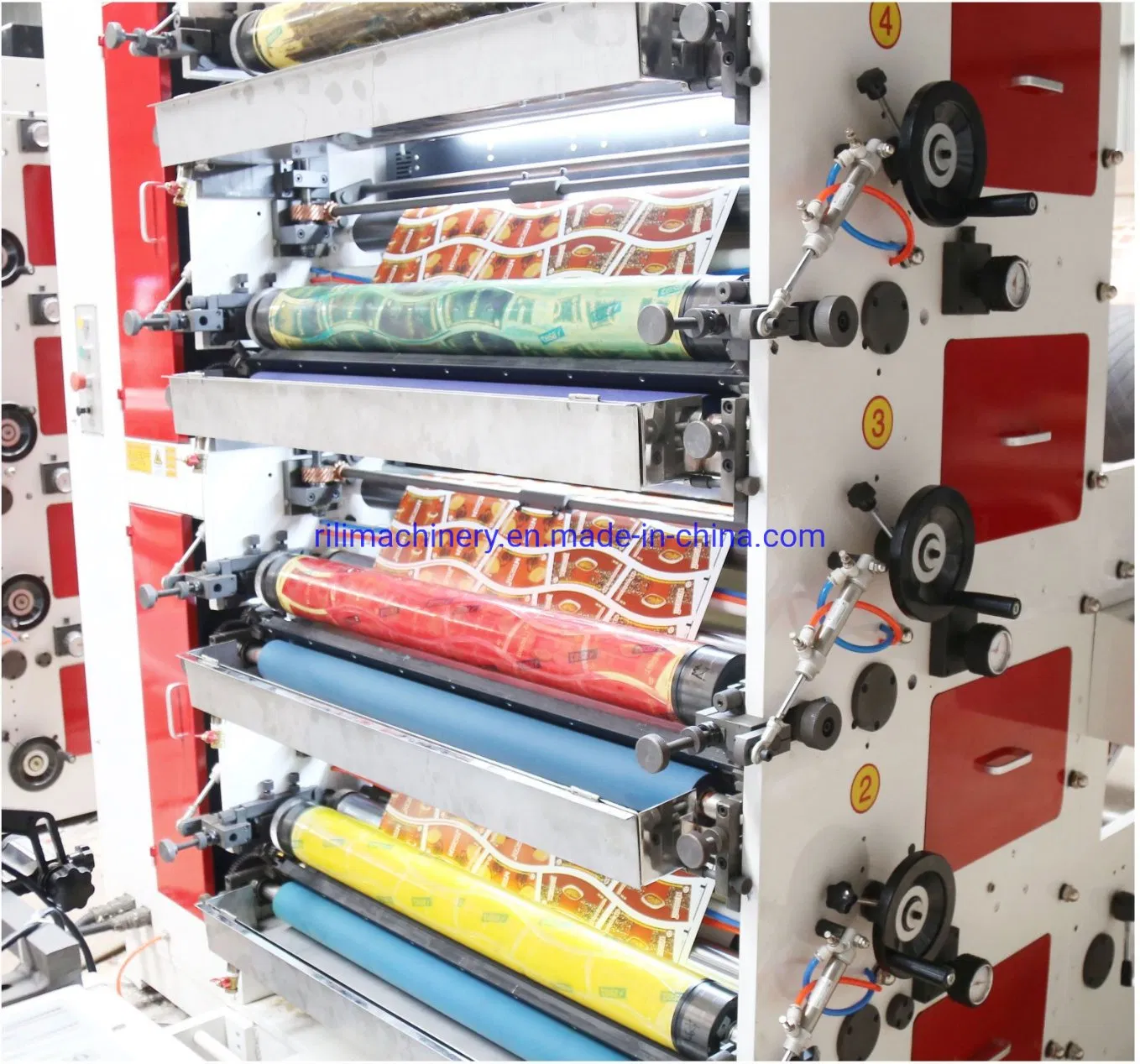

Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine
Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine
Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine
Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine
Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine
1 / 5
Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine
Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine
Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine
Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine
Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine

Small Business Capacity Paper Cup Direct Too Mylar Bag Width Flexo Printer Printing Machine

Customization: Available
After-sales Service: Lifetime After-Sales
Warranty: One Year
Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.RLB-950
Printing PageSingle Faced
Printing Color4 Colors
Anilox RollerCeramic Anilox Roller
DryerUV & IR
TypeLaser
Embossing StructureRotary Letterpress
StructureStacked
ApplicationFlexible Packaging Printing
Automatic GradeSemi-Automatic
Printing Speed10-120 M/Min
HS Code8443160090
Production Capacity100 Sets/ Year
OriginChina
★

Main Features

Adopt the ceramic anilox cylinder to transfer the ink.

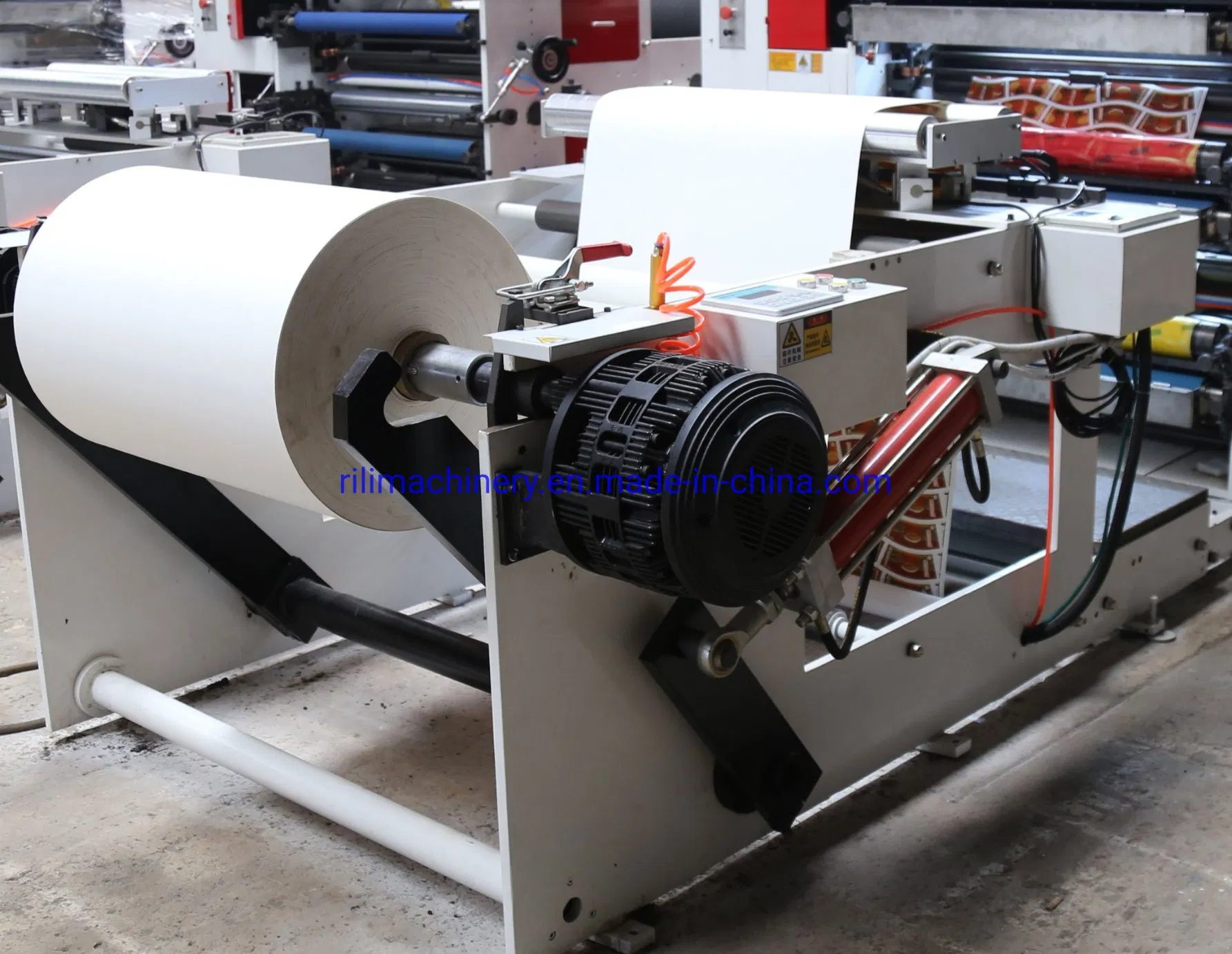

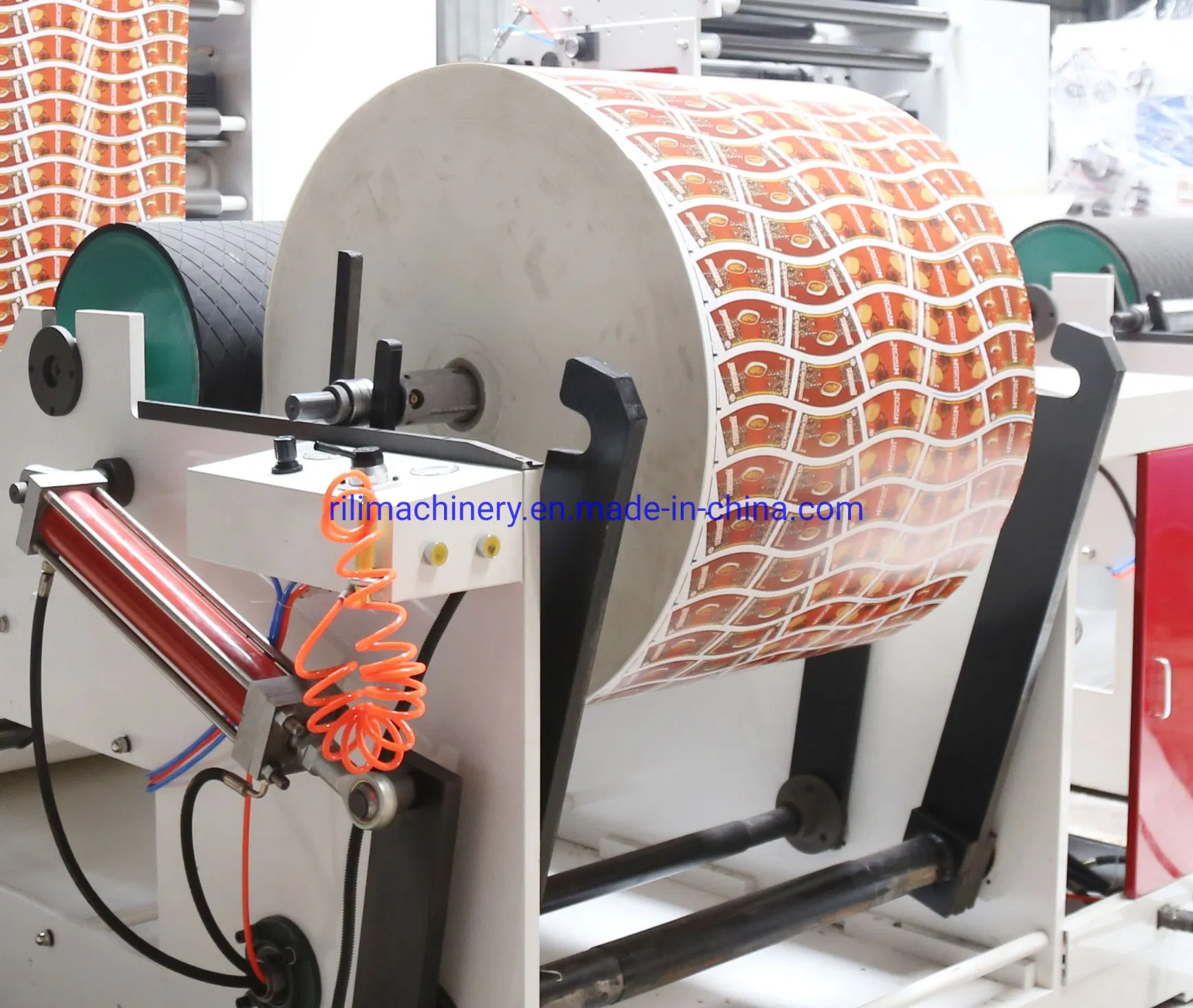

Unwinding and rewinding are controlled by magnetic powder brake/clutch.
Each printing unit adopts 360° plate adjustment.
Each printing unit equips with hot air dryer.
Optional die-cutting station for one-process finishing.
Ink rollers separate from printing rollers and keep running when stopped.
Main motor uses inverter for stepless speed adjustment.
Complete process: feeding, printing, varnishing, drying, laminating, rewinding, and die-cutting.
Ideal for adhesive-paper labels, PE coat paper, paper cups, and more.
⚙

Technical Parameters

Model RLB-950 RLB-1050 RLB-1200
Effective printing width 950mm 1050mm 1200mm
Printing speed 10-120 m/min 10-120 m/min 10-120 m/min
Effective printing perimeter 247.5-555.62mm 247.5-555.62mm 247.5-555.62mm
Heating accuracy ± 0.15 mm ± 0.15 mm ± 0.15 mm
Unwinding diameter 1500mm 1500mm 1500mm
Rewinding diameter 1500mm 1500mm 1500mm
Machine weight 5300kgs 5500kgs 5800kgs
Machine dimension 5.5mx2.2mx2.3m 5.5mx2.3mx2.3m 5.5mx2.45mx2.3m
📷

Machine Display

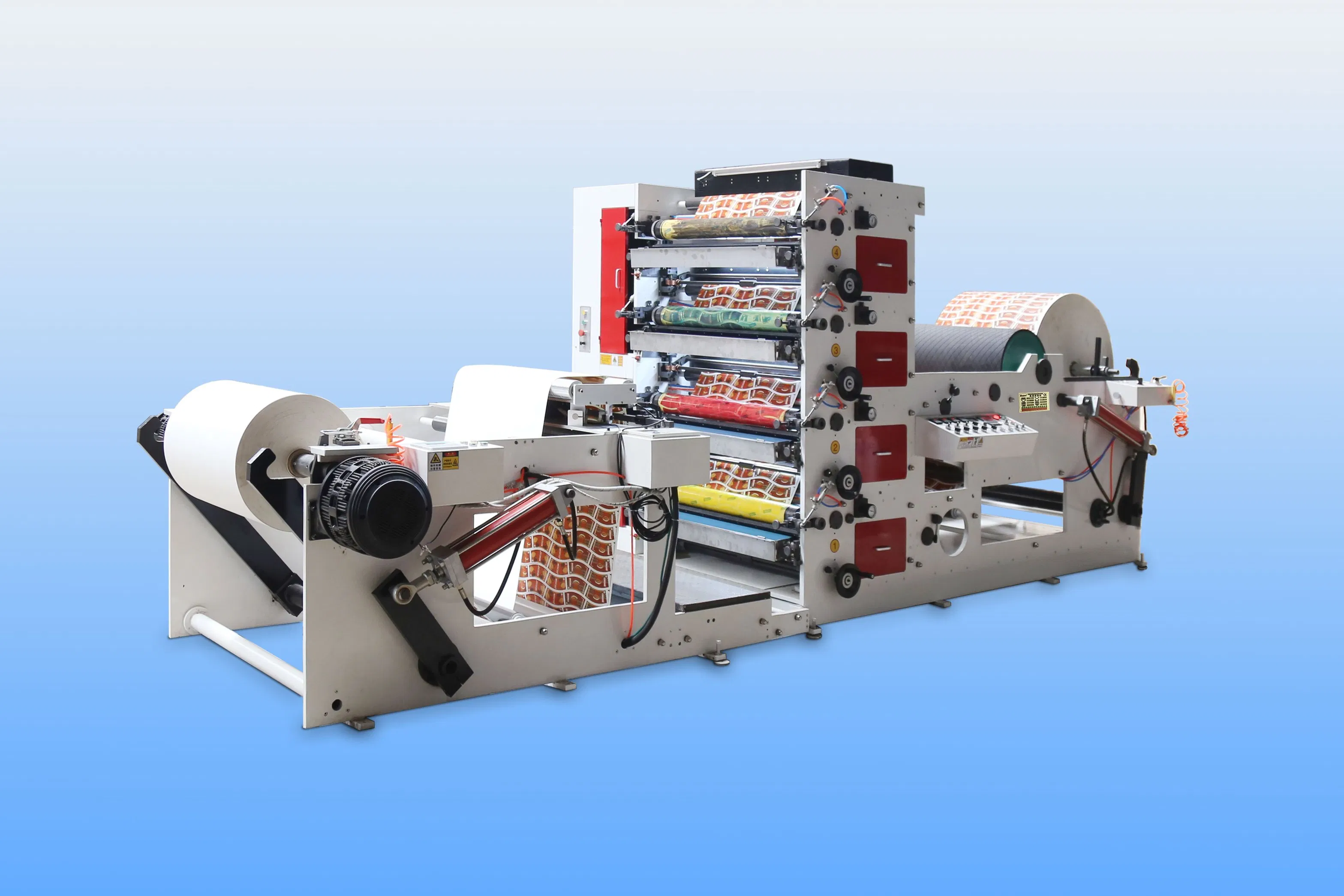

Flexo Printing Machine Overview

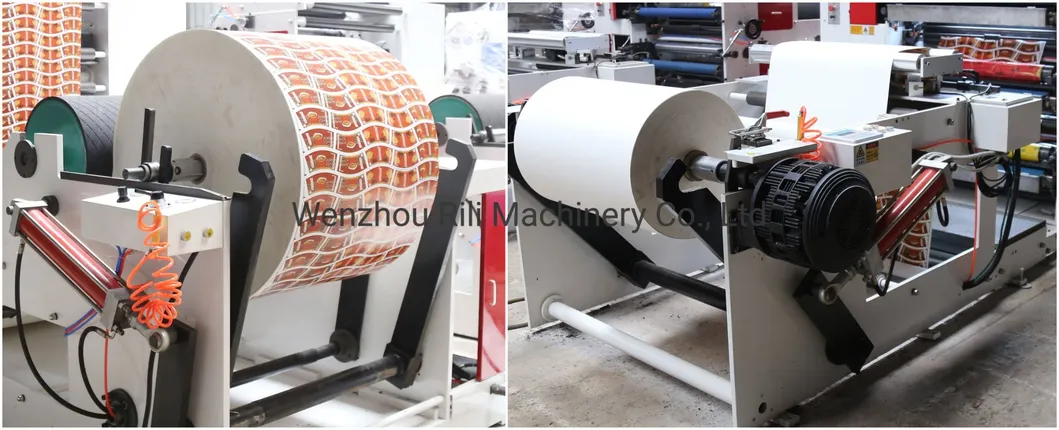

Flexo Printing Machine Detail 1

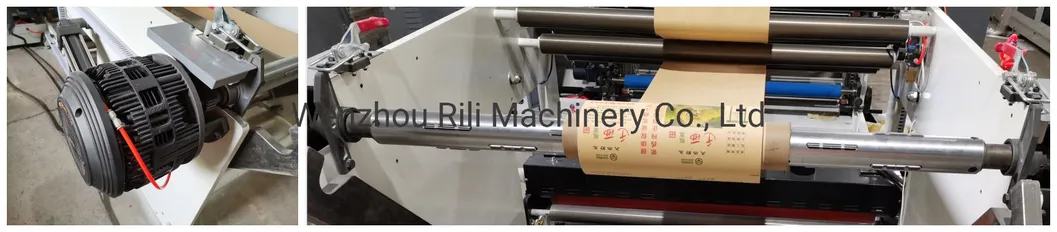

Flexo Printing Machine Detail 2

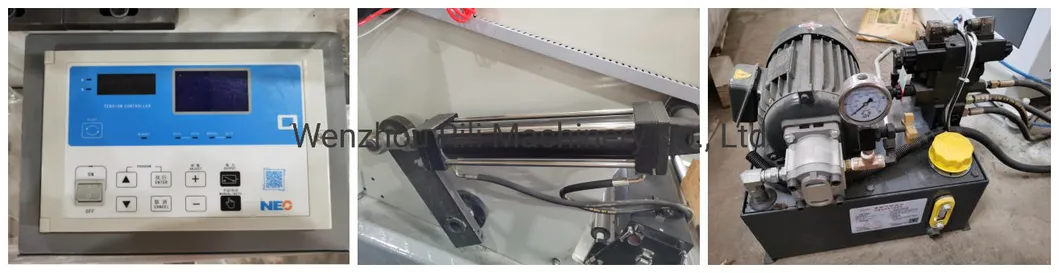

Flexo Printing Machine Detail 3

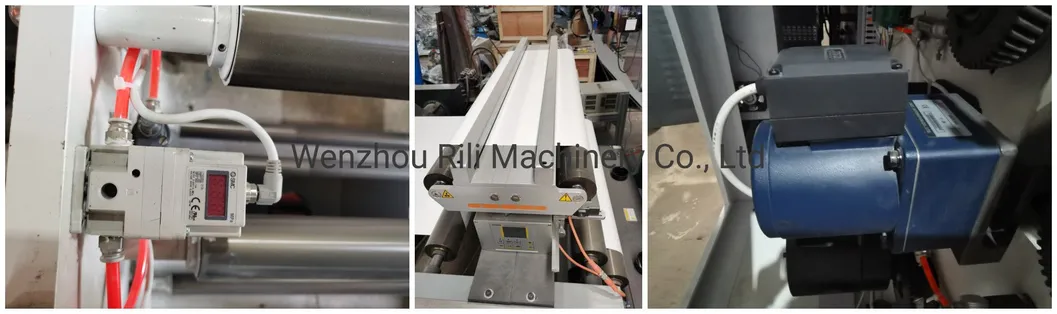

Flexo Printing Machine Detail 4
✚

Optional Configurations

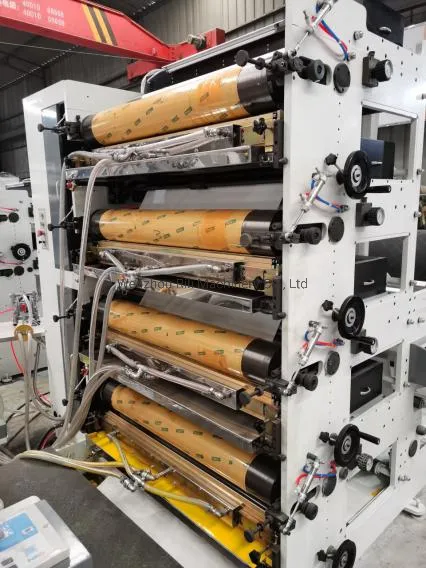

Close doctor blade
1. Close doctor blade

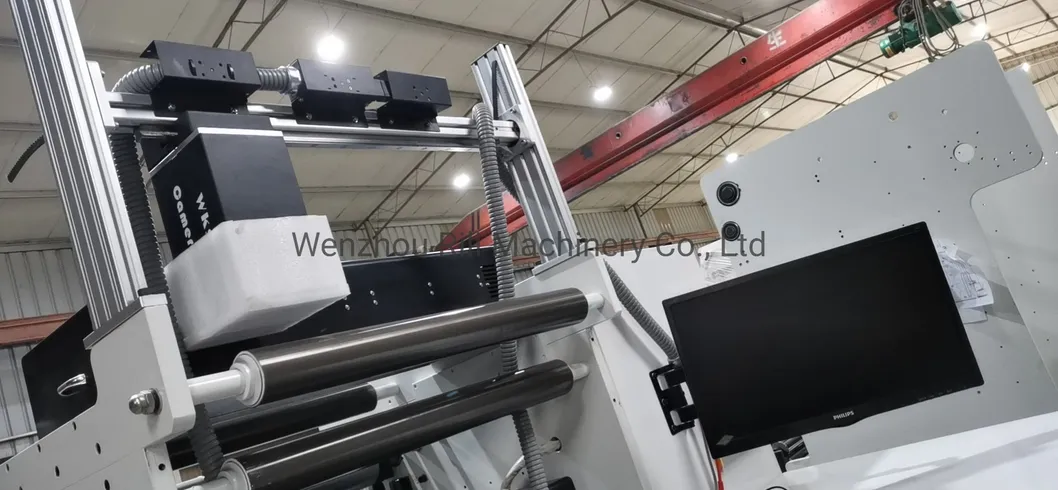

Video monitor
2. Video monitor
Automatic constant tension
3. Automatic constant tension

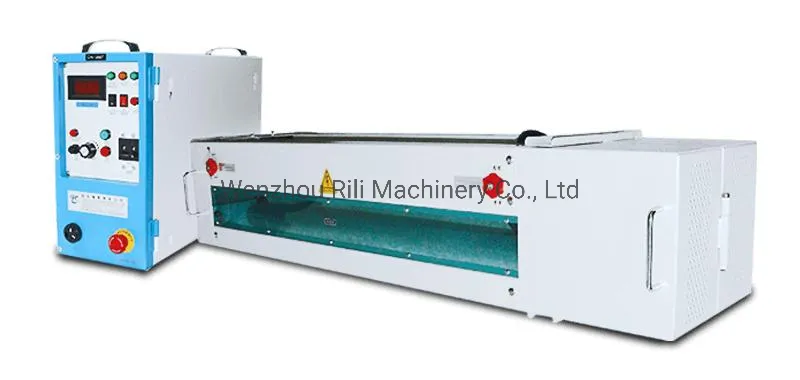

Corona Treater
4. Corona Treater
❓

Frequently Asked Questions

What materials can this flexo printing machine handle?
This machine is highly versatile and best suited for printing on adhesive-paper labels, PE coat paper, paper cups, and other flexible packaging materials.
What is the maximum printing speed of the RLB series?
The machine offers a stable printing speed ranging from 10 to 120 meters per minute, adjustable via a stepless inverter.
How does the machine ensure high-quality ink transfer?
It utilizes professional ceramic anilox cylinders for precise ink transfer, ensuring consistent and clear printing results.
Can the machine perform multiple processes in one go?
Yes, the machine is designed to finish material feeding, printing, varnishing, drying, laminating, rewinding, and die-cutting in a single continuous process.
What type of drying system is used?
The machine is equipped with both UV and IR dryers, and each individual printing unit features its own hot air dryer for efficient ink setting.
Is the die-cutting station a standard feature?
The die-cutting station is an optional device that can be integrated to allow for simultaneous printing and die-cutting.
