Jinli Machinery
1 / 5
| Model NO. | wj-90 |
| Cup Size(Ounce) | 22OZ-32OZ |
| Speed | 100PCS/Min |
| Required Paper | Single and Double Side PE Coated Paper |
| Automation | Automatic |
| Logo Printing | With Logo Printing |
| Certification | CE |
| Customized | Customized |
| Condition | New |
| After-sales Service | One Year |
| General Power | 10kw |
| Measurement | 2.5*1.3*1.8m |
| Voltage Supply | 380V or Customized |
| Weight | 3000kgs |
| Color | White and Grey |
| Transport Package | Woodencase |
| Production Capacity | 55PCS/Month |

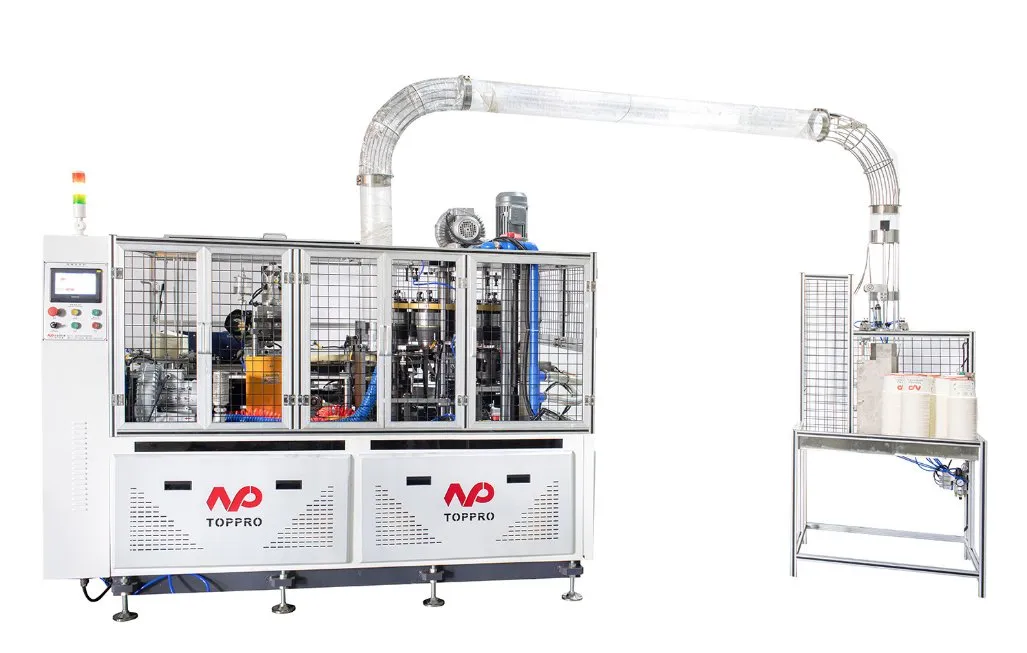

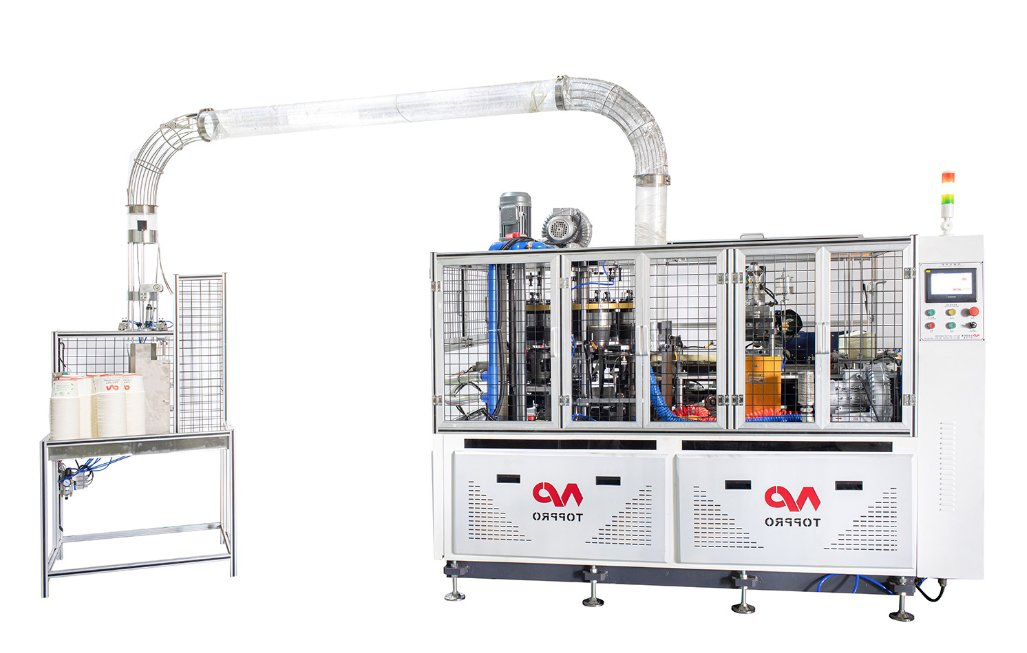

WJ-90 MIDDLE-SPEED PAPER BOWL FORMING MACHINE
The WJ-90 middle-speed paper bowl forming machine is developed based on advanced technology. It features automatic paper feeding, preheating, sealing, oil injection, bottom cutting, heating, knurling, and curling. Equipped with sensor checking, counting, and self-collection functions, it is ideal for producing single and double PE coated paper bowls, including soup and noodle bowls. The machine speed reaches 80-100pcs/min.
| Model | WJ-90 |
| Paper bowl Size | Bottom: 70-110mm, Top: 95-140mm, Height: 60-150mm |
| Raw Material | One-side or two-side PE coated paper |
| Speed | 80-100pcs/min |
| Suitable paper weight | 170-350gsm |
| Voltage supply | 380v 50hz 3-phase |
| Working Air Source | Air pressure 0.6-0.8mpa, 0.4m³/min |
| General power | 10.5kw |
| Net weight | 2000kgs |
| Measurement (mm) | 2500*1300*1800 |

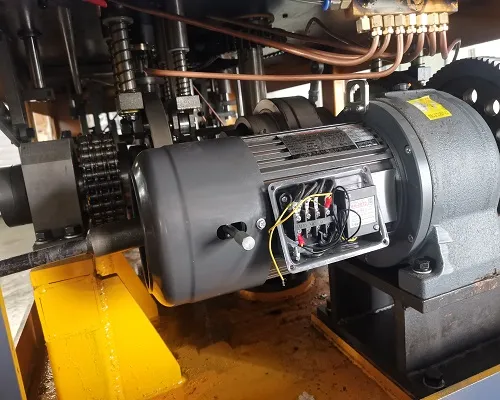

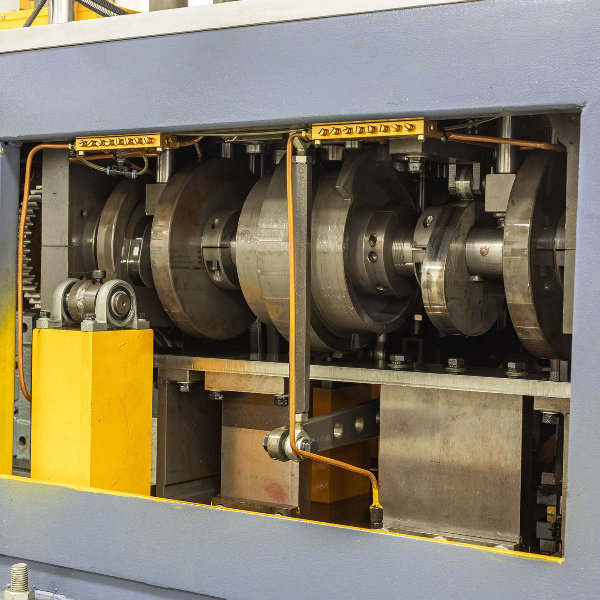

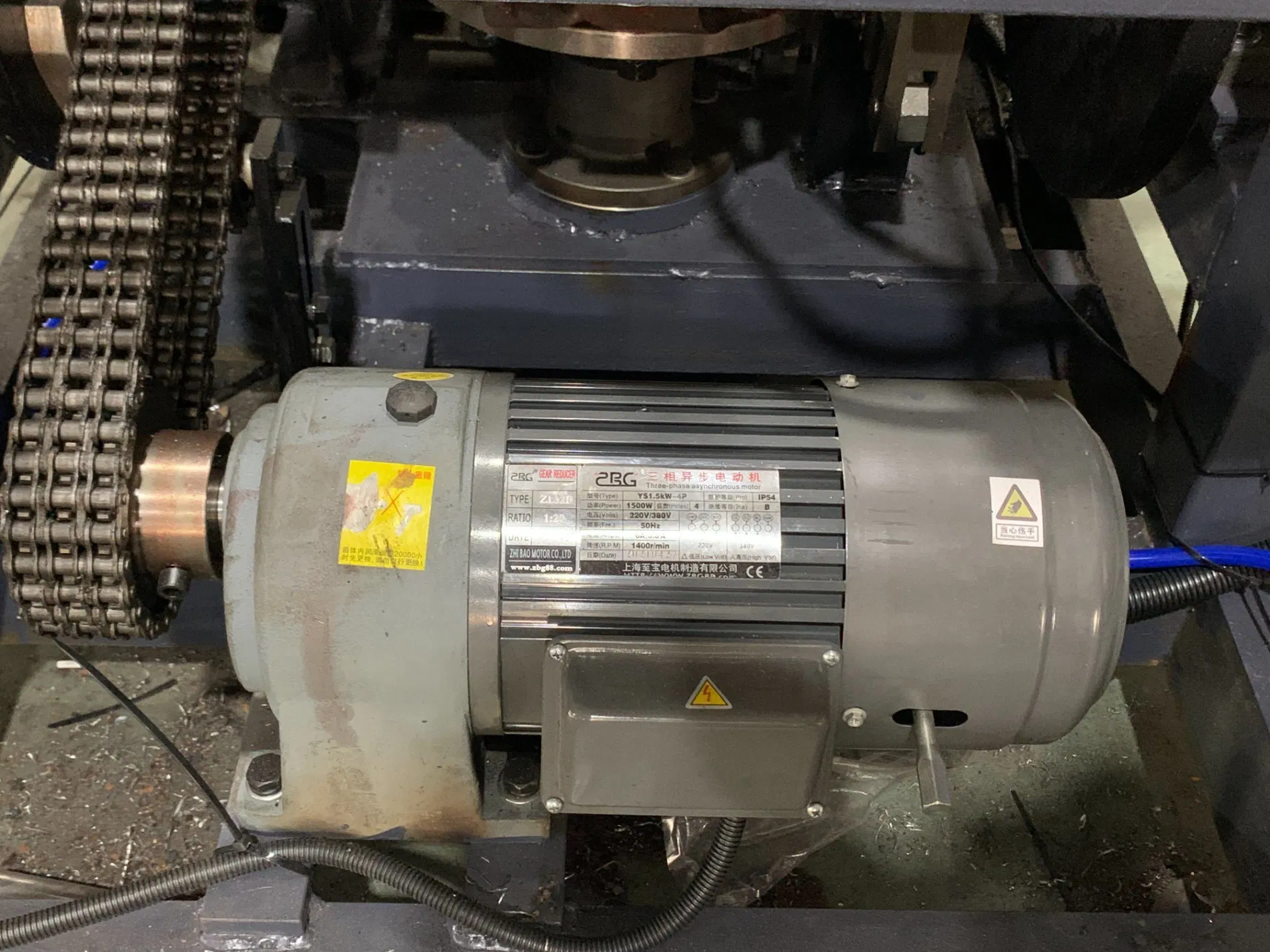

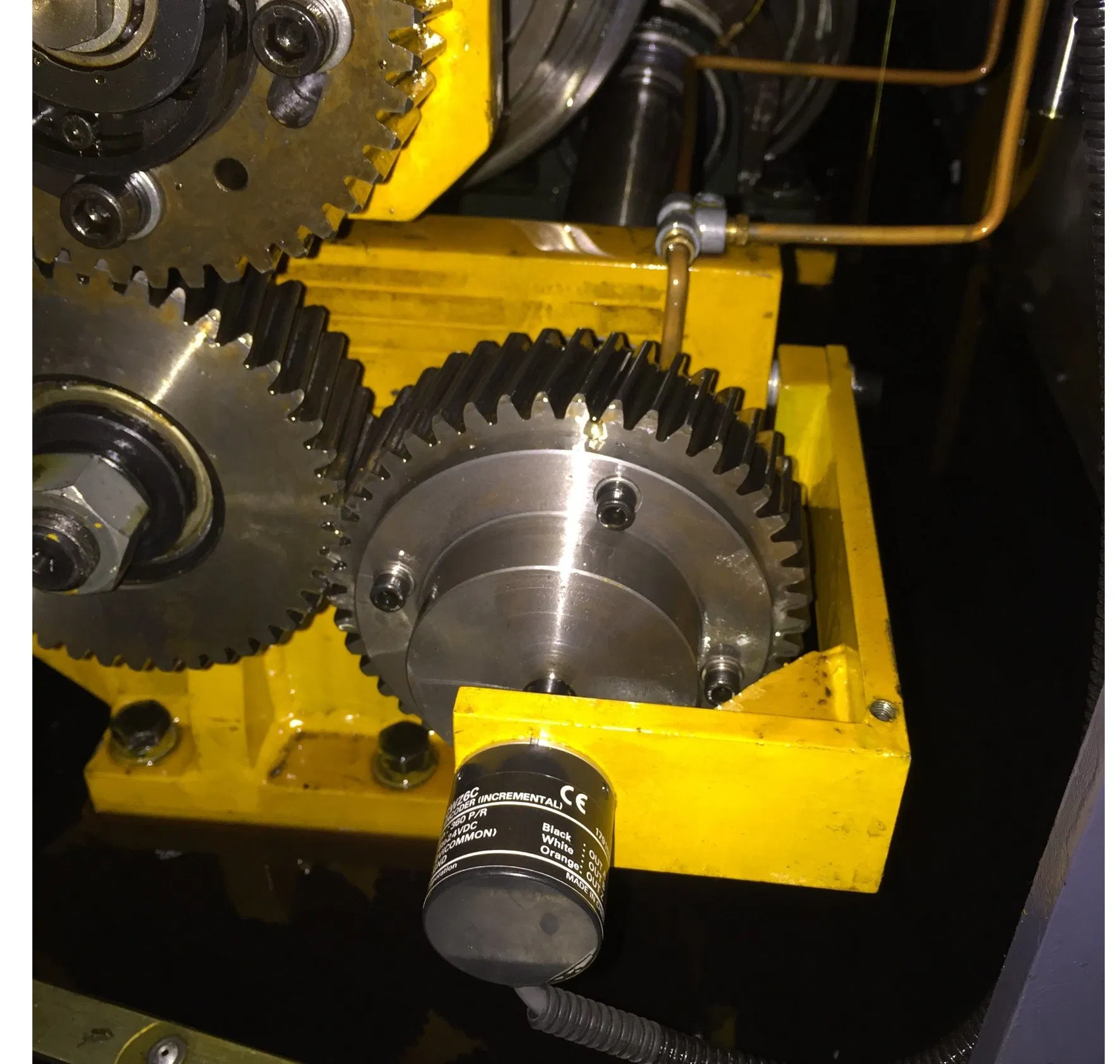

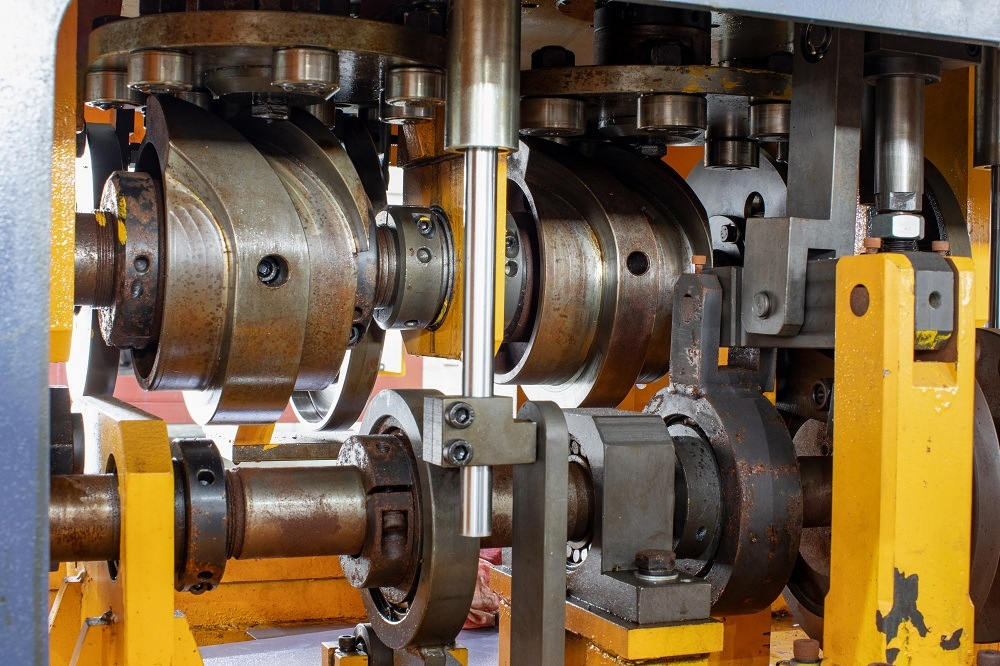

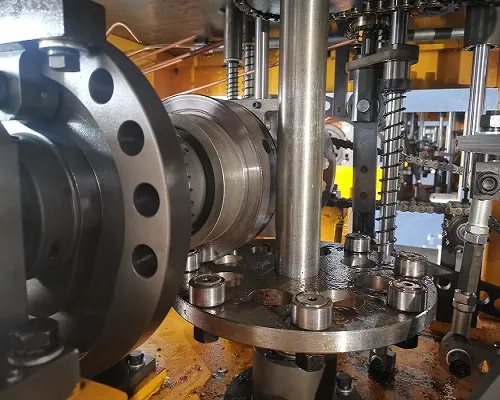

1. Core components with open cam design and gear motor:

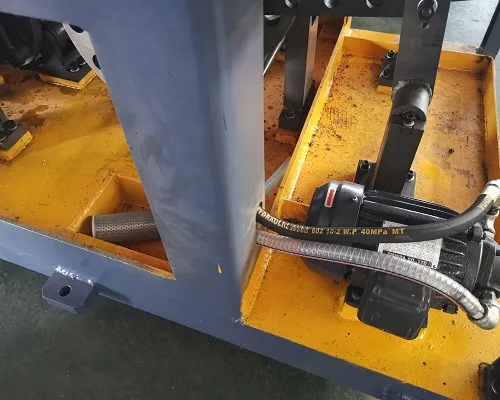

2. Automatic lubrication system by oil pump and filtration for easy maintenance:

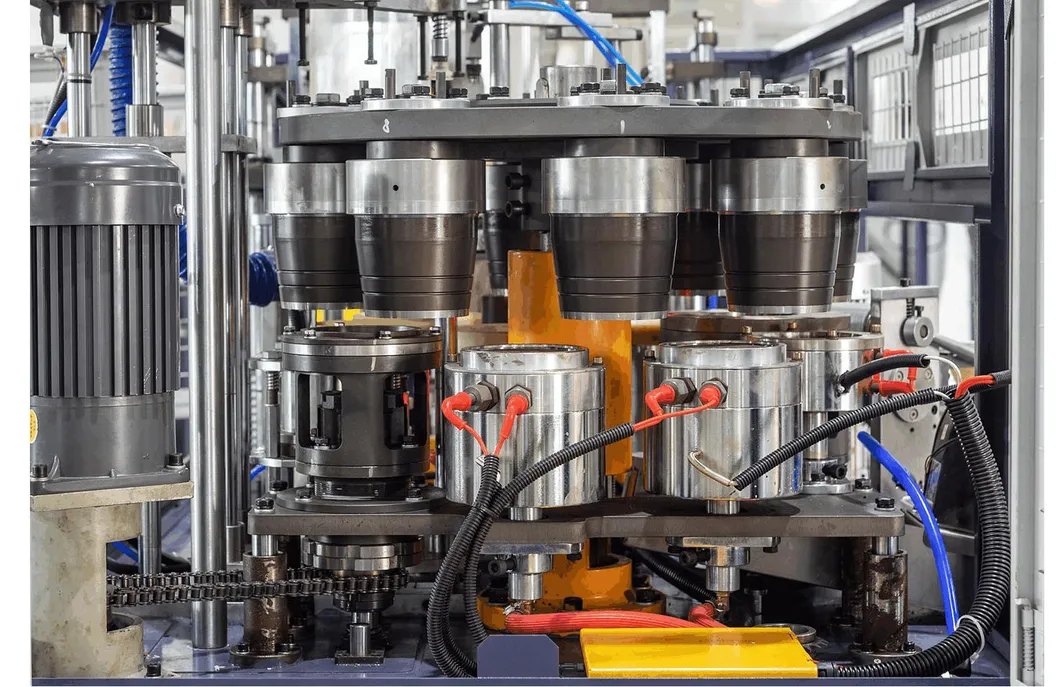

3. Separated curling and knurling design for lower noise and longer lifetime:

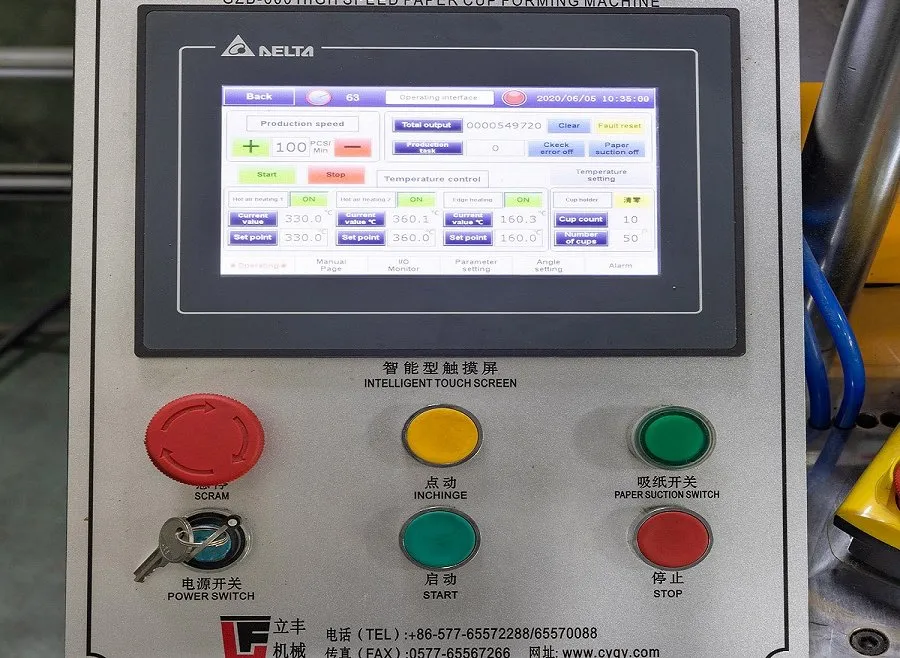

4. Touch screen control panel with imported electrical components:

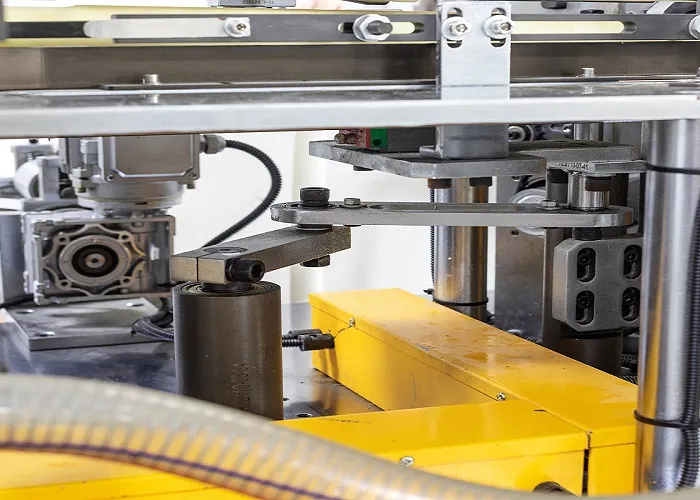

5. New rotary type paper fan feeding system for high stability:
All machines are packed in strong wooden cases. We provide a tool box, English manual, electric diagram, and instructional video to ensure smooth operation.
We are a professional manufacturer of paper container machinery established in 1999. Our product range includes paper cup machines, paper bowl machines, paper cone machines, and die punching machines. The facility occupies over 9,000 square meters and holds CE and SGS certificates. With a decade of successful trading experience across Europe, South America, Africa, and Southeast Asia, we prioritize quality and service.
