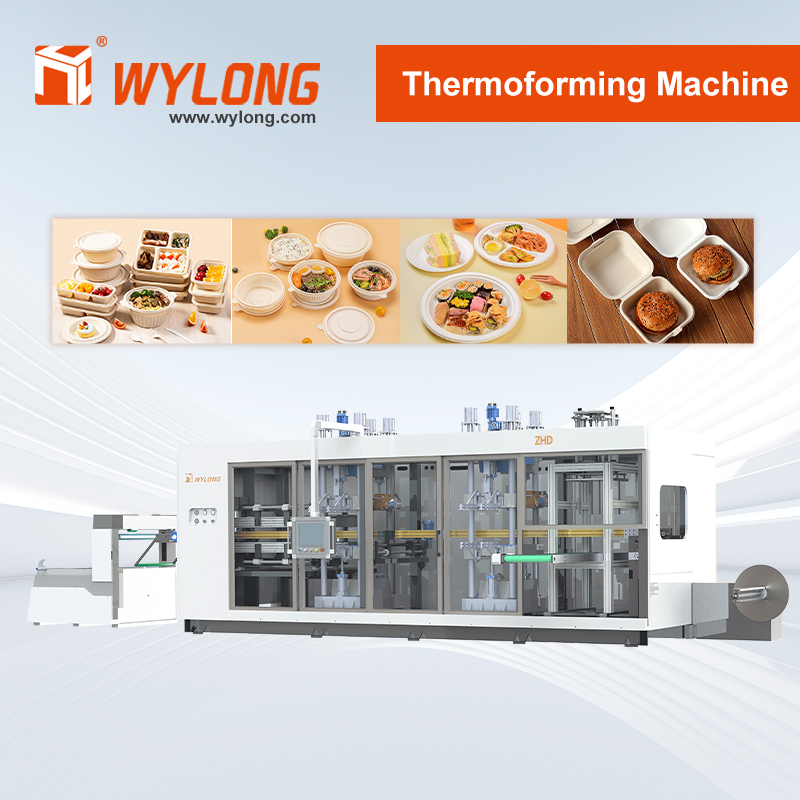

Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine
1 / 5
Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine

Automatic Plastic Fruits Clamshell Fast Food Packages Box Tray Paper Coffee Cup Lid Cover Container Plastic Thermoforming Forming Making Machine

Customization: Available
After-sales Service: During This One Year, in Case of Any Trouble
Warranty: During This One Year, in Case of Any Trouble
Send Inquiry

Product Description

Automatic Multi Station Thermoforming Machine

Basic Specifications

Model NO.
ZHD-750/850
Certification
CE
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Processing Type
Plastic Thermoforming Machine
Plastic Type
PP, PET, PVC, PS, PLA
Production Speed
10-35 Mould/Min
Sheet Thickness
0.2-2 mm
Heating Power
200kw

Automatic Multi Station Thermoforming Machine

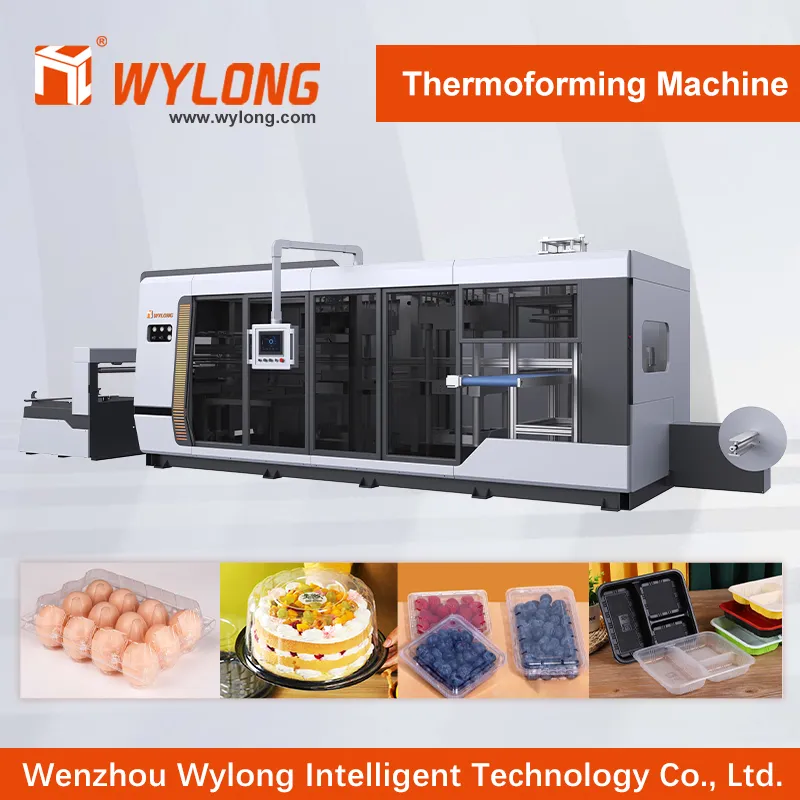

Thermoforming Machine Detail

Product Overview

Our Multi Station Thermoforming Machine is exceptionally versatile, handling a broad spectrum of materials including A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC, and various barrier materials. This advanced machine efficiently produces a wide range of items such as trays, lids, fruit and vegetable boxes, flower pots, clamshells, nursery trays, and plates. Designed to meet the rigorous demands of multiple industries, it ensures flexibility and high-quality production processes.

Key Applications

Food Packaging Produces trays, lids, and containers with high standardization and cutting accuracy.
Industrial Use Forms durable parts and components with flexible production capabilities and exceptional reliability.
Medical Industry Creates high-quality sterile packaging solutions with precise control and durable materials.
Consumer Goods Manufactures clamshells, flower pots, and nursery trays using a balanced 4-post press system.

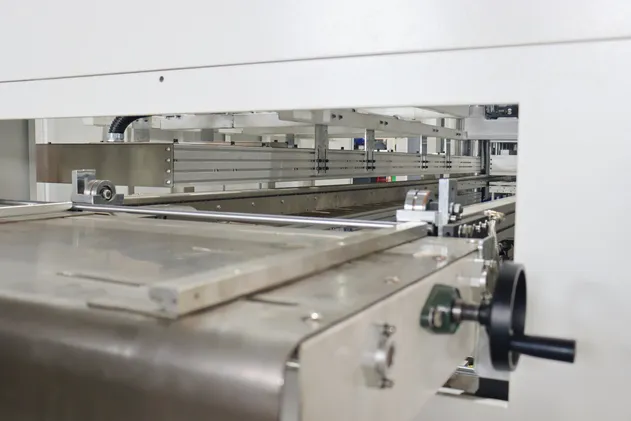

Right Elevation

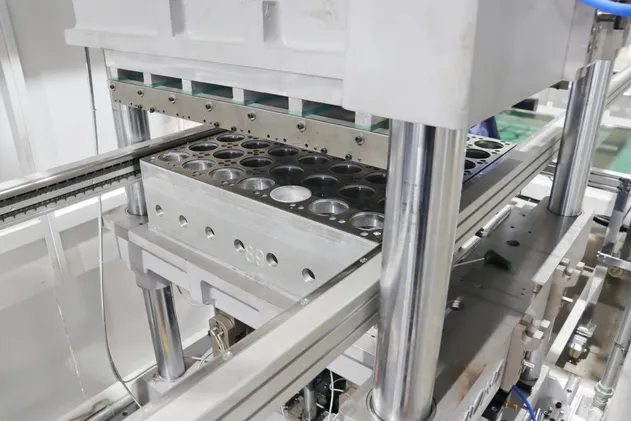

Left Elevation

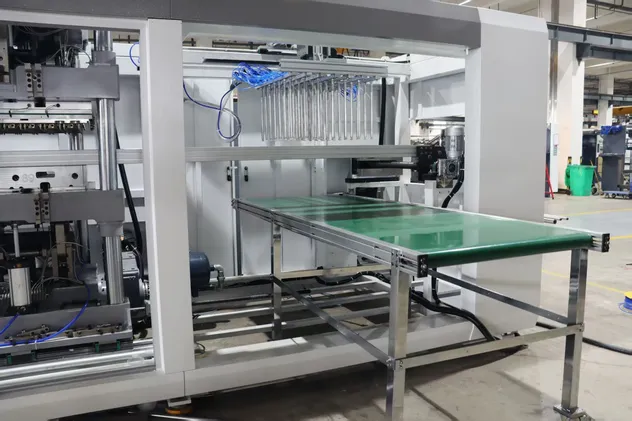

Front Elevation

Technical Specifications (ZHD-SERIES)

Model ZHD-680/450 ZHD-750/650 ZHD-750/850
Applicable sheet thickness0.2-2mm0.2-2mm0.2-2mm
Applicable materialsPP PET PVC PS PLAPP PET PVC PS PLAPP PET PVC PS PLA
Maximum forming area680x450mm750x650mm750x850mm
Sheet width400-620mm450-800mm500-900mm
Max forming depth (Upper)100mm120mm130mm
Max forming depth (Lower)100mm120mm150mm
Speed (Cycles/min)15-30/min15-40/min15-40/min
Heating power80kw165kw180kw
Total installed power100kw200kw240kw
Weight9ton15ton20ton
Overall dimensions8x2.4x2.2m10x2.4x2.5m12x2.4x3.2m

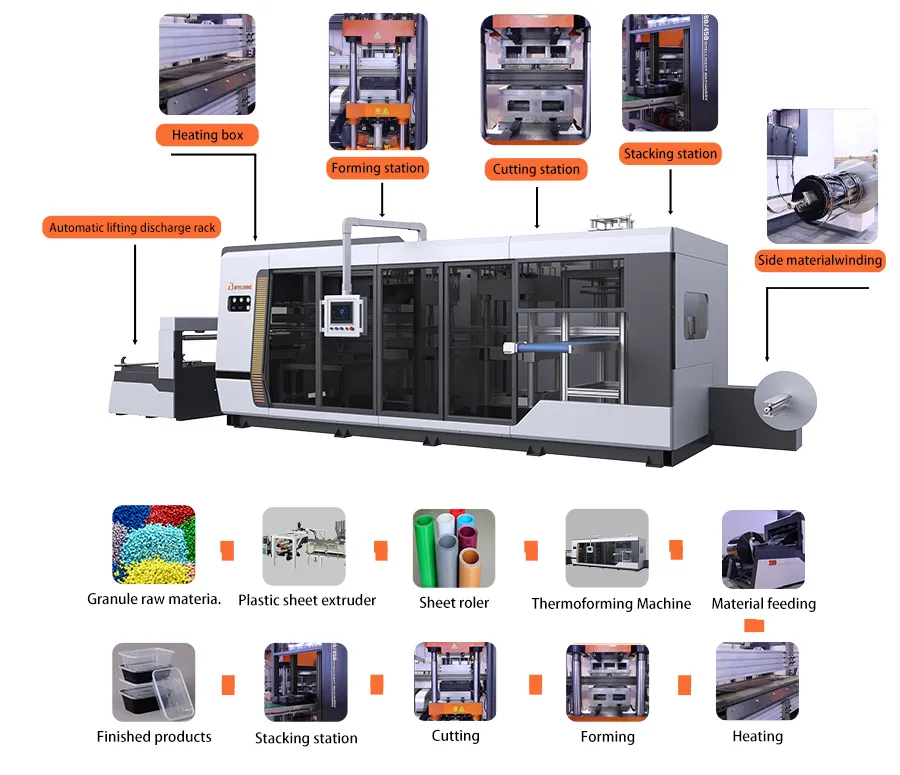

Machine Structure
Internal Components

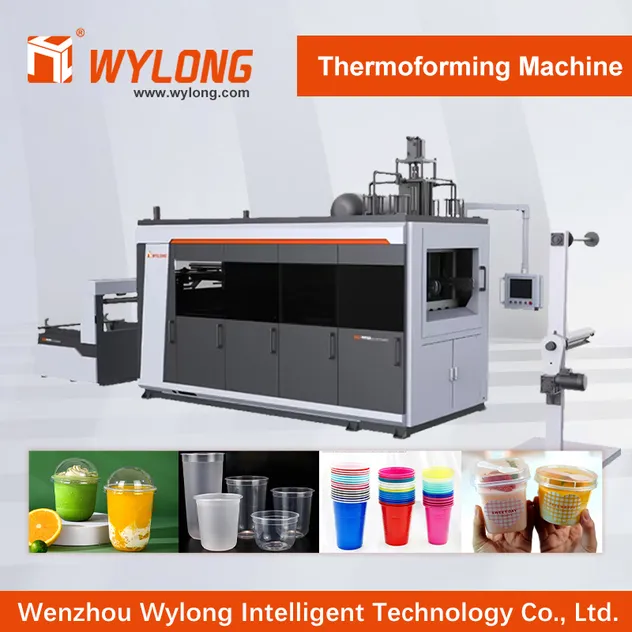

Product Sample 1

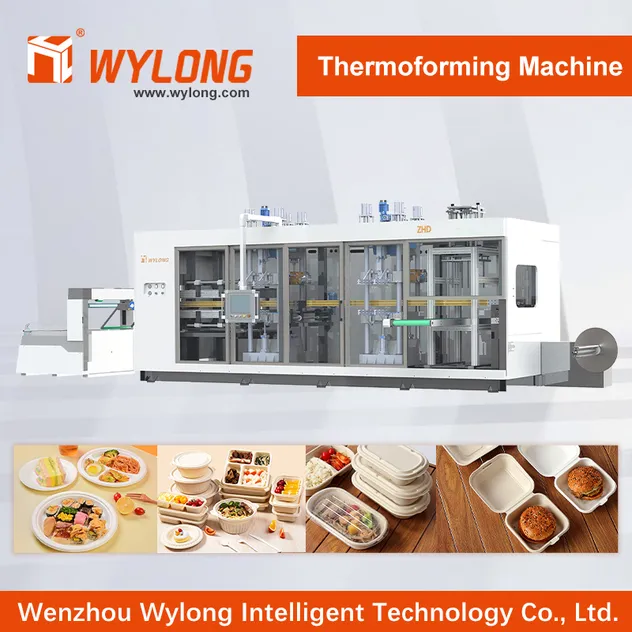

Product Sample 2

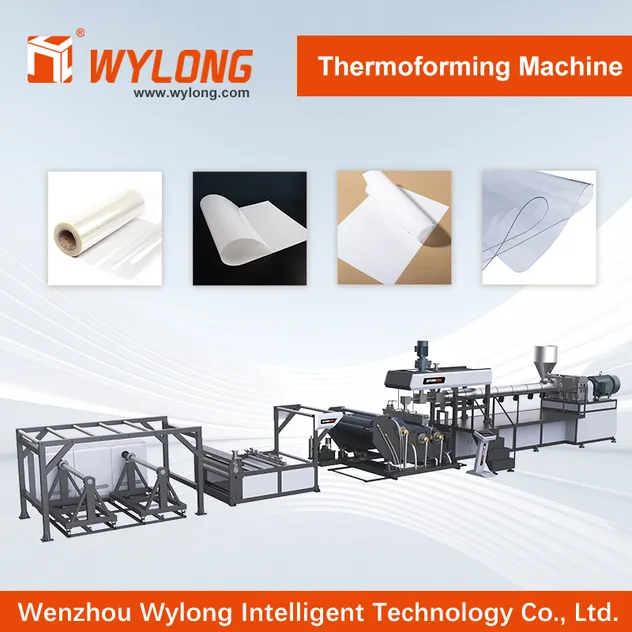

Product Sample 3

Manufacturing Excellence

Factory Overview
Workshop
Production Line
? FAQ
What types of plastic materials can this machine process?
The machine is compatible with a wide range of materials including PP, PET (A-PET, R-PET, C-PET), PVC, PS, PLA, and BOPS.
What is the maximum production speed of the ZHD-750/850 model?
The production speed ranges from 10 to 35 cycles per minute, depending on the material and product complexity.
Does the machine support custom mold designs?
Yes, the multi-station design and robust 4-post press system support custom manufacturing for various industrial and consumer packaging needs.
What is the warranty period for the core components?
Core components, such as the servo motor, come with a 1-year warranty.
What are the main applications for the products made by this machine?
Common applications include food trays and lids, fruit clamshells, medical sterile packaging, flower pots, and nursery trays.
Is the machine certified for international standards?
Yes, the machine is CE certified, ensuring it meets essential health and safety requirements.
