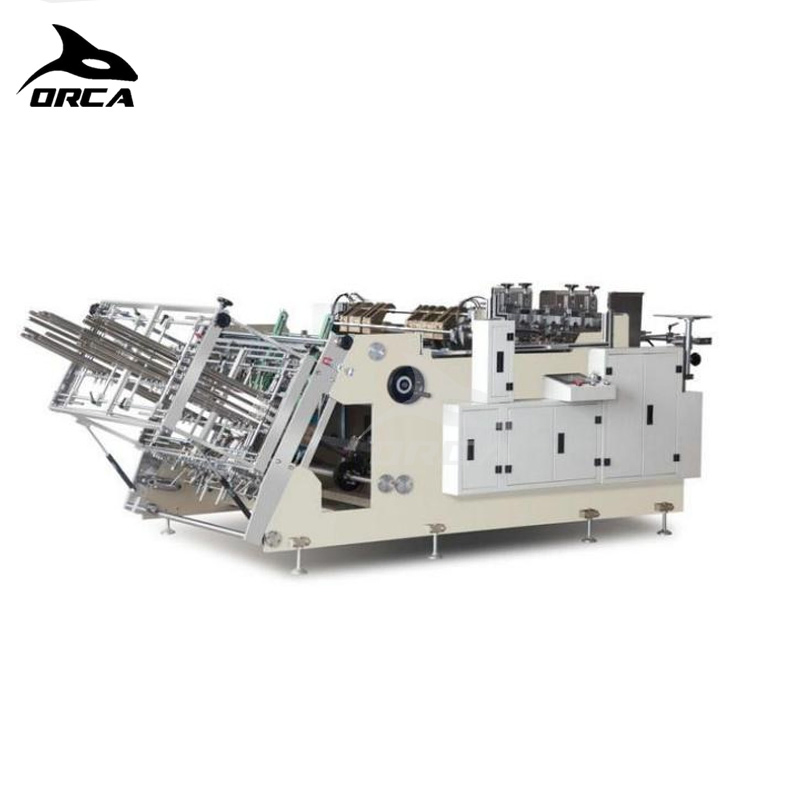

High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine
High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine
High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine
High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine
High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine
1 / 5
High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine
High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine
High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine
High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine
High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine

High Speed Automatic 2 Lanes Disposable Hamburger Paper Lunch Forming Machine Take Away Food Container Making Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Application:Food
Driven Type:Mechanical
Type:Automatic Carton Making Machine
Production Speed:50-300PCS/Min
Machine Size:3580*1800*1600mm
Paper Material:200-600 GSM Card Paper
Product Description

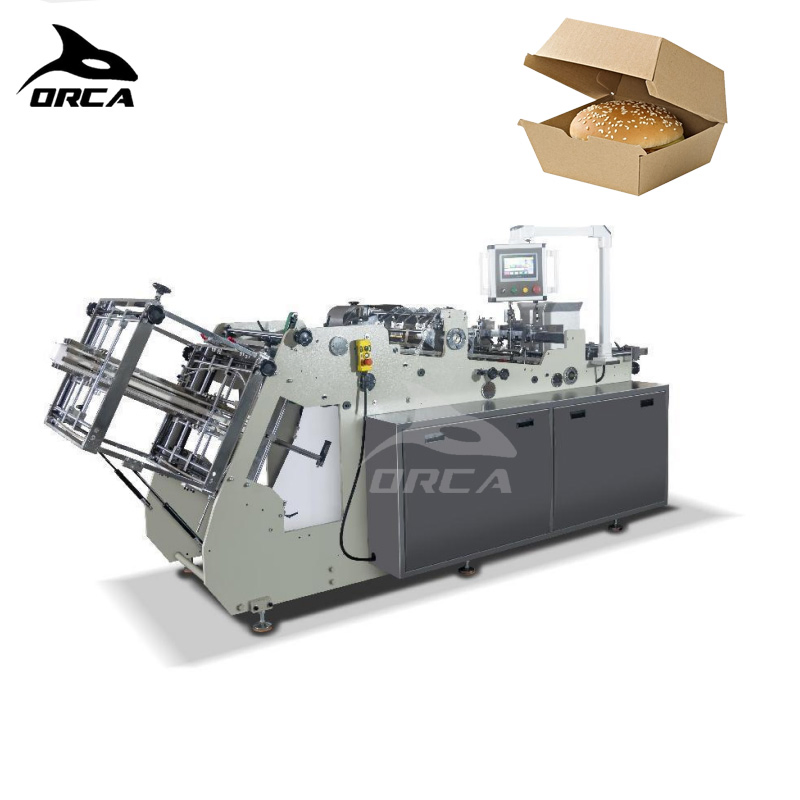

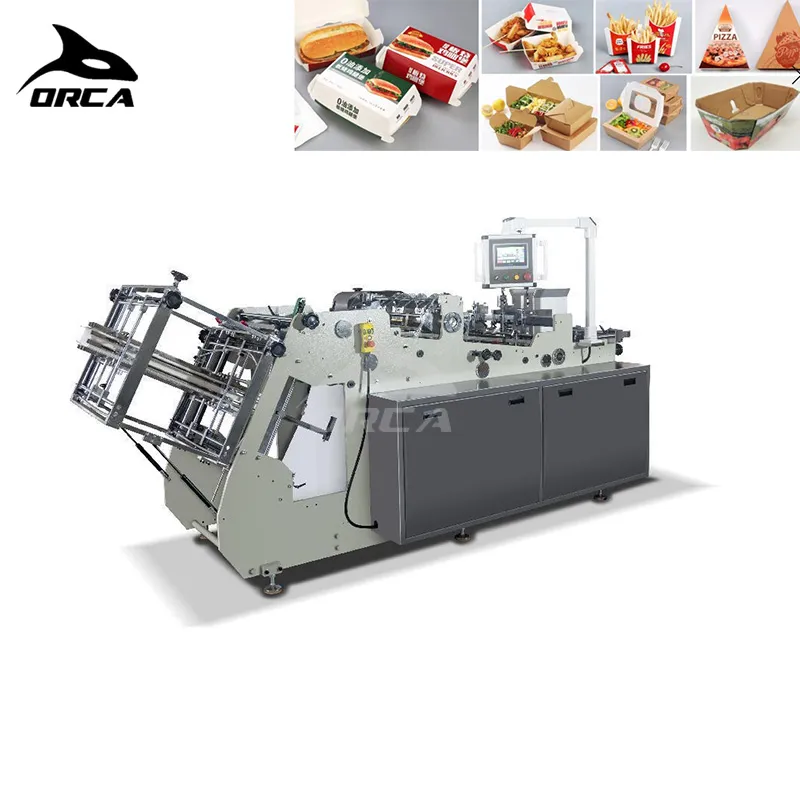

Automatic Hamburger Paper Lunch Forming Machine

The ZF-800/1200 is an ideal choice for producing hamburger boxes, chip boxes, and takeaway food containers. It is equipped with a microcomputer control system, PLC, AC frequency converter, vacuum suction paper feeding, automatic gluing, paper tape counting, and chain drive.

All key components and electrical control systems use imported brands to ensure stable performance, precise positioning, smooth operation, and reliable safety.

Machine Technical Parameter
Model ZF800 ZF1200
Production Speed 60-160pcs/min 80-300pcs/min
Box Standard Size 50*50 - 320*320mm 50*50 - 400*400mm
Paper Box Size L: 100-450mm, W: 100-550mm, H: 15-200mm (Angle: 10-40°) L: 100-450mm, W: 100-400mm, H: 15-200mm (Angle: 10-40°)
Standard Machine Blank Paper Size Max 320*320mm (Customizable) Max 400*400mm (Customizable)
Paper Weight/Thickness 200-600 g/m², card paper, PE coated paper, kraft paper, corrugated paper
Main Machine Overview

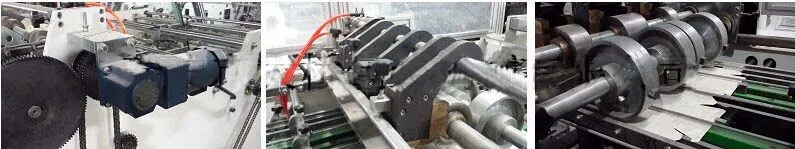

Machine View 1

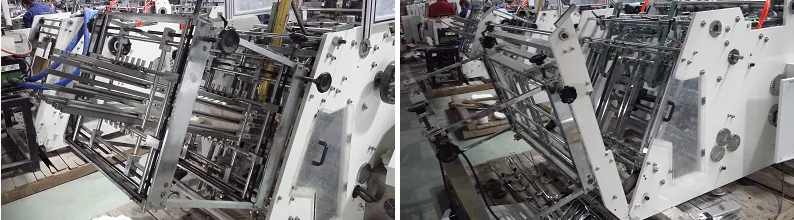

Machine View 2

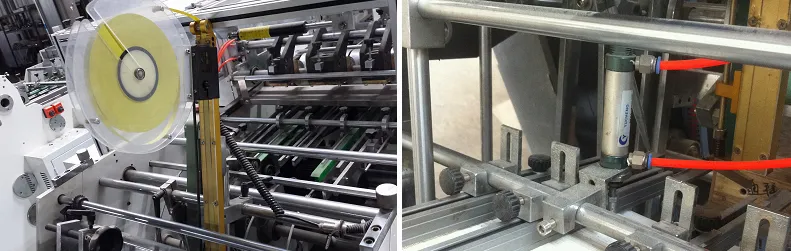

Machine View 3
Machine Workflow

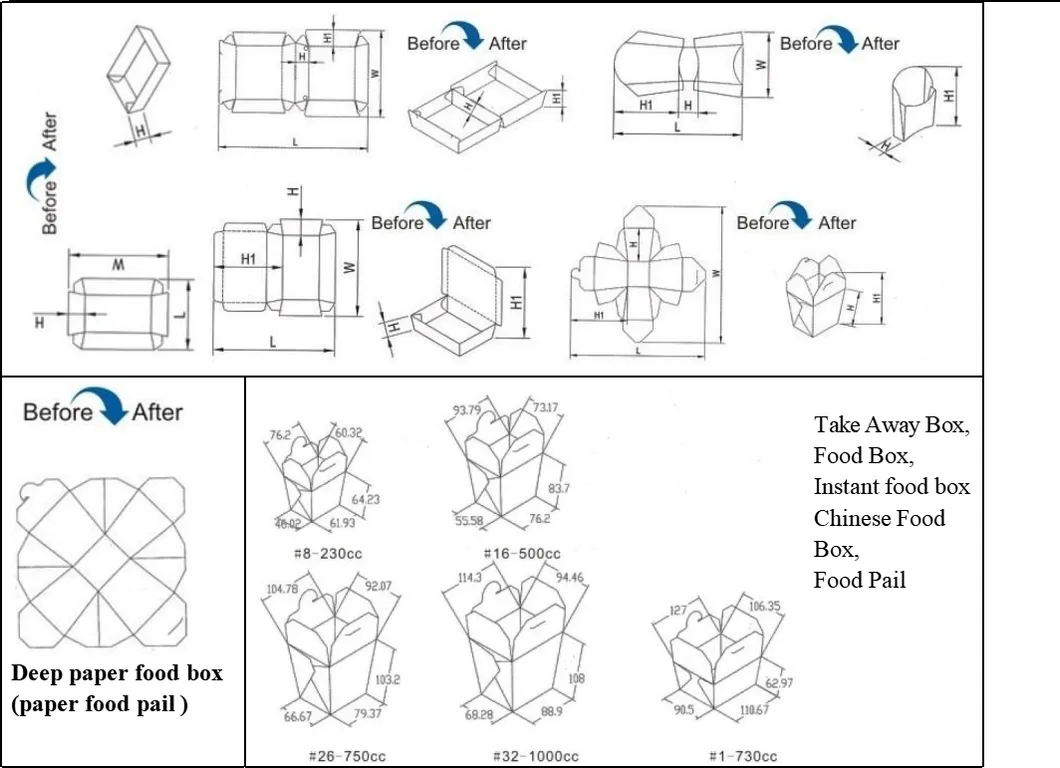

Workflow Diagram 1

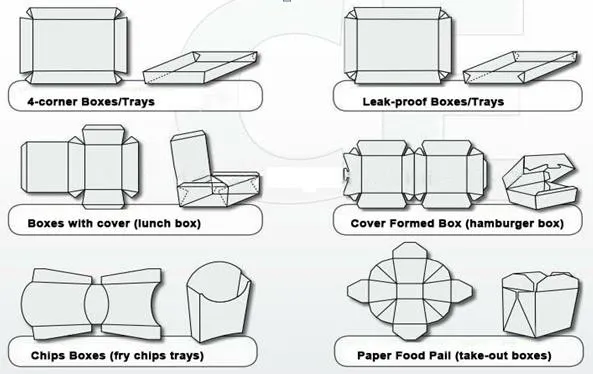

Workflow Detail 1
Workflow Detail 2

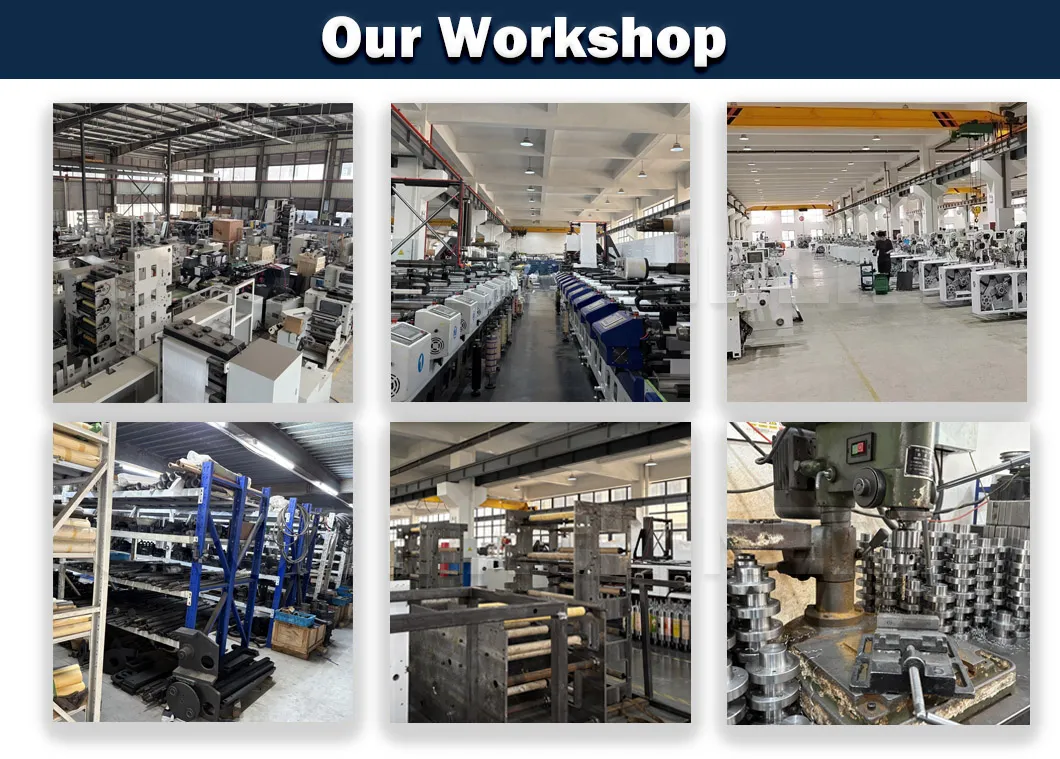

Workflow Detail 3
Workflow Detail 4
Workflow Detail 5
Frequently Asked Questions
What is the typical delivery time for the machines?
Typically, production is completed within 30-45 days after receiving the 30% advance payment, depending on stock availability and production schedules.
What are the accepted payment terms?
We accept T/T with a 30% deposit in advance and the 70% balance before shipment. Cash payments are also accepted.
How long does the installation and training process take?
Installation and operator training are usually completed within one week.
What is the warranty period for these machines?
All machines come with a one-year warranty, which begins upon the completion of the installation.
What happens if parts break down during the warranty period?
During the warranty period, we provide free replacement parts delivered via express service.
What support is provided after the warranty period ends?
We continue to provide technical support. If on-site service is required after the warranty, a technician fee of $150/day plus travel expenses applies.
