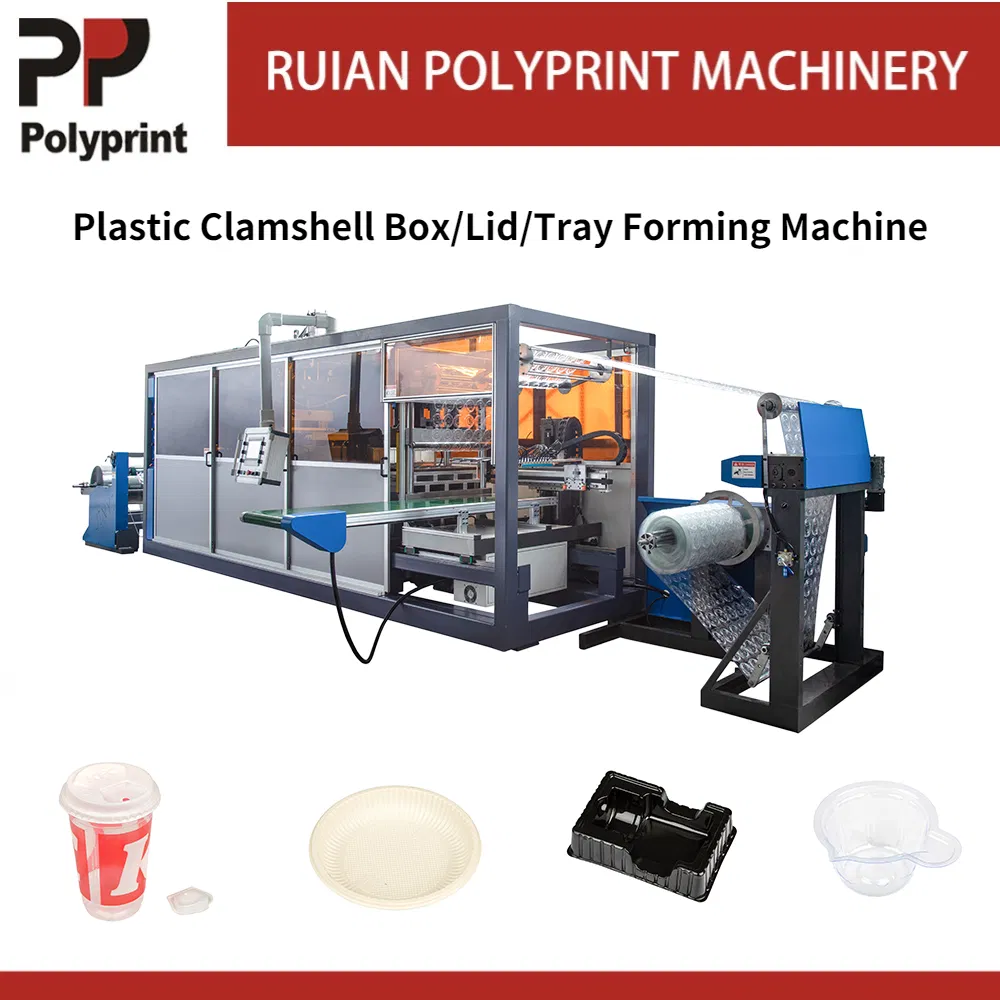

1. PPBG-750 automatic positive and negative pressure molding machine is an advanced, fully functional automatic model developed independently by combining domestic and foreign plastic machinery industry technology. It represents a major innovation and is the ideal update for traditional plastic machines.

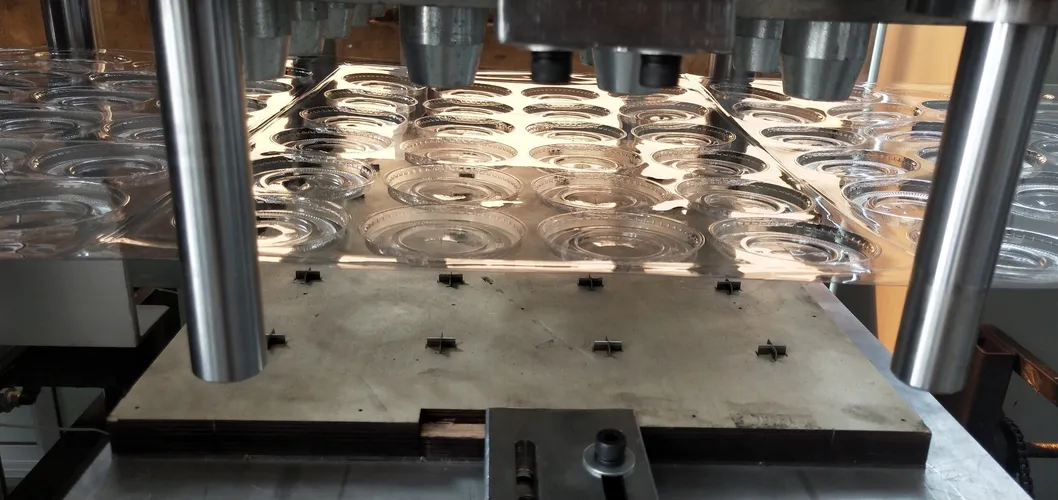

2. The machine utilizes laminating heating and moving film punching technology, ensuring no secondary pollution and a high sanitary level. It integrates positive pressure, negative pressure, automatic molding, punching, cutting, and robotic stacking/counting into a single continuous production line. This eliminates the need for manual processing, reducing labor costs and quality issues while saving site space.

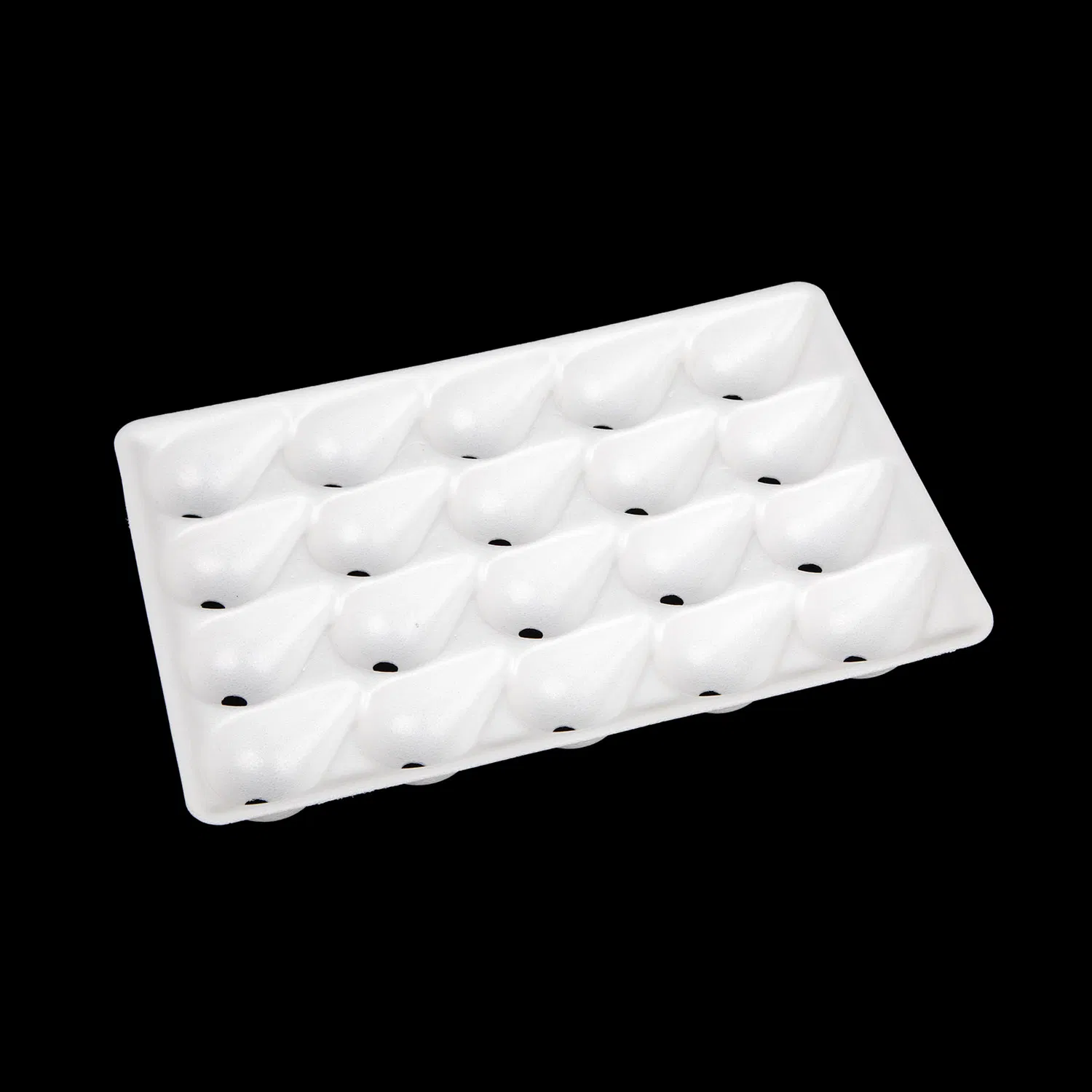

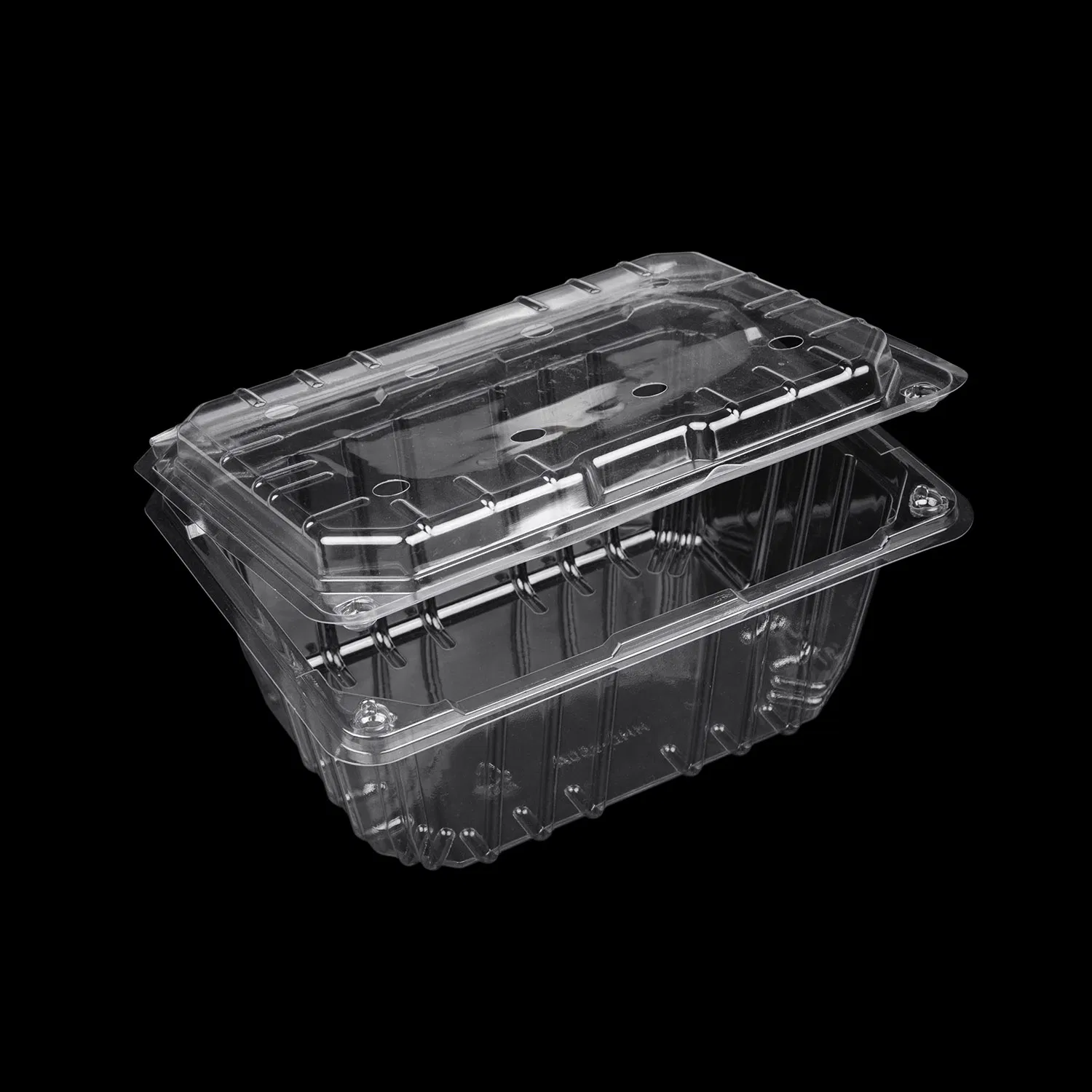

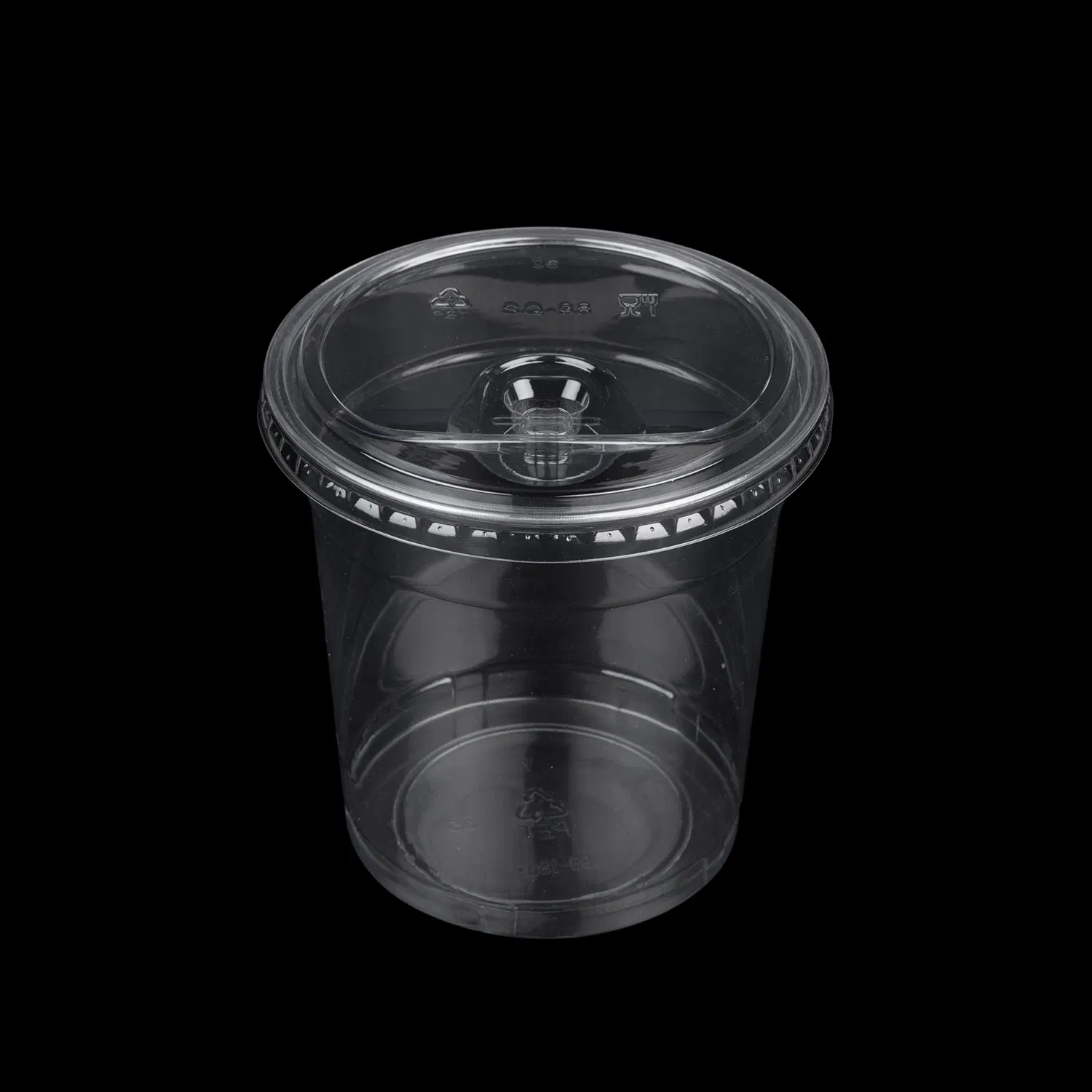

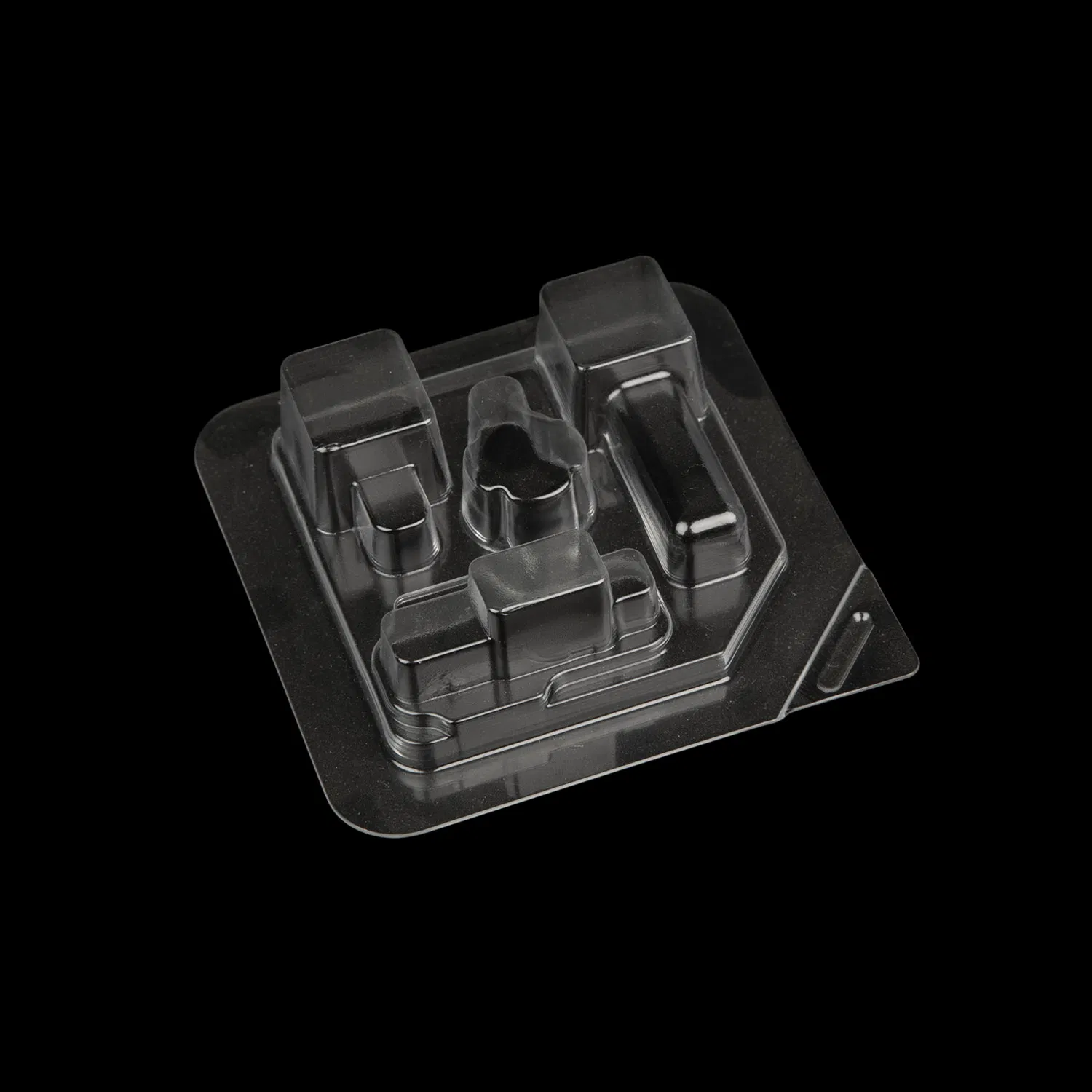

| 1 | Suitable Products | Disposable plastic lids, egg trays, clamshell boxes, plates etc. |
| 2 | Suitable Materials | PLA, PVC, PS, PET, PP sheet |
| 3 | Thickness Range | 0.1-1.5mm |
| 4 | Stroke Range | 30-440mm |
| 5 | Max. Forming Depth | 120mm |
| 6 | Max. Forming Area | 730x500mm |
| 7 | Industry Voltage | 380V/50Hz (Three Phase, Four Wires) |
| 8 | Total Power | 28kW |
| 9 | Max. Speed | 10-40 Cycles/Min (Robot max 25 cycles/Min) |
| 10 | Max. Cutting Force | 30Ton/0.8Mpa |
| 11 | Air Pressure | 0.5-0.7MPa |
| 12 | Air Consumption | ≥ 0.3 m3/h |
| 13 | Cooling Water | Normal Tap Water Recycle Cooling |
| 14 | Noise | <75Db |
| 15 | Machine Dimension | 7300×1500×1820mm |
| 16 | Machine Weight | 4300kg |
