Fully Automatic Waste Plastic Recycling Line for PP PE Pipe Pellet

Customization:	Available
Warranty:	1 Year
Material Processed:	PP PE PPR PVC ABS

Send Inquiry

Product Description

Basic Specifications

Plastic Type

PP PE PPR PVC ABS

Screw

Single/Double

Automation

Fully Automated

Computerized

Yes

Certification

GMP, ISO9001:2008, CE

Power Range

10-295kw

Weight

5-20t

Voltage

380V / 220V

Production Capacity

30 Sets Per Month

HS Code

84778039

Product Description

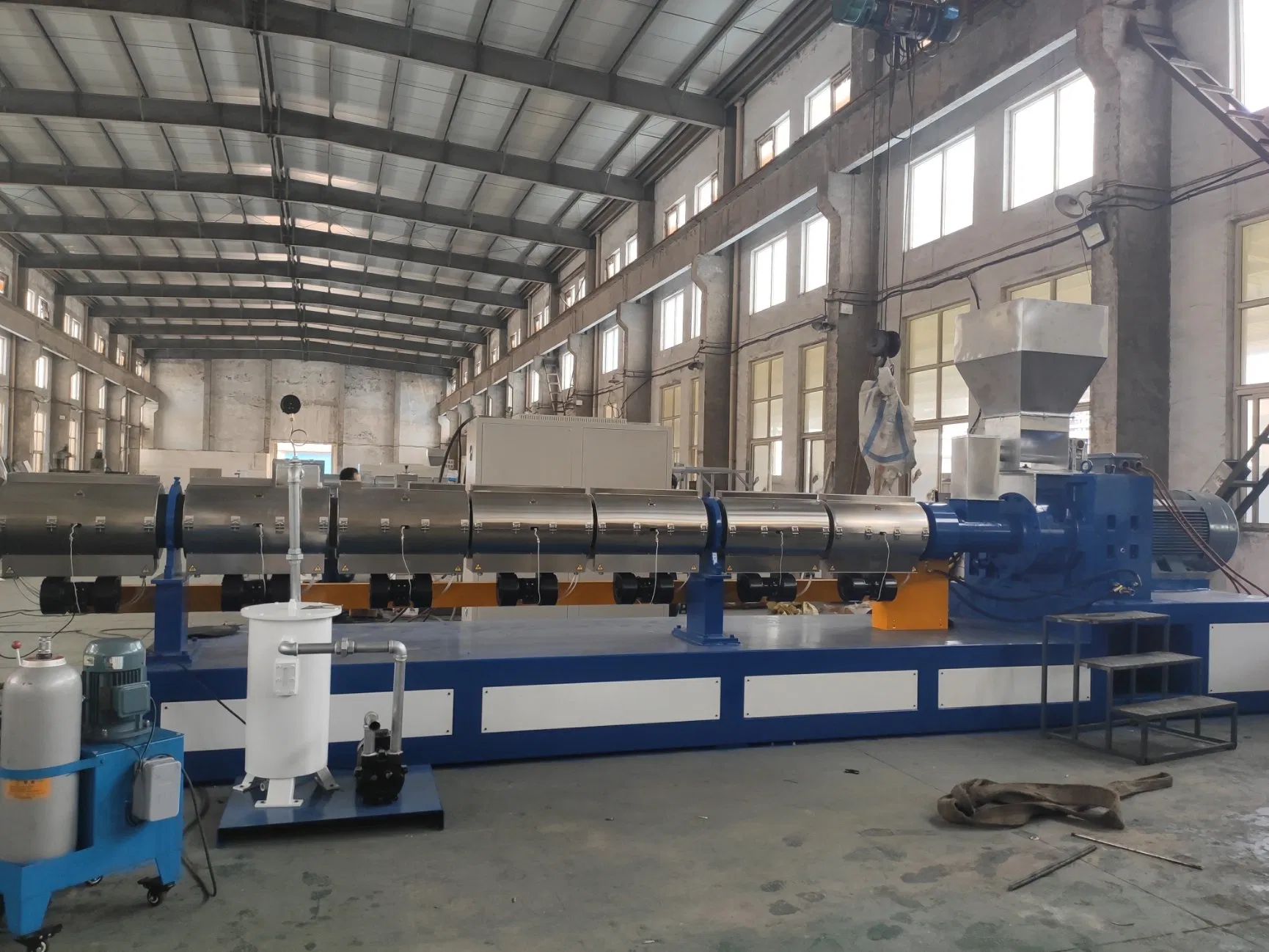

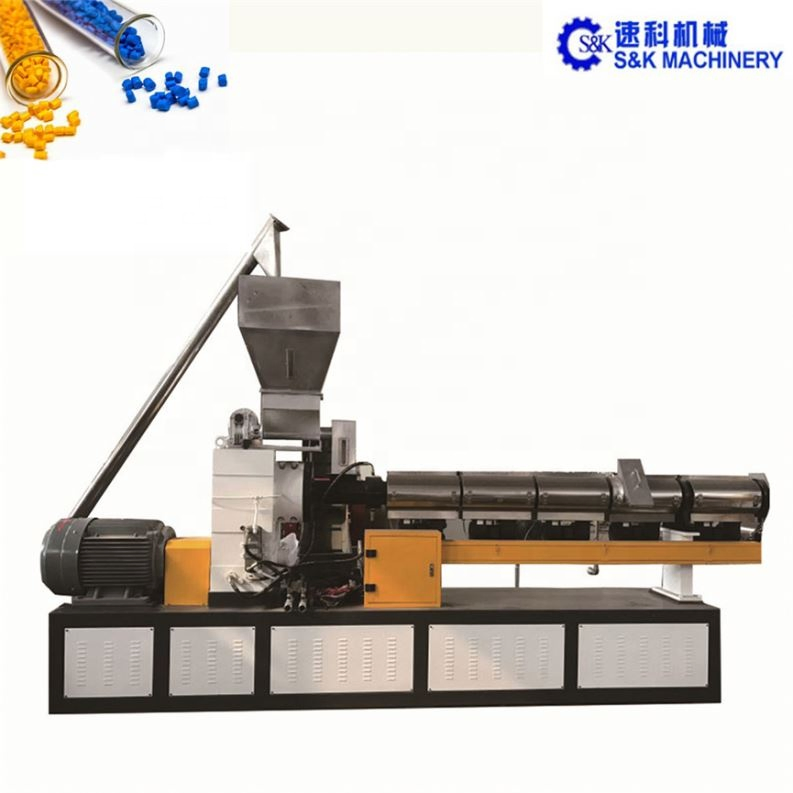

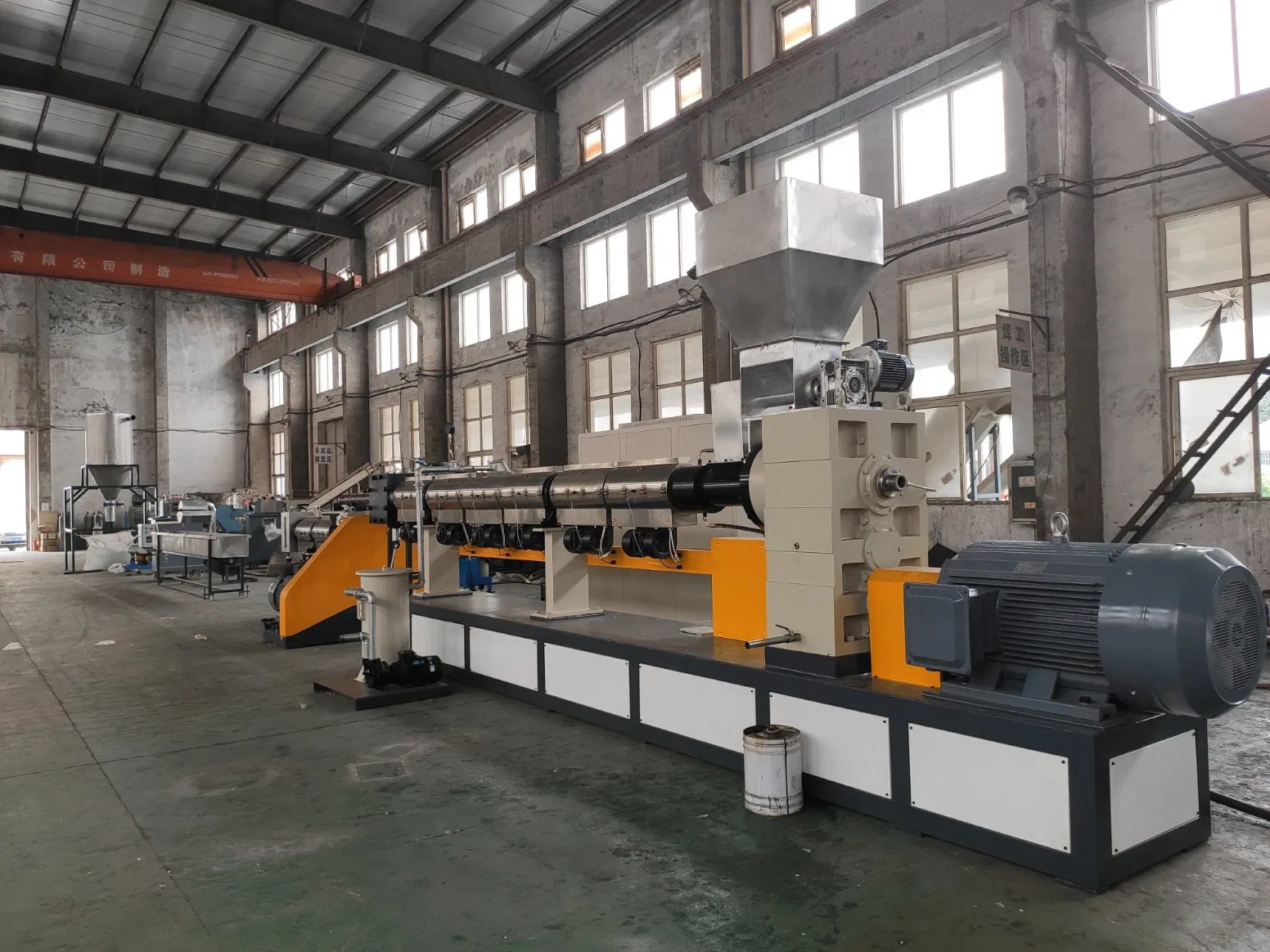

PP HDPE LDPE Hard Plastic Material Single/Double Stage Pelletizing Line
Water-ring / Water-strand Pelletizer Extruder Granulator Making Machine Line

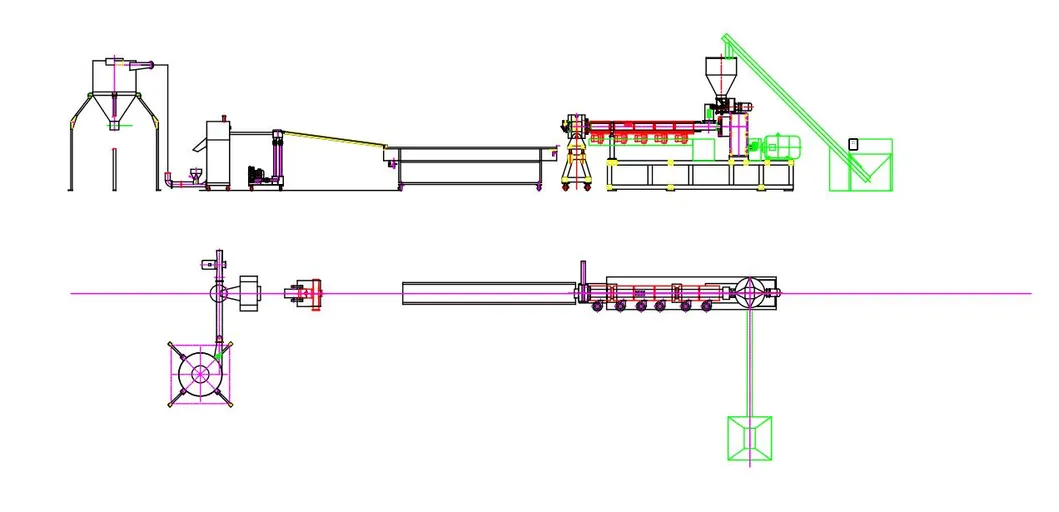

Process Flow

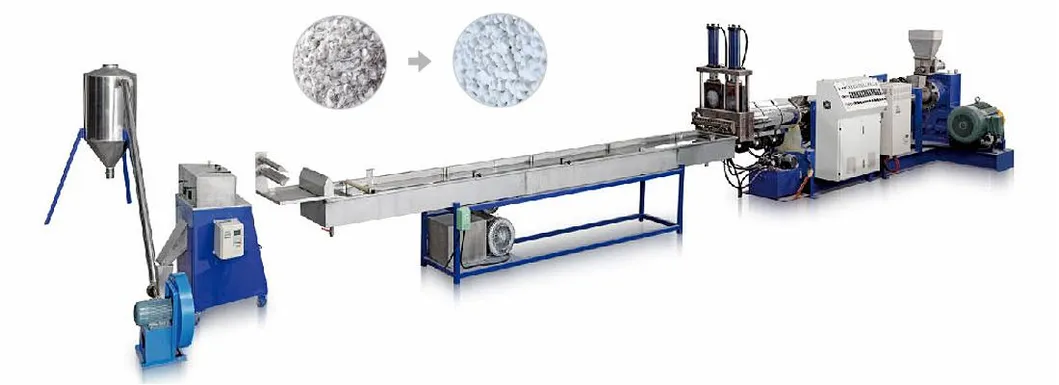

Screw Loader → Single feeding screw → SJ 90/33 Single Screw Extruder → Hydraulic Screen Changer → Vacuum System → Cooling tank → Strong wind blowing machine → Cutting machine → Air Conveyer → Silo

Key Features

✅ Efficient Cleaning: Easily wash and recycle waste PET bottle flakes, including PE/PP labels, PVC labels, HDPE cups, and more.
✅ Integrated Drying: Includes a crushing and washing system that ensures flakes are dry and ready for collection.
✅ Customizable Design: The line can be configured based on material contamination levels to ensure final product quality.
✅ High Versatility: Direct coordination with granulating systems to turn waste into high-quality PET granules.
✅ Capacity Range: Available in capacities ranging from 100kg/h to 2500kg/h.

Main Technical Parameters

No.	Model	Screw Diameter (mm)	Compactor Power (kw)	First Extruder (KW)	Second Extruder (kw)	Output (kg/h)
1	SKML-85	85	37	55	18.5	180-250
2	SKML-100	100	55	90	30	280-350
3	SKML-130	130	75	132	45	450-500
4	SKML-160	160	90	180	55	650-700
5	SKML-180	180	110	250	90	900-1000

Machine Parts & Components

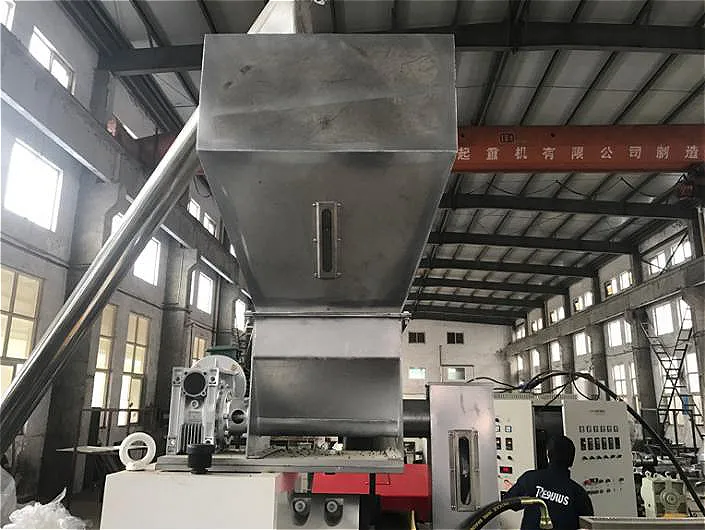

Single Feeding Screw

1. Pushes material into 90mm screw
2. Motor power: 1.5KW
3. Speed control: Inverter

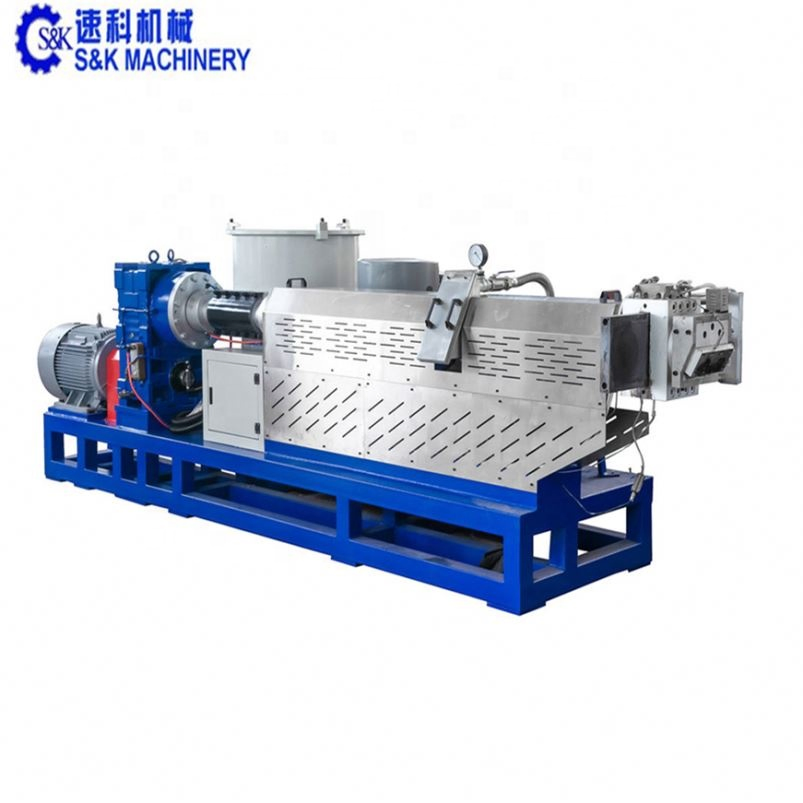

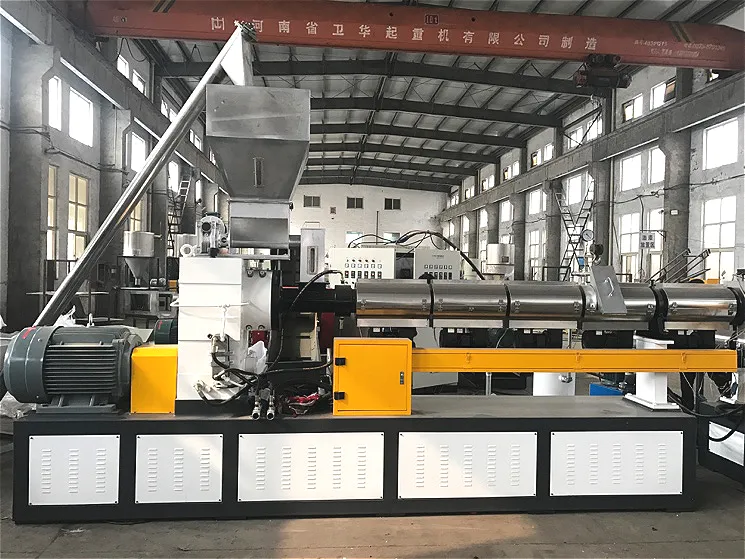

Single Screw Extruder

1. Material: 38CrMoA1A
2. Rotate Speed: 10-150 rpm
3. Heating: Electric heater

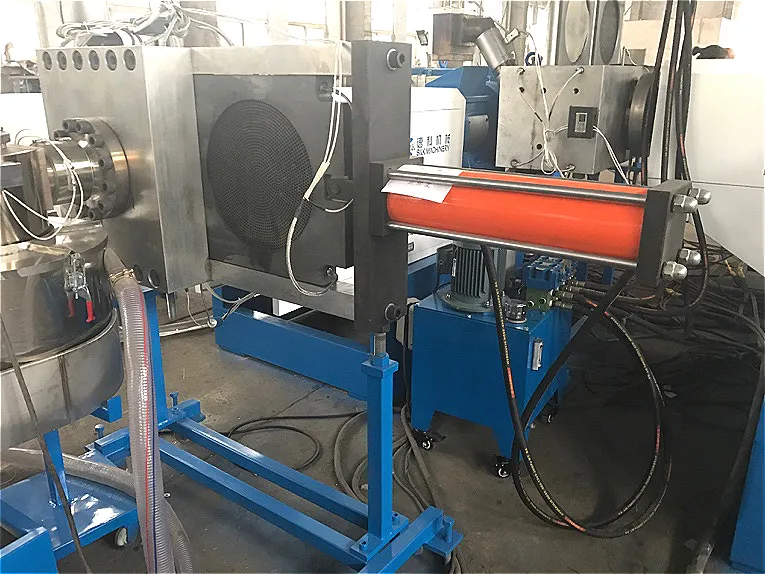

Hydraulic Screen Changer

1. Screen change time: ≤2 sec
2. Motor power: 2.2KW
3. Plate diameter: 300mm

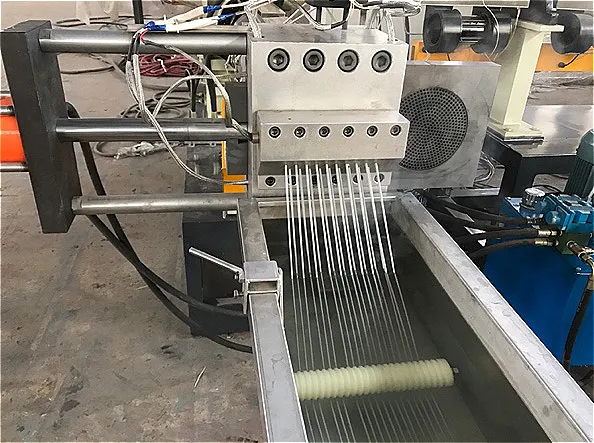

Cooling Tank

1. Length: 4000mm
2. Material: SUS304 Stainless Steel
3. Thickness: 2.0mm

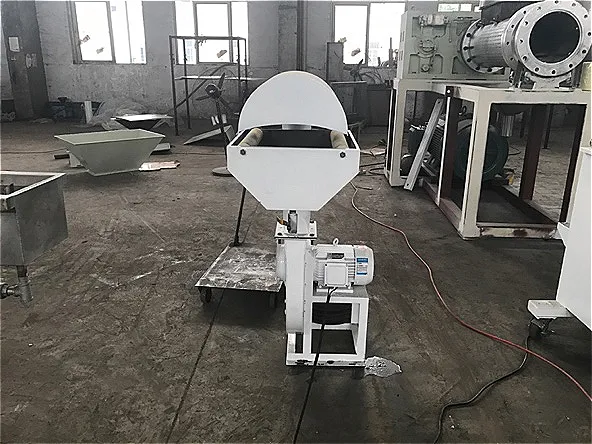

Wind Blowing Machine

1. Power: 3KW Blower
2. Material: Stainless Steel
3. System: One suction, one blower

Cutter

1. Rotary cutter: Alloy steel
2. Diameter: 200mm
3. Blade width: 300mm

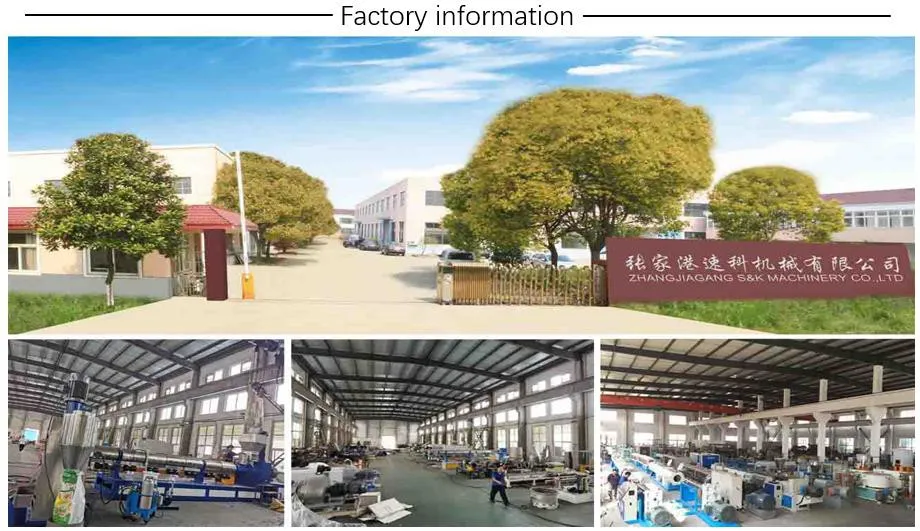

Factory Overview

Our Professional Services

📊Pre-sale Service

Investment budgeting, product profit analysis, and plant planning including equipment layout and water/air transmission design.

🛠️In-sale Service

Detailed layout design, manufacturing schedules, and technical training for safe installation and operation.

✅After-sale Service

Free maintenance training, timely technical support, and guidance for equipment upgrades or rebuilding.

Frequently Asked Questions

What types of plastic can this machine recycle?

The machine is designed to process a wide range of plastics, including PP, PE, HDPE, LDPE, PPR, PVC, and ABS.

What is the production capacity of the pelletizing line?

Depending on the model selected, the output capacity ranges from 180 kg/h to 1000 kg/h.

Does the equipment come with any certifications?

Yes, our machines are compliant with international standards and hold GMP, ISO9001:2008, and CE certifications.

Is the machine fully automated?

Yes, the system features computerized automation for efficient processing and ease of operation.

Do you provide installation and training?

We provide comprehensive training for your technicians. On-site installation and test running guidance by our engineers are also available upon request.

What is the warranty period for the machinery?

We typically provide a one-year quality guarantee for the key components of the machines.
