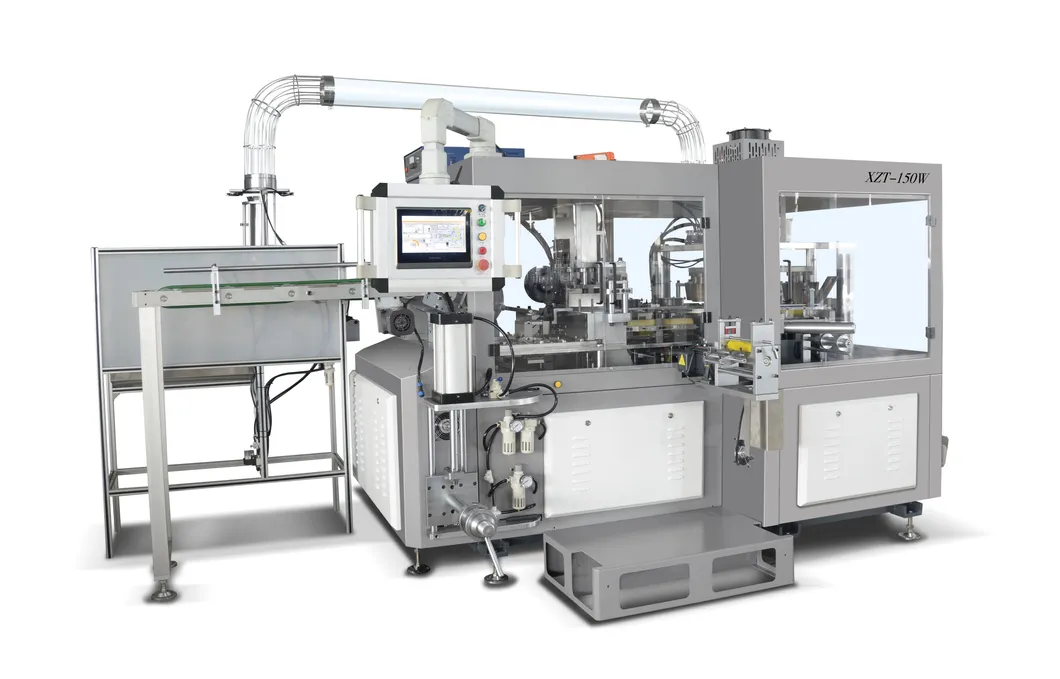

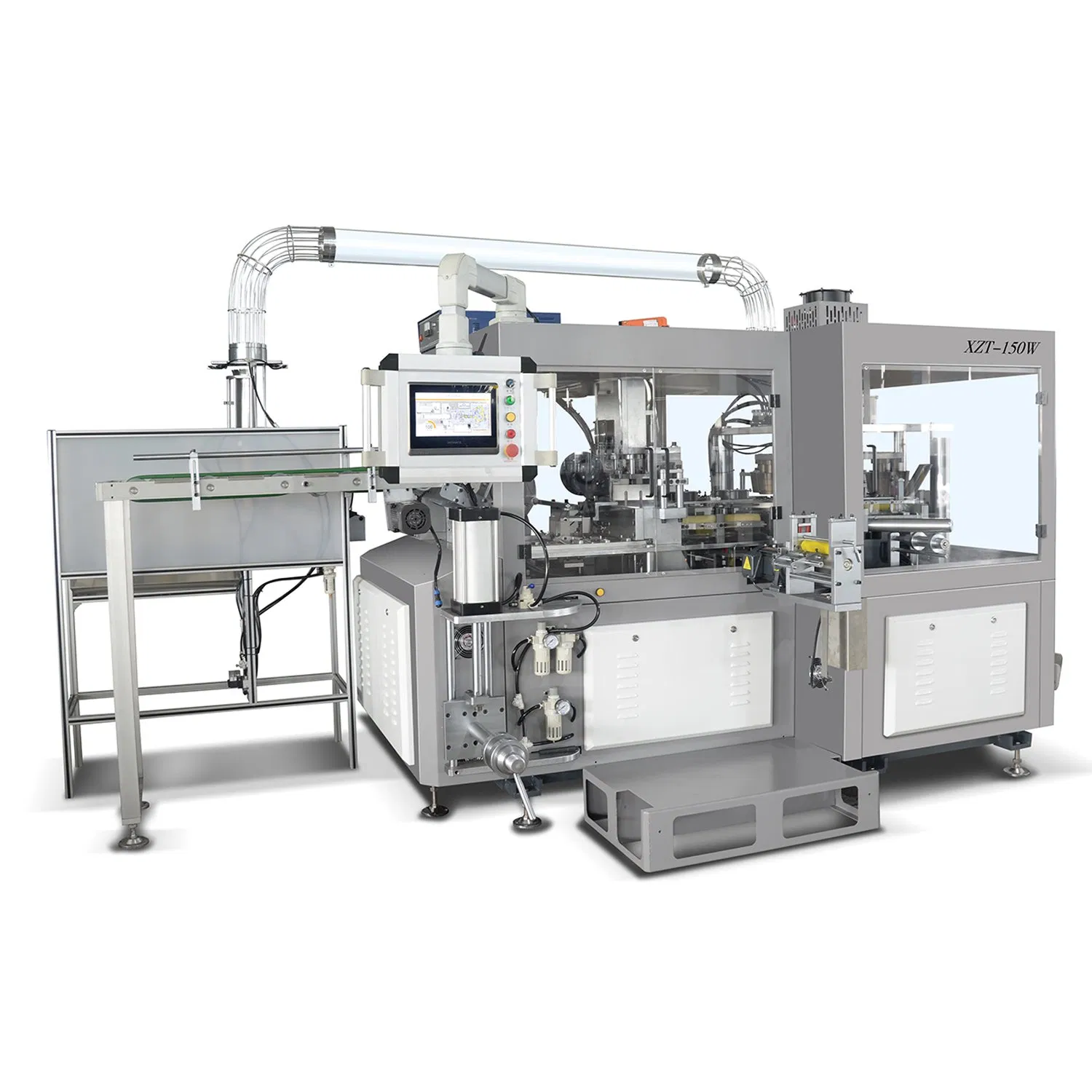

High-speed paper bowl making machine
1. XZT-150W features full servo-driven technology throughout the entire machine.
2. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion.
3. It provides flexibility, speed, affordable capital cost, and low maintenance.
| Model | XZT-150W Paper Bowl Machine |
| Bowl size | 15-57oz (Max bottom 130mm, top 150mm, height 135mm) |
| Material | 170-380GSM single or double PE/ PLA coated paper |
| Speed | 120-150pcs/min |
| Power supply | 3 phase 380V 50Hz, 44KW (Consumption 20KW) |
| Air supply | 0.6Mpa (Consumption 0.5Nm3/min) |
| Dimension(mm) | 2760L * 2160W * 1925H |
| Weight | 4500kgs |

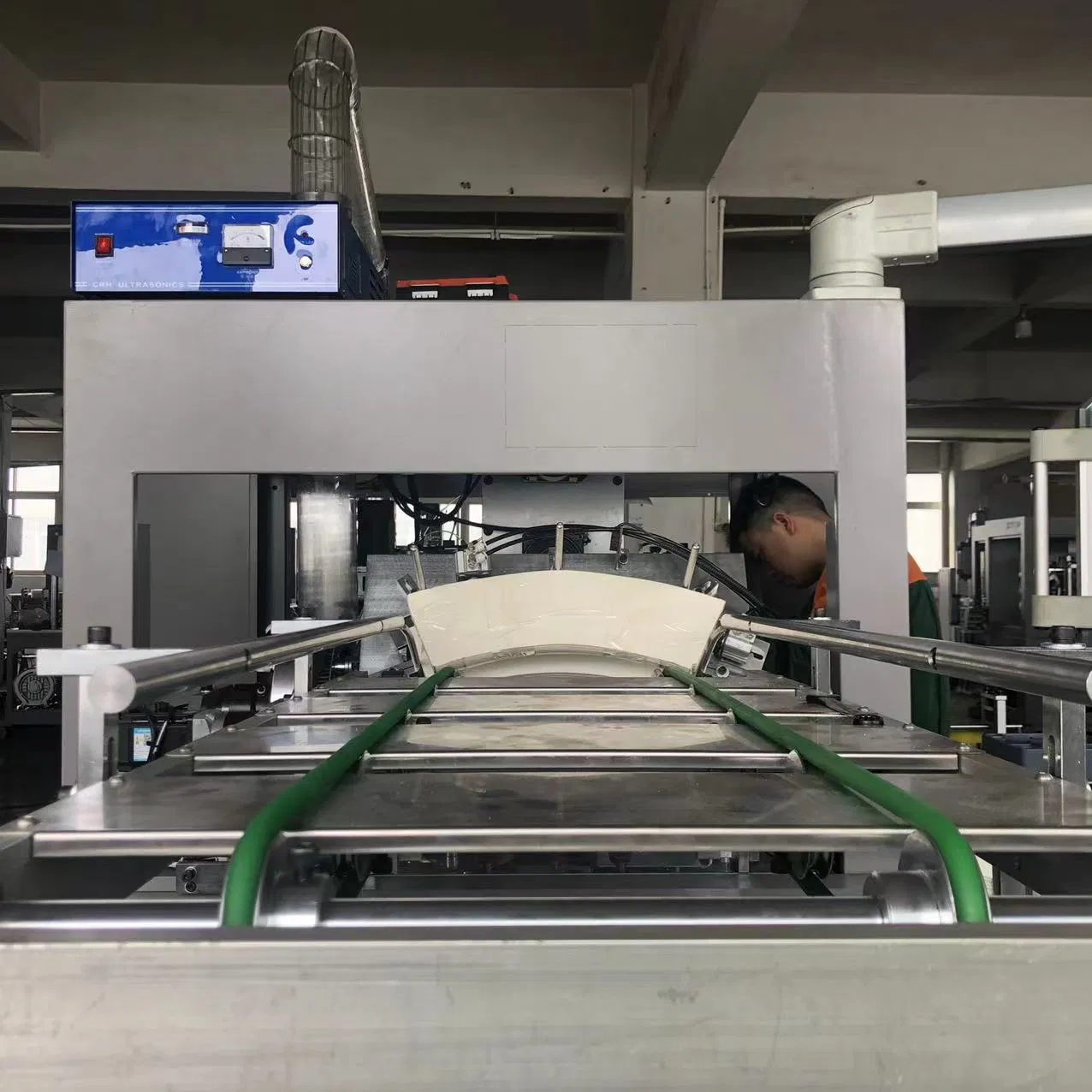

Loading table with conveyor for 3000-4000 cup fans at a time.

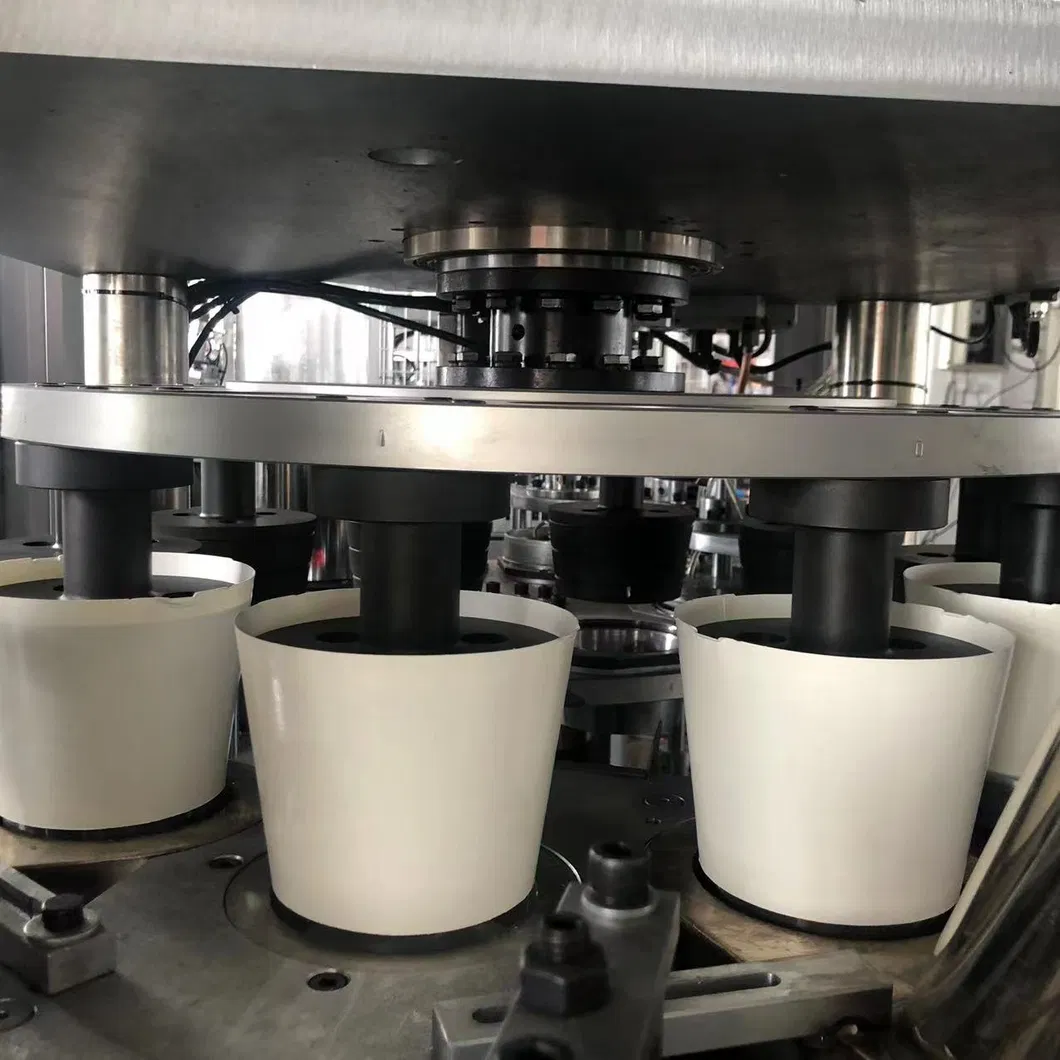

Advanced heating process for bottom forming with whole solid aluminum molds.

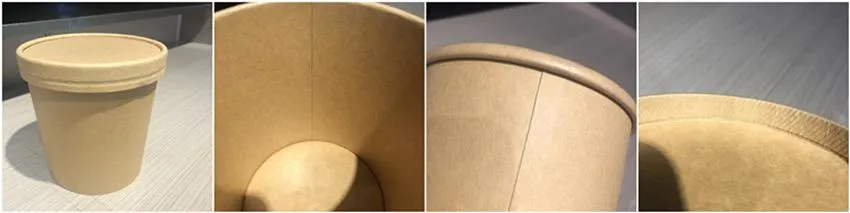

Stronger sealing and beautiful knurling detail.

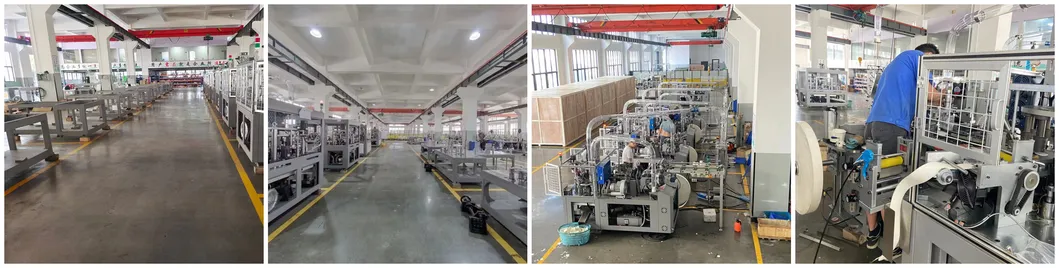

Our workshop is well-organized with technicians responsible for every assembly step.
All machines are CE certified to ensure international safety standards.
We regularly attend trade fairs to showcase our latest paper bowl technology.
