Basic Information
Automatic Grade:Automatic
Control Panel:Computer Control Panel
Size:Medium
Condition:New
Keywords:Egg Box Machine
Final Product:Egg/Cup/Bottle/Shoes/Coffee/Fruit Tray
Raw Material:Waste Paper/Pulp
Speed:1000-7000PCS/H
Production Capacity:5000 pieces/Year
Automation:Semi Automatic Egg Tray Machine
⚙️
Product Description

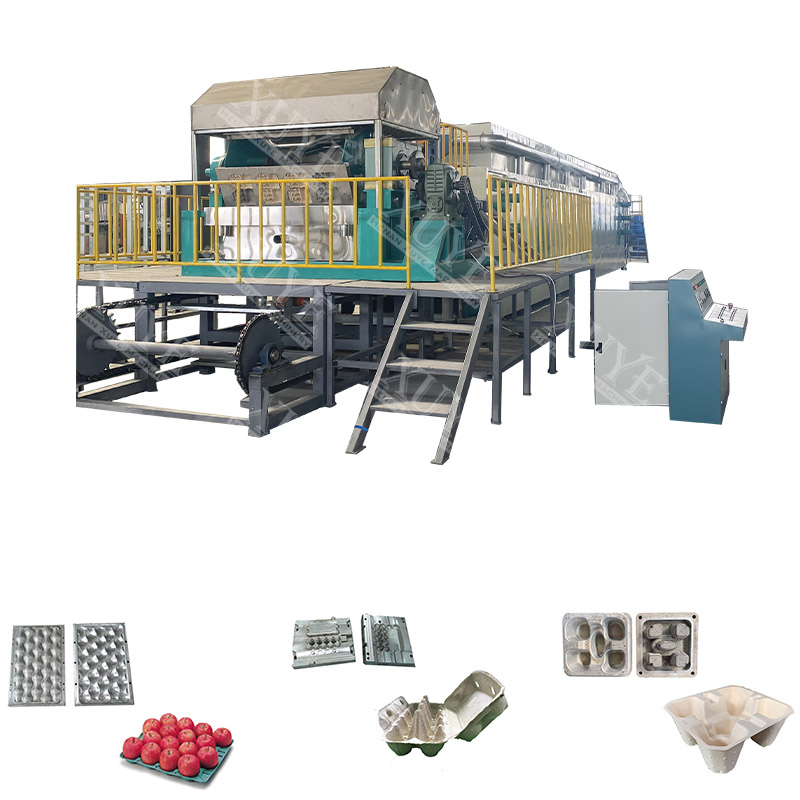

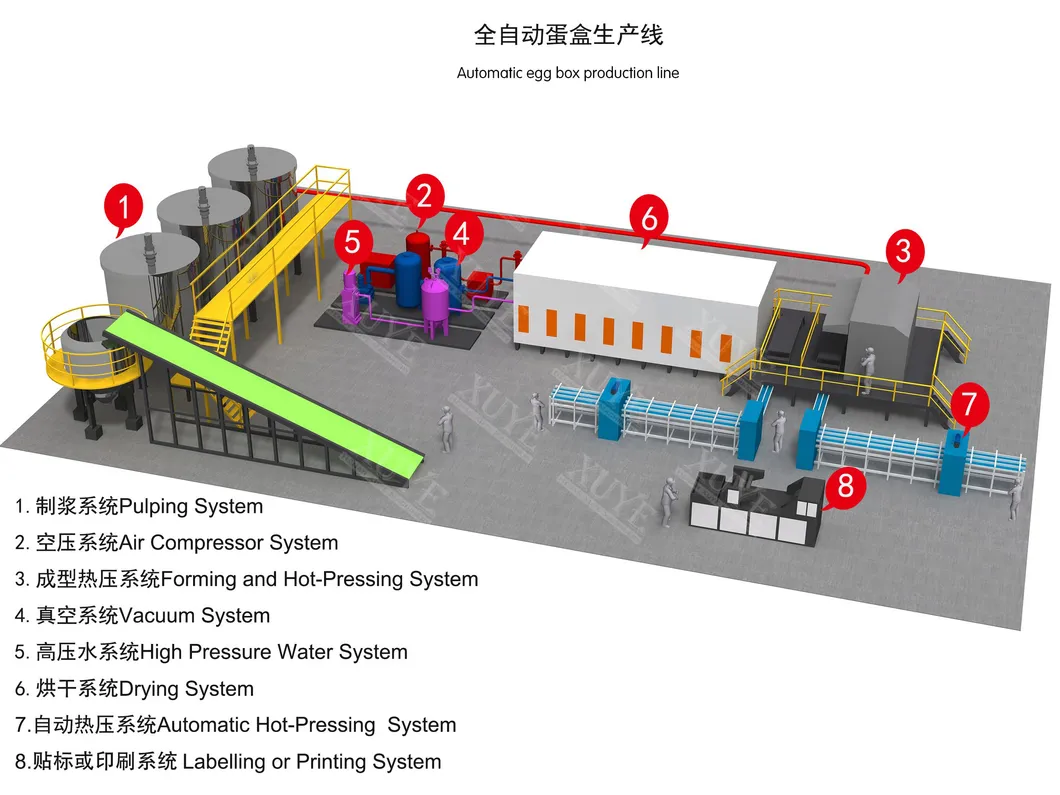

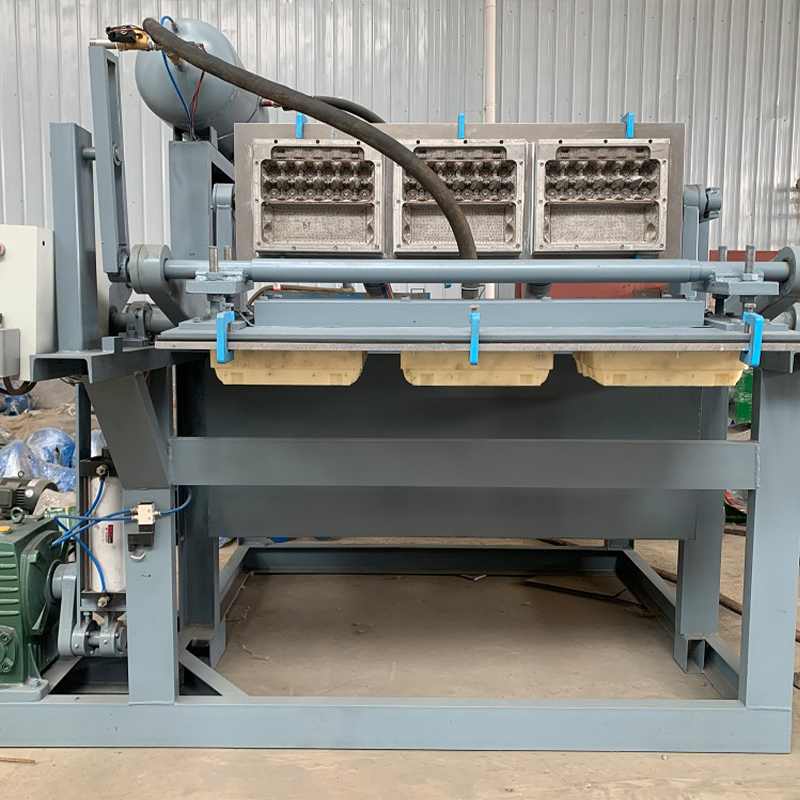

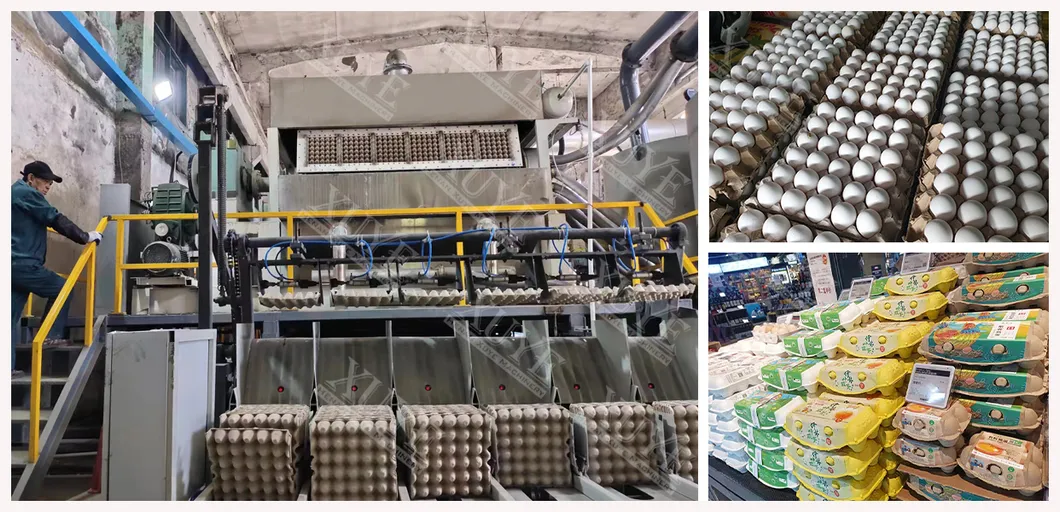

The automatic egg tray production line is composed of beating system, forming system, drying system, stacking system, vacuum system, high pressure water system and air pressure system. Specializing in the production of 10, 12, 15, 18 egg carton products. The line can produce between 800 and 6,500 egg trays per hour. It uses waste paper as raw material to make affordable and portable egg trays. We have egg tray machines in different sizes for sale and have been successfully installed in many countries.
🔍
Key Features
✔Simple type for producing smoothly and easy in installation and maintenance.
✔Adopting advanced world famous brand components in electric and operation parts.
✔Main character is power and energy saving, ensuring a high profit return.
✔High automation and intellectualization, no pollution, and water is recycled.
🛠️
Working Principle

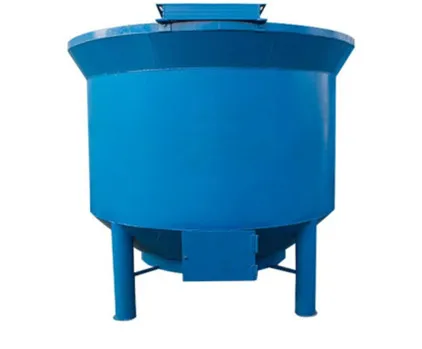

1. Pulp System: This section aims to make quality pulp from waste paper. Firstly, it mixes 1 part waste paper into 3 parts water to make paper pulp with a pulper. Then a pulp refiner makes the pulp more even.

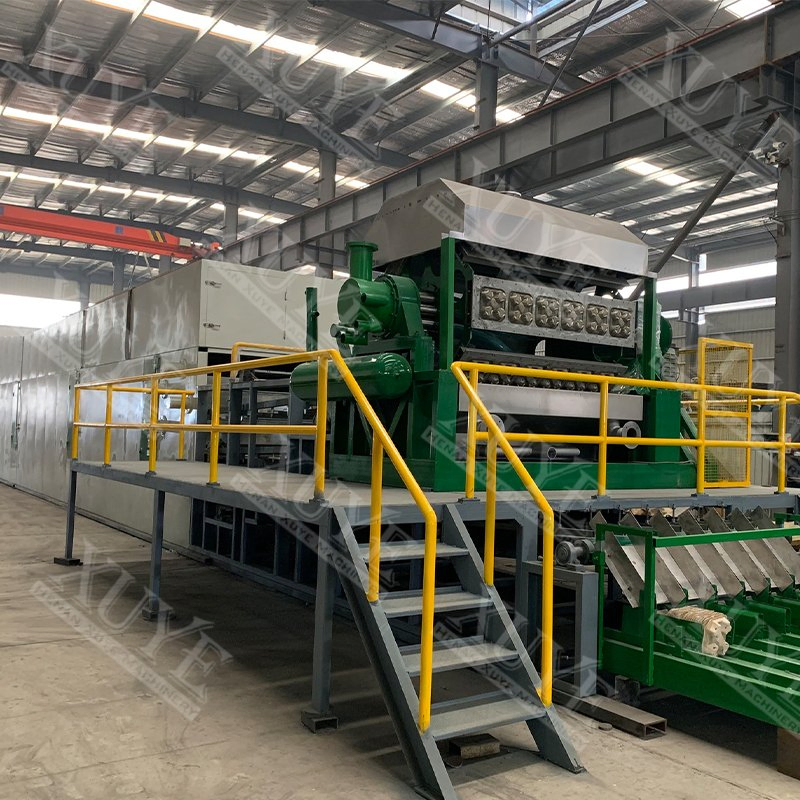

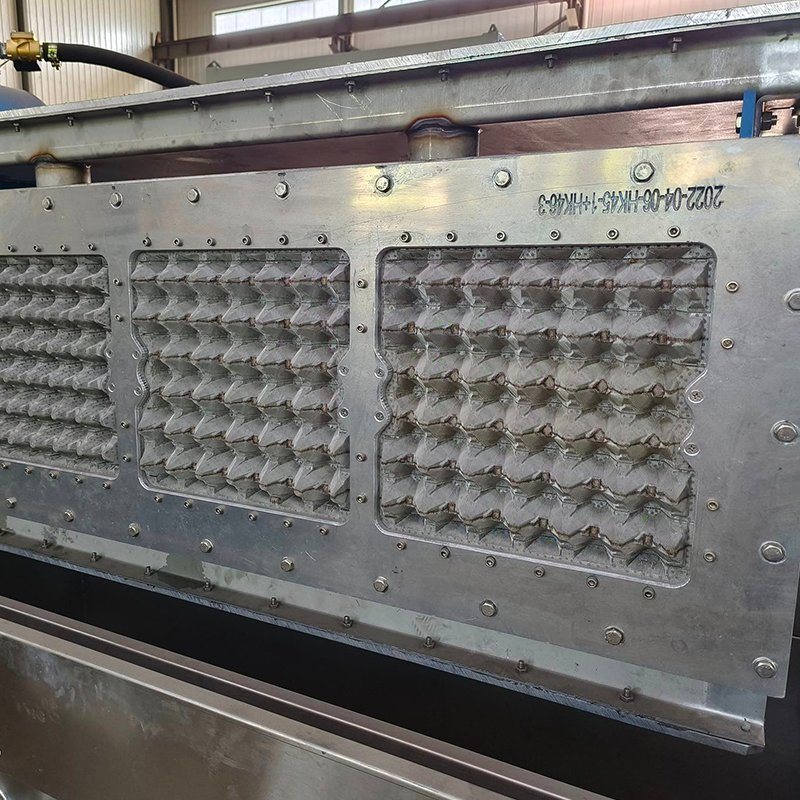

2. Pulp Molding Section: The pulp is molded into trays using a rotary pulp molding machine. When the forming molds rotate, the trays are formed and then demolded for drying.

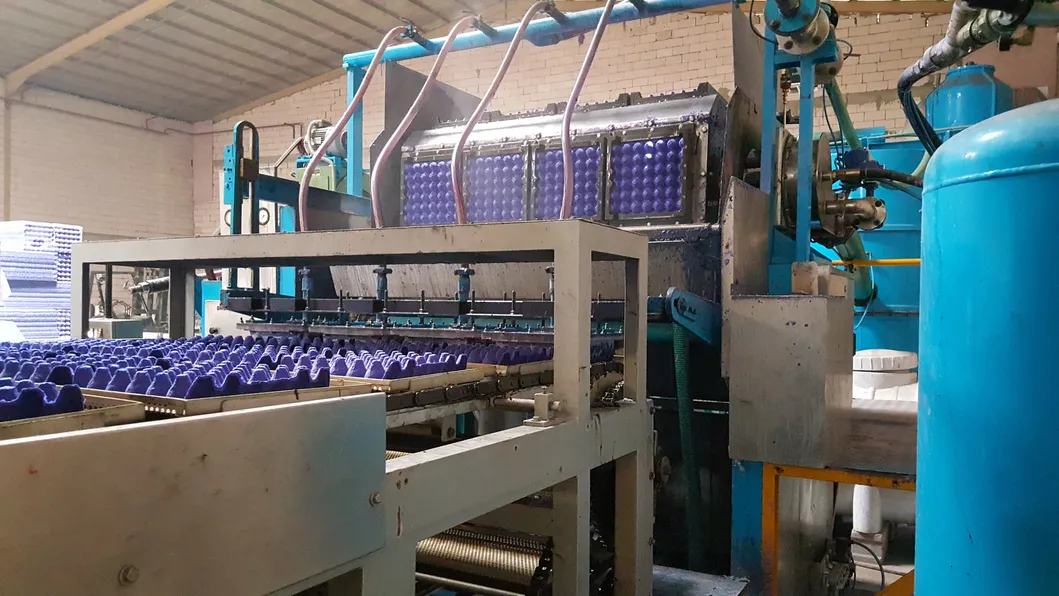

3. Forming System: The pulp pump pumps the prepared pulp into the forming machine. Under vacuum suction, the pulp is adsorbed on the surface of the mold, extracting water to form a wet egg plate.
4. Water Recycling: Water is pumped out by the vacuum pump and discharged into a waste water tank, then pumped back to the hydropulper for recycling.

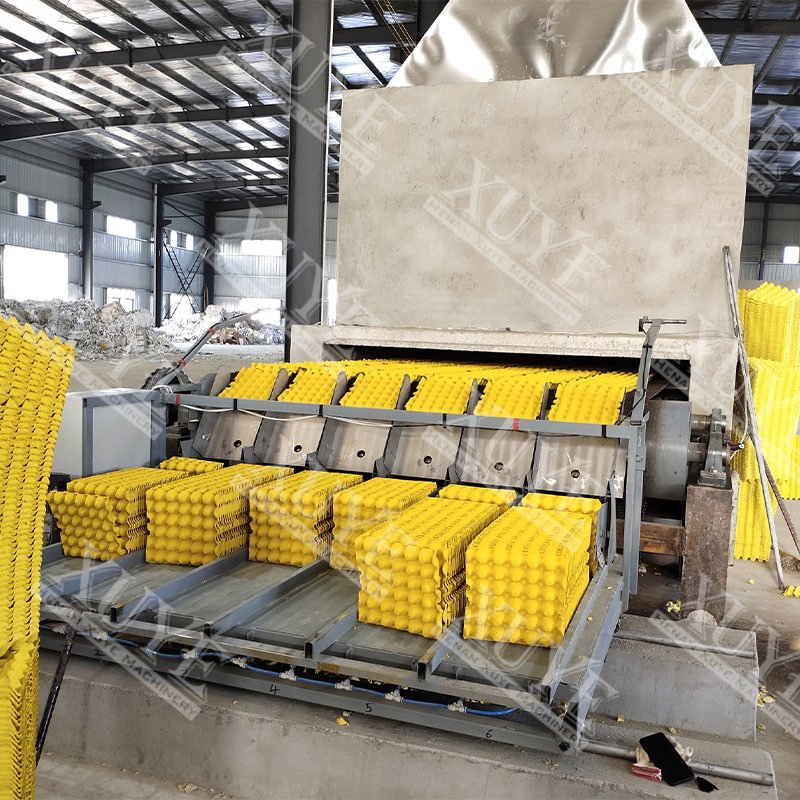

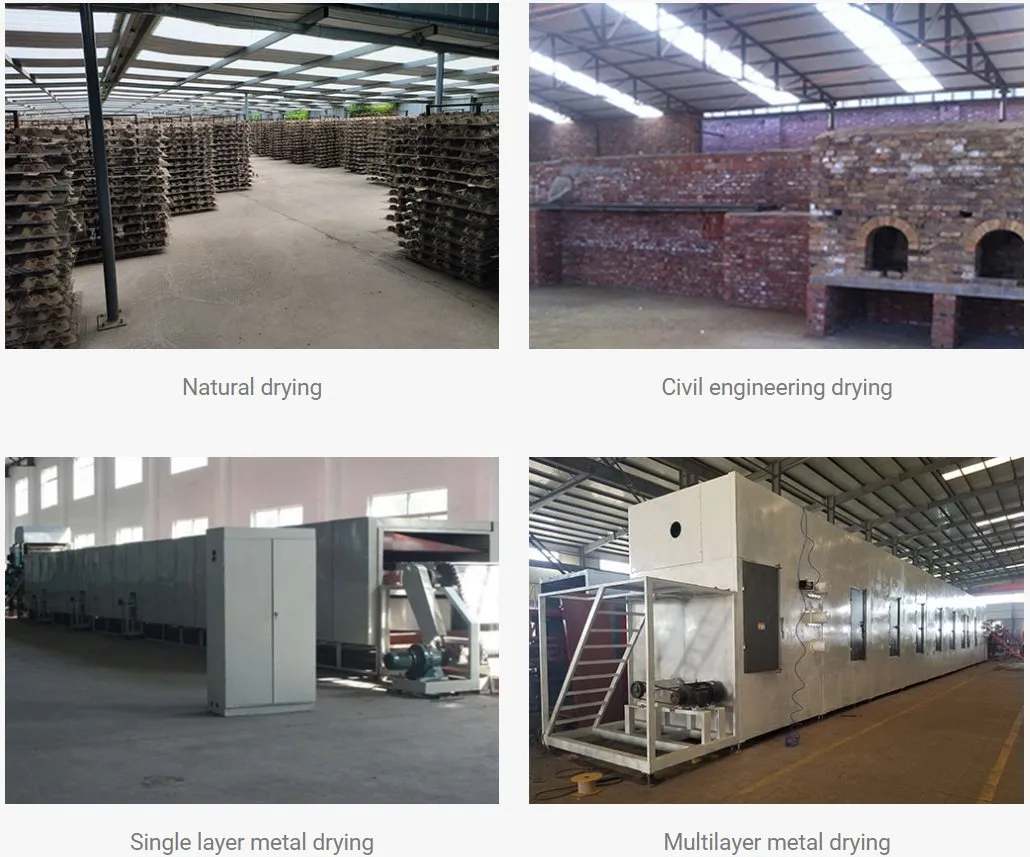

5. Drying System: This section dries the wet trays. You can choose natural drying for small-scale plants (less than 2000 pcs/h) or a brick/metal drying line which dries trays in 20 minutes.
🏢
Company Profile
Our company is a comprehensive enterprise that comprises R&D, test, manufacture, sales and service functions. We have succeeded in researching and supplying solutions with the following equipment: Drying equipment, building materials equipment, agriculture equipment and other products. With our leading-edge technologies, advanced processing equipment and our corporate spirit of "innovation, pragmatism, unity, hard work and dedication", we have the strength to meet the challenges from all aspects. We provide quality services for the processing industry and achieve a win-win situation between the company and customers.
❓
Frequently Asked Questions
Q: Are you a manufacturer or trader?
We are a manufacturer specializing in pulp moulding moulds with many years of experience.
Q: What is your production cycle?
Usually, the delivery time is about 7 - 15 days after payment confirmation, depending on the machine and customization requirements.
Q: What kinds of moulds do you produce?
We produce all kinds of pulping moulds, such as egg tray moulds, egg box moulds, fruit tray moulds, coffee cup tray moulds, and industrial package moulds.
Q: How should I choose the right model?
You can share your request for an existing model or send us your product samples (like egg trays/boxes), and we can design a custom mould for you.
Q: What is the equipment guarantee?
All equipment comes with a one-year guarantee from the delivery date. We offer free replacement parts for non-improper operation failures during this period.
Q: What is your payment term?
After confirming the PI, a 30% T/T deposit is required to start production, with the 70% balance due before shipment.
