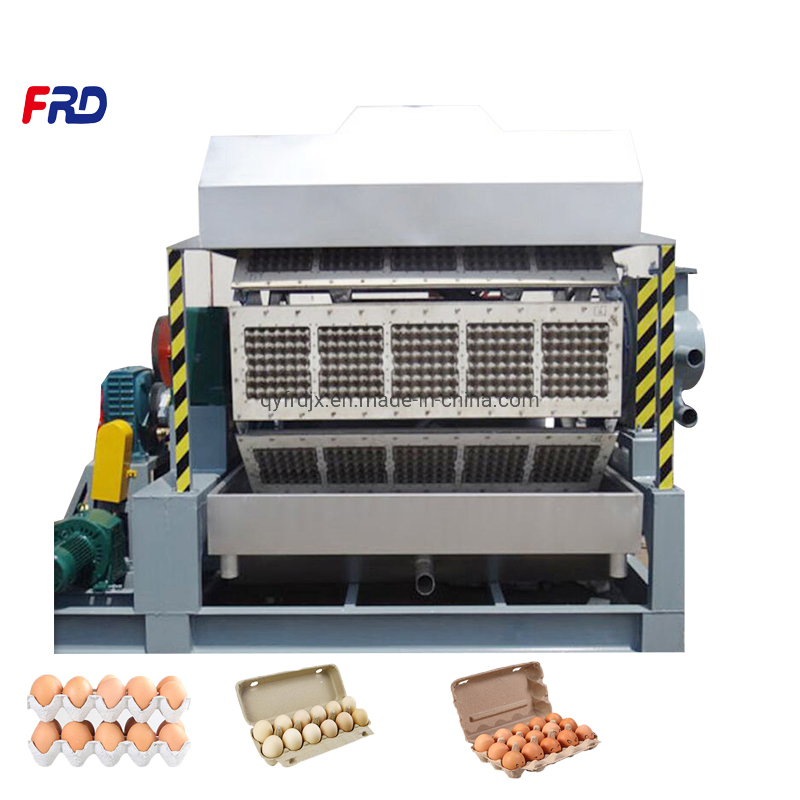

Egg Tray Machine Buying Guide:
▶Capacity options range from 1000pcs/hr to 10000pcs/hr.
▶One-year international warranty provided.
▶Custom-made services available based on samples or photos.
▶Global installation and training support available.

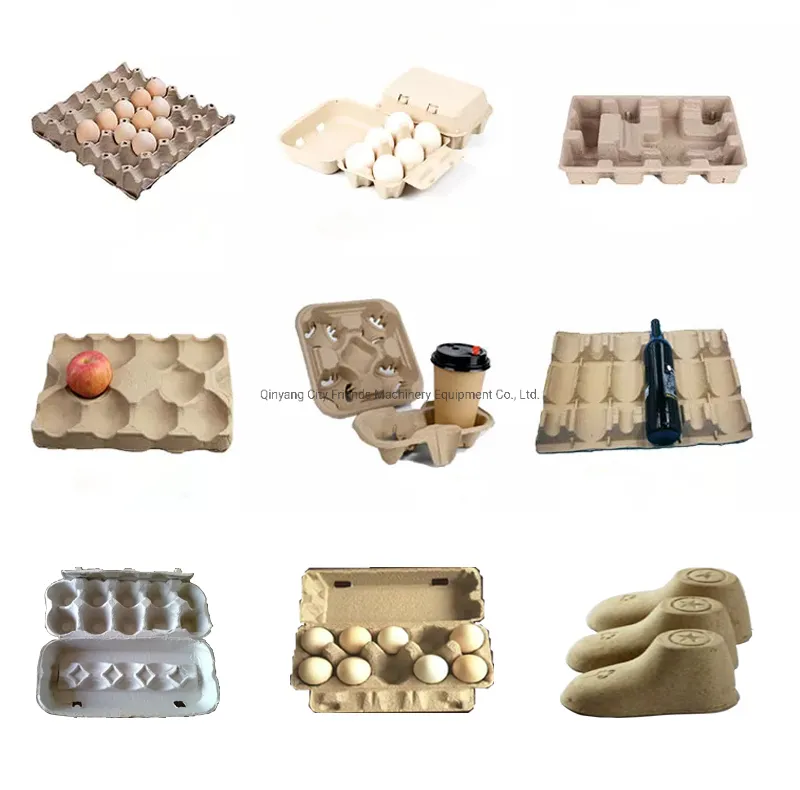

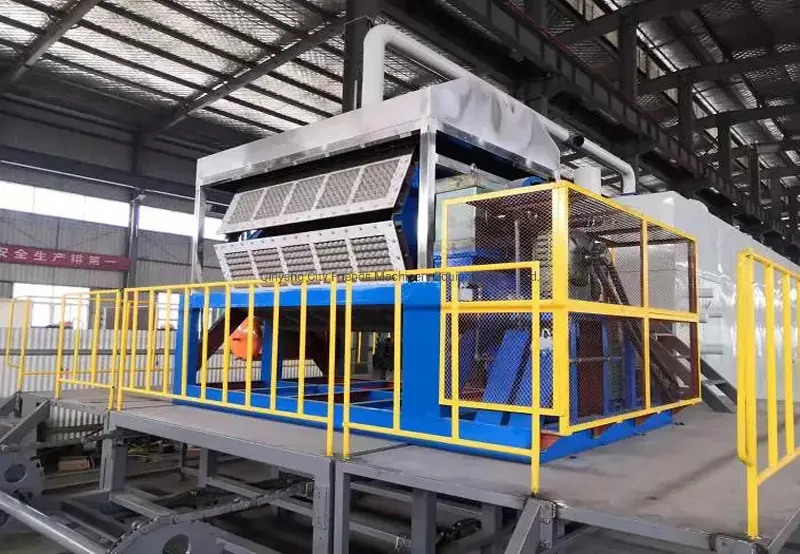

Our molding machines and dies are designed with high-technology computer-assisted engineering. Proven for high efficiency and low maintenance, the pulp molding system utilizes waste paper to produce quality items like egg trays, apple trays, and fruit packs. This stable business model offers a high return for entrepreneurs.
Primary materials include reed pulp, straw pulp, wood pulp, and various waste paper (cartons, boxes, newspaper). The system is designed for ease of collection and processing.

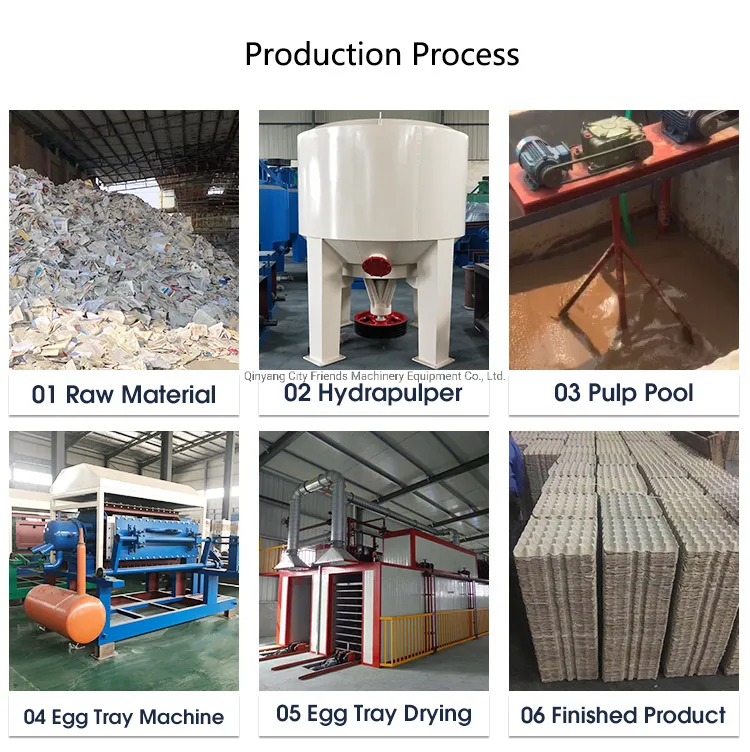

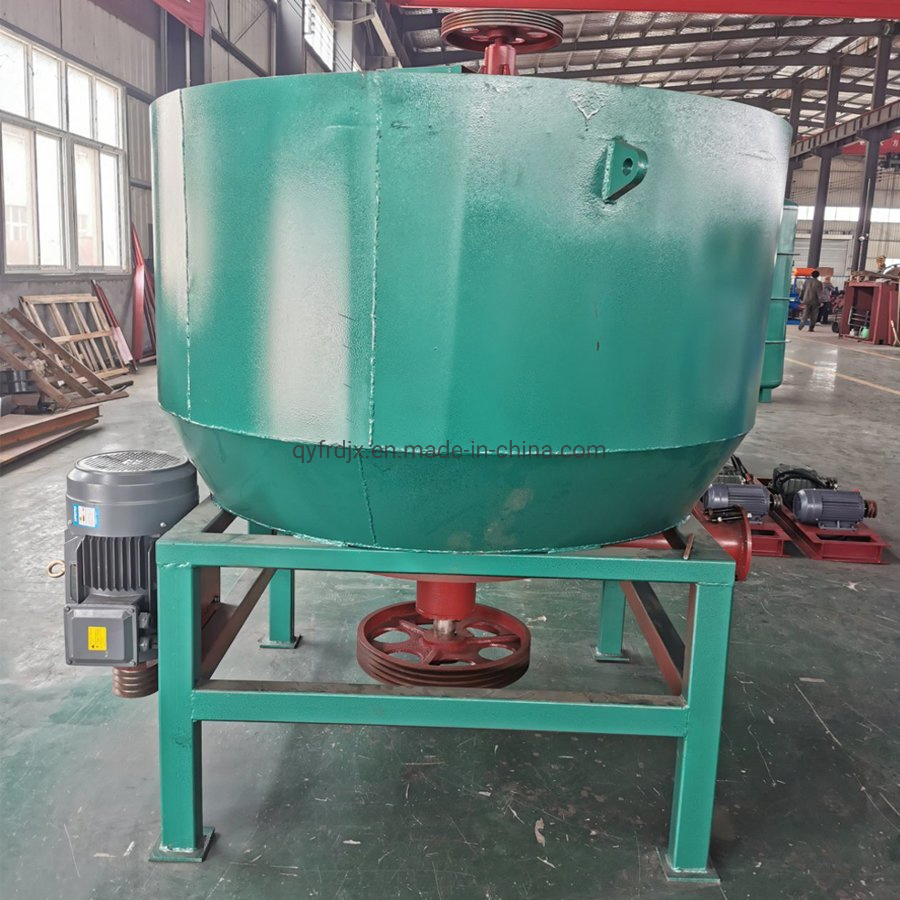

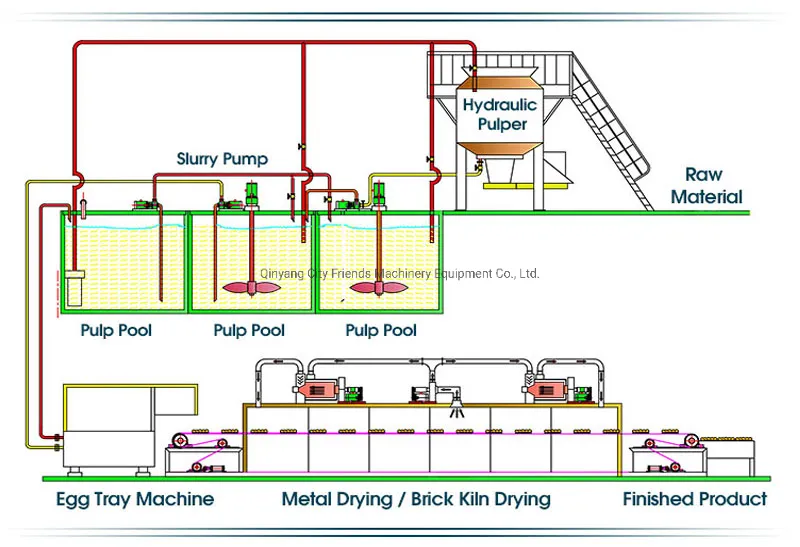

1. Pulping System: Waste paper is stirred with water in a pulper and adjusted to the correct concentration using a homogenizer and slurry pumps.

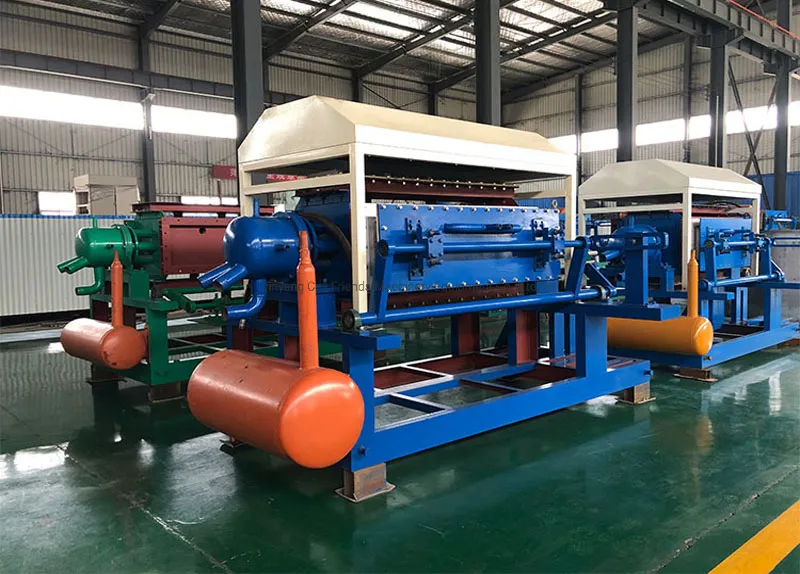

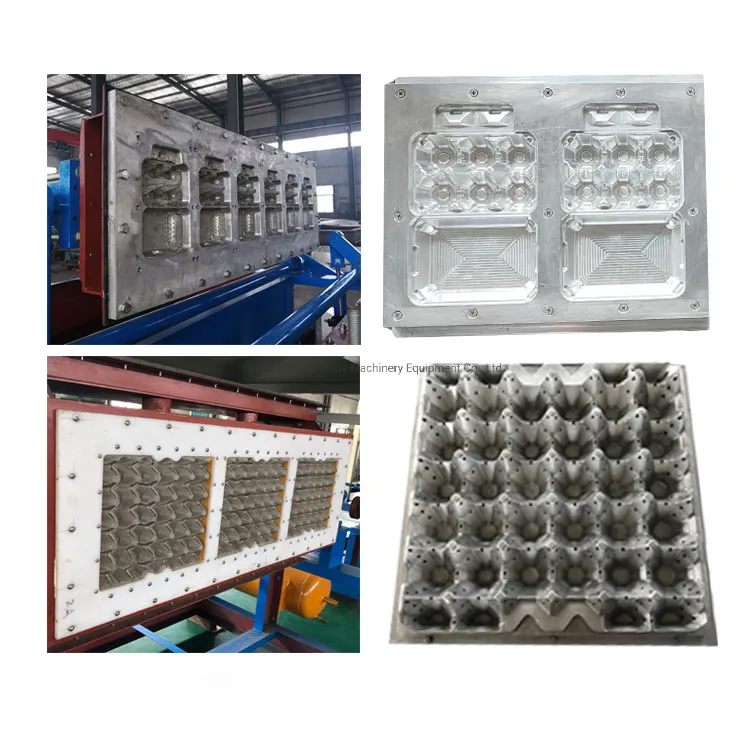

2. Forming System: Pulp is adsorbed onto molds via vacuum, formed into shapes, and transferred by positive pressure from an air compressor.

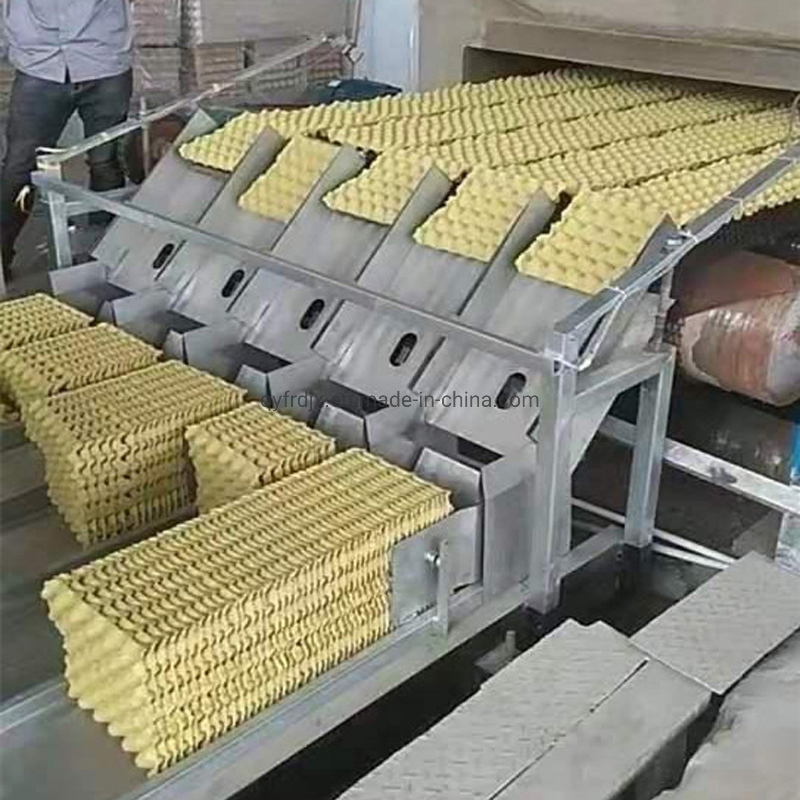

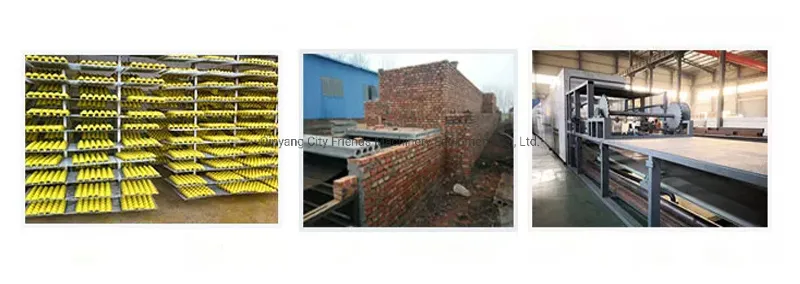

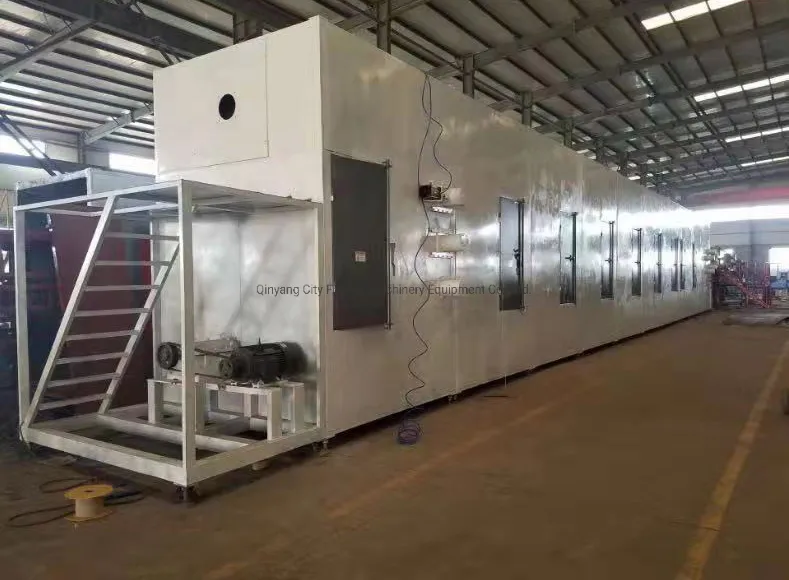

3. Drying System: Options include natural sun drying, brick tunnel kilns, or new energy-efficient multi-layer metal drying lines.

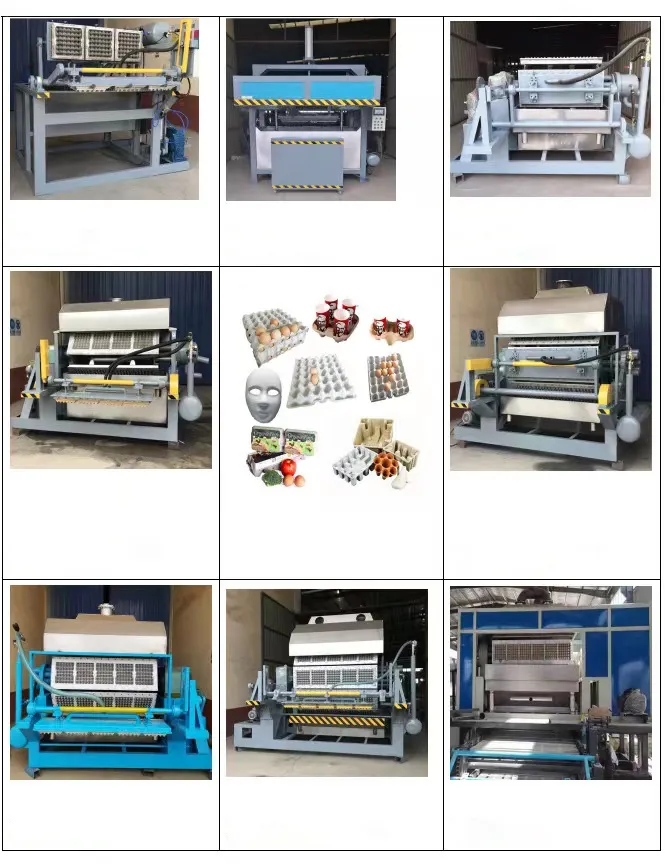

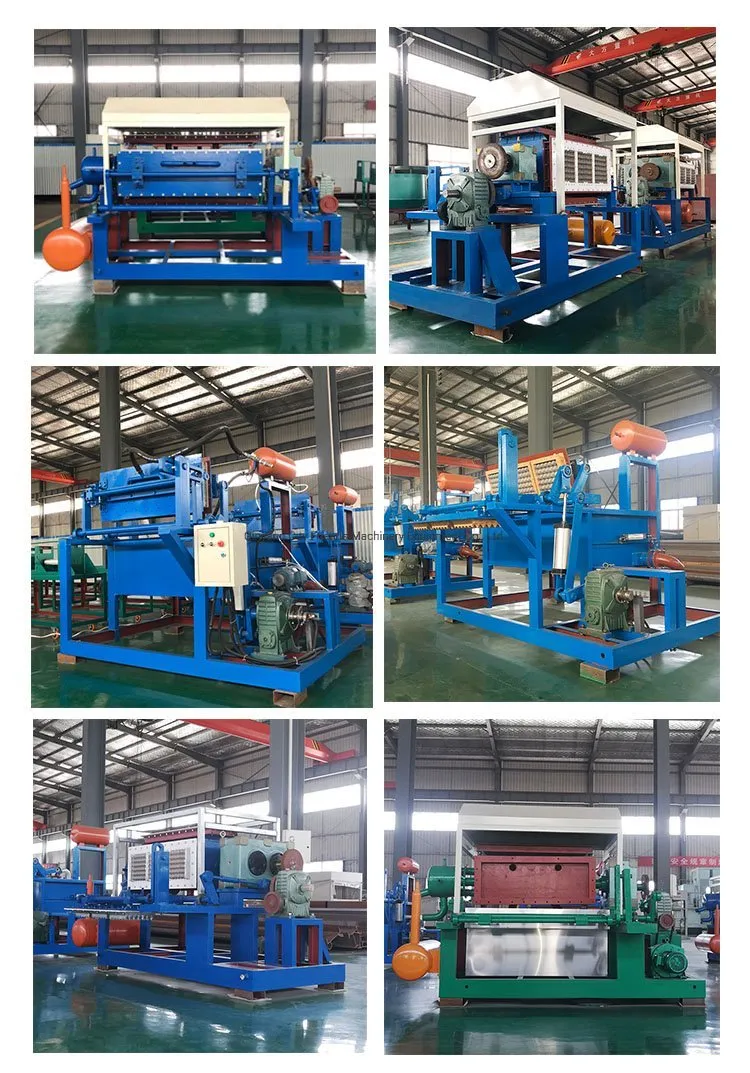

| Machine Model | FRD-3*1 | FRD-4*1 | FRD-3*4 | FRD-4*4 | FRD-4*8 | FRD-5*8 | FRD-6*8 | FRD-5*12 |
|---|---|---|---|---|---|---|---|---|
| Capacity(pcs/h) | 1000 | 1500 | 2500 | 3000 | 4000 | 5000 | 7000 | 8000 |
| Waste paper (kg/h) | 120 | 160 | 200 | 280 | 320 | 400 | 480 | 640 |
| Water(kg/h) | 300 | 380 | 450 | 560 | 650 | 750 | 900 | 1040 |
✔High precision servo motor drive for energy saving.
✔Absolute encoder for accurate correction and smooth operation.
✔Bronze casting static and dynamic ring structure for optimal dewatering.
✔Mechanical structure ensures uniform mold closing.
