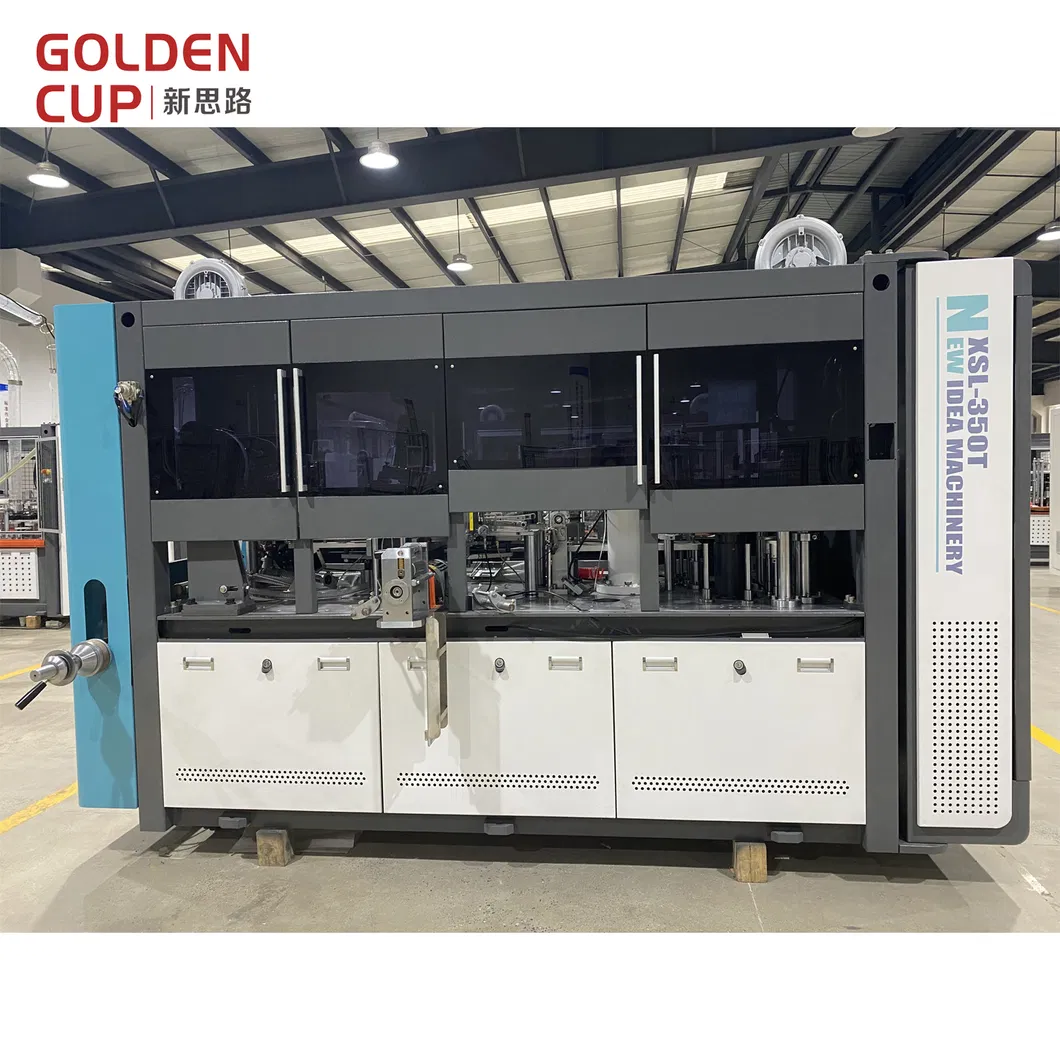

| Model NO. | XSL-350T |
| Cup Size | 4-16oz |
| Speed | 120-150PCS/Min |
| Required Paper | Single/Double PE Paper/PLA Paper/Water Based Paper |
| Automation | Automatic |
| Certification | CE |
| Weight | 3800kgs |
| Dimensions (L*W*H) | 3350*1360*2200mm |
| Power | 3 Phase, 380V, 50Hz 21kw |
| Air Consumption | 0.6-0.8m³/Min |

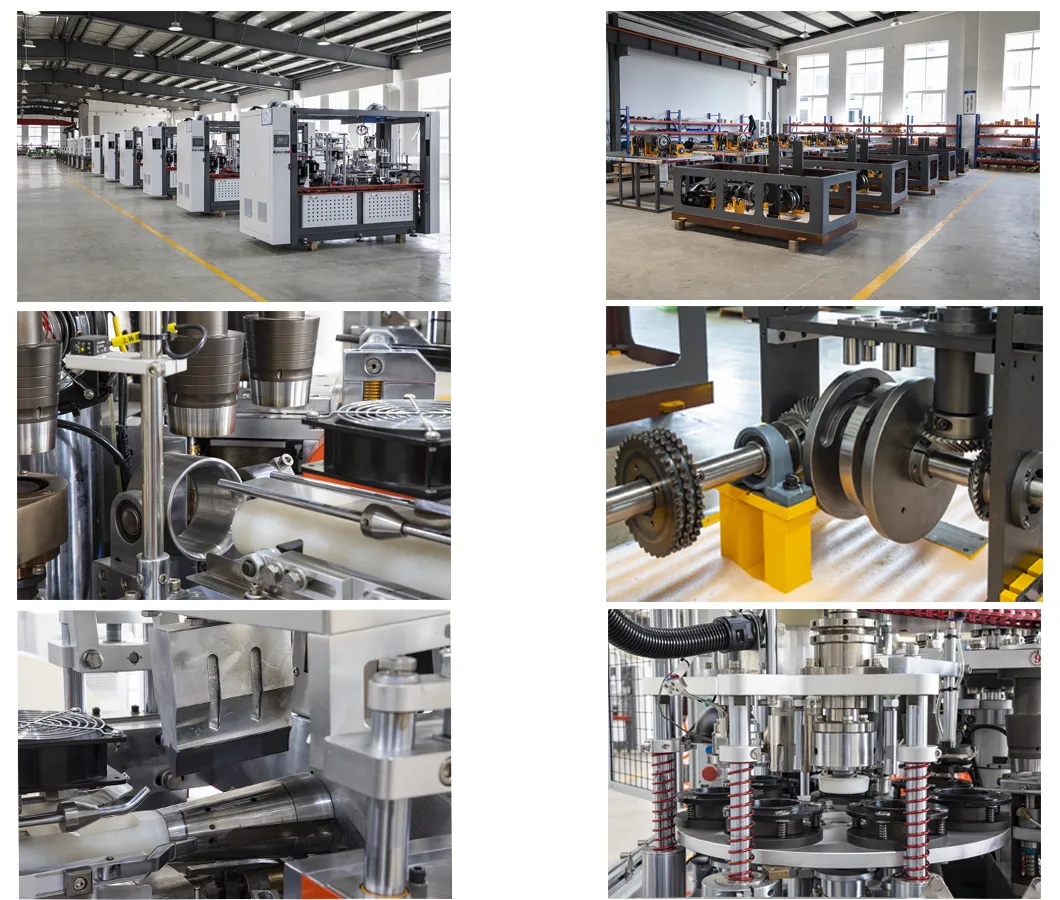

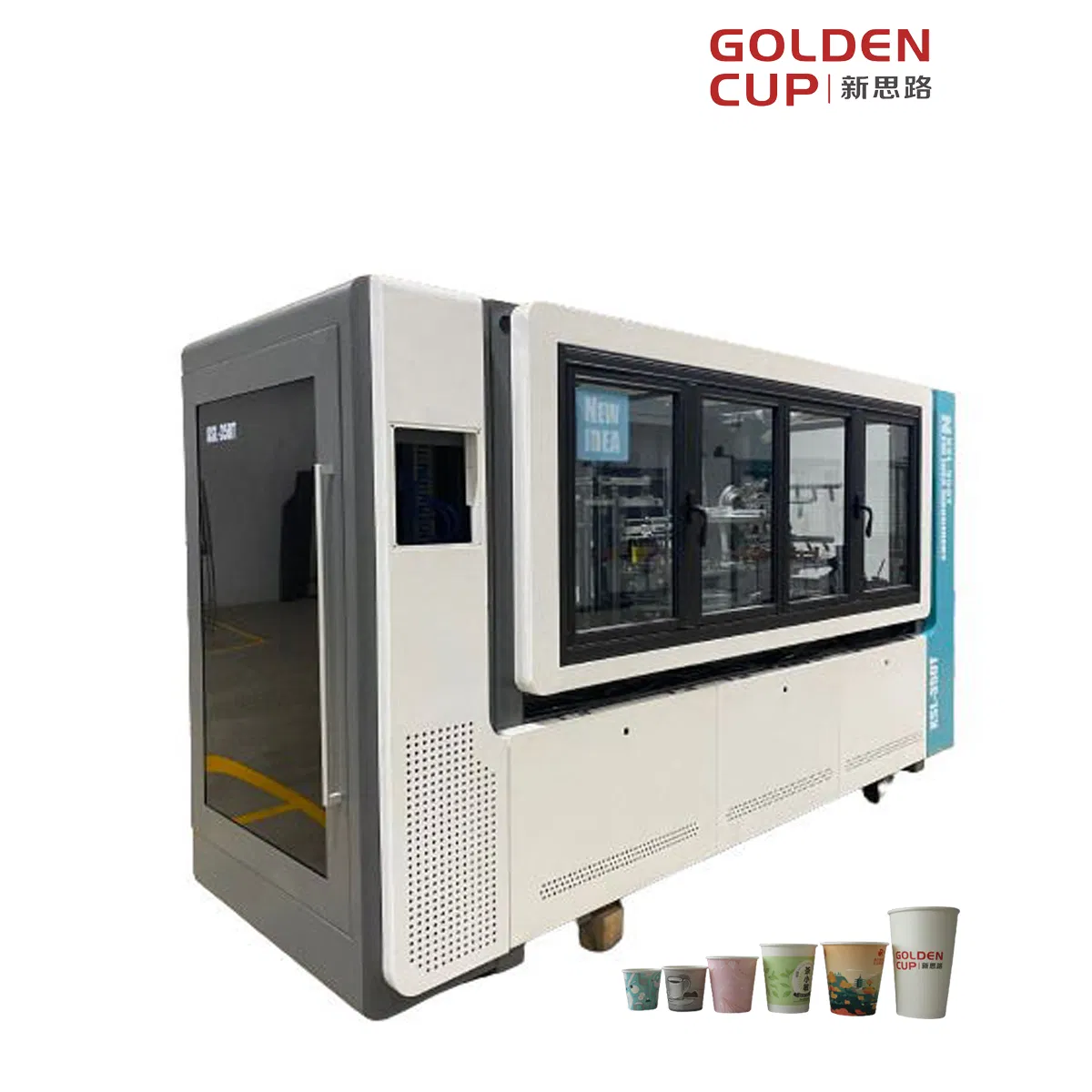

The paper cup machine features a tabletop layout that isolates forming parts from transmission parts. All transmission components utilize longitudinal shafts, barrel indexing cams, and gear transmissions, lubricated via a spray system.

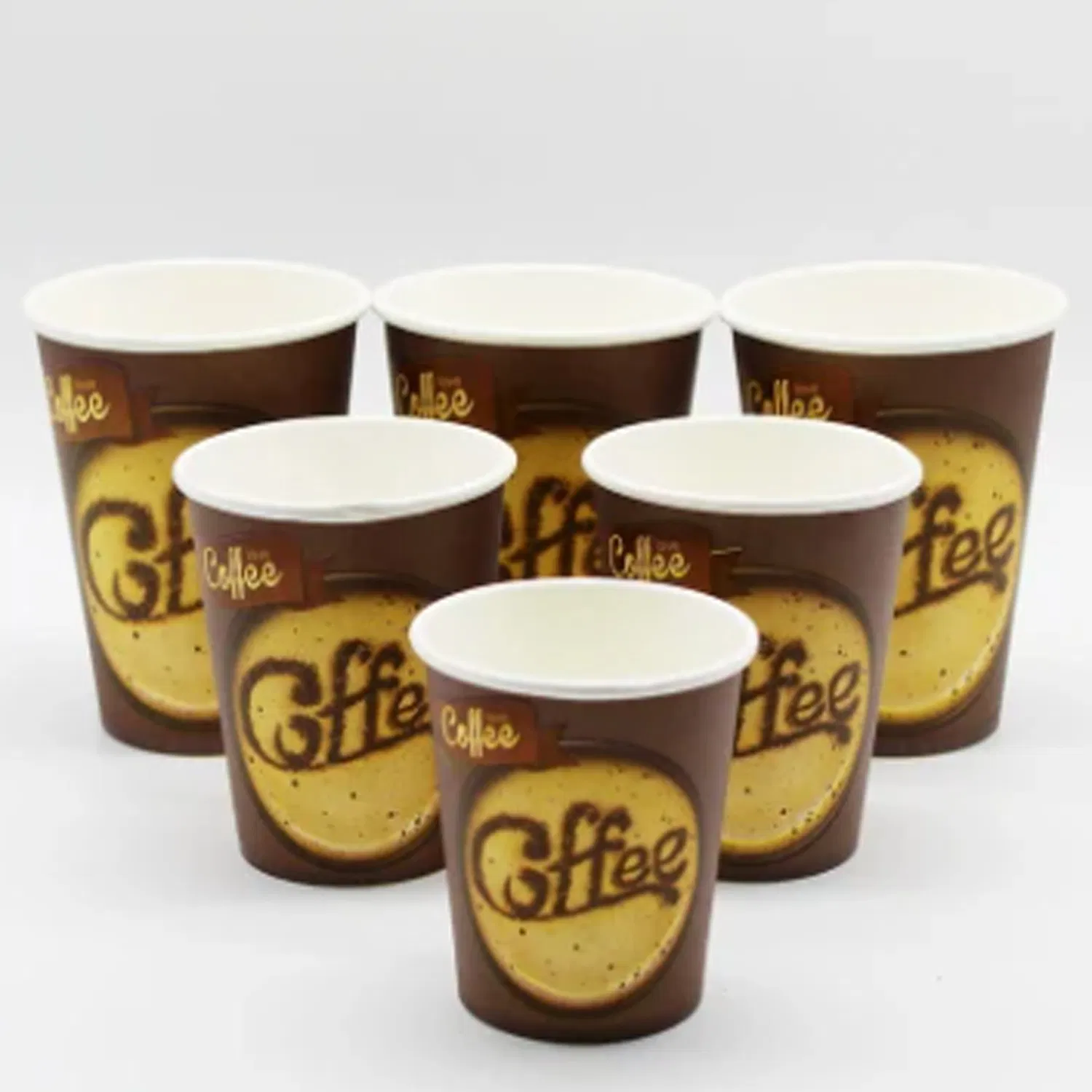

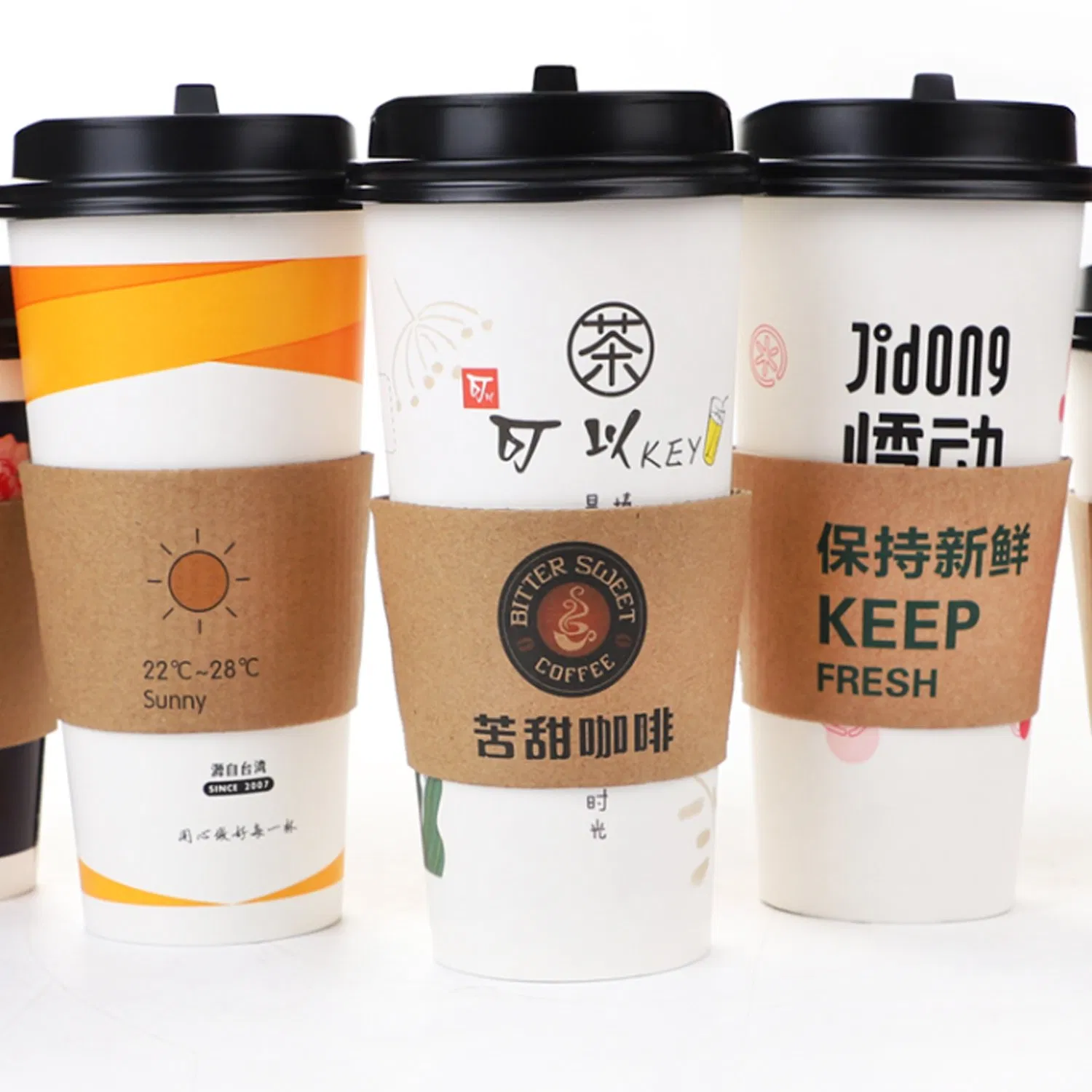

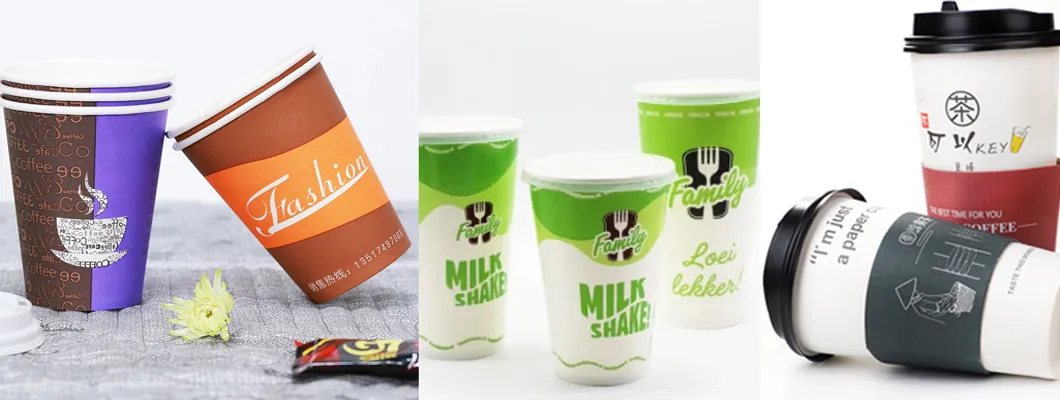

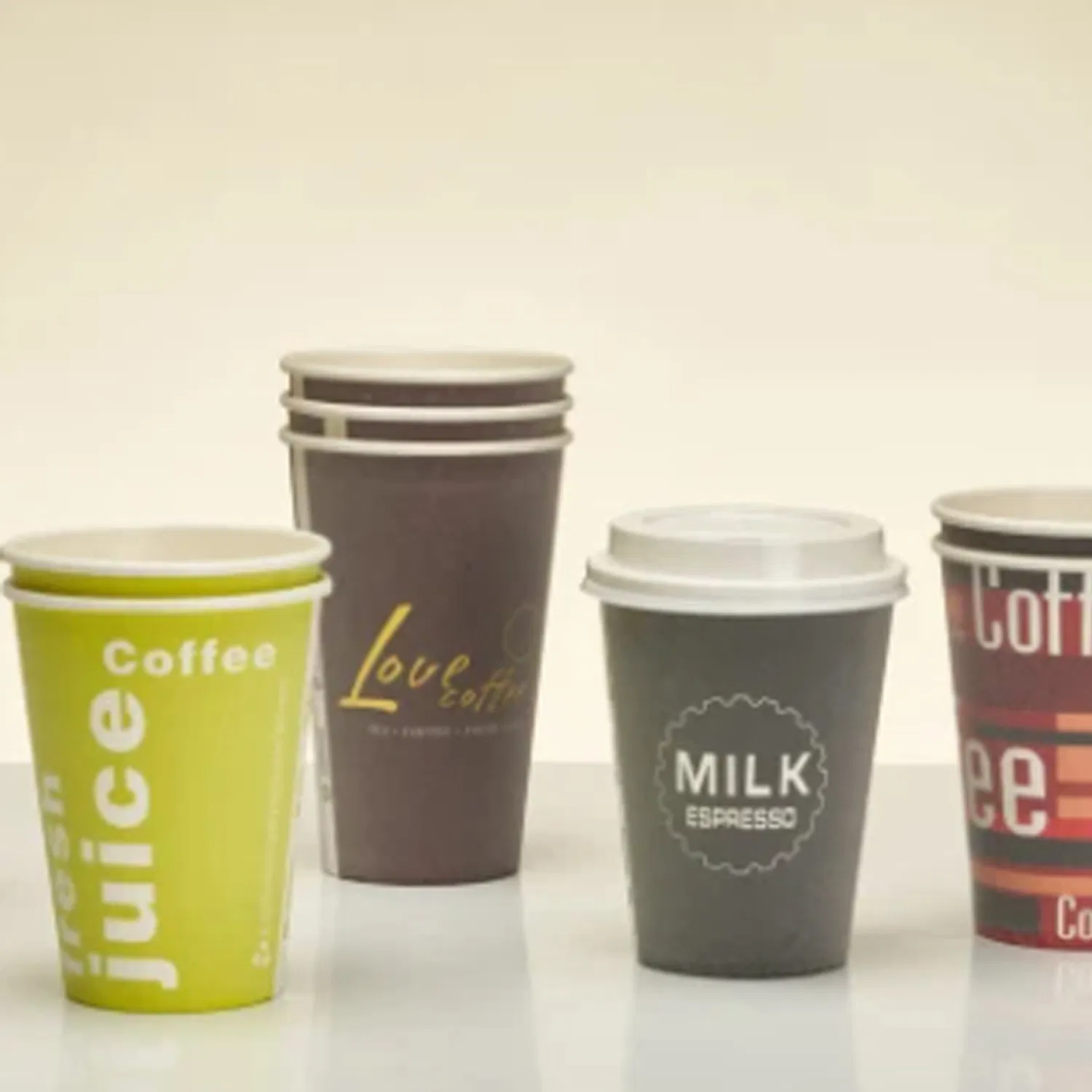

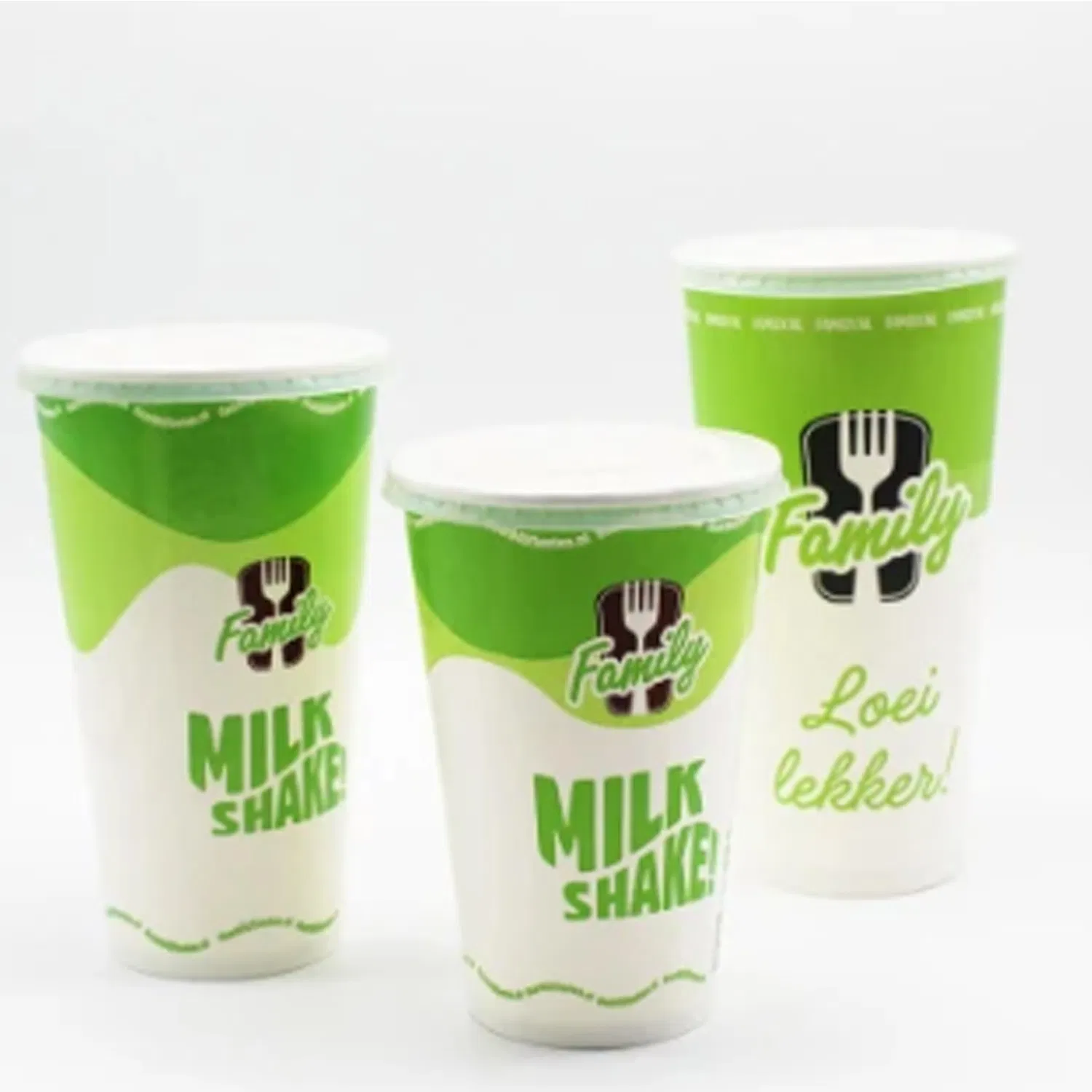

Controlled by PLC, the entire process is monitored by photoelectric sensors with servo feeding. An optional visual inspection system is available to identify and remove disqualified cups. It is ideal for producing 4-16 OZ cold and hot drink cups.
| Model | XSL-16T High Speed Paper Cup Machine |
| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Production Speed | 120-150pcs/min |
| Paper Requirement | 170-380gsm Single/Double PE Paper |
| Machine Size | 3700*1300*2060mm |
| Power Supply | 3 Phase, 380V, 50HZ, 21KW |

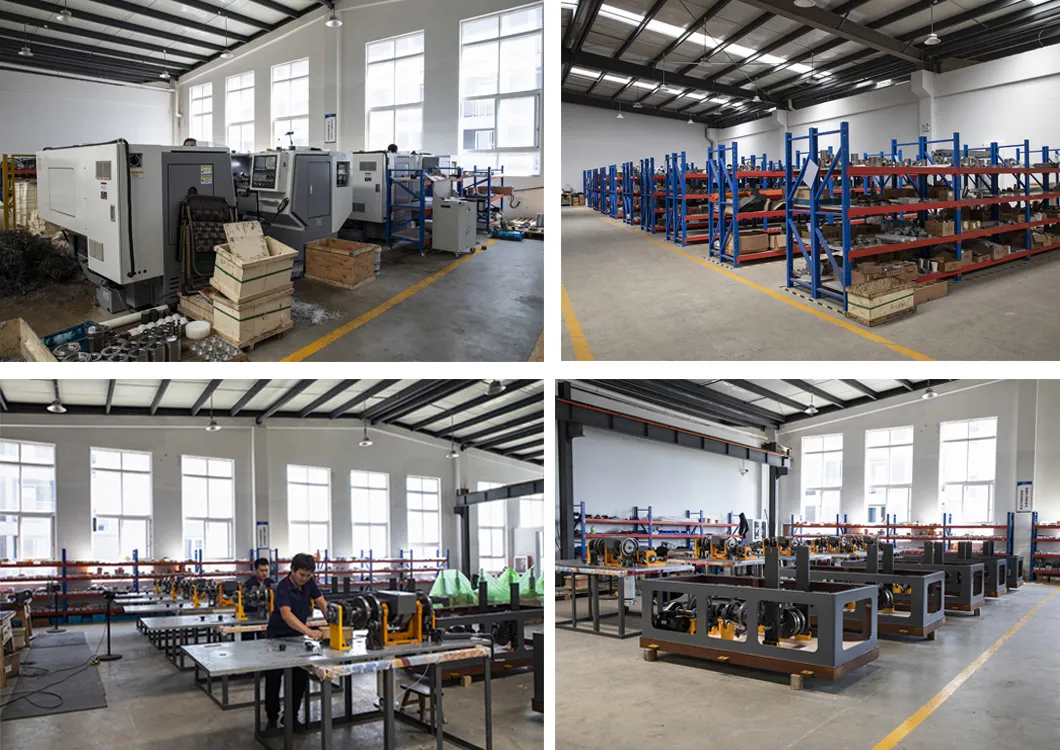

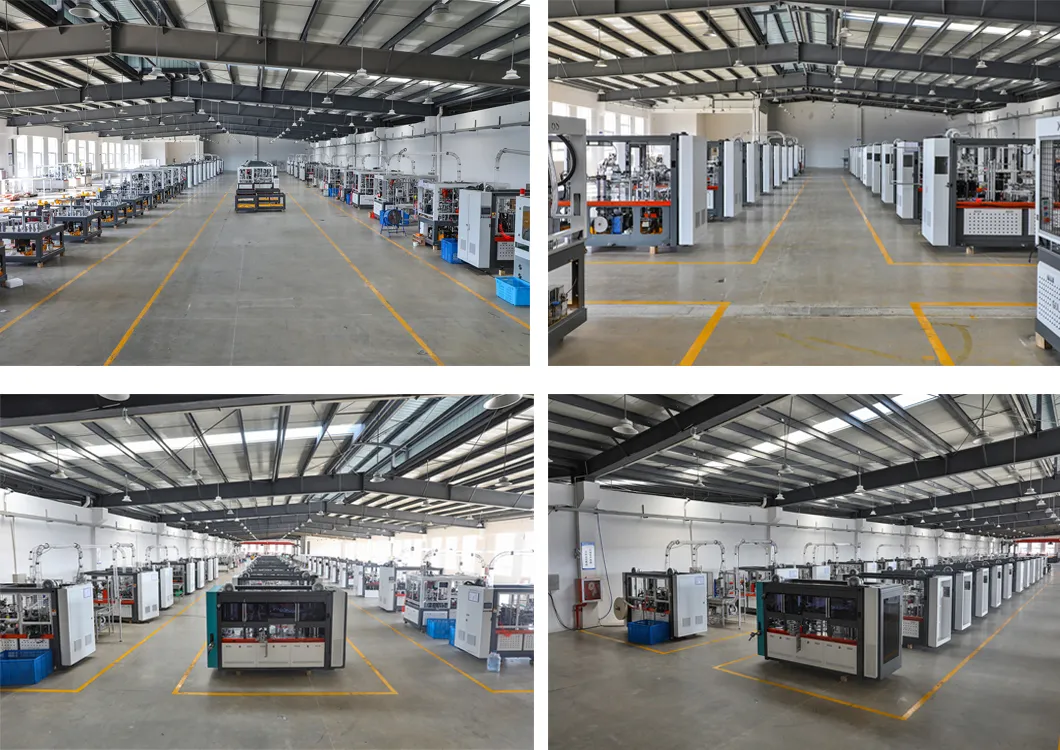

As a leading manufacturer in the paper cup industry, our state-of-the-art facility spans approximately 10,000 square meters. We specialize in high-speed paper cup machines, paper bowl machines, and double-wall sleeve machines designed for a wide range of sizes.
Our machinery incorporates components from renowned international brands. Key bearings are sourced from Japan, and molds are crafted from high-quality materials similar to those used in aviation. The transmission utilizes cam and gear mechanisms, eliminating chains and utilizing a spray circulating lubrication system.
