Good Quality Blister Production Line (AZ-04)

Customization:	Available
After-sales Service:	Onsite Instalation
Warranty:	24 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

AZ-04

Automatic Grade

Automatic

Driven Type

Electric

Material

Stainless Steel (S.S)

Capacity

100-1000kg/H

Size

1200*680*480mm

Forming Species

Premade Cup

Origin

China

Applications: Cleaning, Detergent, Cosmetics, Drinks, Dairy Products, Oil, Snack, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Rice, Flour, Seasoning.

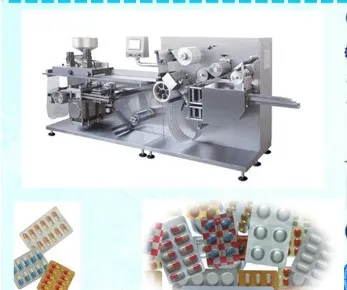

Blister Packing Machine Overview

Key Specifications

Turnkey project solution
Available in semi-automatic or fully automatic configurations
Customized design based on specific requirements
Certified by CE, ISO, and SGS
High operational efficiency
Advanced PLC controller with multi-language touch screen (Chinese/English)
Frequency inverter for speed control and servo traction

Main Description & Features

1. Suitable for paper-plastic packaging in industries such as hardware, medical equipment, toys, batteries, electronics, auto parts, cosmetics, and kitchenware (e.g., syringes, flashlights, toothbrushes, lipsticks, razors).

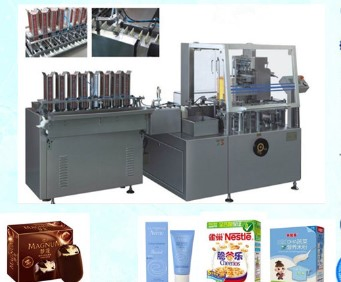

2. Designed for automatic cartoning of pharmaceutical bottles, blisters, soft tubes, and pillow packs. Can operate independently or as part of a production line.

3. Features include automatic carton opening, product insertion with leaflets, embossing print, and automatic carton closing (tongue insertion or hot melt glue).

4. Human-machine interface provides real-time packaging speed, counting, and fault diagnostics for easy maintenance.

5. Supports multiple carton specifications on a single machine through simple adjustments.

6. Includes automatic inspection systems that shut down the machine if non-conforming products are detected.

Technical Parameters

Model	JY-001	JY-002	JY-003
Punching frequency	15-35 times/min	AL/PVC 15-45 Times/min	AL/PVC 20-60 times/min
Max production capacity	-	ALU/PVC 72000-236000 pcs/h	AL/PVC 140k Grains/h
Adjustable Travel	40-120mm	30-120mm	30-140mm
Max forming area	140mm*110mm	120mm*240mm	260mm*130mm
Total Power	3.8KW	5.5KW	8.5KW
Weight	620kg	1500kg	1800kg

Production Flow Chart

PVC Roll → PVC Pre-heating → Blister Forming → Servo Traction → Blister Cutting → PVC Edge Material Collection → Picking Up Blister Tray → Manual/Auto Feeding → Auto Paper Card Feeding → Heat-sealing → Output

Frequently Asked Questions

What industries is the AZ-04 blister packing machine suitable for?

It is ideal for hardware, medical equipment, toys, batteries, electronics, cosmetics, and food industries, handling products like syringes, toothbrushes, and lipsticks.

Does the machine support both manual and automatic operation?

Yes, the machine features a switchover function between manual and automatic operation to suit different production needs.

How is the quality of the packaging ensured?

The machine uses a PLC automatic control system with an inspection system that automatically shuts off the machine if non-conforming products are detected.

Can the machine handle different sizes of cartons?

Yes, cartons of different specifications can be processed on the same machine after simple adjustments to the settings.

What are the main safety features?

The machine includes thermal temperature control, main machine overloading protection, and automatic failure debugging with alarms.

What materials are used in the construction of the machine?

All parts that come into contact with the product are made of high-quality stainless steel and aluminum with advanced surface treatments.
