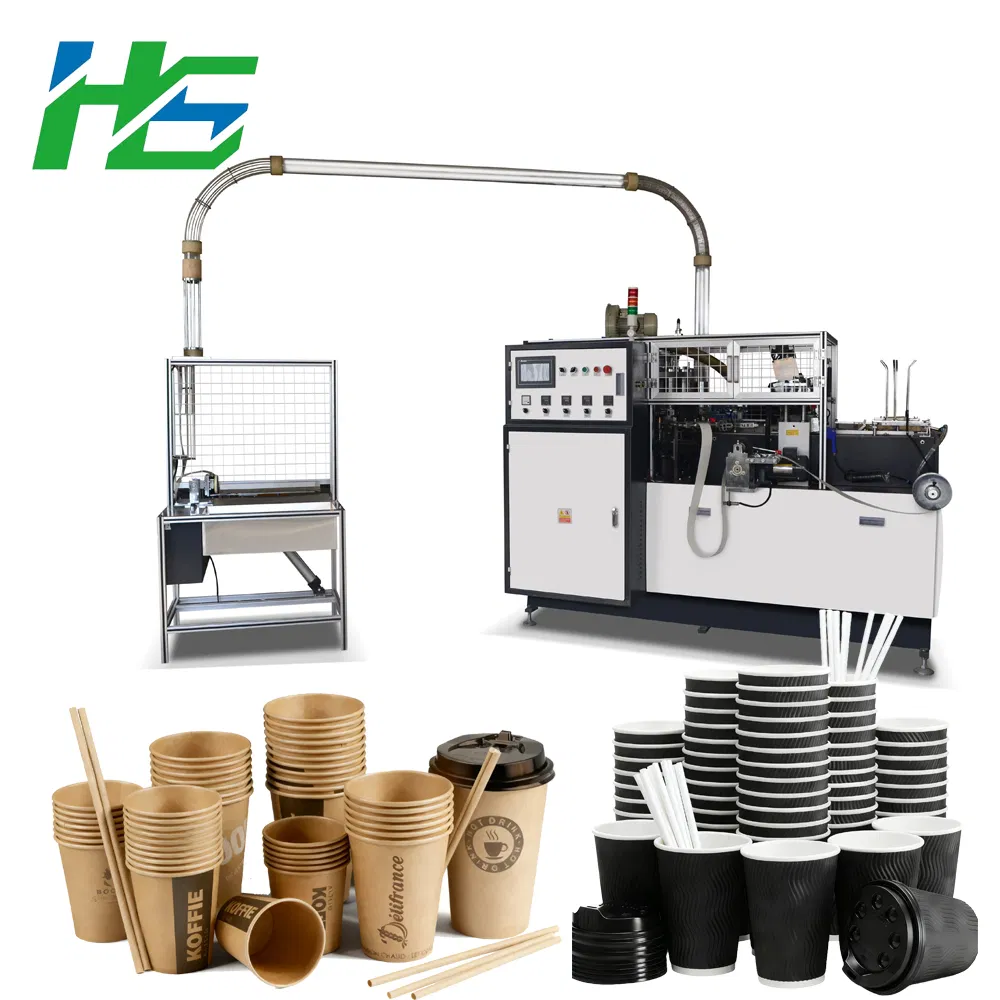

65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price
65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price
65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price
65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price
65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price
1 / 5
65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price
65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price
65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price
65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price
65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price

65-85 PCS/Min High Speed Disposable Paper Cup Making Machine for Small Business&Hotels Low Price

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.HS-PCM
Cup Size3-16 Oz
Speed60-80pcs/min
Required PaperSingle Side PE Coated Paper
AutomationAutomatic
CertificationCE
Weight1870kg
Power Supply380V/220V
Total Power4kw
Specification2460*1620*1820mm
⚙️

Product Description

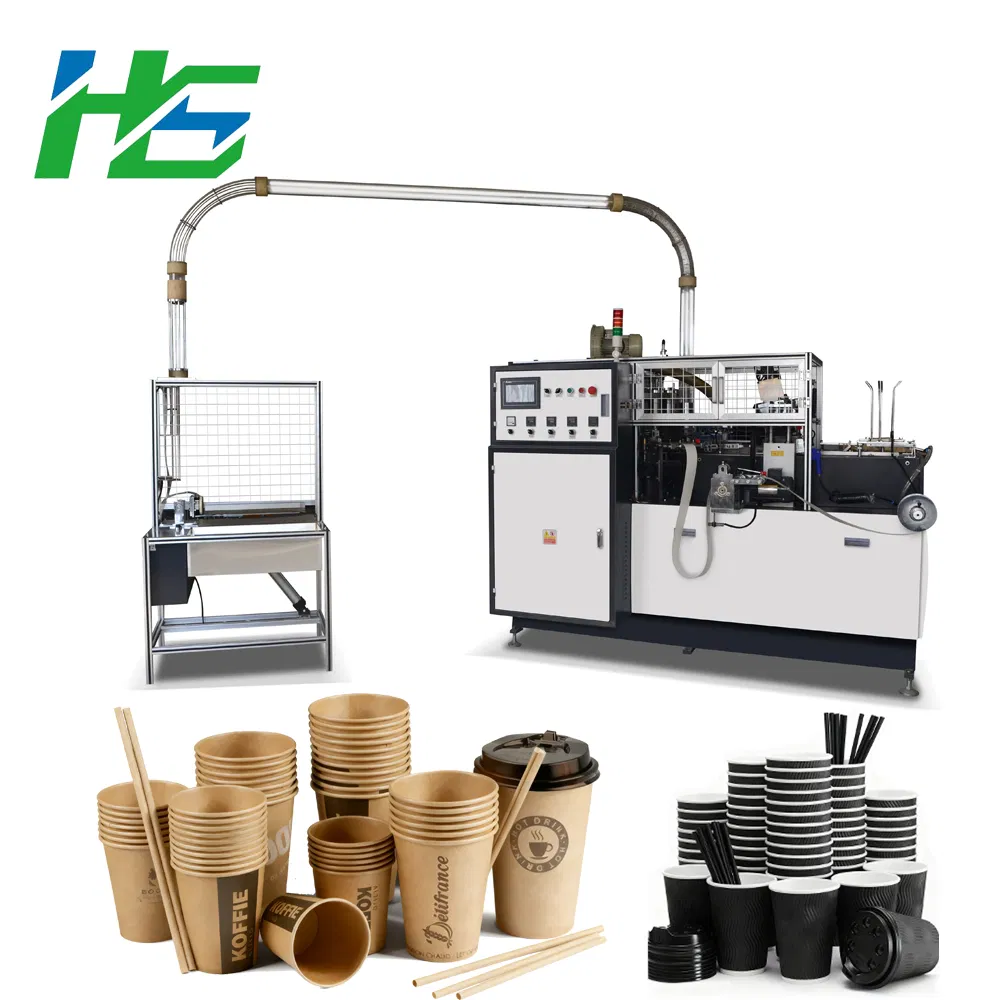

Paper Cup Making Machine
High Performance

The HS-PCM-12 is a fully automatic paper cup forming machine. It features multiple rows for automatic paper feeding, anti-backing devices for accurate positioning, and ultrasonic welding. The continuous process includes mechanical paper tube transfer, oil injection, bottoming, folding, pre-heating, knurling, and unloading. This equipment is designed for high stability and efficiency in producing various paper cup specifications.

📊

Technical Specifications

ModelHS-PCM-12
Cup Sizes2oz-16oz (Molds changeable)
DimensionsTop: 46-100mm; Bottom: 30-72mm; Height: 32-132mm
Paper Material150-350g/m² (Single/Double PE coated)
Speed68-85 pcs/min
Control SystemPLC (Delta)
Touch ScreenDelta
SensorsPanasonic
Electrical ComponentsSchneider

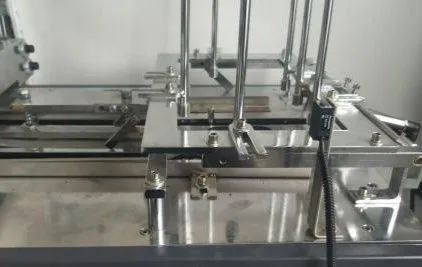

Multiple Paper Feed

Multiple Paper Feed

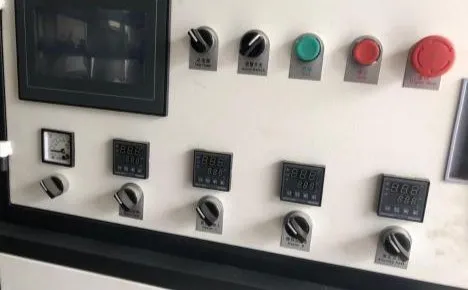

PLC Control System

PLC Control System

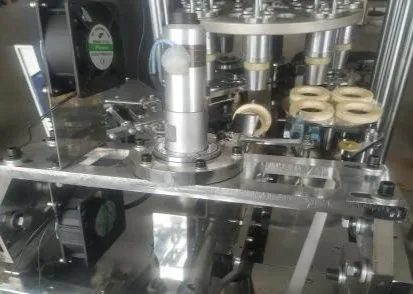

Ultrasonic Cooling Fan

Ultrasonic Cooling Fan

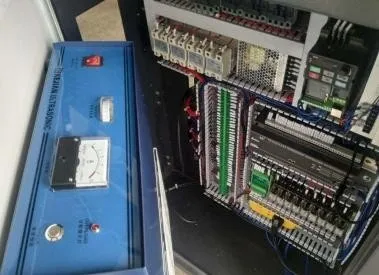

Distribution Box

Distribution Box

💎

Key Advantages

Servo Tracking Feed Locks the size of the cup bottom paper effectively to save raw materials.
Precision Drive Advanced high-precision CAM and gear drives ensure accurate station forming.
Stable Operation Full steel plate body and oil-type lubrication system for long-term stability.
High Efficiency Intelligent medium-speed molding with high quality and energy-saving performance.
📦

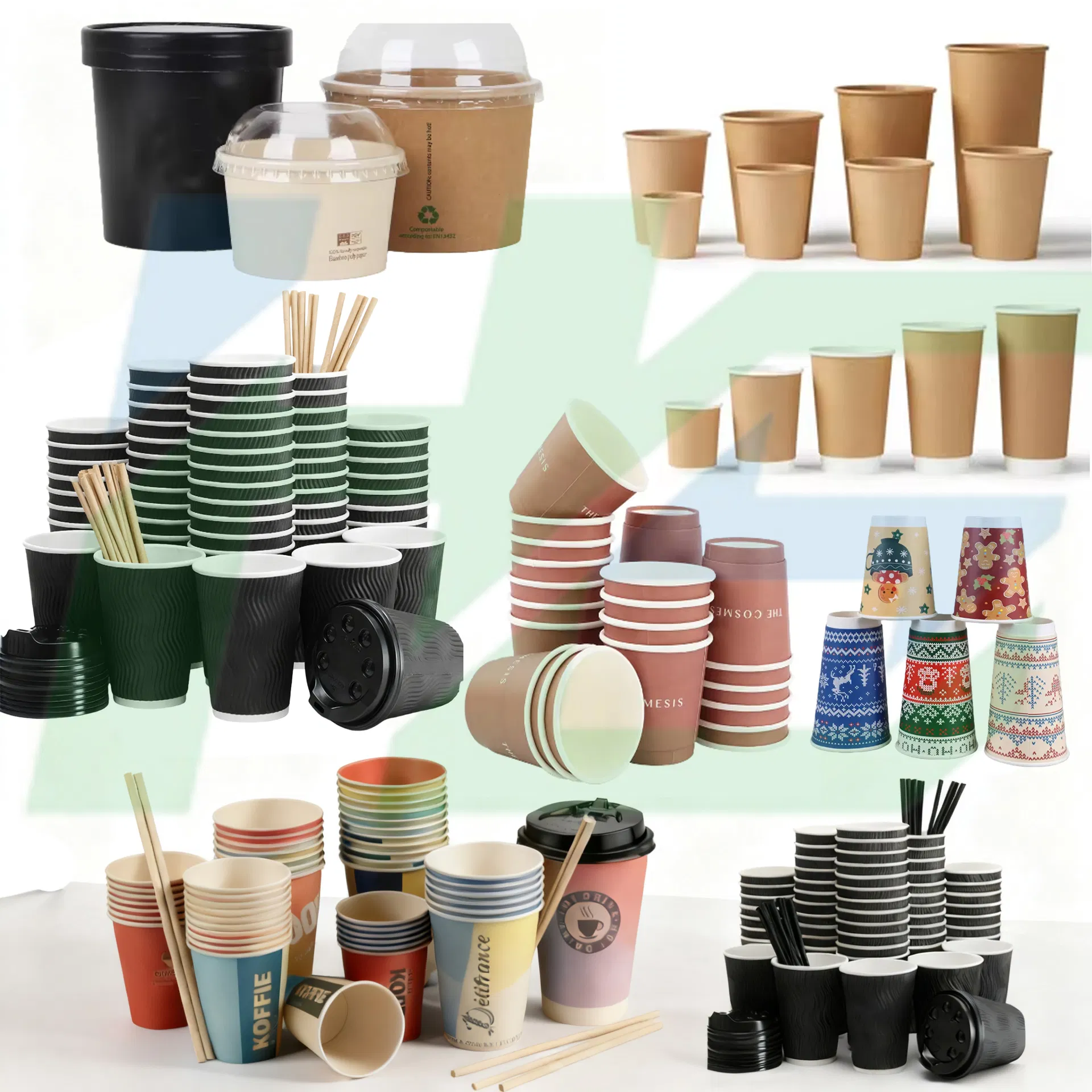

Product Samples & Packaging

Product Samples Packaging and Shipping
🛠️

Service & Support

Warranty Service 1-year warranty with on-site installation and debugging services provided.
Pre-sale Service Professional efficacy explanations and suggestions based on customer needs.
After-sales Support Technical masters provide full tracking, training, and answer difficult questions.
📜

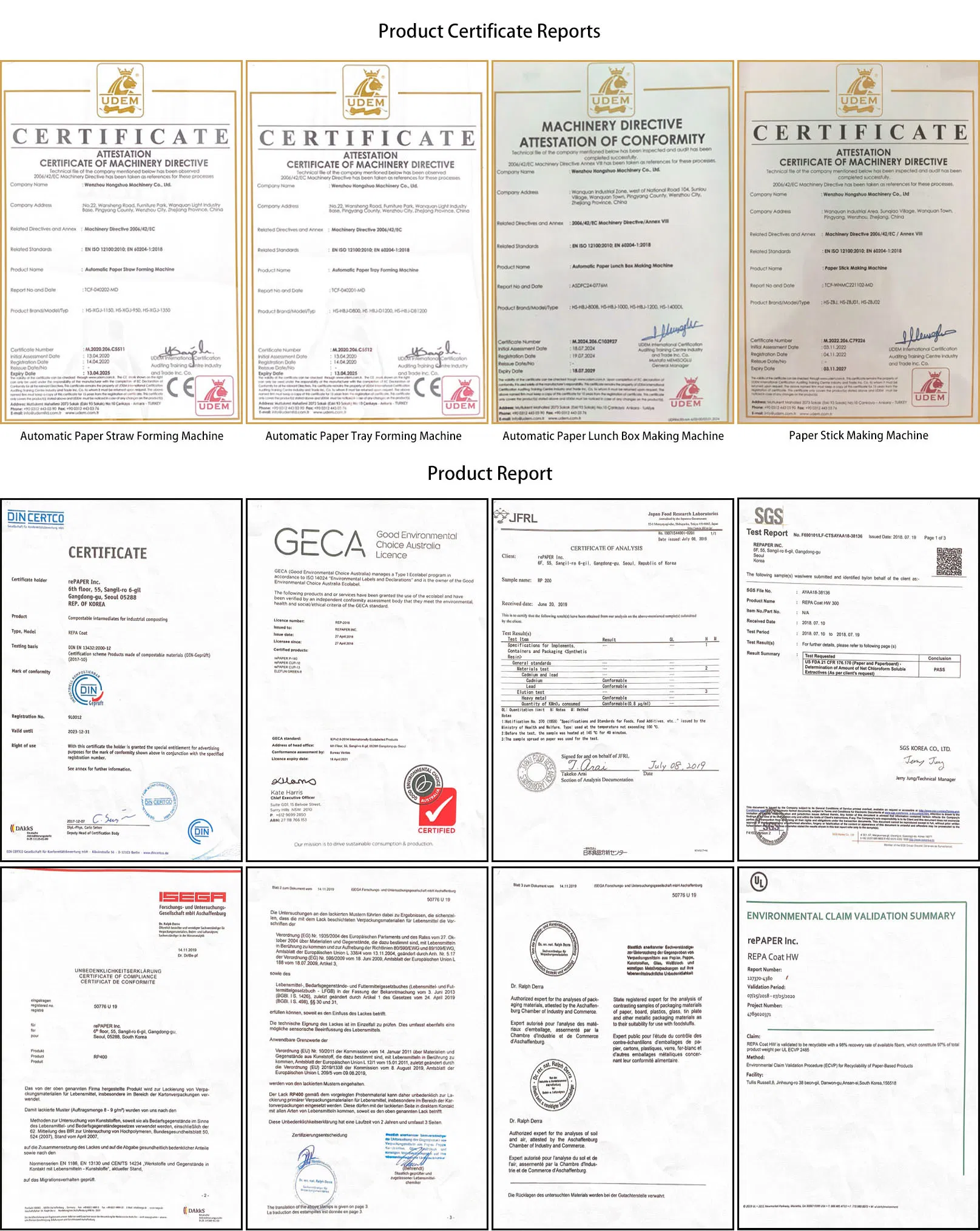

Certifications

Certifications
❓

Frequently Asked Questions

What is the production speed of this machine?
The machine operates at a stable speed of 60 to 80 pieces per minute, depending on the cup size and material.
What range of cup sizes can it produce?
It can produce paper cups ranging from 3oz to 16oz. The molds can be changed to accommodate different specifications.
What kind of paper material is required?
It uses 150-350g/square meter single or double PE coated paper.
What brands are used for the main electrical components?
We use high-quality components including Panasonic sensors, Schneider buttons/relays, and Delta PLC/Touch Screens.
How do you guarantee the quality of the machine?
We conduct a pre-production sample check and a final inspection before every shipment to ensure the highest quality standards.
Is technical training provided?
Yes, we provide comprehensive technical consultation and on-site training to ensure you master the equipment's operation.
