Ice Cream Cone Cup Machine/ Sleeve Forming Machine
Ice Cream Cone Cup Machine/ Sleeve Forming Machine
Ice Cream Cone Cup Machine/ Sleeve Forming Machine
Ice Cream Cone Cup Machine/ Sleeve Forming Machine
Ice Cream Cone Cup Machine/ Sleeve Forming Machine
1 / 5
Ice Cream Cone Cup Machine/ Sleeve Forming Machine
Ice Cream Cone Cup Machine/ Sleeve Forming Machine
Ice Cream Cone Cup Machine/ Sleeve Forming Machine
Ice Cream Cone Cup Machine/ Sleeve Forming Machine
Ice Cream Cone Cup Machine/ Sleeve Forming Machine

Ice Cream Cone Cup Machine/ Sleeve Forming Machine

Customization: Available
Warranty: 1 Year
Applicable Objects: Food
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
CPC-220
Cup Size
2-12OZ
Speed
190-230PCS/Min
Required Paper
80-170 G/M2, Art/Aluminized/Offset Paper
Automation
Automatic
Certification
CE
Power
9kw
Cone Length
100-200mm
Type
Sleeve Molding Machine
Specification
1850*1750*1800mm
Origin
China
HS Code
8441901090
⚙️ Product Description

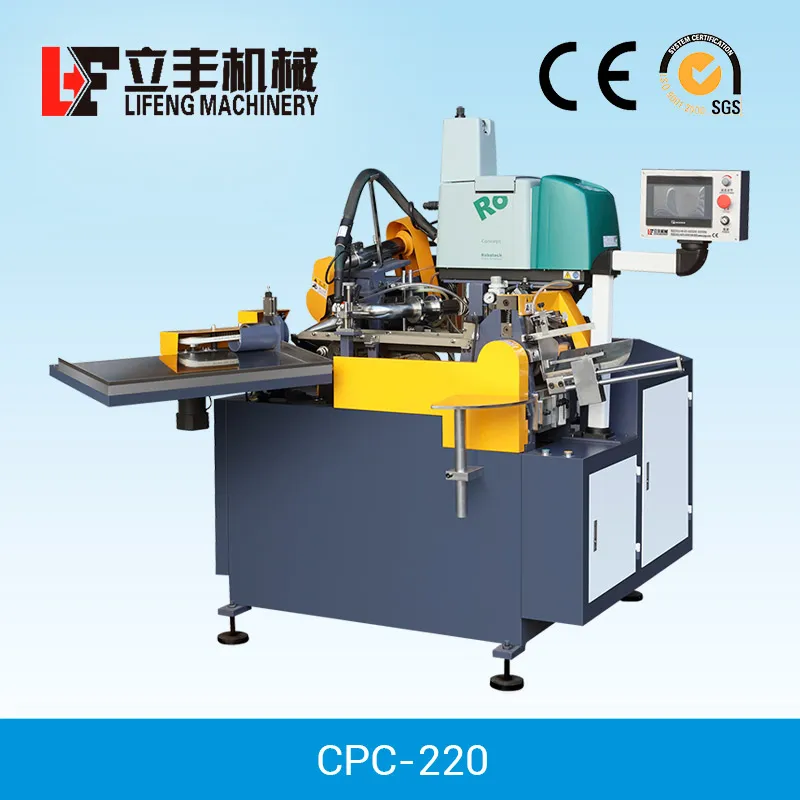

The CPC-220 Automatic paper cone machine is specifically designed for ice cream and other similar paper cone cup coats. This high-efficiency machine can shape angles ranging from 15 to 28 degrees by changing the mould. The driving system features a robust boxing structure, utilizing oil cycling for optimal lubrication. Crucial components are sourced from internationally recognized brands to ensure reliability.

Ice Cream Cone Cup Machine
Sleeve Forming Machine
Technical Item Specifications
Speed190-230 pcs/min
Paper Cup Size4-10oz
Cone Angle17-23 degree
Cone Length100-200mm
Raw Material80-170 g/m2 (Art/Aluminized/Offset/Wax paper)
Electricity220V/380V or Customize
Power9kw
Net Weight1000 Kgs
Dimension1850*1750*1800mm
🌟 Key Features
✓ Versatile production of ice cream cone cup angles between 15°- 28°, and lengths from 10-25cm.
✓ Certified by CE and SGS for international quality standards.
✓ Equipped with a micro-computer controlled system for precise operation.
✓ High-speed performance reaching 190-230 pcs/min.
✓ Photoelectric tracing system provides automatic alarm and emergency stop functions.
✓ Components from well-known global brands ensuring worldwide guarantee.
📦 Packaging & Service

Packaging: Securely packed in wooden cases with stretching film protection for international shipping.

One Year Guarantee: Comprehensive coverage for the whole machine (excluding easy-wear parts).
Technical Support: 24-hour technical assistance available via email.
Documentation: User-friendly English software, manual, and detailed instructional videos.
Production Facility
❓ Frequently Asked Questions
What is the speed advantage of this machine?
The CPC-220 operates at a high speed of 190-230 pcs/min, which is significantly faster than the standard 160 pcs/min found in other models.
How is technical support handled overseas?
The machine is designed for easy operation. Engineers can provide guidance via video or email, and are available for overseas on-site support if necessary.
What are the payment terms and MOQ?
The Minimum Order Quantity (MOQ) is 1 set. Payment terms require a 30% T/T deposit, with the balance due before delivery.
What is the production and delivery timeline?
The production period is approximately 25 days after receiving the deposit. Delivery typically occurs within 5 days after the balance payment is confirmed.
What types of paper can be used with this machine?
It supports a wide range of materials including art paper, aluminized paper, offset paper, and wax paper with weights between 80-170 g/m2.
Does the machine come with certifications?
Yes, the equipment has successfully passed CE and SGS certifications, ensuring compliance with safety and quality standards.
