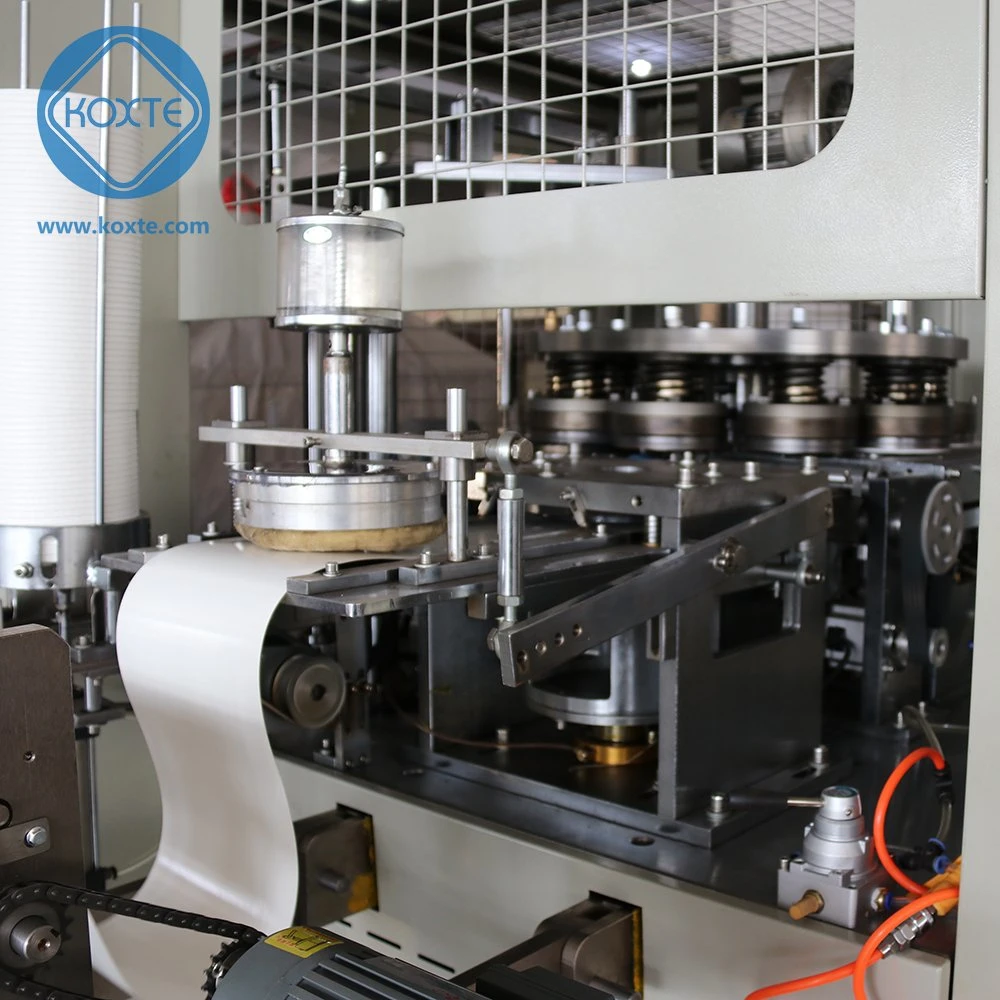

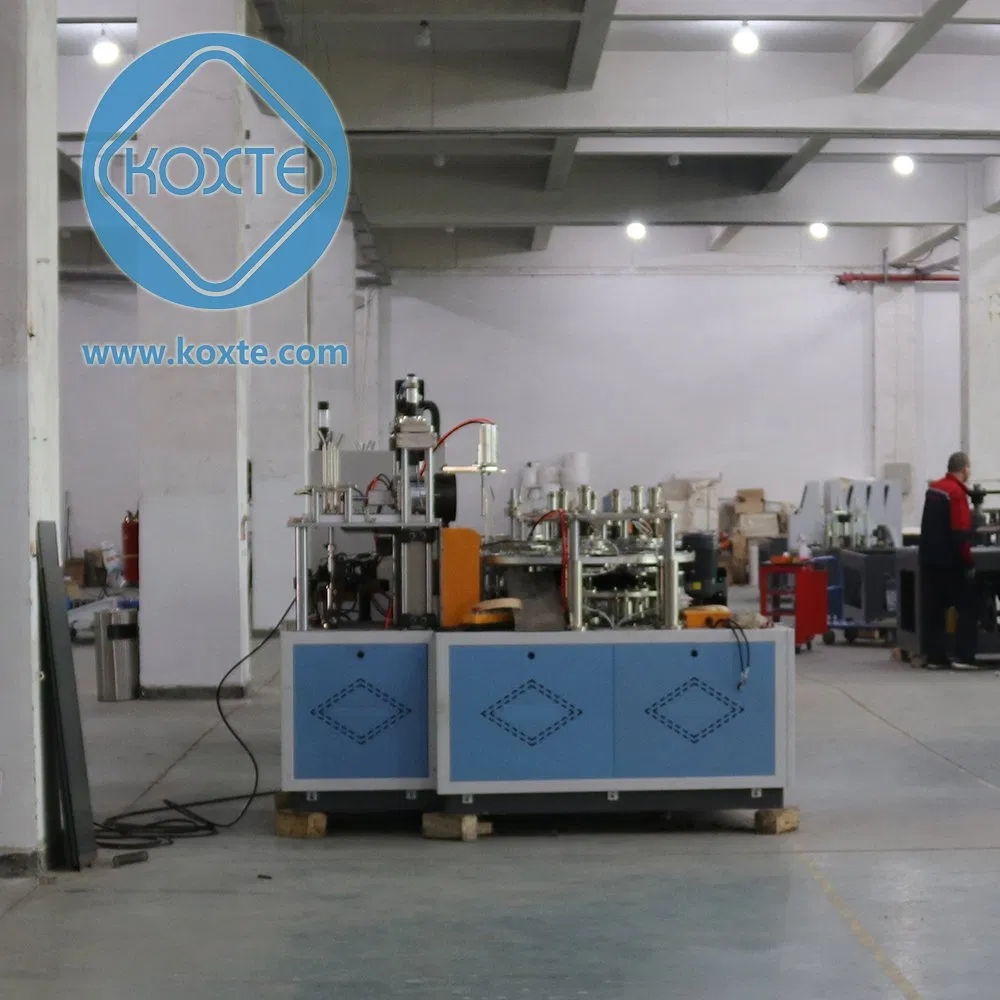

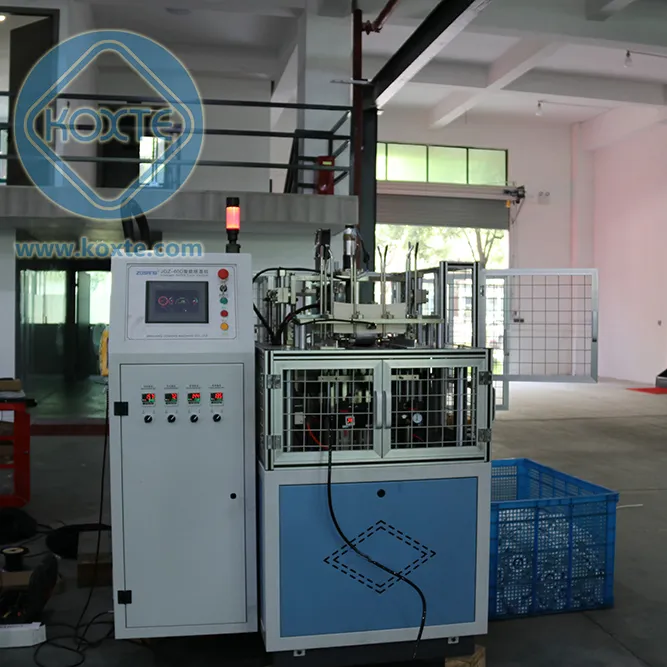

The Automatic Paper Lid Forming Machine introduces advanced forming technology, accomplishing many kinds of formation crafts and substituting manual procedures completely.
The equipment is stable, features high production efficiency, and allows for single-person operation. It significantly saves labor force, raw materials, and maintains low energy consumption. Furthermore, changing molds is simple and quick, making it highly versatile for different production needs.

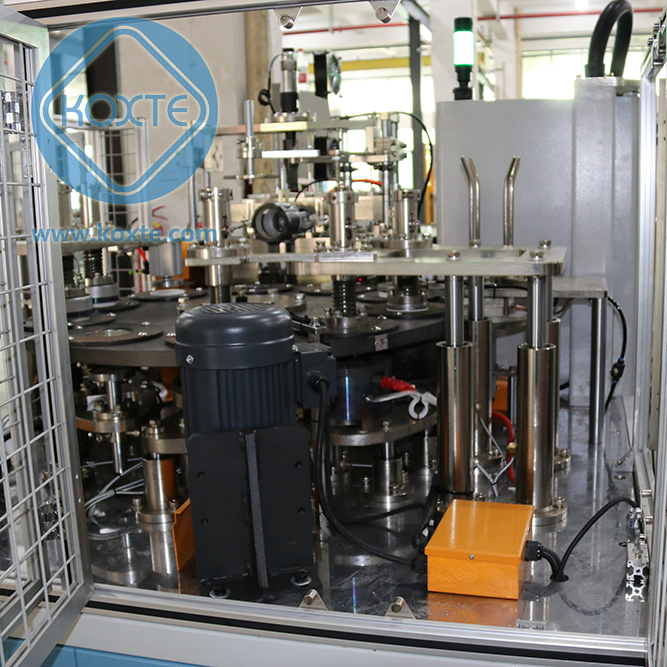

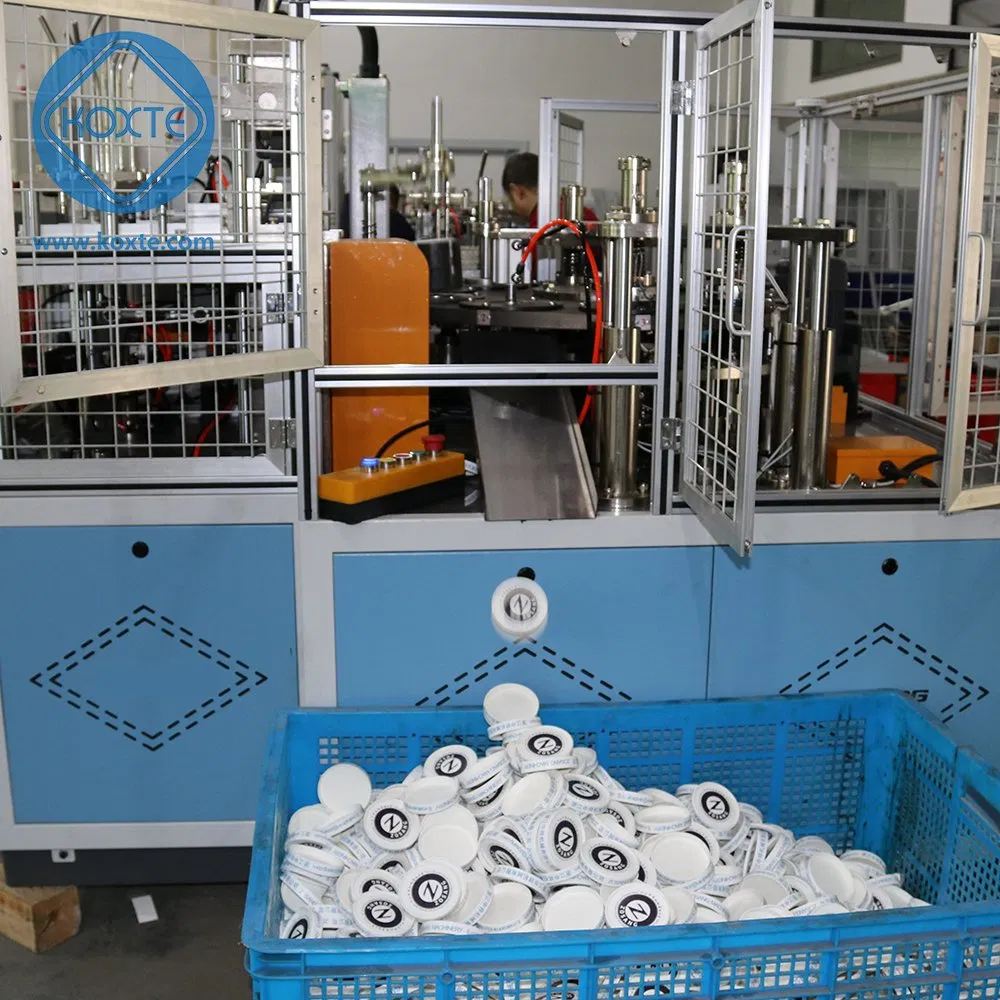

Forming Procedure: Die cut paper stripe and round paper circle pieces -> folding and side sealing the paper stripe -> bottom paper feeding -> folding and knurling -> final lids discharge.
| Paper Cover Size | Diameter φ70-φ100 mm (Special size customizable) |
| Production Rate | 50-60 pcs/ minute |
| Raw Material | 280-400gsm PE coated paper |
| Device Power | 9Kw |
| Power Source | 380V 50Hz 3Phase or customize |
| Air Consumption | 0.15 cbm/min |
| G. Weight | 2200Kg |
| Dimension | (L x W x H) 2000*1400*1700 mm |

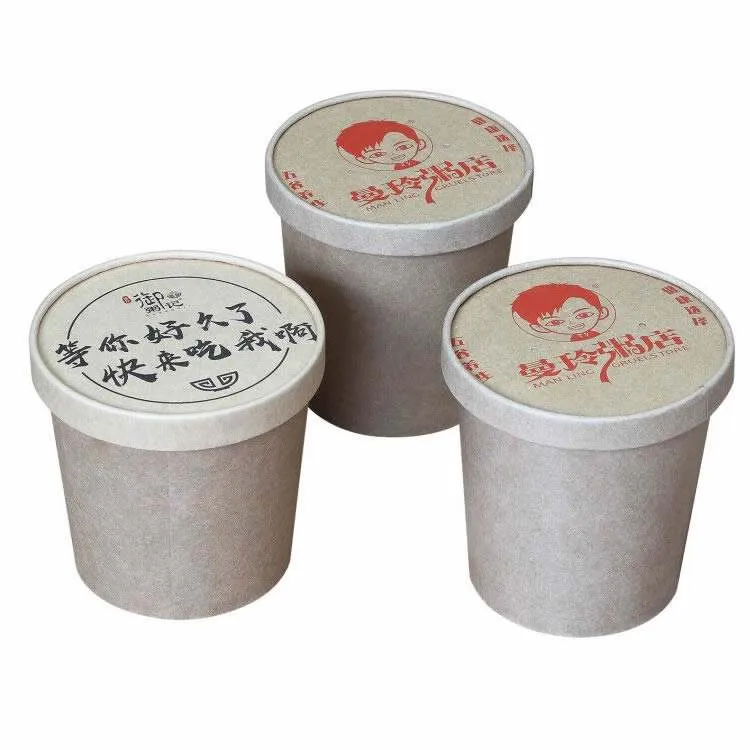

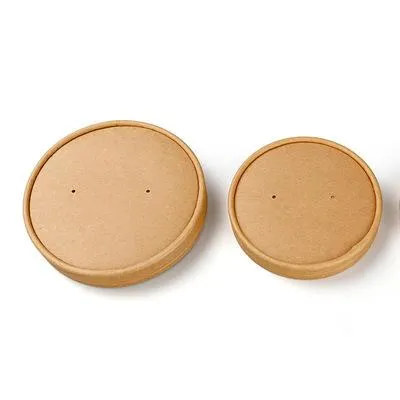

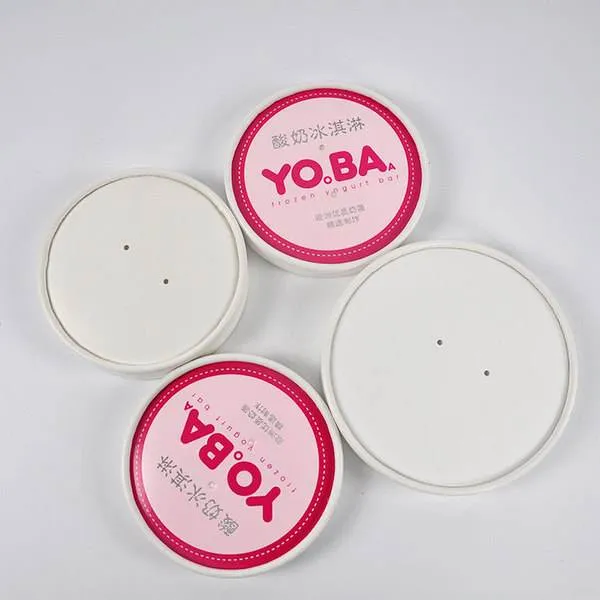

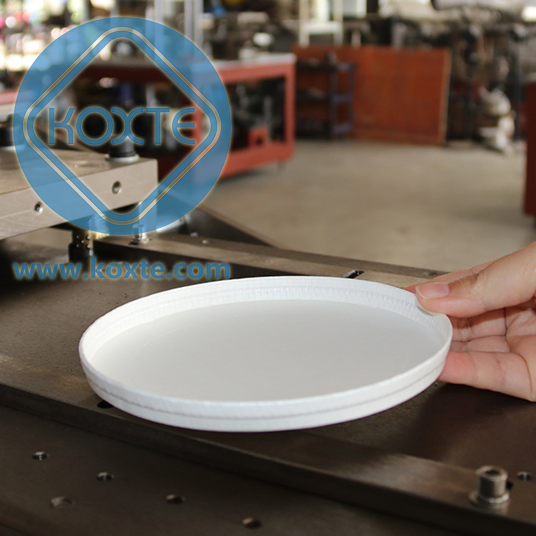

This Double Layer Paper Lid Forming Machine is developed based on the full absorption of advanced technology. It is easy to operate, stable in performance, and high in efficiency. It is an ideal equipment for producing paper container lids such as soup bowl lids, instant noodle bowl lids, coffee cup lids, and ice cream paper cup lids.
As a global manufacturer of packing machines, we prioritize quality innovation. From R&D design and parts procurement to assembly and quality inspection, our systems are designed to meet diverse customer needs.
