Stable servo transmission, low maintenance, and user-friendly interface. Ideal for factories needing high output, stable performance, and enhanced safety protection.

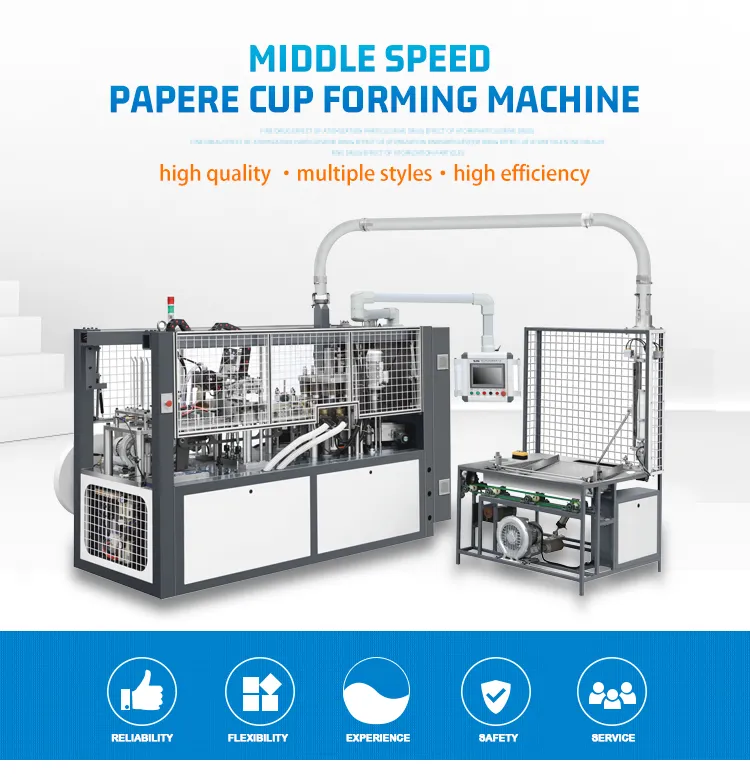

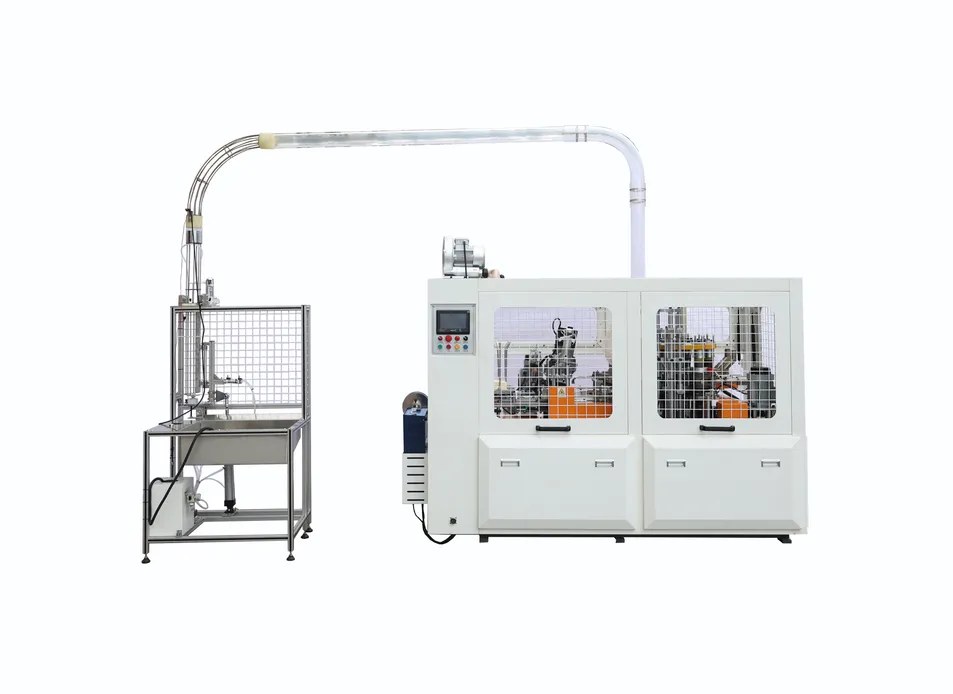

Our Full-Servo Paper Cup Machine is engineered for high-speed production with maximum stability. Unlike traditional chain-driven machines, the servo system ensures lower noise and a longer lifespan.
| Item | Specification |
|---|---|
| Machine Weight | 4200 kg |
| Packing Size | 2800 × 1450 × 2000 mm |
| Power | 3ph 380V, 32KW |
| Air Requirement | 0.6–0.8MPa, 0.5 m³/min |
| Speed | 160–200 pcs/min |
| Paper Type | Single PE / Double PE / PLA |
| Paper Weight | 190–320 g/m² |
| Cup Size | 6–16 oz (D1: 60–90mm / D2: 45–65mm / H: 60–138mm) |
| Control Panel | 10-inch touchscreen |
| Cup Detection System | Optional Vision System |
We are a large-scale comprehensive engineering machinery production enterprise integrating R&D, production, and sales. With a 50,000 square meter modern production plant, we have obtained ISO9001 international quality management system certification, AAA credit enterprise certification, and SGS international certification.
