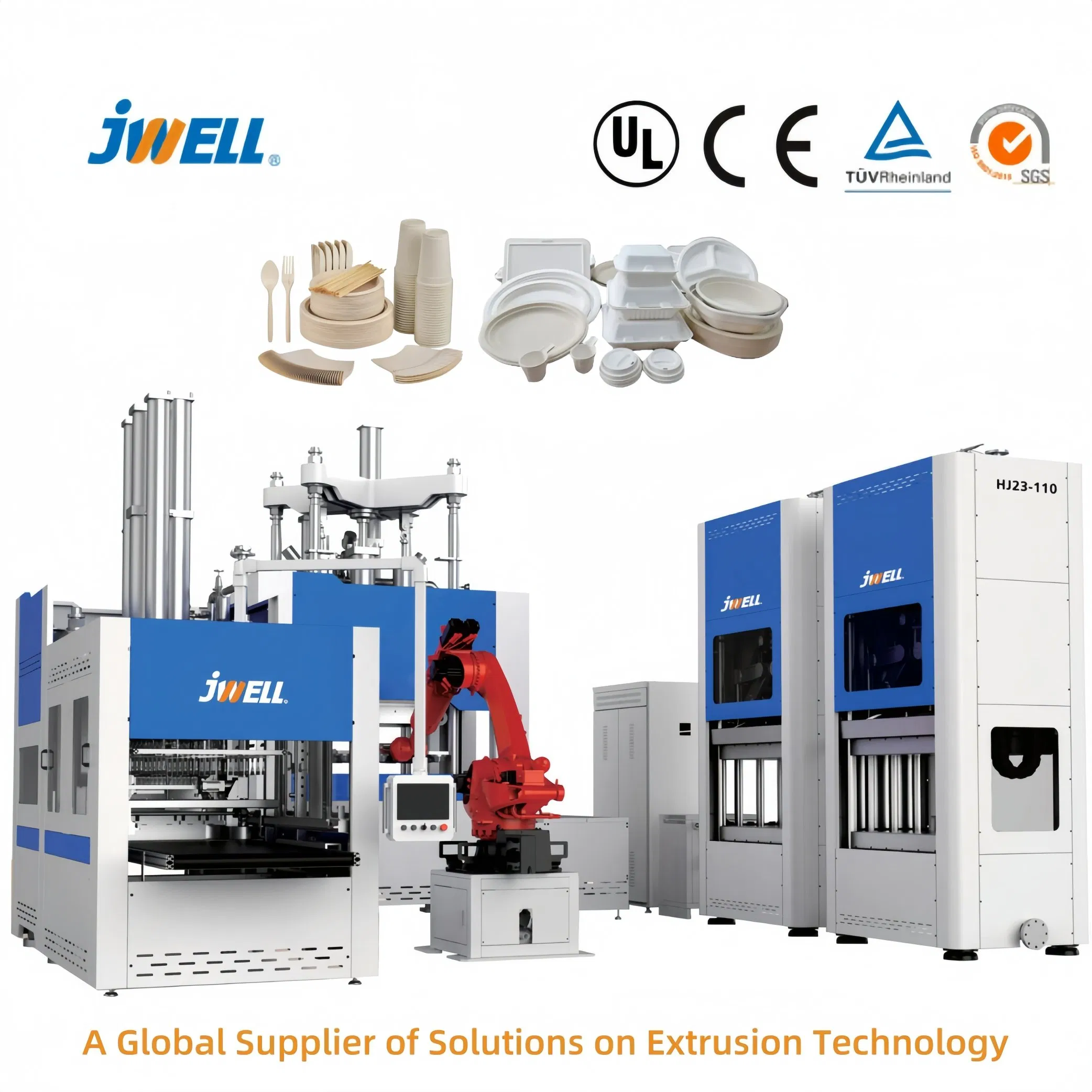

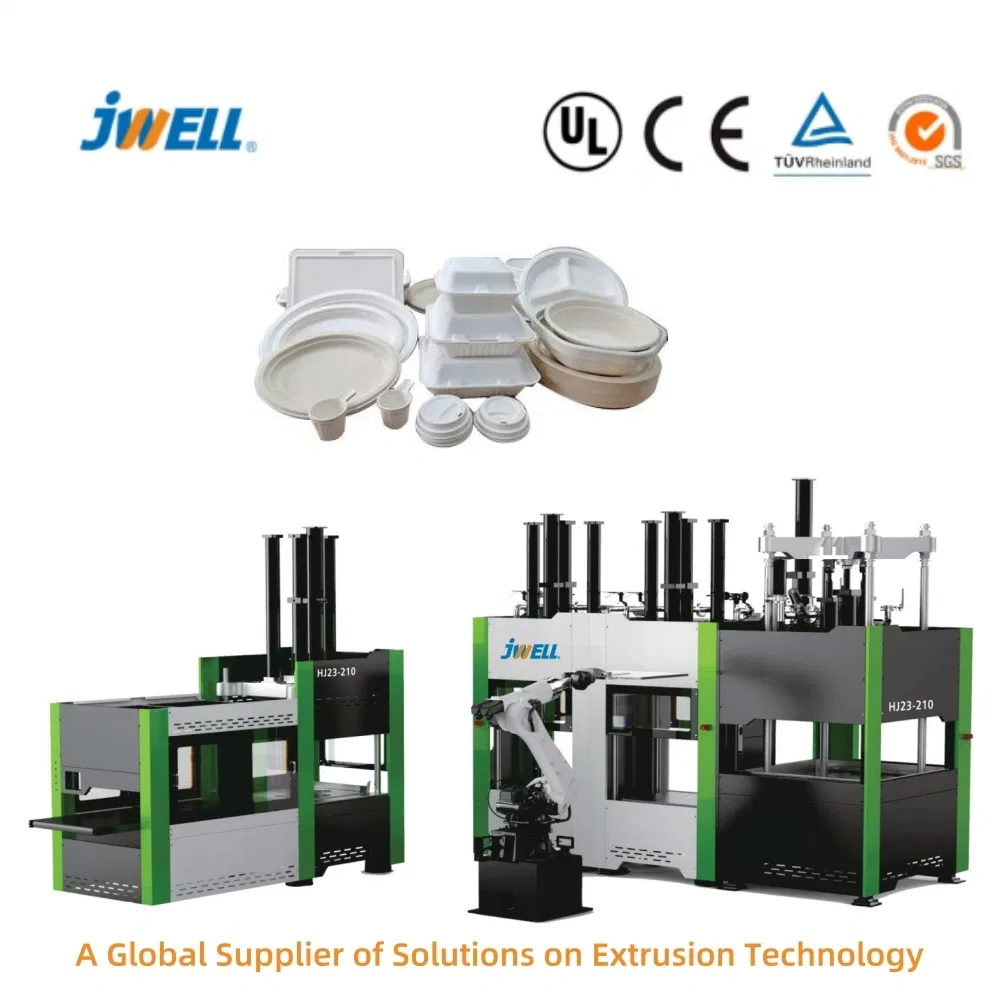

Compostable automatic sugarcane bagasse, wood chips, bamboo, corn stalk, wheat straw, and plant fiber molded tableware production line.

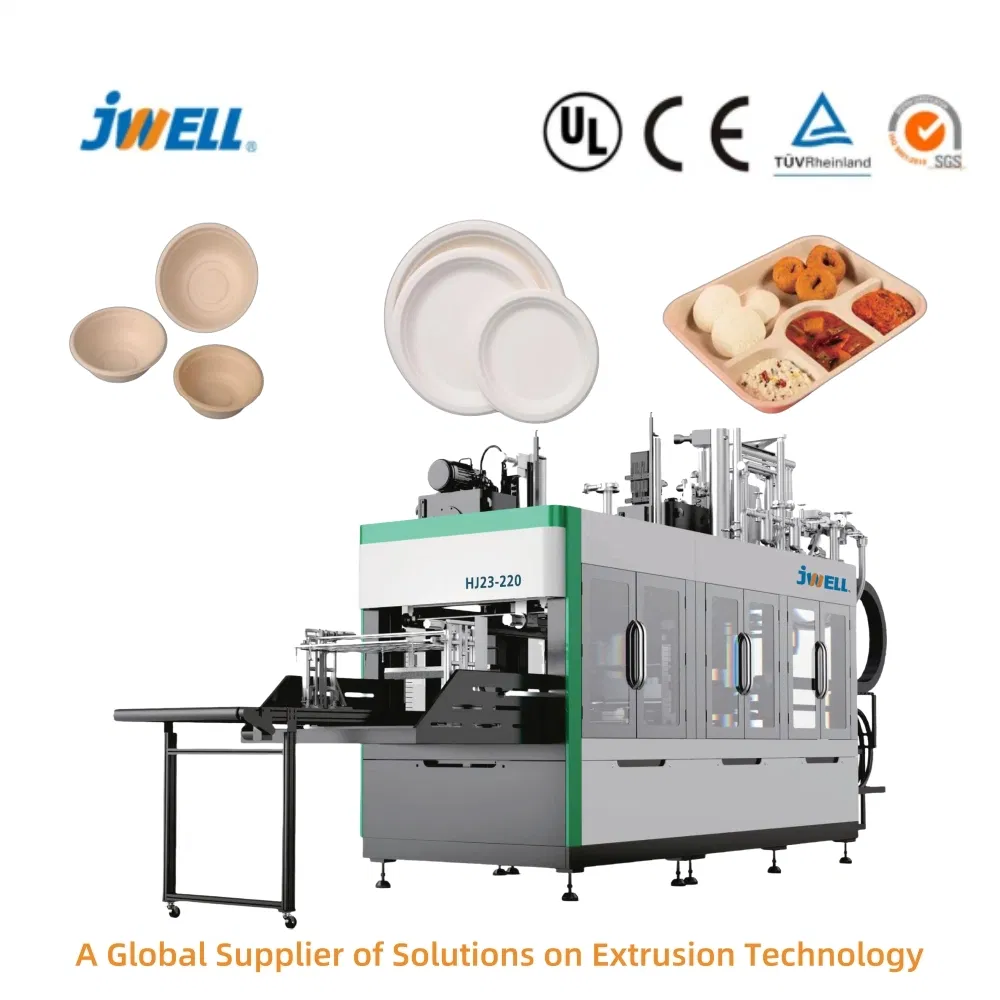

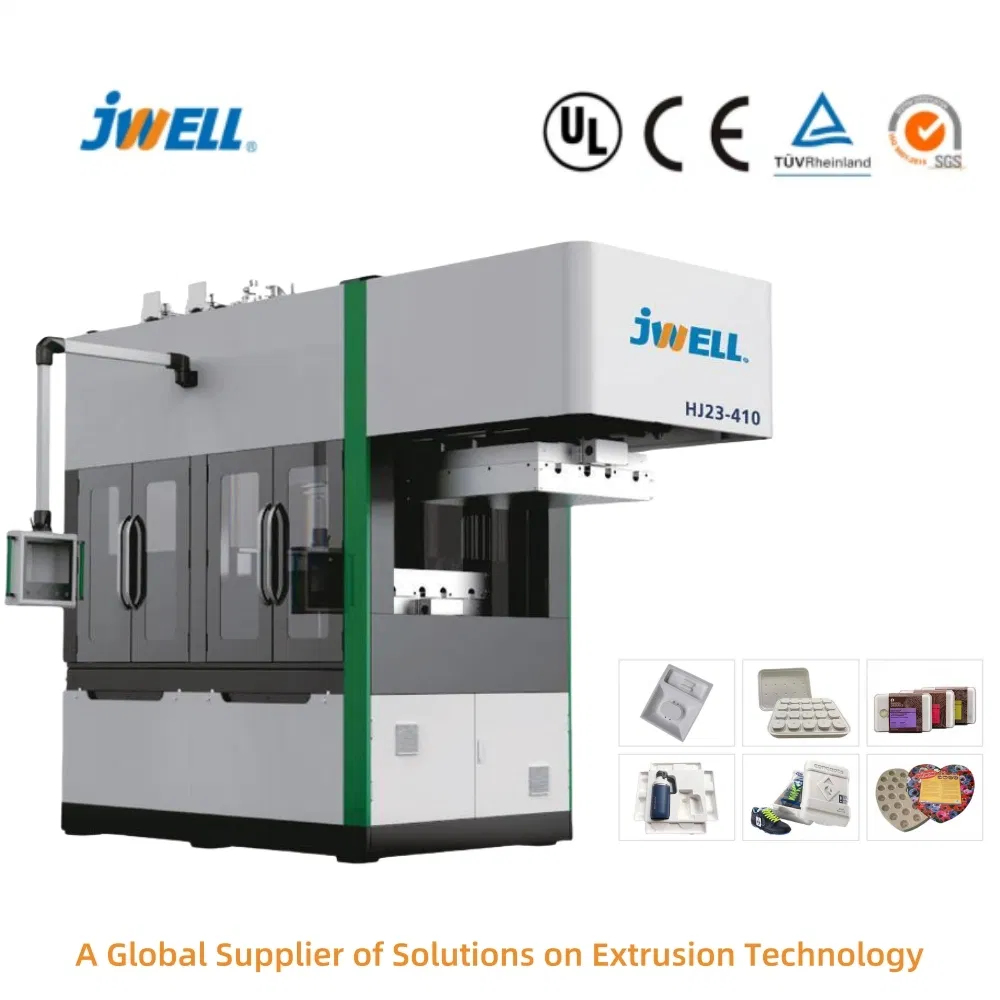

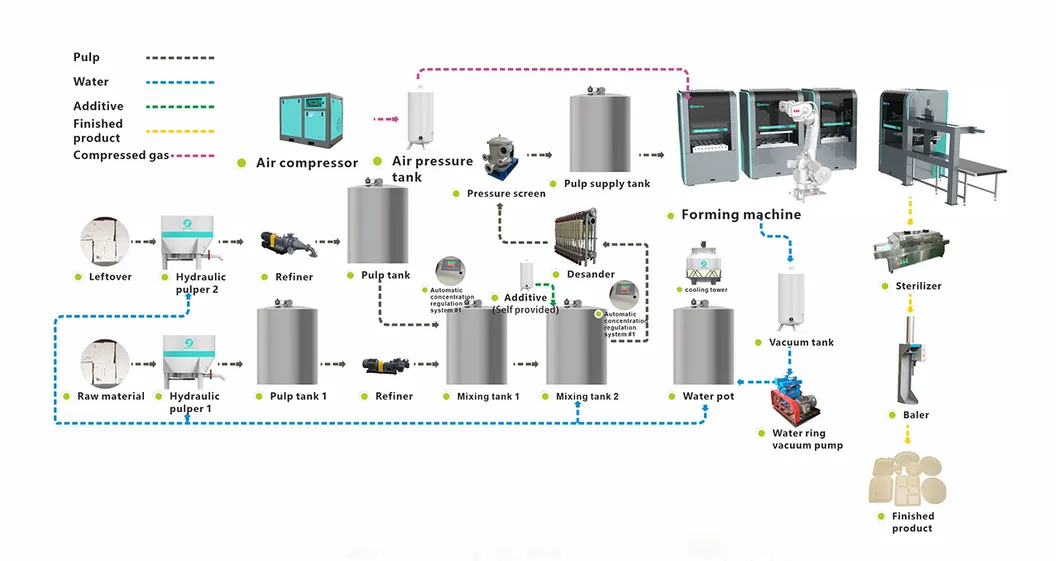

Fully automatic pulp moulding equipment: Suitable for tableware, cup lids, and fine molded pulp packaging. The process includes forming, heat-pressing solidification, margin trimming, and side punching, all completed in one machine.
| Model No. | HJ23-220D/Y (Electric or Oil Heating) |
| Outer Dimension | L9400 * W2000 * H4100 mm |
| Platen Size | 1100 * 1100 mm |
| Equipment Weight | 20T |
| Forming Method | Reciprocating |
| Max Product Height | 80mm |
| Drying Method | Dry in-mold |
| Transmission Power | 35KW |
| Pressure | 40T (Forming & Hot Pressing) |
| Capacity | 800-1000KG / 22H |
| Cycle Time | 28-60 seconds/drop |

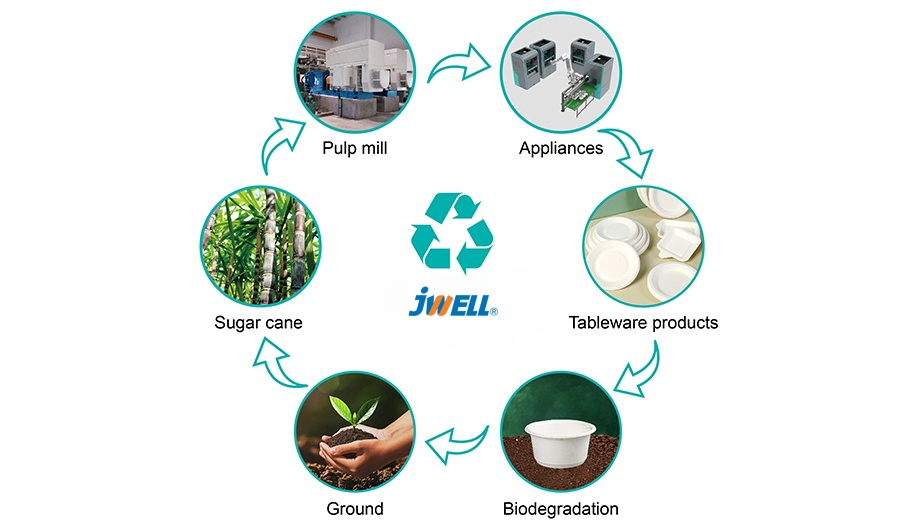

Biomass Fiber Processing: The machine processes corn stalk, wheat straw, palm, bagasse, bamboo, and wood chips into eco-friendly products. Standard requirement is pulpboard; fibrous biomass requires front-end pretreatment.

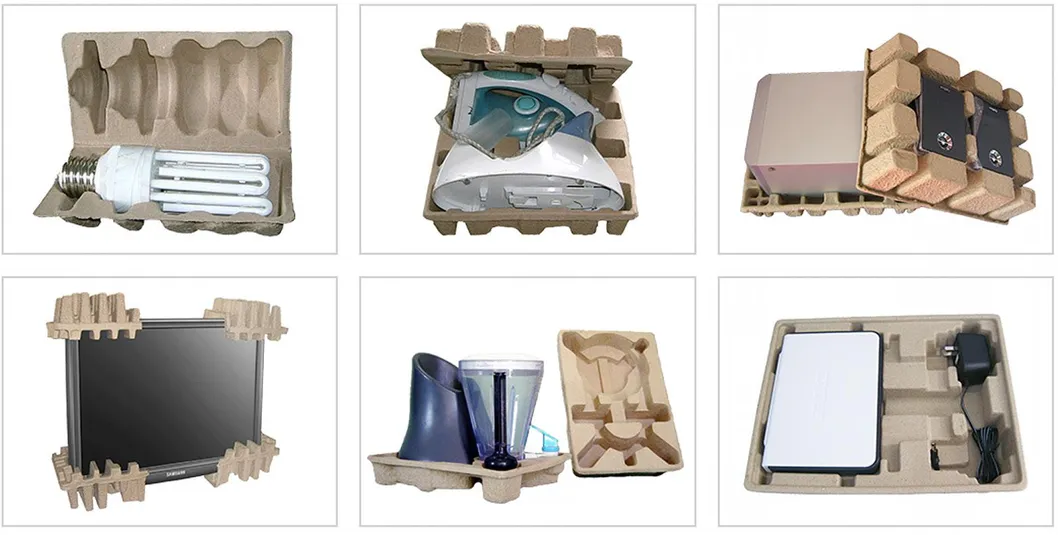

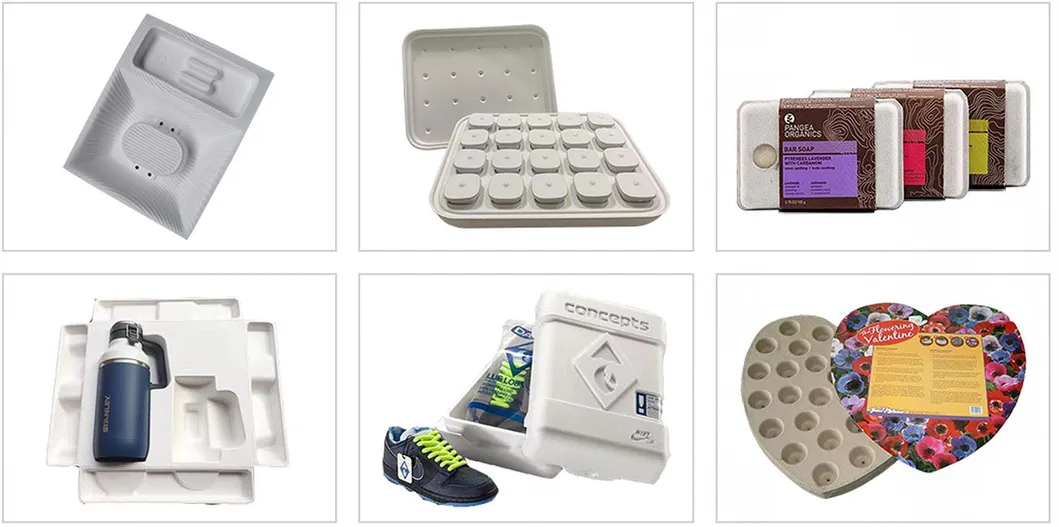

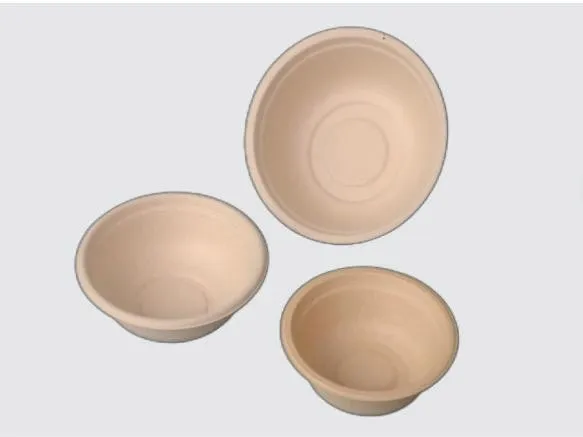

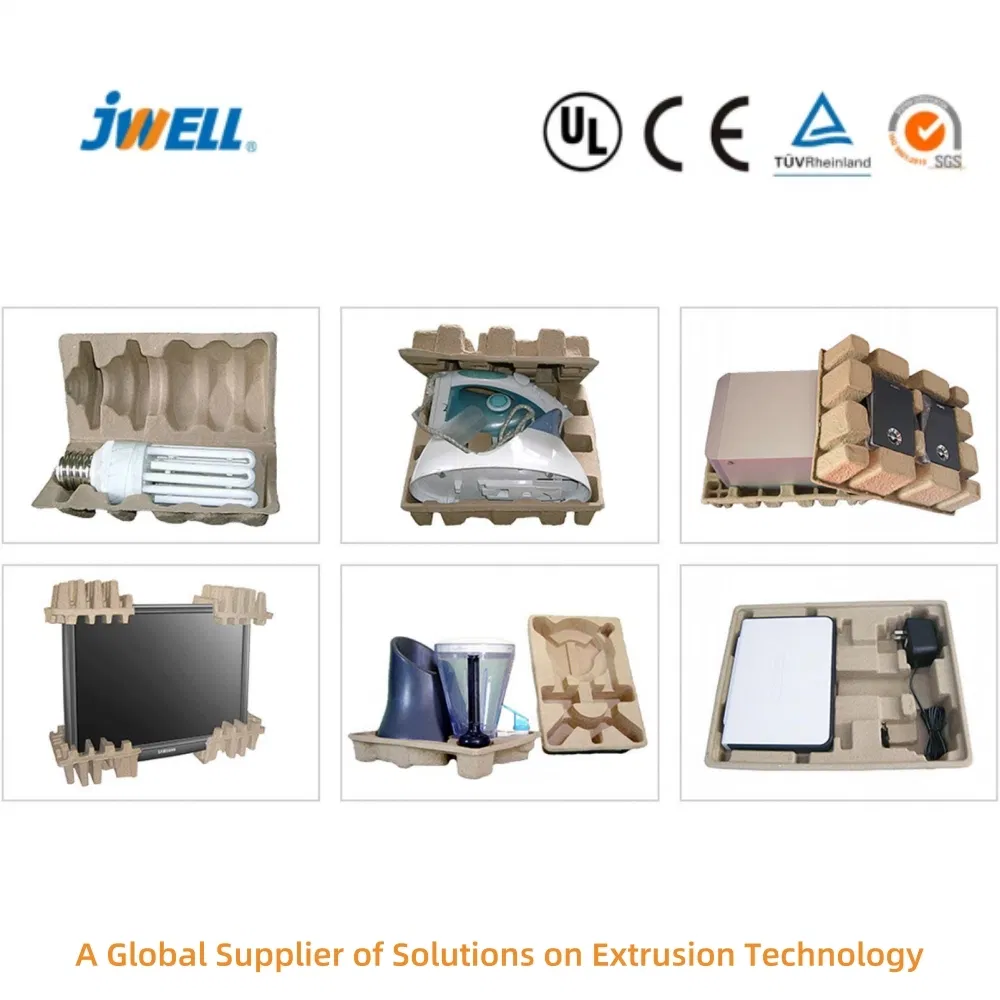

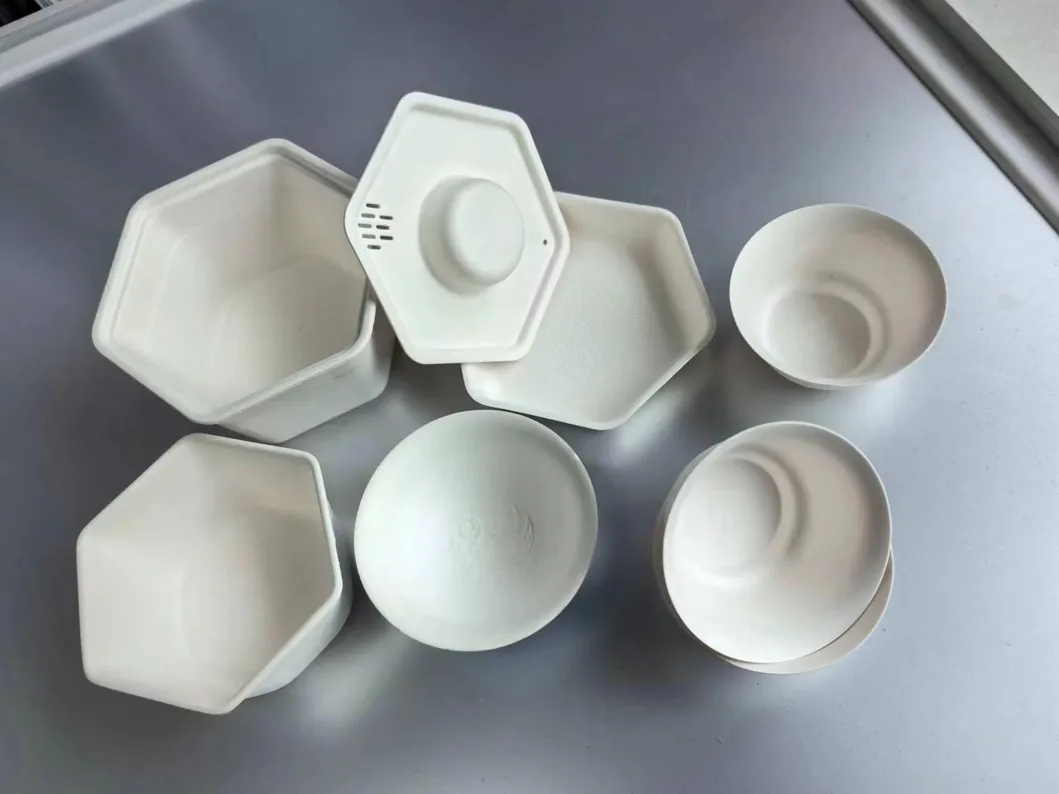

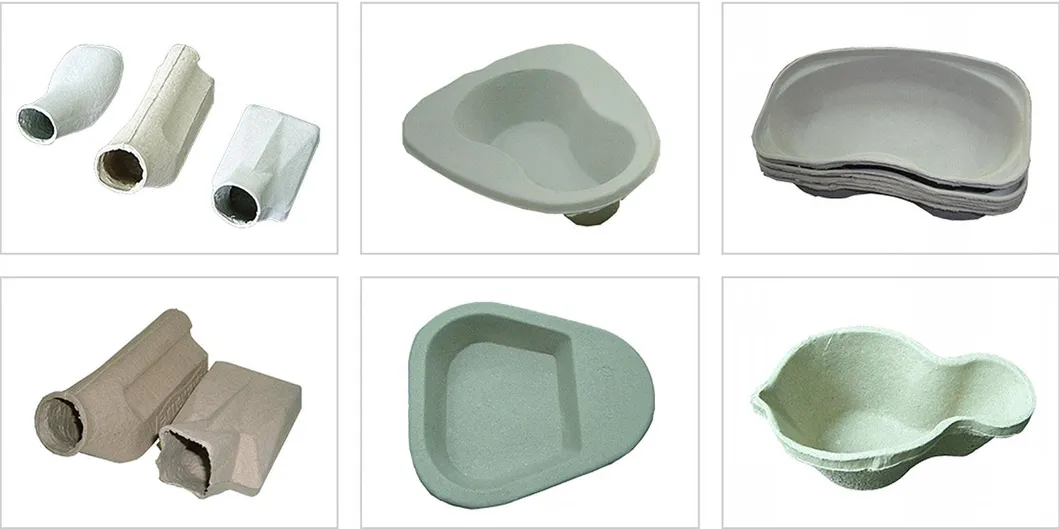

Specific molds turn pulp into two main categories: Tableware (boxes, bowls, plates, lids, spoons) and Industrial Packaging. Products are water-resistant and oil-resistant.
Consistent Quality & Brand Building
Every product represents safety, stability, and reliability. We use professional designing engineers to recognize market needs and provide competitive advantages.
Global One-Stop Solution
Flexible order quantities and customized designs for different project sizes. All key parts like screws, barrels, T-Dies, and rollers are strictly quality-controlled.
