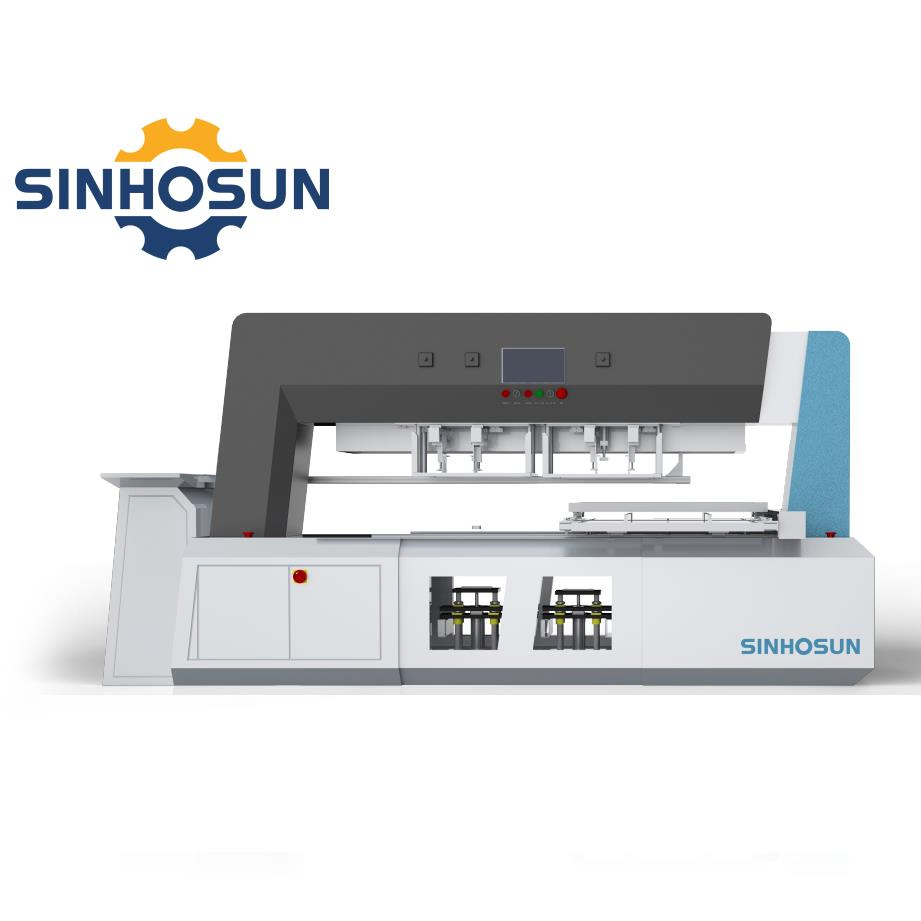

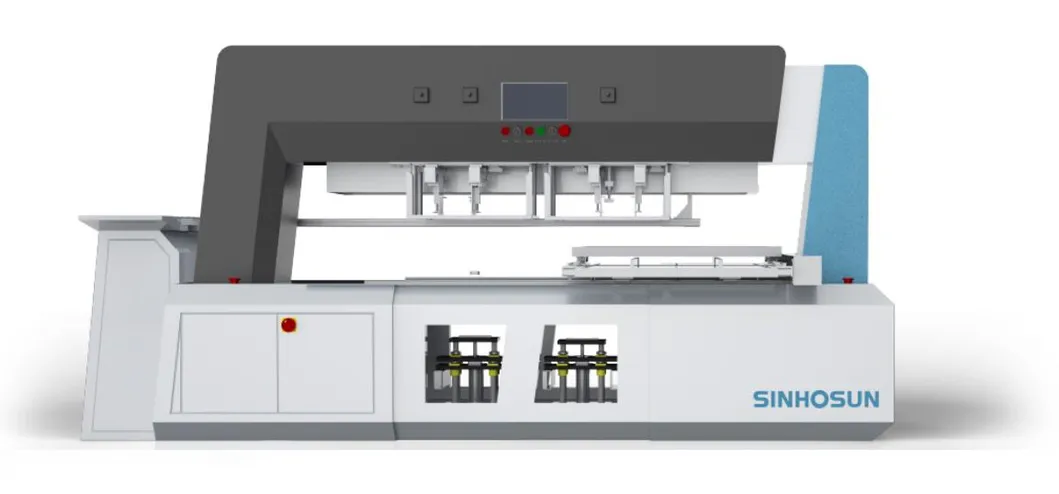

This machine is used to strip the waste paper of product after die-cut. It can realize the stripping of the packaging boxes, trademark(LOGO), lock bottom boxes, self-locking boxes and so on. Using Servo motor driven and adopting the imported high precision ball screw and linear guide drive to avoid the integrating error and positioning error when machine is working; With PLC controlling, it is convenient to operate, safe and reliable. Cross- tropsch paper-driving platform can protect the product and the 90°corner conveyor belt to transports the product to the front of the machine to improve efficiency. Also the machine could be operated by just one person. Save cost of labor and management.
| MODEL | SH-1020SJN | WARRANTY | One Year |
| MAX.PAPER SIZE | 1020×960 mm | MIN.PAPER SIZE | 300×300 mm |
| MAX.MARK STRIPPING SIZE | 450×350 mm | MIN.MARK STRIPPING SIZE | 30×30 mm |
| SIZE OF ROBOT RECLAIMER | 50×50-350×350 mm | THE PAPER HEIGHT | 50-85 mm |
| MARK STRIPPING SPEED | 1-18 Times/Min | MAX.WORKING PRESSURE | 2.5 T |
| OVERALL POWER | 7 kw | PRESSURE | 6-8 Bar |
| OVERALL WEIGHT | 2400 kg | DIMENSION(L*H*W) | 4395×2000×2000 mm |

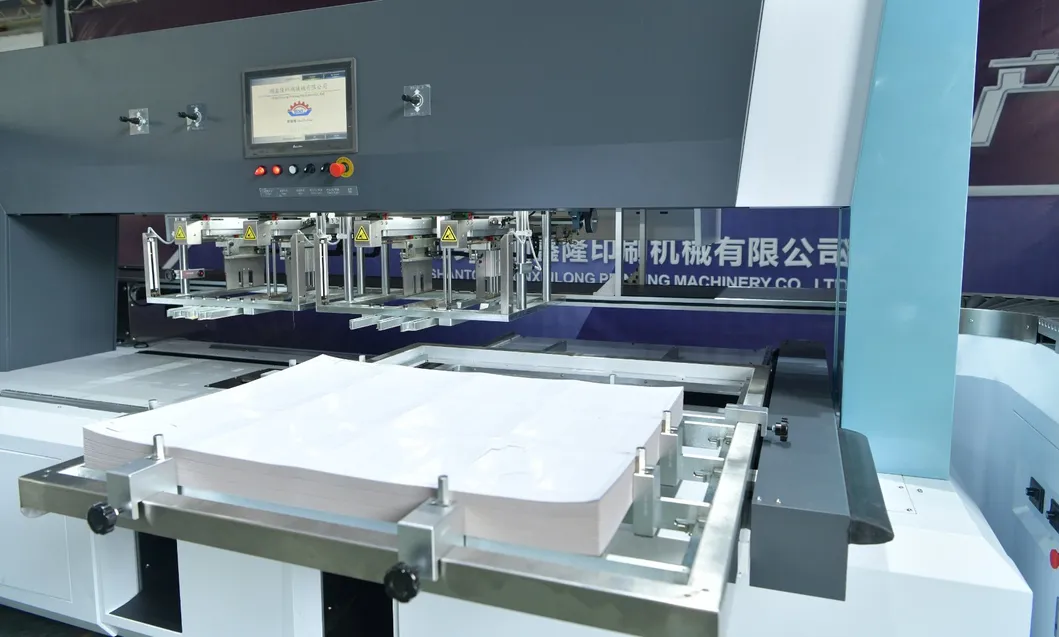

The body of gantry structure, appearance of the atmosphere, sophisticated manufacturing.

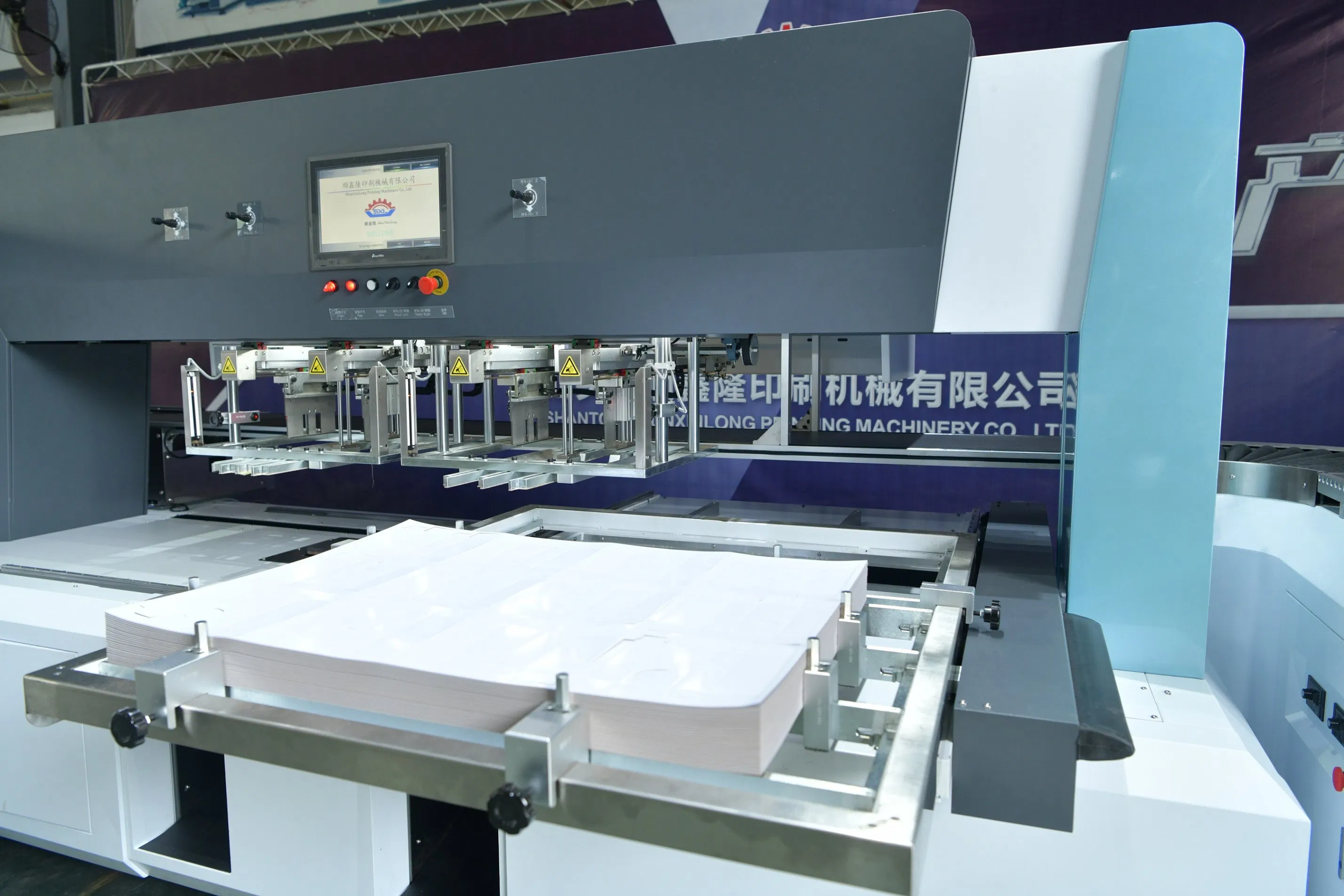

1. Cross- tropsch paper sets off headers immobile; cross- tropsch products from paper-driving, avoid friction damage to the product;

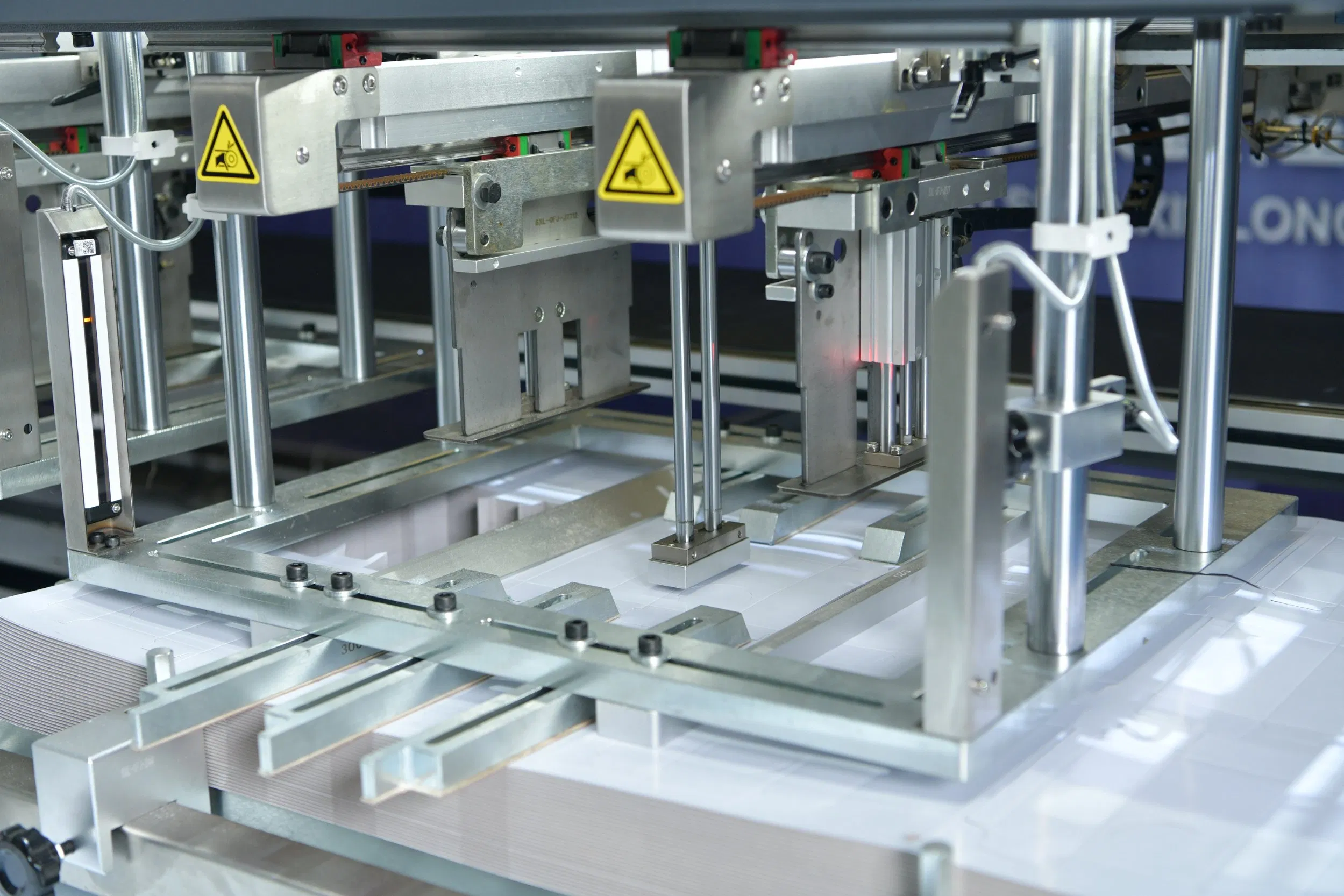

2. Adopt the imported high precision ball screw and linear guide drive, avoiding the integrating error and positional error when machine is working.

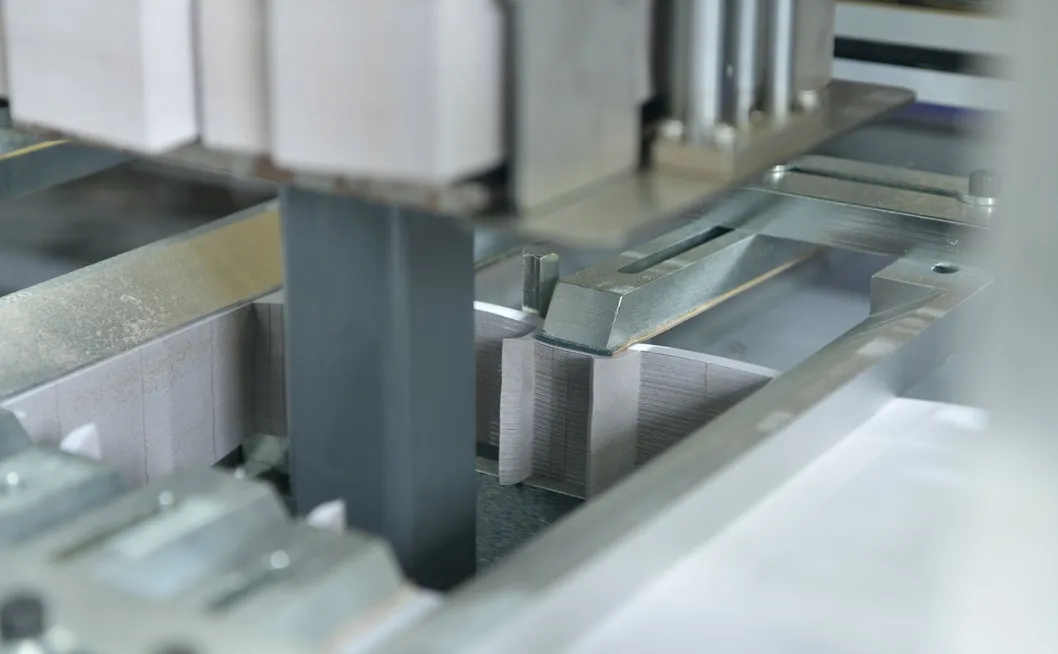

Modular stripping instead of traditional thimble stripping, easy to install, reduce set up time less than 20 minutes.

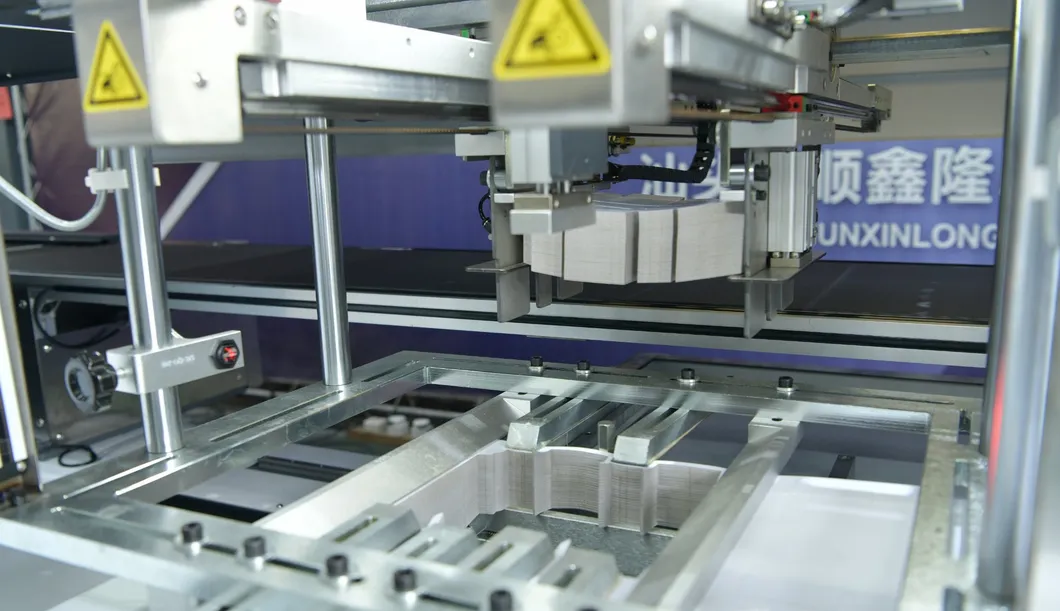

Automatic robot dispensing, controlled by the reversible gear motors, pneumatic clamp the material, finished products to the conveyor belt, improve transport efficiency, reduce labor costs, and improve productivity.

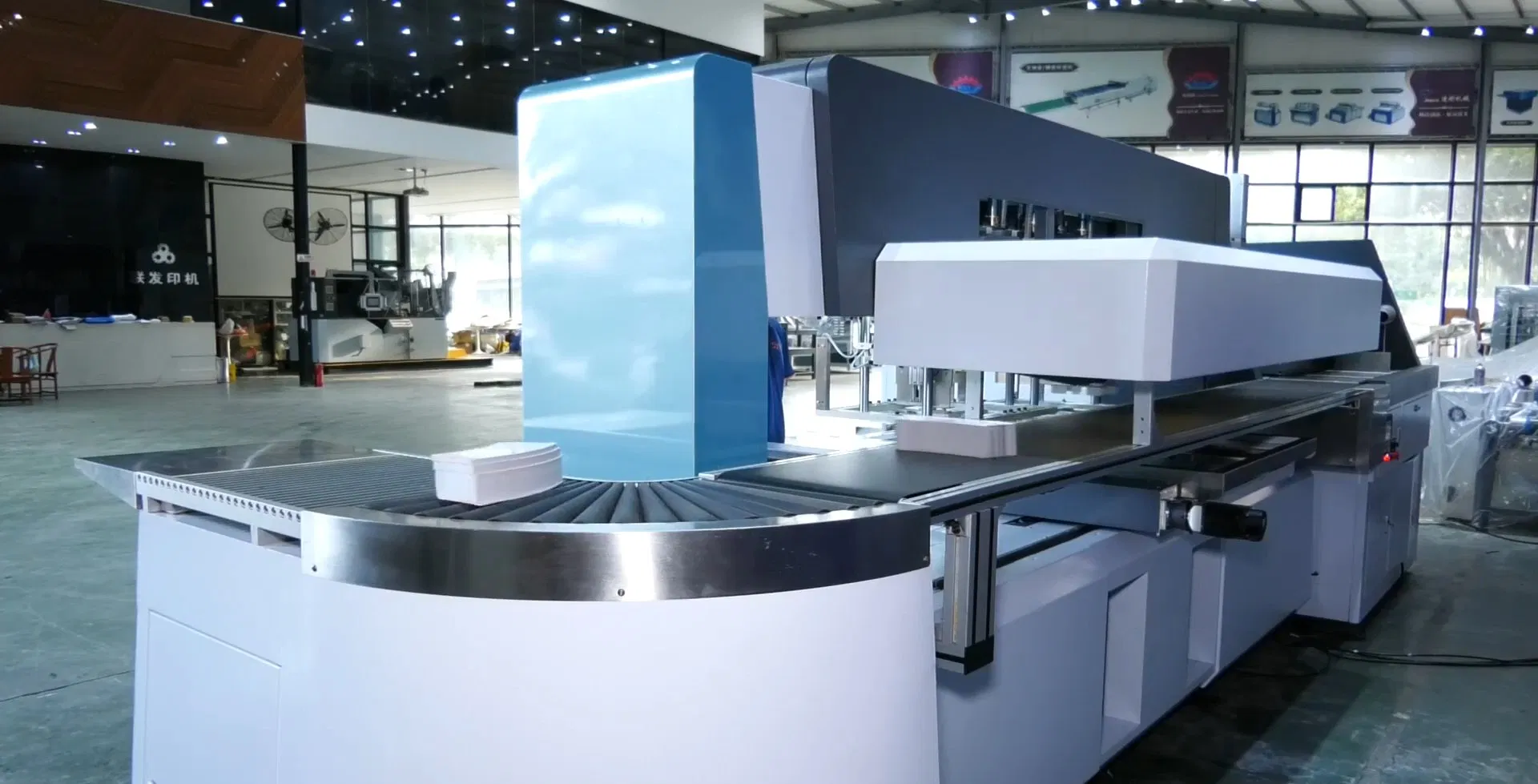

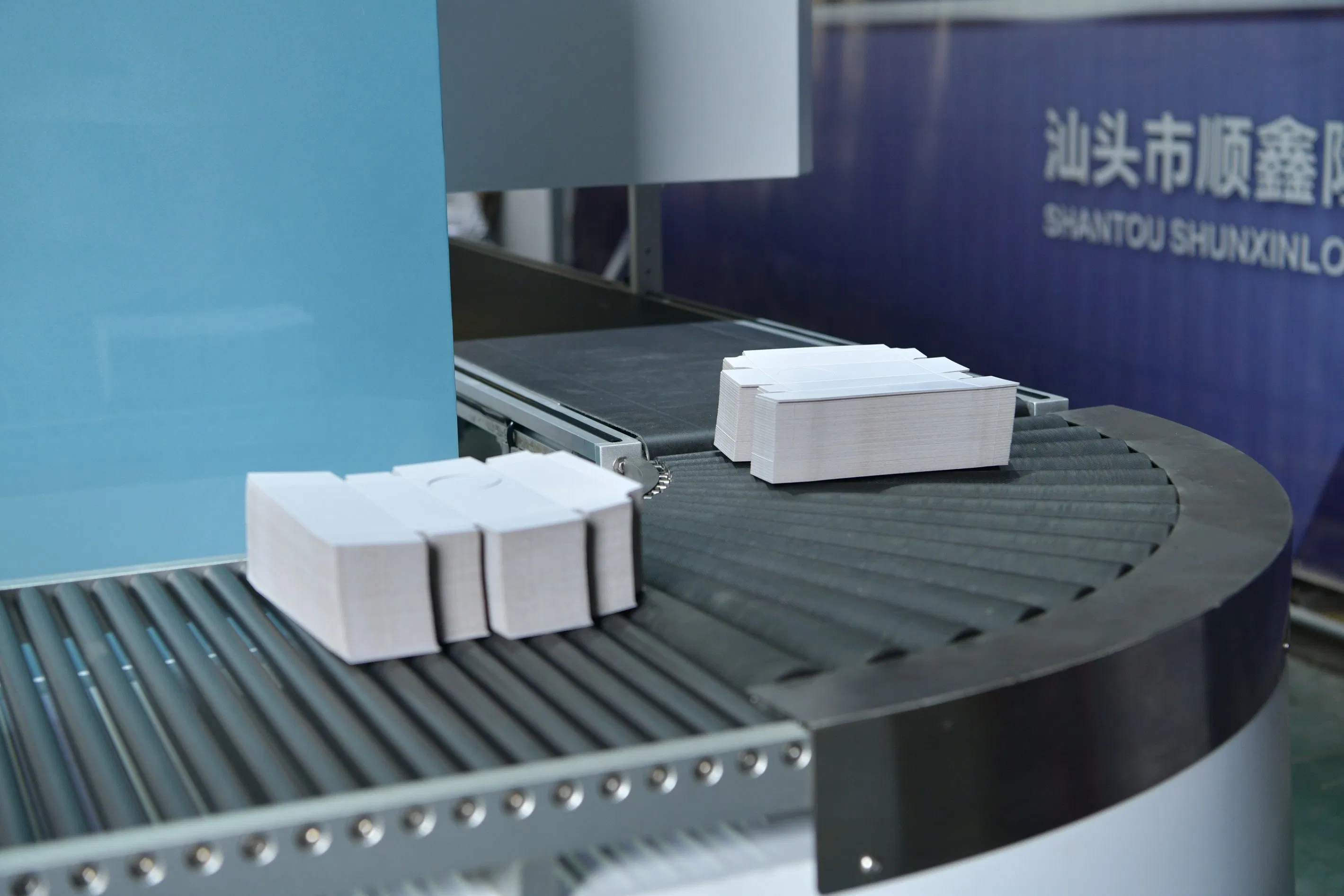

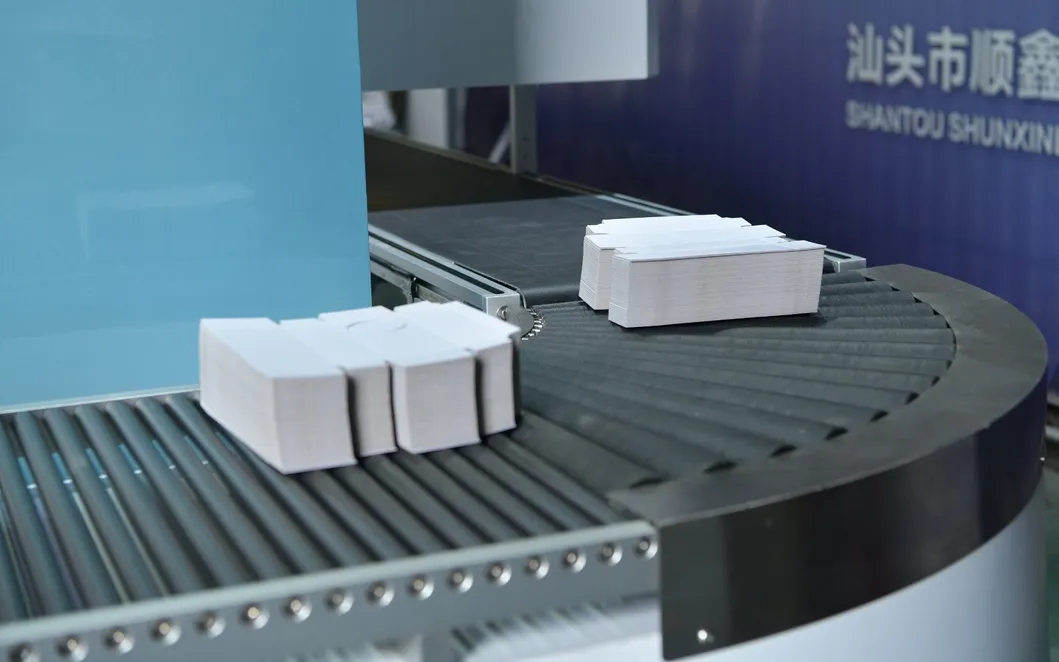

90°corner conveyor belt to transport the product to the front of the machine to reduce labor costs, facilitate product placement.

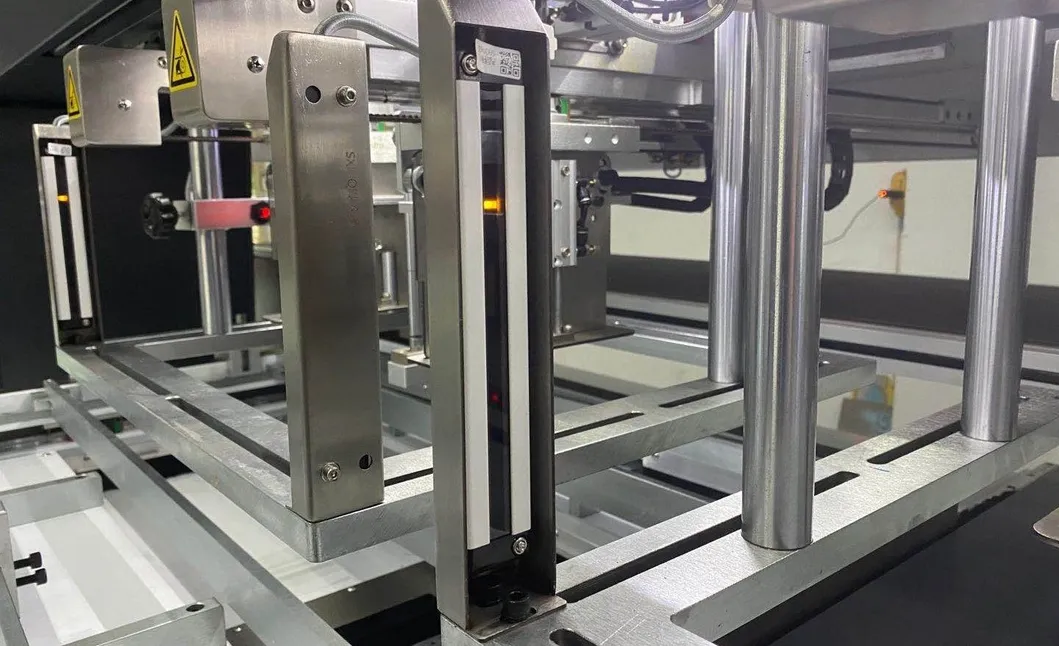

Equipped with infrared sensor, the machine will automatically stop when something enter the pick-up area, to avoid worker injury and machine damage.
Service is our core. Our "lifetime worry-free service" covers the whole life cycle of equipment from service efficiency, service speed, maintenance cost and quality standard, realizing a customer-oriented value chain.
According to your requirements and the providing box sample specification, our team will provide professional technical consultation services, develop relevant solutions, and provide the performance and characteristics of products. We can custom machine for your special requirements.
1. Record Management: We implement a whole-process tracking management system from the factory to the useful lifespan of the products, including assembly, installation, training, and maintenance records.
2. Warranty: One-year warranty and lifetime technical assistance. During the warranty period, we provide free parts replacement (freight borne by buyer).
Our Office

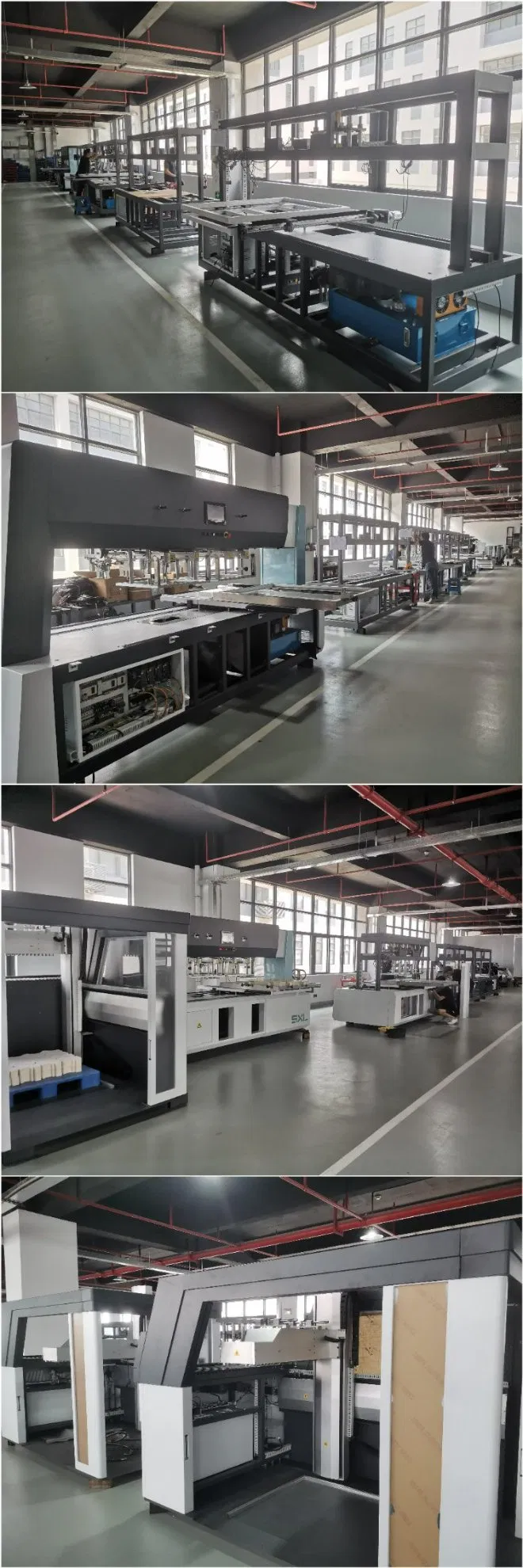

Factory Workshop
