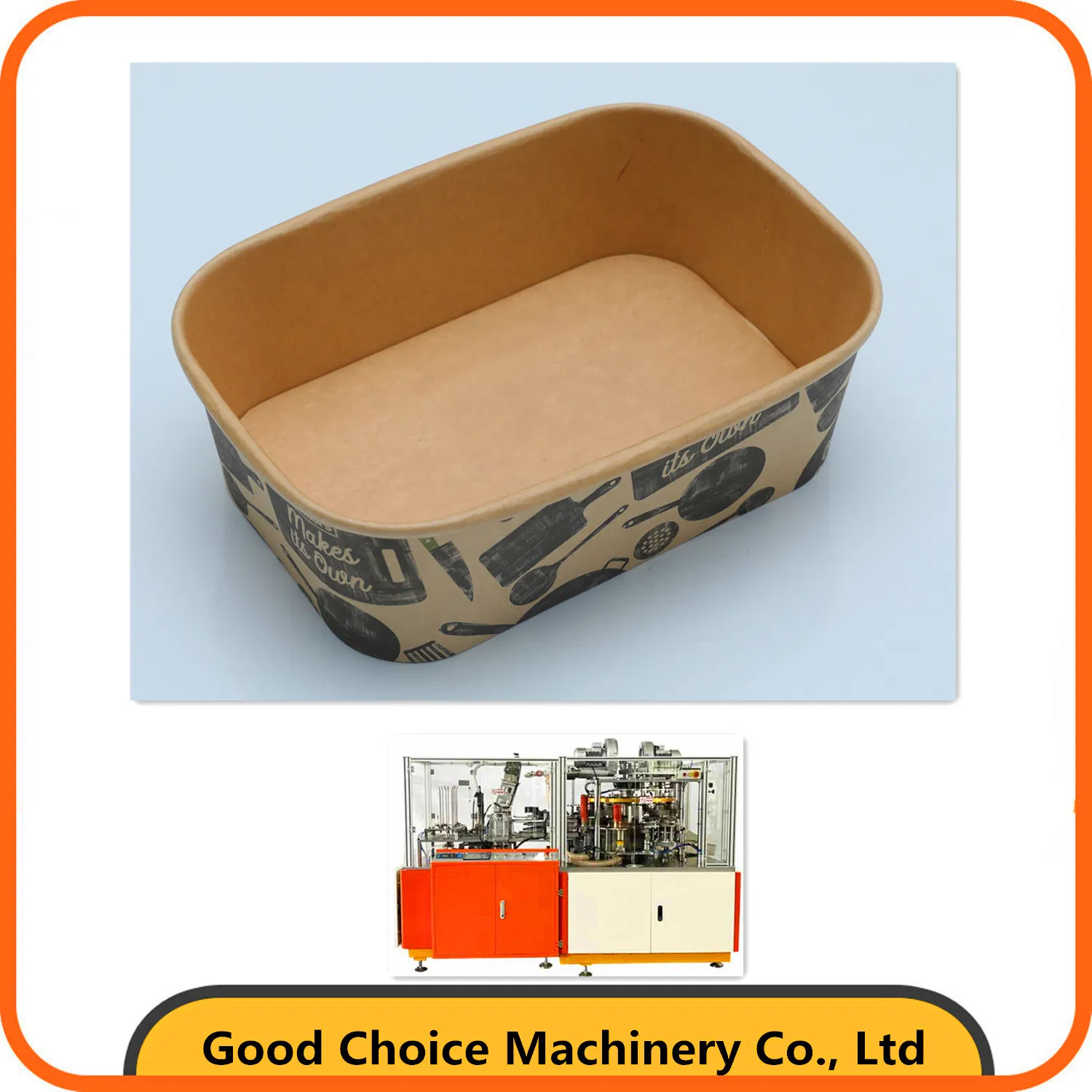

Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery
Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery
Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery
Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery
Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery
1 / 5
Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery
Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery
Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery
Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery
Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery

Rectangle Rectangular Paper Cup Making Machine/Square Paper Bowl Forming Machinery

Customization: Available
Warranty: 1 Year
Applicable Objects: Beverage
Send Inquiry

Product Description

📊 Basic Information
Model NO.
FW
Cup Size
2-22oz
Speed
60-80pcs/min
Required Paper
Single/Double PE Coated
Automation
Automatic
Certification
CE
Average Power
10kw
Total Weight
4500kg
Air Supply
0.4MPa, 0.4m³/Min
HS Code
84414000
🛠️ Product Description

Square Paper Bowl & Cup Making Machine

Advanced high-speed forming machinery for square and rectangular paper containers.

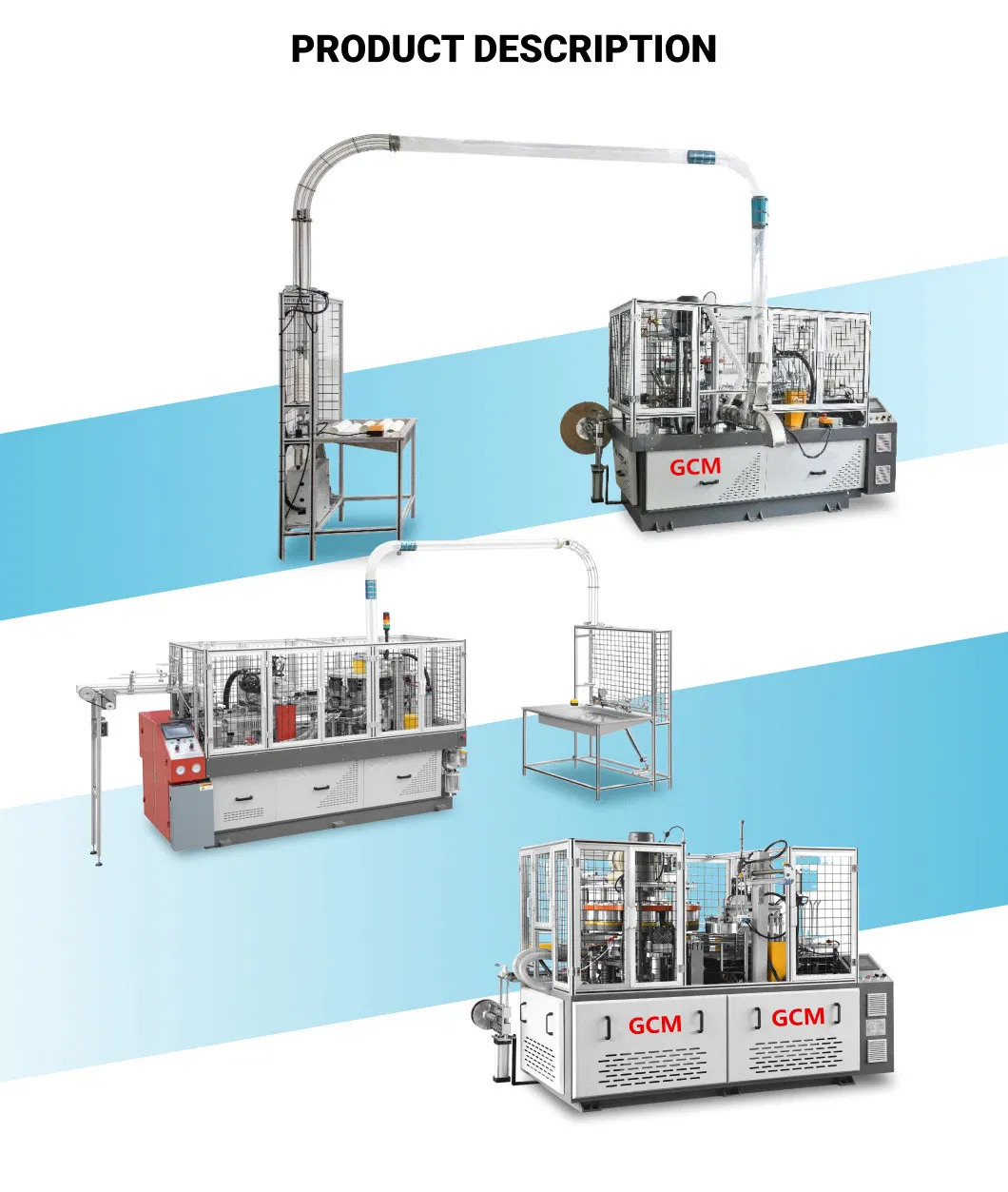

Square Paper Bowl Machine

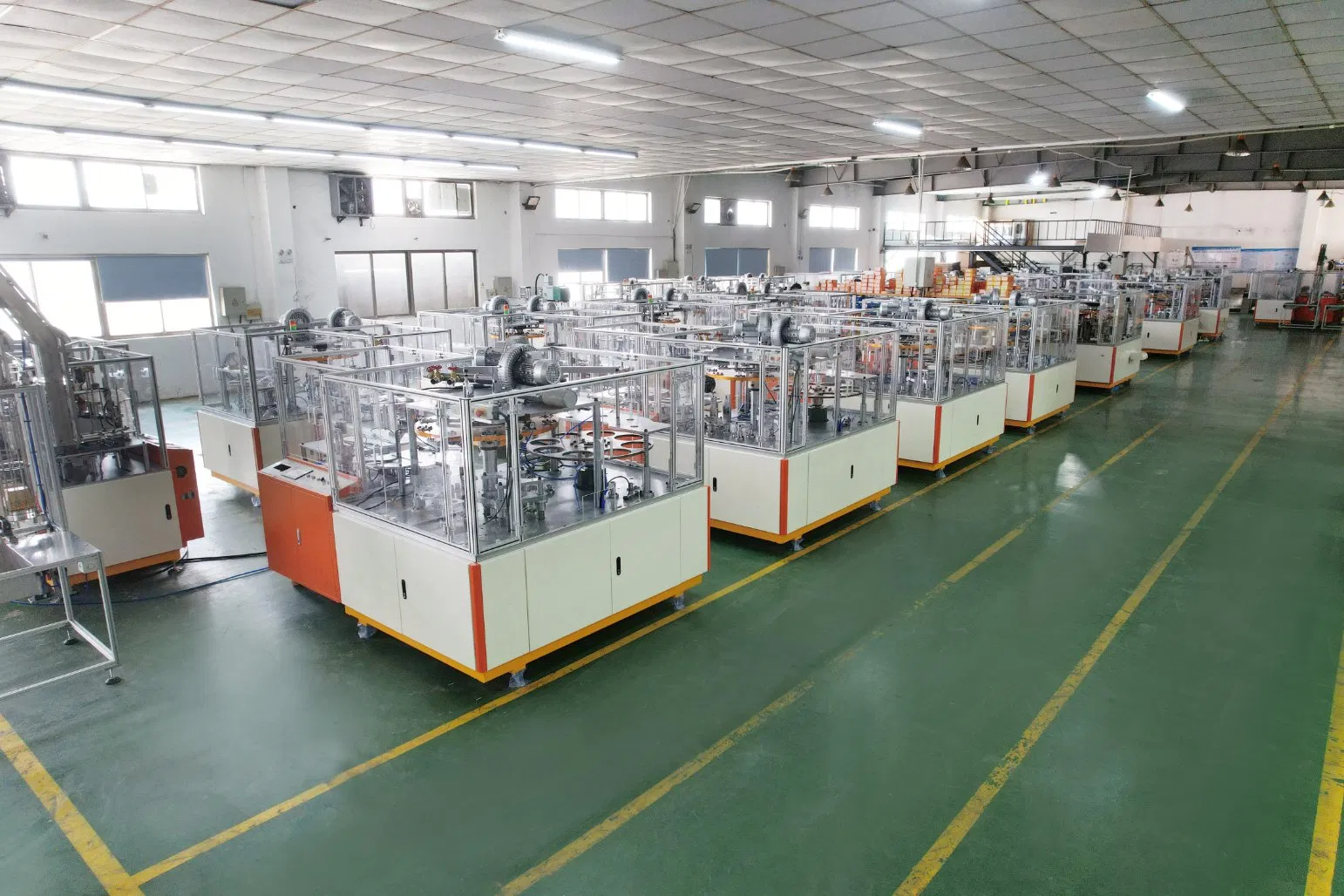

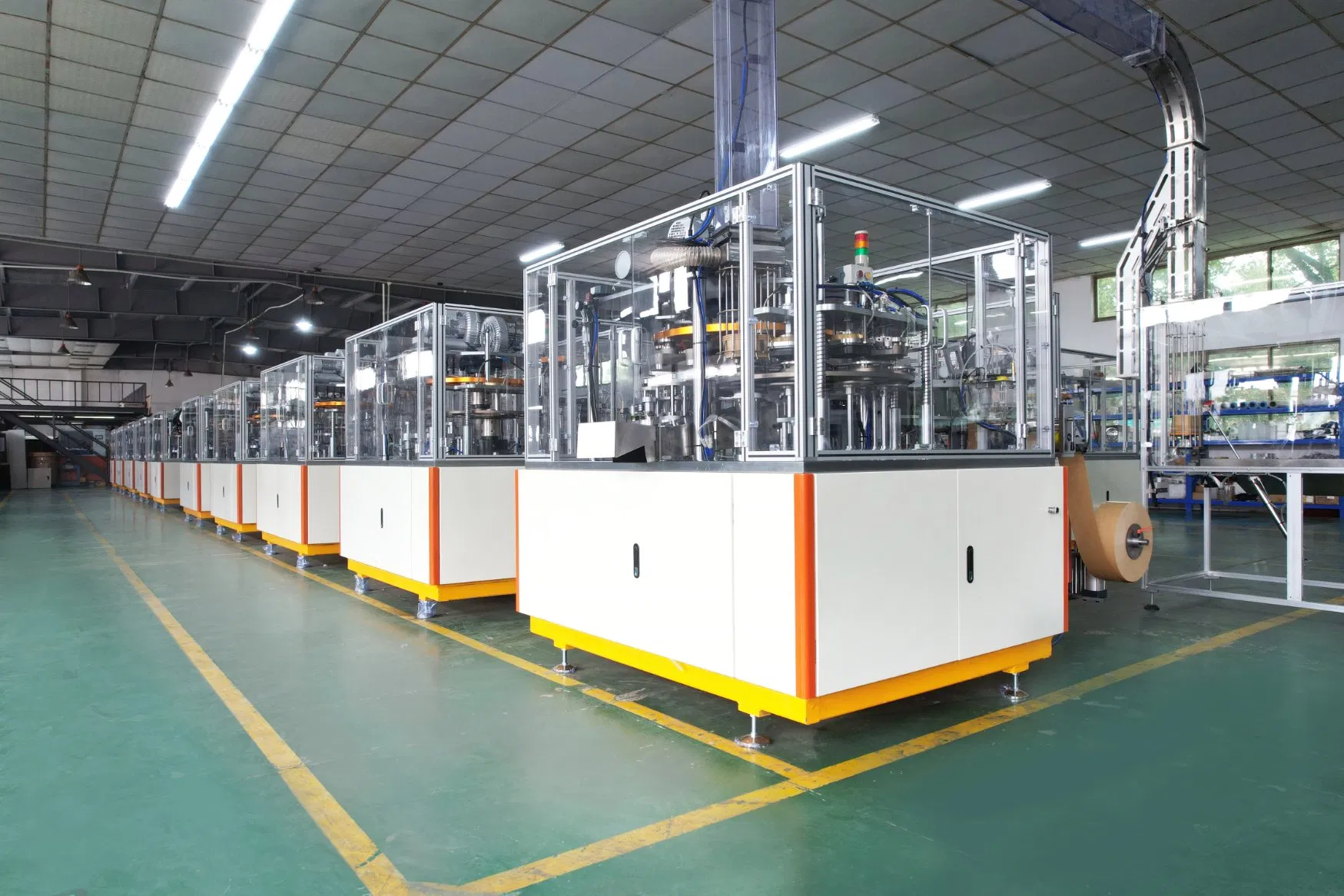

Machine Display

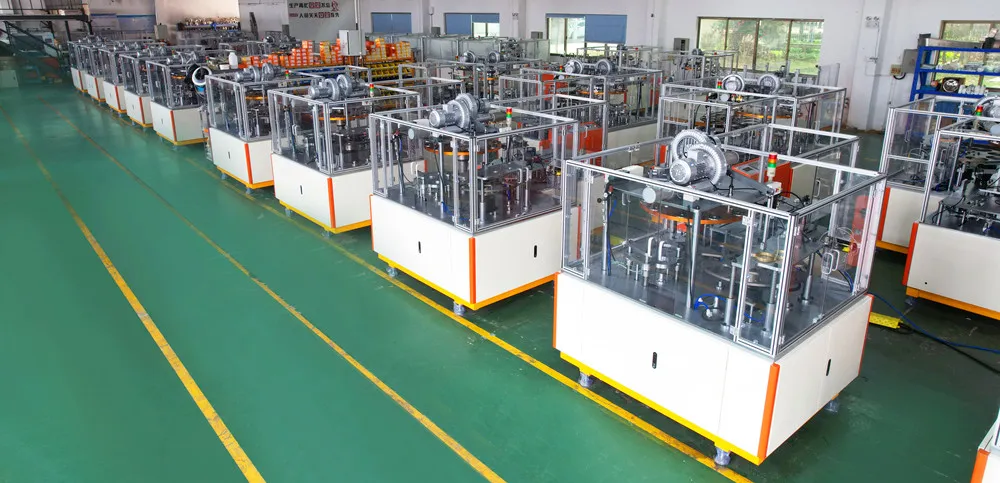

Machine View 1

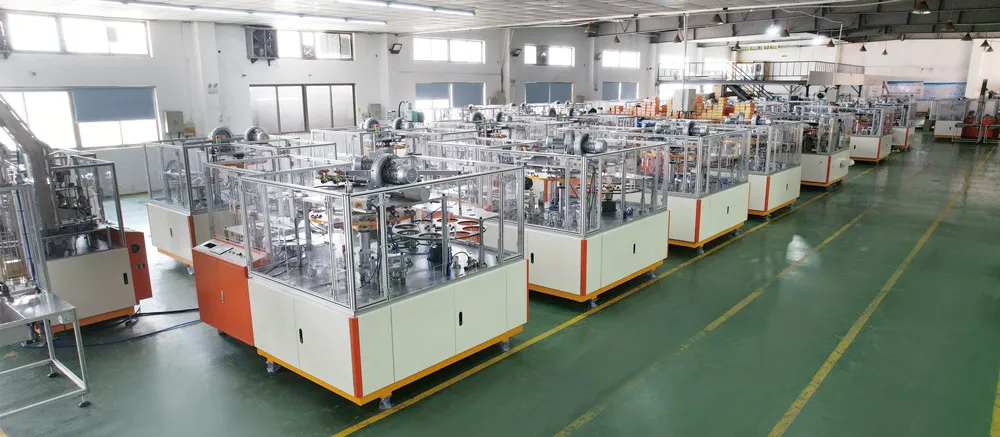

Machine View 2

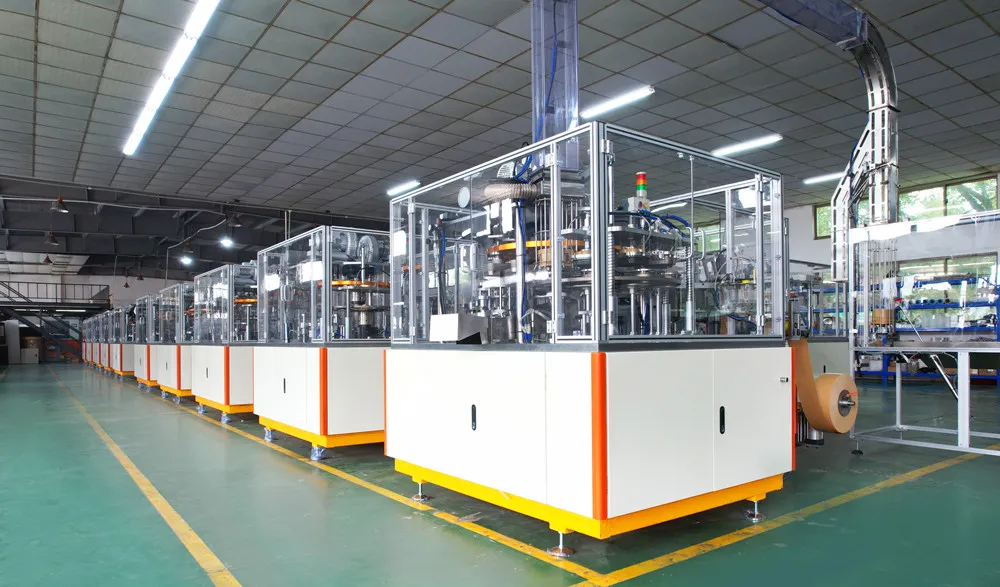

Machine View 3
Sample Products

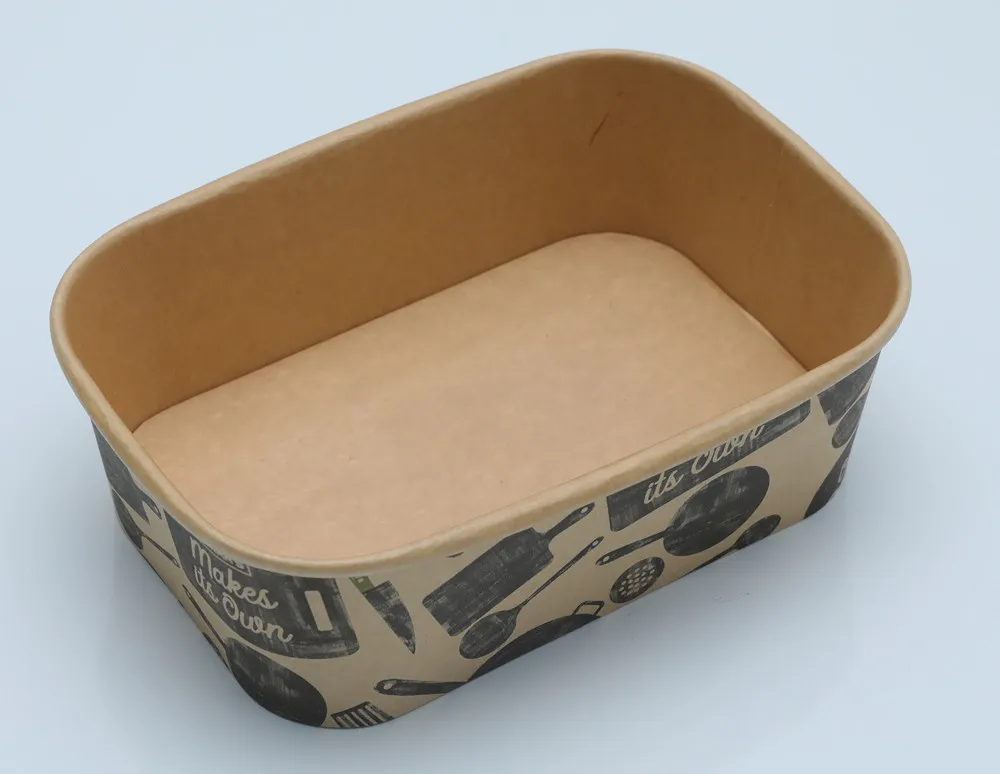

Sample 1

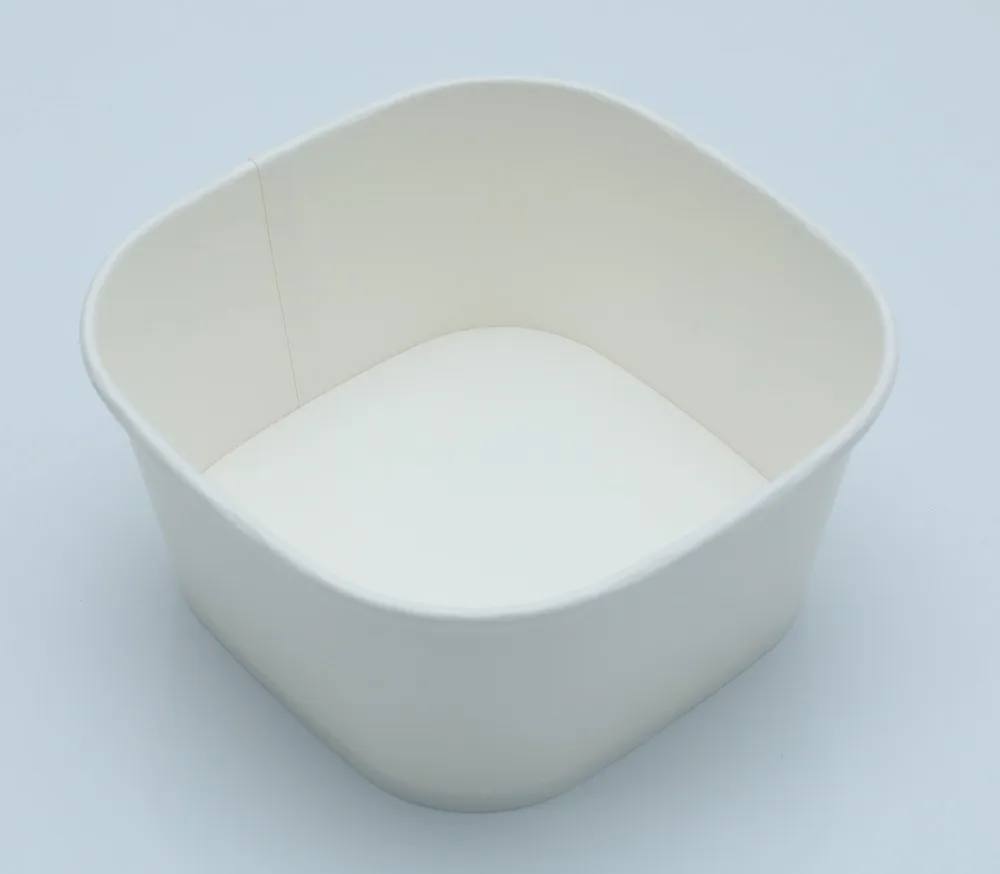

Sample 2

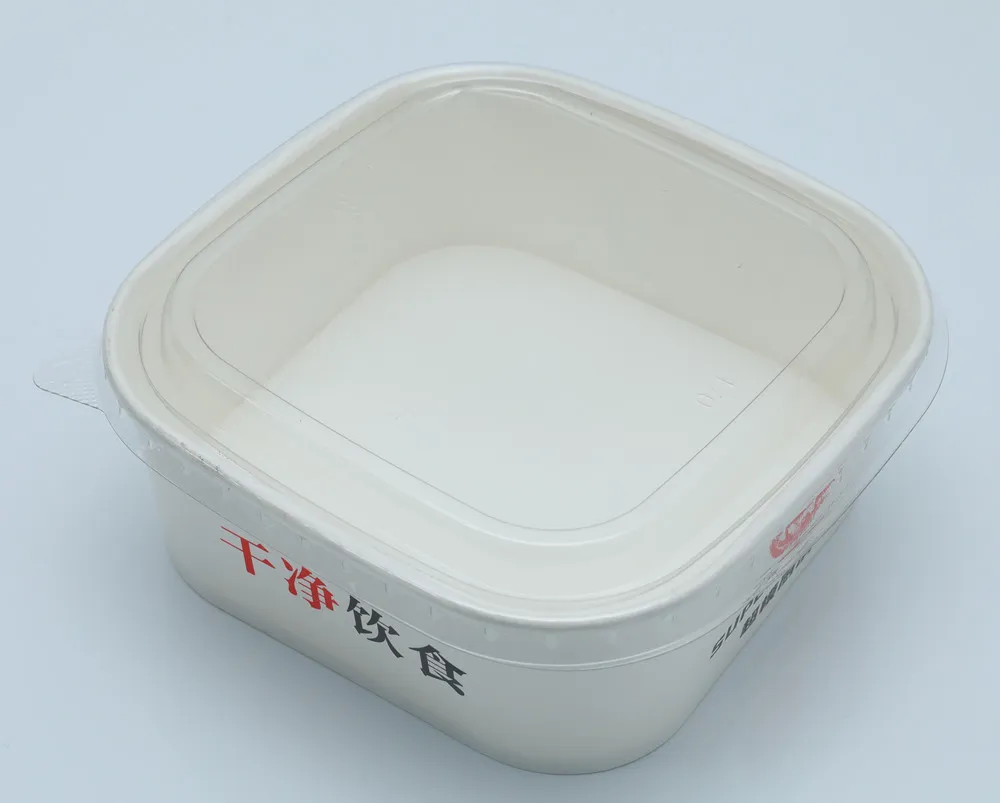

Sample 3
📋 Product Parameters

1. Square Cup Machine Details

ParameterSpecification
Speed75-85 cups/min
Volume250ml-800ml
Top Curl Diameter70-110mm
Cup Height60-130mm
Bottom Size50-100mm
Voltage380V 50HZ
Weight4000kg

2. Square Bowl Machine Details

ParameterSpecification
Speed65-75 cups/min
Volume500ml-1500ml
Top Curl Diameter120-180mm
Cup Height60-130mm
Bottom Size100-160mm
Average Power10KW
Dimensions2550x1760x1700mm
📦 Packaging & Shipping

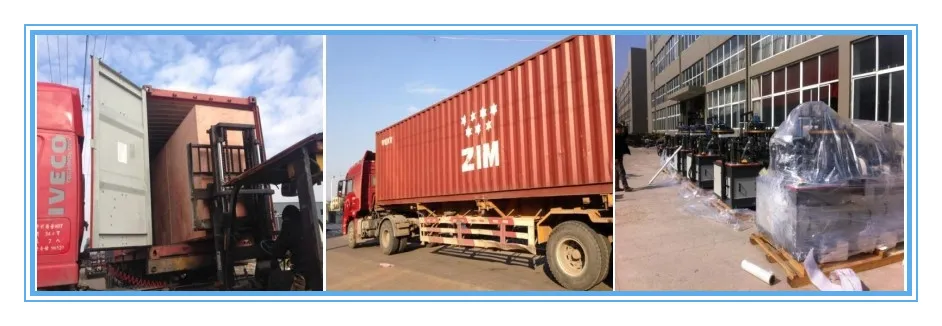

Standard Protection: All machines are securely packed in professional export wooden cases to ensure safety during international transit.

Wooden Case Packaging
🤝 Service Support

Pre-sales Service

  • Professional product consultation and technical guidance.
  • Free paper cup samples (shipping cost not included).
  • Factory inspections and live machine demonstrations.

After-sales Service

  • 1-year comprehensive machine warranty.
  • On-site technician dispatch for installation and adjustment.
  • One-year supply of free consumable spare parts.
  • Professional video guidance and remote technical support.
❓ Frequently Asked Questions
How is the machine price determined?

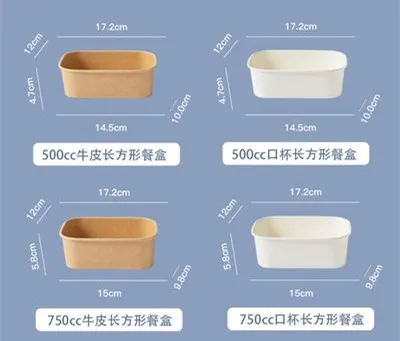

Prices vary based on mould sizes. Please provide the Two Top sizes, Height, and Two Bottom sizes of your cup/bowl for an accurate quote. Mould Size Guide
What is the lead time for delivery?
The standard delivery time is approximately 3 months for one set of machine.
What kind of paper material can be used?
The machine is compatible with both Single and Double side PE coated paper, suitable for various liquid and food applications.
Do you offer overseas installation?
Yes, we can send engineers to your factory for machine installation and worker training. For the first visit, the engineering service is free (travel, hotel, and food expenses are covered by the buyer).
What is the production capacity?
Depending on the specific model and container size, the speed ranges from 60 to 85 pieces per minute.
What are the power and air requirements?
The average power consumption is around 9-10kw (380V 50HZ). An air supply of 0.4-0.6 MPa is required for operation.
