| Model NO. | MTN-PPCM30 |
| Cup Size(Ounce) | 2-12OZ |
| Speed | 60-80pcs/min |
| Automation | Automatic |
| Logo Printing | With Logo Printing |
| Certification | CE |
| Customized | Customized |
| Condition | New |
| After-sales Service | Online Support, Video Technical Support |
| Name | Paper Cup Make Machine |
| Voltage | 380V 50Hz Customized |
| Max Cup Volume | 16oz |
| Air Consumption | 0.4-0.6MPa, 0.4m³/Min |
| Weight | 2250 Kg |
| Core Components | PLC, Gear, Motor, Pump, Bearing |
| Processing Type | Paper Folding Machine |
| Raw Material | 150-350GSM PE Coated Paper |
| Specification | 2250*1300*1900mm |
| Production Capacity | 75-90PCS/Min |

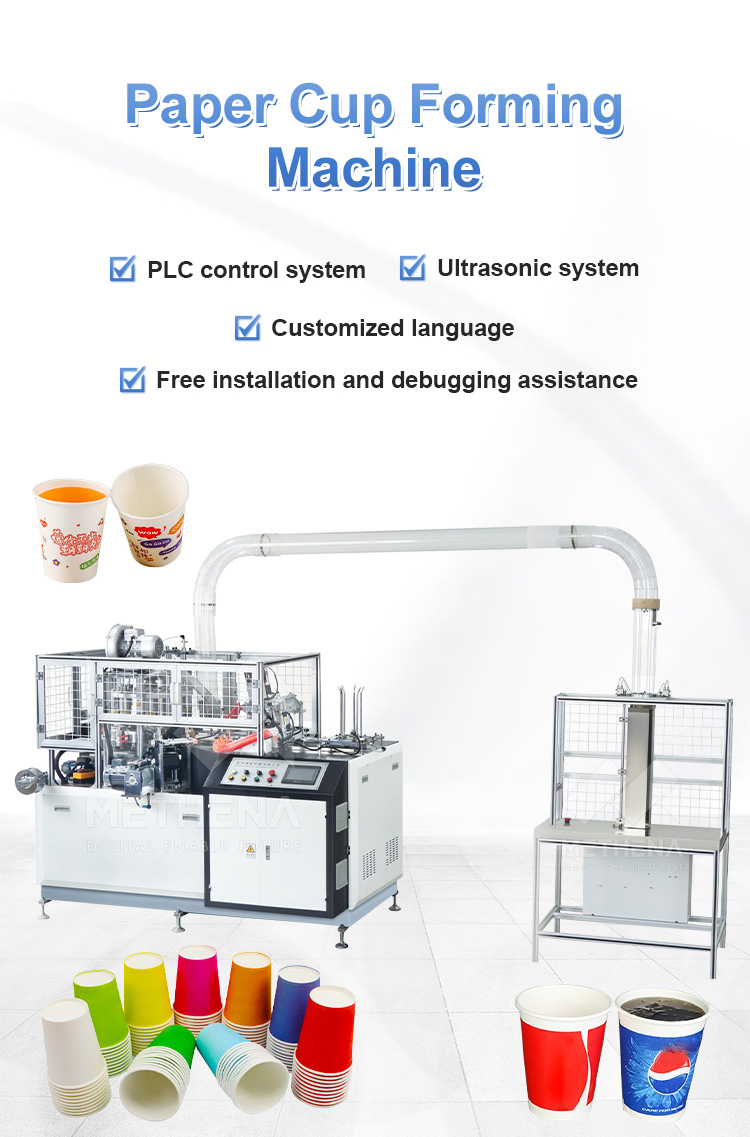

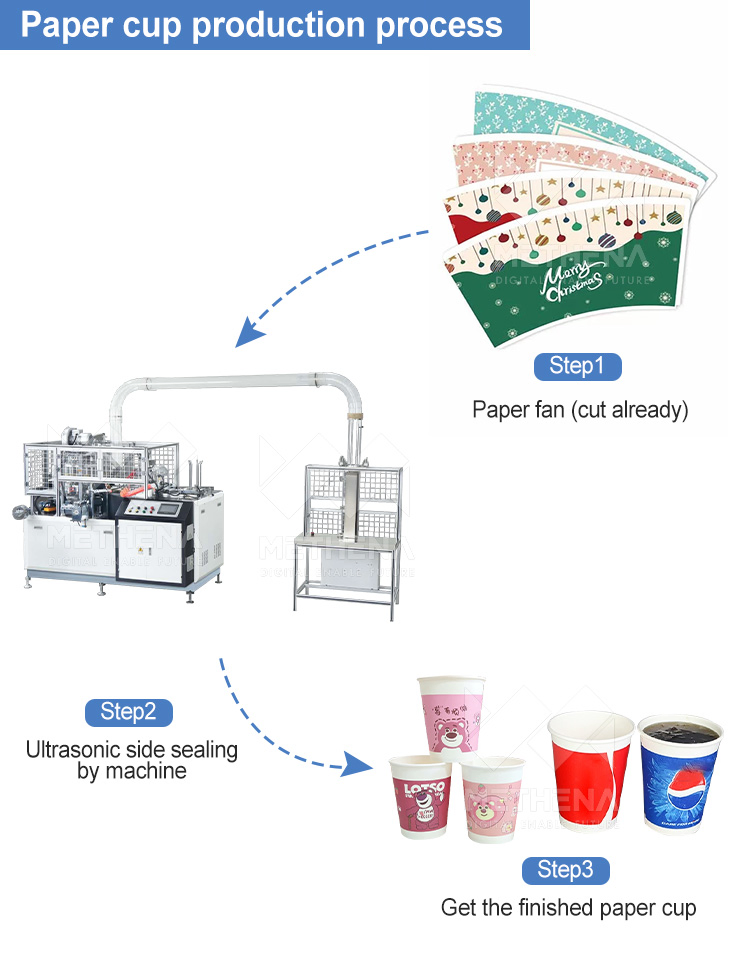

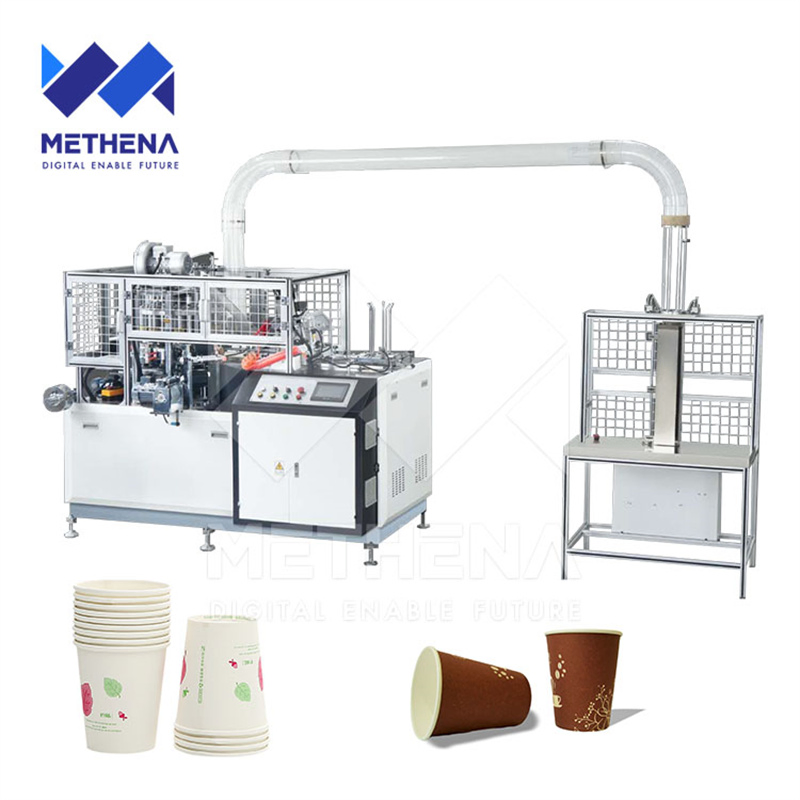

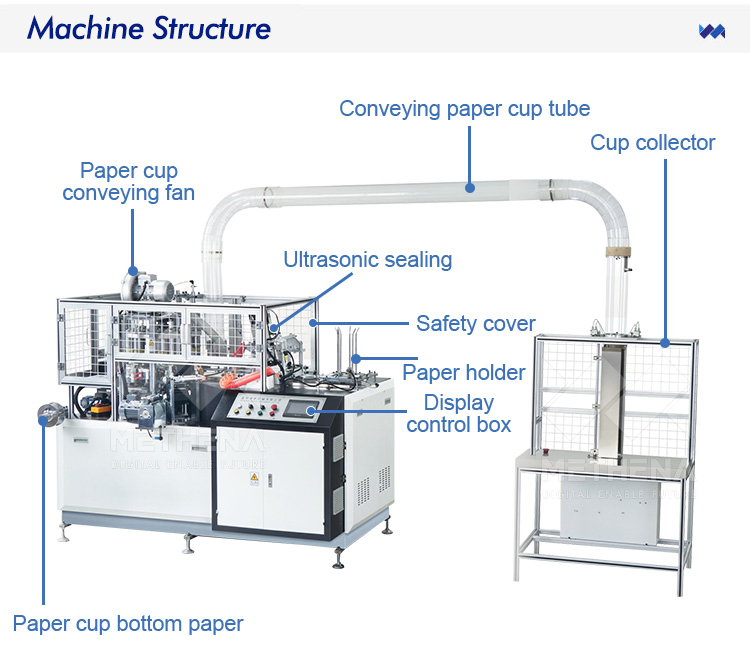

The paper cup machine integrates the functions of feeding, forming, edge sealing, cutting, etc. and is specially used to manufacture disposable paper cups of various specifications. It adopts advanced automation technology and can automatically form finished paper cups from paper rolls. It has the characteristics of high efficiency, stability and easy operation. The paper cups produced are accurate in size, beautiful in appearance and good in sealing. They are widely used in catering, beverage, fast food and other industries.
It can produce all kinds of paper cups, such as coffee cups, ice cream cups, juice cups, cola cups, etc. Suitable for manufacturers of disposable paper tableware.
| Max Paper cup volume | 16oz |
| Raw Material | One-side or two-side PE coated paper (Single or Double PE) |
| Speed | 40-60 pcs/min |
| Suitable paper weight | 160-300g/㎡; ±20g/㎡ |
| Voltage supply | 380V(220), 50HZ, customized |
| Cup size | Bottom 35-70mm, Top 45-90mm, Height 32-135mm (customizable) |
| Working Air Source | 0.4-0.6Mpa, 0.4m³/min |
| Power | 6 kw |
| Net weight | 2000kg |

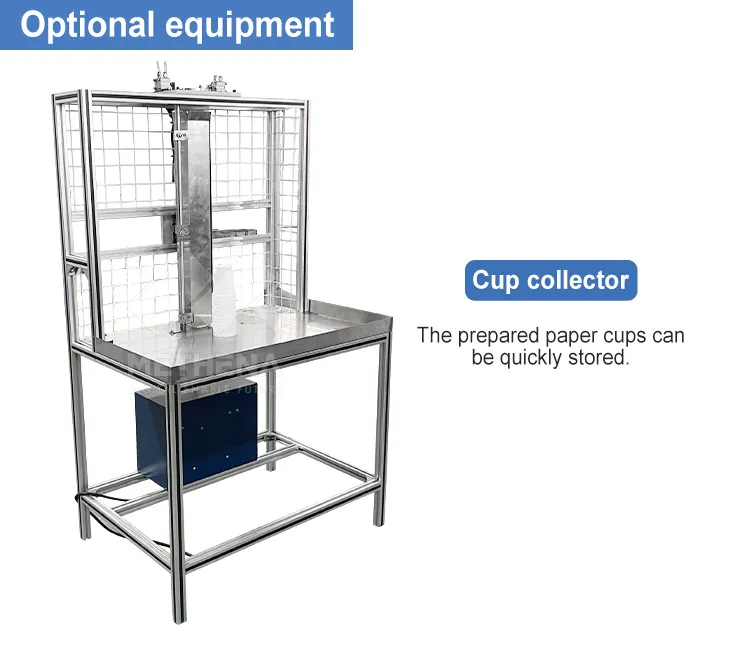

| Dimension | Forming machine 2100*1200*1800mm; Collector 900*600*1500mm |
| We can customize machine and mold according to customer's requirement. | |
