Product Description

Basic Information

Model NO.CW-XLF
NameHigh Speed Square Paper Bowl Machine
Production Speed＞45pcs/min (Range: 55-70 PCS/Min)
Paper Bowl Size500-1400ml
Max Top Size170*120mm
Height Range45-100 mm
Raw Material150-380 GSM Single/Double PE/PLA/Non Plastic Coated
Voltage380V 50Hz
Power18 Kw
Weight4800 Kg
CertificationCE

Product Description

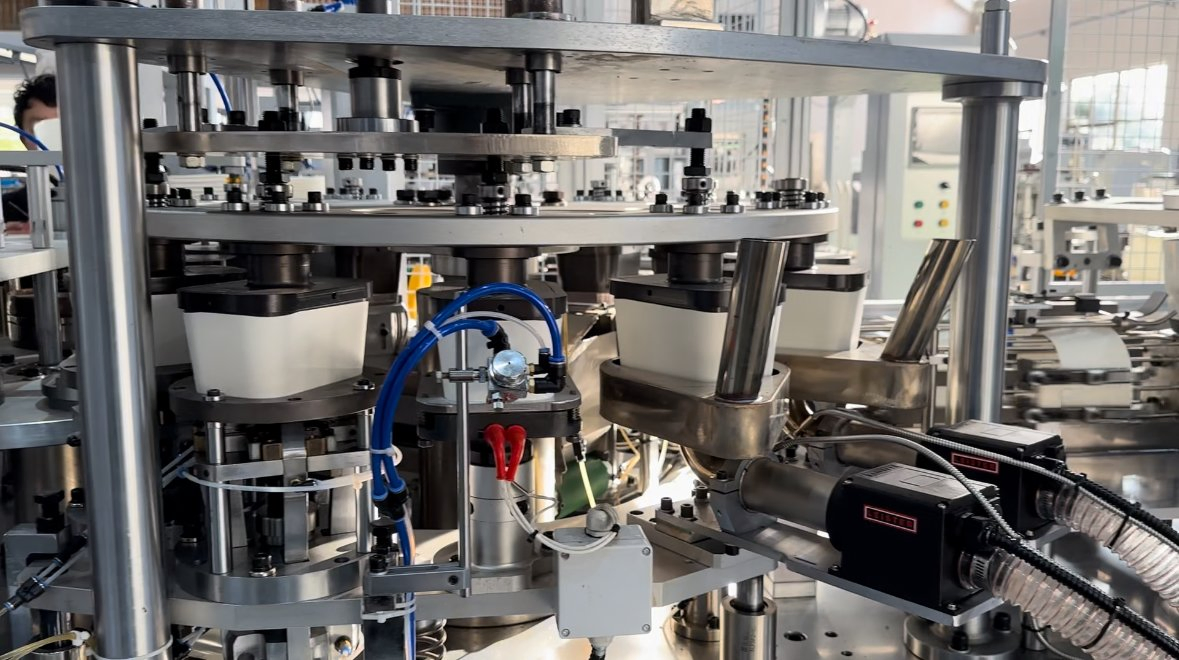

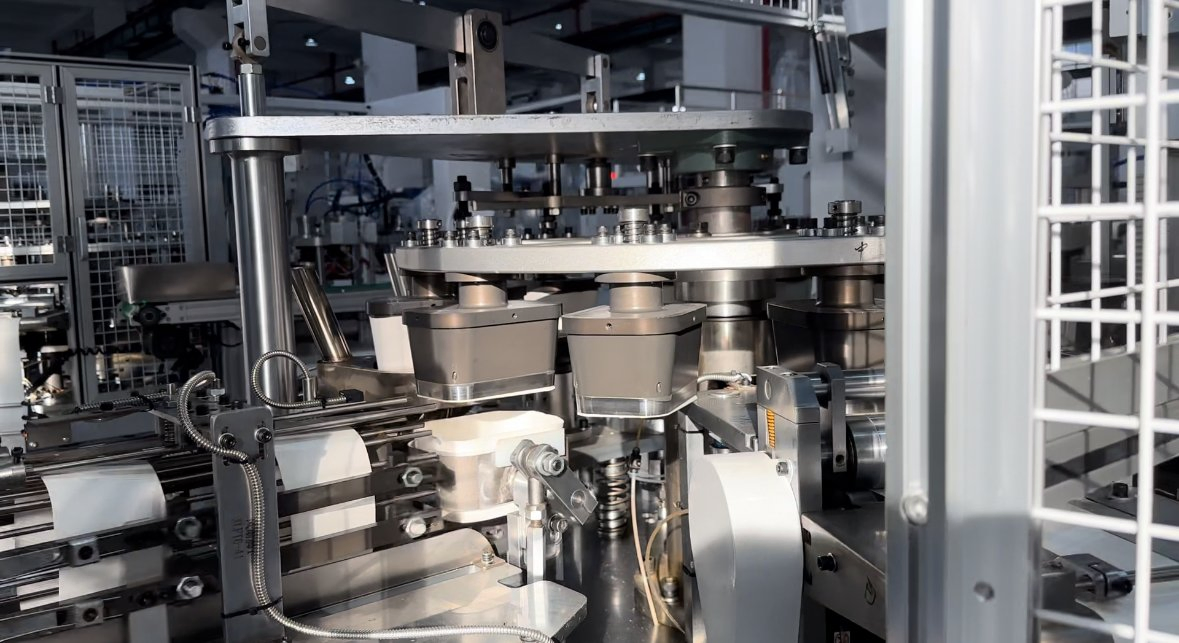

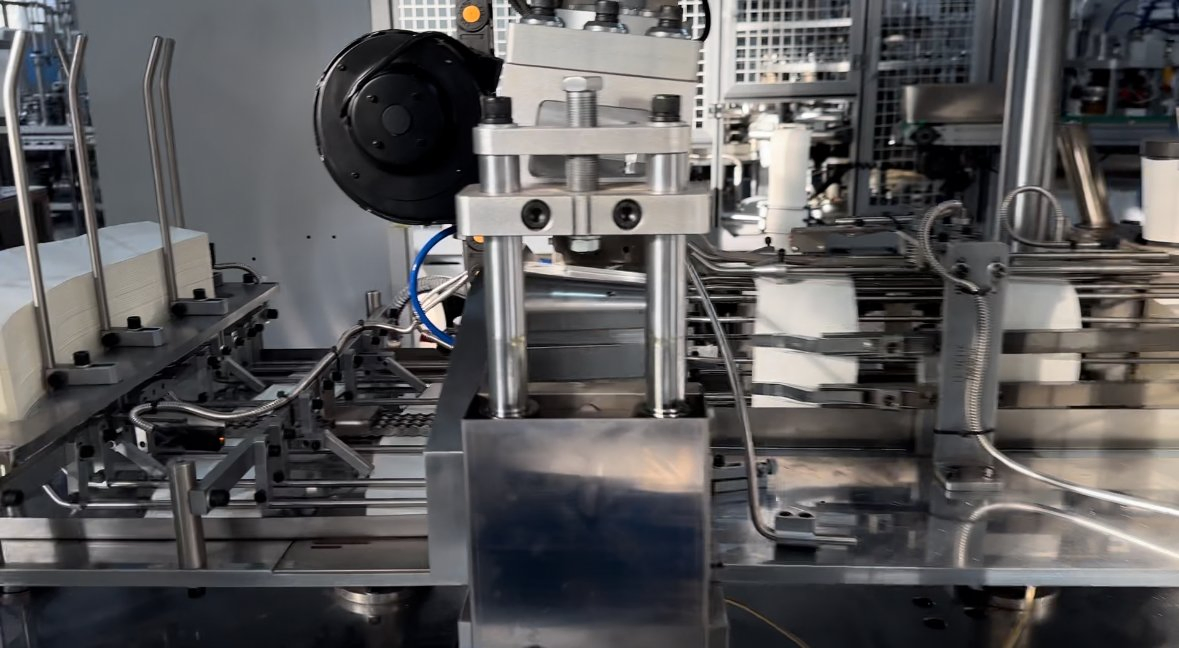

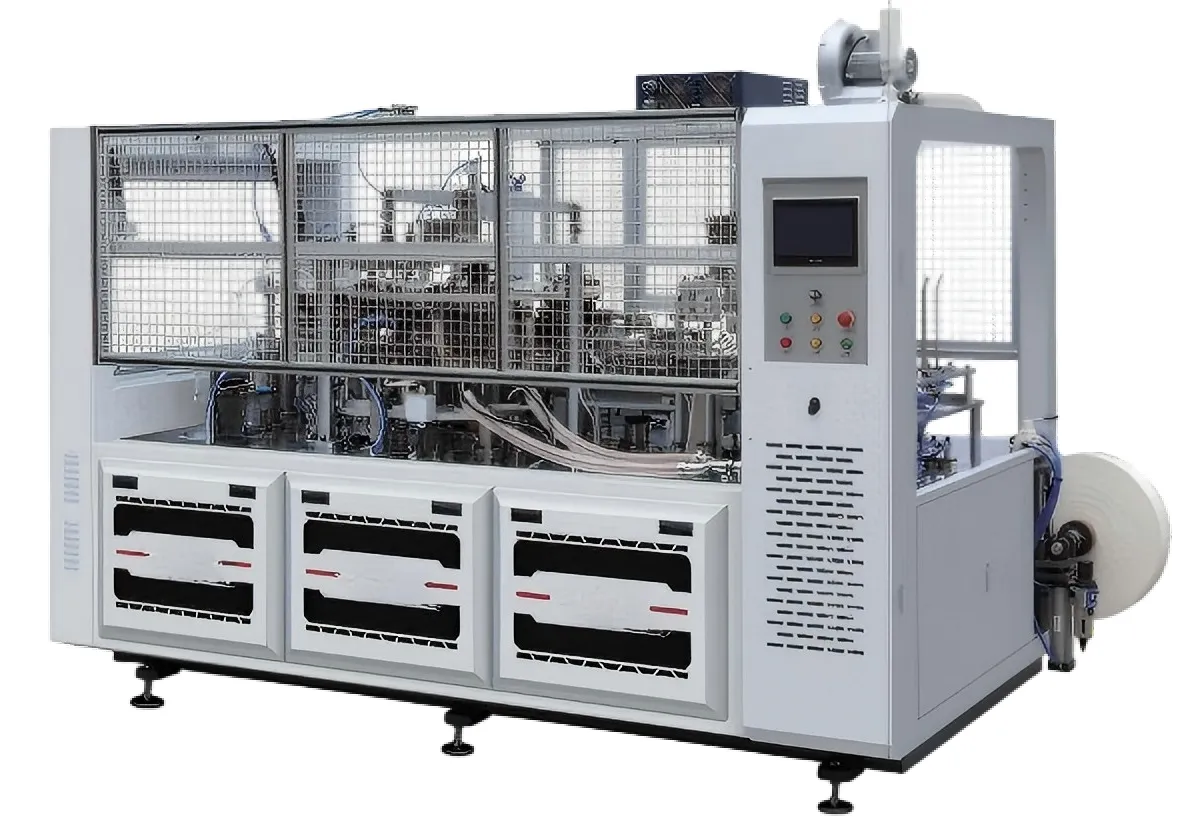

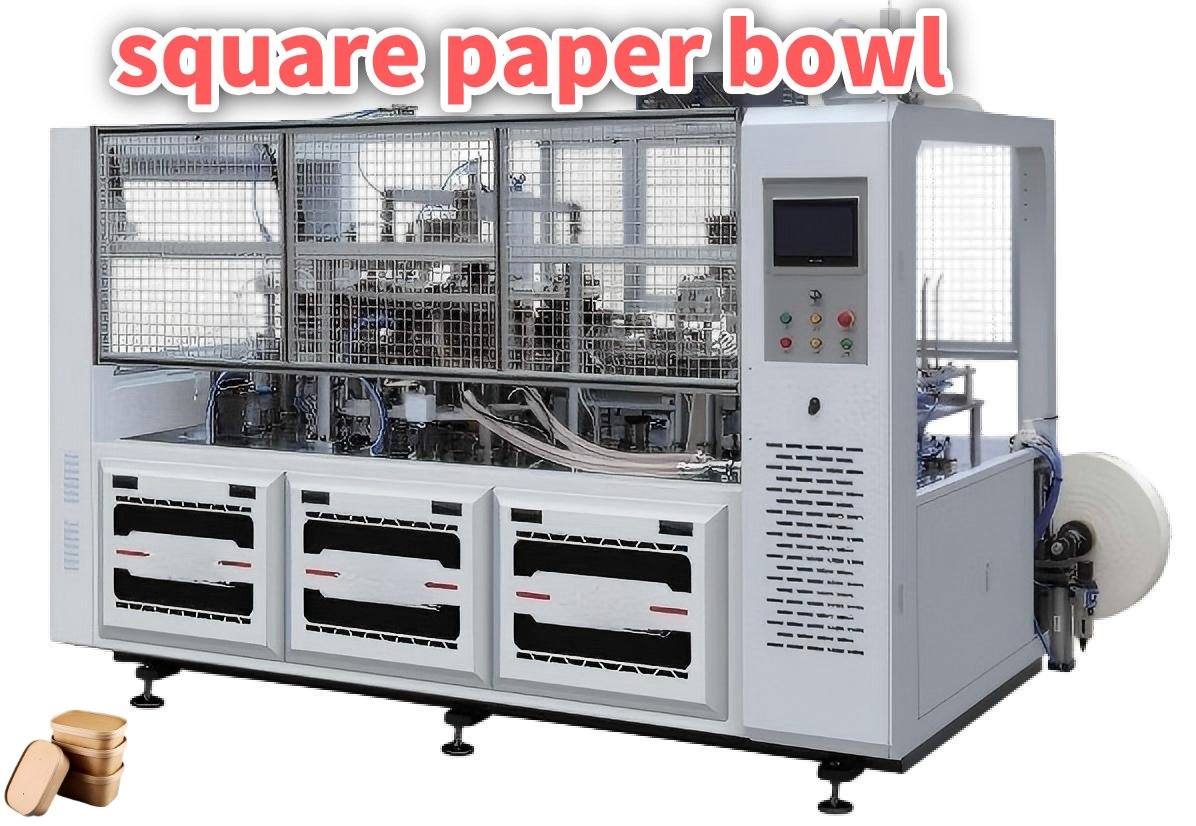

Square Salad Paper Food Takeaway Bowls Forming Machine

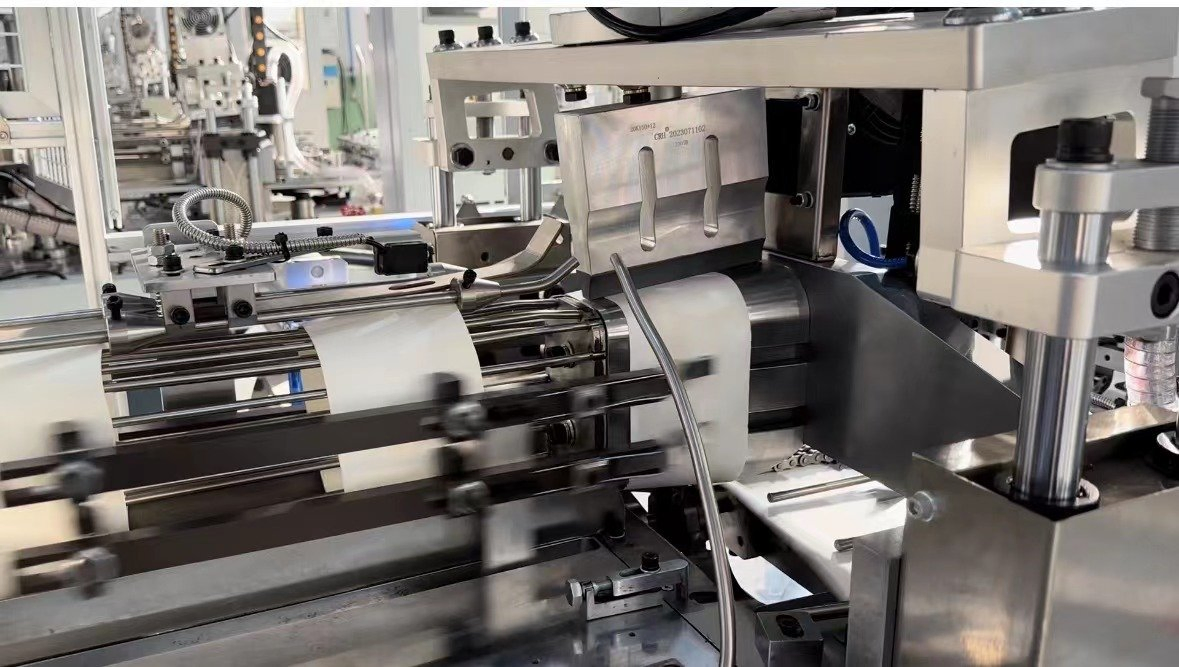

Ultrasonic Sealing System

Equipped with advanced ultrasonic sealing technology to ensure strong, leak-proof side seams for various paper types including PE and PLA coatings.

Ultrasonic Sealing

Hot Air System

Integrated hot air system for efficient bottom heating and sealing, ensuring the stability and durability of the square paper bowls.

Hot air System

Technical Specifications

ModelSquare paper bowl forming Machine Paper Specification150-380 GSM single/double PE/PLA/Non plastic coated
Size500-1400ml Speed55-70pcs/min
Max. Top170*120mm Power Source380V 50HZ 3Phases/220V 50HZ 3Phases
Forming Height45-100mm Average Power18KW
Total Weight4800KGS Machine Size3600*1830*2050mm

Related Machinery Solutions

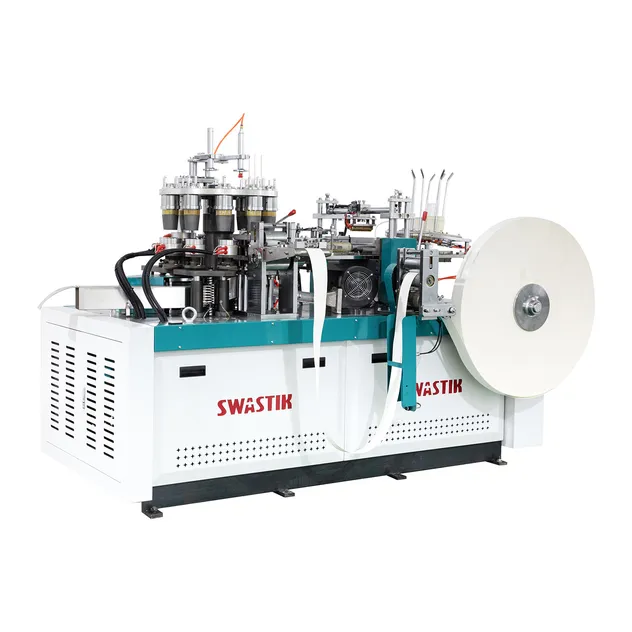

CW-120S PAPER CUP MACHINE

CW-120S PAPER CUP MACHINE
Open Cam Structure | 100-120 pcs/min

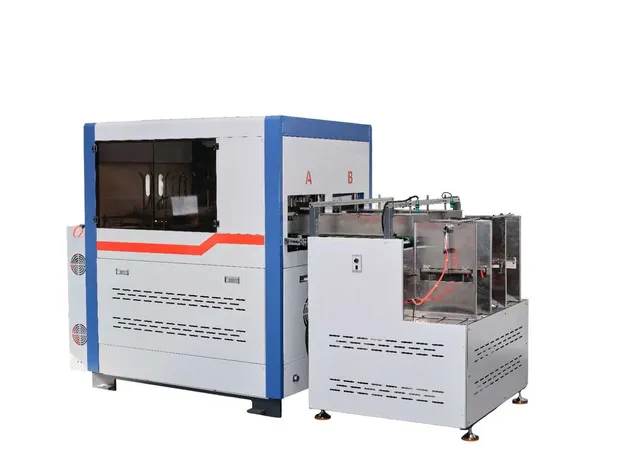

CW-600A PAPER PLATE MACHINE

CW-600A PAPER PLATE MACHINE
Double Working Station | 40-80 pcs/min

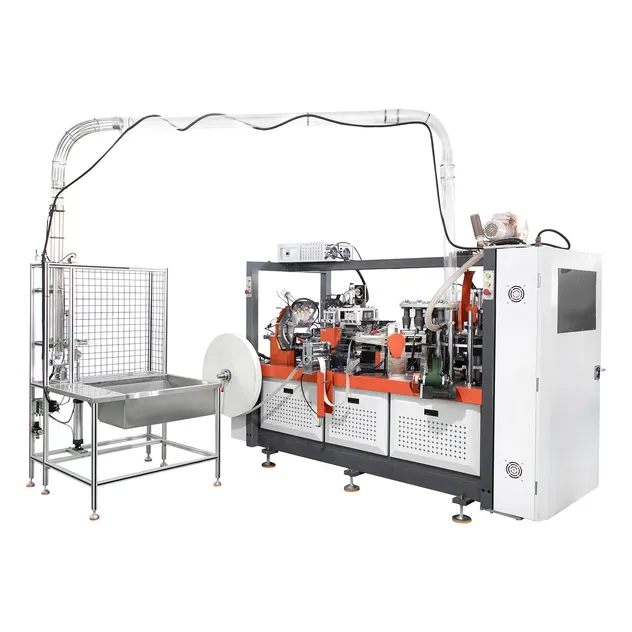

High Speed Paper Bowl Machine

High Speed Paper Bowl Machine
Double Plate | 130-150 pcs/min

Manufacturing Capability

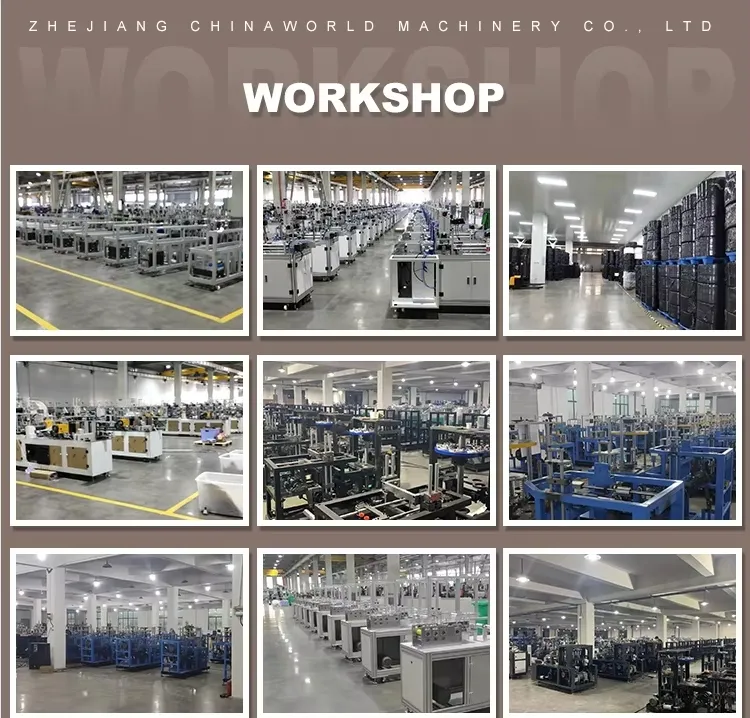

Factory Overview Production Line Quality Control Warehouse Product Samples
Frequently Asked Questions
What is the production speed of the square paper bowl machine?
The machine operates at a high speed of 55 to 70 pieces per minute, significantly improving production efficiency for takeaway food containers.
What range of bowl sizes can this machine produce?
It is designed to manufacture square paper bowls ranging from 500ml to 1400ml, with a maximum top size of 170*120mm and heights between 45-100mm.
What types of raw materials are compatible?
The machine supports 150-380 GSM paper with single or double PE coating, PLA coating, or non-plastic coated paper, making it versatile for eco-friendly packaging.
Does the machine come with international certification?
Yes, the CW-XLF series is CE certified, meeting essential health, safety, and environmental protection standards for the European Economic Area.
What are the power and space requirements for installation?
The machine requires a 380V 50Hz power supply with an 18Kw power rating. Its physical dimensions are 3600*1830*2050mm, and it weighs approximately 4800kg.
What kind of sealing technology is used for the square bowls?
The machine utilizes a combination of Ultrasonic Sealing for the side seams and a Hot Air System for the bottom, ensuring a leak-proof and sturdy finish for square containers.
