Super Plate Forming Machine for Paper Container Machine
Super Plate Forming Machine for Paper Container Machine
Super Plate Forming Machine for Paper Container Machine
Super Plate Forming Machine for Paper Container Machine
Super Plate Forming Machine for Paper Container Machine
1 / 5
Super Plate Forming Machine for Paper Container Machine
Super Plate Forming Machine for Paper Container Machine
Super Plate Forming Machine for Paper Container Machine
Super Plate Forming Machine for Paper Container Machine
Super Plate Forming Machine for Paper Container Machine

Super Plate Forming Machine for Paper Container Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
JBZ-500
Speed
80-100pcs/min
Automation
Automatic
Required Paper
Single/Double PE Coated
Certification
CE
After-sales
3 Years
Usage
Packing/Household Paper
HS Code
8441309000

Product Description

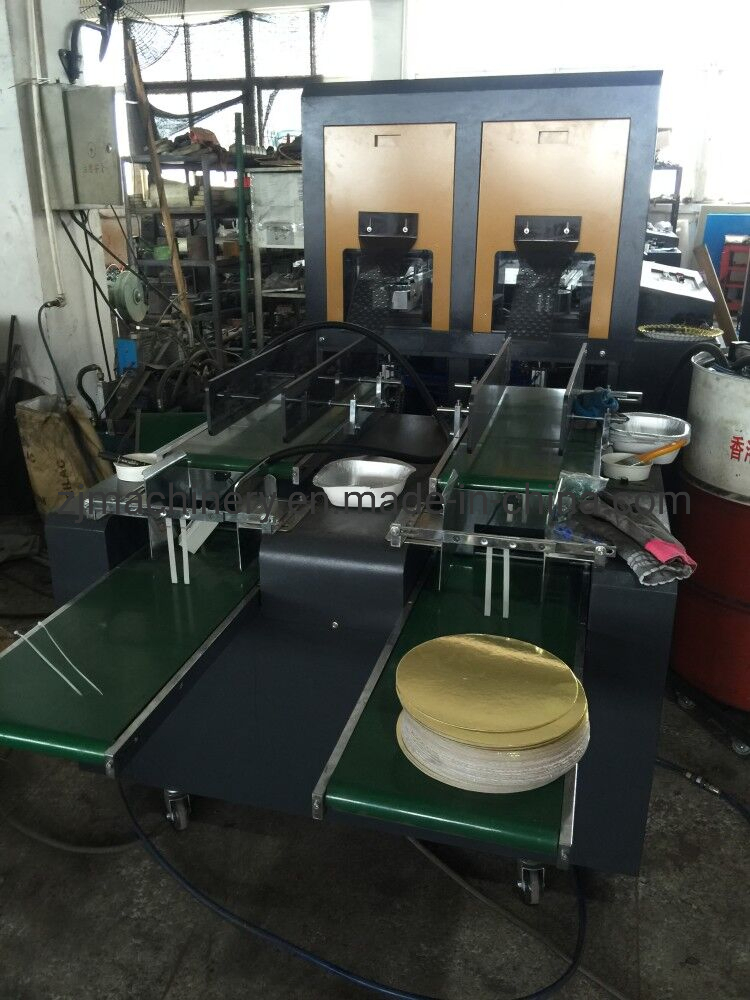

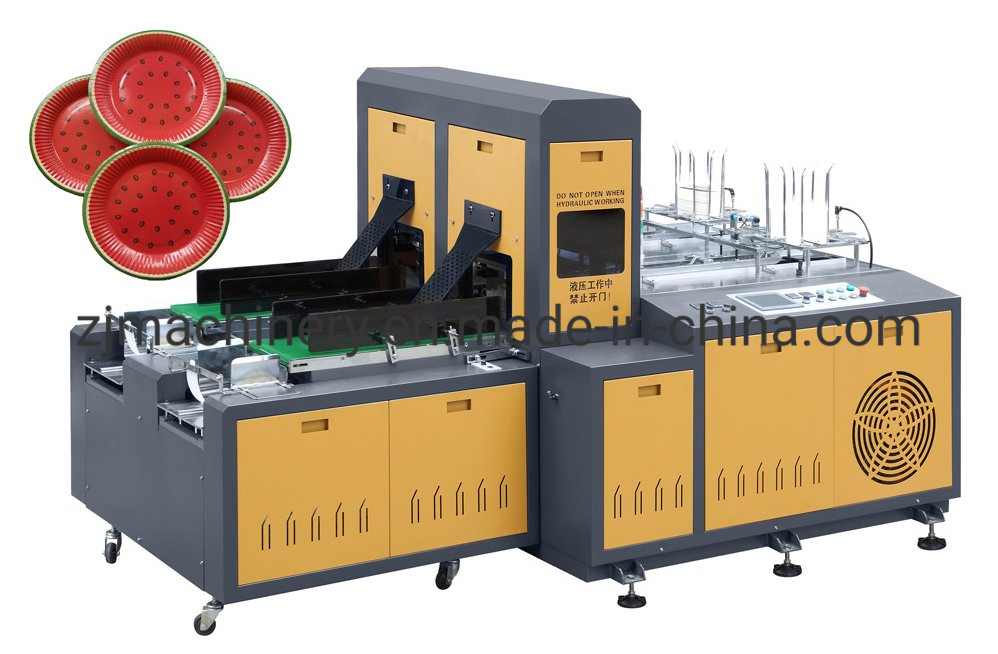

High Speed Paper Dish Machine (Model ZDJ-400): This medium-speed automatic forming machine is engineered to meet advanced market requirements. By integrating pneumatic and mechanical technologies, it delivers faster working speeds, enhanced safety performance, and simplified maintenance compared to conventional models.

The ZDJ-400 utilizes a high-efficiency pressurizing air cylinder, achieving a maximum pressure of 5T. This pneumatic approach offers significant advantages in environmental protection, speed, and human-centric design compared to traditional oil pressure systems. Featuring two independent working stations, each equipped with its own PLC digital and electric control, the machine ensures versatile production for round, square, or irregular paper plates.

Technical Specification

⚙ Plate Size: 5--11 inch (mold exchangeable)
⚙ Raw Material: Paperboard, Aluminum foil coated, One side PE coated
⚙ Paper Weight: 100--500 GSM
⚙ Productivity: 60--80 piece/minute (3600--4800 PCS/hour)
⚡ Total Power: 3 KW / 220V 50Hz
⚖ Total Weight: 600 Kg
📦 Package Size: 1.43m x 1.6m x 1.9m
💨 Air Source: 0.8Mpa pressure, 1.5 m3/min output

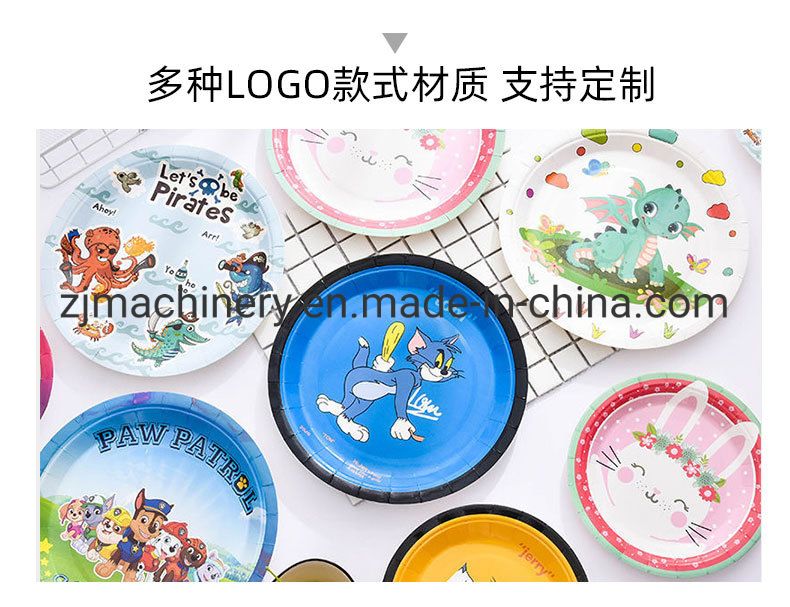

Product Samples

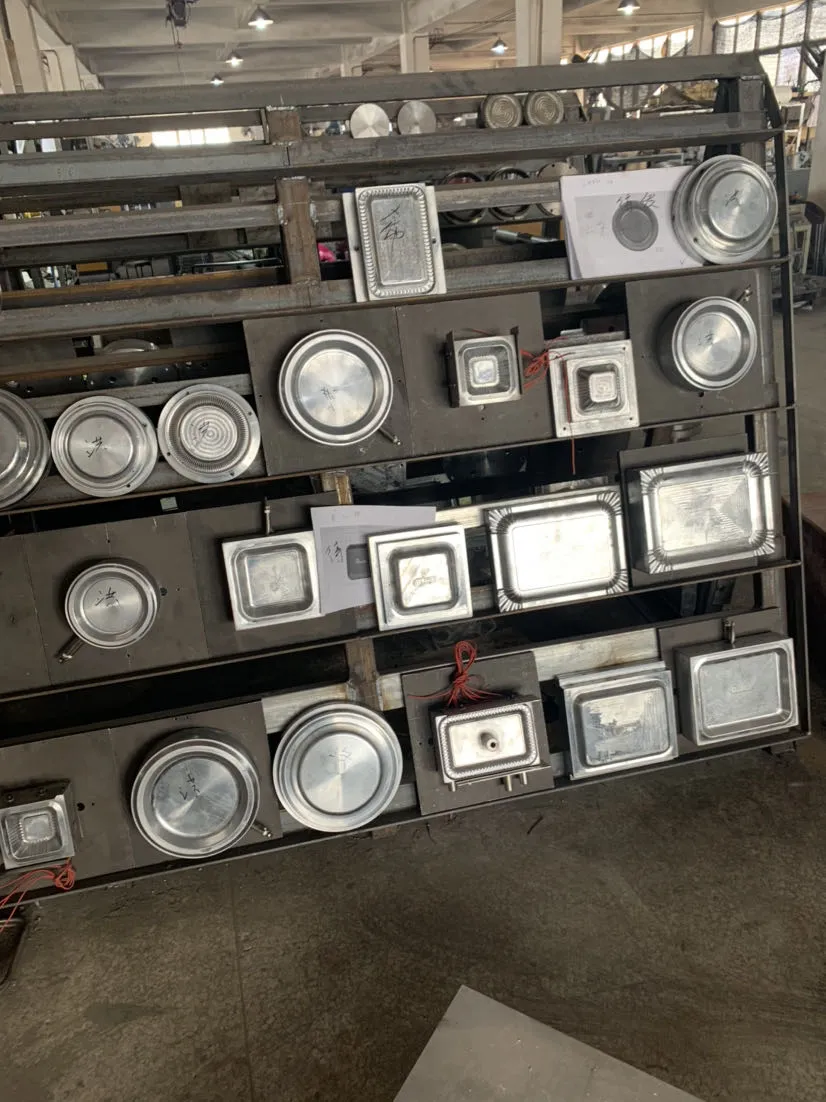

Paper Container Sample 1

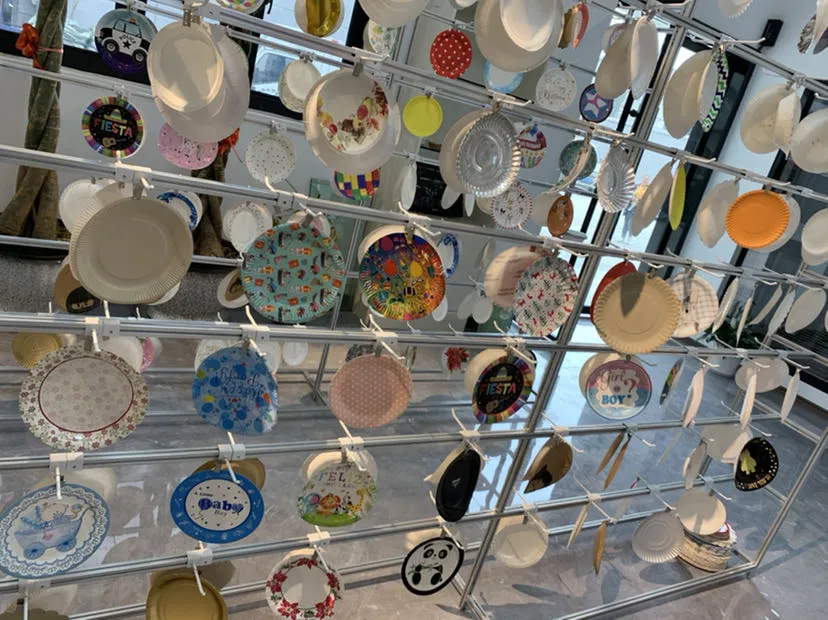

Paper Container Sample 2

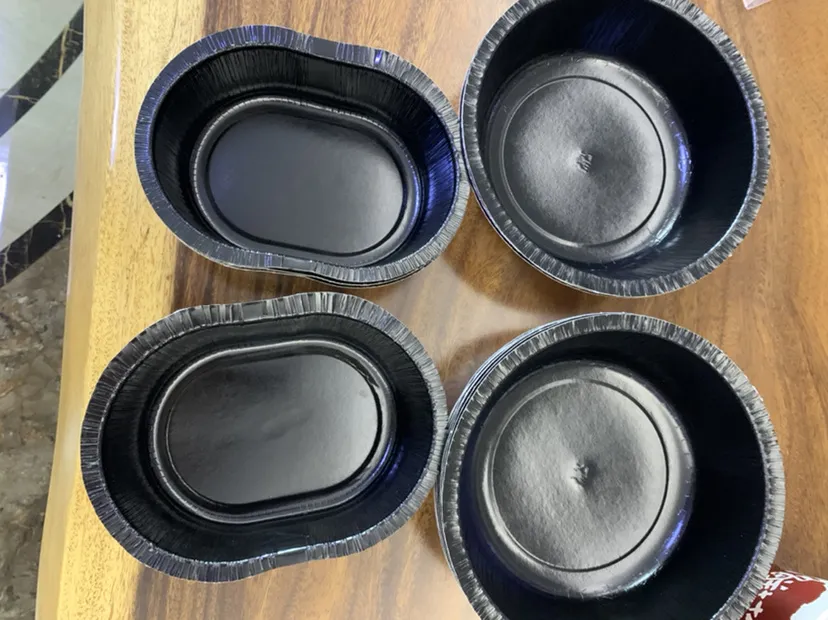

Paper Container Sample 3

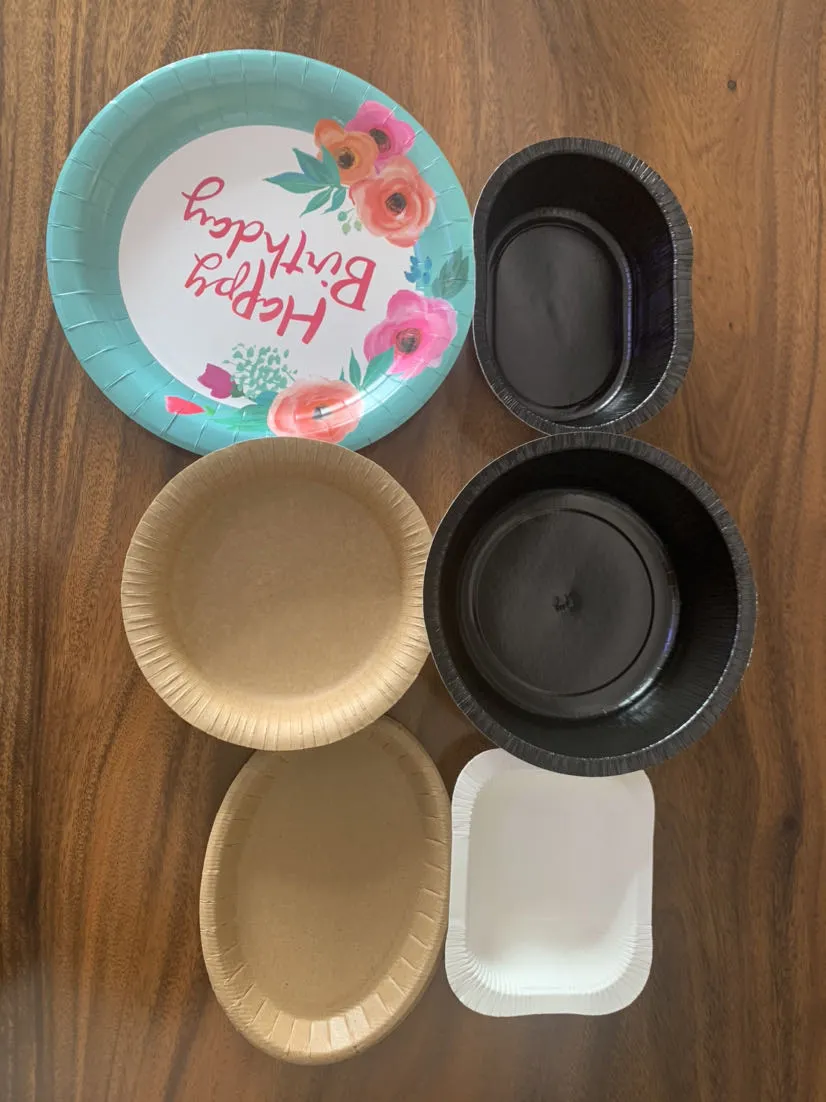

Paper Container Sample 4

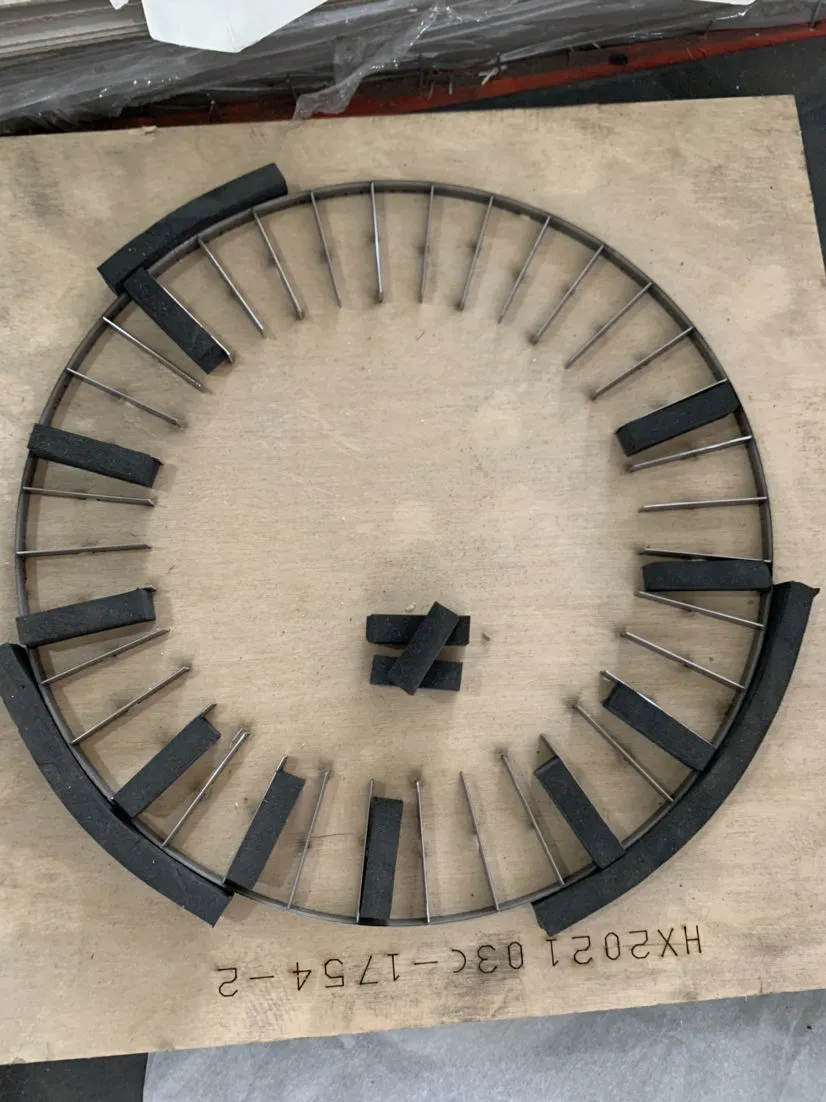

Paper Container Sample 5

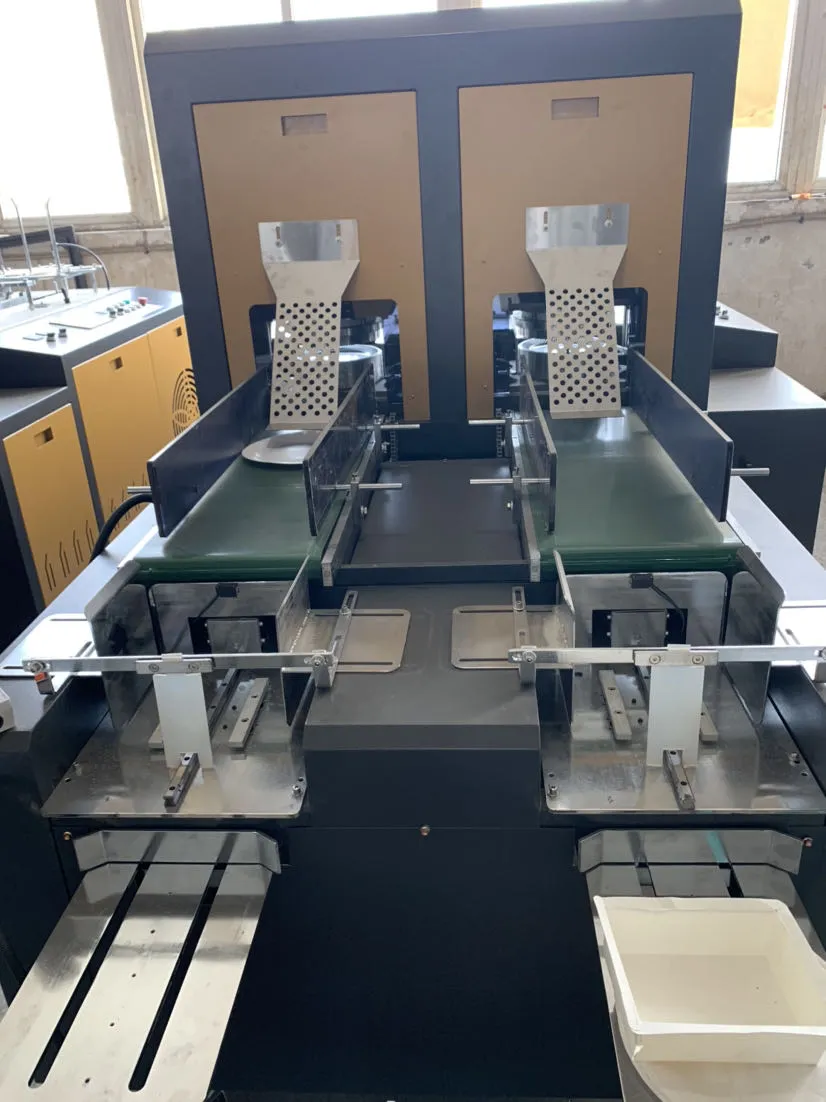

Paper Container Sample 6

Export & Advantages

Packaging: All units are packed in Export Standard Wooden Boxes. For orders of 1-2 sets, we recommend consolidation shipping. For larger orders:

  • ✔ 20 FT Container: Loads up to 4 machines
  • ✔ 40 FT Container: Loads up to 10 machines
High Export Quality Standard

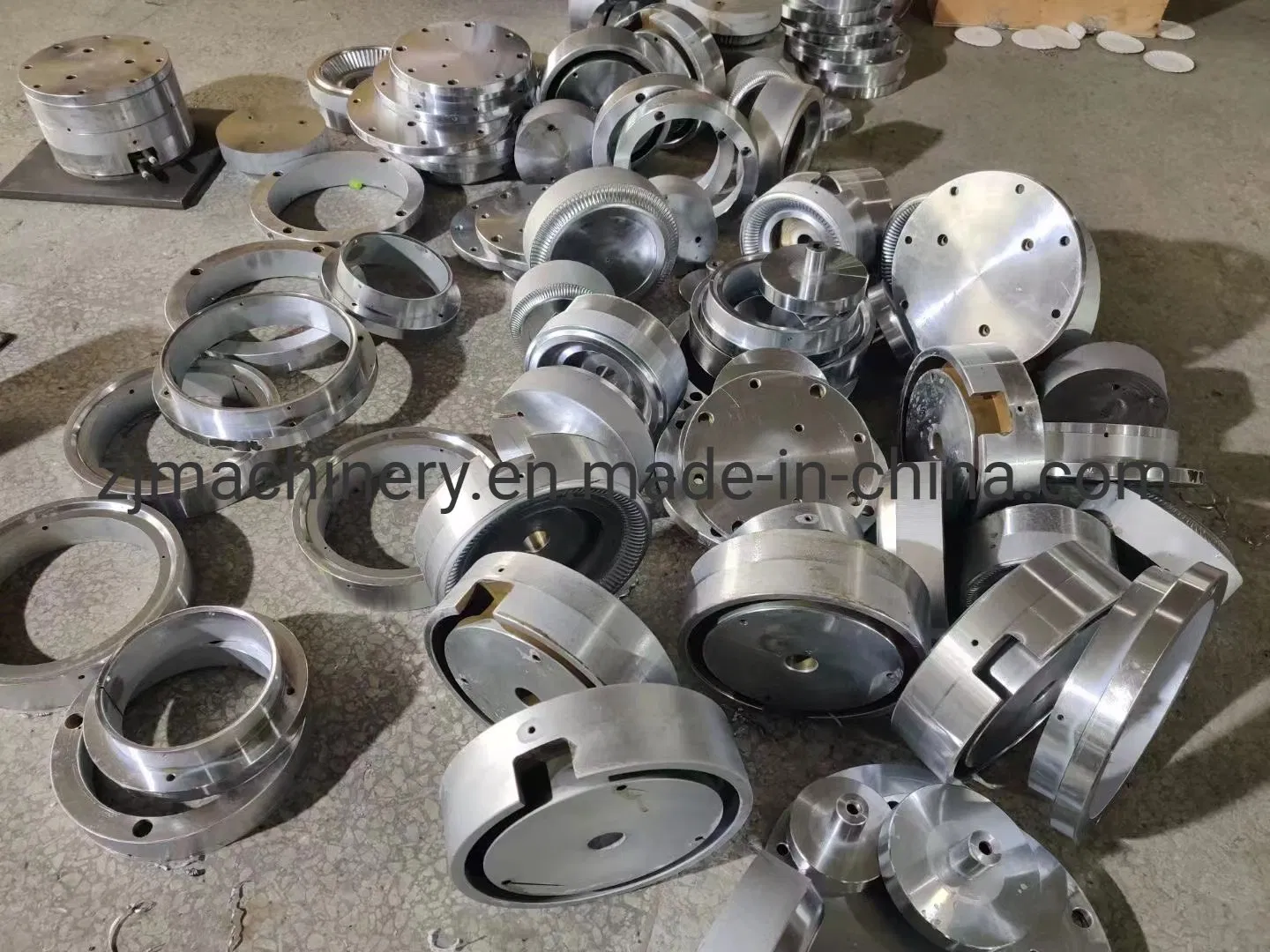

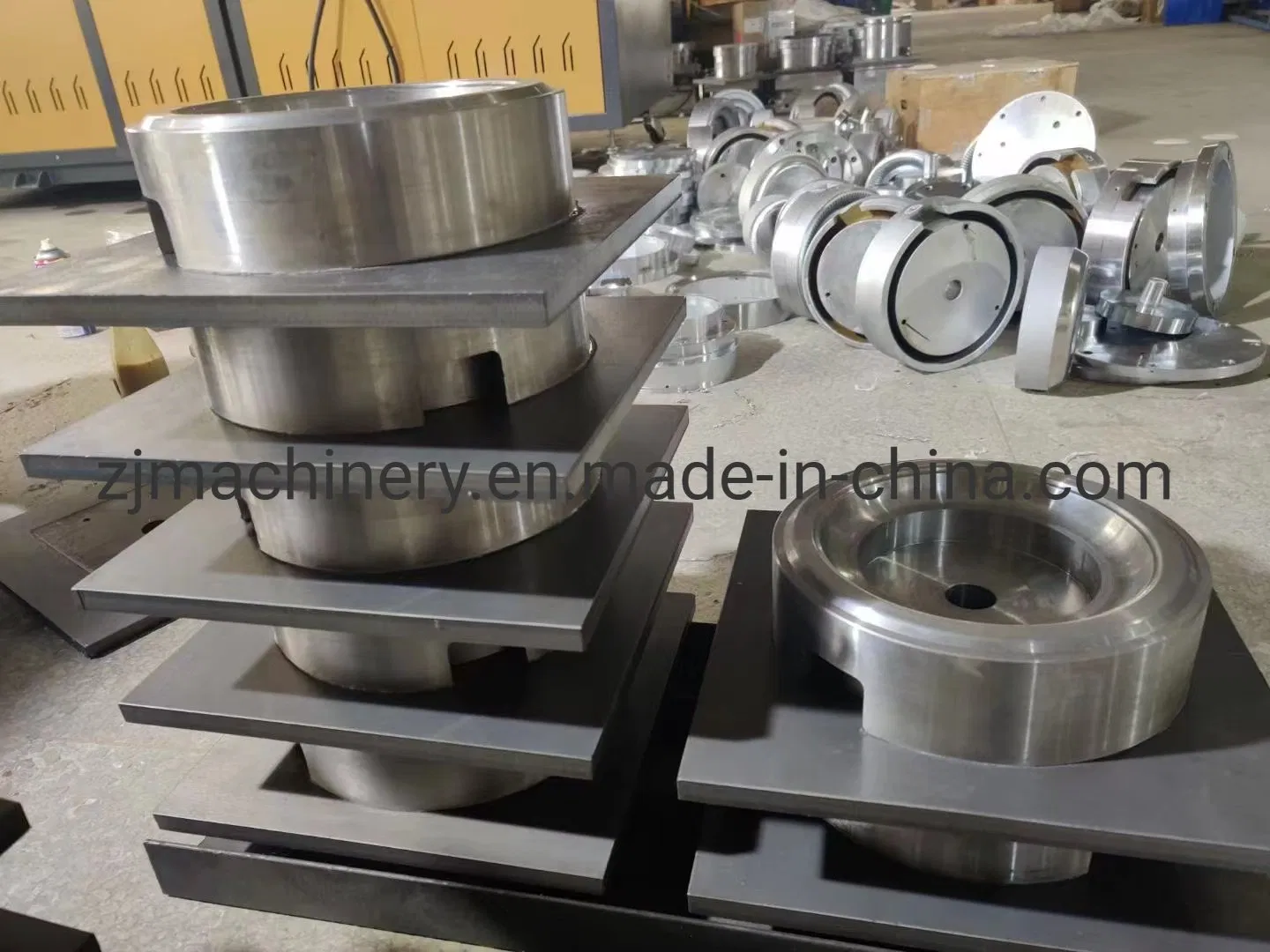

Expert Mold Production
Fast Delivery Time
Competitive Pricing

Frequently Asked Questions

What is the maximum production speed of the ZDJ-400?
The machine features a rated productivity of 60 to 80 pieces per minute across two working stations, totaling approximately 3,600 to 4,800 pieces per hour.
What types of paper can be used with this machine?
It is compatible with paperboard, aluminum foil coated paper, and single-side PE coated paper with a weight range of 100 to 500 GSM.
Does the machine support customized plate shapes?
Yes, by exchanging the molds, the machine can produce round, rectangle, square, circular, or irregular shapes between 5 and 11 inches.
What are the air source requirements?
The machine requires an external air compressor providing a working pressure of 0.8Mpa and an air output of 1.5 m3/minute.
How is the machine controlled?
The ZDJ-400 is equipped with separate PLC digital controls and electric controls for each of its two working stations, ensuring precision and ease of operation.
What are the advantages of the pneumatic system used?
The pressurizing air cylinder provides up to 5T of pressure, offering higher speeds and better environmental protection compared to traditional hydraulic systems.
