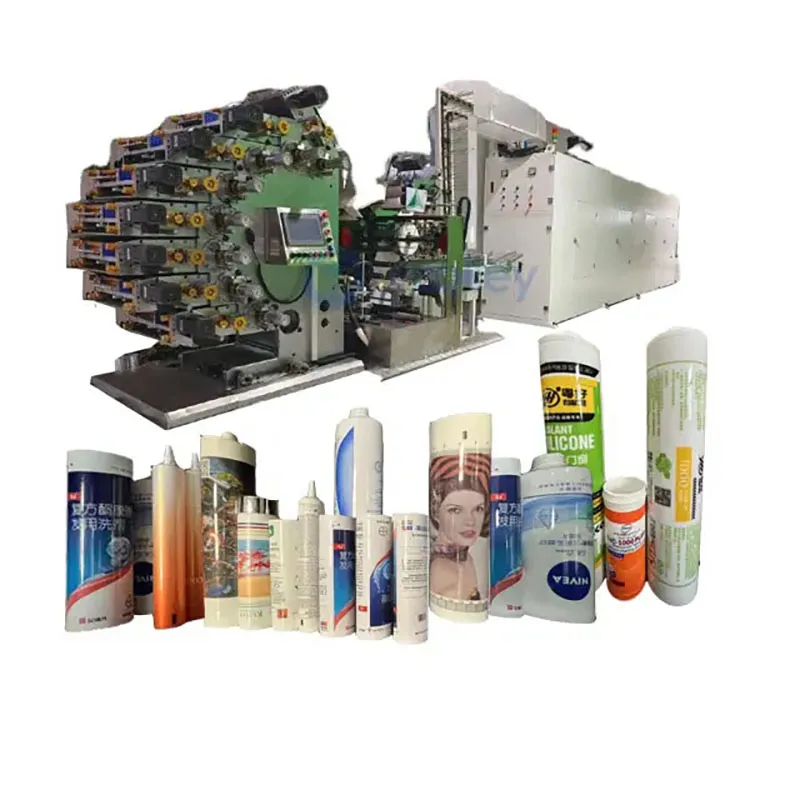

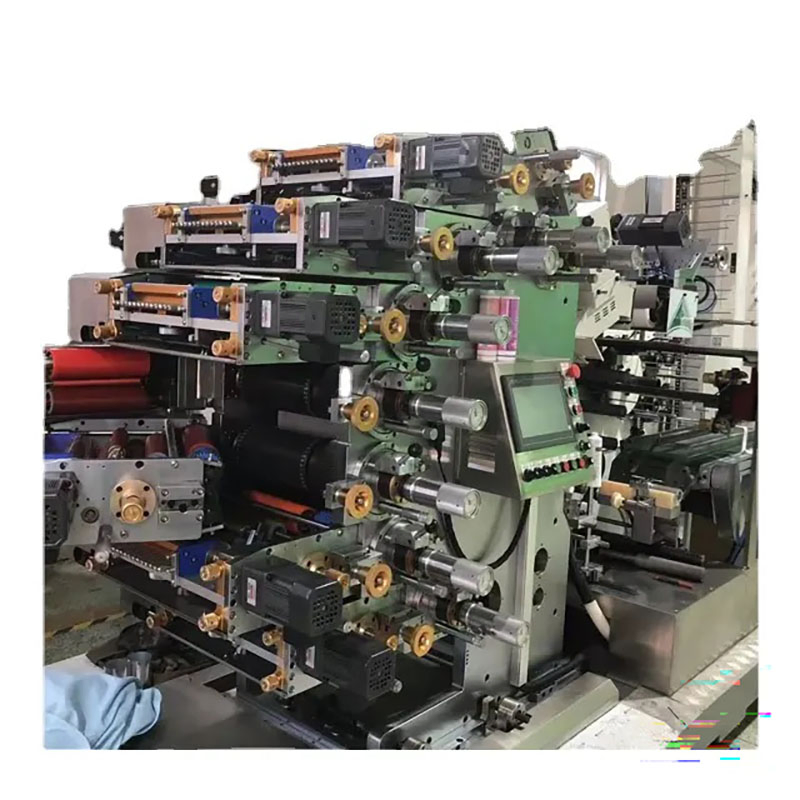

Tubes Packaging Offset Printing Machine 6 Color

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
JX-OP06
Printing Color
6
Color & Page
Multi-Colour
Usage
Paper Printer, Tube Printer
Automatic Grade
Automatic
Printing Speed
200tubes/Min
Voltage
380V
Power
19kw
Application
Food, Beverage, Chemical, Etc
Cup Material
PP/PS/Pet/PLA/HDPE
⚙️ Product Description

What is an offset printing machine?

Offset printing is a common printing technique in which the inked image is transferred (or "offset") from a plate to a rubber blanket and then to the printing surface. When used in combination with the lithographic process, which is based on the repulsion of oil and water, the offset technique employs a flat (planographic) image carrier. Ink rollers transfer ink to the image areas of the image carrier, while a water roller applies a water-based film to the non-image areas. The modern "web" process feeds a large reel of material through a large press machine in several parts, which then prints continuously as the material is fed through.

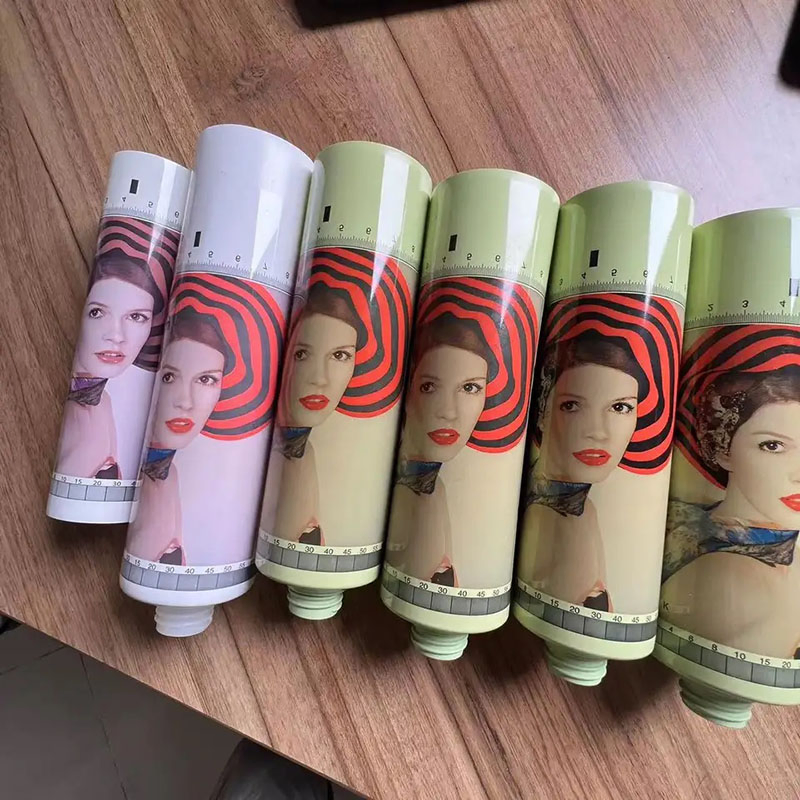

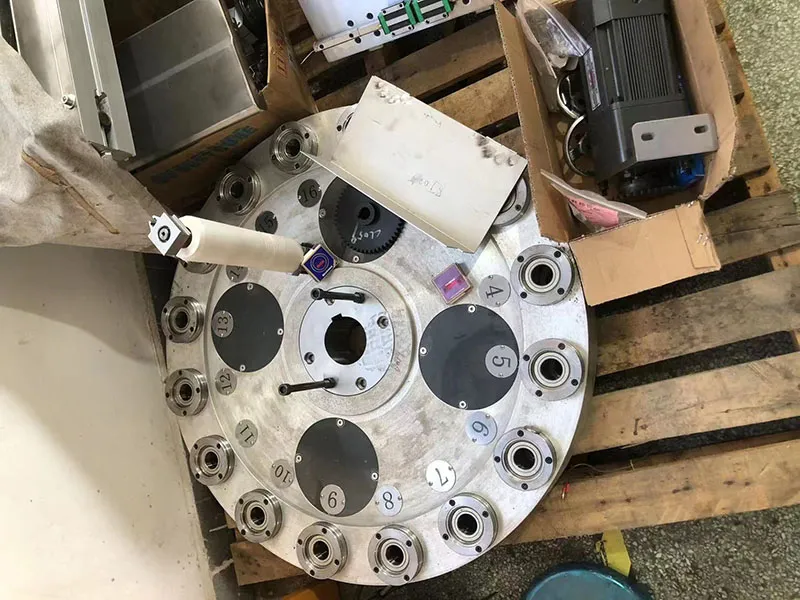

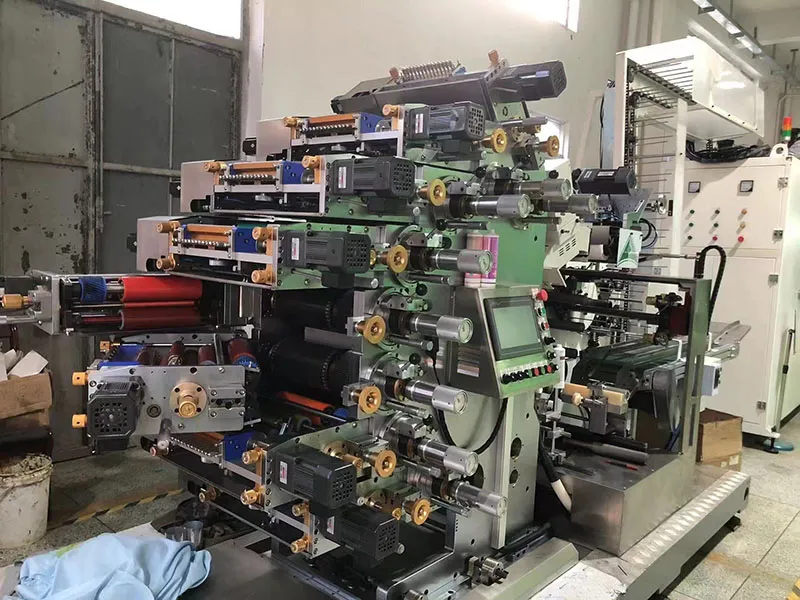

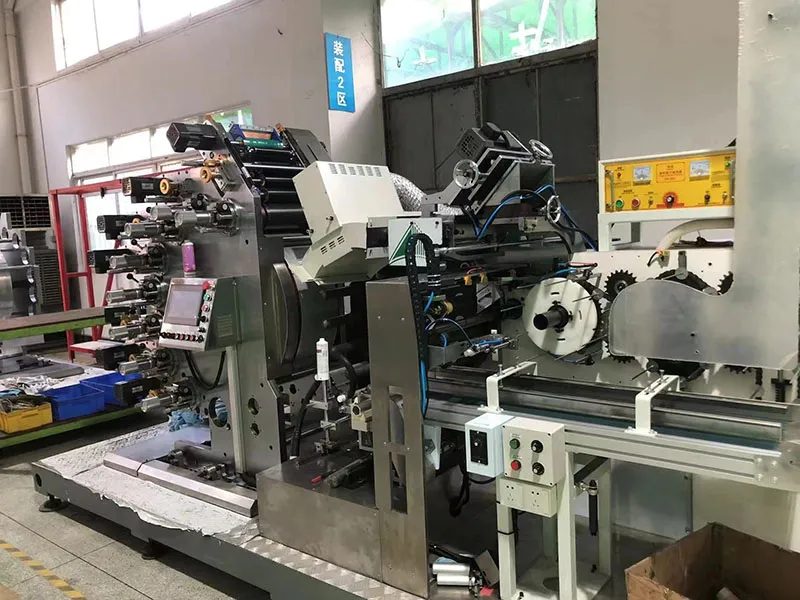

🖼️ Detailed Photos

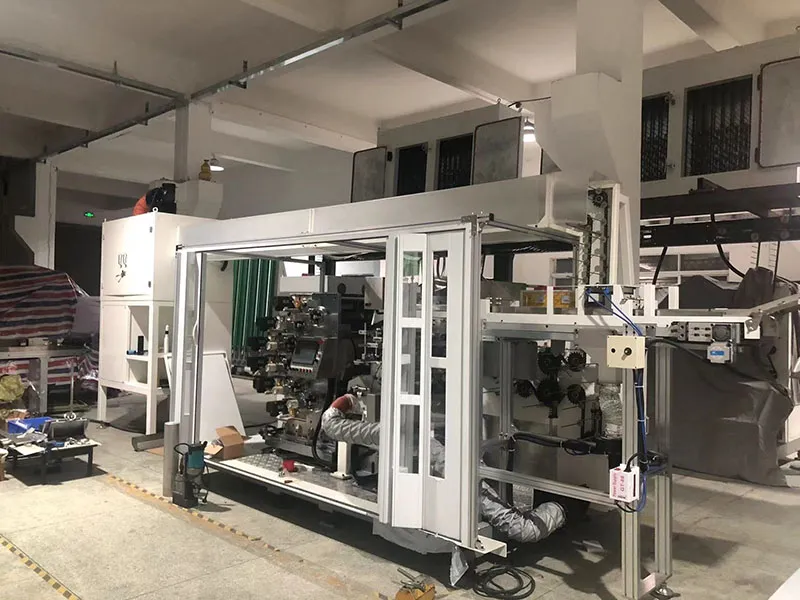

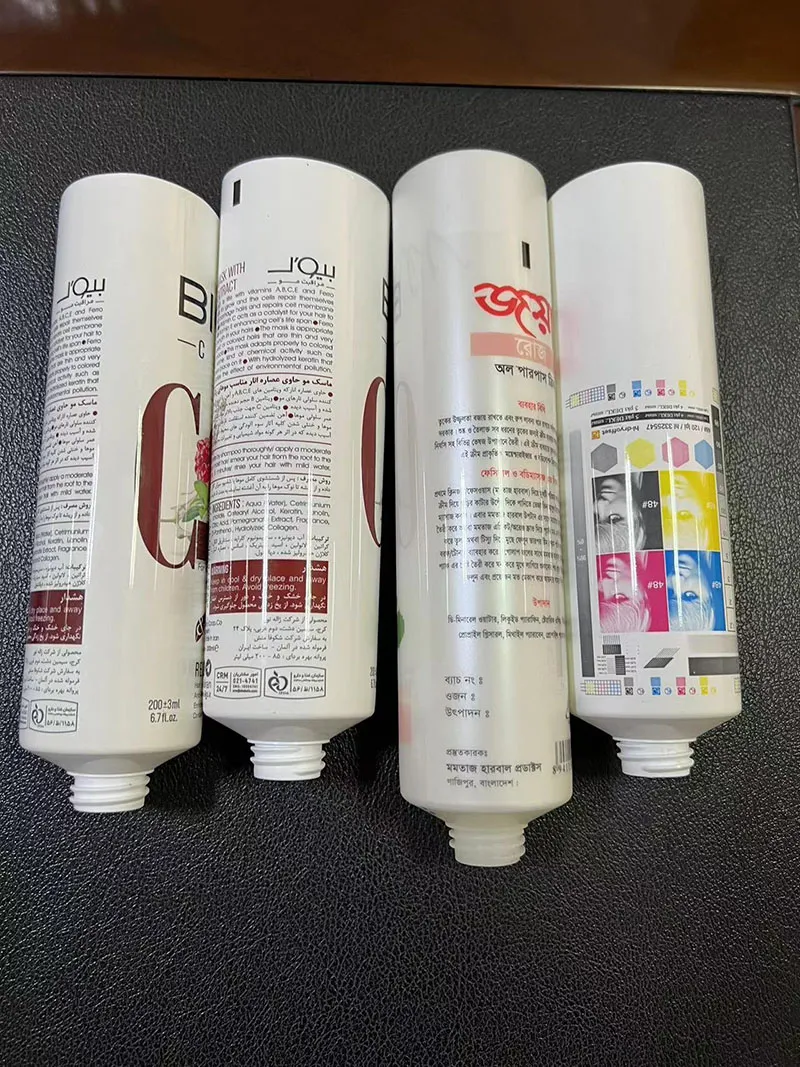

Vertical Assembly
📋 Technical Specifications
Product NameOffset printing machine
Model No.JX-OP06
ApplicationPlastic tube
Colors6 Colors
Tube Length80~220mm
Tube Diameter16~60mm
UV Curing Power6KW
MaterialsPP/PS/PET/PLA/HDPE
Rated Air Pressure0.6~0.7Mpa
Machine Dimensions14735*1750*2630mm (including heating oven)
Production Speed200 tubes/min
Total Weight5000kg
📜 Certifications & Packaging
🏢 Industry Expertise

As a leading high-tech innovation enterprise, we are a rapidly developing technology upgrading and turnkey-solution designer and builder for the global cosmetic tubes and aluminum cans packaging industries. Our production lines serve various sectors including Medical, Pharmaceutical, Daily Chemical, Food, and Beverage.

We provide high-quality performance machines to dozens of well-known enterprises globally. Our clients recognize our systems for being cost-effective while delivering superior performance and reliable after-sales support.

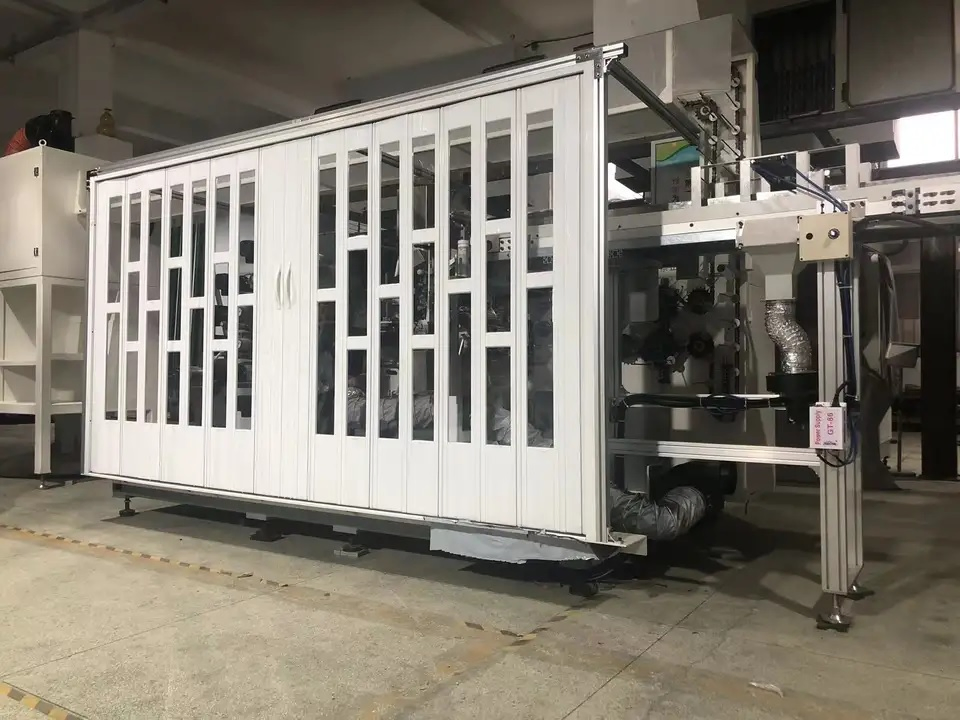

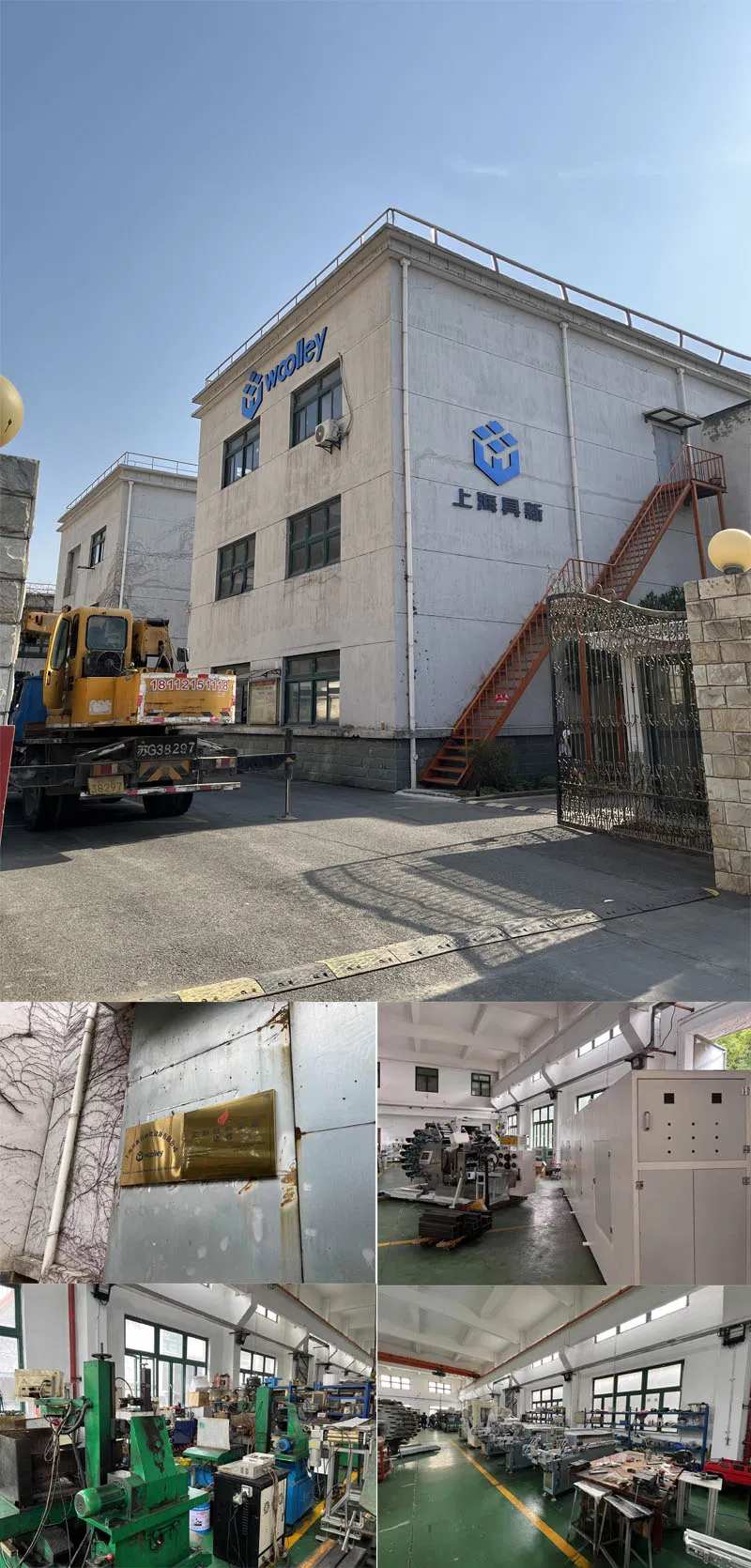

Manufacturing Line
Frequently Asked Questions
Why is the Fast PBL upgrade necessary?
Due to many new laminate developments and varied properties, the Fast PBL Upgrade ensures running PBL at speeds similar to ABL while maintaining superior seam quality and reducing rejection rates.
How is a cosmetic soft packaging tube manufactured on an automatic line?
The process begins with the extrusion of thermoplastic material, followed by cutting and forming. The tube is then printed with designs, filled with product, and sealed (typically via induction). Finally, caps are applied in a continuous, automated flow.
What precautions should be taken before starting the machine after installation?
Ensure the workshop temperature is stabilized, allow lubricating oil to circulate for 5 minutes after power-on, verify air compressor levels, and check for any foreign objects between rollers before slow-moving the machine for 1 hour.
What is the "Heading" process in tube production?
Heading involves compression molding the tube head and shoulder from molten resin. This method creates a stronger, more durable, and leak-proof seal compared to traditional techniques, allowing for more creative designs.
What materials can this offset printing machine handle?
The machine is versatile and compatible with a wide range of materials including PP, PS, PET, PLA, and HDPE, making it suitable for various packaging requirements.
What is the production capacity of this printing system?
The system is designed for high-volume industrial use, capable of a printing speed of up to 200 tubes per minute depending on the tube specifications.
