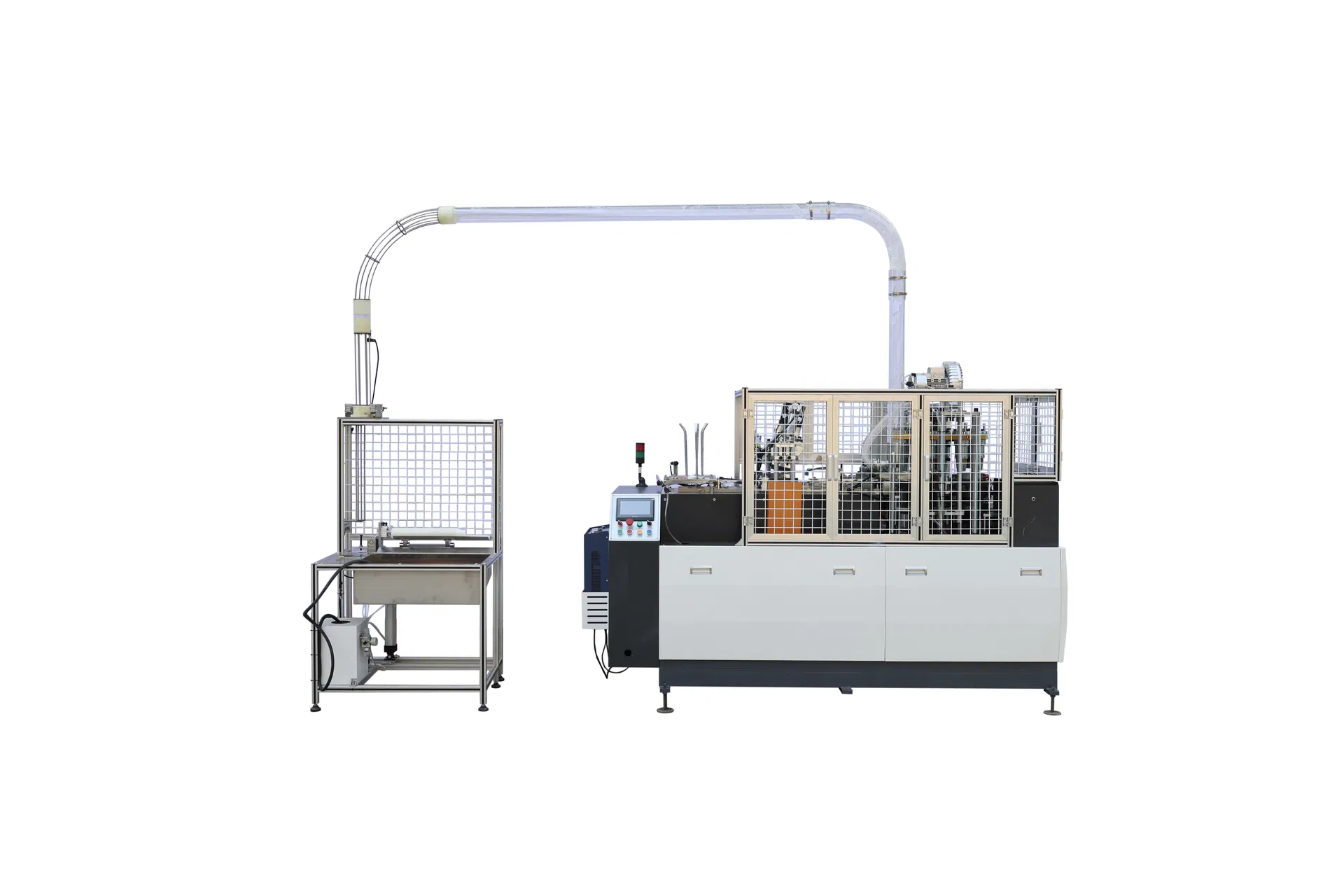

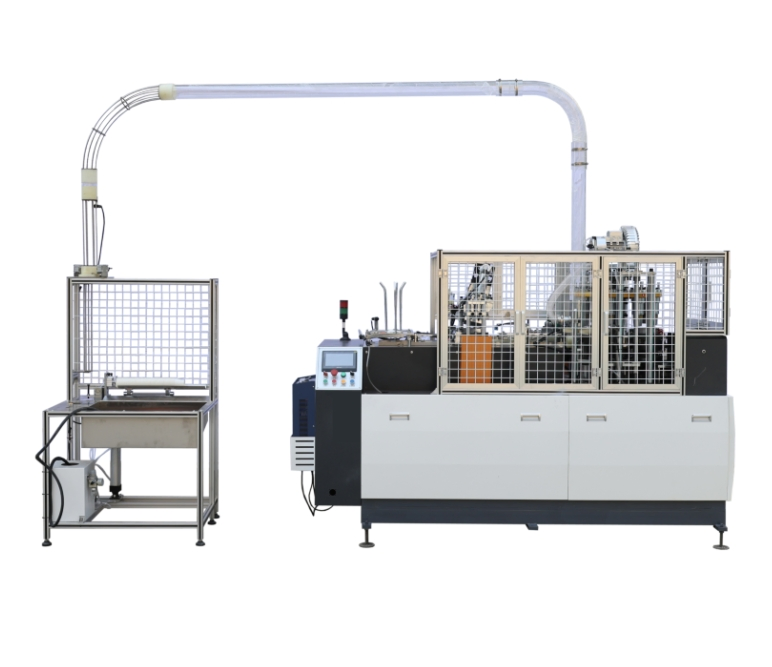

XL-DP16 Gear paper cup machine works on a principle where a main motor drives the entire system, integrating gear and cam structures seamlessly. By utilizing a single aluminum disk instead of the traditional three-disk design, the machine significantly reduces failure rates and shortens operator training time. It is a fully automatic forming equipment capable of producing 2.5-16oz single and double PE coated paper cups. Processes include multi-row automatic feeding, ultrasonic or copper strip welding, manipulator transfer, oil injection, bottoming, folding, preheating, knurling, and cup collection.
Technical Specification
Model
XL-DP16
Paper Cup Size Range
3-16 oz
Production Speed
70-90 pcs/min
Machine Power
7 Kw
Voltage
380V/50HZ Three phase
Machine Size
2200x1250x1900mm
Raw Material
Single or double side PE coated paper
Paper Thickness
150-350g/m²
Air Compressor Requirements
0.6-0.8mpa, 0.4m³/min
Cup Body Sticking
Ultrasonic
Bottom Knurling
Air blowing heating

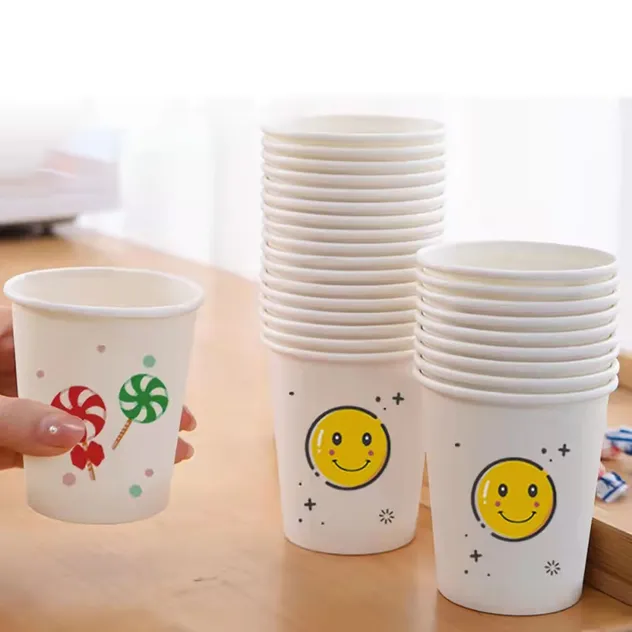

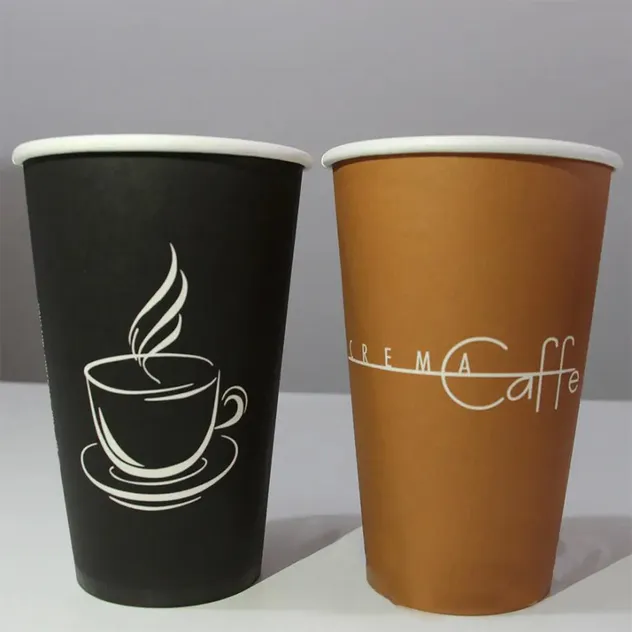

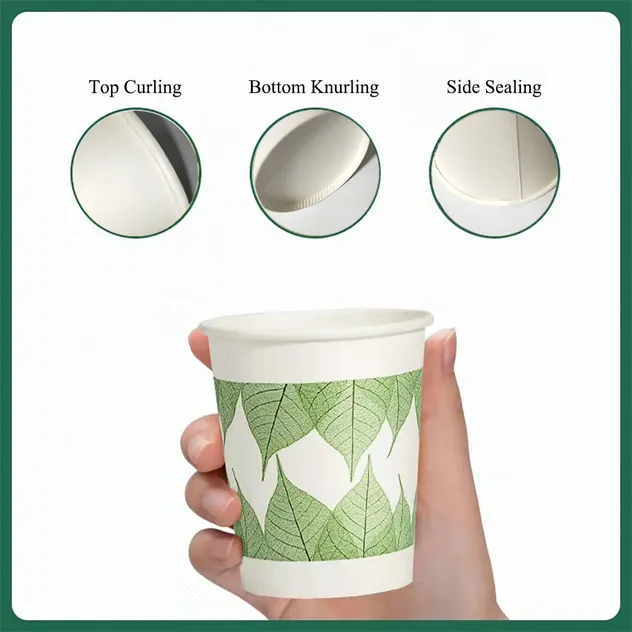

Sample Pictures

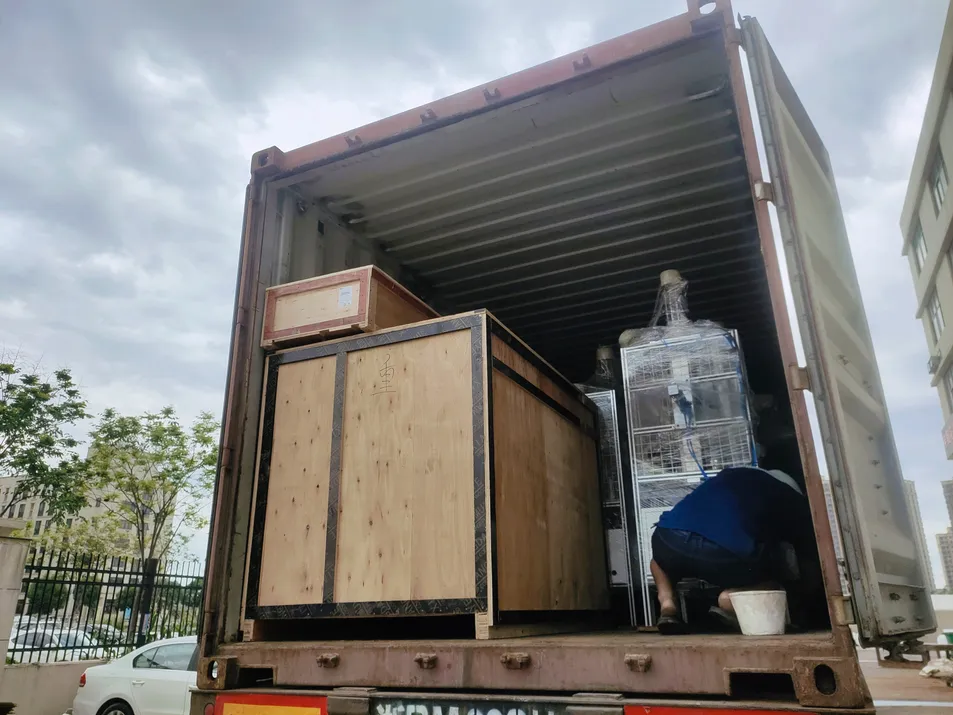

Packing & Delivery

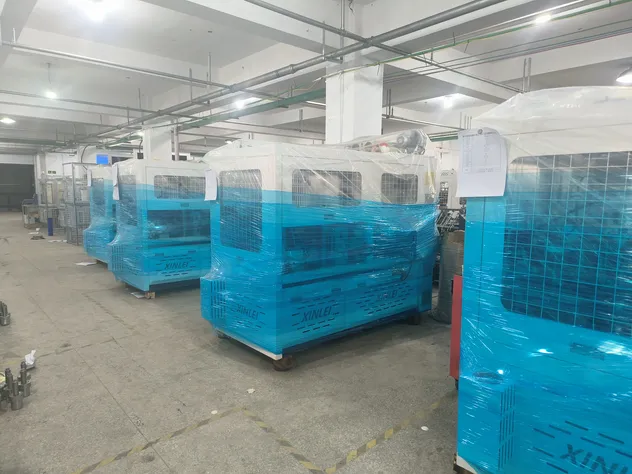

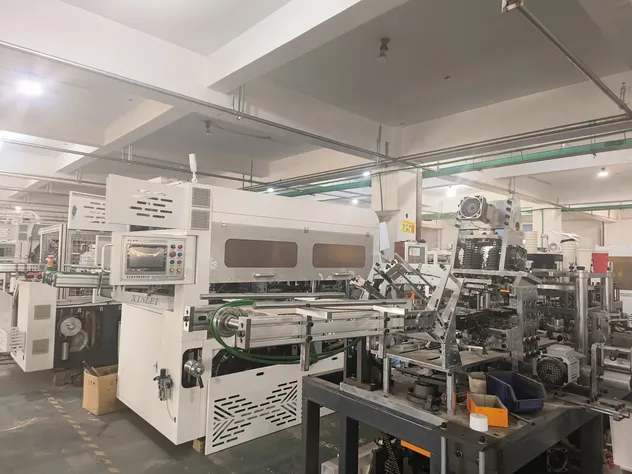

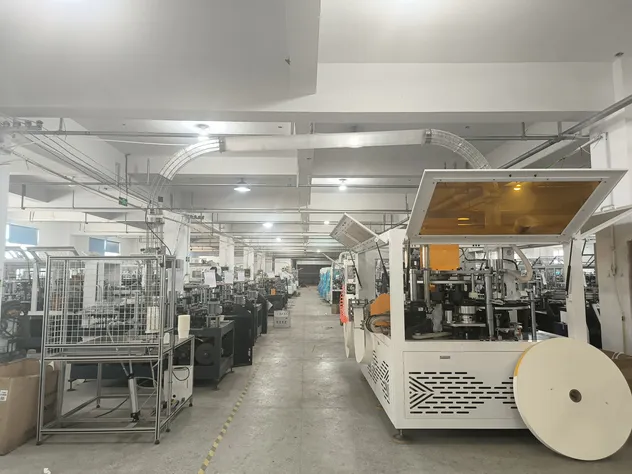

Workshop & Certificate
Frequently Asked Questions
Q: What is the manufacture time for orders?
A: Standard models typically ship within 30-35 days, while customized units require approximately 40–45 days.
Q: What documents do you provide for export?
A: We provide a full export documentation package, including the Commercial Invoice, Packing List, and Bill of Lading.
Q: What should I do after receiving the machine?
A: All machines are fully debugged before delivery. You will receive a debugging video for inspection. Upon arrival, simply unpack and connect the wires to start operation.
Q: What are the available payment methods?
A: We require a 30% deposit via T/T in advance, with the remaining 70% balance paid via T/T before shipment.
Q: Can the machine produce different cup sizes?
A: Yes, the machine can be customized to produce paper cups ranging from 2.5oz to 16oz, supporting both single and double PE coated paper.
Q: How do I place an order?
A: You can initiate an order by contacting us through online consultation to confirm specifications with our sales team.
