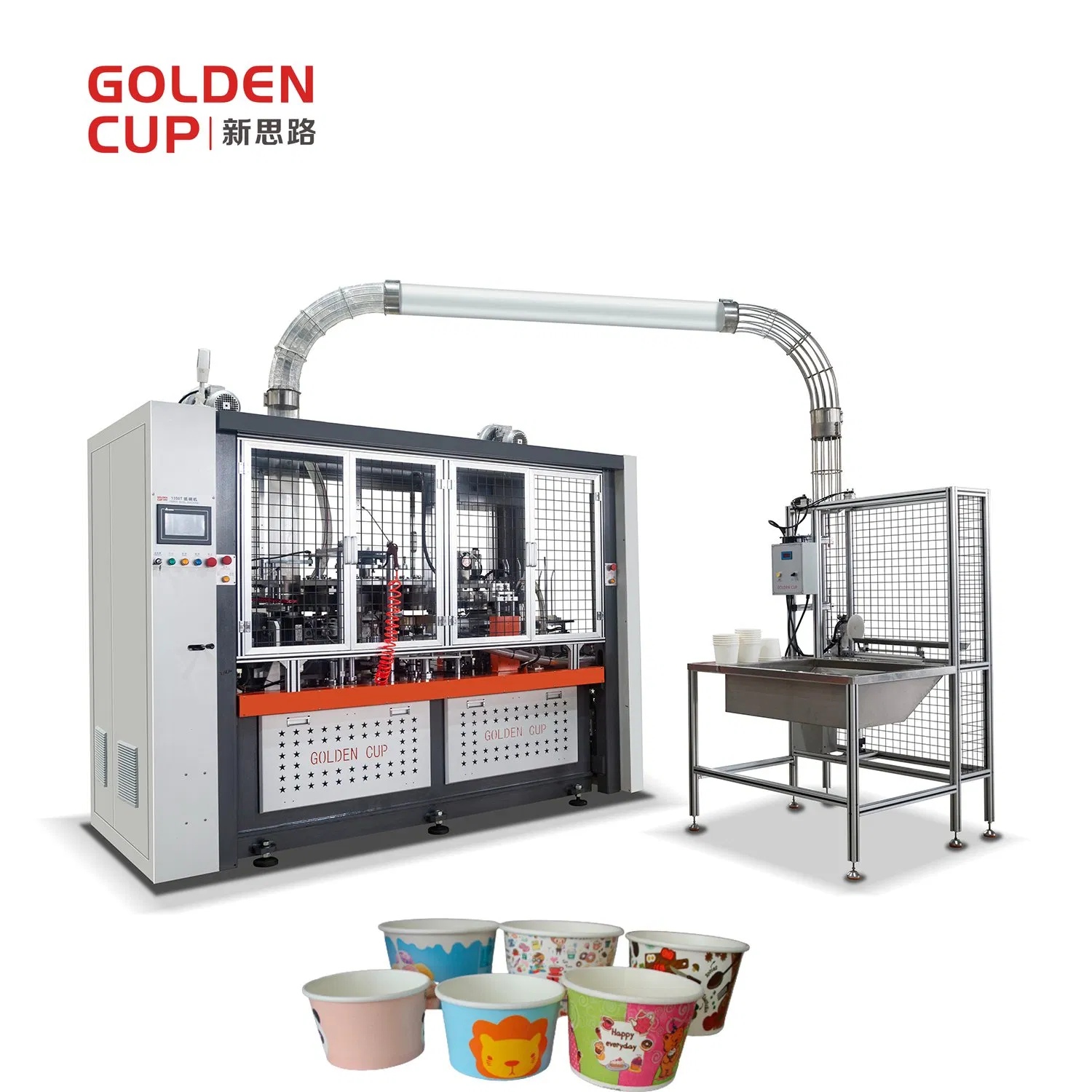

Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine
Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine
Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine
Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine
Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine
1 / 5
Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine
Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine
Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine
Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine
Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine

Xsl-1350t Paper Bowl Making Machine, Square and Rectangular Bowl Forming Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊Basic Information

Model NO.
XSL-1350T
Cup Size
4-16oz
Speed
120-150 PCS/Min
Required Paper
PE Paper/PLA Paper/Water Based Paper
Automation
Automatic
Certification
CE
Power
3 Phase, 380V, 50Hz 21kw
HS Code
8441309000

⚙️Product Overview

The XSL-1350T paper bowl machine isolates the forming parts and transmission parts, making it easy to clean and maintain. All transmission parts use longitudinal shafts, barrel indexing cams, and gear transmissions. All transmission components are lubricated by spray, ensuring the machine operates stably.
Key Features: Controlled by PLC, the entire process is monitored by sensors. An optional inspection system is available to eliminate disqualified cups. It is specifically designed for producing 16-32 OZ paper bowls with high efficiency.

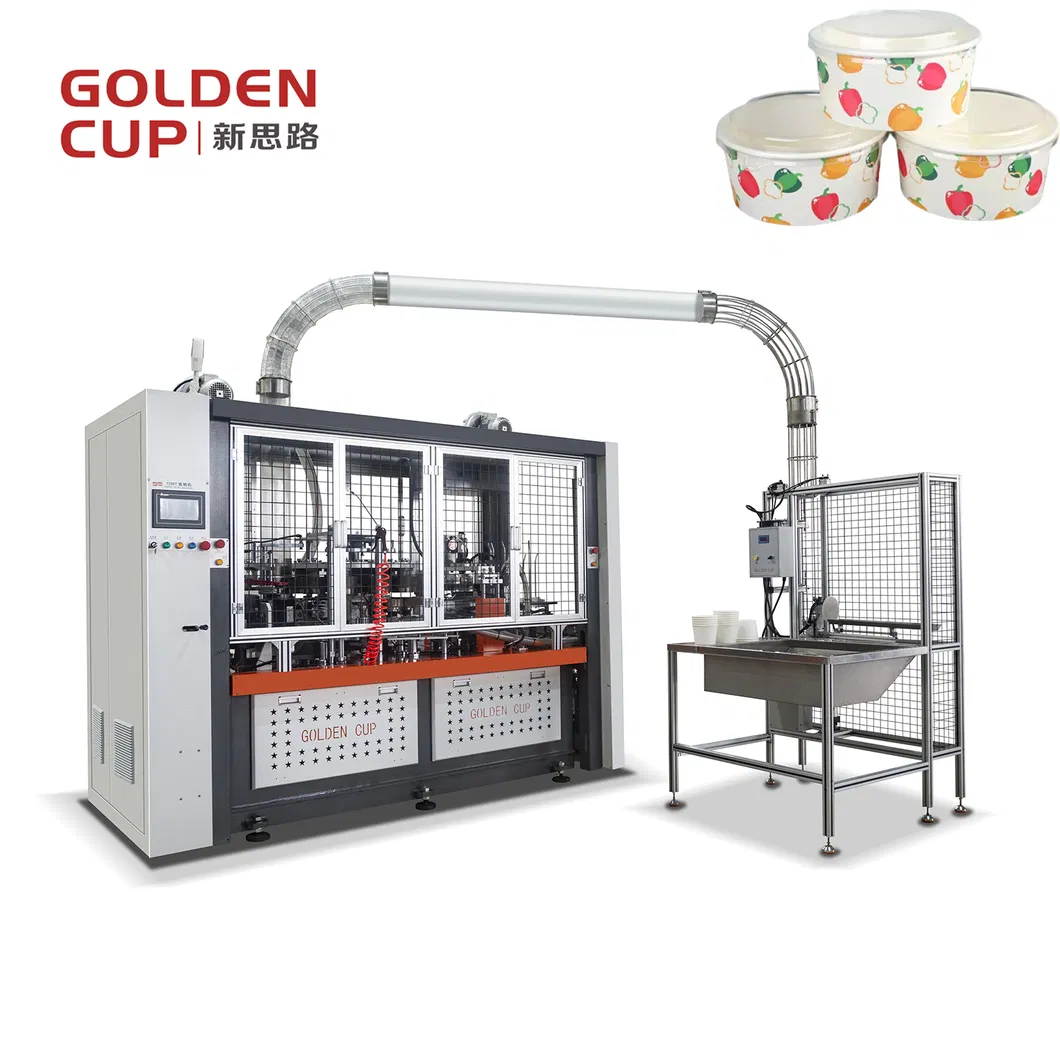

Paper Bowl Making Machine Overview
Square and Rectangular Bowl Forming Machine

📋Technical Parameters

Parameter Specification
ModelXSL-1350T High Speed Machine
Suitable SizeTop: 100-145mm, Bottom: 80-115mm, Height: 50-110mm
Speed100-120 pcs/min
Paper Request170-380gsm Single/Double PE Paper
Weight4500kgs
Dimensions (L*W*H)3650 * 1470 * 2330 mm
Air Consumption0.6-0.8 m³/min

🔍Machine Details & Production

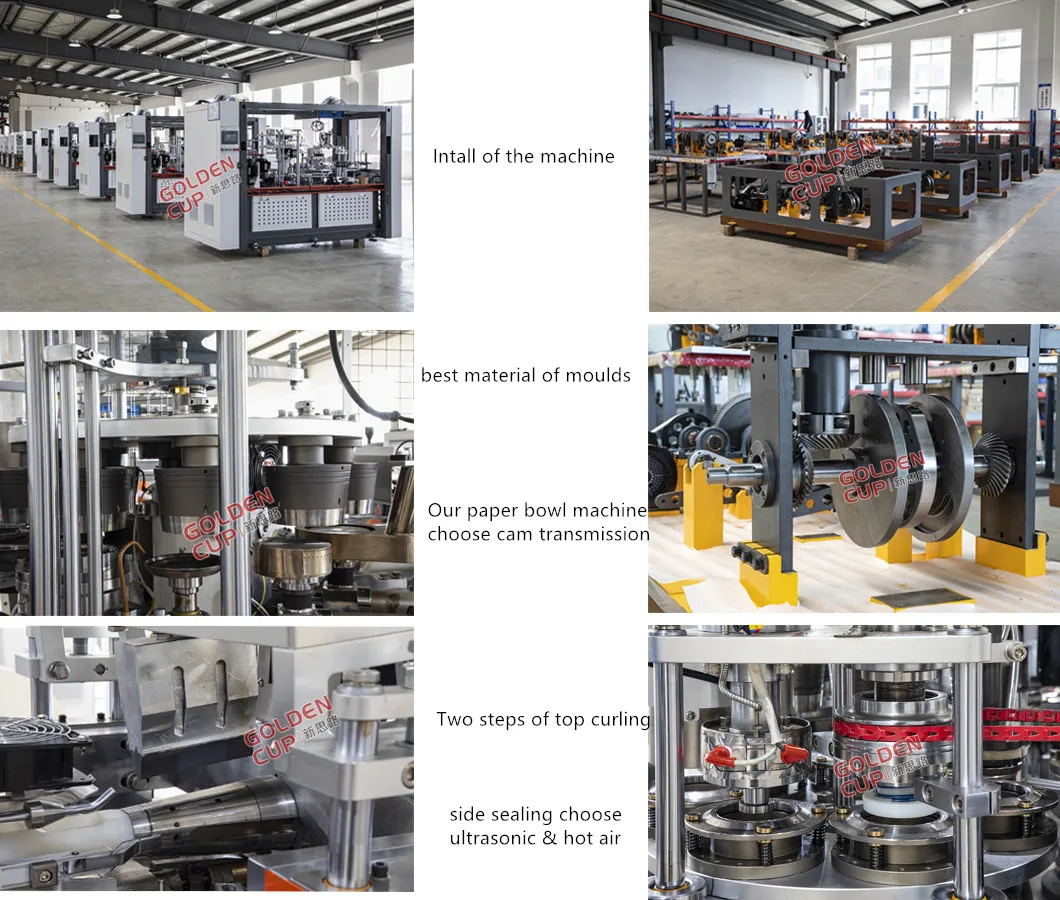

Machine Details
We specialize in high-speed paper cup and bowl machinery. To ensure top-notch performance and durability, we use components from renowned international brands for the main electrical parts. Important bearings are sourced from Japan, and molds are crafted with high-quality materials similar to those used in aviation.

🏭Workshop & Packaging

Professional Team

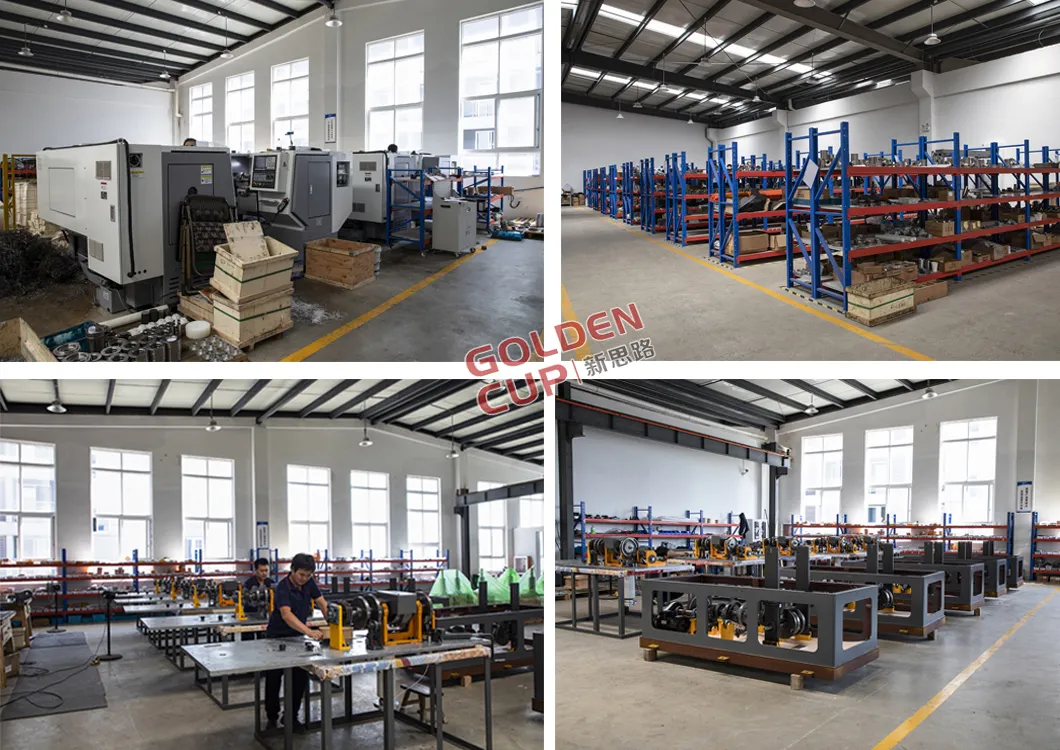

Manufacturing Workshop

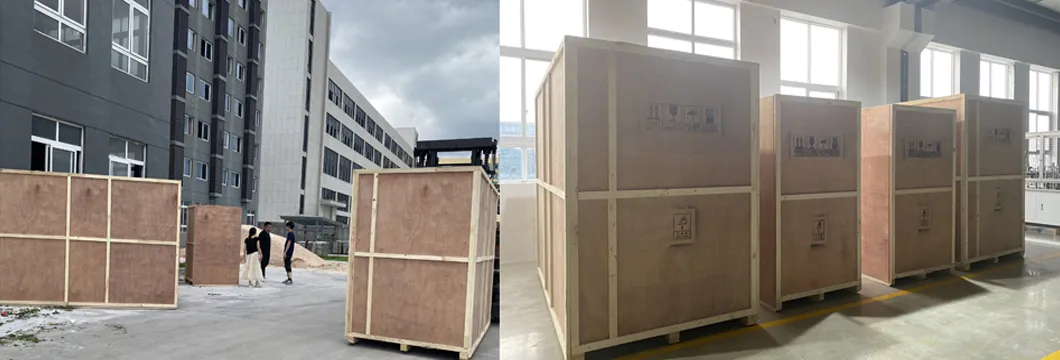

Export Packaging

❓Frequently Asked Questions

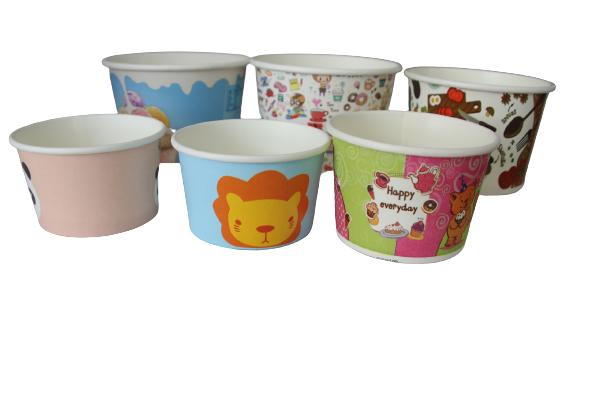

What types of products can be made on this machine?

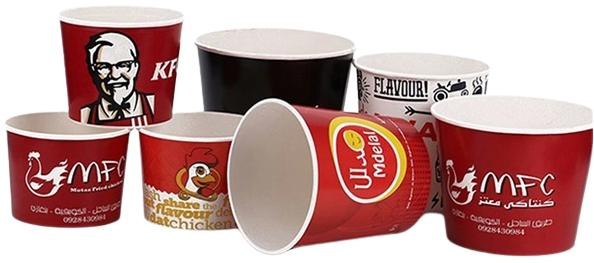

The machine can produce a wide range of products including coffee cups, tea cups, ice cream cups, noodle bowls, salad bowls, and snack bowls.
What cup and bowl sizes can the machine accommodate?
We can manufacture sizes from 4OZ to 32OZ using different molds and specific machine configurations. Non-standard sizes can be checked upon request.
What is the typical delivery time for an order?
Standard machines generally require 45 working days for delivery after receiving the deposit and confirming final technical drawings.
How is the quality of the machine tested before delivery?
Once finished, our engineers conduct rigorous testing. We also send samples to customers for quality checks to ensure the mechanical equipment meets all production requirements.
What is the warranty period for your machinery?
The cam transmission part is covered by a 3-year warranty, while electrical parts carry a 1-year warranty. We also provide lifetime maintenance support.
How do you handle packaging and transportation?
All products are packed in secure wooden cases before being shipped, typically via sea transport from major ports to the destination.
