Factory Price Automatic Coffee Tea Double Wall Paper Cup Making Machine

1 / 5

Factory Price Automatic Coffee Tea Double Wall Paper Cup Making Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

YB-WT70

Cup Size(Ounce)

2-12OZ

Speed

80-100pcs/min

Required Paper

Single and Double Side PE Coated Paper

Automation

Automatic

Logo Printing

Without Logo Printing

Certification

Customized

Condition

New

After-sales Service

12 Month

Transport Package

Wooden Box by Sea

Production Capacity

2000 Sets/Year

📦 Product Description

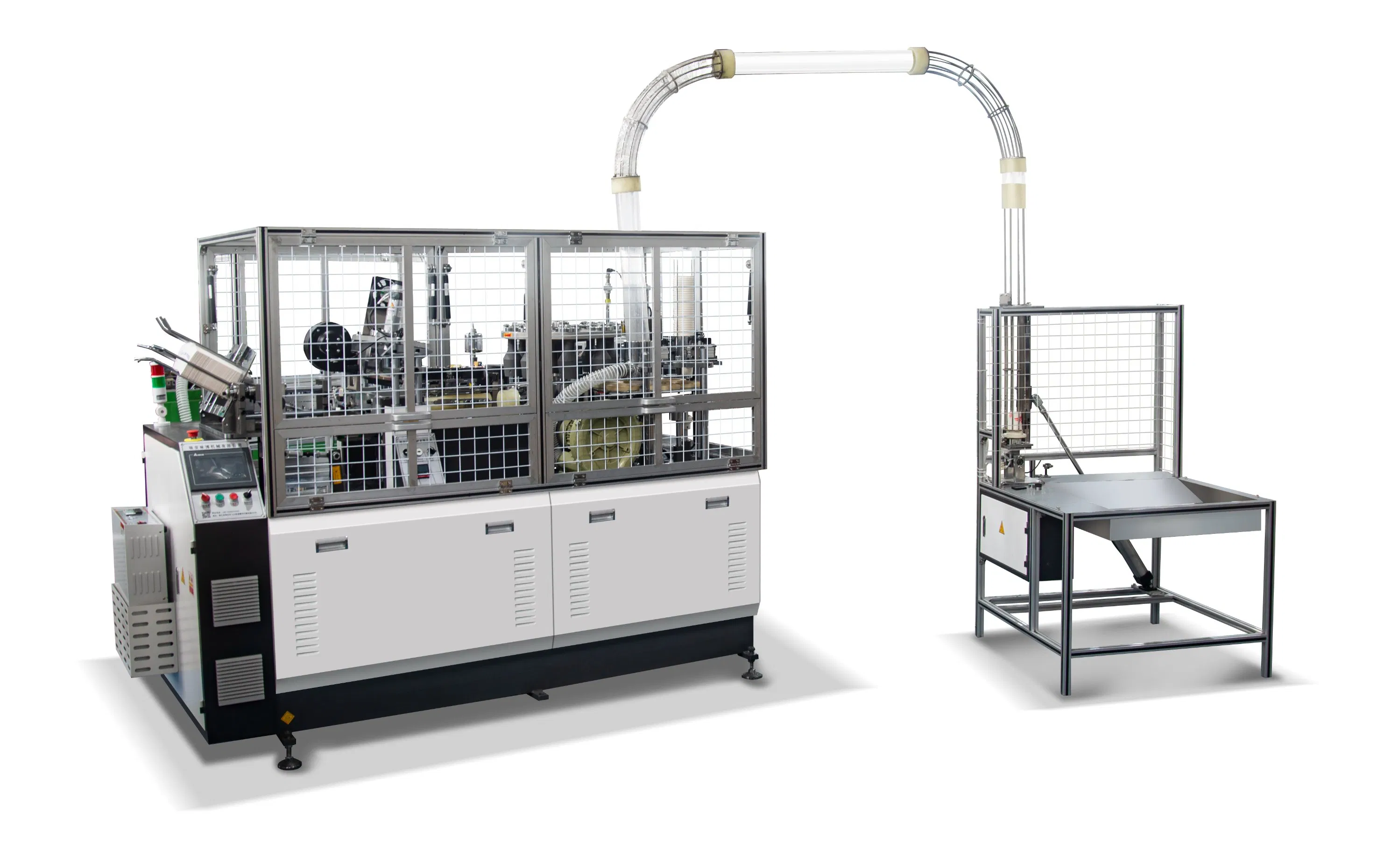

Automatic Double Wall Paper Cup Making Machine

● Quotation: YB-WT70 Double Wall Paper Cup Machine FOB Ningbo.

● Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external.

● Delivery time: 30 days after receive the payment of deposit.

● Payment: Deposit 30% by T/T in advance, delivery against payment of 70% balance after qualified acceptance.

● Guarantee period: 12 months after getting the machine.

📝 Brief Description

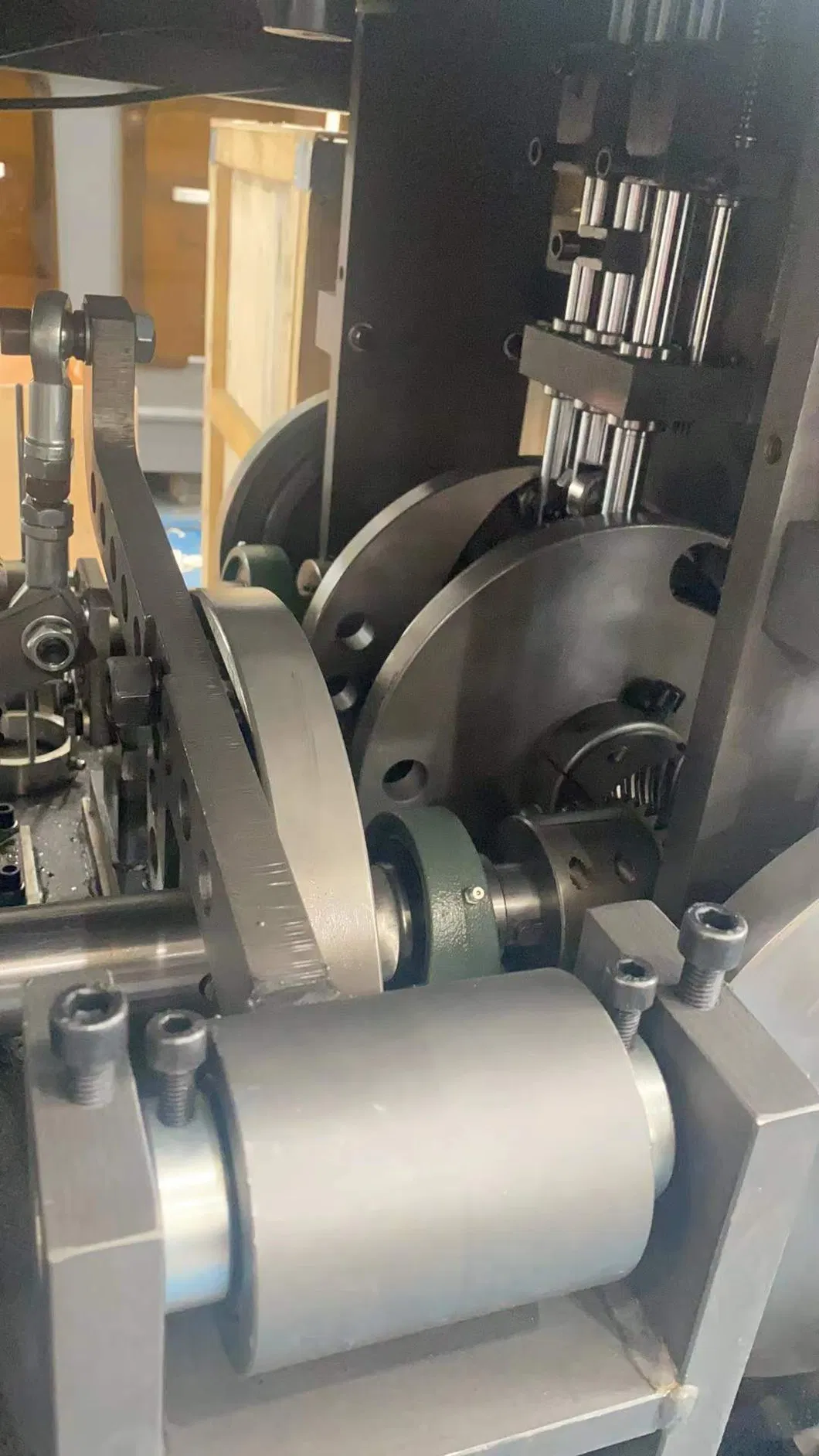

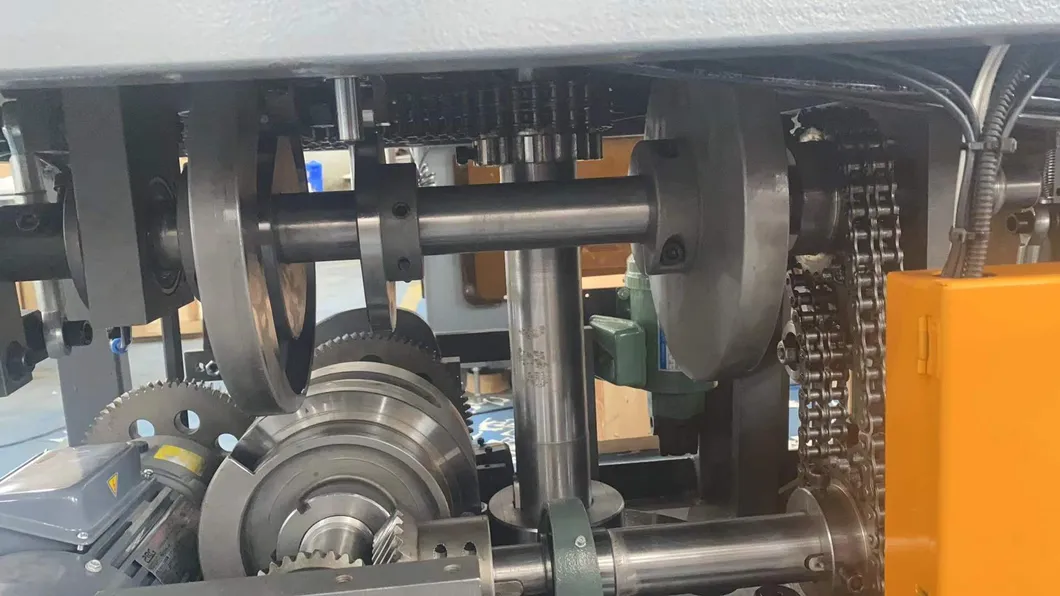

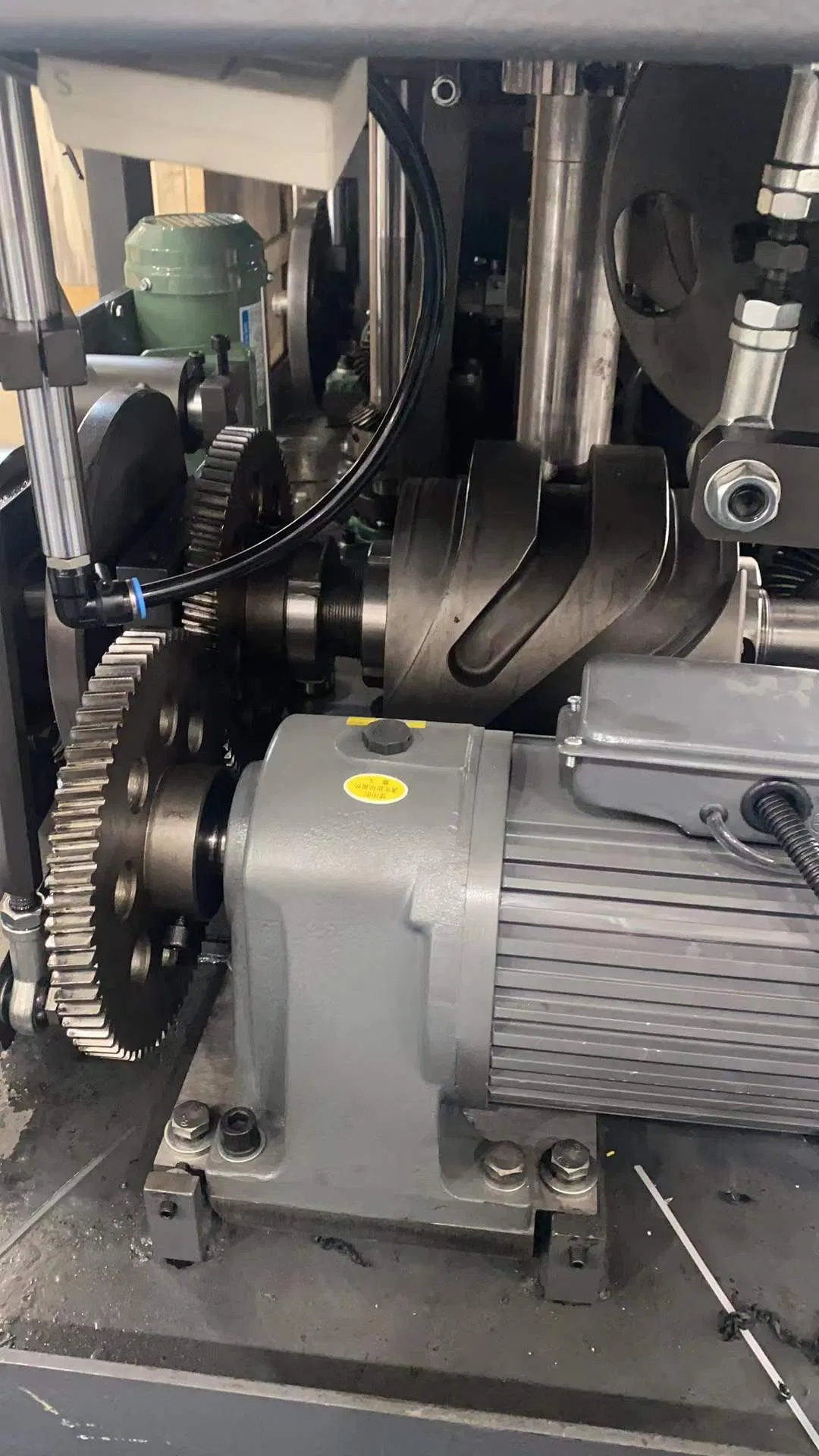

YB-WT70 high-speed double wall paper cup forming machine is a multi-station high speed paper cup making equipment, mainly utilized for making the outer-sleeve of paper cups and paper bowls. The paper cup former is installed with a frequency converter, forming and sealing equipment and other devices, thereby realizing a huge output.

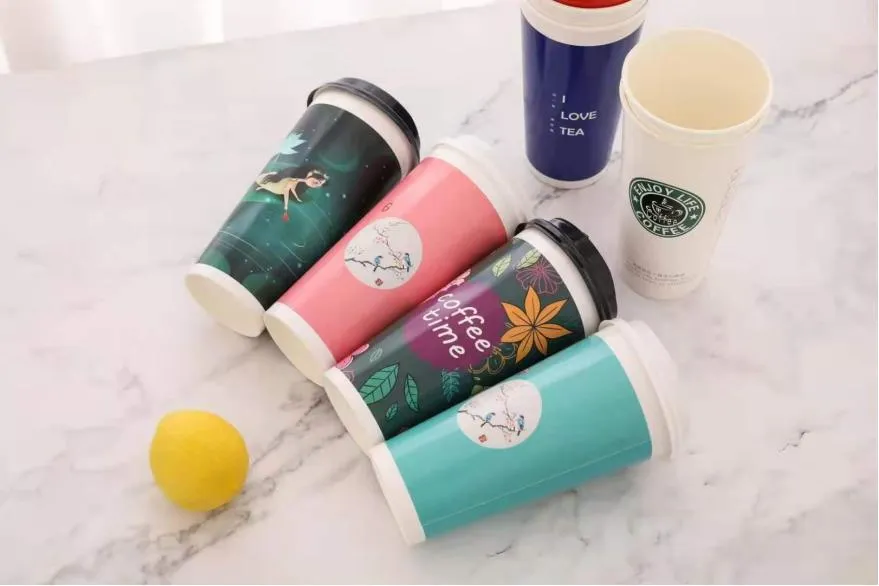

🍵 Samples

⚙ Main Technical Specification

Parameter	Specification
Paper Cup Specification	4-12oz (mold exchangeable)
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	70-90 pcs/min
Power Source	380V 50HZ 3Phases
Average Power	5KW (glue box 3.8KW)
Air Supply Requirement	Air pressure: 0.4 Mpa, Air out-put: 0.6cbm/min
Total Weight	1700 KG
Package Size (LWH)	23509601700mm

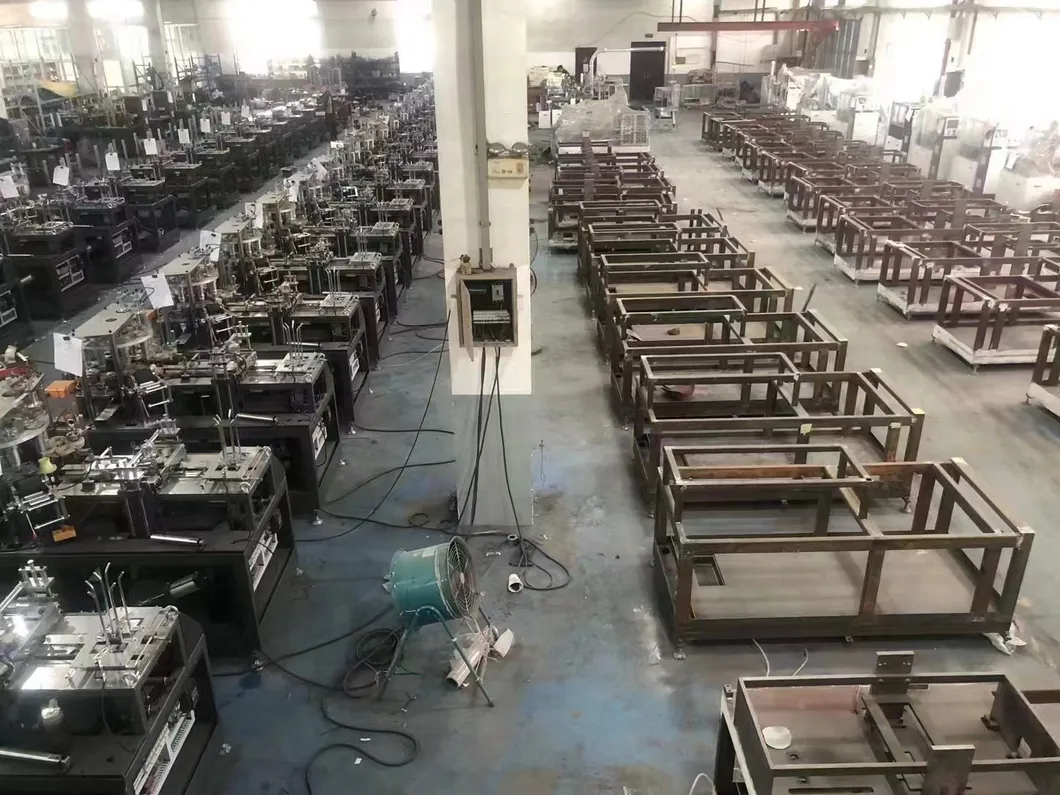

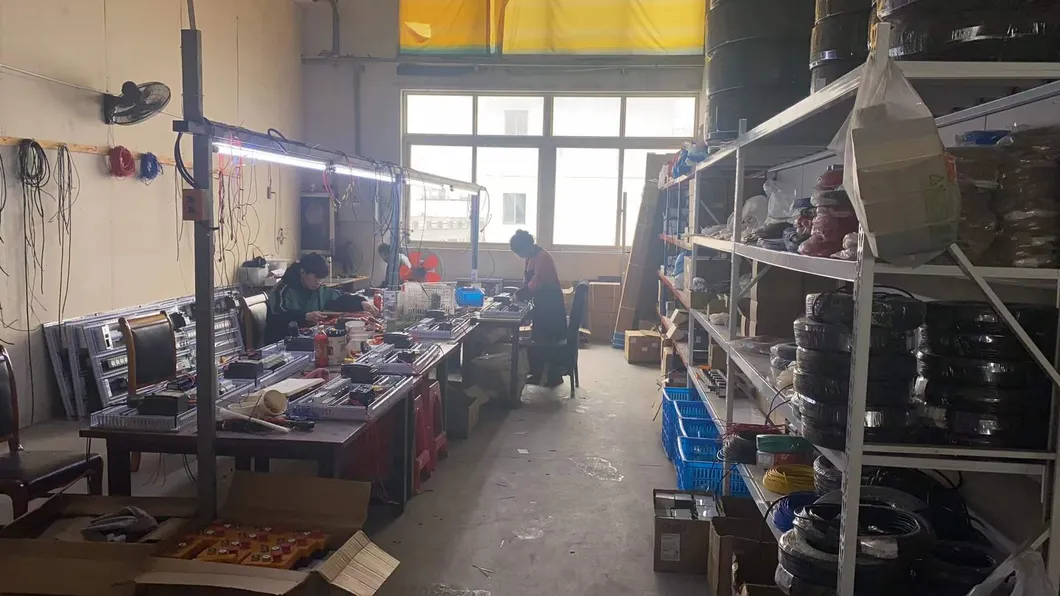

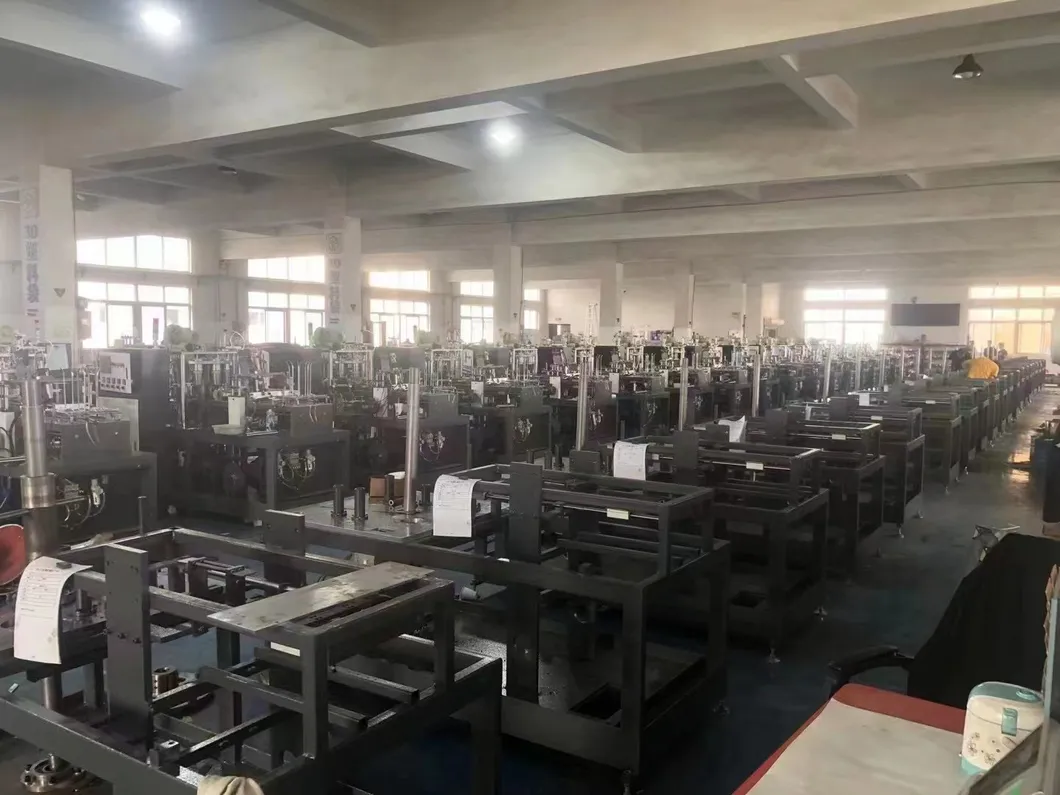

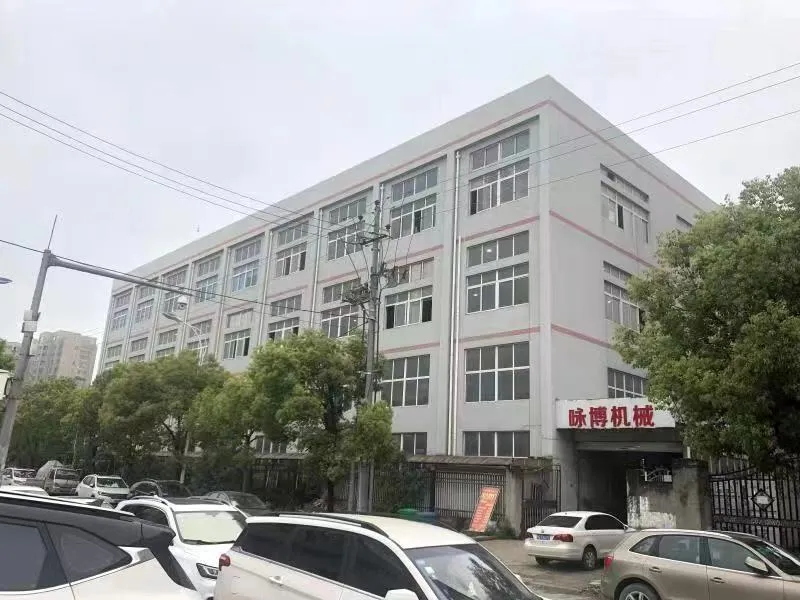

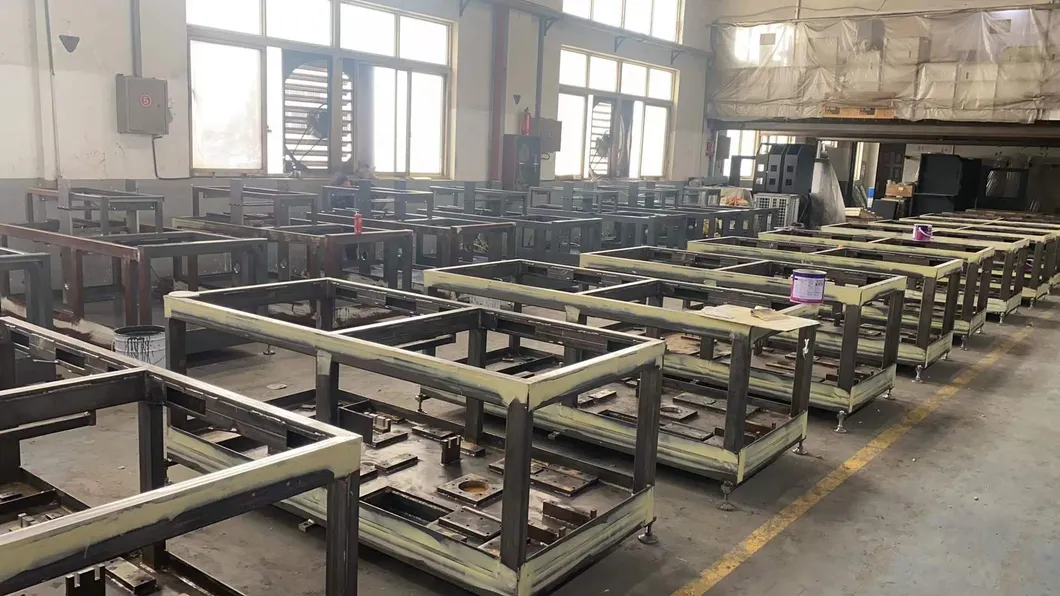

🏭 Production Environment

❓ Frequently Asked Questions

Q1: What is the production speed of the YB-WT70 machine?

A: The machine operates at a high speed of 80-100 pieces per minute, depending on the material and cup size.

Q2: What range of cup sizes can this machine produce?

A: It is designed for double wall sleeves ranging from 2oz to 12oz (or 4-12oz depending on mold configuration). Molds are exchangeable to accommodate different sizes.

Q3: What are the paper requirements for the outer sleeve?

A: The machine supports 150-350 GSM single or double side PE coated paper.

Q4: What is the warranty and after-sales service period?

A: We provide a 12-month guarantee period after the machine is received.

Q5: How is the machine packaged for international shipping?

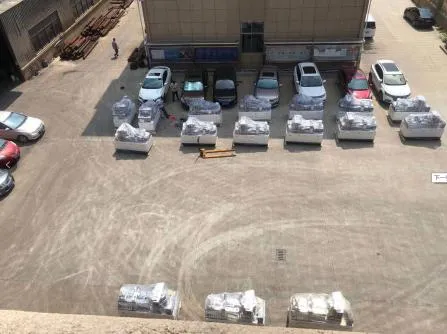

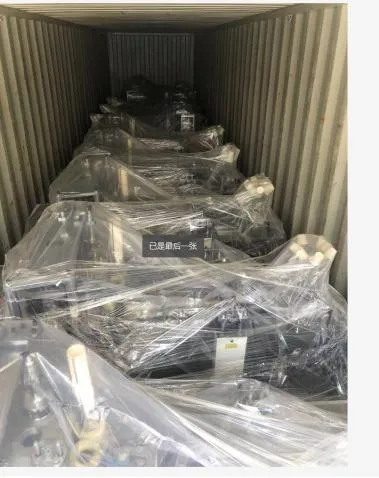

A: The machine is packed in a wooden box with a base plate and damp-proof plastic lining for safe sea transport.

Q6: Do you provide installation and training services?

A: Yes, technicians can be sent for installation and debugging. We also provide guidance for the buyer's technical personnel on how to operate the machine.
