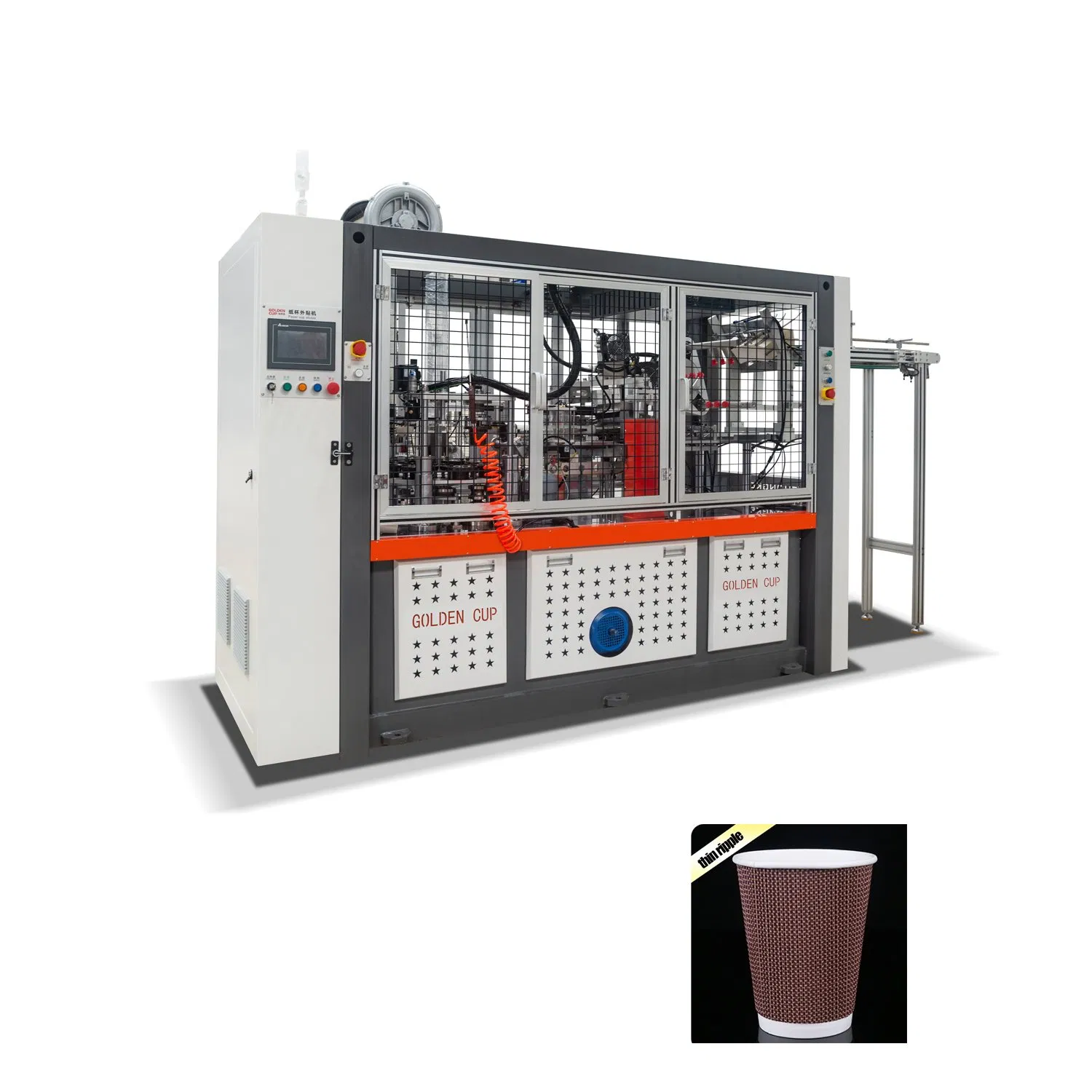

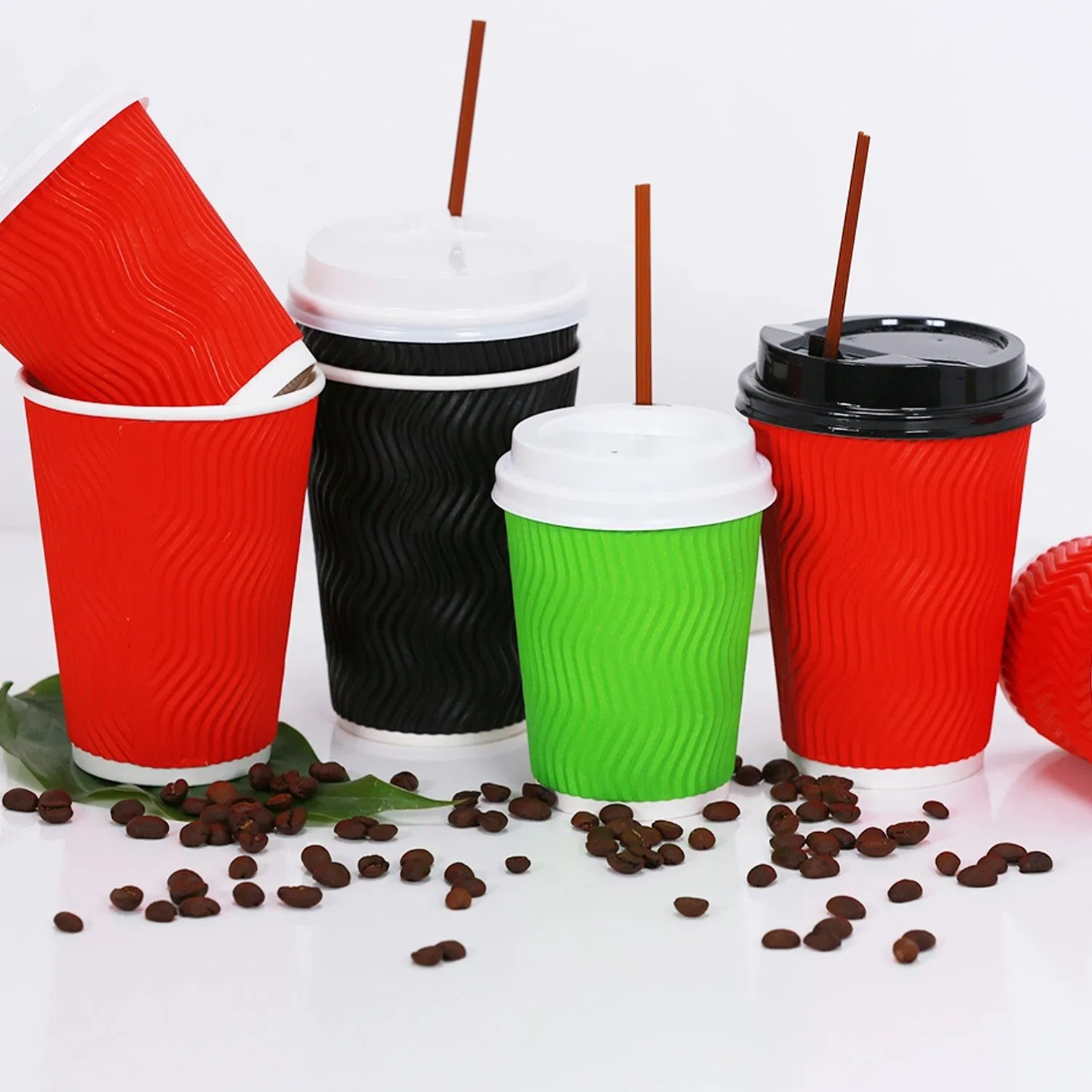

Golden Cup 8oz 12oz 16oz Disposable Embossed Paper Coffee Cups Double Wall Paper Coffee Cup Forming Machine

i

Overview & Basic Info

Model NO.	XSL-16W
Cup Size(Ounce)	4-16oz
Speed	100-120pcs/min
Required Paper	Single/Double PE Paper/PLA Paper/Water Based Paper
Automation	Automatic
Certification	CE
Customized	Customized
Condition	New
After-sales Service	Online Service/Engineer Service
Weight	3600kgs
Size(LWH)	26009602120mm
Power	3 Phase, 380V, 50Hz 6kw
Air Consumption	0.3MPa

✓

Product Description

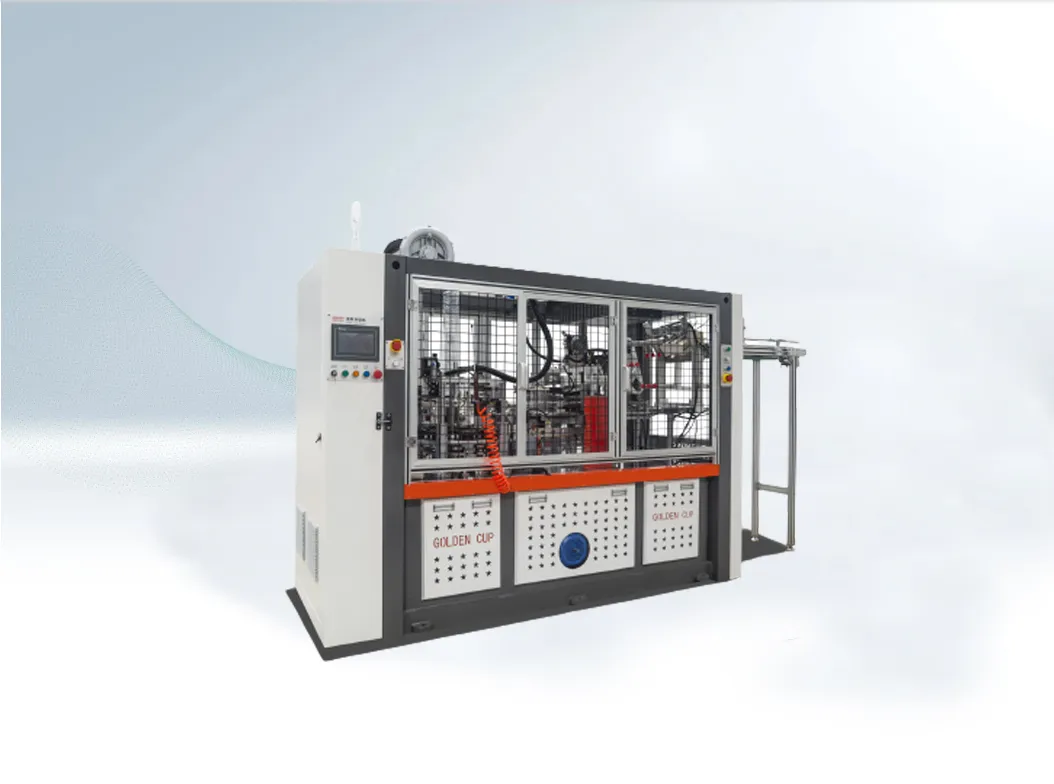

XSL-16W double wall sleeve machine uses a tabletop layout, which isolates the forming parts and transmission parts. The machine is controlled by PLC, the whole process is monitored by photoelectric sensors, and glue is sprayed by servo. It is an ideal equipment for making different types of sleeve cups.

Double Wall Paper Coffee Cup Forming Machine

⚙

Technical Parameters

Suitable Size	Top diameter: 60-95mm Bottom diameter: 40-75mm Height: 50-135mm Depth from bottom: 5-12mm
Production Speed	100-120pcs/min
Paper Request	170-300gsm single/double PE paper
Machine Size	26009602120mm
Power Supply	3 phase, 380V, 50HZ, 6KW
Air Consumption	0.3Mpa

★

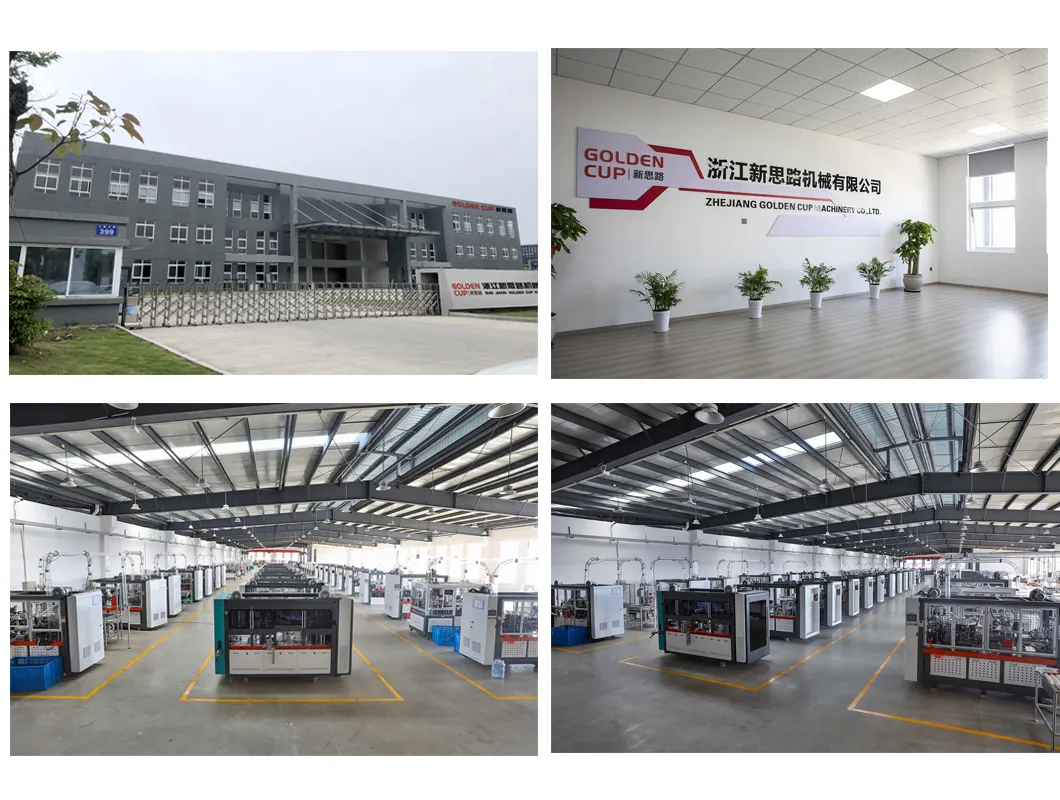

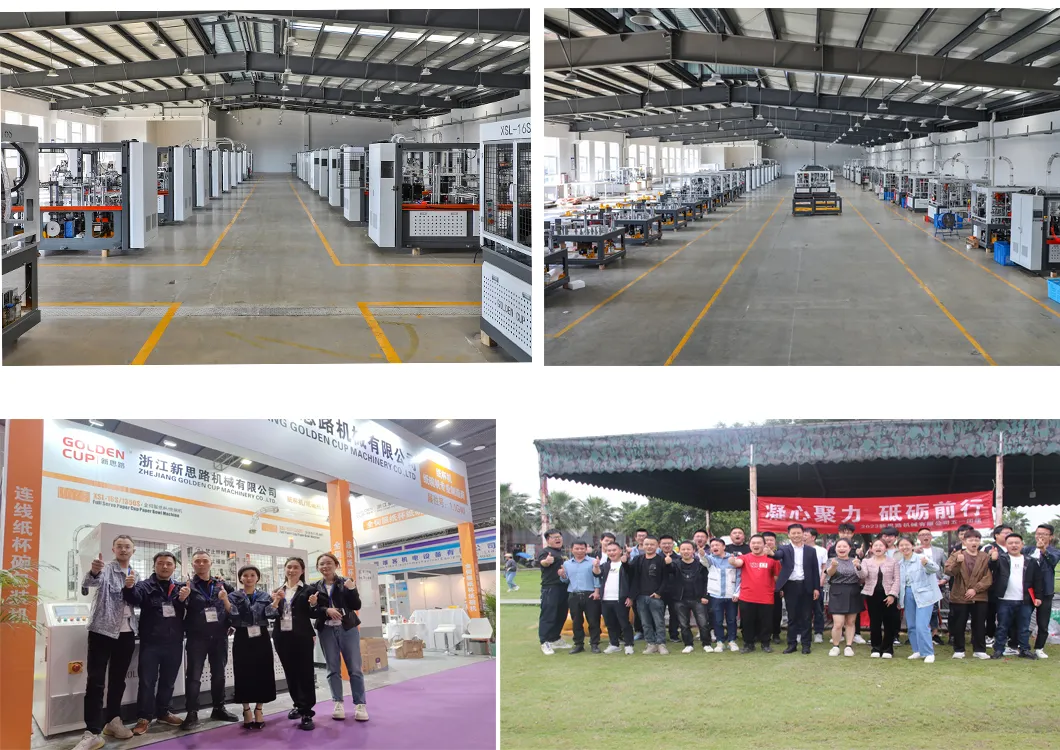

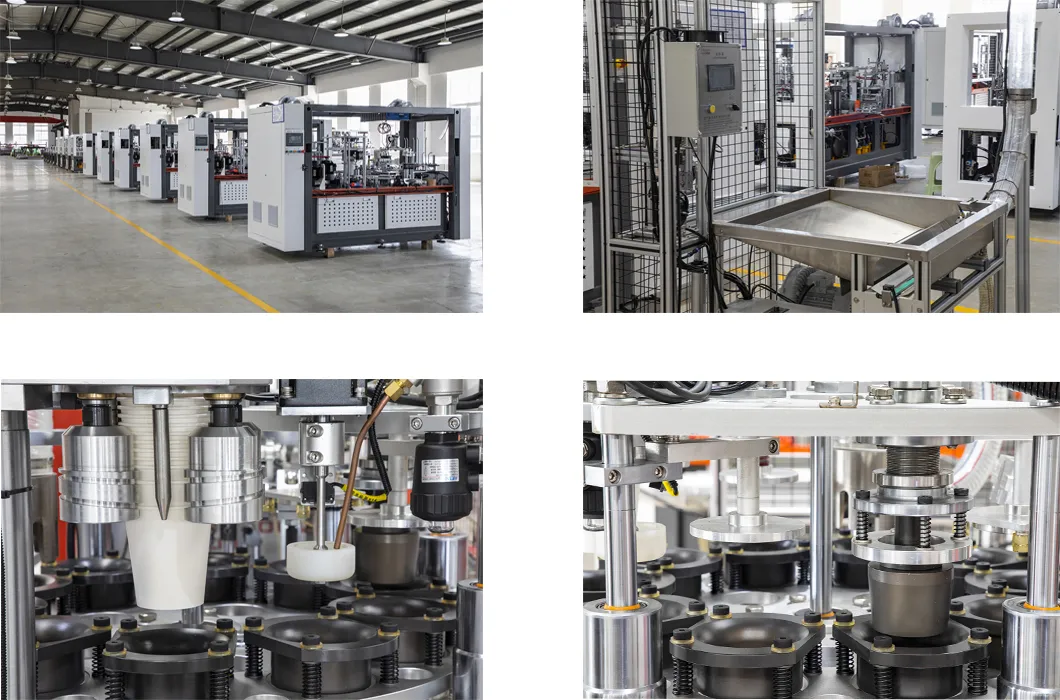

Machine Details & Workshop

Our company is a leading manufacturer of high-quality machinery in the paper cup industry. Our state-of-the-art facility spans around 10,000 square meters, equipped with advanced production capabilities. We use components from renowned international brands for main electrical parts. Important bearings are sourced from Japan, and molds are made with high-quality materials. The transmission part utilizes cam and gear mechanisms, eliminating chains and incorporating a spray circulating lubrication system.

📦

Packaging & Delivery

Before the product is shipped, it is securely packed in professional wooden cases to ensure safe transportation. Products are generally shipped from the port to the destination by sea.

?

Frequently Asked Questions

What size of cups or bowls can this machine make?

We can produce sizes from 4OZ to 32OZ using different molds and machines. Non-standard sizes can be checked and confirmed upon request.

What is the production speed of the XSL-16W?

The machine operates at a stable production speed of 100-120 pieces per minute.

What is the warranty period for the machine?

For this machine, the cam transmission part has a 3-year warranty, and the electrical parts have a 1-year warranty. We also provide lifetime maintenance services.

How long does installation and training take?

We typically finish the installation and operator training within 3 working days for each machine.

What kind of paper is required for the sleeve?

The machine is compatible with 170-300gsm single or double PE paper, PLA paper, or water-based paper.

How do you handle technical problems after the engineer leaves?

Our team provides immediate response via phone calls or video tutorials to help solve any operational issues. We also train your staff on maintenance during the initial visit.
