XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine
XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine
XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine
XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine
XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine
1 / 5
XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine
XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine
XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine
XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine
XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine

XL-Wt100 Double Wall Paper Cup Machine Convenient Drink Cup Machine

Customization: Available
Warranty: 1 Year
Applicable Objects: Hollow Corrugate
Send Inquiry

Product Description

Basic Information
Model NO.
XL-WT100
Cup Size
4-16oz
Speed
100-110PCS/Min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Certification
CE
Weight
2150kgs
Power Supply
3 Phase 380V
Paper Weight
190-320GSM
Package Size
2950 x 1100 x 2150mm

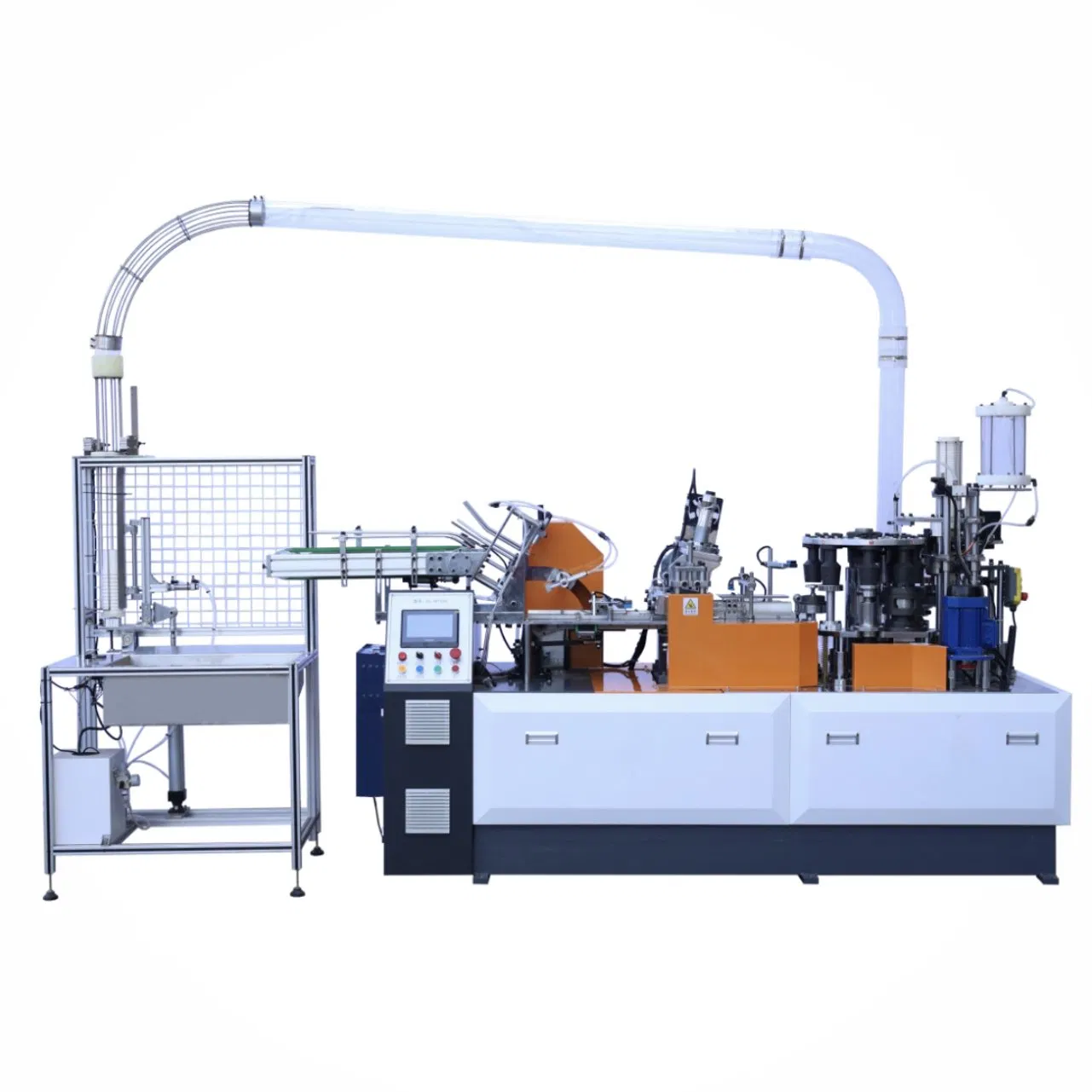

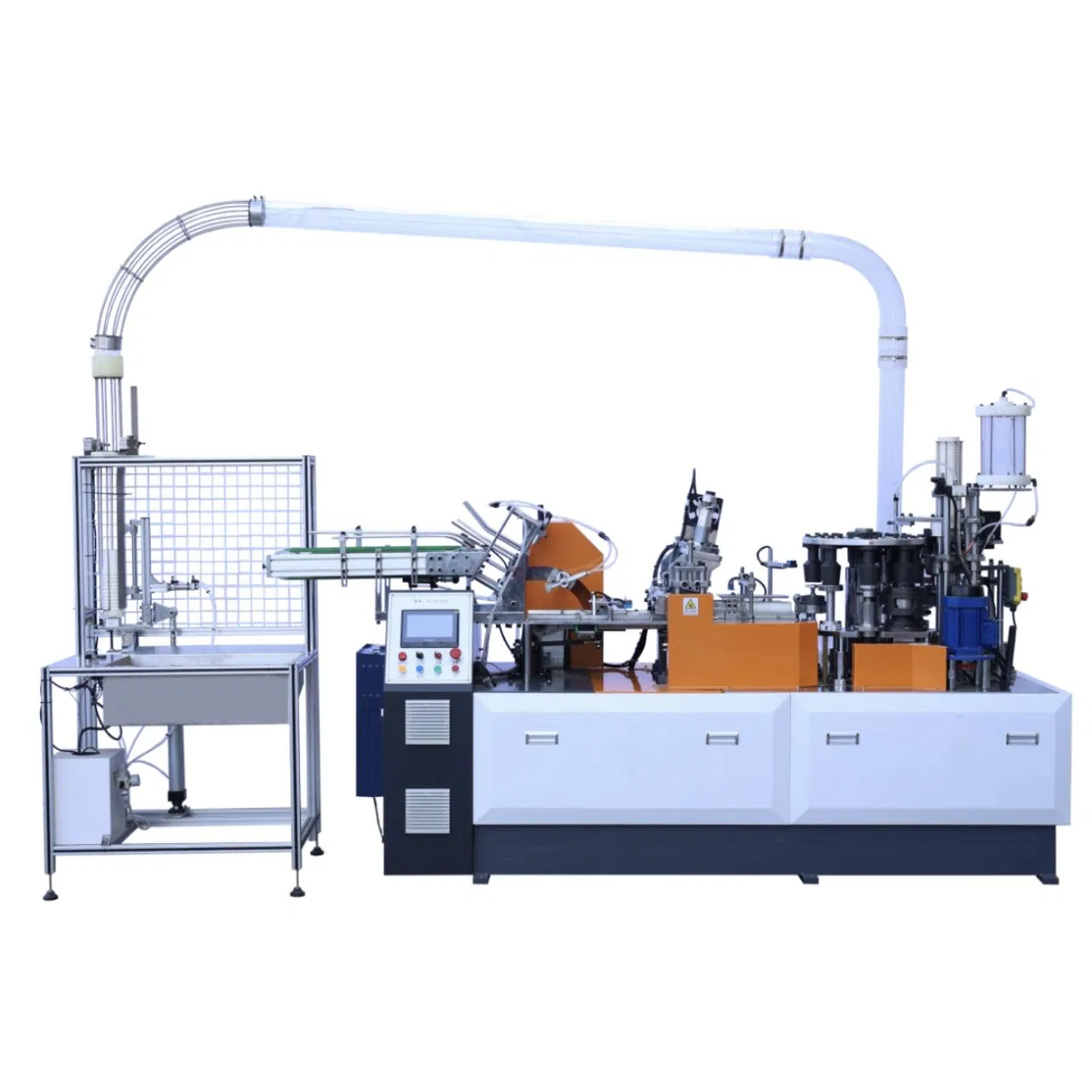

XL - WT100 Double Wall Paper Cup Machine

The externally laminated hollow corrugated cup machine features a tabletop layout, isolating the drive components and molds. With the drive components located below the table and the molds above, this layout facilitates cleaning and maintenance.

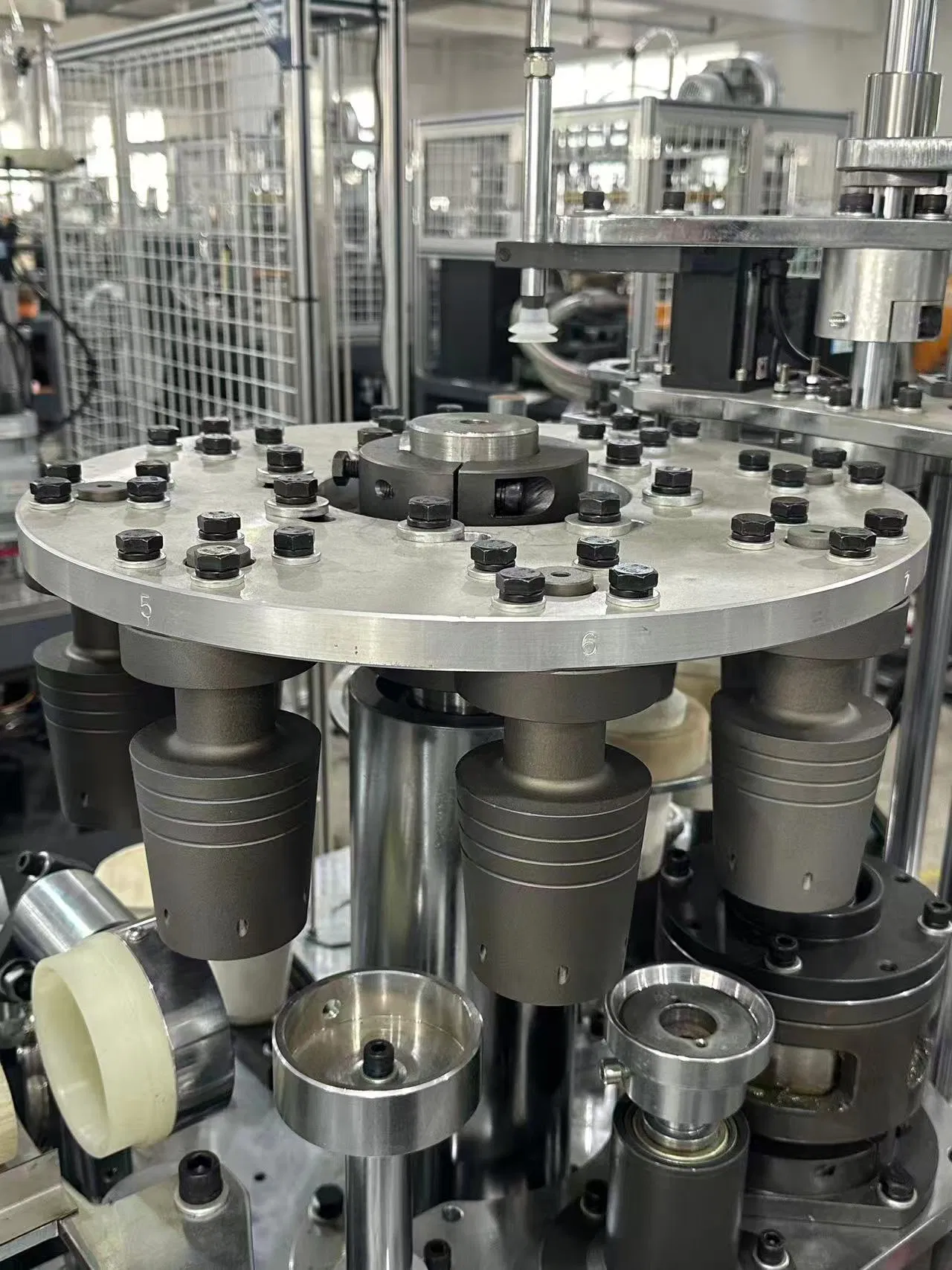

The machine utilizes automatic spray lubrication, a longitudinal drive structure, a barrel-type cylindrical indexing mechanism, and a gear drive to ensure overall stability and quality. Electrical components are controlled by a PLC, photoelectric tracking, and servo feed.

✓
Production Capacity: 100-110 pcs/min
✓
Versatility: Suitable for 4 to 16 oz hollow corrugated paper cups.
XL-WT100 Machine
Operation Video
Video Cover
Play
Technical Specifications
Model NameXL-WT100
Weight2100 kg
Machine Dimensions2950 x 1100 x 2150mm
Power Supply3 Phase 380V
Compressed Air0.6-0.8MPa, 0.5m³/min
Production Capacity100-110 pcs/min
Paper TypeSingle PE or Double PE
Paper Weight190-320gsm

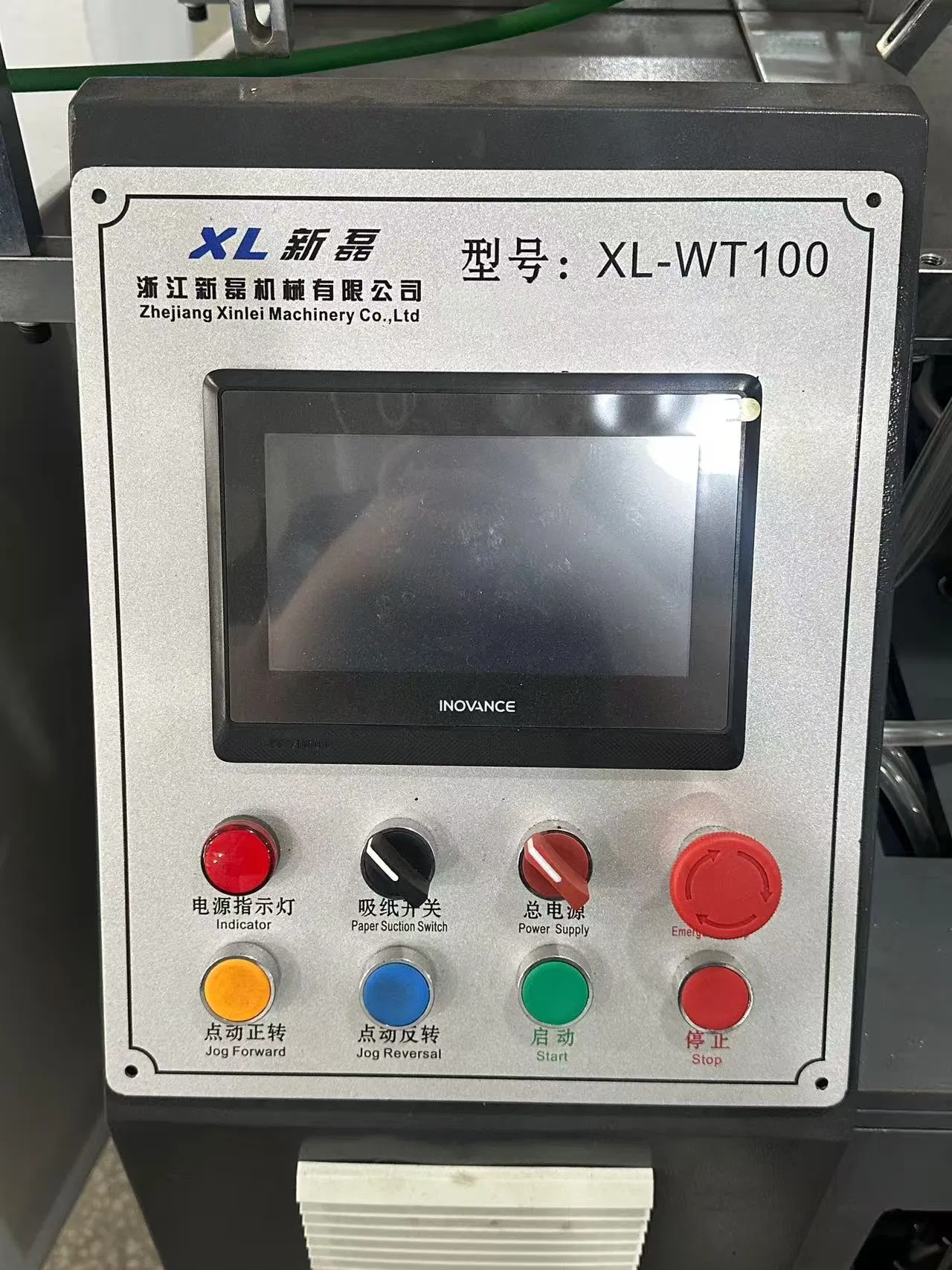

Control Panel10 inch Touch Screen
Cup Collection Rack1000 x 650 x 1600mm
Key Features & Intelligent System
1
Multiple Module Models: Simple window prompts guide you through selecting the model you want to set.
2
Flexible Parameter Settings: Backup, restore, or revert parameters to factory settings easily.
3
Fault Self-Diagnosis: Hardware monitoring system for PLC, relays, and contactors with real-time abnormal alarms.
4
Automatic Parking: Rapid deceleration configuration that automatically calculates inertia distance.
Product Gallery & Samples
Sample 1
Sample 2
Sample 3
Detail 1
Detail 2

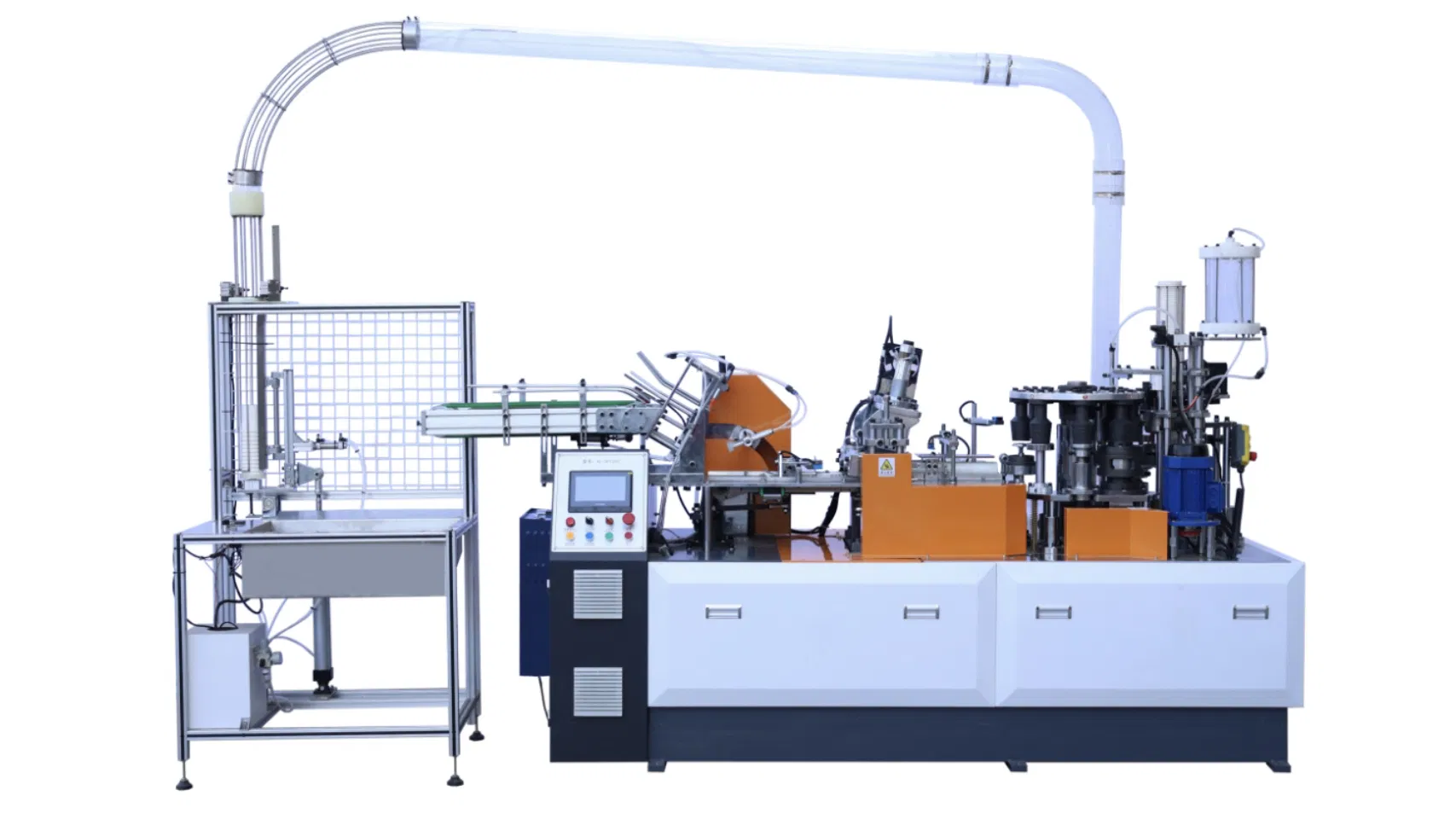

Machine Overview
Professional Manufacturing

We are a professional paper cup machine manufacturer with a 10,000 square meter production workshop.

  • ✔ Manufacturing factory with direct pricing.
  • ✔ Comprehensive pre-sales and after-sales team.
  • ✔ Full import and export rights.
Other Available Products

Double wall paper cup machine, Paper bowl making machine, Semi-automatic and Full-automatic paper bag making machines.

Workshop

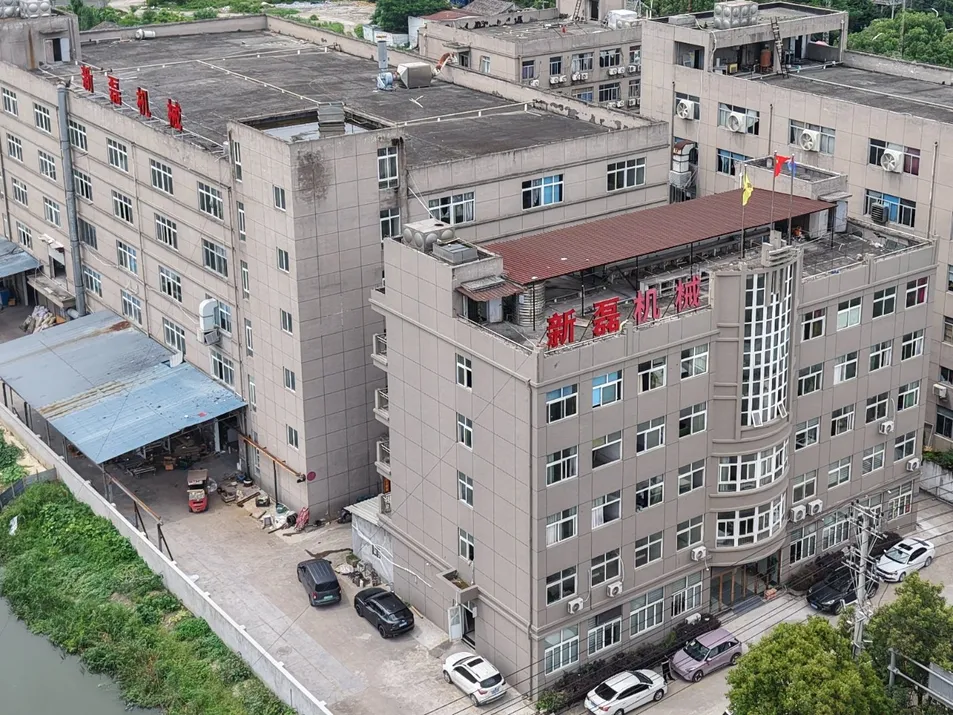

Factory 1
Factory 2

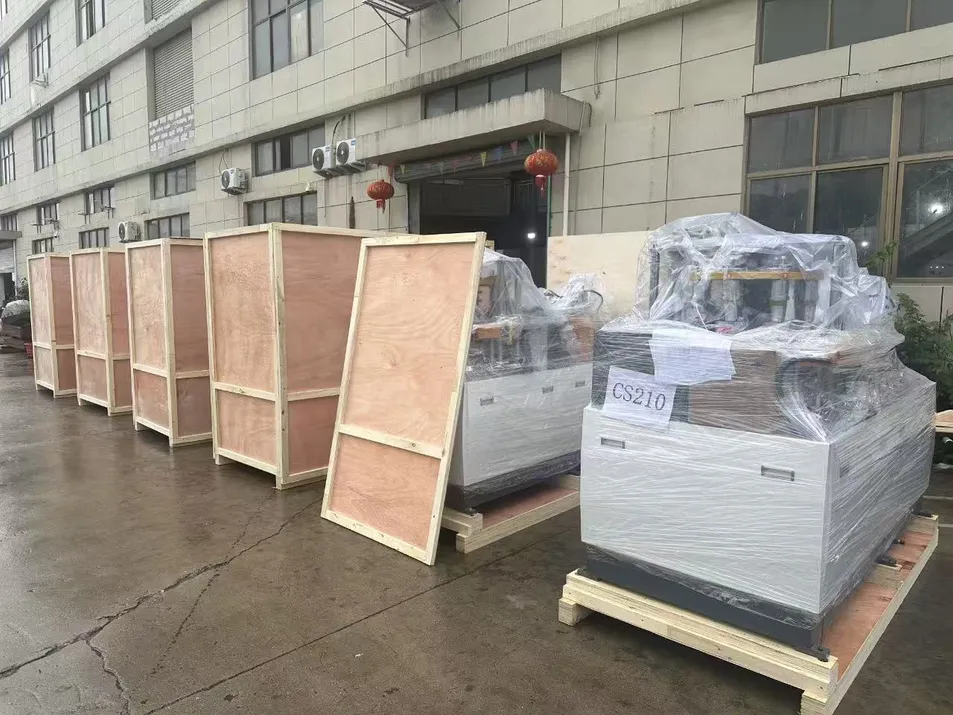

Shipping & Export
Shipping 1
Shipping 2
Frequently Asked Questions
What is the production speed of the XL-WT100?
The machine operates at a stable speed of 100 to 110 pieces per minute, depending on the material and cup size.
What is the typical manufacture time for orders?
Standard models typically ship within 30-35 days. For customized units with specific configurations, the lead time is approximately 40–45 days.
How is the machine set up after delivery?
All machines are fully debugged before delivery. We provide a debugging video for your inspection. Upon receipt, you simply need to unpack and connect the power wires to start operation.
What kind of paper can this machine process?
It is designed for both Single PE and Double PE coated paper, with a recommended paper weight range of 190-320gsm.
What documents are provided for international export?
We provide a complete export documentation package, including the Commercial Invoice, Packing List, and Bill of Lading.
What are the accepted payment methods?
Our standard terms are a 30% deposit via T/T paid in advance, with the remaining 70% balance settled via T/T before shipment.
