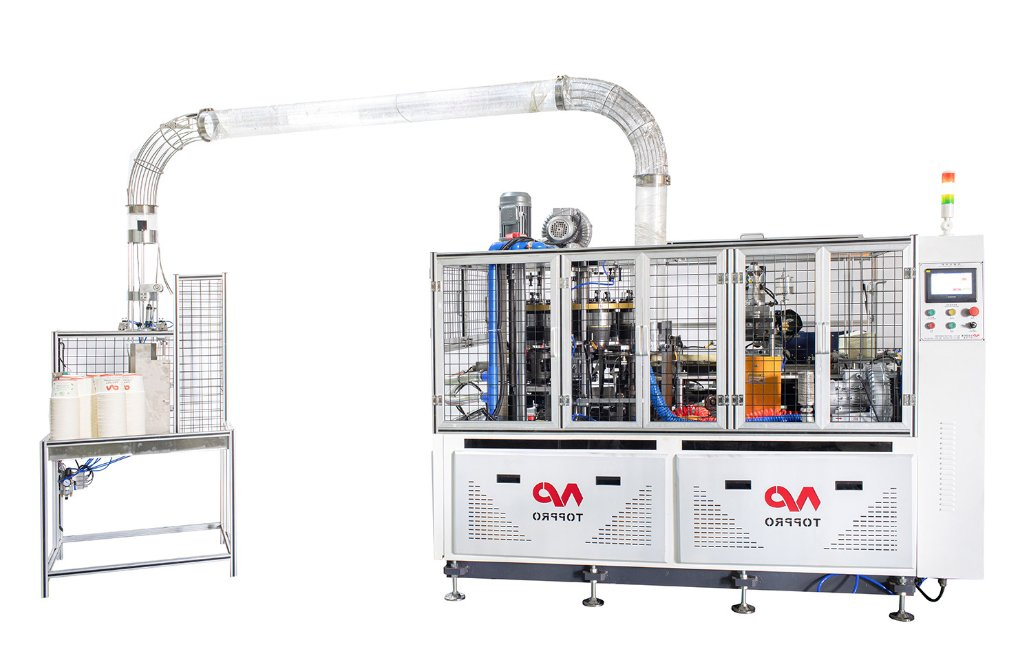

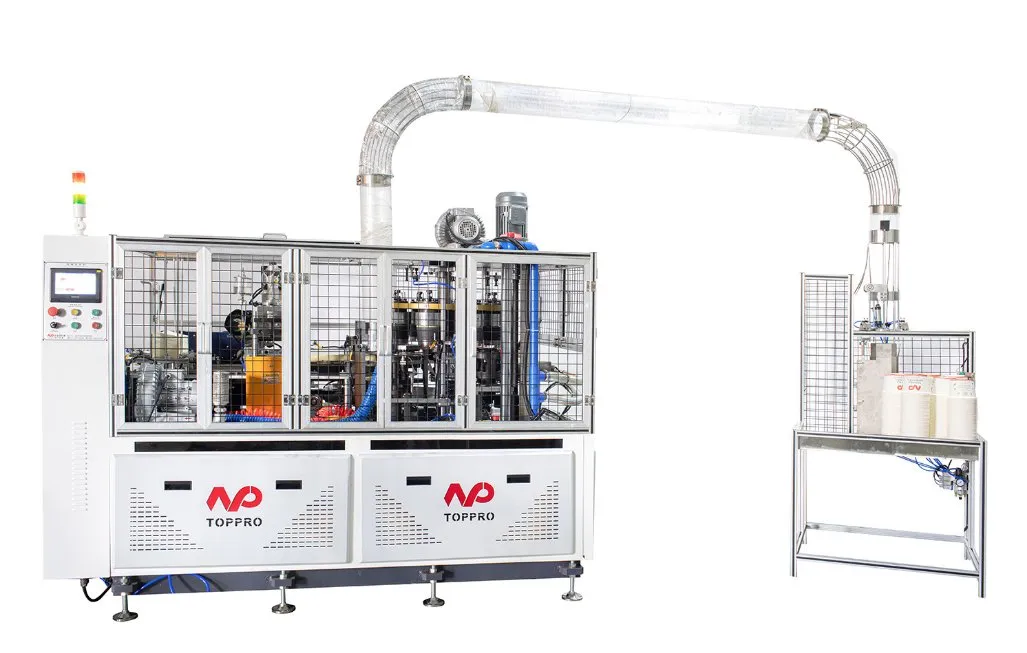

NEW TYPE PAPER BOWL MAKING MACHINE
The WJ-90 Middle-speed paper bowl forming machine is developed based on advanced forming techniques. It features a fully integrated system for automatic paper feeding, preheating, sealing, oil injection, bottom cutting, heating, knurling, and curling. Equipped with sensor-based alarm systems, automatic counting, and collection functions, it ensures high efficiency and reliability.
| Model | WJ-90 |
| Paper Bowl Size | Bottom: 70-110mm | Top: 95-140mm | Height: 60-150mm |
| Raw Material | Single or Double PE coated paper |
| Speed | 80-100pcs/min |
| Suitable Paper Weight | 170-350gsm |
| Voltage Supply | 380V 50Hz 3-Phase (Customizable) |
| Working Air Source | 0.6-0.8mpa, 0.4m³/min |
| Measurement (mm) | 2500 * 1300 * 1800 |
| Net Weight | 2000kgs |

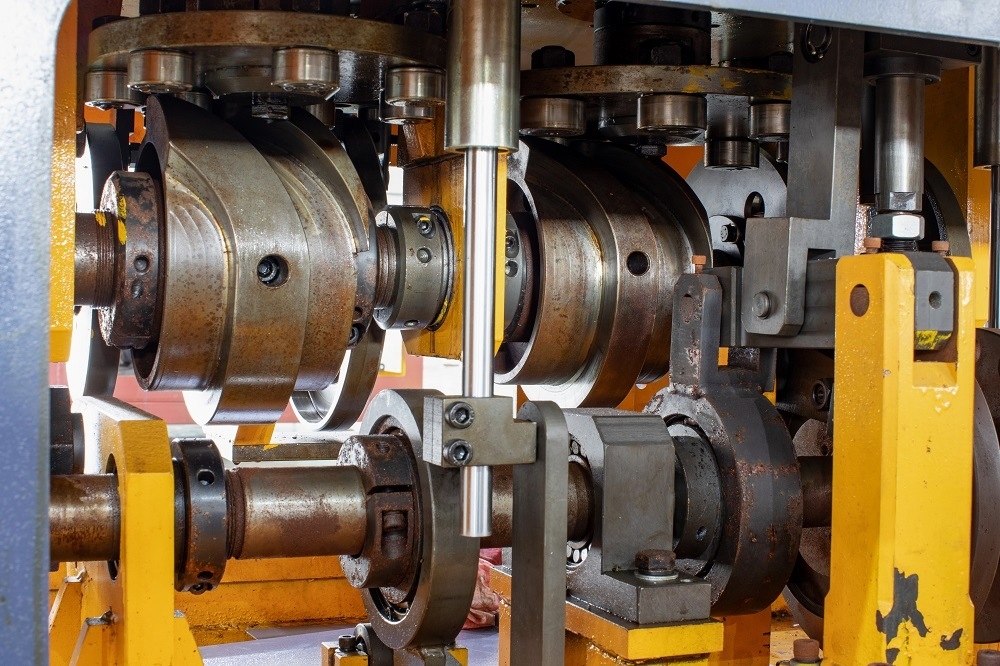

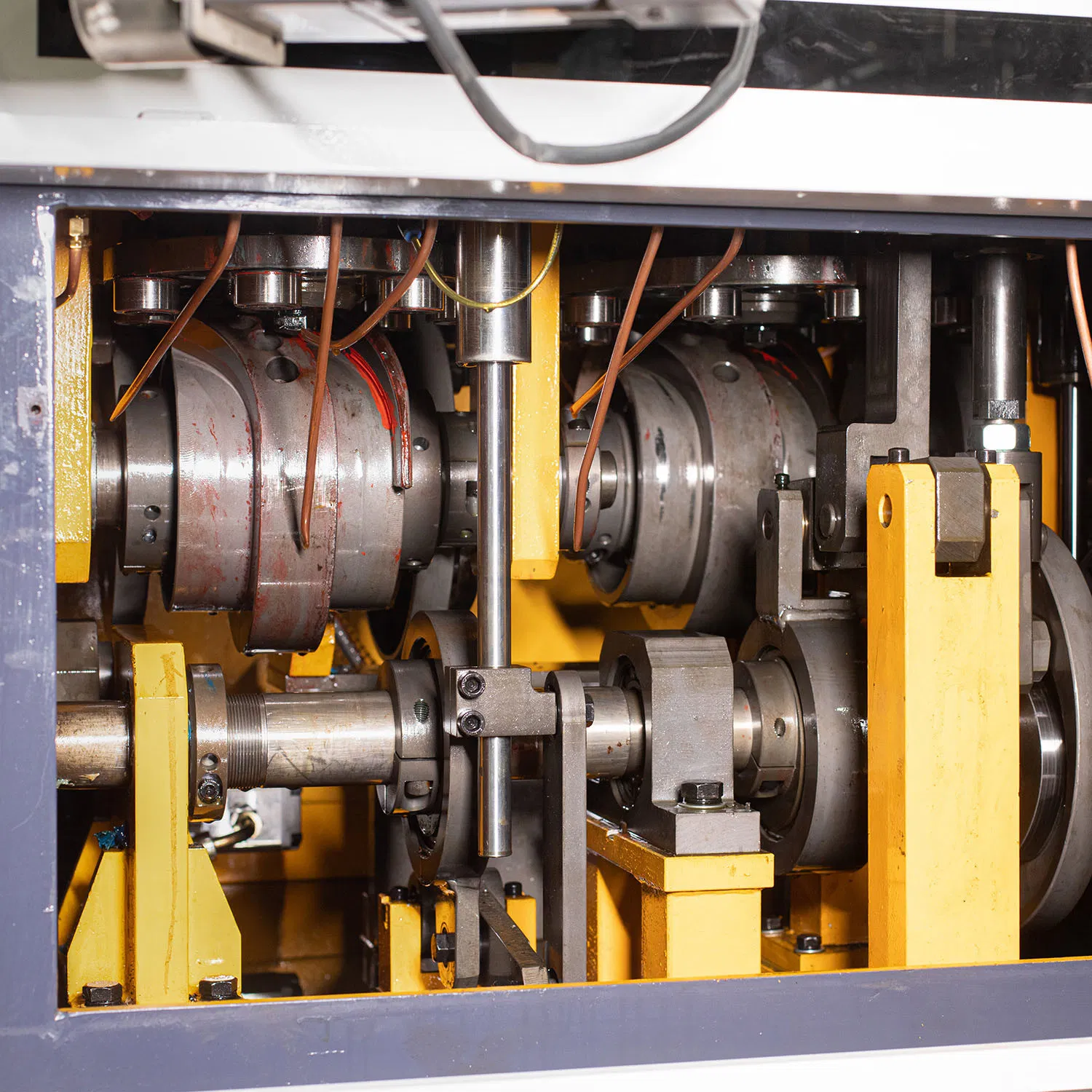

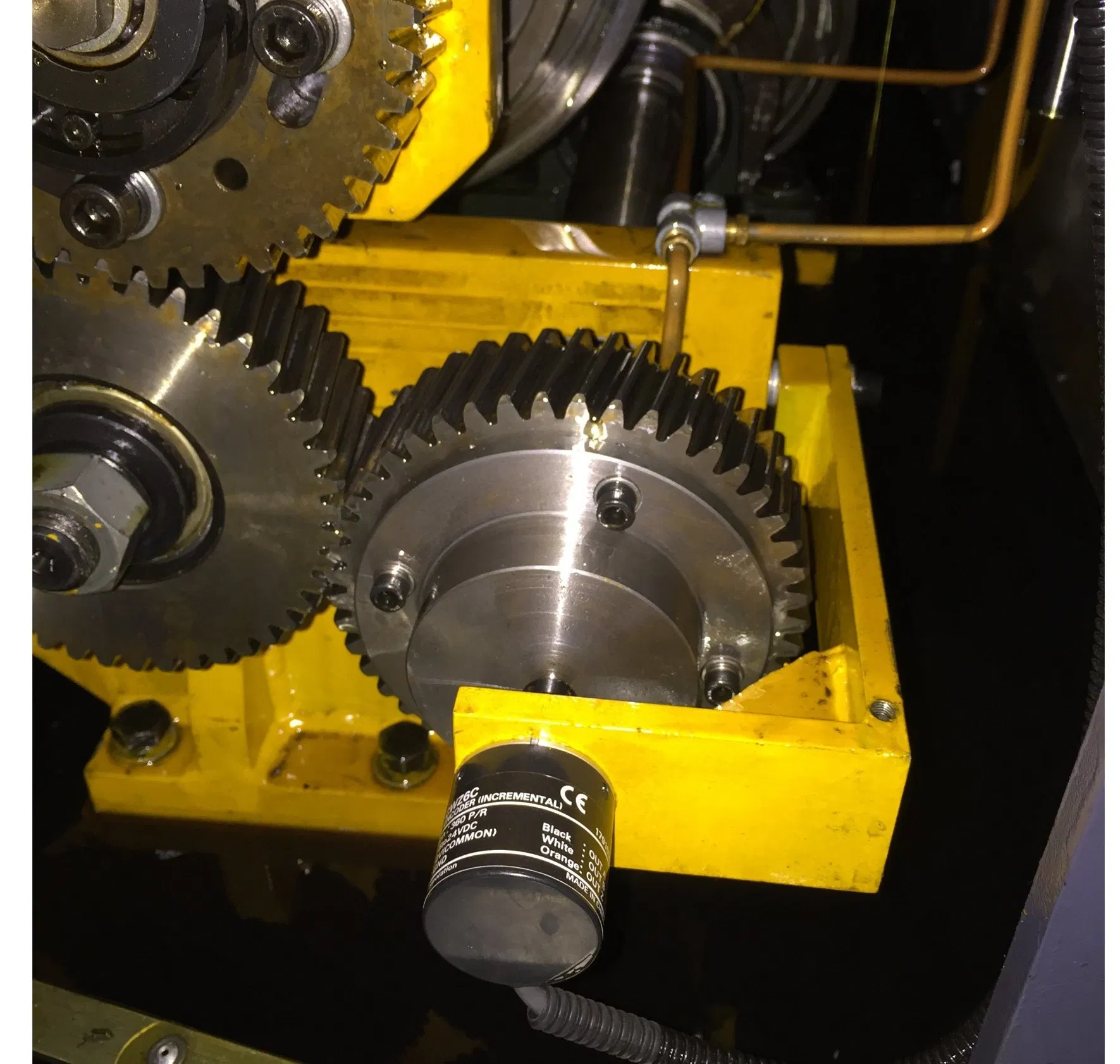

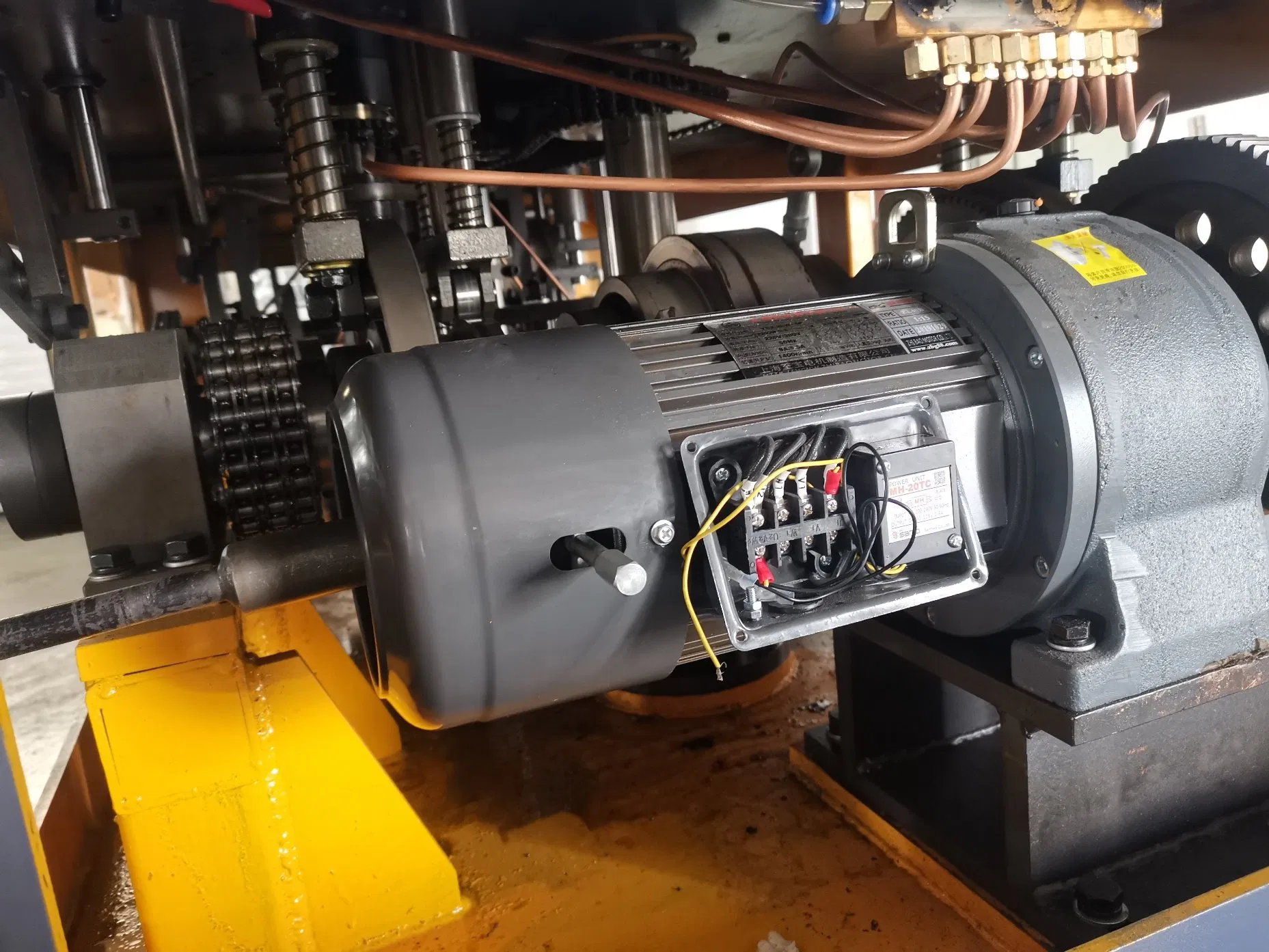

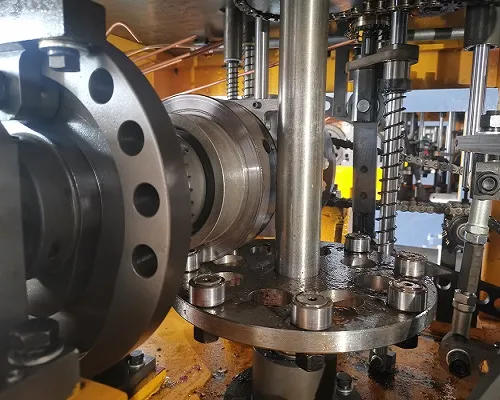

1. Core Components: Open cam design with high-performance gear motor for precision.

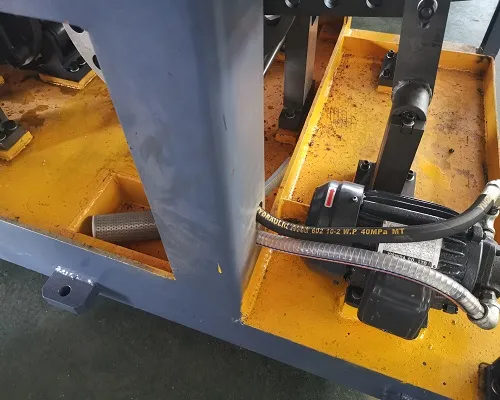

2. Automatic Lubrication: Full automatic oil pump filtration system for convenient maintenance.

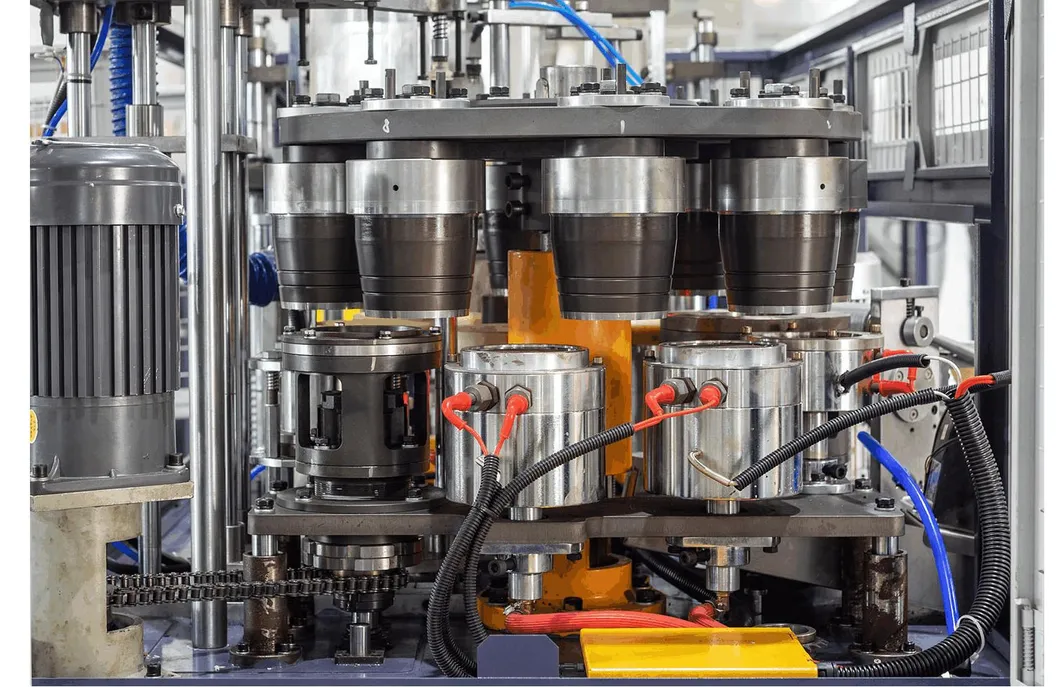

3. Stability Design: Separated curling, knurling, and heating stations reduce noise and increase machine lifespan.

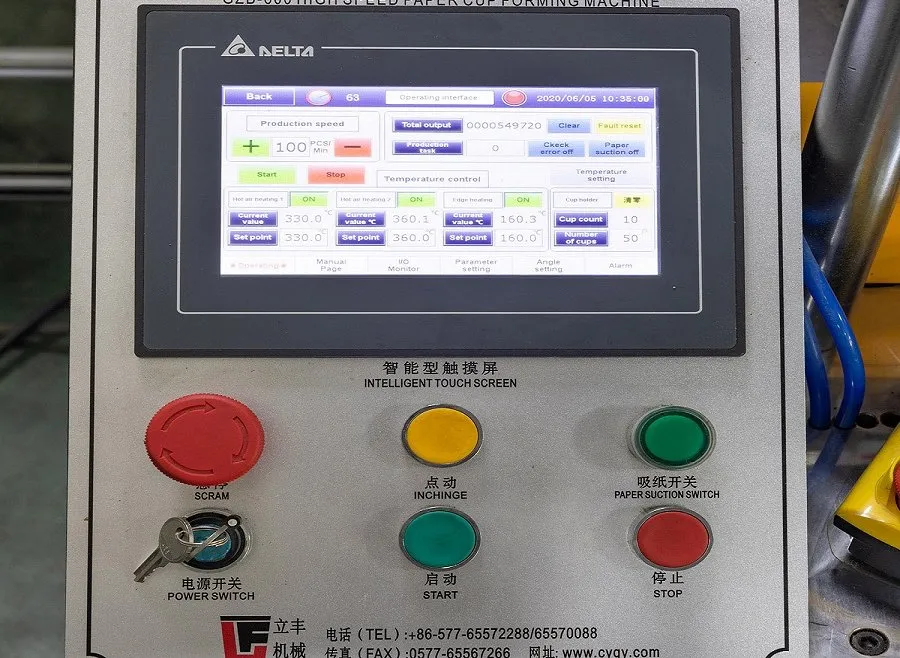

4. Control System: Intuitive touch screen interface with imported electrical components for high performance.

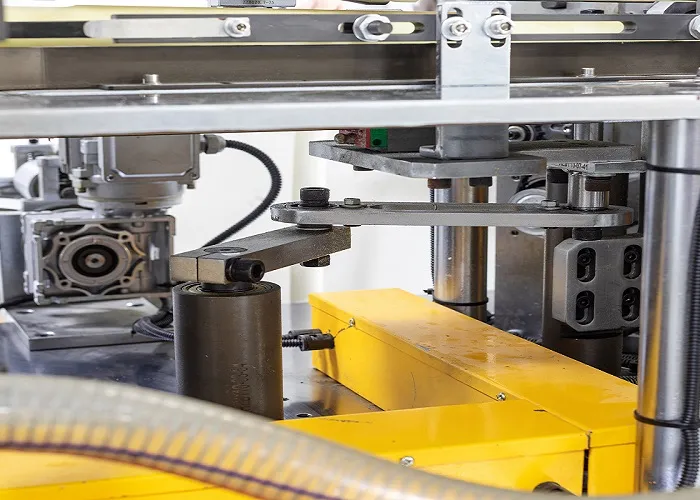

5. Feeding System: New rotary type paper fan feeding system ensures faster and more stable operation.

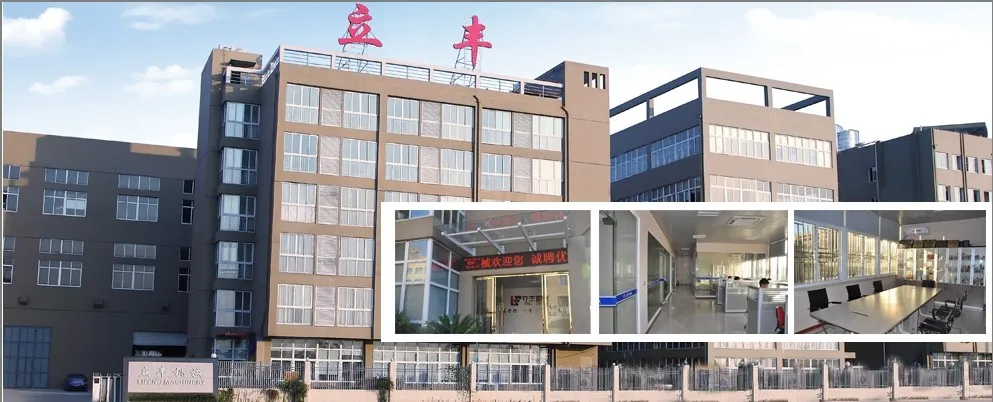

Established in 1999, we are a professional manufacturer specializing in paper container machinery. Our product range includes high-speed paper cup machines, paper bowl machines, die-punching machines, and more. With over 9,000 square meters of production space and CE/SGS certifications, we have successfully exported to Europe, South America, Africa, and Southeast Asia.
