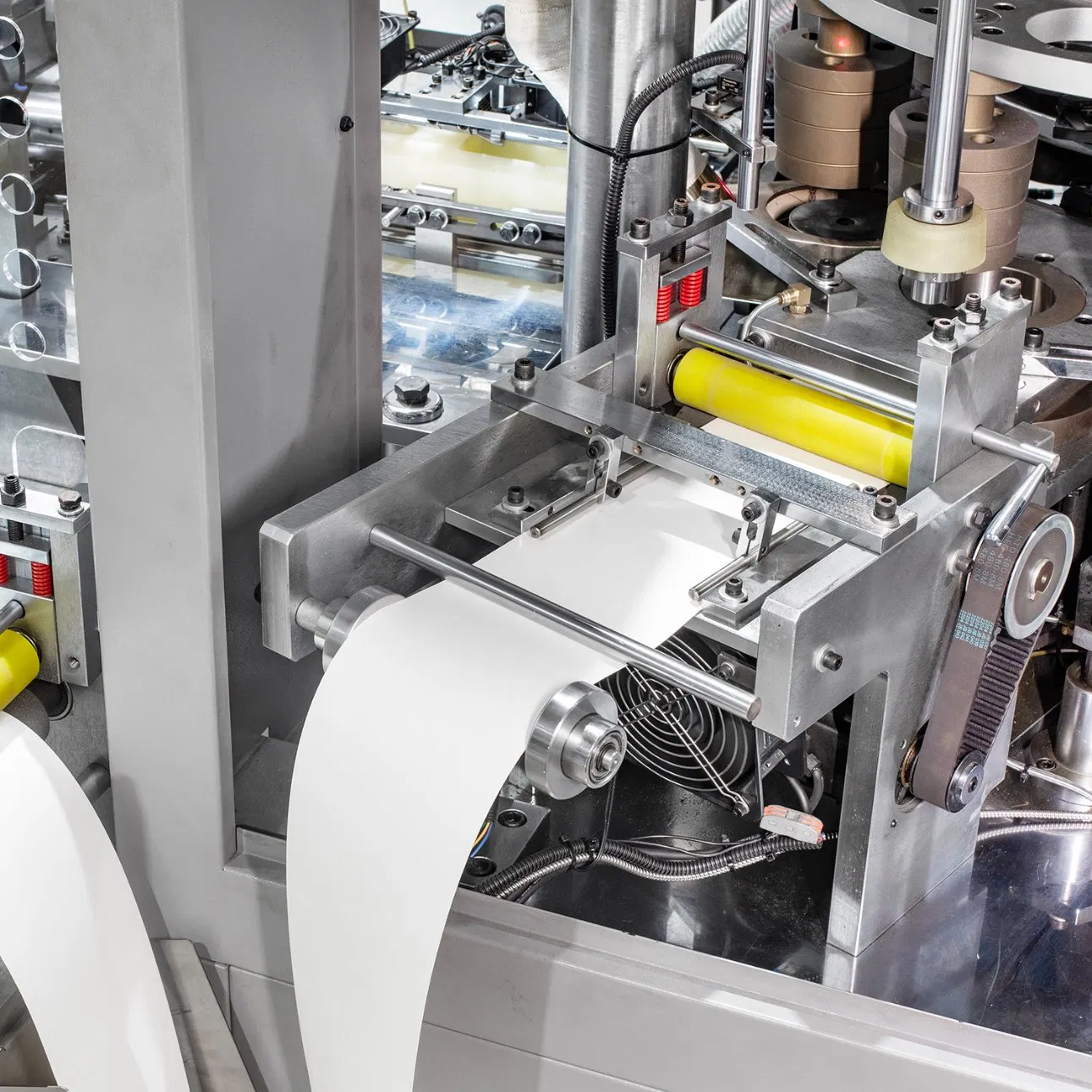

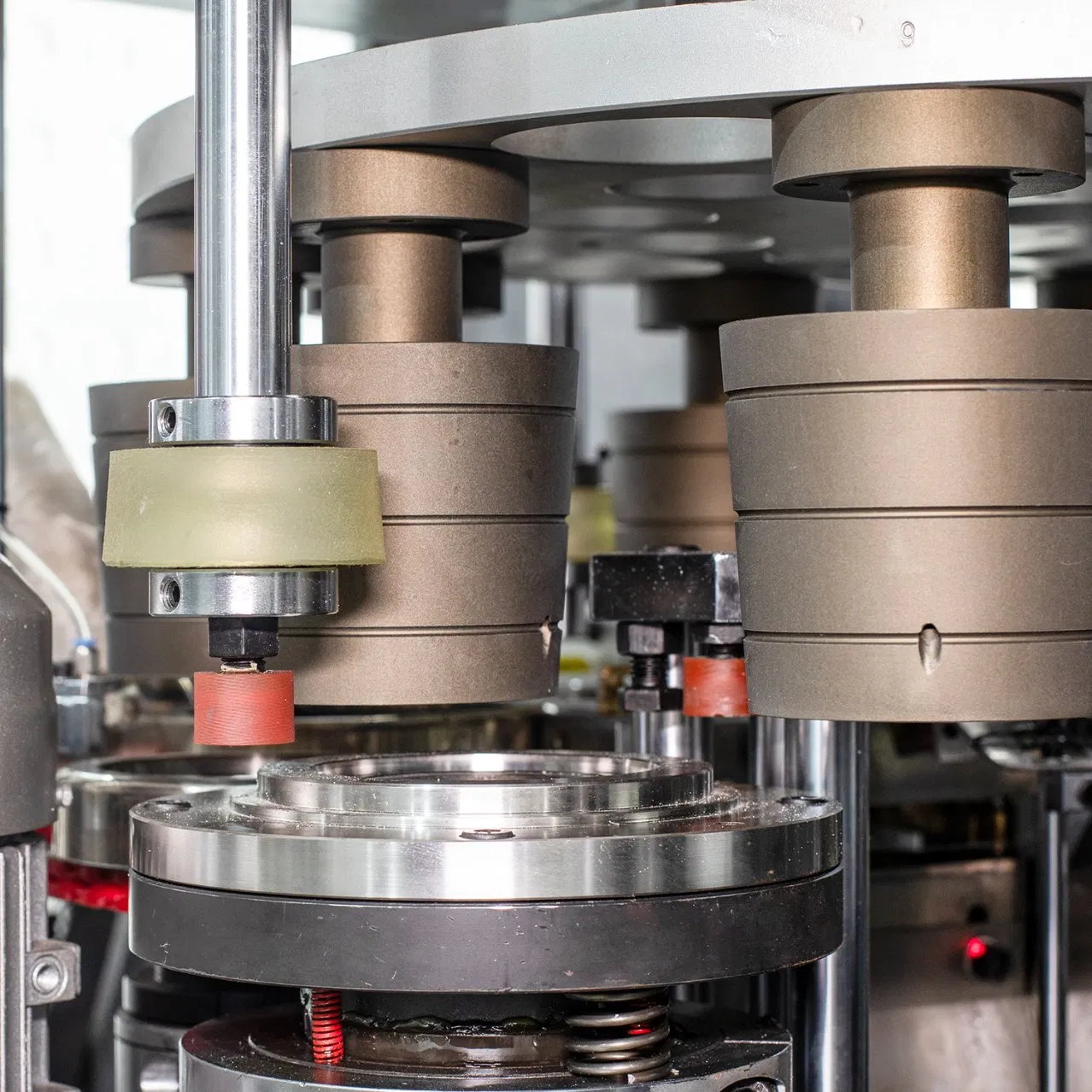

Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway
Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway
Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway
Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway
Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway
1 / 5
Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway
Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway
Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway
Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway
Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway

Automatic Food Grade Disposable Paper Food Round Bowl Making Machine for Salad/Fruit/Frozen Yogurt Takeaway

Customization: Available
Warranty: One Year
Application: Food
Send Inquiry

Product Description

Basic Information

Model NO.
XZT-150W
Production Speed
120-150PCS/Min
Voltage
380V/220V 50Hz
Control Panel
Computer Control Panel
Certification
CE
After-sales Service
Life-Time
Weight
4500kgs
Material
170-380GSM Single or Double PE/ PLA Coated Paper
Bowl Size
15-57oz (Max Bottom 130mm, Top 150mm, Height 135mm)
Power Supply
3 Phase 380V 50Hz, 44kw
HS Code
8441309000
Capacity
100 sets/Year

Product Description

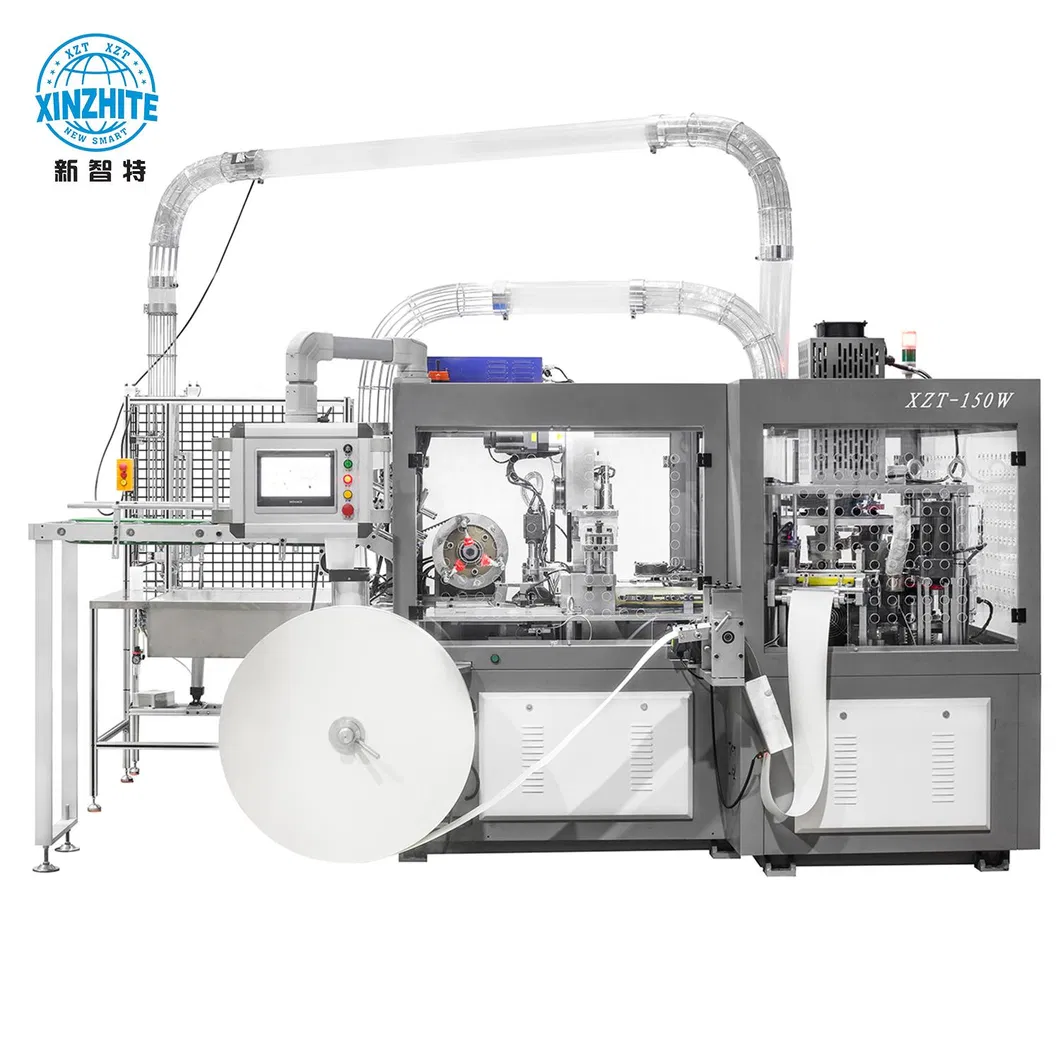

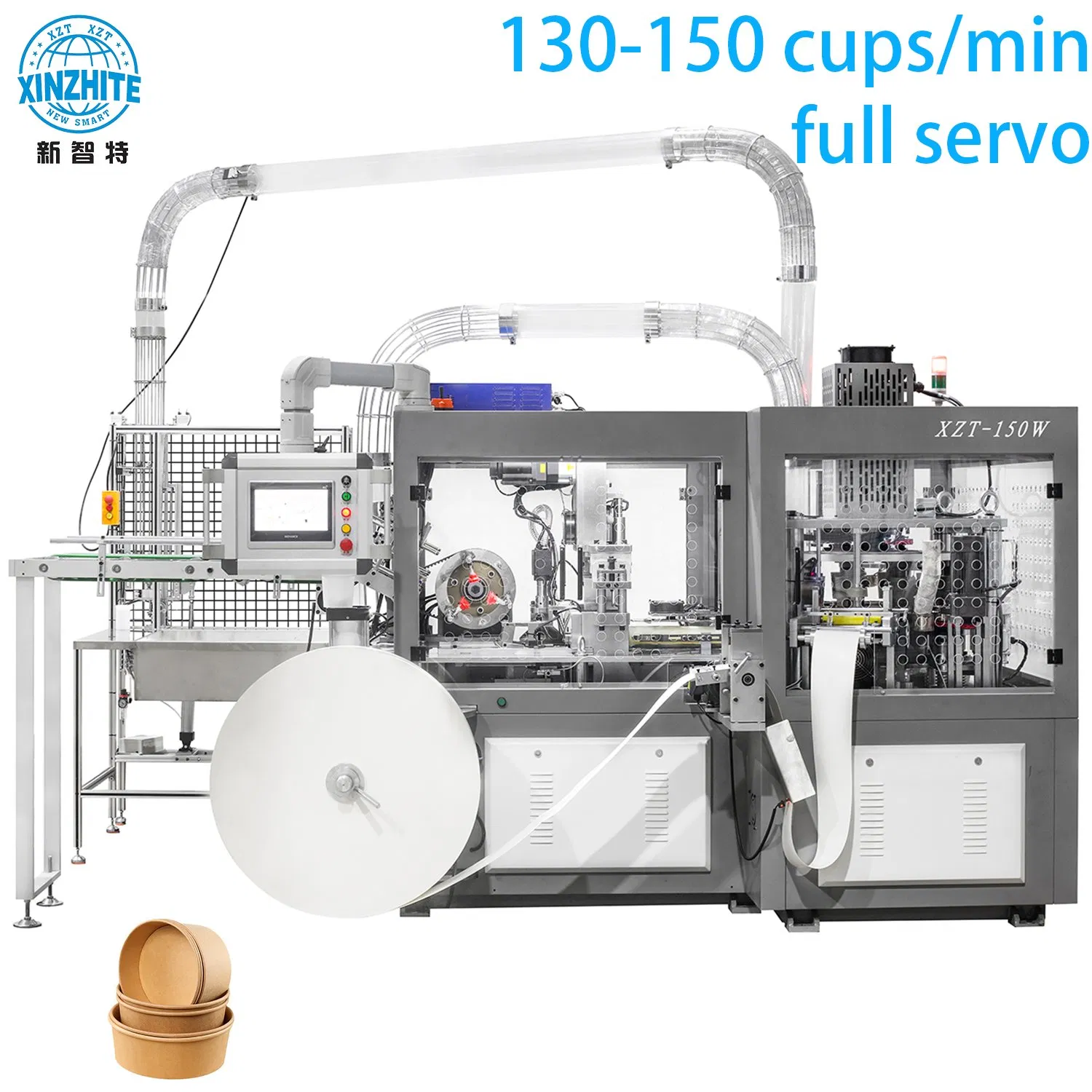

High-speed paper bowl making machine

High-speed paper bowl making machine
  • XZT-150W features full servo-driven technology throughout the entire machine.
  • Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion.
  • It replaced the market with almost a gear /chain transmission and cam design paper cup machine.
  • It provides flexibility, speed, affordable capital cost, and low maintenance.

Product Parameters

ModelXZT-150W Paper Bowl Machine
Bowl size15-57oz (Max bottom 130mm, top 150mm, height 135mm)
Material170-380GSM single or double PE/ PLA coated paper
Speed120-150pcs/min
Power supply3 phase 380V 50Hz, 44KW (Running consumption 20KW)
Air supply0.6Mpa (Running consumption 0.5Nm3/min)
Dimension(mm)2760L*2160W*1925H
Weight4500kgs

Detailed Photos

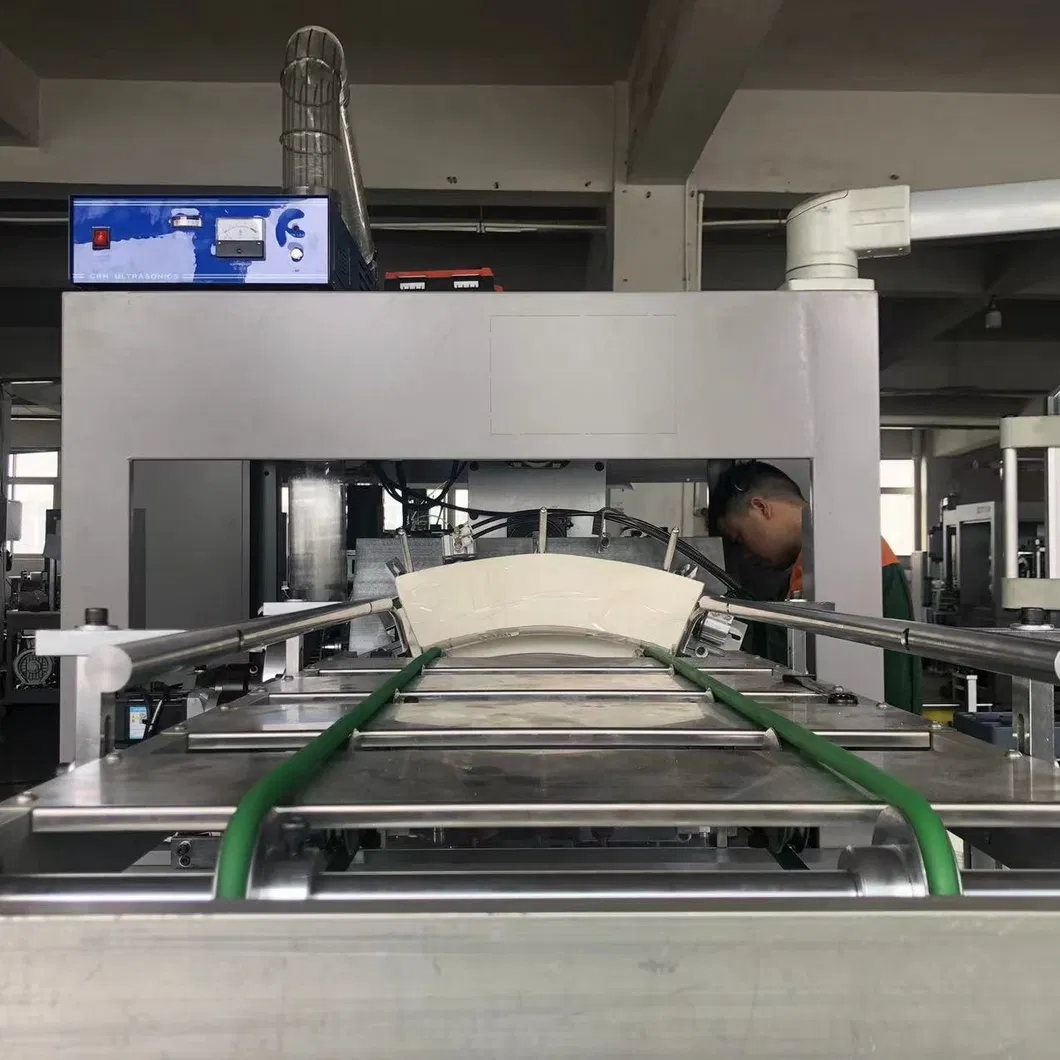

Loading table

Loading table with full cup fan paper for forming 3000-4000 cups at a time. Conveyor Fan Wall Paper Feeding by Step Motor.

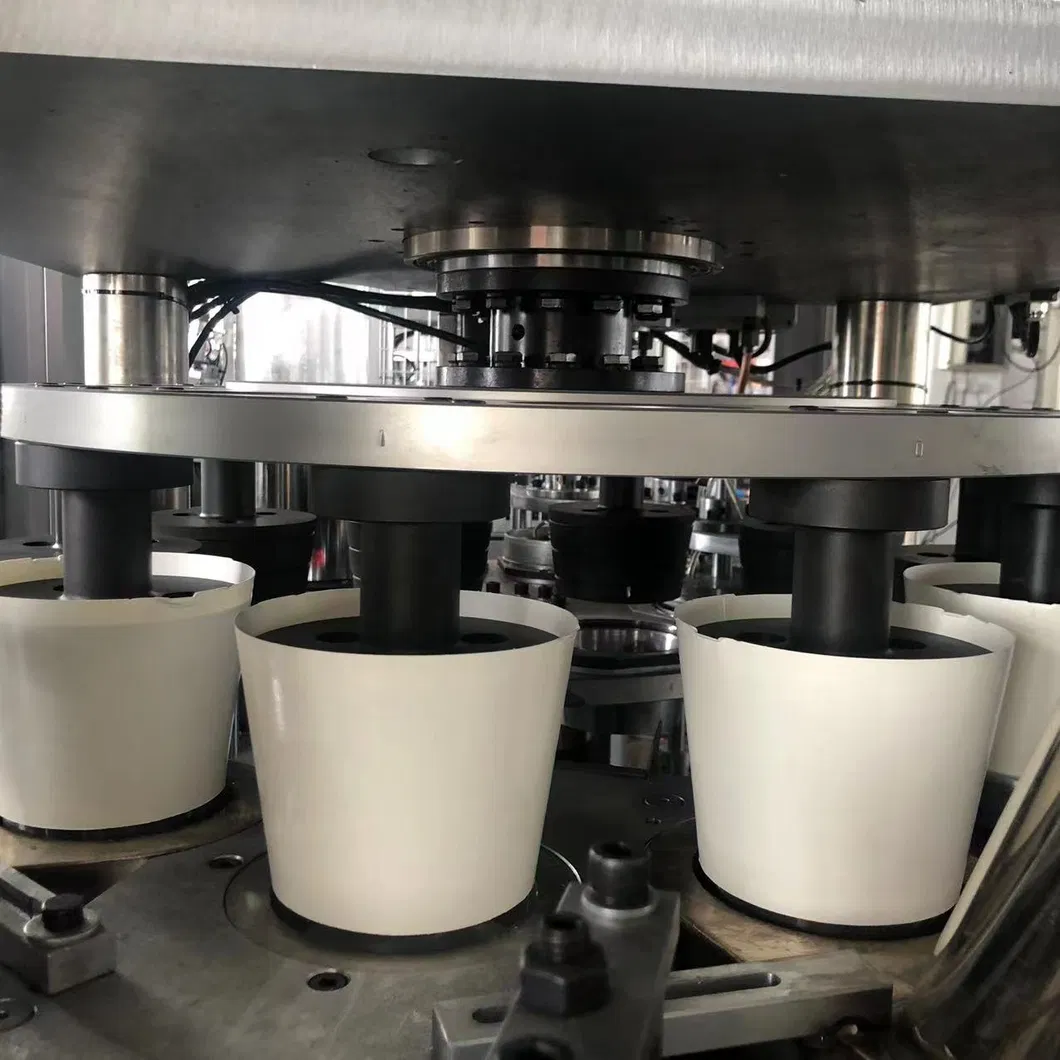

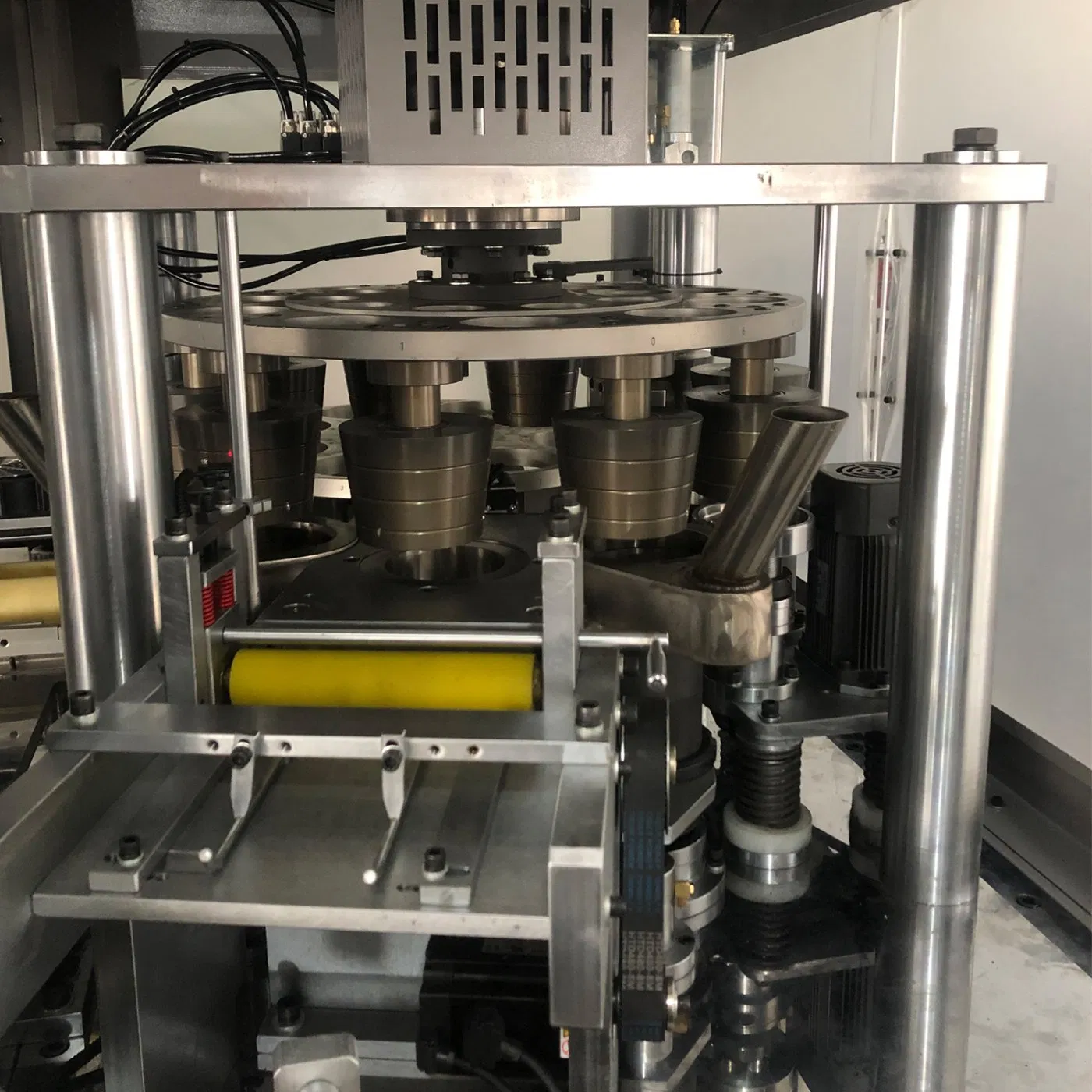

Bottom forming device

The paper bowl bottom forming device uses the latest heating process. Mold chooses whole solid aluminum material, simpler and more durable.

Sample Show

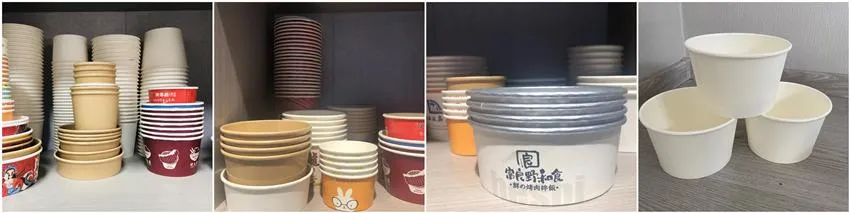

Sample 1

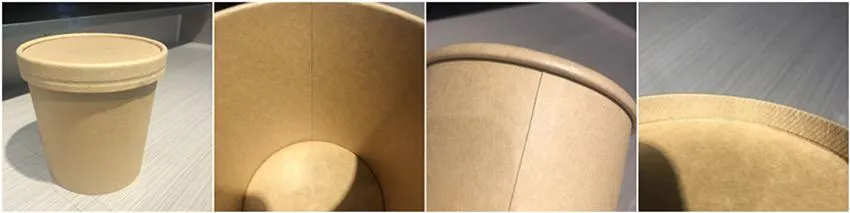

Sample 2

Our machines produce very well-detailed paper bowls with stronger sealing and beautiful knurling.

Workshop & Quality Control

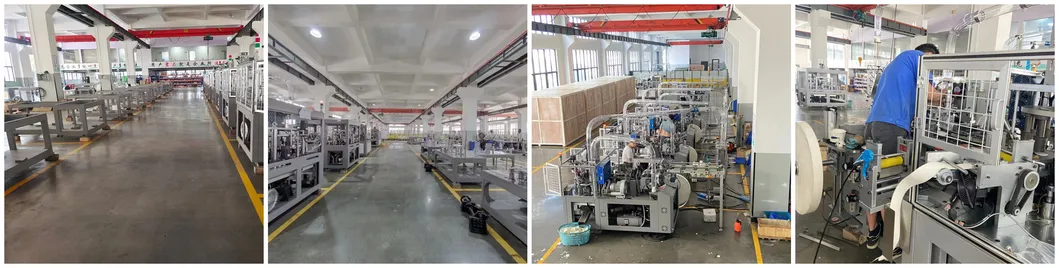

Workshop

The workshop is well organized and our technicians are responsible for every step of the assembly process.

Maintenance and CE

All our machines are CE certified.

Exhibition

We attend trade fairs regularly and look forward to meeting you in the near future.

Frequently Asked Questions

Is your company a factory or a trading company?
We are a factory with more than 20 years of technical experience.
What is the suitable material for your machines and what sizes can you make?
PE, double-PE Laminated cup paper, composite material, and aluminum foil paper are suitable. We can make paper cups/bowls from 4oz-57oz.
What kind of machines do you produce?
Full servo paper cup making machines, full servo paper bowl-making machines, and fully automatic intelligent cup packaging machines.
What information is needed for a quotation?
Quantity, detailed size (top diameter, bottom diameter, and height), paper thickness & material.
What is your warranty period and after-sales service?
We offer a one-year warranty. We can dispatch engineers if conditions permit, and online instruction is also available.
How do you handle machine maintenance?
We contact customers regularly on how to maintain the machine and provide professional guidance for maintenance.
