| Model NO. | XZT-150W |
| Production Speed | 120-150PCS/Min |
| Voltage | 380V/220V 50Hz |
| Certification | CE |
| Weight | 4500kgs |
| Material | 170-380GSM Single or Double PE/ PLA Coated Paper |
| Power Supply | 3 Phase 380V 50Hz, 44kw (Running Consumption 20KW) |
| Air Supply | 0.6MPa (Running Consumption 0.5nm3/Min) |
| Specification | 2760L*2160W*1925H |

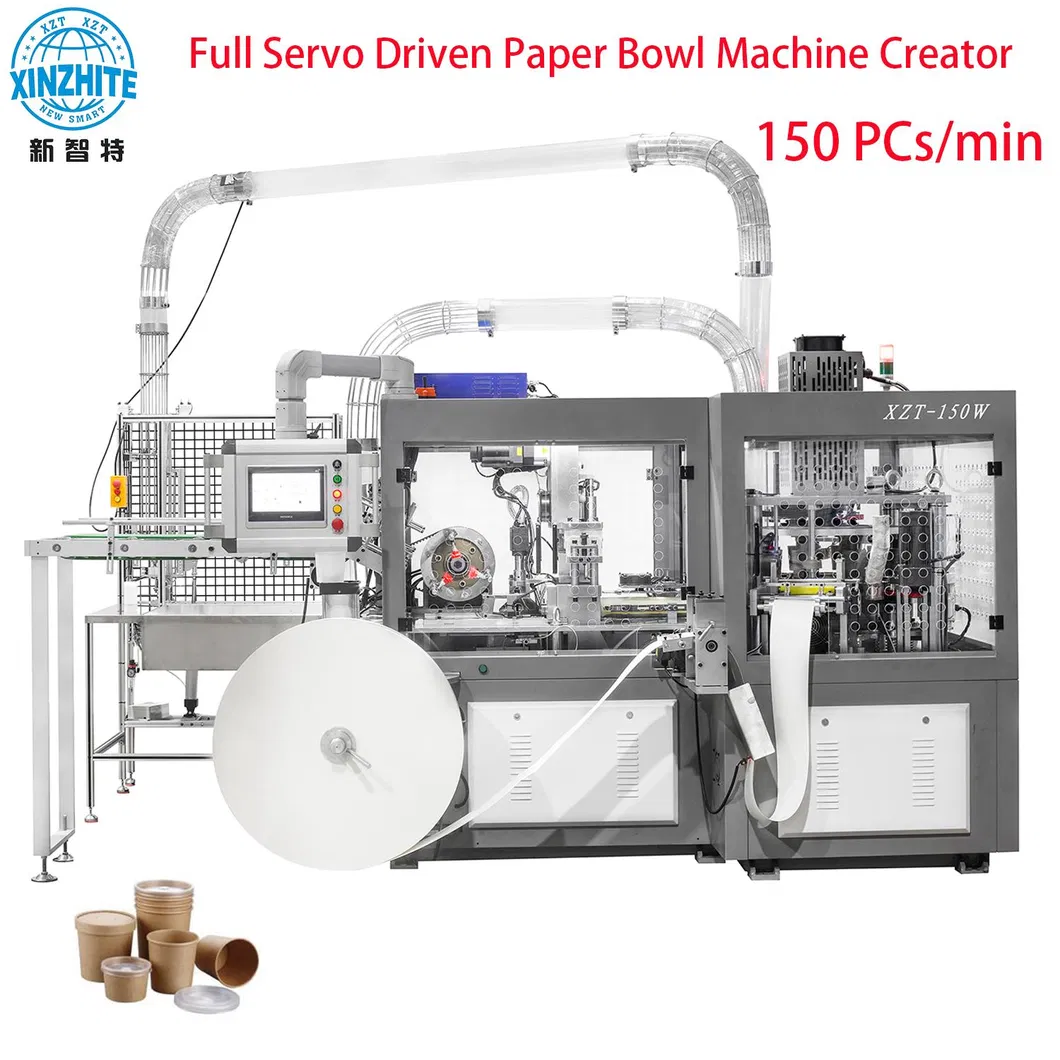

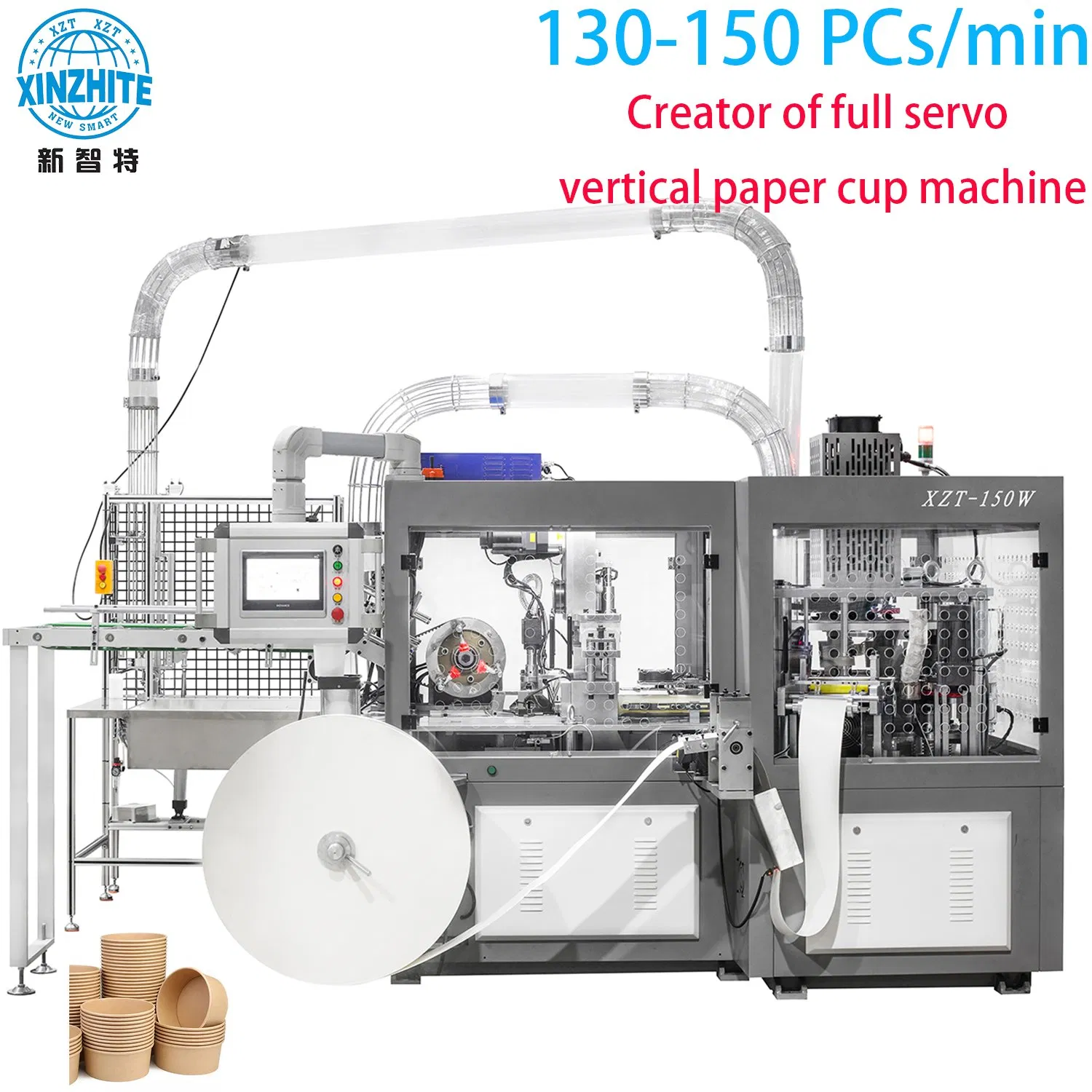

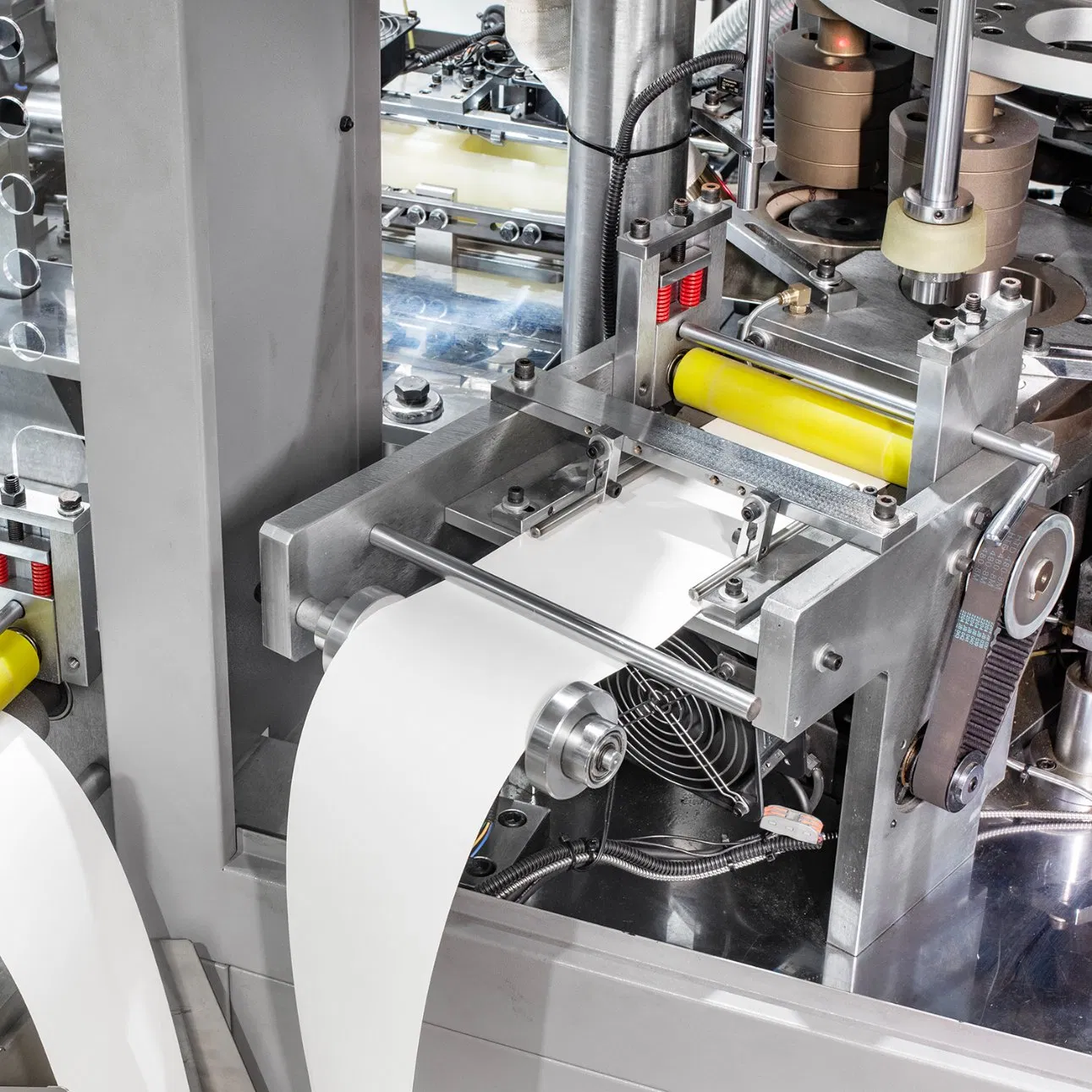

High-speed paper bowl making machine
1. XZT-150W features full servo-driven technology throughout the entire machine.
2. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate synchronized motion.
3. Advanced design replacing traditional gear/chain transmission and cam designs.
4. Provides flexibility, high speed, affordable capital cost, and low maintenance requirements.

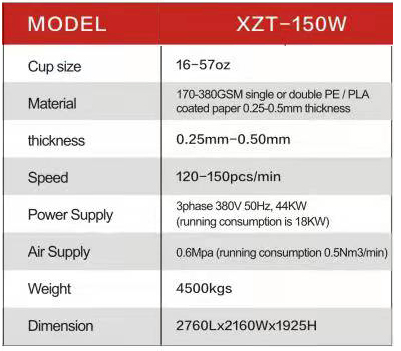

| Model | XZT-150W Paper Bowl Machine |
| Bowl Size | 15-57oz (Max bottom 130mm, top 150mm, height 135mm) |
| Material | 170-380GSM single or double PE/ PLA coated paper (0.25-0.5mm thickness) |
| Production Speed | 120-150pcs/min |
| Dimension (mm) | 2760L*2160W*1925H |
| Total Weight | 4500kgs |

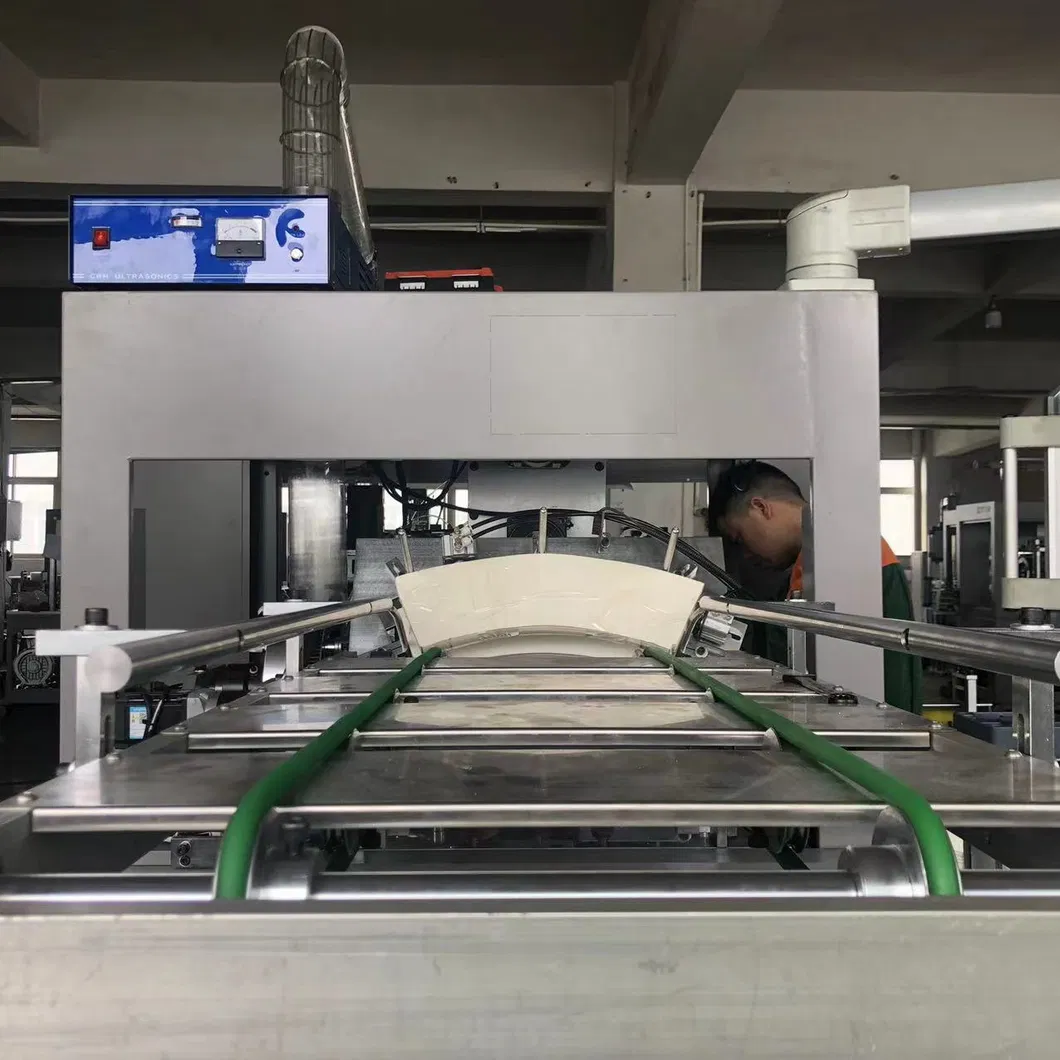

Loading Table: Equipped with a loading table (approx. 1 meter) capable of holding 3000-4000 cup fans for forming at one time. Features conveyor fan wall paper feeding driven by a step motor.

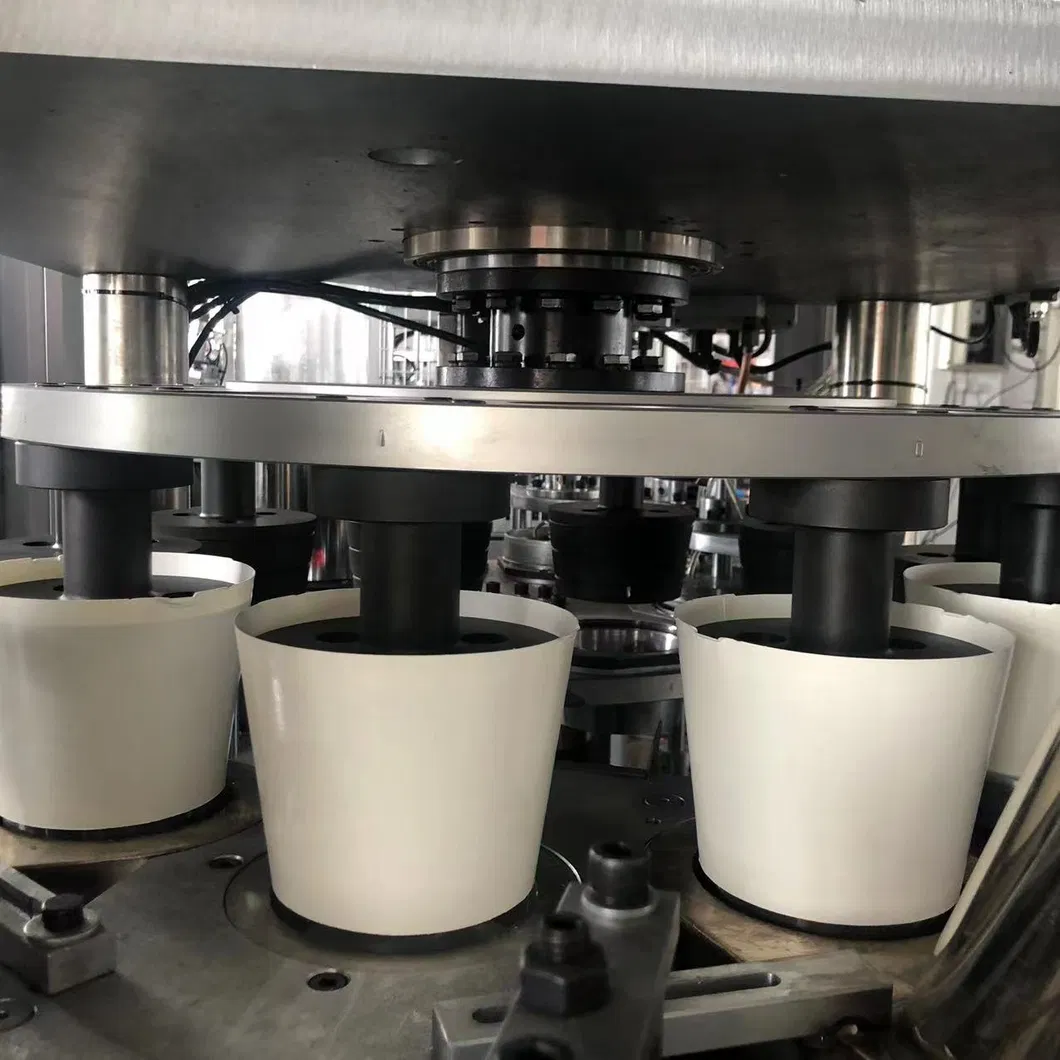

Bottom Forming Device: Utilizes the latest heating process to ensure stability. The mold is crafted from solid aluminum, making it simpler, more durable, and preventing common damage seen in traditional molds.

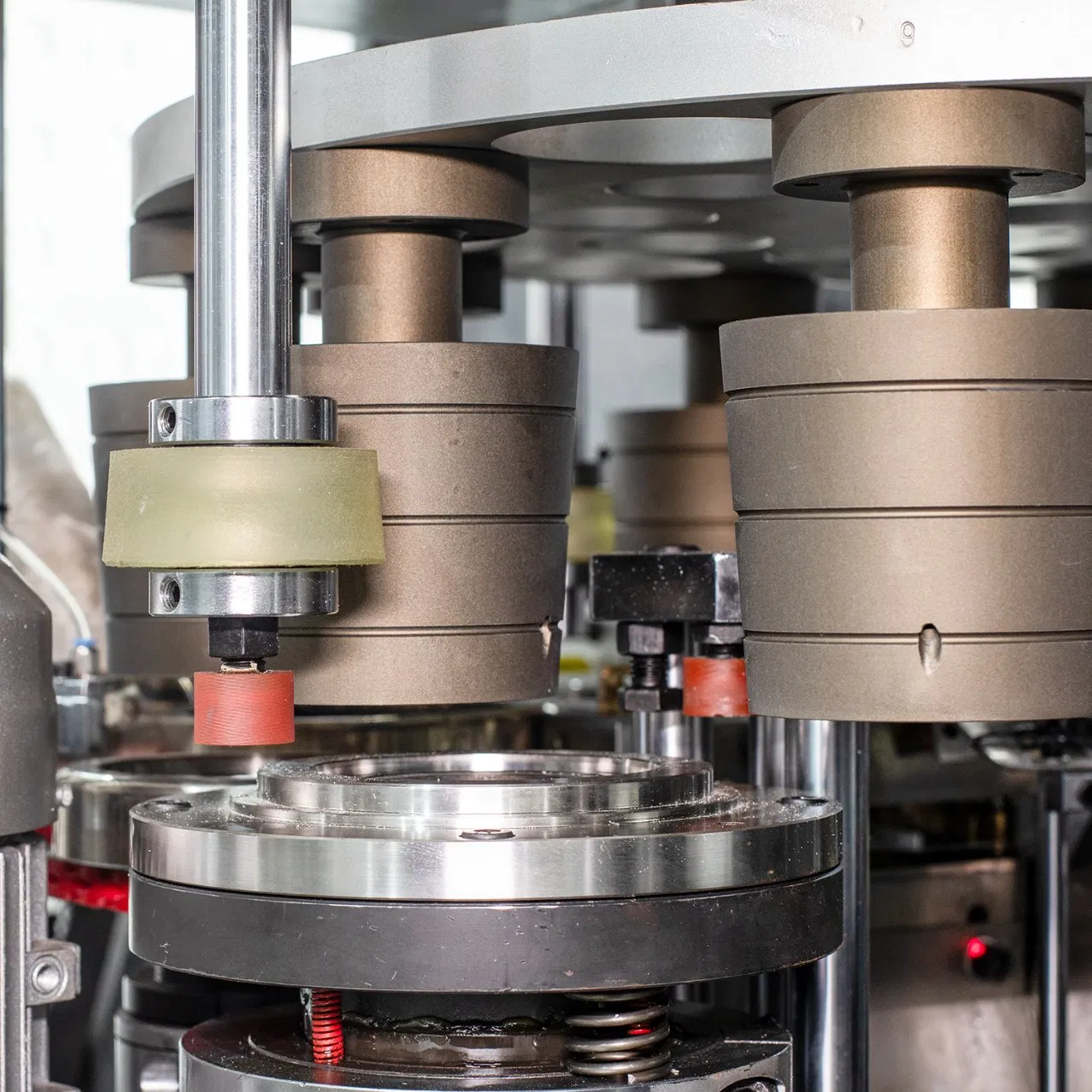

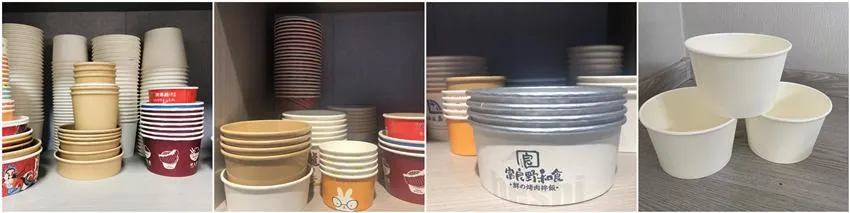

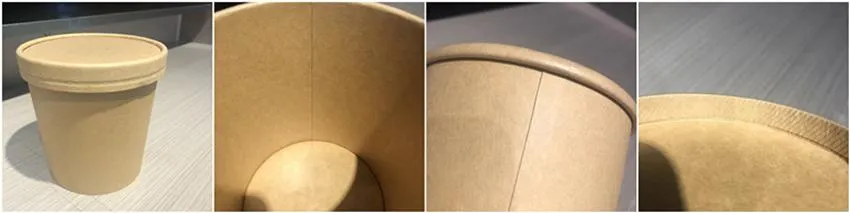

Our machines produce highly detailed paper bowls with superior sealing and precise knurling.

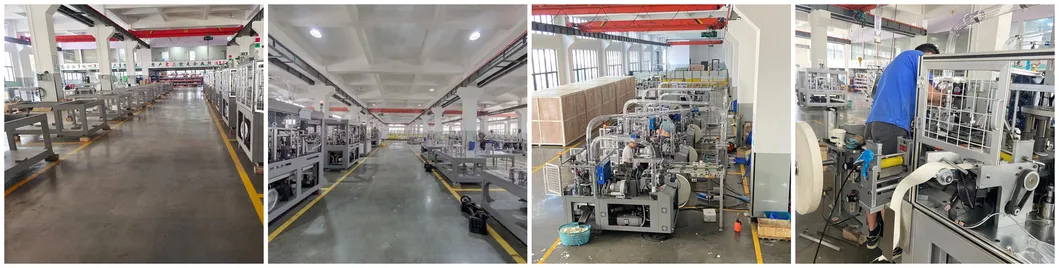

A well-organized workshop where technicians oversee every step of the assembly process.

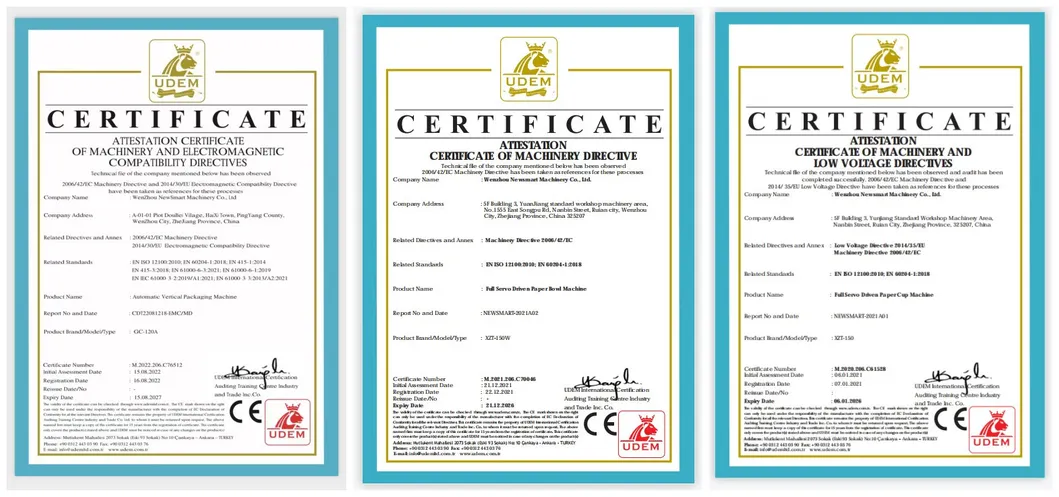

All machines are CE certified to meet international safety and quality standards.
We regularly attend international trade fairs and exhibitions, showcasing our technology to customers worldwide.
