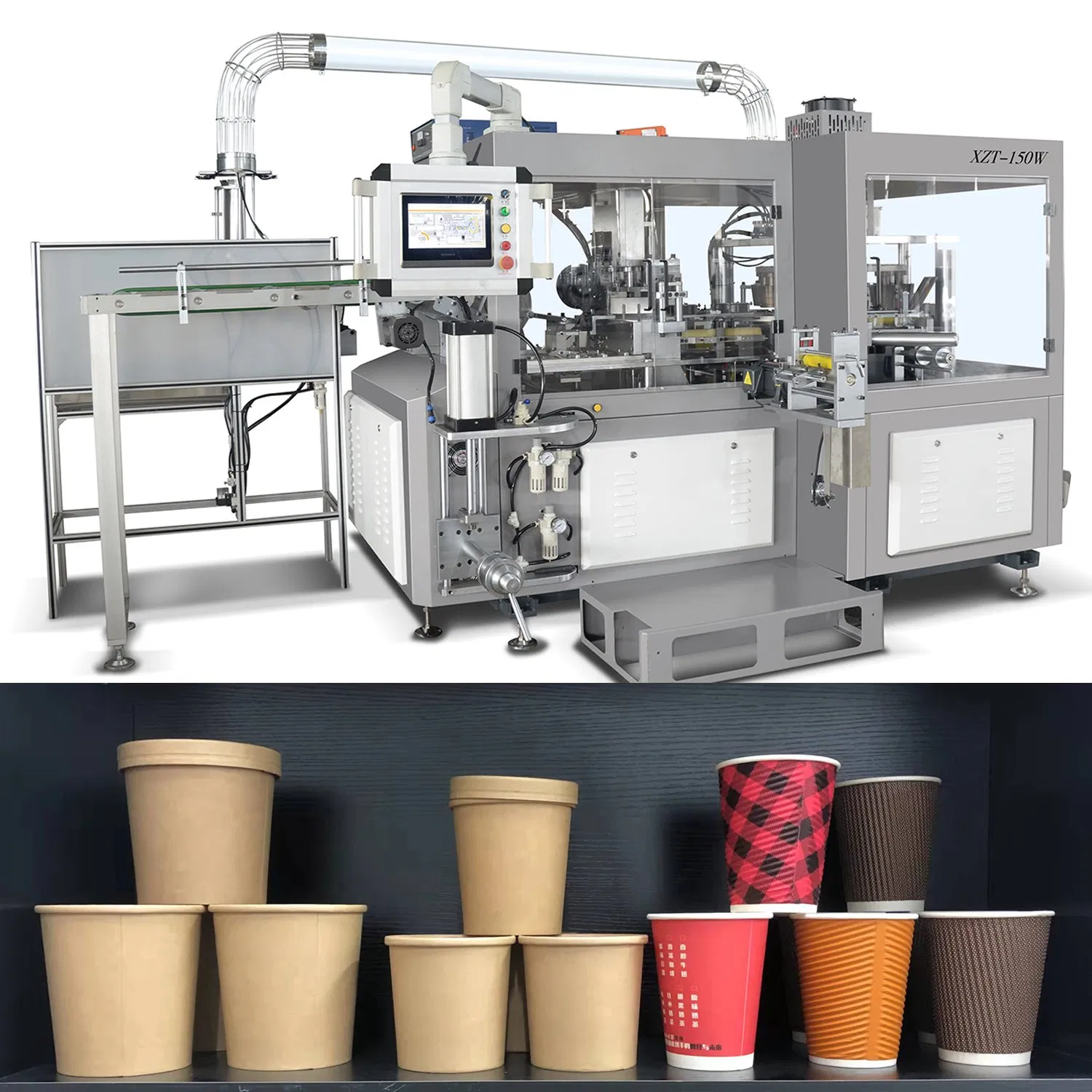

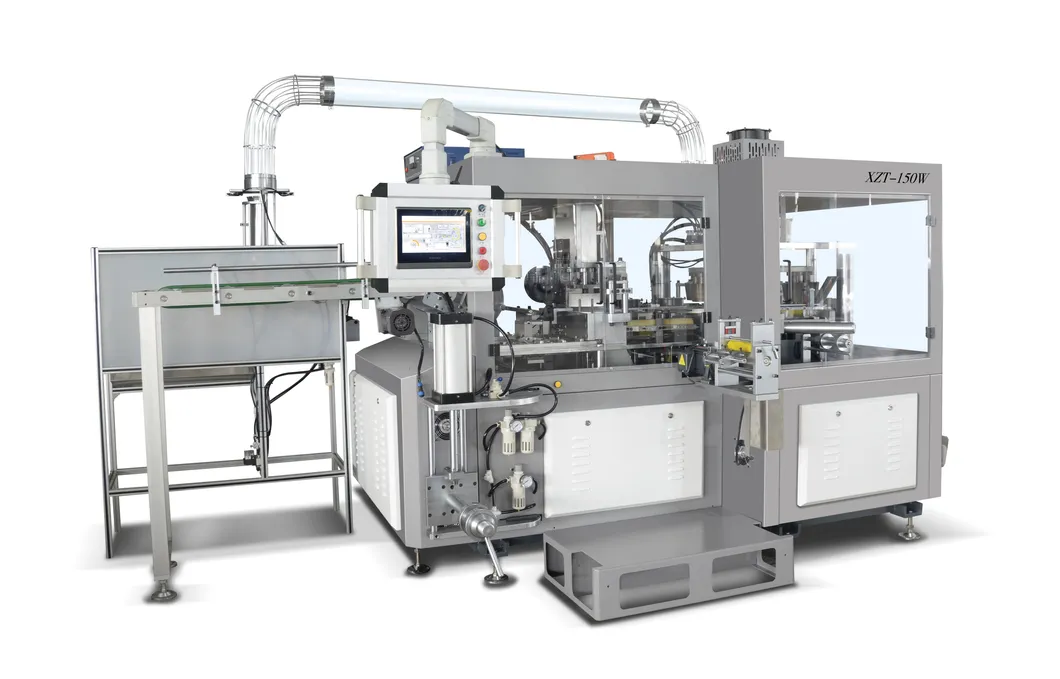

1. XZT-150W features full servo-driven technology throughout the entire machine.
2. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate synchronized motion.
3. Advanced design replaces traditional gear/chain transmissions and cam designs.
4. Provides high flexibility, superior speed, affordable capital cost, and low maintenance requirements.
| Model | XZT-150W Paper Bowl Machine |
| Bowl Size | 15-57oz (Max bottom 130mm, top 150mm, height 135mm) |
| Material | 170-380GSM single/double PE/PLA coated paper (0.25-0.5mm) |
| Speed | 120-150 pcs/min |
| Power Supply | 3 Phase 380V 50Hz, 44KW (Running consumption: 20KW) |
| Air Supply | 0.6Mpa (Consumption: 0.5Nm³/min) |
| Dimensions | 2760L * 2160W * 1925H (mm) |
| Weight | 4500kgs |

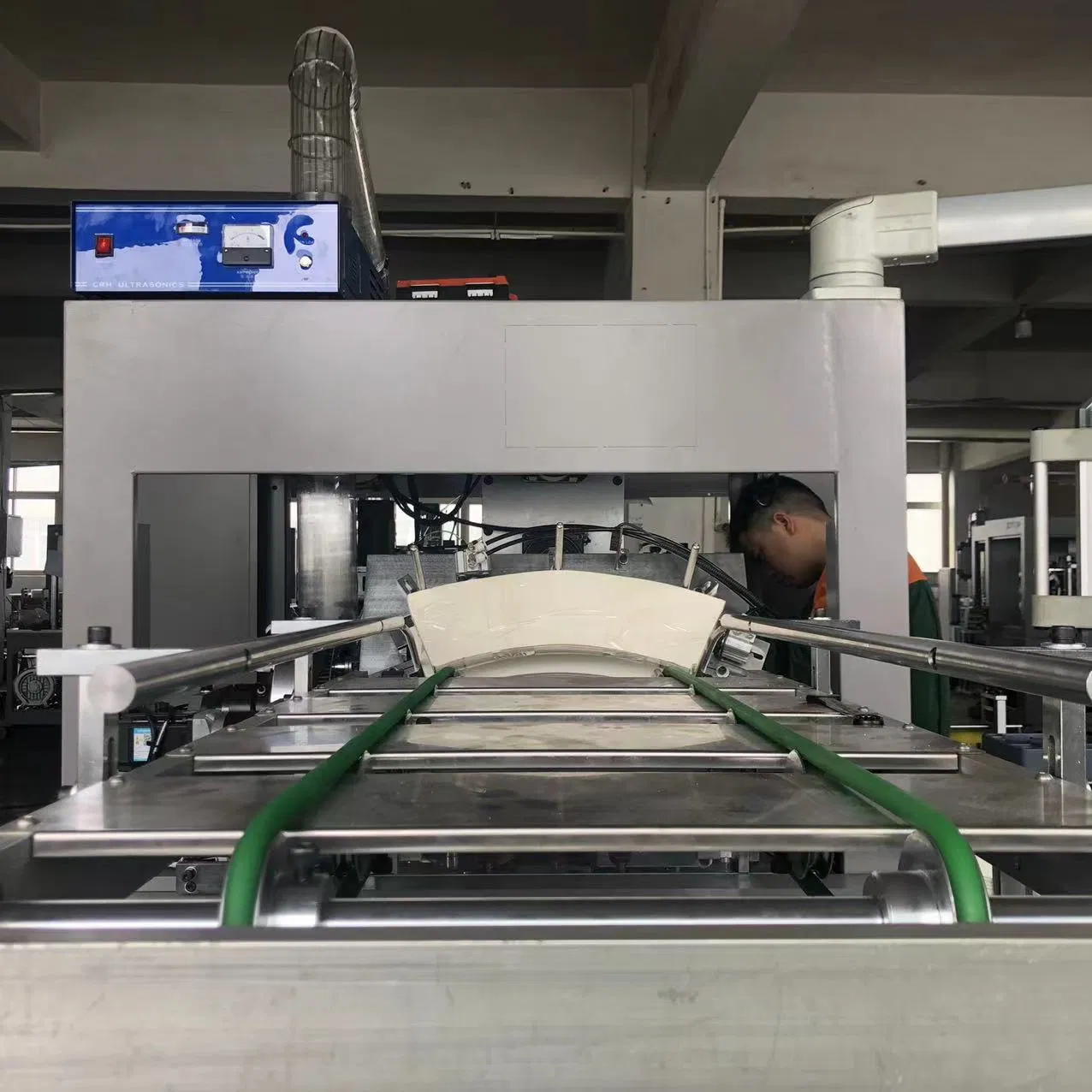

Loading Table: Conveyor Fan Wall Paper Feeding driven by Step Motor (Capacity 3000-4000 cups).

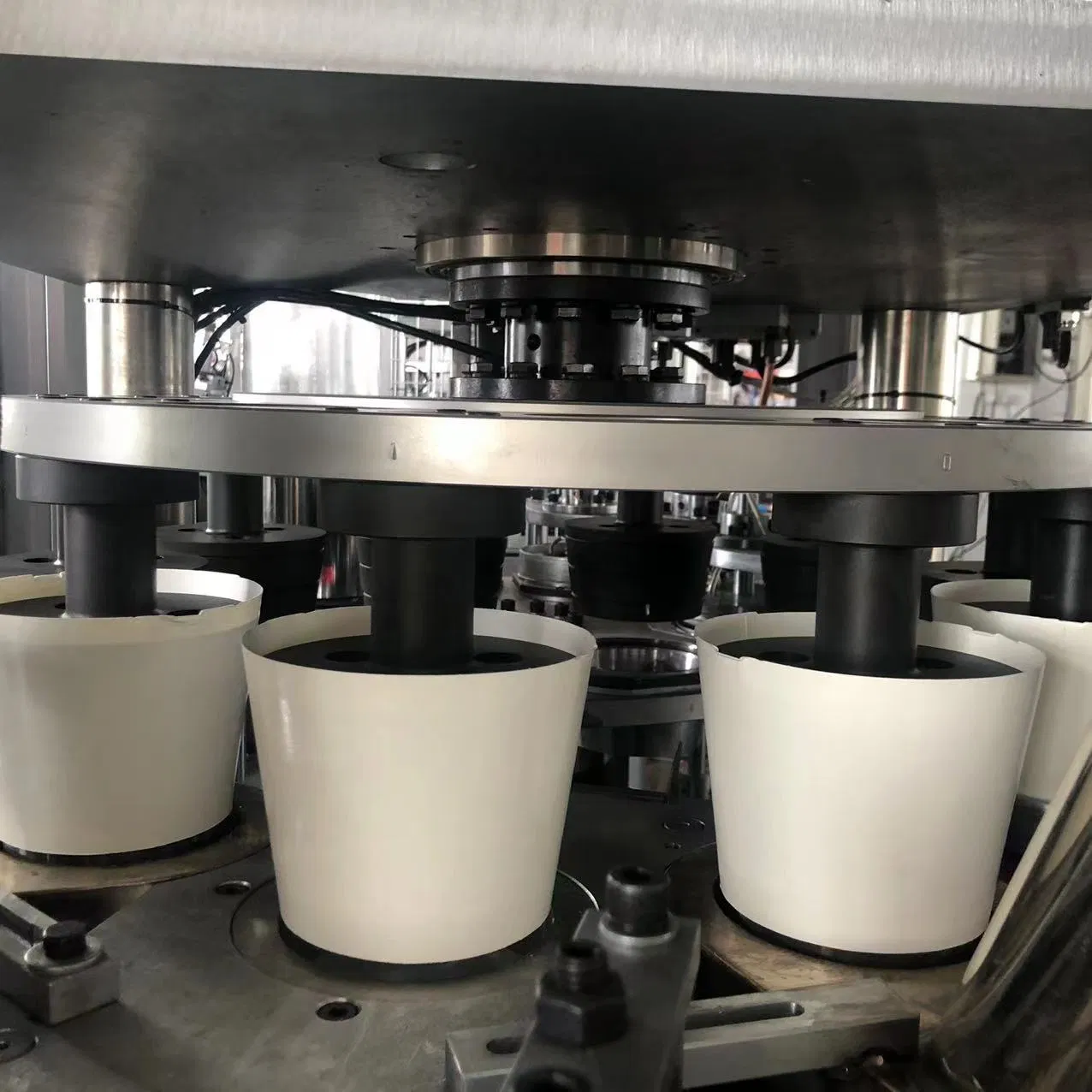

Bottom Forming: Solid aluminum mold design using advanced heating processes for durable sealing.

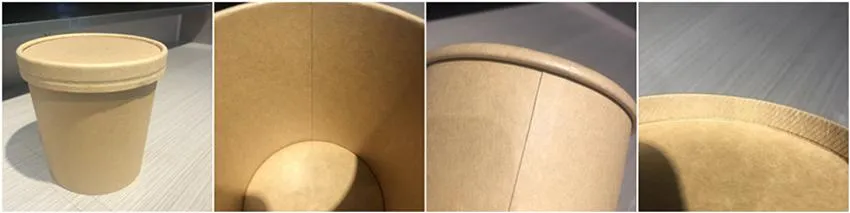

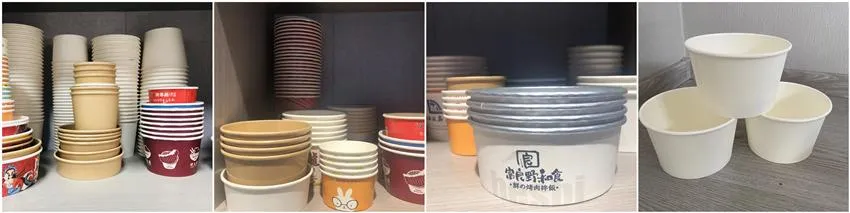

Our machines produce detailed paper bowls with strong sealing and beautiful knurling.

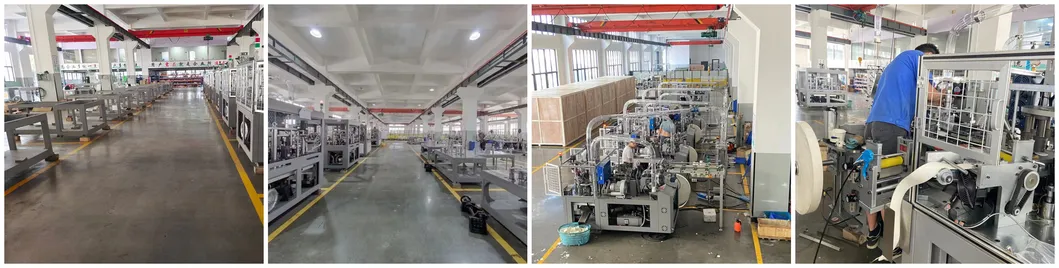

The workshop is well organized with professional technicians responsible for every assembly step.

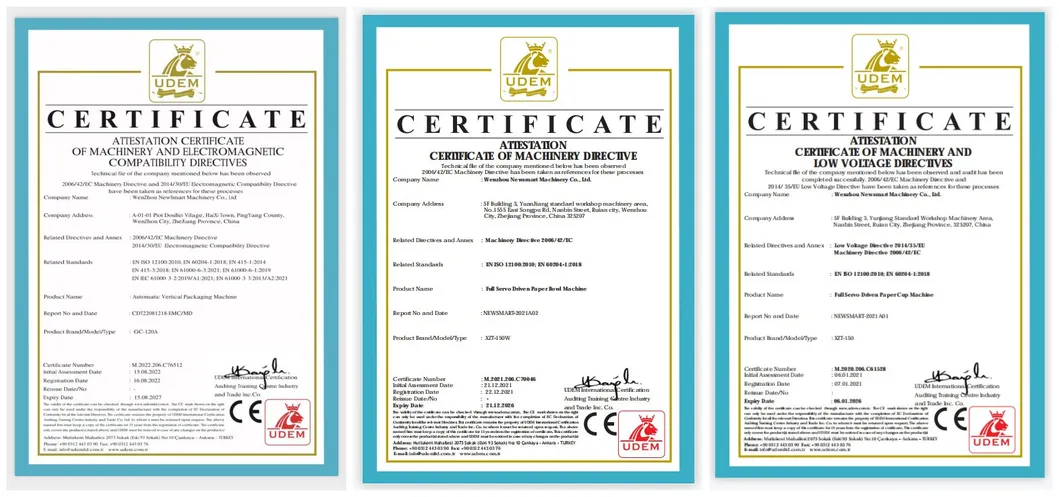

All our machines are CE certified.
We attend trade fairs regularly and our machines attract significant interest worldwide due to their high performance.
