⚙️ Product Description

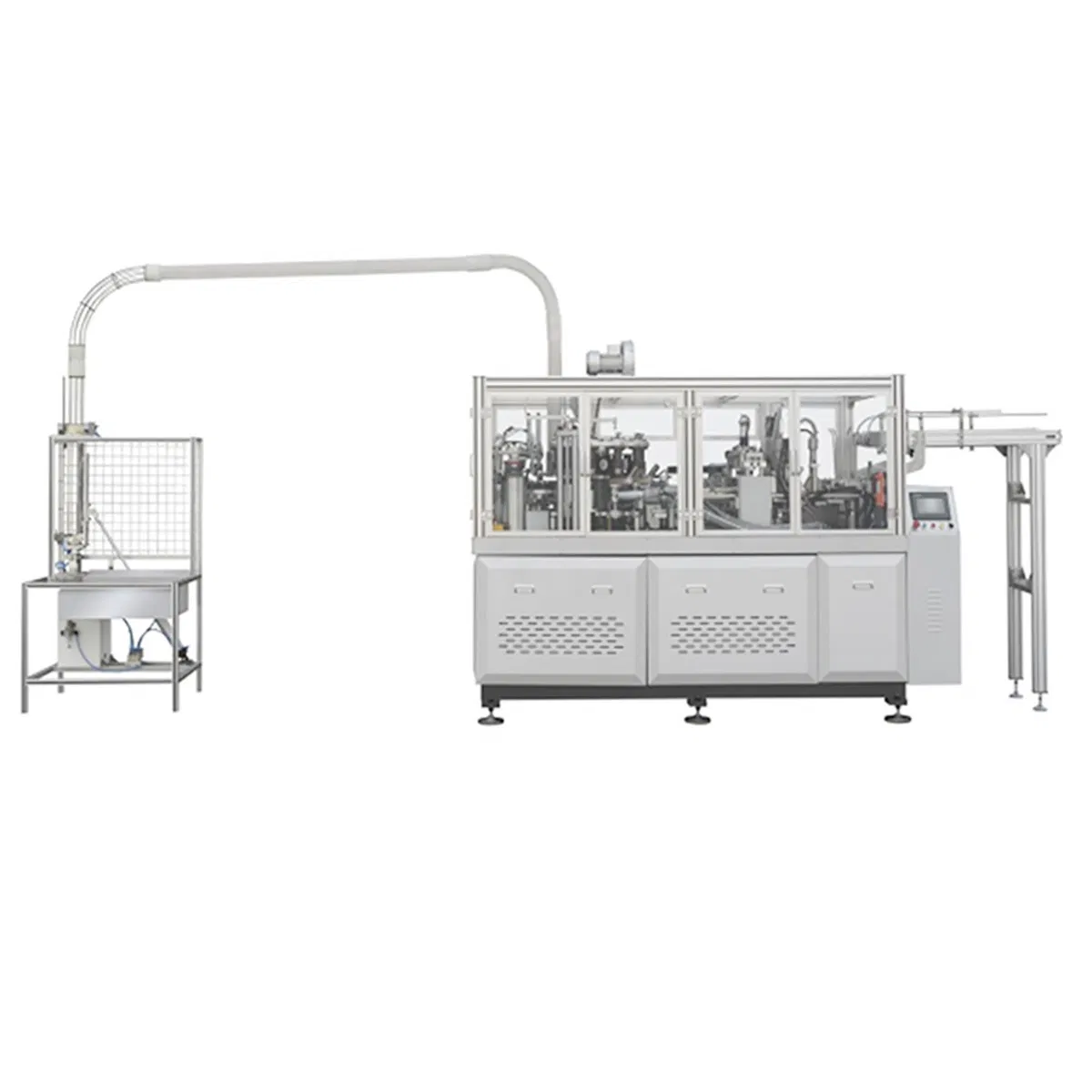

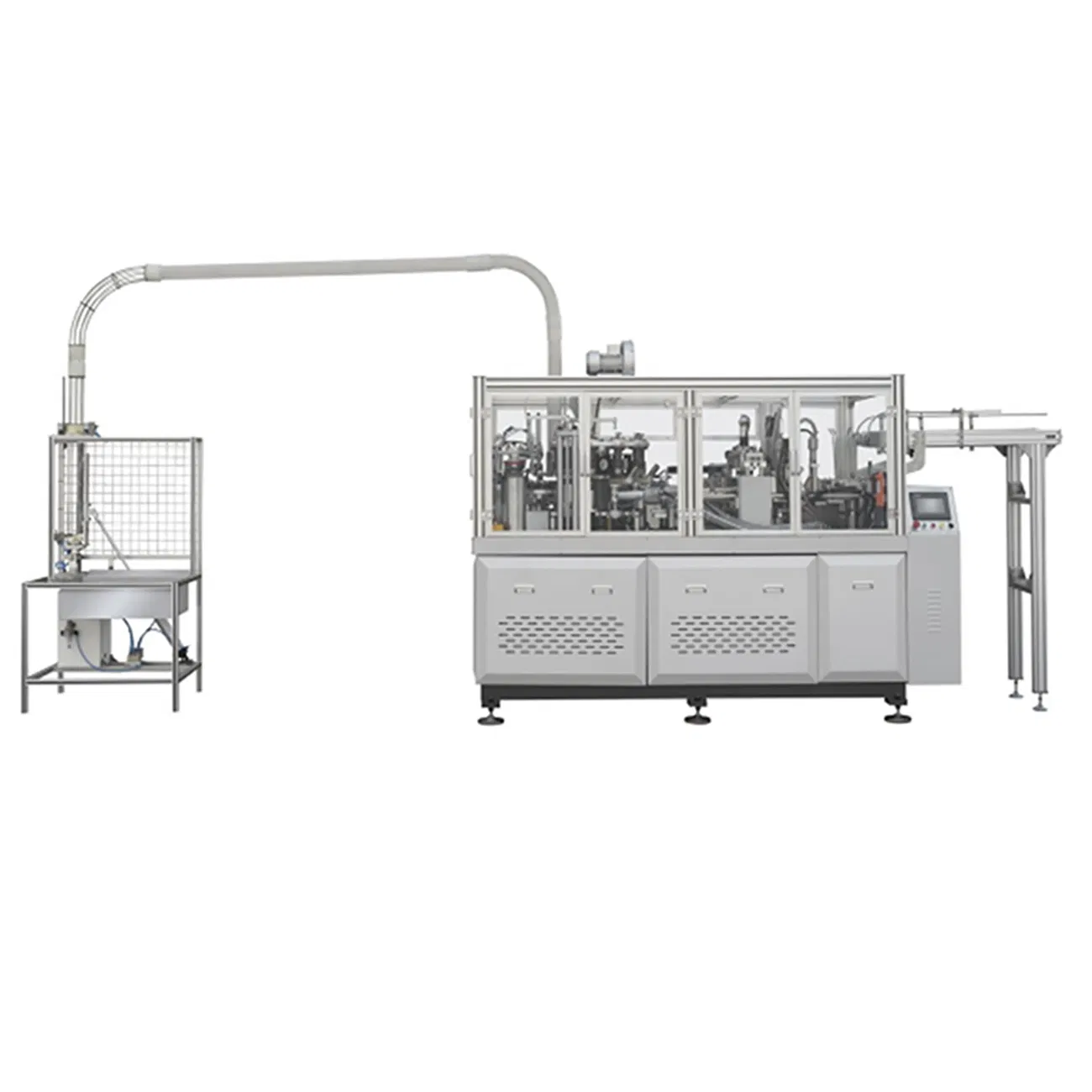

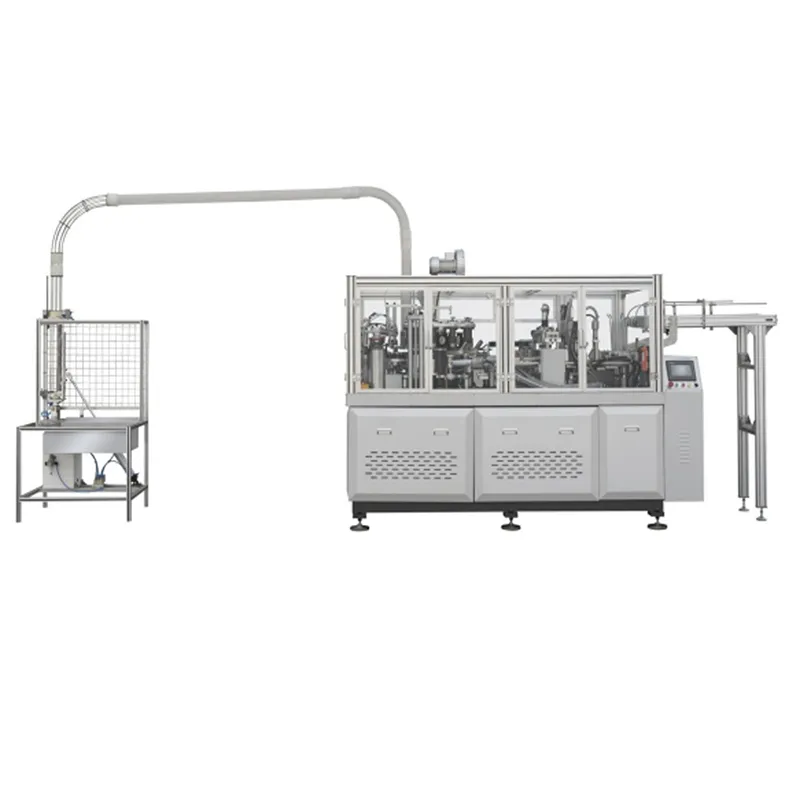

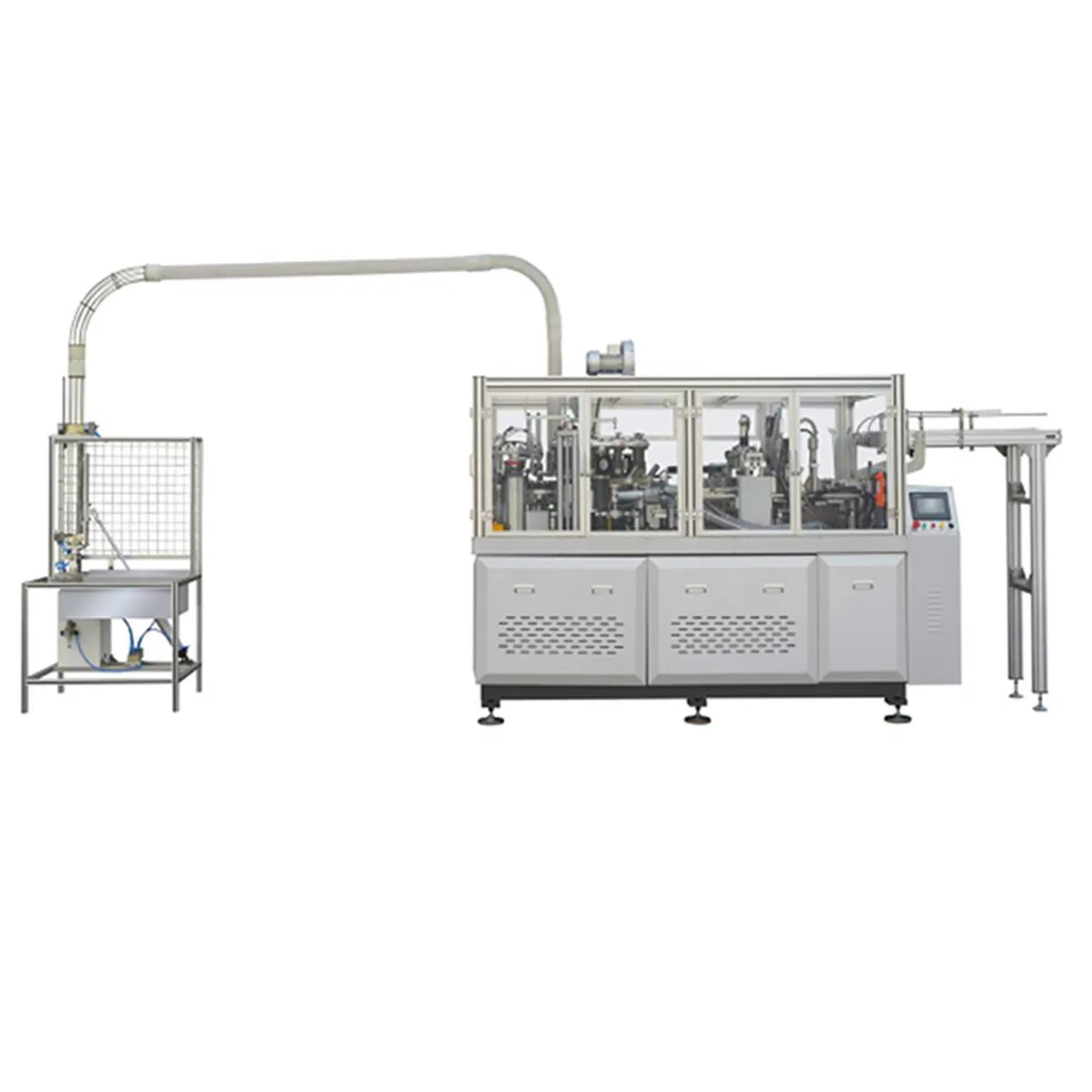

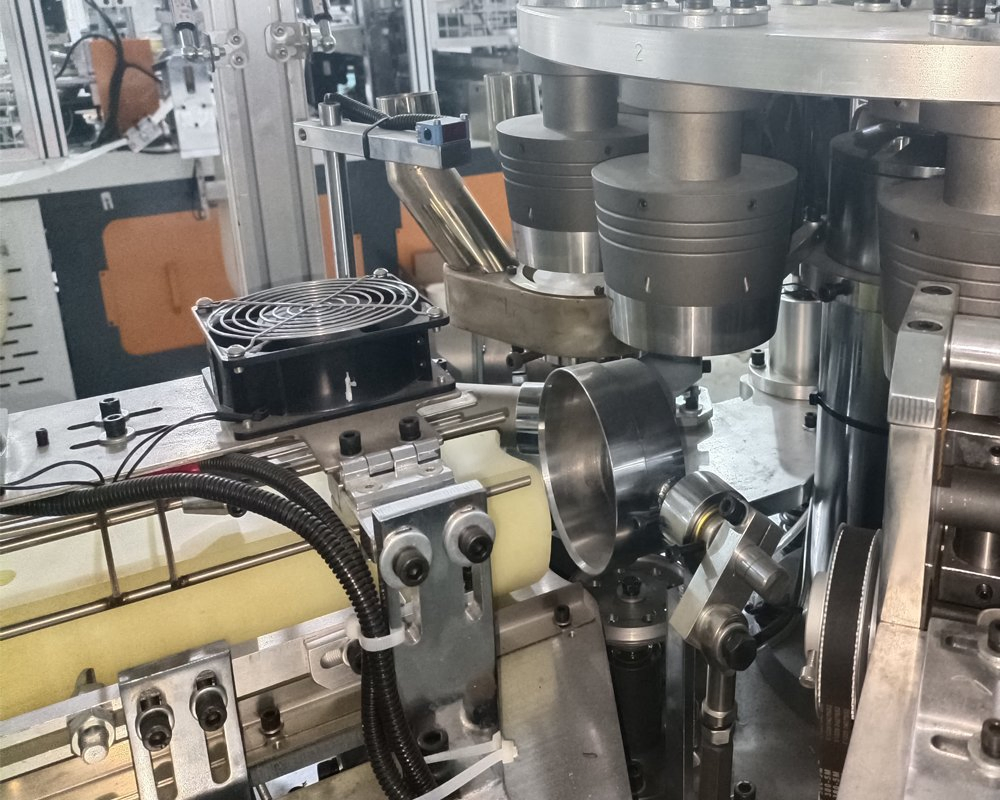

The XL-900S smart paper bowl machine uses a desktop layout that isolating the transmission parts and molds. The transmission parts are under the table and the mold on the table, this layout facilitates cleaning and maintenance. The machine adopts automatic spray lubrication, longitudinal shaft drive structure, barrel cylindrical dividing mechanism and gear transmission, to ensure the stability and quality of the whole machine. For electrical components, use PLC, photoelectric tracking and servo feed. The machines have a production capacity of up to 100-110 / min and are suitable for producing 12-32 oz cold / hot bowls.
❓ Frequently Asked Questions
Q1: What is the production speed of the XL-900S?
R1: The machine operates at a high speed of 100-110 pieces per minute, ensuring efficient production.
Q2: What range of paper bowl sizes can this machine produce?

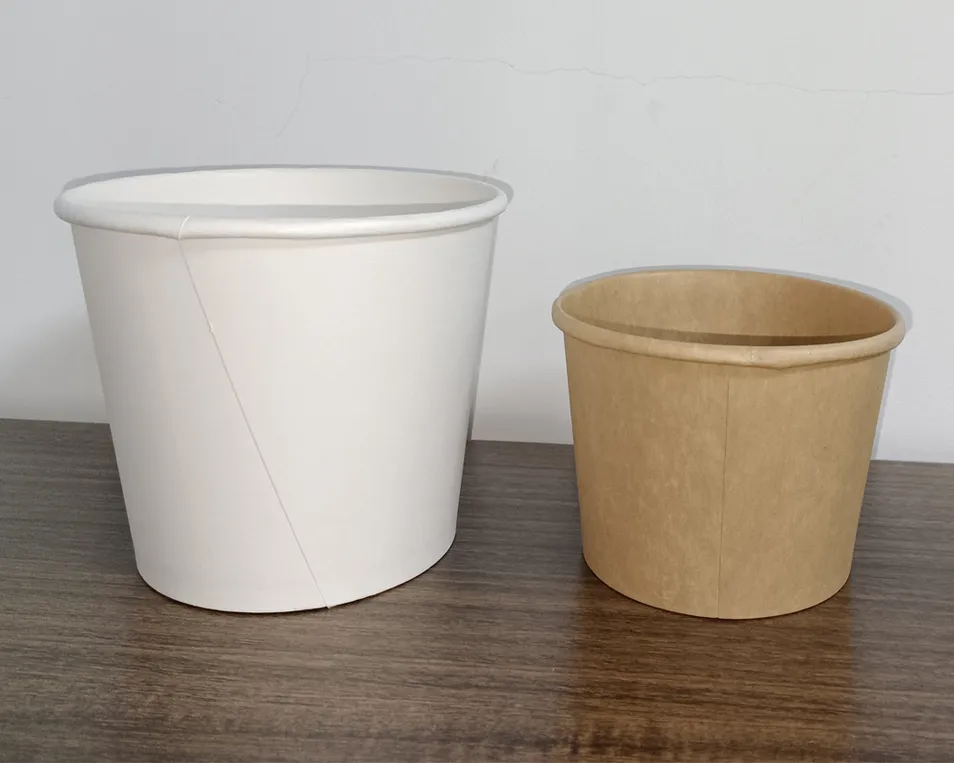

R2: It is designed to produce round paper bowls ranging from 12 oz to 32 oz. We usually suggest one machine for one specific size for optimal performance.
Q3: What are the power and voltage requirements?
R3: The machine requires a 380V 50Hz power supply and has a total power consumption of 25 Kw.
Q4: What kind of paper thickness is compatible with this machine?
R4: It supports paper thickness between 210 and 330 GSM, suitable for both single and double PE coated paper.
Q5: How does the intelligent temperature control work?
R5: The temperature is controlled via PLC PID. Users select the paper weight and PE type, and the system automatically adjusts the target temperature.
Q6: What is the lead time for manufacturing this machine?
R6: Normally, the production and completion of the machine take around 45 days.
