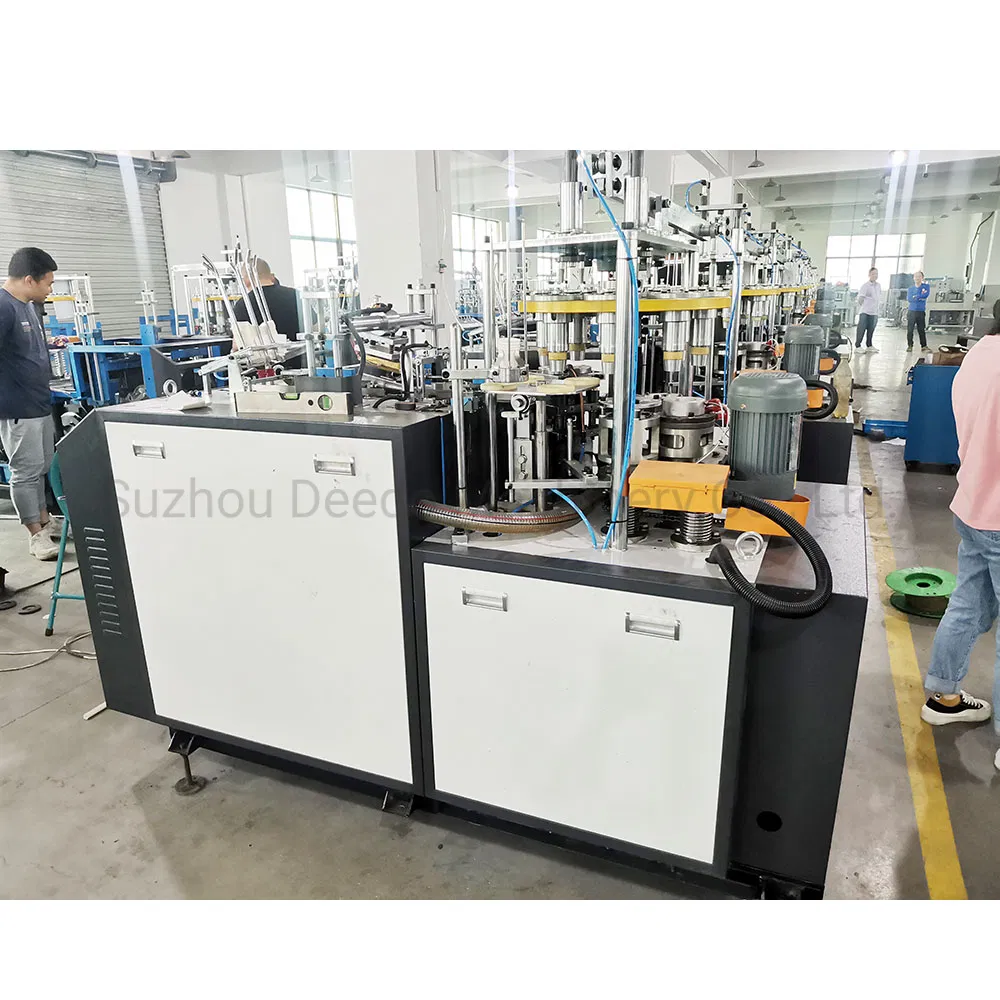

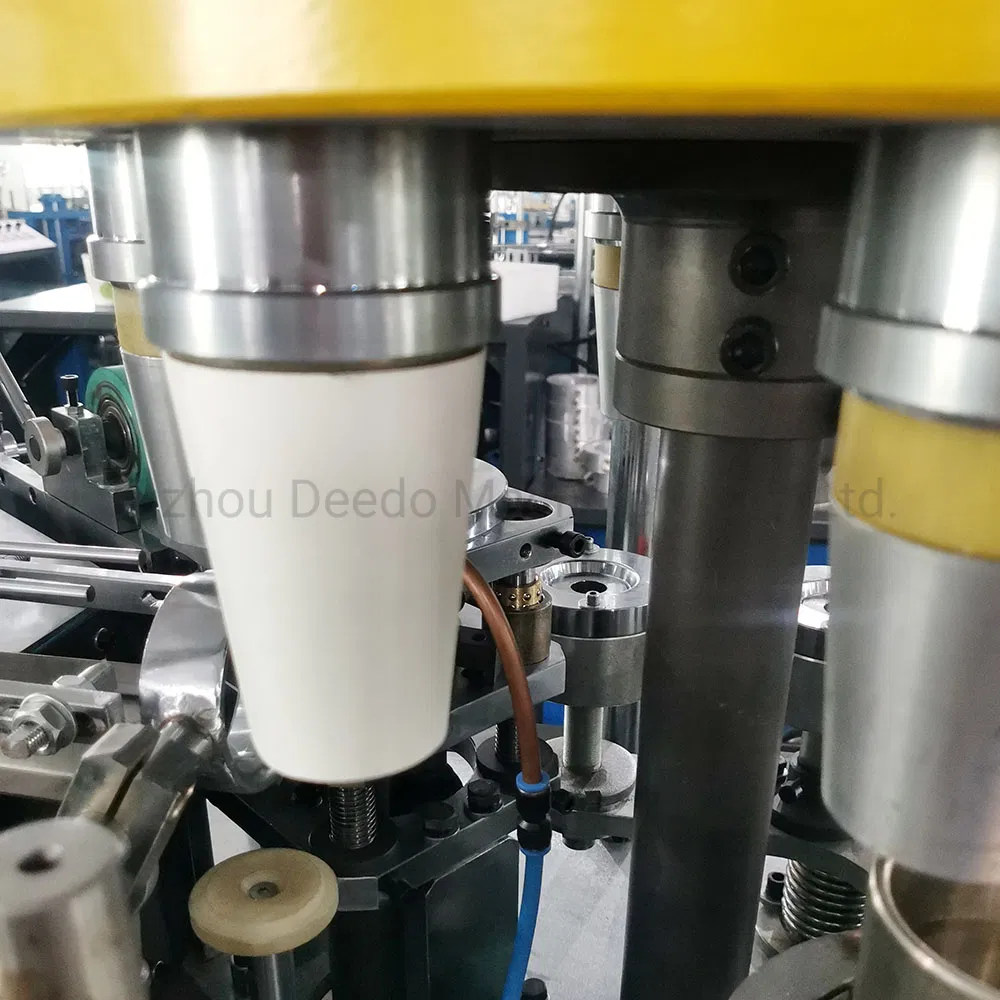

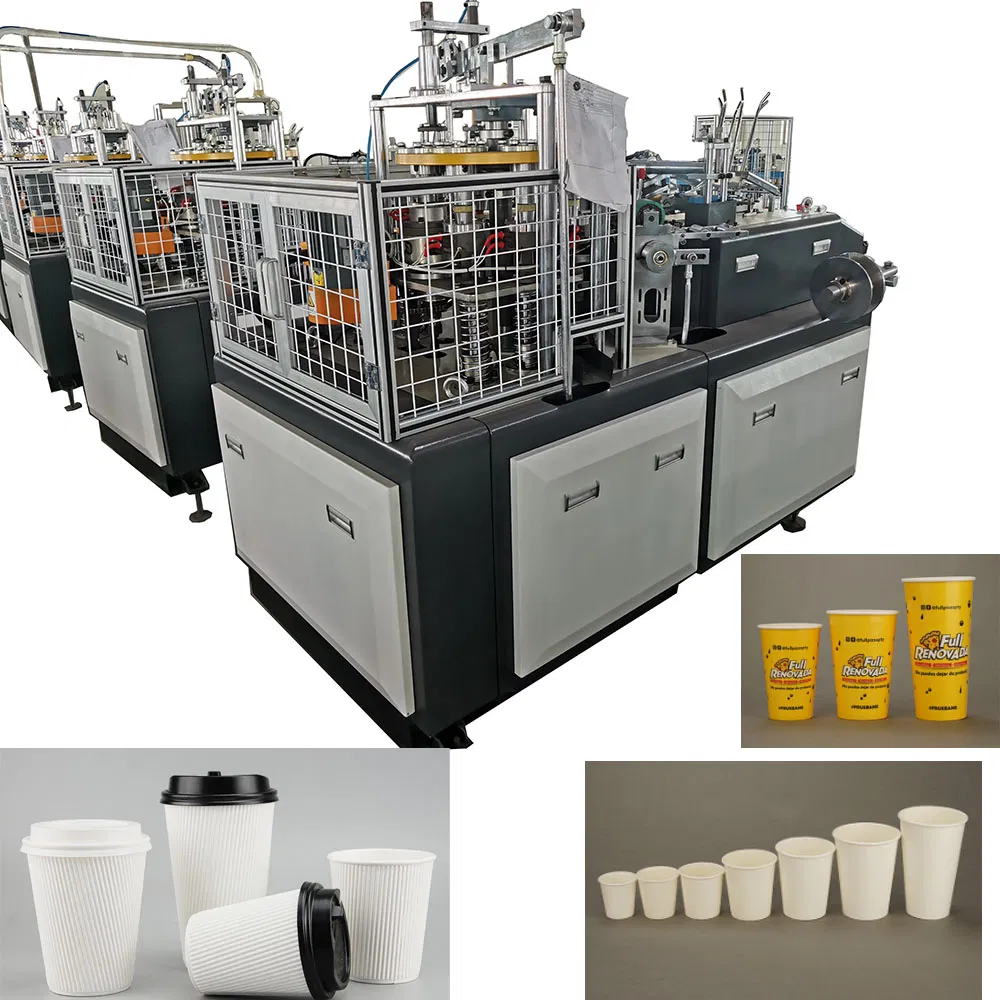

Paper Coffee Cup Machines Double Wall Cup Forming Making Machine
Paper Coffee Cup Machines Double Wall Cup Forming Making Machine
Paper Coffee Cup Machines Double Wall Cup Forming Making Machine
Paper Coffee Cup Machines Double Wall Cup Forming Making Machine
Paper Coffee Cup Machines Double Wall Cup Forming Making Machine
1 / 5
Paper Coffee Cup Machines Double Wall Cup Forming Making Machine
Paper Coffee Cup Machines Double Wall Cup Forming Making Machine
Paper Coffee Cup Machines Double Wall Cup Forming Making Machine
Paper Coffee Cup Machines Double Wall Cup Forming Making Machine
Paper Coffee Cup Machines Double Wall Cup Forming Making Machine

Paper Coffee Cup Machines Double Wall Cup Forming Making Machine

Customization: Available
Warranty: 18months
Applicable Objects: Paper Coated Paper
Send Inquiry

Product Description

📊 Basic Information
Model NO.
280
Cup Size
1-18oz
Speed
80-100pcs/min
Required Paper
Single/Double PE Coated
Automation
Automatic
Certification
CE
Power
7.8kw
Voltage
380V 50Hz
Weight
2500kg
PLC
Delta
Bearing
NSK
Inverter
ABB
⚙️ Product Description

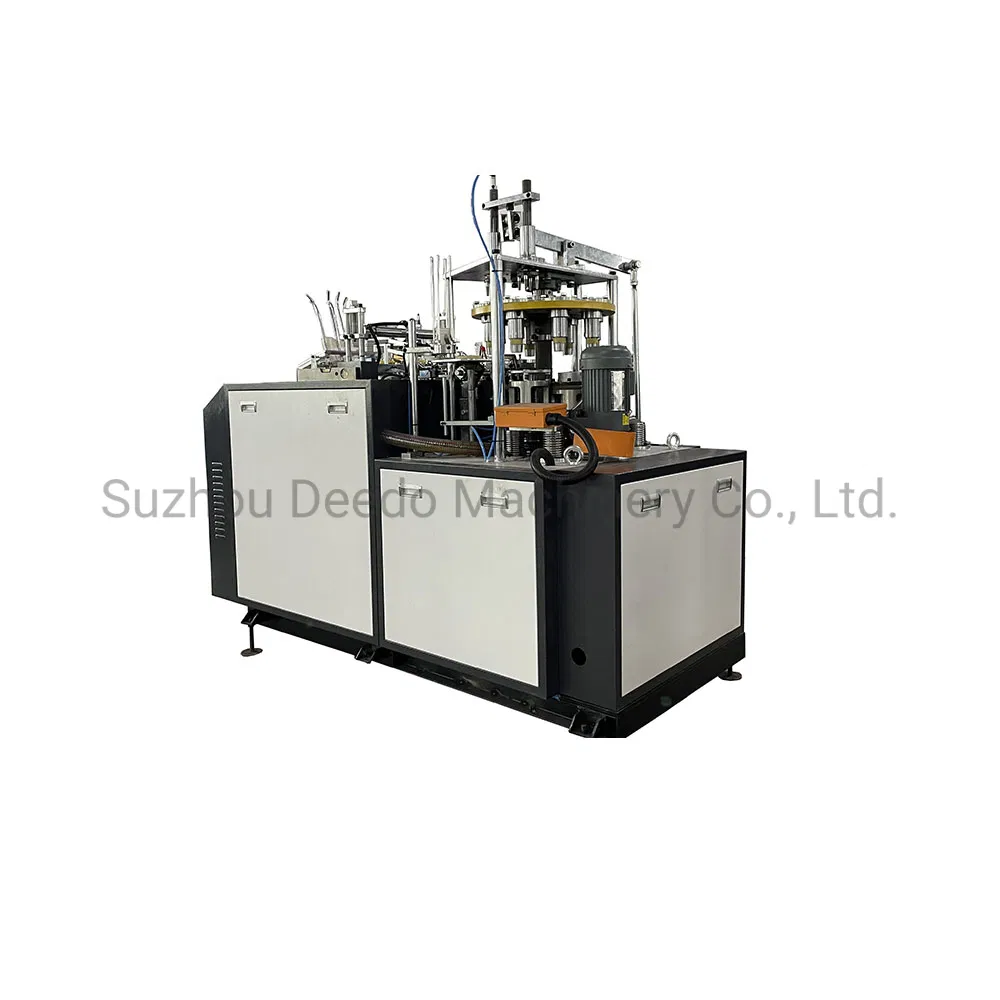

Automatic Paper Cup Making Machine
This equipment is designed for both single PE and double PE paper. It features automatic paper feeding, cup forming, accounting, and warning systems. Driven by gears (no chain) with automatic oil lubrication and PLC control, it ensures faster and more stable operation compared to traditional low-speed machines. Includes ultrasonic sealing and collection systems.
Automatic Paper Cup Making Machine
🔍 Detailed Features
  • Machine running by gear cam, no chain
  • Automatic oil lubrication
  • Intuitive button control
  • Integrated ultrasonic and collection system
  • High-quality brand electric parts
  • Advanced machine design for stability
  • Hydraulic loading and unloading

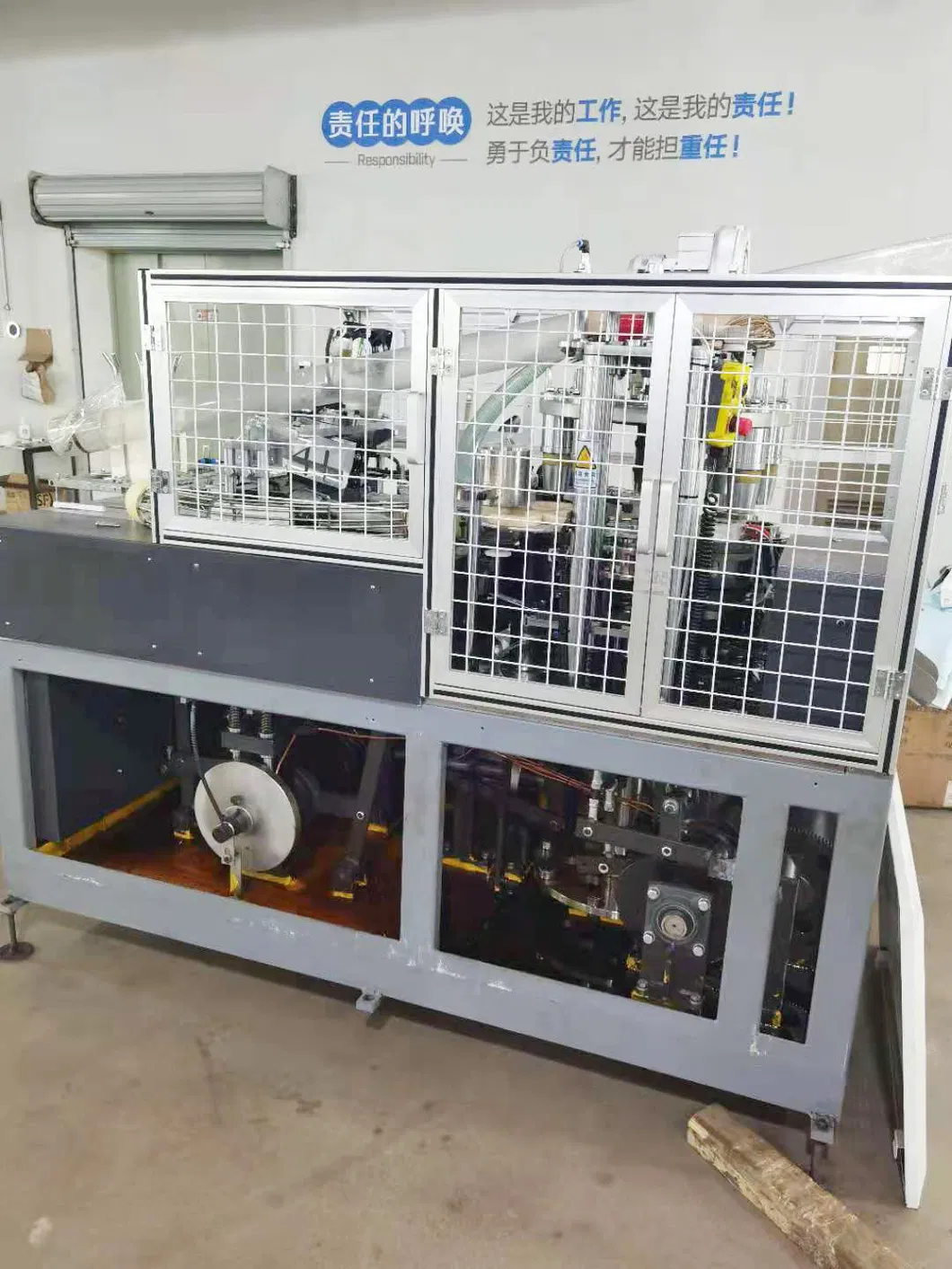

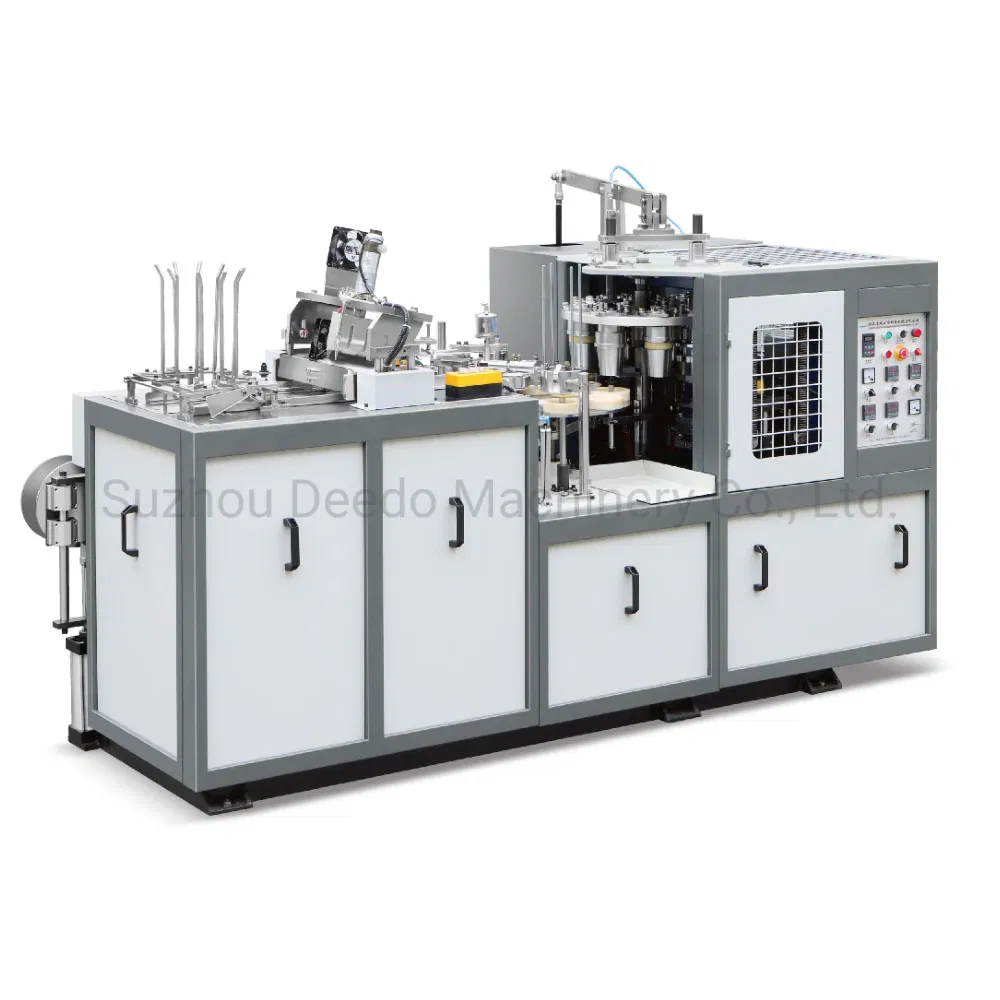

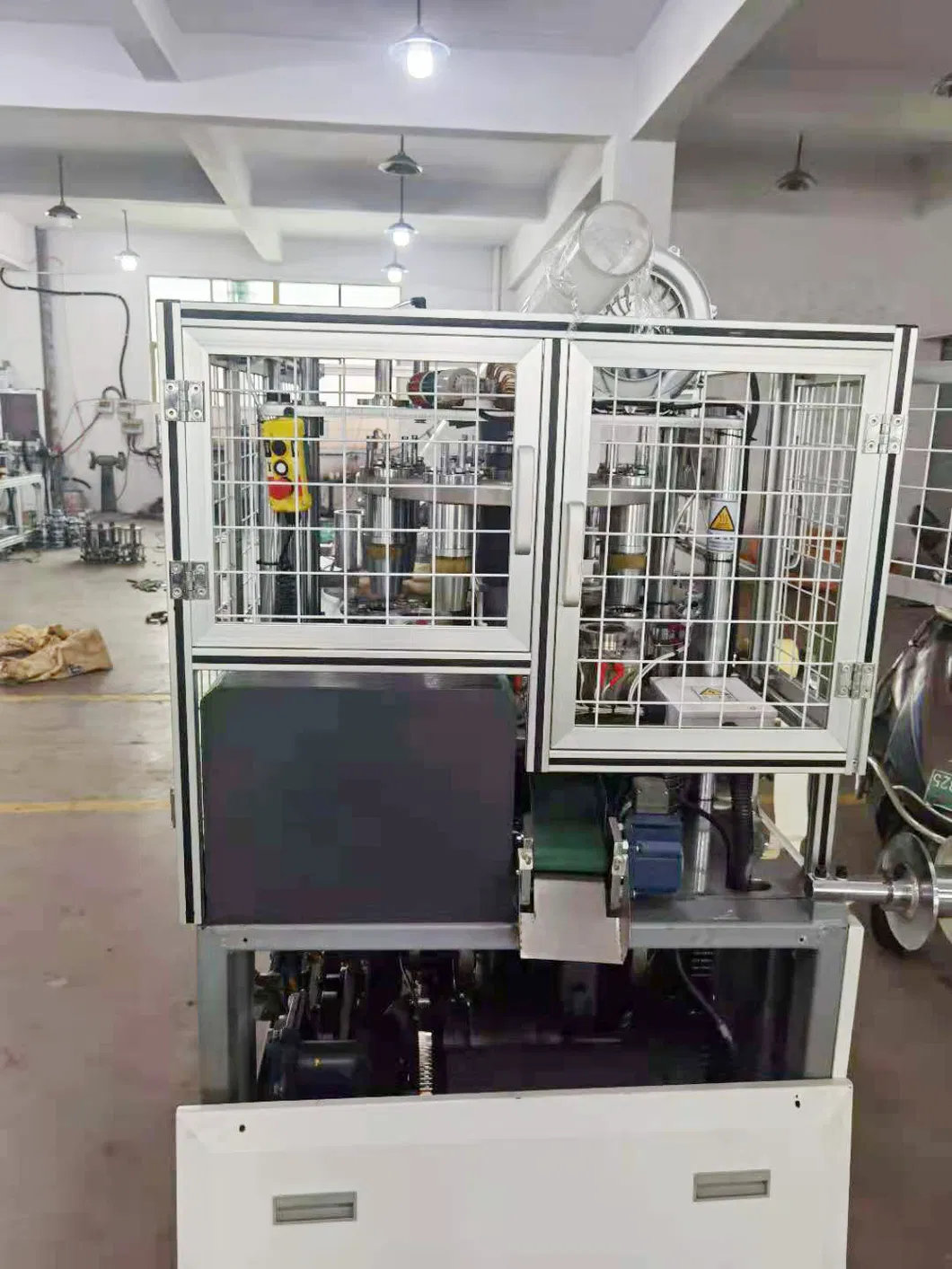

Machine Detail 1 Machine Detail 2 Machine Detail 3

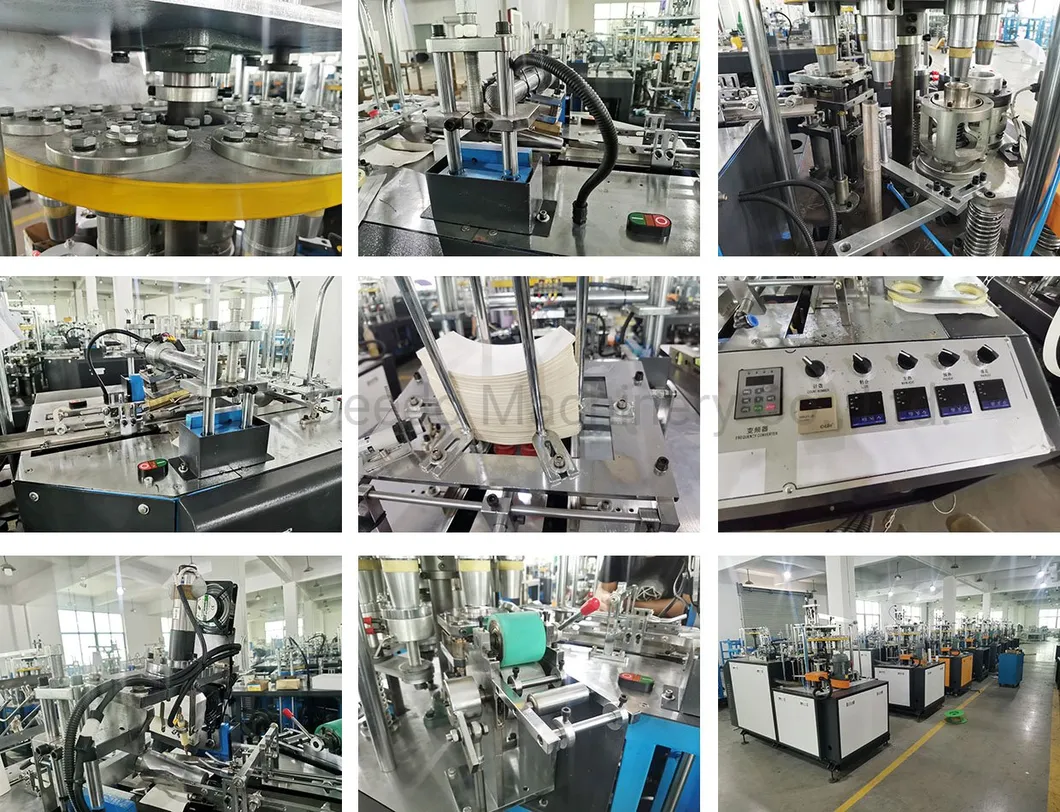

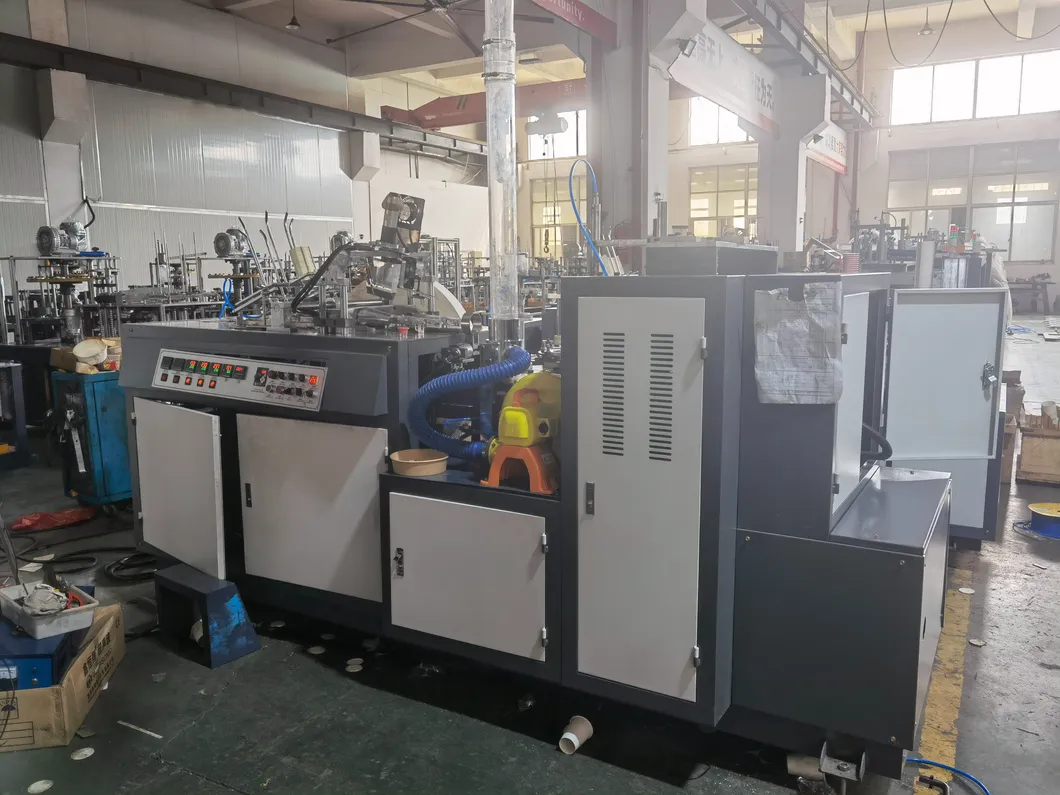

Machine Detail 4 Machine Detail 5
📋 Product Parameters
No. Model Name Technical Data
1Power7.8KW
2Capacity/Speed70-100pcs/min
3Paper Request135-380gsm
4Cup Size1.5-18 oz
5Machine Weight2500kg
6Voltage380V 50HZ or Customized
7PLCDelta / Customized
8UltrasoundIncluded
9Machine Size2100*1100*1700mm
Technical Advantages:
  • Advanced indexing cam open structure for manufacturing precision.
  • Swiss import flameless hot air system for stable performance.
  • High-strength structural profiles for a compact and stable frame.
  • Standardized parts for excellent interchangeability and easy maintenance.
  • Intelligent design with automatic fault alarms and parking isolation.

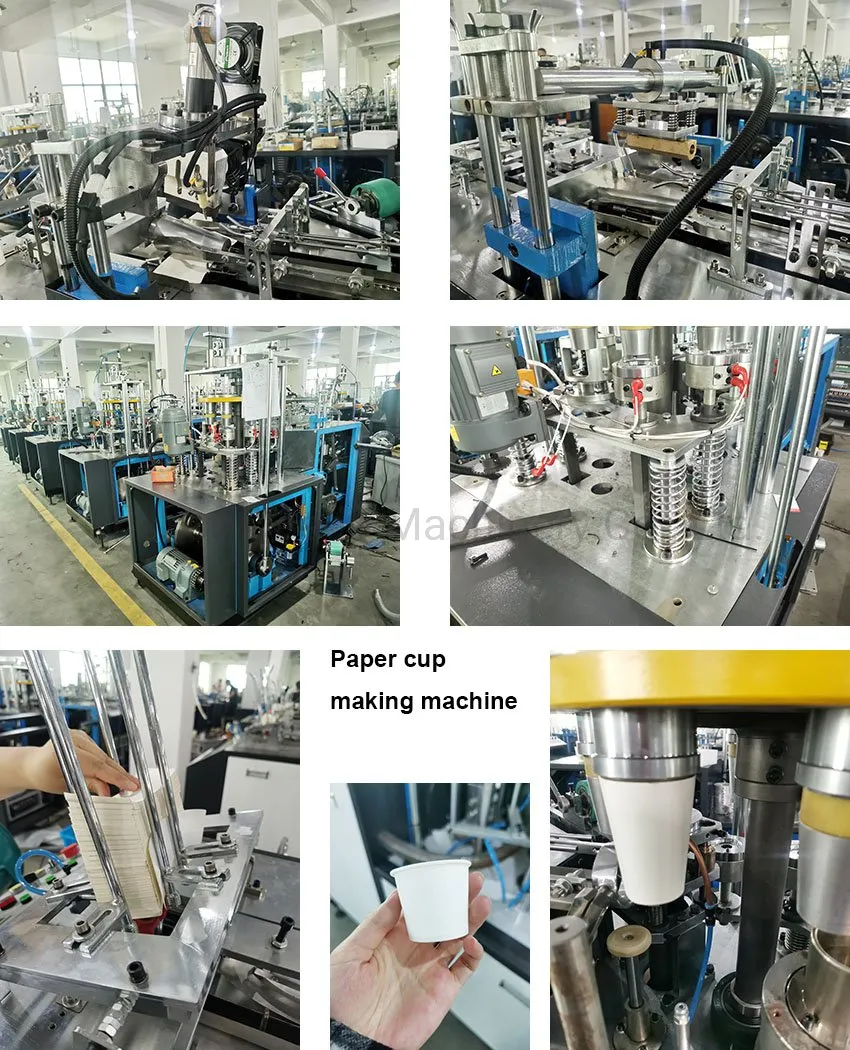

Technical Specifications
📦 Packaging & Shipping
Package Size
2600 x 1300 x 1700 cm
Gross Weight
2600.00kg
Packing Type
Film and Wood Case
Packaging and Shipping
📜 Certifications
Certification 1 Certification 2
⭐ Why Choose Us

R&D: Our engineers focus on continuous innovation in paper forming technology, combining powerful construction with aesthetic standards.

Quality Assurance: We maintain high consistency and reliability through strict QA protocols and safety management procedures.

Attention to Detail: We care about every detail to improve customer operation efficiency and convenience.

After-Sale Service: Our team responds to client inquiries or questions within 24 hours.

Service and Support
❓ Frequently Asked Questions
What types of paper can this machine process?
The machine is compatible with both single-side and double-side PE coated paper, ranging from 130 to 380 GSM.
What is the production speed of the machine?
The machine operates at a stable speed of 70-100 pieces per minute, with a maximum capacity of up to 150 pieces per minute depending on the model.
Does the machine require manual lubrication?
No, it is equipped with an automatic oil lubrication system that ensures high-speed operation for long periods without interruption.
What range of cup sizes can be manufactured?
This machine is versatile and can produce paper cups ranging from 1.5 oz to 18 oz.
What are the key electrical components used?
The machine utilizes high-quality components including a Delta PLC, NSK bearings, SMC cylinders, and an ABB inverter.
Is the machine suitable for both hot and cold drink cups?
Yes, the machine is designed to produce cups suitable for both hot and cold beverages.
