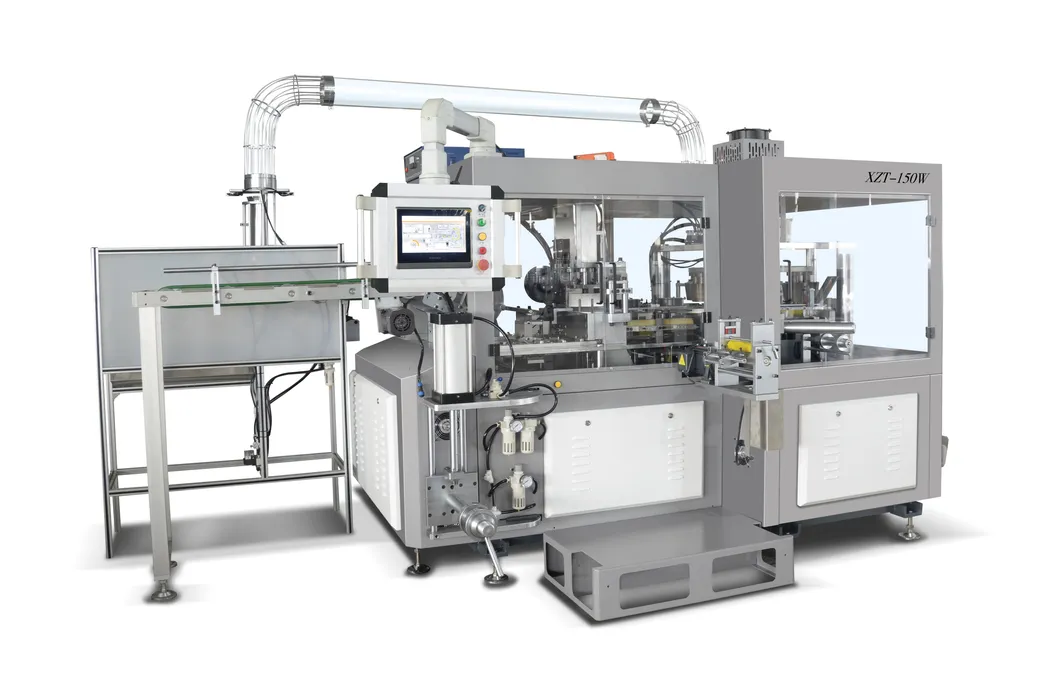

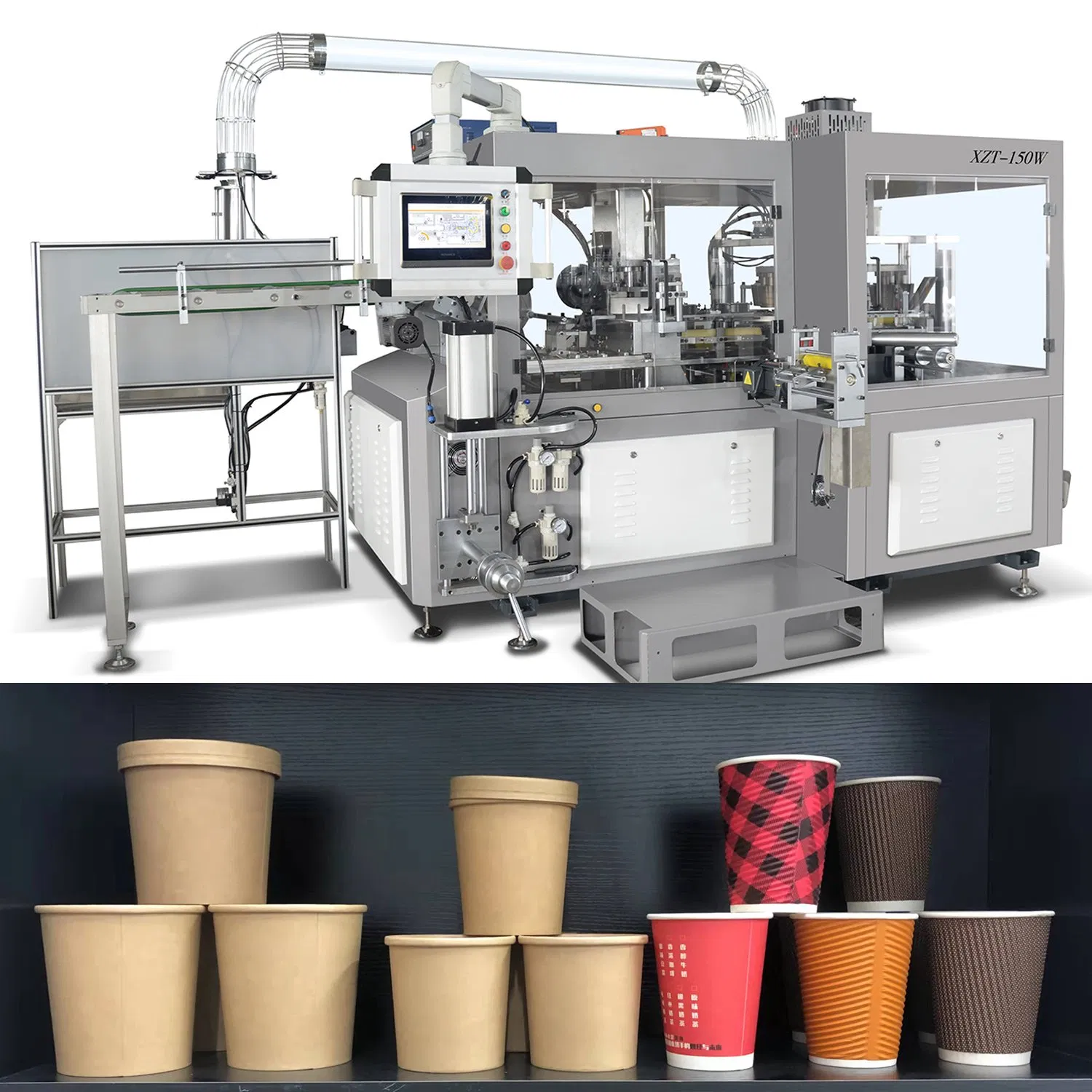

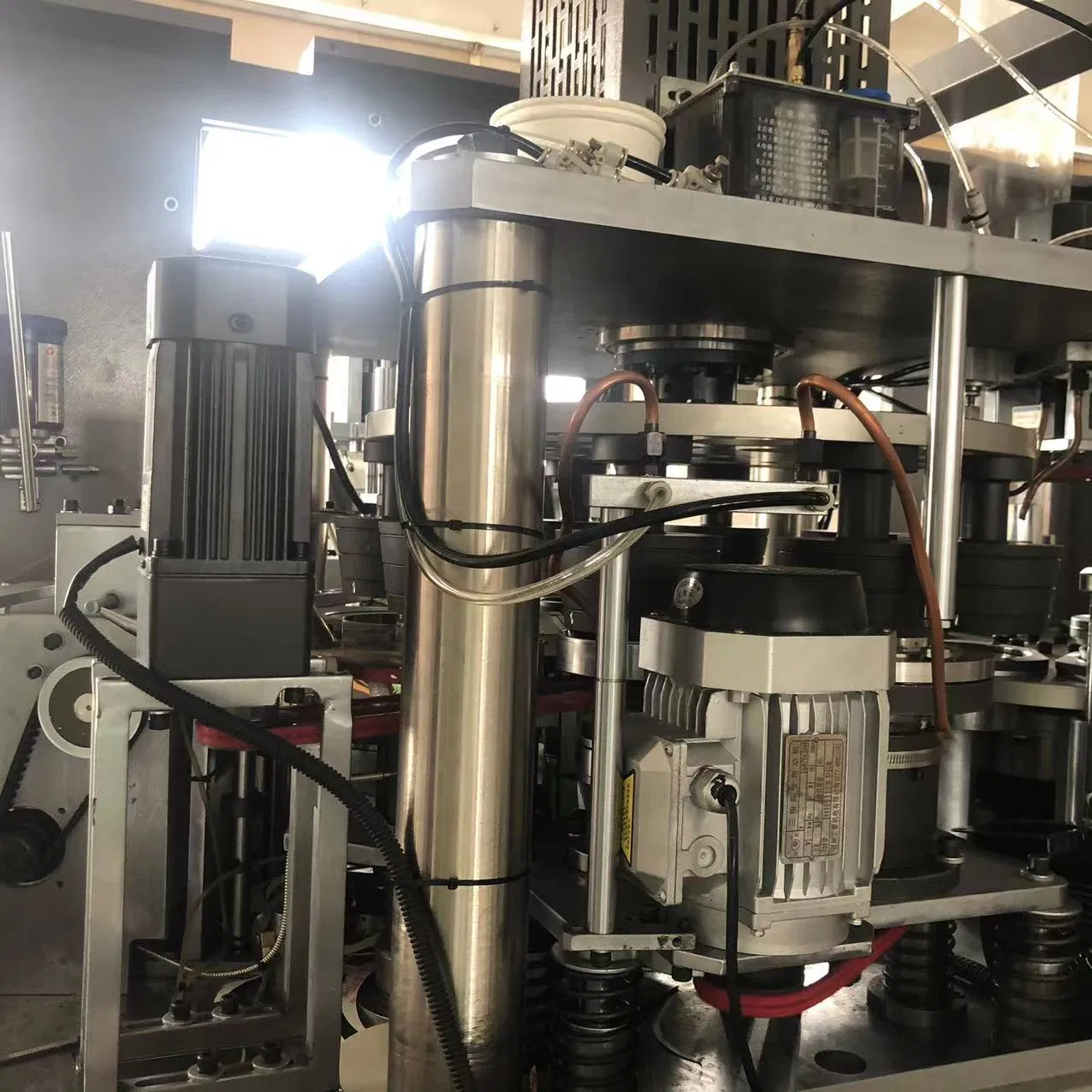

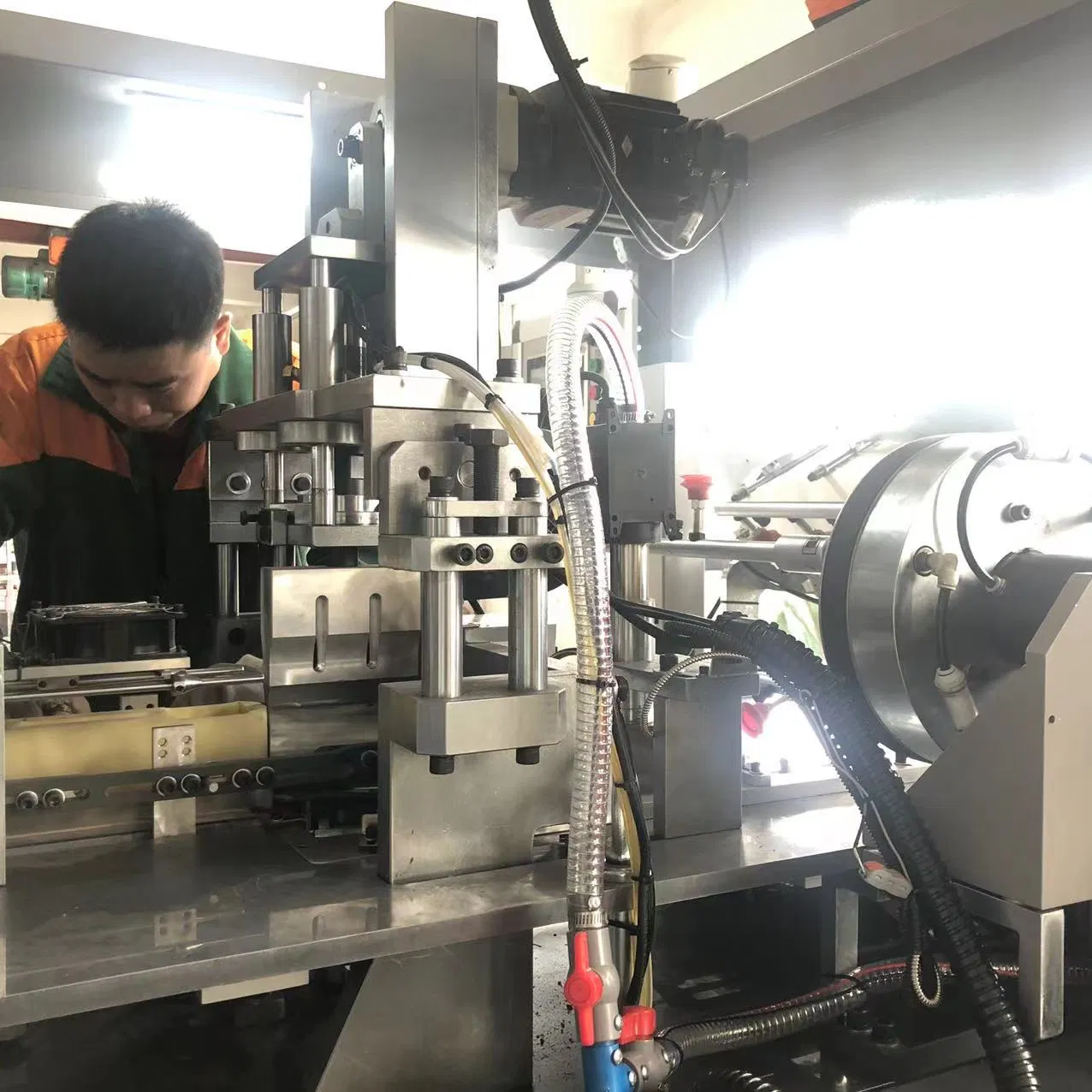

The XZT-150W features advanced full servo-driven technology throughout the entire machine. Unlike traditional gear or chain transmission designs, our servo drives work independently to control each station with remarkable accuracy, ensuring synchronized motion and high-speed stability.
| Model | XZT-150W Paper Bowl Machine |
| Bowl Size | 15-57oz (Max bottom 130mm, top 150mm, height 135mm) |
| Material | 170-380GSM single or double PE/ PLA coated paper |
| Speed | 120-150 pcs/min |
| Power Supply | 3 Phase 380V 50Hz, 44KW (Running consumption: 20KW) |
| Air Supply | 0.6Mpa (Consumption: 0.5Nm3/min) |
| Dimensions | 2760L * 2160W * 1925H mm |
| Weight | 4500 kgs |

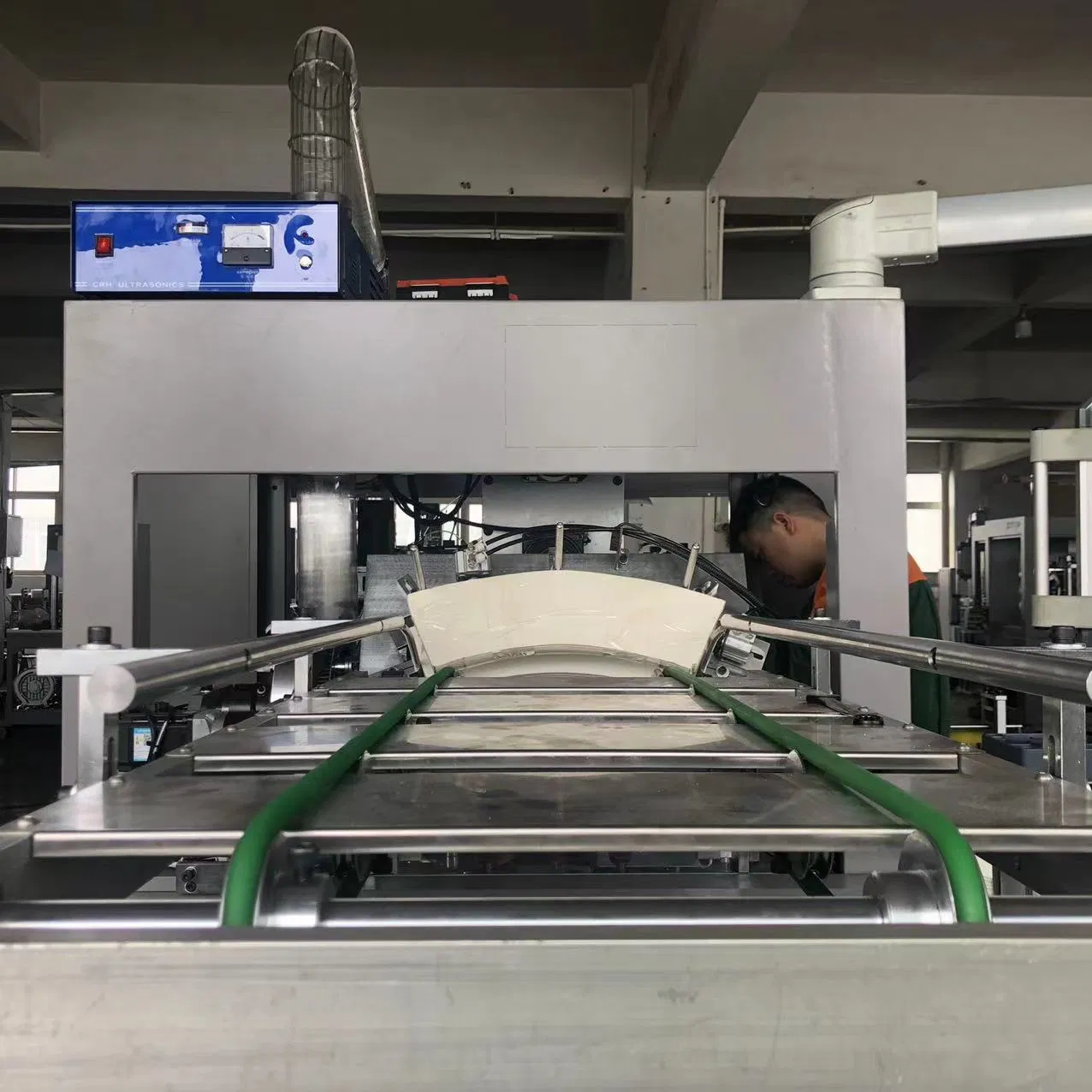

Loading Table: Features full cup fan paper capacity for 3000-4000 cups. Conveyor feeding powered by Step Motor.

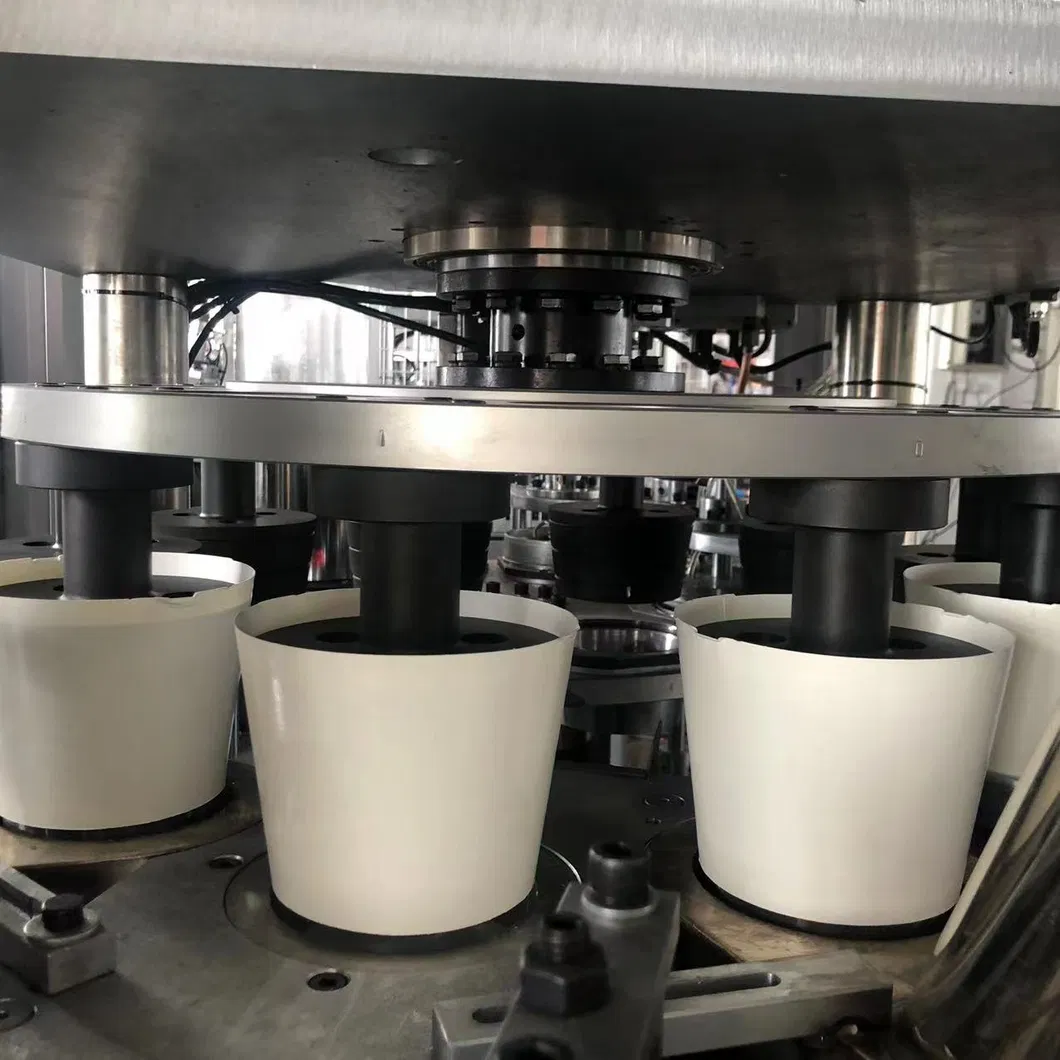

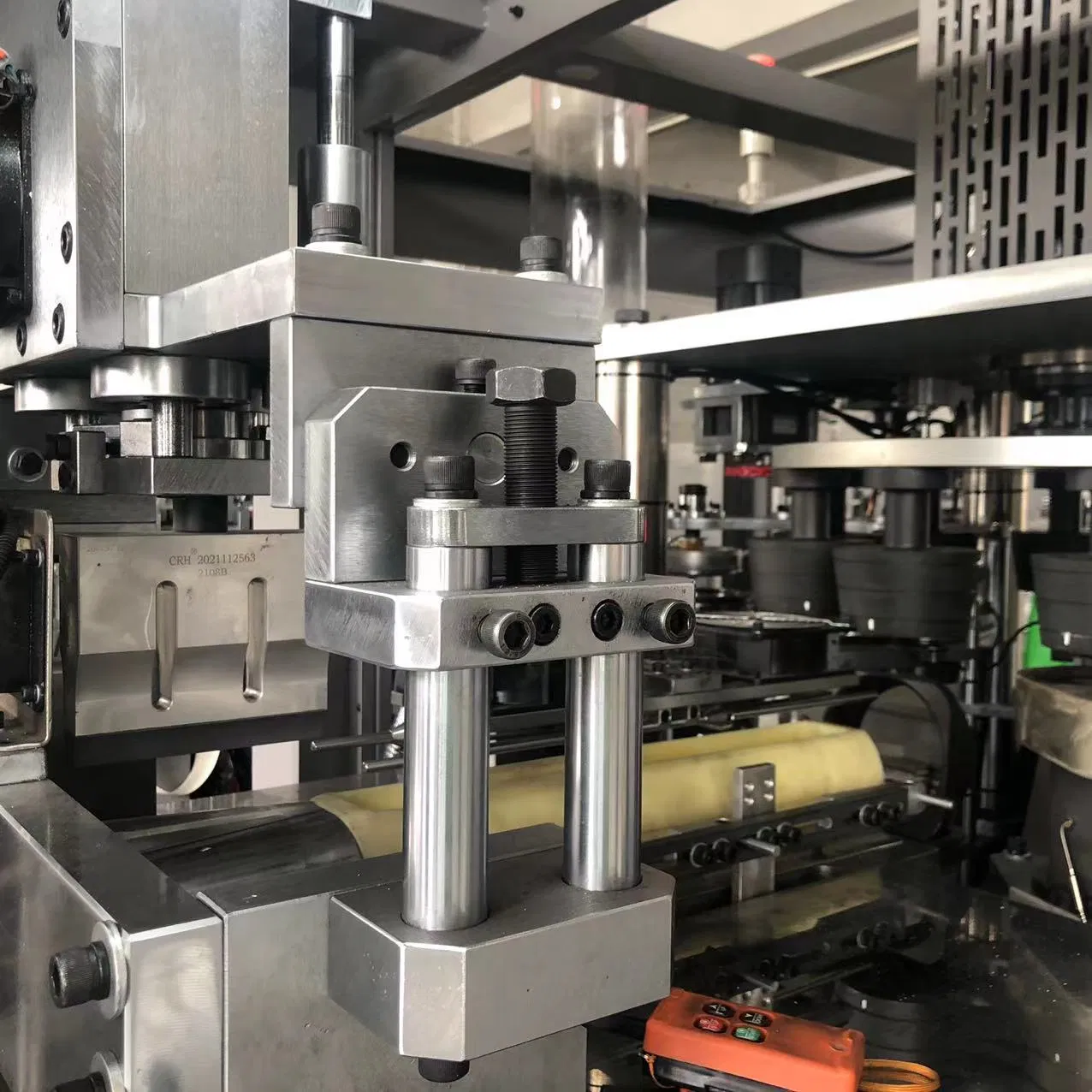

Bottom Forming: Uses latest heating process with solid aluminum molds for durability and perfect sealing.

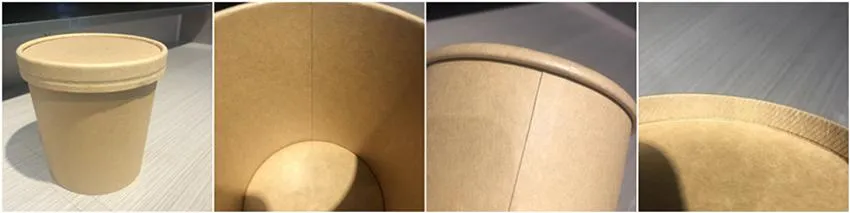

Our machines produce detailed paper bowls with stronger sealing and beautiful knurling.

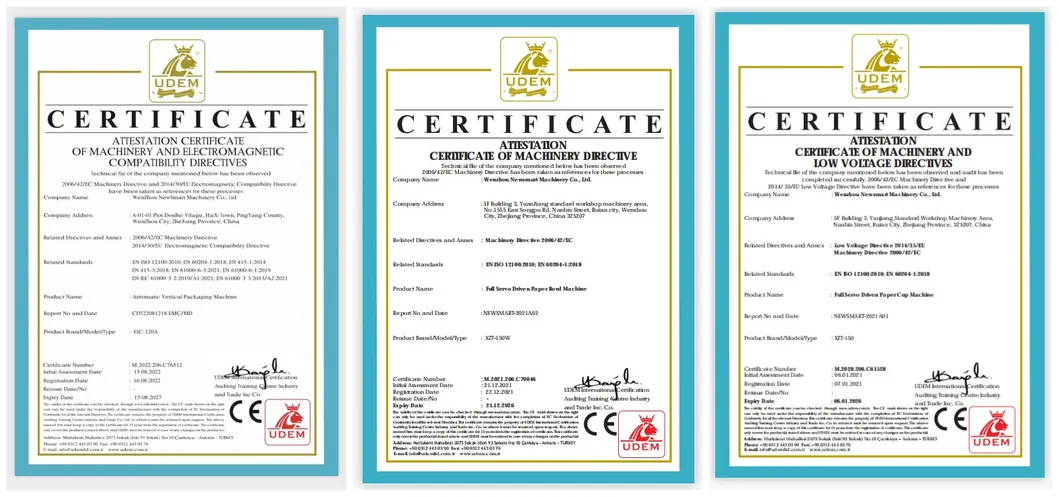

The workshop is well organized, and all machines are CE certified, ensuring international safety and quality standards.
We attend international trade fairs regularly. Our machines consistently attract significant interest due to their high-speed performance and reliability.
